Hands on clang-format
- 1. Hands on clang-format Adding (n)one feature at a time Kai Wolf kai-wolf.me March 31, 2016
- 2. A quick reality check - please raise hand • We have a (living) coding style guide • We use code generators • We do (semi-)automatized refactoring (clang-tidy, Clang MapReduce, awk | grep | sed, ...) • We use automatic code formatting tools • We utilize pre/post-commit hooks for these kind of stuff 2 / 25
- 3. Why is it important? • Inconsistent formatting distracts the reader • Formatting code by hand is tedious • Nobody reads the style guide anyways • Automatic/large scale refactoring not feasible without automatic code formatting 3 / 25
- 4. Lots of auto formatting tools available Artistic Style (AStyle) Works. Focuses only on indentation and brace/bracket placement Uncrustify Many, many, many rules (around ~200). Might take a whole day to adjust to own style guide. GNU indent Works most of the time (see OpenSSL Blog - CodeReformat Finished). Basically has three presets available (Ansi, GNU, K&R). Indent needs to know about all types used within the code. GC GreatCode Intrusive formatting rules. May break your code. 4 / 25

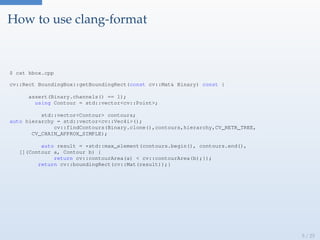

- 5. How to use clang-format $ cat bbox.cpp cv::Rect BoundingBox::getBoundingRect(const cv::Mat& Binary) const { assert(Binary.channels() == 1); using Contour = std::vector<cv::Point>; std::vector<Contour> contours; auto hierarchy = std::vector<cv::Vec4i>(); cv::findContours(Binary.clone(),contours,hierarchy,CV_RETR_TREE, CV_CHAIN_APPROX_SIMPLE); auto result = *std::max_element(contours.begin(), contours.end(), [](Contour a, Contour b) { return cv::contourArea(a) < cv::contourArea(b);}); return cv::boundingRect(cv::Mat(result));} 5 / 25
- 6. How to use clang-format $ cat bbox.cpp | clang-format -style=’{BasedOnStyle: Google, IndentWidth: 4’ cv::Rect BoundingBox::getBoundingRect(const cv::Mat& Binary) const { assert(Binary.channels() == 1); using Contour = std::vector<cv::Point>; std::vector<Contour> contours; auto hierarchy = std::vector<cv::Vec4i>(); cv::findContours(Binary.clone(), contours, hierarchy, CV_RETR_TREE, CV_CHAIN_APPROX_SIMPLE); auto result = *std::max_element( contours.begin(), contours.end(), [](Contour a, Contour b) { return cv::contourArea(a) < cv::contourArea(b); }); return cv::boundingRect(cv::Mat(result)); } 6 / 25
- 7. How to use clang-format Plugins available for Vi, Emacs, Visual Studio etc. Custom integration almost always possible. For example: CLion 7 / 25
- 8. How to use clang-format There are many deliberate options available: Release Number of options clang-format v3.5 53 clang-format v3.6 62 clang-format v3.7 65 clang-format v3.8 70 clang-format v3.9 75 8 / 25
- 9. Motivating example Say for example, our style guide suggests that this: void foo(int a, int b, double c, const char* str); should be formatted like this: void foo(int a,int b,double c,const char* str); 9 / 25
- 10. What does clang-format offer here? 10 / 25
- 11. Let’s try to fix that In order to start hacking we need the llvm repository with the following subprojects: $ export LLVM_SVN=http://llvm.org/svn/llvm-project $ svn co ${LLVM_SVN}/llvm/trunk llvm $ cd llvm/tools $ svn co ${LLVM_SVN}/cfe/trunk clang $ cd ../projects $ svn co ${LLVM_SVN}/test-suite/trunk test-suite $ cd ../tools/clang/tools $ svn co ${LLVM_SVN}/clang-tools-extra/trunk extra 11 / 25
- 12. Navigate around the code base Formatting rules for clang-format are located in llvm/tools/clang/lib/Format/ Unittests are located in llvm/tools/clang/unittests/Format/ Frontend for clang-format $ cd llvm/tools/clang # clang subproject $ cat tools/clang-format/ClangFormat.cpp int main(int argc, const char **argv) { ... for (unsigned i = 0; i < FileNames.size(); ++i) Error |= clang::format::format(FileNames[i]); 12 / 25
- 13. clang::format::format static bool format(StringRef FileName) { ... if (fillRanges(Code.get(), Ranges)) return true; ... FormatStyle FormatStyle = getStyle(Style, AssumedFileName, FallbackStyle) ... Replacements Replaces = sortIncludes(FormatStyle, Code, Ranges) ... Replacements FormatChanges = reformat(FormatStyle, ChangedCode, Ranges) } 13 / 25
- 14. clang::format::reformat ... for (const tooling::Range &Range : Ranges) { SourceLocation Start = StartOfFile.getLocWithOffset( Range.getOffset()); SourceLocation End = Start.getLocWithOffset(Range.getLength()); CharRanges.push_back( CharSourceRange::getCharRange(Start, End)); } return reformat(Style, SourceMgr, ID, CharRanges, IncompleteFormat); 14 / 25
- 15. clang::format::reformat FormatStyle Expanded = expandPresets(Style); if (Expanded.DisableFormat) return tooling::Replacements(); Formatter formatter(Expanded, SourceMgr, ID, Ranges); return formatter.format(IncompleteFormat); 15 / 25
- 16. clang::tok::TokenKind void foo(int a, int b); UnwrappedLineParser Parser(); -> readTokens(); -> parseFile(); -> parseLevel(); -> parseStructuralElement(); <- AnnotatedLines 0 kw_void 1 identifier 2 l_param 3 kw_int 4 identifier 5 comma 6 kw_int 7 identifier 8 r_param 9 semi 16 / 25
- 17. clang::format For each annotated line (TokenAnnotator.cpp): void TokenAnnotator:: calculateFormattingInformation( AnnotatedLine &Line); Fortunately not much to do here for us: bool TokenAnnotator::spaceRequiredBetween( const AnnotatedLine &Line, const FormatToken &Left, const FormatToken &Right); 17 / 25
- 18. Our patch (excerpt) Format.h /// b If c true, spaces will be inserted between /// function parameters. bool SpacesBetweenFunctionParameters; TokenAnnotator.cpp ... if (Right.is(TT_OverloadedOperatorLParen)) return Style.SpaceBeforeParens == FormatStyle::SBPO_Always; if (Left.is(tok::comma)) // return true; return Style.SpacesBetweenFunctionParameters; if (Right.is(tok::comma)) return false; 18 / 25
- 19. Preparing the patch Tests are looking good. TEST_F(FormatTest, SpacesBetweenFunctionParameters) { FormatStyle Spaces = getLLVMStyle(); Spaces.SpacesBetweenFunctionParameters = false; verifyFormat("void foo(int a);", Spaces); verifyFormat("void foo(int a,double b);", Spaces); verifyFormat("void foo(int a,double b,char c);", Spaces); Spaces.SpacesBetweenFunctionParameters = true; verifyFormat("void foo(int a, double b);", Spaces); verifyFormat("void foo(int a, double b, char c);", Spaces); } By the way: If you manage an open source project, make sure to explain how to contribute! • How to get going? How to submit your patch? • Who decides what patches are accepted? • Who should review your patch? • What should be included in the patch? (doc, unittests, full file context diff etc.) 19 / 25
- 21. That paragraph must be new... 21 / 25
- 22. Yes, indeed By the time I’ve created the patch, clang-format 3.7 was the current release 22 / 25
- 24. I don’t always accidentally... 24 / 25
- 25. 25 / 25
