HBase tales from the trenches
- 1. © Cloudera, Inc. All rights reserved. Wellington Chevreuil

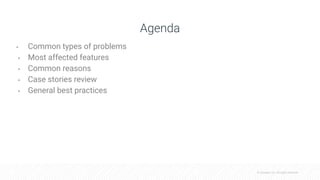

- 2. © Cloudera, Inc. All rights reserved. Agenda • Common types of problems • Most affected features • Common reasons • Case stories review • General best practices
- 3. © Cloudera, Inc. All rights reserved. Common types of problems • RegionServers/Master crashes • Master timing out during initialisation • Performance • Client operation slowness • Master slow initialisation • Regions stuck in transition (RIT) • Data unavailable • Errors can reflect on client applications • Can evolve to hbase service outage • FileSystem usage • HBase exhausting hdfs usage • Corruption / Data loss / Replication data consistency
- 4. © Cloudera, Inc. All rights reserved. Most affected features or sub-systems • AssignmentManager • RIT • Performance (Master initialisation issues) • Replication • Space usage exhaustion • Replication consistency • Snapshot • Space usage exhaustion • Memstore, RPC sub-system, Compaction/Region Splits • Performance • WAL/StoreFile codecs • Data loss, corruption
- 5. © Cloudera, Inc. All rights reserved. Common reasons • Performance • Overload/under-dimensioned cluster • Too many regions/RS • Small RSes heaps; • Non optimal configurations: • May require GC and other JVM config tunings • HBase specific adjusts, such as flush and caches sizes, compaction frequency, region limits, handlers count, etc; • Crashes • Memory exhaustion • File system issues • Known bugs • RIT • Bugs • Self induced (wrong hbck commands triggered)
- 6. © Cloudera, Inc. All rights reserved. Common reasons • RIT • Can also happen as side effect of performance, crash or corruption issues • File system usage exhaustion • Replication related issues • Too many snapshots • Corruption / Data loss / Replication data consistency • Bugs • Faulty peers / custom or third party components • FileSystem problems
- 7. © Cloudera, Inc. All rights reserved. Case story - RegionServers slow/crashing randomly Type: Process crash | Service outage | Performance Feature: RegionServer core resource management Reason: Long GC pauses, due to mismatching heap sizes and workloads Diagnosing: • Frequent JvmPauseMonitor alerts on RSes logs; • Occasionally OOME on stdout; • Too many regions per RS (more than 200 regions); • JVM Heap usage charts show wide heap usage (JVisualVM/Jconsole) Resolution: • Initially increase the heap size, but CMS may experience slowness with large heaps. • For heaps larger than 20GB, general G1 recommendations from Cloudera engineering blog post had provided good results. • Horizontal scaling by adding more RSes.
- 8. © Cloudera, Inc. All rights reserved. Case story - Slow scans, compactions delayed Type: Performance. Feature: Internal scanning. Reason: PrefixTree HFile encoding issues (HBASE-17375). Diagnosing: • Compaction queue piling up; • jstacks from RSes show below trace over several frames: "regionserver/hadoop30-r5.phx.impactradius.net/10.16.20.138:60020-longCompactions-1550194360449" #111 prio=5 os_prio=0 tid=0x00007fcb429b3800 nid=0x243a8 runnable [0x00007fc3481c7000] java.lang.Thread.State: RUNNABLE at org.apache.hadoop.hbase.codec.prefixtree.decode.PrefixTreeArrayScanner.advance(PrefixTreeArrayScanner.java:214) at org.apache.hadoop.hbase.codec.prefixtree.PrefixTreeSeeker.next(PrefixTreeSeeker.java:127) at org.apache.hadoop.hbase.io.hfile.HFileReaderV2$EncodedScannerV2.next(HFileReaderV2.java:1278) at org.apache.hadoop.hbase.regionserver.StoreFileScanner.next(StoreFileScanner.java:181) at org.apache.hadoop.hbase.regionserver.KeyValueHeap.next(KeyValueHeap.java:108) at org.apache.hadoop.hbase.regionserver.StoreScanner.next(StoreScanner.java:628) Resolution: Disable table, manual compact it with CompactionTool, disable PrefixTree encoding. Mitigation: Disable PrefixTree encoding (Not supported anymore from 2.0 onwards).
- 9. © Cloudera, Inc. All rights reserved. Case story - My HBase is slow Type: Performance Feature: Client Read/Write operations Reason: • Dependency services underperforming: • Zookeeper fsync issue • HDFS reads slowness • RPC encryption • Poor client implementation not reusing connections. • Faulty CPs or custom filters Diagnosing: • Client application/RSes jstacks • General HBase stats such as: compaction queue size, data locality, cache hit ratio; • HDFS/ZK logs Resolution: Usually require tunings on dependency services or redesign of client application/custom CPs/Filters
- 10. © Cloudera, Inc. All rights reserved. Case story - Client scans failing | HBCK reports inconsistencies Type: RIT Feature: AssignmentManager Reason: Various • Misuse of hbck (branch 1) can break hlinks; • Snapshots cold backups out of hdfs; • Busy/overloaded clusters where regions keep moving constantly Diagnosing: • Evident from hbck reports/Master Web UI. • Master logs would show RS opening/hosting region. • RS holding region should have relevant error message logs Resolution: • There's no single recipe. • Each case may require a combination of hbck/hbck2 commands.
- 11. © Cloudera, Inc. All rights reserved. Case story - Master timing out during initialisation Type: Master Crash | Service Outage Feature: Procedures Framework Reason: Different bugs can cause procedures to pile up: • HBASE-22263, HBASE-16488, HBASE-18109 Diagnosing: • Listing "/hbase/MasterProcWALs" shows hundreds or more files. • Master times out and crashes before assigning namespace region. Resolution: • Stop Master and clean "/hbase/MasterProcWALs" folder • Caution, specially when on hbase > 2.x releases Mitigation: Increase init timeout, number of open region threads. ERROR org.apache.hadoop.hbase.master.HMaster: Master failed to complete initialization after
- 12. © Cloudera, Inc. All rights reserved. Case story - Replication lags Type: Replication stuck Feature: Replication data consistency | HBase exhausting hdfs usage Reason: Single WAL entries with too many OPs, leading to RPCs larger than "hbase.ipc.server.max.callqueue.size" Diagnosing: Destination peer RSes showing type of log messages below Resolution: requires wal copy and replay from source to destination, plus manual znode cleanup Mitigation: releases including HBASE-18027 would prevent this situation 2018-09-07 10:40:59,506 WARN org.apache.hadoop.hbase.client.AsyncProcess: #690, table=MY_TABLE, attempt=4/4 failed=2ops, last exception: org.apache.hadoop.hbase.ipc.RemoteWithExtrasException(org.apache.hadoop.hbase.CallQueueTooBigException): Call queue is full on /0.0.0.0:60020, is hbase.ipc.server.max.callqueue.size too small? on region-server-1.example.com,,60020,1524334173359, tracking started Fri Sep 07 10:35:53 IST 2018; not retrying 2 - final failure 2018-09-07 10:40:59,506 ERROR org.apache.hadoop.hbase.replication.regionserver.ReplicationSink: Unable to accept edit because:
- 13. © Cloudera, Inc. All rights reserved. Case story - Client scan failing on specific regions Type: HFile Corruption Feature: Snappy compression Reason: Unknown Diagnosing: Following errors when scanning specific regions Or Resolution: Requires sideline of affecting files and re-ingestion of row keys stored on this file. Potential data loss. java.lang.InternalError: Could not decompress data. Input is invalid. at org.apache.hadoop.io.compress.snappy.SnappyDecompressor.decompressBytesDirect(Native Method) at org.apache.hadoop.io.compress.snappy.SnappyDecompressor.decompress(SnappyDecompressor.java:239) org.apache.hadoop.hbase.ipc.RpcExecutor$Handler.run(RpcExecutor.java:163) Caused by: java.lang.NegativeArraySizeException at org.apache.hadoop.hbase.io.hfile.HFileBlock$FSReaderImpl.readBlockDataInternal(HFileBlock.java:1718) at org.apache.hadoop.hbase.io.hfile.HFileBlock$FSReaderImpl.readBlockData(HFileBlock.java:1542) at
- 14. © Cloudera, Inc. All rights reserved. Case story - HBase is eating HDFS space Type: FileSystem usage Feature: Replication | Snapshot | Compaction | Cleaners Reason: Various • Replication: Slow, faulty or disabled peer, missing tables on remote peer. • Snapshot: Too many snapshots being retained. • Compaction and Cleaners threads stuck or not running. Diagnosing: • Check usage for "archive" and "oldWALS". • Master logs would show if cleaner threads are running. • Is replication stuck or lagging? • How about snapshot retention policy? Resolution: • If cleaner threads are not running, restart master. • For disabled peers, only enabling it again, or remove it, if no replication is wanted. • Too many snapshots would require some cleaning or cold backup. • Replication lags reason may vary, source RSes logs should show errors from replication source threads.
- 15. © Cloudera, Inc. All rights reserved. General best practices • Heap usage monitoring • Keep regions/RS on low hundreds • Consider GC for heaps > 20GB • Data locality • Adjust caching according to workload • Compaction Policy (Consider offline compactions using CompactionTool) • Consider an exclusive Zookeeper for HBase • Adjust Master initialization timeout accordingly • Consider increase number of "open region" handlers • Define reasonable snapshot retention policy • Caution with experimental/non stable features (snappy/prefixtree) • Define deployment policy for custom applications/CPs/Filters • Define patch/bug fix upgrades schedule
- 16. © Cloudera, Inc. All rights reserved. Q&A
