How to Avoid Common Mistakes When Using Reactor Netty

How to Avoid Common Mistakes
When Using Reactor Netty
September 2–3, 2020
springone.io
session-how-to-avoid-common-mistakes-when-using-reactor-netty
1

Violeta Georgieva
● VMware
● Reactor Netty committer
○ Netty contributor
● Apache Tomcat committer
○ RM for Tomcat 7
● Spring Framework contributor
2

Agenda
● Reactor Netty
● Logging
● Memory Leaks
● Timeouts
● Connection Closed
● Connection Pool
3

Reactor Netty
● Reactive Streams API for Netty
● Hides the complexity of Netty
● Supports UDP, TCP and HTTP
● Build-in Backpressure support
5

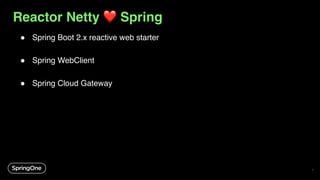

Reactor Netty ❤ Spring
● Spring Boot 2.x reactive web starter
● Spring WebClient
● Spring Cloud Gateway
7

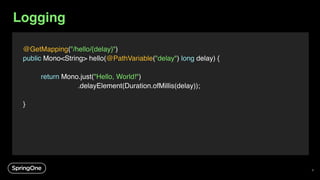

@GetMapping("/hello/{delay}")
public Mono<String> hello(@PathVariable("delay") long delay) {
return Mono.just("Hello, World!")
.delayElement(Duration.ofMillis(delay));
}
9
Logging

}
10
Logging

}
11

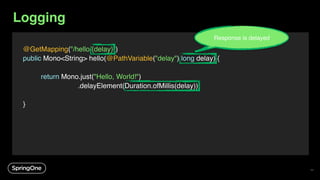

Logging
Response is delayed

How to Avoid Common Mistakes When Using Reactor Netty

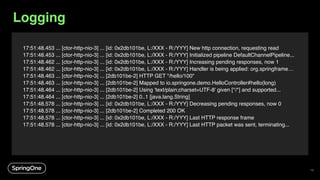

17:51:48.453 ... [ctor-http-nio-3] ... [id: 0x2db101be, L:/XXX - R:/YYY] New http connection, requesting read
17:51:48.453 ... [ctor-http-nio-3] ... [id: 0x2db101be, L:/XXX - R:/YYY] Initialized pipeline DefaultChannelPipeline...
17:51:48.462 ... [ctor-http-nio-3] ... [id: 0x2db101be, L:/XXX - R:/YYY] Increasing pending responses, now 1
17:51:48.462 ... [ctor-http-nio-3] ... [id: 0x2db101be, L:/XXX - R:/YYY] Handler is being applied: org.springframe…
17:51:48.463 ... [ctor-http-nio-3] ... [2db101be-2] HTTP GET "/hello/100"
17:51:48.463 ... [ctor-http-nio-3] ... [2db101be-2] Mapped to io.springone.demo.HelloController#hello(long)
17:51:48.464 ... [ctor-http-nio-3] ... [2db101be-2] Using 'text/plain;charset=UTF-8' given [*/*] and supported...
17:51:48.464 ... [ctor-http-nio-3] ... [2db101be-2] 0..1 [java.lang.String]
17:51:48.578 ... [ctor-http-nio-3] ... [id: 0x2db101be, L:/XXX - R:/YYY] Decreasing pending responses, now 0
17:51:48.578 ... [ctor-http-nio-3] ... [2db101be-2] Completed 200 OK
17:51:48.578 ... [ctor-http-nio-3] ... [id: 0x2db101be, L:/XXX - R:/YYY] Last HTTP response frame
17:51:48.578 ... [ctor-http-nio-3] ... [id: 0x2db101be, L:/XXX - R:/YYY] Last HTTP packet was sent, terminating...
13
Logging

14
Logging

15
New connection established
Logging

16
Request received
Logging

17

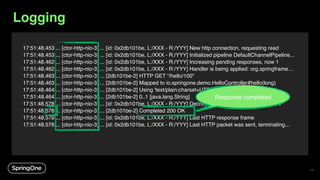

Response completed
Logging

18
17:51:48.578 ... [ctor-http-nio-3] ... [id: 0x2db101be, L:/XXX - R:/YYY] Last HTTP packet was sent, terminating…
😎
Logging

20

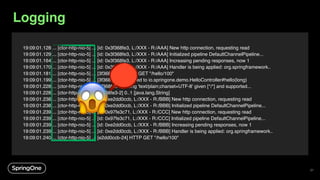

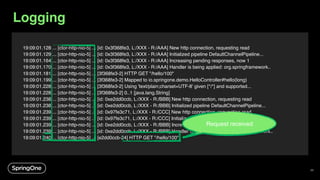

19:09:01.128 ... [ctor-http-nio-5] ... [id: 0x3f368fe3, L:/XXX - R:/AAA] New http connection, requesting read
19:09:01.129 ... [ctor-http-nio-5] ... [id: 0x3f368fe3, L:/XXX - R:/AAA] Initialized pipeline DefaultChannelPipeline...
19:09:01.164 ... [ctor-http-nio-5] ... [id: 0x3f368fe3, L:/XXX - R:/AAA] Increasing pending responses, now 1
19:09:01.170 ... [ctor-http-nio-5] ... [id: 0x3f368fe3, L:/XXX - R:/AAA] Handler is being applied: org.springframework..
19:09:01.181 ... [ctor-http-nio-5] ... [3f368fe3-2] HTTP GET "/hello/100"
19:09:01.199 ... [ctor-http-nio-5] ... [3f368fe3-2] Mapped to io.springone.demo.HelloController#hello(long)
19:09:01.228 ... [ctor-http-nio-5] ... [3f368fe3-2] Using 'text/plain;charset=UTF-8' given [*/*] and supported...
19:09:01.228 ... [ctor-http-nio-5] ... [3f368fe3-2] 0..1 [java.lang.String]
19:09:01.238 ... [ctor-http-nio-5] ... [id: 0xe2dd0ccb, L:/XXX - R:/BBB] New http connection, requesting read
19:09:01.238 ... [ctor-http-nio-5] ... [id: 0xe2dd0ccb, L:/XXX - R:/BBB] Initialized pipeline DefaultChannelPipeline...
19:09:01.239 ... [ctor-http-nio-5] ... [id: 0x97fe3c71, L:/XXX - R:/CCC] New http connection, requesting read
19:09:01.239 ... [ctor-http-nio-5] ... [id: 0x97fe3c71, L:/XXX - R:/CCC] Initialized pipeline DefaultChannelPipeline...
19:09:01.239 ... [ctor-http-nio-5] ... [id: 0xe2dd0ccb, L:/XXX - R:/BBB] Increasing pending responses, now 1
19:09:01.239 ... [ctor-http-nio-5] ... [id: 0xe2dd0ccb, L:/XXX - R:/BBB] Handler is being applied: org.springframework..
19:09:01.240 ... [ctor-http-nio-5] ... [e2dd0ccb-24] HTTP GET "/hello/100"
Logging

21
Logging

22
Logging

23
Request received
Logging

24
Another connection
established
Logging

25
Third
connection
Logging

26
Logging
Request received

27
😱
Logging

}
29
Logging

}
30
Response is delayed
Logging

Non-Blocking I/O
31
👩💼Requests
etc.
Intensive
Operations
File System
Database
Computation
Register Callback
Operation Complete
Event
Loop
Trigger Callback

32
Logging

33
Logging

34
19:09:01.240 ... [ctor-http-nio-5] ... [e2dd0ccb-24] Mapped to io.springone.demo.HelloController#hello(long)
19:09:01.240 ... [ctor-http-nio-5] ... [e2dd0ccb-24] Using 'text/plain;charset=UTF-8' given [*/*] and supported...
19:09:01.241 ... [ctor-http-nio-5] ... [e2dd0ccb-24] 0..1 [java.lang.String]
19:09:01.371 ... [ parallel-1] ... [e2dd0ccb-24] Writing "Hello, World!"
19:09:01.384 ... [ctor-http-nio-5] ... [id: 0xe2dd0ccb, L:/XXX - R:/BBB] Decreasing pending responses, now 0
19:09:01.385 ... [ctor-http-nio-5] ... [e2dd0ccb-24] Completed 200 OK
19:09:01.385 ... [ctor-http-nio-5] ... [id: 0xe2dd0ccb, L:/XXX - R:/BBB] Last HTTP response frame
19:09:01.385 ... [ctor-http-nio-5] ... [id: 0xe2dd0ccb, L:/XXX - R:/BBB] Last HTTP packet was sent, terminating the channel
Logging

35
Logging

36
Request received
Logging

37
Response prepared
Logging

38
Response completed
Logging

39
😎
Logging

reactor.netty.http.server.HttpServer : [id: 0xe2dd0ccb, L:/[0:0:0:0:0:0:0:1]:8080 -
R:/[0:0:0:0:0:0:0:1]:61889]
o.s.w.s.adapter.HttpWebHandlerAdapter : [e2dd0ccb-24]
40

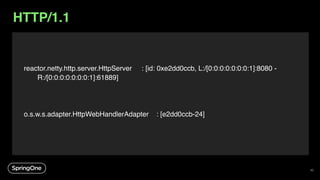

HTTP/1.1

R:/[0:0:0:0:0:0:0:1]:61889]
41

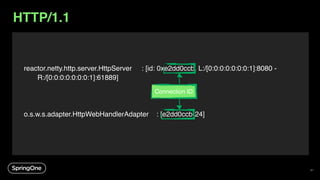

Connection ID
HTTP/1.1

R:/[0:0:0:0:0:0:0:1]:61889]
42
Local Address
HTTP/1.1

R:/[0:0:0:0:0:0:0:1]:61889]
43
Remote Address
HTTP/1.1

[id: 0xe2dd0ccb, L:/[0:0:0:0:0:0:0:1]:8080 -R:/[0:0:0:0:0:0:0:1]:61889]
44
HTTP/1.1
Connection opened

[id: 0xe2dd0ccb, L:/[0:0:0:0:0:0:0:1]:8080 !R:/[0:0:0:0:0:0:0:1]:61889]
45
HTTP/1.1
Connection closed

reactor.netty.http.server.HttpServer : [id: 0x00a8a364, L:/[0:0:0:0:0:0:0:1]:8080 -
R:/[0:0:0:0:0:0:0:1]:53976](H2 - 1)
o.s.w.s.adapter.HttpWebHandlerAdapter : [00a8a364/1-4]
46
HTTP/2

reactor.netty.http.server.HttpServer : [id: 0x00a8a364, L:/[0:0:0:0:0:0:0:1]:8080 -
R:/[0:0:0:0:0:0:0:1]:53976](H2 - 1)
o.s.w.s.adapter.HttpWebHandlerAdapter : [00a8a364/1-4]
47
Stream ID
HTTP/2

public Mono<String> hello(ServerWebExchange exchange, @PathVariable("delay") long delay) {
var logPrefix = exchange.getLogPrefix();
log.debug(logPrefix + "Preparing the response");
.delayElement(Duration.ofMillis(delay))
.doFinally(sig -> log.debug(logPrefix + "Response sent"));
}
48

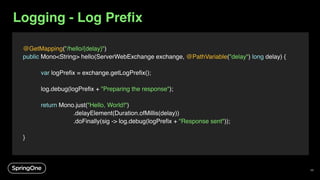

Logging - Log Prefix

public Mono<String> hello(ServerWebExchange exchange, @PathVariable("delay") long delay) {
var logPrefix = exchange.getLogPrefix();
log.debug(logPrefix + "Preparing the response");
.delayElement(Duration.ofMillis(delay))
.doFinally(sig -> log.debug(logPrefix + "Response sent"));
}
49
Log ID

50
12:34:19.206 ... [ctor-http-nio-3] ... [id: 0xc5a4f03d, L:/XXX - R:/YYY] New http connection, requesting read
12:34:19.206 ... [ctor-http-nio-3] ... [id: 0xc5a4f03d, L:/XXX - R:/YYY] Initialized pipeline DefaultChannelPipeline...
12:34:19.215 ... [ctor-http-nio-3] ... [id: 0xc5a4f03d, L:/XXX - R:/YYY] Increasing pending responses, now 1
12:34:19.215 ... [ctor-http-nio-3] ... [id: 0xc5a4f03d, L:/XXX - R:/YYY] Handler is being applied: org.springframe...
12:34:19.215 ... [ctor-http-nio-3] ... [c5a4f03d-2] HTTP GET "/hello/100"
12:34:19.215 ... [ctor-http-nio-3] ... [c5a4f03d-2] Mapped to io.springone.demo.HelloController#hello...
12:34:19.216 ... [ctor-http-nio-3] ... [c5a4f03d-2] Preparing the response
12:34:19.216 ... [ctor-http-nio-3] ... [c5a4f03d-2] Using 'text/plain;charset=UTF-8' given [*/*] and supported...
12:34:19.216 ... [ctor-http-nio-3] ... [c5a4f03d-2] 0..1 [java.lang.String]
12:34:19.321 ... [ parallel-2] ... [c5a4f03d-2] Writing "Hello, World!"
12:34:19.332 ... [ parallel-2] ... [c5a4f03d-2] Response sent
12:34:19.332 ... [ctor-http-nio-3] ... [id: 0xc5a4f03d, L:/XXX - R:/YYY] Decreasing pending responses, now 0
12:34:19.333 ... [ctor-http-nio-3] ... [c5a4f03d-2] Completed 200 OK
12:34:19.333 ... [ctor-http-nio-3] ... [id: 0xc5a4f03d, L:/XXX - R:/YYY] Last HTTP response frame
12:34:19.333 ... [ctor-http-nio-3] ... [id: 0xc5a4f03d, L:/XXX - R:/YYY] Last HTTP packet was sent, terminating...

51
Application logs

52
Application logs

Spring WebFlux Logging ID
Server
● ServerWebExchange#LOG_ID_ATTRIBUTE
● ServerWebExchange#getLogPrefix()
Client
● ClientRequest#LOG_ID_ATTRIBUTE
● ClientRequest#logPrefix()
https://docs.spring.io/spring/docs/current/spring-framework-reference/web-reactive.html#webflux-logging-id
53

55
@Component
public class MyNettyWebServerCustomizer
implements WebServerFactoryCustomizer<NettyReactiveWebServerFactory> {
@Override
public void customize(NettyReactiveWebServerFactory factory) {
factory.addServerCustomizers(httpServer -> httpServer.wiretap(true));
}
}
Server Side - Wire Logging

56
@Component
@Override
factory.addServerCustomizers(httpServer -> httpServer.wiretap(true));
}
}
Wire logging
Server Side - Wire Logging

Client Side - Wire Logging
var httpClient = HttpClient.create()
.wiretap(true);
WebClient.builder()
.clientConnector(new ReactorClientHttpConnector(httpClient))
.build();
57

58
Client Side - Wire Logging
.wiretap(true);
WebClient.builder()
.build();
6
Wire logging

59
14:43:26.250 ... [ctor-http-nio-6] ... [id: 0x6e9c38fd, L:/XXX - R:/YYY] READ: 87B
+——————————————————————+
| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+————+——————————————————————+————————+
|00000000| 47 45 54 20 2f 68 65 6c 6c 6f 2f 31 30 30 20 48 | GET /hello/100 H |
|00000010| 54 54 50 2f 31 2e 31 0d 0a 48 6f 73 74 3a 20 6c | TTP/1.1..Host: l. |
|00000020| 6f 63 61 6c 68 6f 73 74 3a 38 30 38 30 0d 0a 55 | ocalhost:8080..U. |
|00000030| 73 65 72 2d 41 67 65 6e 74 3a 20 63 75 72 6c 2f | ser-Agent: curl/. |
|00000040| 37 2e 37 31 2e 31 0d 0a 41 63 63 65 70 74 3a 20 | 7.71.1..Accept: |
|00000050| 2a 2f 2a 0d 0a 0d 0a | */*…. |
+————+——————————————————————+————————+
Wire Logging HTTP/1.1 - Read Events

61
[id: 0x1d3dcabb, L:/XXX - R:/YYY] OUTBOUND SETTINGS: ack=false settings={MAX_HEADER_LIST_SIZE=8192}
[id: 0x1d3dcabb, L:/XXX - R:/YYY] INBOUND SETTINGS: ack=false settings={ENABLE_PUSH=0, MAX_CONCURRENT_STREAMS=100, INITIAL_WINDOW_SIZE=33554432}
[id: 0x1d3dcabb, L:/XXX - R:/YYY] OUTBOUND SETTINGS: ack=true
[id: 0x1d3dcabb, L:/XXX - R:/YYY] INBOUND WINDOW_UPDATE: streamId=0 windowSizeIncrement=33488897
[id: 0x1d3dcabb, L:/XXX - R:/YYY] INBOUND HEADERS: streamId=1 headers=DefaultHttp2Headers[:method: GET, :path: /hello/100, :scheme: https, :authority: localhost:8090,
user-agent: curl/7.71.1, accept: */*] padding=0 endStream=true
[id: 0x1d3dcabb, L:/XXX - R:/YYY](H2 - 1) New HTTP/2 stream
[id: 0x1d3dcabb, L:/XXX - R:/YYY](H2 - 1) Initialized HTTP/2 stream pipeline AbstractHttp2StreamChannel$3…
[id: 0x1d3dcabb, L:/XXX - R:/YYY](H2 - 1) Handler is being applied: org.springframework…
[1d3dcabb/1-2] HTTP GET "/hello/100"
[1d3dcabb/1-2] Mapped to io.springone.demo.HelloController#hello(ServerWebExchange, long)
[1d3dcabb/1-2] Preparing the response
[1d3dcabb/1-2] Using 'text/plain;charset=UTF-8' given [*/*] and supported [text/plain;charset=UTF-8, text/event-stream, text/plain;charset=UTF-8, */*]
[1d3dcabb/1-2] 0..1 [java.lang.String]
[id: 0x1d3dcabb, L:/XXX - R:/YYY] INBOUND SETTINGS: ack=true
[1d3dcabb/1-2] Writing "Hello, World!"
[1d3dcabb/1-2] Response sent
[id: 0x1d3dcabb, L:/XXX - R:/YYY] OUTBOUND HEADERS: streamId=1 headers=DefaultHttp2Headers[:status: 200, content-type: text/plain;charset=UTF-8, content-length: 13]
padding=0 endStream=false
[id: 0x1d3dcabb, L:/XXX - R:/YYY] OUTBOUND DATA: streamId=1 padding=0 endStream=true length=13 bytes=48656c6c6f2c20576f726c6421
[1d3dcabb/1-2] Completed 200 OK
Wire Logging HTTP/2

62
Wire Logging HTTP/2

63
Wire Logging HTTP/2

64
Wire Logging HTTP/2

65
Wire Logging HTTP/2

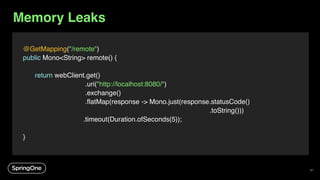

@GetMapping("/remote")
public Mono<String> remote() {
return webClient.get()
.uri("http://localhost:8080/")
.exchange()
.flatMap(response -> Mono.just(response.statusCode()
.toString()))
.timeout(Duration.ofSeconds(5));
}

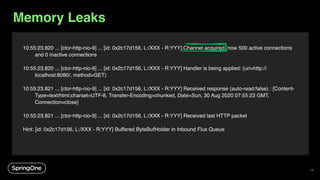

Memory Leaks
67

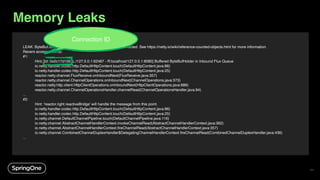

LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
Recent access records:
Created at:
io.netty.buffer.PooledByteBufAllocator.newDirectBuffer(PooledByteBufAllocator.java:363)
io.netty.buffer.AbstractByteBufAllocator.directBuffer(AbstractByteBufAllocator.java:187)
io.netty.buffer.AbstractByteBufAllocator.directBuffer(AbstractByteBufAllocator.java:178)
io.netty.buffer.AbstractByteBufAllocator.ioBuffer(AbstractByteBufAllocator.java:139)
io.netty.channel.DefaultMaxMessagesRecvByteBufAllocator$MaxMessageHandle.allocate(DefaultMaxMessagesRecvByteBufAllocator.java:114)
io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:147)
io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:714)
io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:650)
io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:576)
io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:493)
io.netty.util.concurrent.SingleThreadEventExecutor$4.run(SingleThreadEventExecutor.java:989)
io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74)
io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
java.base/java.lang.Thread.run(Thread.java:832)
Memory Leaks
68

● -Dio.netty.leakDetectionLevel=paranoid
● logging.level.reactor.netty=debug
○ logging.level.reactor.netty.channel.FluxReceive=debug
69
Memory Leaks

#1:
Hint: [id: 0x2c17d156, L:/127.0.0.1:62487 - R:localhost/127.0.0.1:8080] Buffered ByteBufHolder in Inbound Flux Queue
io.netty.handler.codec.http.DefaultHttpContent.touch(DefaultHttpContent.java:86)
reactor.netty.channel.FluxReceive.onInboundNext(FluxReceive.java:357)
reactor.netty.channel.ChannelOperations.onInboundNext(ChannelOperations.java:373)
reactor.netty.http.client.HttpClientOperations.onInboundNext(HttpClientOperations.java:686)
reactor.netty.channel.ChannelOperationsHandler.channelRead(ChannelOperationsHandler.java:94)
...
#2:
Hint: 'reactor.right.reactiveBridge' will handle the message from this point.
io.netty.channel.DefaultChannelPipeline.touch(DefaultChannelPipeline.java:116)
io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:362)
io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:357)
io.netty.channel.CombinedChannelDuplexHandler$DelegatingChannelHandlerContext.fireChannelRead(CombinedChannelDuplexHandler.java:436)
...
Memory Leaks
70

#1:
...
#2:
...
Connection ID
Memory Leaks
71

#1:
...
#2:
...
Incoming Data Buffered
Memory Leaks
72

10:55:23.820 ... [ctor-http-nio-9] ... [id: 0x2c17d156, L:/XXX - R:YYY] Channel acquired, now 500 active connections
and 0 inactive connections
10:55:23.820 ... [ctor-http-nio-9] ... [id: 0x2c17d156, L:/XXX - R:YYY] Handler is being applied: {uri=http://
localhost:8080/, method=GET}
10:55:23.821 ... [ctor-http-nio-9] ... [id: 0x2c17d156, L:/XXX - R:YYY] Received response (auto-read:false) : [Content-
Type=text/html;charset=UTF-8, Transfer-Encoding=chunked, Date=Sun, 30 Aug 2020 07:55:23 GMT,
Connection=close]
10:55:23.821 ... [ctor-http-nio-9] ... [id: 0x2c17d156, L:/XXX - R:YYY] Received last HTTP packet
Hint: [id: 0x2c17d156, L:/XXX - R:YYY] Buffered ByteBufHolder in Inbound Flux Queue
Memory Leaks
73

Connection=close]
Memory Leaks
74

Connection=close]
Memory Leaks
75

76
Connection=close]
6
Memory Leaks

Connection=close]
🤔
Was the incoming data
consumed !??!!
Memory Leaks
77

.exchange()
.toString()))
}
Memory Leaks
78

.exchange()
.toString()))
}
🤔
Was the incoming data
consumed !??!!
Memory Leaks
79

Unlike retrieve(), when using exchange(), it is the responsibility of the application to
consume any response content regardless of the scenario (success, error, unexpected data,
etc). Not doing so can cause a memory leak.
https://docs.spring.io/spring/docs/current/spring-framework-reference/web-
reactive.html#webflux-client-exchange
80
Memory Leaks

.retrieve()
.toEntity(String.class)
.flatMap(entity -> Mono.just(entity.getStatusCode()
.toString()))
}
ResponseEntity
81

.retrieve()
.toEntity(String.class)
.flatMap(entity -> Mono.just(entity.getStatusCode()
.toString()))
}
ResponseEntity
Status Code
Headers
Body
82

.retrieve()
.onStatus(HttpStatus::is4xxClientError, response ->
Mono.error(new RuntimeException("Client error")))
.onStatus(HttpStatus::is5xxServerError, response ->
Mono.error(new RuntimeException("Server error")))
.bodyToMono(String.class)
}
OnStatus
83

.retrieve()
.onStatus(HttpStatus::is4xxClientError, response ->
Mono.error(new RuntimeException("Client error")))
.onStatus(HttpStatus::is5xxServerError, response ->
Mono.error(new RuntimeException("Server error")))
.bodyToMono(String.class)
}
OnStatus
Custom Exception
84

When onStatus is used, if the response is expected to have content, then the onStatus
callback should consume it. If not, the content will be automatically drained to ensure
resources are released.
https://docs.spring.io/spring/docs/current/spring-framework-reference/web-
reactive.html#webflux-client-retrieve
85
OnStatus

Releasing the Data
● releaseBody()
● toBodilessEntity()
● bodyToMono(Void.class) !Closes the connection!
86

Server Side - Read Timeout
@Component
@Override
factory.addServerCustomizers(
server -> server.doOnConnection(conn -> conn.addHandlerFirst(
new ReadTimeoutHandler(50, TimeUnit.MILLISECONDS))));
}
}
88

@Component
@Override
}
}
Read timeout
89

● Time between two requests
● Timeout for the incoming data
○ network latency
● May interfere when TLS handshake
● May interfere when sending a response
○ processing latency
90

Client Side - Timeouts
var provider = ConnectionProvider.builder("demo")
.maxConnections(16)
.maxIdleTime(Duration.ofSeconds(60))
.maxLifeTime(Duration.ofSeconds(60))
.build();
.option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 60000)
.wiretap(true)
.responseTimeout(Duration.ofSeconds(1));
WebClient.builder()
.build();
91

Client Side - Connection Pool
.maxConnections(16)
.build();
.wiretap(true)
WebClient.builder()
.build();
Max idle time in the pool
92

.maxConnections(16)
.build();
.wiretap(true)
WebClient.builder()
.build();
Max life time for the
connection
93

Client Side - Establishing Connection
.maxConnections(16)
.build();
.wiretap(true)
WebClient.builder()
.build();
Max time waiting to
establish connection
94

Client Side - Response Timeout
.maxConnections(16)
.build();
.wiretap(true)
WebClient.builder()
.build();
Max time waiting for a
response
95

96
.httpRequest(request ->
((HttpClientRequest) request.getNativeRequest())
.responseTimeout(Duration.ofSeconds(1)))
.retrieve()
…
}
6

.httpRequest(request ->
((HttpClientRequest) request.getNativeRequest())
.responseTimeout(Duration.ofSeconds(1)))
.retrieve()
…
}
Max time waiting for a
response
97

Client Side - Timeout for Mono/Flux
.retrieve()
…
.timeout(…)
}
98

.retrieve()
…
.timeout(…)
}
Timeout for this Mono
99

● Time between two signals from this Flux/Mono
● Timeout for the incoming data
○ network latency
● May interfere when establishing connection
● May interfere when TLS handshake
● May interfere when sending a request
○ processing latency
100

Network Latency
⏰
Read Timeout

Target Server - Read Timeout
@Component
@Override
}
}
103

@Component
@Override
}
}
Read timeout (50ms)
104

@PostMapping("/echo")
public String echo(@RequestBody String body) {
return body;
}
105

106
Client - Read Timeout
var flux = Flux.just(CONTENT, CONTENT)
.delayElements(Duration.ofMillis(100));
return webClient.post()
.uri(“http://localhost:8080/echo")
.body(BodyInserters.fromPublisher(flux, String.class))
.retrieve()
.bodyToMono(String.class);
}
6

var flux = Flux.just(CONTENT, CONTENT)
.delayElements(Duration.ofMillis(100));
.retrieve()
}
Simulate Network Latency
107

15:18:39.799 ... [ctor-http-nio-1] ... [id: 0x808fe695] Created a new pooled channel, now 16 active connections and 0 inactive…
15:18:39.799 ... [ctor-http-nio-1] ... [id: 0x808fe695] Initialized pipeline DefaultChannelPipeline....
15:18:39.799 ... [ctor-http-nio-1] ... [id: 0x808fe695] REGISTERED
15:18:39.821 ... [ctor-http-nio-1] ... [id: 0x808fe695] CONNECT: localhost/127.0.0.1:8080
15:18:39.868 ... [ctor-http-nio-1] ... [id: 0x808fe695, L:/127.0.0.1:50246 - R:YYY] Registering pool release on close event for…
15:18:39.868 ... [ctor-http-nio-1] ... [id: 0x808fe695, L:/127.0.0.1:50246 - R:YYY] Channel connected, now 3 active connections…
15:18:39.868 ... [ctor-http-nio-1] ... [id: 0x808fe695, L:/127.0.0.1:50246 - R:YYY] ACTIVE
15:18:39.868 ... [ctor-http-nio-1] ... [id: 0x808fe695, L:/127.0.0.1:50246 - R:YYY] Handler is being applied: {uri=http://…
15:18:40.086 ... [ctor-http-nio-1] ... [id: 0x808fe695, L:/127.0.0.1:50246 ! R:YYY] Channel closed, now 0 active connections and…
15:18:40.094 ... [ctor-http-nio-1] ... [id: 0x808fe695, L:/127.0.0.1:50246 ! R:YYY] INACTIVE
15:18:40.094 ... [ctor-http-nio-1] ... [id: 0x808fe695, L:/127.0.0.1:50246 ! R:YYY] The connection observed an error
reactor.netty.http.client.PrematureCloseException: Connection has been closed BEFORE response, while sending request body
108

🧐
109

Client port
110

15:18:39.821 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY - R:/127.0.0.1:50246] New http connection, requesting read
15:18:39.821 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY - R:/127.0.0.1:50246] Initialized pipeline DefaultChannelPipeline…
15:18:39.871 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY - R:/127.0.0.1:50246] Increasing pending responses, now 1
15:18:39.871 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY - R:/127.0.0.1:50246] Added encoder [ReadTimeoutHandler] at the…
15:18:39.871 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY - R:/127.0.0.1:50246] Handler is being applied: org.springframework..
15:18:39.872 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY - R:/127.0.0.1:50246] FluxReceive{pending=0, cancelled=false…
15:18:39.927 ... [ctor-http-nio-5] ... [d4c75b22-100] 500 Server Error for HTTP POST "/echo"
io.netty.handler.timeout.ReadTimeoutException: null
15:18:39.928 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY - R:/127.0.0.1:50246] Decreasing pending responses, now 0
15:18:39.928 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY - R:/127.0.0.1:50246] Last HTTP packet was sent, terminating…
15:18:39.928 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY - R:/127.0.0.1:50246] Last HTTP response frame
15:18:39.928 ... [ctor-http-nio-5] ... [id: 0xd4c75b22, L:/YYY ! R:/127.0.0.1:50246] Non Removed handler: ...
111

Client port
112

113

Read timeout (50ms)
114

Processing Latency
⏰
Read Timeout

116
@Component
@Override
}
}
6

@Component
@Override
}
}
Read timeout (50ms)

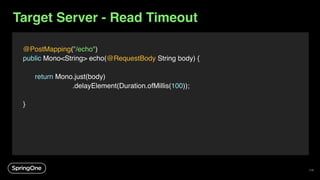

117

public Mono<String> echo(@RequestBody String body) {
return Mono.just(body)
.delayElement(Duration.ofMillis(100));
}
118

public Mono<String> echo(@RequestBody String body) {
return Mono.just(body)
.delayElement(Duration.ofMillis(100));
}
Simulate Processing
Latency
119

var flux = Flux.just(CONTENT, CONTENT);
.retrieve()
}
120

16:22:03.936 ... [tor-http-nio-10] ... [id: 0x058eaaa2] Created a new pooled channel, now 3 active connections and 0 inactive...
16:22:03.937 ... [tor-http-nio-10] ... [id: 0x058eaaa2] Initialized pipeline DefaultChannelPipeline...
16:22:03.937 ... [tor-http-nio-10] ... [id: 0x058eaaa2] REGISTERED
16:22:03.964 ... [tor-http-nio-10] ... [id: 0x058eaaa2] CONNECT: localhost/127.0.0.1:8080
16:22:04.082 ... [tor-http-nio-10] ... [id: 0x058eaaa2, L:/127.0.0.1:49908 - R:YYY] Registering pool release on close event for...
16:22:04.082 ... [tor-http-nio-10] ... [id: 0x058eaaa2, L:/127.0.0.1:49908 - R:YYY] Channel connected, now 16 active connections...
16:22:04.082 ... [tor-http-nio-10] ... [id: 0x058eaaa2, L:/127.0.0.1:49908 - R:YYY] ACTIVE
16:22:04.082 ... [tor-http-nio-10] ... [id: 0x058eaaa2, L:/127.0.0.1:49908 - R:YYY] Handler is being applied: {uri=http:...
16:22:04.567 ... [tor-http-nio-10] ... [id: 0x058eaaa2, L:/127.0.0.1:49908 ! R:YYY] Channel closed, now 16 active connections and...
16:22:04.642 ... [tor-http-nio-10] ... [id: 0x058eaaa2, L:/127.0.0.1:49908 ! R:YYY] INACTIVE
16:22:04.642 ... [tor-http-nio-10] ... [id: 0x058eaaa2, L:/127.0.0.1:49908 ! R:YYY] The connection observed an error
reactor.netty.http.client.PrematureCloseException: Connection prematurely closed BEFORE response
121

🧐
122

Client port
123

16:22:04.016 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY - R:/127.0.0.1:49908] New http connection, requesting read
16:22:04.017 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY - R:/127.0.0.1:49908] Initialized pipeline DefaultChannelPipeline...
16:22:04.099 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY - R:/127.0.0.1:49908] Increasing pending responses, now 1
16:22:04.099 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY - R:/127.0.0.1:49908] Added encoder [ReadTimeoutHandler] at the...
16:22:04.099 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY - R:/127.0.0.1:49908] Handler is being applied: org.springframework..
16:22:04.106 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY - R:/127.0.0.1:49908] FluxReceive{pending=0, cancelled=false...
16:22:04.178 ... [ctor-http-nio-4] ... [09740dff-3] 500 Server Error for HTTP POST "/echo"
16:22:04.235 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY - R:/127.0.0.1:49908] Decreasing pending responses, now 0
16:22:04.238 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY - R:/127.0.0.1:49908] Last HTTP packet was sent, terminating...
16:22:04.239 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY - R:/127.0.0.1:49908] Last HTTP response frame
16:22:04.241 ... [ctor-http-nio-4] ... [id: 0x09740dff, L:/YYY ! R:/127.0.0.1:49908] Non Removed handler...
124

Client port
125

126
6

Read timeout (50ms)
127

Target Server - Keep Alive Timeout
Reactor Netty
● ReadTimeoutHandler (default - no timeout)
Tomcat
● connectionTimeout (default 20s)
● keepAliveTimeout (default == connectionTimeout)
Proxy/Loadbalancer
● keepAliveTimeout/maxIdleTimeout
http://tomcat.apache.org/tomcat-9.0-doc/config/http.html#Standard_Implementation
https://netty.io/4.1/api/io/netty/handler/timeout/ReadTimeoutHandler.html
129

Client - Connection Pool
● Max idle time
● Prefer LIFO vs. FIFO leasing strategy
130

Upload limit
on the Target Server

Target Server - Upload Limit
@Configuration
public class WebConfig implements WebFluxConfigurer {
@Override
public void configureHttpMessageCodecs(ServerCodecConfigurer configurer) {
configurer.defaultCodecs().maxInMemorySize(512);
}
}
132

@Configuration
public class WebConfig implements WebFluxConfigurer {
@Override
public void configureHttpMessageCodecs(ServerCodecConfigurer configurer) {
configurer.defaultCodecs().maxInMemorySize(512);
}
}
Max in memory
configuration
133

public String echo(@RequestBody String body) {
return body;
}
134

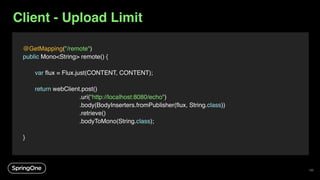

Client - Upload Limit
var flux = Flux.just(CONTENT, CONTENT);
.retrieve()
}
135

... [ctor-http-nio-2] ... [id: 0xbbc66538, L:/127.0.0.1:59307 - R:YYY] Channel acquired, now 16 active connections…
... [ctor-http-nio-2] ... [id: 0xbbc66538, L:/127.0.0.1:59307 - R:YYY] Handler is being applied: {uri=http://…
... [ctor-http-nio-2] ... [id: 0xbbc66538, L:/127.0.0.1:59307 ! R:YYY] Channel closed, now 15 active connections…
... [ctor-http-nio-2] ... [id: 0xbbc66538, L:/127.0.0.1:59307 ! R:YYY] The connection observed an error
136

🧐
137

Client - Upload Limit Client port
138

... [ctor-http-nio-7] ... [id: 0x5b9debd7, L:/YYY - R:/127.0.0.1:59307] New http connection, requesting read
... [ctor-http-nio-7] ... [id: 0x5b9debd7, L:/YYY - R:/127.0.0.1:59307] Initialized pipeline DefaultChannelPipeline...
... [ctor-http-nio-7] ... [id: 0x5b9debd7, L:/YYY - R:/127.0.0.1:59307] Increasing pending responses, now 1
... [ctor-http-nio-7] ... [id: 0x5b9debd7, L:/YYY - R:/127.0.0.1:59307] Handler is being applied: org.springframework...
... [ctor-http-nio-7] ... [id: 0x5b9debd7, L:/YYY - R:/127.0.0.1:59307] FluxReceive{pending=0, cancelled=false, inboundDone=false...
... [ctor-http-nio-7] ... [5b9debd7-6] 500 Server Error for HTTP POST "/echo"
org.springframework.core.io.buffer.DataBufferLimitException: Exceeded limit on max bytes to buffer : 512
at org.springframework.core.io.buffer.LimitedDataBufferList.raiseLimitException(LimitedDataBufferList.java:101)
Suppressed: reactor.core.publisher.FluxOnAssembly$OnAssemblyException:
Error has been observed at the following site(s):
|_ checkpoint ⇢ HTTP POST "/echo" [ExceptionHandlingWebHandler]
Stack trace:
... [ctor-http-nio-7] ... [id: 0x5b9debd7, L:/YYY - R:/127.0.0.1:59307] Decreasing pending responses, now 0
... [ctor-http-nio-7] ... [id: 0x5b9debd7, L:/YYY - R:/127.0.0.1:59307] Last HTTP packet was sent, terminating the channel
... [ctor-http-nio-7] ... [id: 0x5b9debd7, L:/YYY - R:/127.0.0.1:59307] Last HTTP response frame
Target Server - Upload LimitClient port
139

Stack trace:
140

Stack trace:
Max in memory exceeded
141

var provider = ConnectionProvider.create("demo", 1);
.wiretap(true);
WebClient.builder()
.build();
143

var provider = ConnectionProvider.create("demo", 1);
.wiretap(true);
WebClient.builder()
.build();
Max connections per
remote address
144

Mono<String> mono1 = webClient.get()
.uri("https://example.com")
.retrieve()
.uri("https://httpbin.org/get")
.retrieve()
return Flux.merge(mono1, mono2).next();
}
145

146
.uri("https://example.com")
.retrieve()
.uri("https://httpbin.org/get")
.retrieve()
return Flux.merge(mono1, mono2).next();
}
6
Need only the first result

09:59:13.266 ... [ctor-http-nio-3] ... Creating a new [demo] client pool ... for [example.com…
09:59:13.272 ... [ctor-http-nio-3] ... [id: 0x233f98cc] Created a new pooled channel, now 1
active connection...
09:59:13.302 ... [ctor-http-nio-3] ... Creating a new [demo] client pool ... for [httpbin.org…
09:59:13.302 ... [ctor-http-nio-3] ... [id: 0xaca6699b] Created a new pooled channel, now 1
09:59:13.330 ... [ctor-http-nio-3] ... [id: 0x233f98cc] CONNECT: example.com...
09:59:13.331 ... [ctor-http-nio-3] ... [id: 0xaca6699b] CONNECT: httpbin.org...
147

Connection Pool per
remote address
148

Connection Pool per
remote address
149

09:59:13.958 ... [ctor-http-nio-3] ... [id: 0x233f98cc, L:/XXX - R:example.com/...] CLOSE
09:59:13.962 ... [ctor-http-nio-3] ... [id: 0x233f98cc, L:/XXX ! R:example.com/...] Channel closed,
now 0 active connections and 0 inactive connections
09:59:13.963 ... [ctor-http-nio-3] ... [id: 0xaca6699b, L:/XXX - R:httpbin.org/...] Releasing channel
09:59:13.964 ... [ctor-http-nio-3] ... [id: 0xaca6699b, L:/XXX - R:httpbin.org/...] Channel cleaned,
150

Connection returned to
the pool
151

Connection closed
152

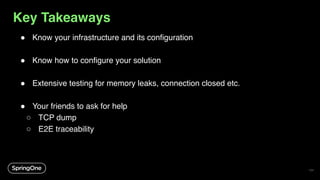

Key Takeaways
● Know your infrastructure and its configuration
● Know how to configure your solution
● Extensive testing for memory leaks, connection closed etc.
● Your friends to ask for help
○ TCP dump
○ E2E traceability
154

Stay Connected.
Violeta Georgieva
@violeta_g_g
session-how-to-avoid-common-mistakes-when-using-reactor-netty
https://github.com/reactor/reactor-netty/
https://github.com/spring-projects/spring-framework
https://projectreactor.io/docs/netty/release/reference/index.html
https://docs.spring.io/spring/docs/current/spring-framework-reference/web-reactive.html
#springone@springone

Safe Harbor Statement
The following is intended to outline the general direction of VMware's offerings. It is intended for information
purposes only and may not be incorporated into any contract. Any information regarding pre-release of
VMware offerings, future updates or other planned modifications is subject to ongoing evaluation by VMware
and is subject to change. This information is provided without warranty or any kind, express or implied, and is
not a commitment to deliver any material, code, or functionality, and should not be relied upon in making
purchasing decisions regarding VMware's offerings. These purchasing decisions should only be based on
features currently available. The development, release, and timing of any features or functionality described
for VMware's offerings in this presentation remain at the sole discretion of Pivotal. Pivotal has no obligation to
update forward looking information in this presentation.
156

How to Avoid Common Mistakes When Using Reactor Netty

More Related Content

What's hot (20)

More from VMware Tanzu (20)

Recently uploaded (20)

How to Avoid Common Mistakes When Using Reactor Netty
