![you will spend weeks to catch this elusive memory corruption error. Let's examine several code samples
taken from the Miranda IM project.
V512 A call of the 'memcpy' function will lead to a buffer overflow or underflow. tabsrmm utils.cpp 1080
typedef struct _textrangew
{
CHARRANGE chrg;
LPWSTR lpstrText;
} TEXTRANGEW;
const wchar_t* Utils::extractURLFromRichEdit(...)
{
...
::CopyMemory(tr.lpstrText, L"mailto:", 7);
...
}
Only a part of the string is copied here. The error is awfully simple yet it remains. Most likely, there was
a string earlier consisting of 'char'. Then they switched to Unicode strings but forgot to change the
constant.
If you copy strings using functions which are designed quite for this purpose, this error can never occur.
Imagine that this code sample was written this way:
strncpy(tr.lpstrText, "mailto:", 7);
Then the programmer did not have to change number 7 when switching to Unicode strings:
wcsncpy(tr.lpstrText, L"mailto:", 7);
I am not saying that this code is ideal. But it is much better than using CopyMemory. Consider another
sample.
V568 It's odd that the argument of sizeof() operator is the '& ImgIndex' expression. clist_modern
modern_extraimage.cpp 302
void ExtraImage_SetAllExtraIcons(HWND hwndList,HANDLE hContact)
{
...
char *(ImgIndex[64]);
...](https://image.slidesharecdn.com/mirandaim-110712041640-phpapp01/85/How-to-make-fewer-errors-at-the-stage-of-code-writing-Part-N1-2-320.jpg)
![memset(&ImgIndex,0,sizeof(&ImgIndex));
...
}
The programmer intended to empty the array consisting of 64 pointers here. But only the first item will
be emptied instead. The same error, by the way, can be also found in another file. Thanks to our favorite
Copy-Paste:
V568 It's odd that the argument of sizeof() operator is the '& ImgIndex' expression. clist_mw
extraimage.c 295
The correct code must look this way:
memset(&ImgIndex,0,sizeof(ImgIndex));
By the way, taking the address from the array might additionally confuse the one who is reading the
code. Taking of the address here is unreasonable and the code may be rewritten this way:
memset(ImgIndex,0,sizeof(ImgIndex));
The next sample.
V568 It's odd that the argument of sizeof() operator is the '& rowOptTA' expression. clist_modern
modern_rowtemplateopt.cpp 258
static ROWCELL* rowOptTA[100];
void rowOptAddContainer(HWND htree, HTREEITEM hti)
{
...
ZeroMemory(rowOptTA,sizeof(&rowOptTA));
...
}
Again, it is the pointer's size which is calculated instead of the array's size. The correct expression is
"sizeof(rowOptTA)". I suggest using the following code to clear the array:
const size_t ArraySize = 100;
static ROWCELL* rowOptTA[ArraySize];
...
std::fill(rowOptTA, rowOptTA + ArraySize, nullptr);](https://image.slidesharecdn.com/mirandaim-110712041640-phpapp01/85/How-to-make-fewer-errors-at-the-stage-of-code-writing-Part-N1-3-320.jpg)
![I got used to meeting such lines which populate the code through the copy-paste method:
V568 It's odd that the argument of sizeof() operator is the '& rowOptTA' expression. clist_modern
modern_rowtemplateopt.cpp 308
V568 It's odd that the argument of sizeof() operator is the '& rowOptTA' expression. clist_modern
modern_rowtemplateopt.cpp 438
You think that is all about low-level handling of arrays? No, quite not. Read further, fear and punish
those who like to use memset.
V512 A call of the 'memset' function will lead to a buffer overflow or underflow. clist_modern
modern_image_array.cpp 59
static BOOL ImageArray_Alloc(LP_IMAGE_ARRAY_DATA iad, int size)
{
...
memset(&iad->nodes[iad->nodes_allocated_size],
(size_grow - iad->nodes_allocated_size) *
sizeof(IMAGE_ARRAY_DATA_NODE),
0);
...
}
This time, the size of copied data is calculated correctly, but the second and third arguments are
swapped by mistake. Consequently, 0 items are filled. This is the correct code:
memset(&iad->nodes[iad->nodes_allocated_size], 0,
(size_grow - iad->nodes_allocated_size) *
sizeof(IMAGE_ARRAY_DATA_NODE));
I do not know how to rewrite this code fragment in a smarter way. To be more exact, you cannot make
it smart without touching other fragments and data structures.
A question arises how to do without memset when handling such structures as OPENFILENAME:
OPENFILENAME x;
memset(&x, 0, sizeof(x));
It's very simple. Create an emptied structure using this method:](https://image.slidesharecdn.com/mirandaim-110712041640-phpapp01/85/How-to-make-fewer-errors-at-the-stage-of-code-writing-Part-N1-4-320.jpg)
![OPENFILENAME x = { 0 };
2. Watch closely and check if you are working with a signed or unsigned
type
The problem of confusing signed types with unsigned types might seem farfetched at first sight. But
programmers make a big mistake by underestimating this issue.
In most cases, people do not like to check compiler's warning messages concerning the comparison of
an int-variable to an unsigned-variable. Really, such code is usually correct. So programmers disable
these warnings or just ignore them. Or, they resort to the third method - add an explicit type conversion
to suppress the compiler's warning without going into details.
I suggest that you stop doing this and analyze the situation each time when a signed type meets an
unsigned type. And in general, be careful about what type an expression has or what is returned by a
function. Now examine several samples on this subject.
V547 Expression 'wParam >= 0' is always true. Unsigned type value is always >= 0. clist_mw
cluiframes.c 3140
There is the id2pos function in program code which returns value '-1' for an error. Everything is OK with
this function. In another place, the result of id2pos function is used as shown below:
typedef UINT_PTR WPARAM;
static int id2pos(int id);
static int nFramescount=0;
INT_PTR CLUIFrameSetFloat(WPARAM wParam,LPARAM lParam)
{
...
wParam=id2pos(wParam);
if(wParam>=0&&(int)wParam<nFramescount)
if (Frames[wParam].floating)
...
}
The problem is that the wParam variable has an unsigned type. So, the condition 'wParam>=0' is always
true. If id2pos function returns '-1', the condition of checking for permissible values will not work and we
will start using a negative index.](https://image.slidesharecdn.com/mirandaim-110712041640-phpapp01/85/How-to-make-fewer-errors-at-the-stage-of-code-writing-Part-N1-5-320.jpg)
![maxY=min((int)height,maxX+mcBottomEnd-1);
...
}
It is just a solid code fragment and it is not interesting to read it at all. Let's edit it:
minX = max(0, minX + mcLeftStart - 2);
minY = max(0, minY + mcTopStart - 2);
maxX = min((int)width, maxX + mcRightEnd - 1);
maxY = min((int)height, maxX + mcBottomEnd - 1);
This is not the most typical example but you agree that it is much easier to notice now that the maxX
variable is used twice, don't you?
Do not take my recommendation on alignment literally writing columns of code everywhere. First, it
requires some time when writing and editing code. Second, it may cause other errors. In the next
sample you will see how that very wish to make a nice column caused an error in Miranda IM's code.
V536 Be advised that the utilized constant value is represented by an octal form. Oct: 037, Dec: 31. msn
msn_mime.cpp 192
static const struct _tag_cpltbl
{
unsigned cp;
const char* mimecp;
} cptbl[] =
{
{ 037, "IBM037" }, // IBM EBCDIC US-Canada
{ 437, "IBM437" }, // OEM United States
{ 500, "IBM500" }, // IBM EBCDIC International
{ 708, "ASMO-708" }, // Arabic (ASMO 708)
...
}
Trying to make a nice column of numbers, you might be easily carried away and write '0' in the
beginning making the constant an octal number.
So I define my recommendation more exactly: align everything you can in code, but do not align
numbers by writing zeroes.](https://image.slidesharecdn.com/mirandaim-110712041640-phpapp01/85/How-to-make-fewer-errors-at-the-stage-of-code-writing-Part-N1-10-320.jpg)
![}
The programmer just missed two asterisks '*' for pointer dereferencing operations. The result might be
a fatal one. This code is prone to violation access errors. This is the correct code:
while ((*str==' ' || *str=='t') && *str!='0') str++;
while ((*endstr==' ' || *endstr=='t') &&
*endstr!='0' && endstr<str)
endstr--;
Again I cannot give any particular tip except using special tools for code check.
The next sample.
V514 Dividing sizeof a pointer 'sizeof (text)' by another value. There is a probability of logical error
presence. clist_modern modern_cachefuncs.cpp 567
#define SIZEOF(X) (sizeof(X)/sizeof(X[0]))
int Cache_GetLineText(..., LPTSTR text, int text_size, ...)
{
...
tmi.printDateTime(pdnce->hTimeZone, _T("t"), text, SIZEOF(text), 0);
...
}
Everything is OK at first sight. The text and its length which is calculated with the SIZEOF macro are
passed into the function. Actually this macro must be called COUNT_OF, but that's not the point. The
point is that we are trying to calculate the number of characters in the pointer. It is "sizeof(LPTSTR) /
sizeof(TCHAR)" which is calculated here. A human hardly notices such fragments but compiler and static
analyzer see them well. This is the corrected code:
tmi.printDateTime(pdnce->hTimeZone, _T("t"), text, text_size, 0);
The next sample
V560 A part of conditional expression is always true: 0x29. icqoscar8 fam_03buddy.cpp 632](https://image.slidesharecdn.com/mirandaim-110712041640-phpapp01/85/How-to-make-fewer-errors-at-the-stage-of-code-writing-Part-N1-13-320.jpg)
How to make fewer errors at the stage of code writing. Part N1.
- 1. How to make fewer errors at the stage of code writing. Part N1. Author: Andrey Karpov Date: 09.03.2011 Abstract I've arrived at the source code of a widely know instant messenger Miranda IM Together with various IM. plugins, this is a rather large project whose size is about 950 thousand code lines in C and C++. And like any other considerable project with a long development history, it has rather many errors and misprints. Introduction While examining defects in various applications, I noticed some regularities. B the examples of defects By found in Miranda IM, I will try to formulate some recommendations that will help you to avoid many errors and misprints already at the stage of code writing. I used the PVS-Studio 4.14 analyzer to check Miranda IM. The Miranda IM project code is rather quality project's and its popularity just confirms this fact. I am using this messenger myself and do not have any complaints about its quality. The project is built in Visual Studio with the Warning Level 3 ( (/W3) while the amount of comments makes 20% of the whole program's source. 1. Avoid functions memset memcpy, ZeroMemory and the like memset, I will start with errors that occur when using low level functions to handle memory such as memset, low-level memcpy, ZeroMemory and the like like. I recommend you to avoid these functions by all means. Sure, you do not have to follow this tip literally and replace all these functions with loops. But I have seen so many errors related to using these functions that I strongly advise you to be very careful with them and use them only when it is really necessary. In my opinion, there are only two cases when using these functions is grounded n grounded: 1) Processing of large arrays, i. in those places where you can really benefit from an optimized function , i.e. algorithm, as compared to simple looping. 2) Processing large number of small arrays. The reason for this case also lies in performance gain lso gain. In all the other cases, you'd better try to do without them. For instance, I believe that these functions d are unnecessary in such a program as Miranda. There are no resource intensive algorithms or large resource-intensive arrays in it. So, using functions memset/memcpy is determined only by the convenience of writing short code. But this simplicity is very deceptive and having saved a couple of seconds while writing the code,
- 2. you will spend weeks to catch this elusive memory corruption error. Let's examine several code samples taken from the Miranda IM project. V512 A call of the 'memcpy' function will lead to a buffer overflow or underflow. tabsrmm utils.cpp 1080 typedef struct _textrangew { CHARRANGE chrg; LPWSTR lpstrText; } TEXTRANGEW; const wchar_t* Utils::extractURLFromRichEdit(...) { ... ::CopyMemory(tr.lpstrText, L"mailto:", 7); ... } Only a part of the string is copied here. The error is awfully simple yet it remains. Most likely, there was a string earlier consisting of 'char'. Then they switched to Unicode strings but forgot to change the constant. If you copy strings using functions which are designed quite for this purpose, this error can never occur. Imagine that this code sample was written this way: strncpy(tr.lpstrText, "mailto:", 7); Then the programmer did not have to change number 7 when switching to Unicode strings: wcsncpy(tr.lpstrText, L"mailto:", 7); I am not saying that this code is ideal. But it is much better than using CopyMemory. Consider another sample. V568 It's odd that the argument of sizeof() operator is the '& ImgIndex' expression. clist_modern modern_extraimage.cpp 302 void ExtraImage_SetAllExtraIcons(HWND hwndList,HANDLE hContact) { ... char *(ImgIndex[64]); ...
- 3. memset(&ImgIndex,0,sizeof(&ImgIndex)); ... } The programmer intended to empty the array consisting of 64 pointers here. But only the first item will be emptied instead. The same error, by the way, can be also found in another file. Thanks to our favorite Copy-Paste: V568 It's odd that the argument of sizeof() operator is the '& ImgIndex' expression. clist_mw extraimage.c 295 The correct code must look this way: memset(&ImgIndex,0,sizeof(ImgIndex)); By the way, taking the address from the array might additionally confuse the one who is reading the code. Taking of the address here is unreasonable and the code may be rewritten this way: memset(ImgIndex,0,sizeof(ImgIndex)); The next sample. V568 It's odd that the argument of sizeof() operator is the '& rowOptTA' expression. clist_modern modern_rowtemplateopt.cpp 258 static ROWCELL* rowOptTA[100]; void rowOptAddContainer(HWND htree, HTREEITEM hti) { ... ZeroMemory(rowOptTA,sizeof(&rowOptTA)); ... } Again, it is the pointer's size which is calculated instead of the array's size. The correct expression is "sizeof(rowOptTA)". I suggest using the following code to clear the array: const size_t ArraySize = 100; static ROWCELL* rowOptTA[ArraySize]; ... std::fill(rowOptTA, rowOptTA + ArraySize, nullptr);
- 4. I got used to meeting such lines which populate the code through the copy-paste method: V568 It's odd that the argument of sizeof() operator is the '& rowOptTA' expression. clist_modern modern_rowtemplateopt.cpp 308 V568 It's odd that the argument of sizeof() operator is the '& rowOptTA' expression. clist_modern modern_rowtemplateopt.cpp 438 You think that is all about low-level handling of arrays? No, quite not. Read further, fear and punish those who like to use memset. V512 A call of the 'memset' function will lead to a buffer overflow or underflow. clist_modern modern_image_array.cpp 59 static BOOL ImageArray_Alloc(LP_IMAGE_ARRAY_DATA iad, int size) { ... memset(&iad->nodes[iad->nodes_allocated_size], (size_grow - iad->nodes_allocated_size) * sizeof(IMAGE_ARRAY_DATA_NODE), 0); ... } This time, the size of copied data is calculated correctly, but the second and third arguments are swapped by mistake. Consequently, 0 items are filled. This is the correct code: memset(&iad->nodes[iad->nodes_allocated_size], 0, (size_grow - iad->nodes_allocated_size) * sizeof(IMAGE_ARRAY_DATA_NODE)); I do not know how to rewrite this code fragment in a smarter way. To be more exact, you cannot make it smart without touching other fragments and data structures. A question arises how to do without memset when handling such structures as OPENFILENAME: OPENFILENAME x; memset(&x, 0, sizeof(x)); It's very simple. Create an emptied structure using this method:
- 5. OPENFILENAME x = { 0 }; 2. Watch closely and check if you are working with a signed or unsigned type The problem of confusing signed types with unsigned types might seem farfetched at first sight. But programmers make a big mistake by underestimating this issue. In most cases, people do not like to check compiler's warning messages concerning the comparison of an int-variable to an unsigned-variable. Really, such code is usually correct. So programmers disable these warnings or just ignore them. Or, they resort to the third method - add an explicit type conversion to suppress the compiler's warning without going into details. I suggest that you stop doing this and analyze the situation each time when a signed type meets an unsigned type. And in general, be careful about what type an expression has or what is returned by a function. Now examine several samples on this subject. V547 Expression 'wParam >= 0' is always true. Unsigned type value is always >= 0. clist_mw cluiframes.c 3140 There is the id2pos function in program code which returns value '-1' for an error. Everything is OK with this function. In another place, the result of id2pos function is used as shown below: typedef UINT_PTR WPARAM; static int id2pos(int id); static int nFramescount=0; INT_PTR CLUIFrameSetFloat(WPARAM wParam,LPARAM lParam) { ... wParam=id2pos(wParam); if(wParam>=0&&(int)wParam<nFramescount) if (Frames[wParam].floating) ... } The problem is that the wParam variable has an unsigned type. So, the condition 'wParam>=0' is always true. If id2pos function returns '-1', the condition of checking for permissible values will not work and we will start using a negative index.

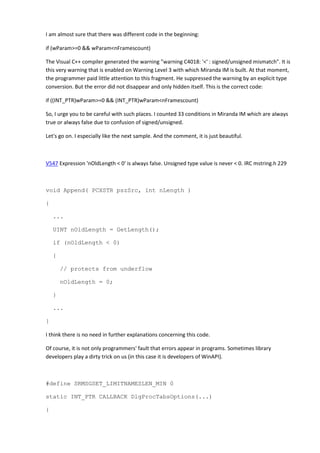

- 6. I am almost sure that there was different code in the beginning: if (wParam>=0 && wParam<nFramescount) The Visual C++ compiler generated the warning "warning C4018: '<' : signed/unsigned mismatch". It is this very warning that is enabled on Warning Level 3 with which Miranda IM is built. At that moment, the programmer paid little attention to this fragment. He suppressed the warning by an explicit type conversion. But the error did not disappear and only hidden itself. This is the correct code: if ((INT_PTR)wParam>=0 && (INT_PTR)wParam<nFramescount) So, I urge you to be careful with such places. I counted 33 conditions in Miranda IM which are always true or always false due to confusion of signed/unsigned. Let's go on. I especially like the next sample. And the comment, it is just beautiful. V547 Expression 'nOldLength < 0' is always false. Unsigned type value is never < 0. IRC mstring.h 229 void Append( PCXSTR pszSrc, int nLength ) { ... UINT nOldLength = GetLength(); if (nOldLength < 0) { // protects from underflow nOldLength = 0; } ... } I think there is no need in further explanations concerning this code. Of course, it is not only programmers' fault that errors appear in programs. Sometimes library developers play a dirty trick on us (in this case it is developers of WinAPI). #define SRMSGSET_LIMITNAMESLEN_MIN 0 static INT_PTR CALLBACK DlgProcTabsOptions(...) {
