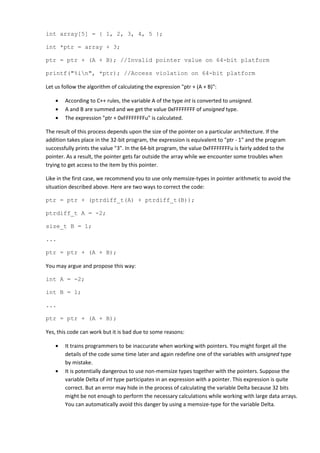

![int array[5] = { 1, 2, 3, 4, 5 };
int *ptr = array + 3;
ptr = ptr + (A + B); //Invalid pointer value on 64-bit platform
printf("%in", *ptr); //Access violation on 64-bit platform
Let us follow the algorithm of calculating the expression "ptr + (A + B)":
• According to C++ rules, the variable A of the type int is converted to unsigned.
• A and B are summed and we get the value 0xFFFFFFFF of unsigned type.
• The expression "ptr + 0xFFFFFFFFu" is calculated.
The result of this process depends upon the size of the pointer on a particular architecture. If the
addition takes place in the 32-bit program, the expression is equivalent to "ptr - 1" and the program
successfully prints the value "3". In the 64-bit program, the value 0xFFFFFFFFu is fairly added to the
pointer. As a result, the pointer gets far outside the array while we encounter some troubles when
trying to get access to the item by this pointer.
Like in the first case, we recommend you to use only memsize-types in pointer arithmetic to avoid the
situation described above. Here are two ways to correct the code:
ptr = ptr + (ptrdiff_t(A) + ptrdiff_t(B));
ptrdiff_t A = -2;
size_t B = 1;
...
ptr = ptr + (A + B);
You may argue and propose this way:
int A = -2;
int B = 1;
...
ptr = ptr + (A + B);
Yes, this code can work but it is bad due to some reasons:
• It trains programmers to be inaccurate when working with pointers. You might forget all the
details of the code some time later and again redefine one of the variables with unsigned type
by mistake.
• It is potentially dangerous to use non-memsize types together with the pointers. Suppose the
variable Delta of int type participates in an expression with a pointer. This expression is quite
correct. But an error may hide in the process of calculating the variable Delta because 32 bits
might be not enough to perform the necessary calculations while working with large data arrays.
You can automatically avoid this danger by using a memsize-type for the variable Delta.](https://image.slidesharecdn.com/13pattern05addressarithmetic-110713023547-phpapp02/85/Lesson-13-Pattern-5-Address-arithmetic-2-320.jpg)

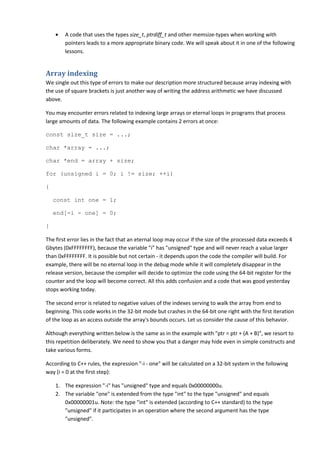

![• A code that uses the types size_t, ptrdiff_t and other memsize-types when working with
pointers leads to a more appropriate binary code. We will speak about it in one of the following
lessons.
Array indexing
We single out this type of errors to make our description more structured because array indexing with
the use of square brackets is just another way of writing the address arithmetic we have discussed
above.
You may encounter errors related to indexing large arrays or eternal loops in programs that process
large amounts of data. The following example contains 2 errors at once:
const size_t size = ...;
char *array = ...;
char *end = array + size;
for (unsigned i = 0; i != size; ++i)
{
const int one = 1;
end[-i - one] = 0;
}
The first error lies in the fact that an eternal loop may occur if the size of the processed data exceeds 4
Gbytes (0xFFFFFFFF), because the variable "i" has "unsigned" type and will never reach a value larger
than 0xFFFFFFFF. It is possible but not certain - it depends upon the code the compiler will build. For
example, there will be no eternal loop in the debug mode while it will completely disappear in the
release version, because the compiler will decide to optimize the code using the 64-bit register for the
counter and the loop will become correct. All this adds confusion and a code that was good yesterday
stops working today.
The second error is related to negative values of the indexes serving to walk the array from end to
beginning. This code works in the 32-bit mode but crashes in the 64-bit one right with the first iteration
of the loop as an access outside the array's bounds occurs. Let us consider the cause of this behavior.
Although everything written below is the same as in the example with "ptr = ptr + (A + B)", we resort to
this repetition deliberately. We need to show you that a danger may hide even in simple constructs and
take various forms.
According to C++ rules, the expression "-i - one" will be calculated on a 32-bit system in the following
way (i = 0 at the first step):
1. The expression "-i" has "unsigned" type and equals 0x00000000u.
2. The variable "one" is extended from the type "int" to the type "unsigned" and equals
0x00000001u. Note: the type "int" is extended (according to C++ standard) to the type
"unsigned" if it participates in an operation where the second argument has the type
"unsigned".](https://image.slidesharecdn.com/13pattern05addressarithmetic-110713023547-phpapp02/85/Lesson-13-Pattern-5-Address-arithmetic-3-320.jpg)
![3. Two values of the type "unsigned" participate in a subtraction operation and its result equals
0x00000000u - 0x00000001u = 0xFFFFFFFFu. Note that the result has "unsigned" type.
On a 32-bit system, calling an array by the index 0xFFFFFFFFu is equivalent to using the index "-1". I.e.
end[0xFFFFFFFFu] is analogous to end[-1]. As a result, the array's item is processed correctly. But the
picture will be different in a 64-bit system: the type "unsigned" will be extended to the signed "ptrdiff_t"
and the array's index will equal 0x00000000FFFFFFFFi64. It results in an overflow.
To correct the code you need to use such types as ptrdiff_t and size_t.
To completely convince you that you should use only memsize-types for indexing and in address
arithmetic expressions, here is the code sample for you to consider.
class Region {
float *array;
int Width, Height, Depth;
float Region::GetCell(int x, int y, int z) const;
...
};
float Region::GetCell(int x, int y, int z) const {
return array[x + y * Width + z * Width * Height];
}
This code is taken from a real program of mathematical modeling where the amount of memory is the
most important resource, so the capability of using more than 4 Gbytes on a 64-bit architecture
significantly increases the computational power. Programmers often use one-dimensional arrays in
programs like this to save memory while treating them as three-dimensional arrays. For this purpose,
they use functions analogous to GetCell which provide access to the necessary items. But the code
above will work correctly only with arrays that contain less than INT_MAX items because it is 32-bit "int"
types that are used to calculate the item's index.
Programmers often make a mistake trying to correct the code in this way:
float Region::GetCell(int x, int y, int z) const {
return array[static_cast<ptrdiff_t>(x) + y * Width +
z * Width * Height];
}
They know that, according to C++ rules, the expression to calculate the index has the type "ptrdiff_t"
and hope to avoid an overflow thereby. But the overflow may occur inside the expression "y * Width" or
"z * Width * Height" because it is still the type "int" which is used to calculate them.
If you want to correct the code without changing the types of the variables participating in the
expression, you may explicitly convert each variable to a memsize-type:](https://image.slidesharecdn.com/13pattern05addressarithmetic-110713023547-phpapp02/85/Lesson-13-Pattern-5-Address-arithmetic-4-320.jpg)
![float Region::GetCell(int x, int y, int z) const {
return array[ptrdiff_t(x) +
ptrdiff_t(y) * ptrdiff_t(Width) +
ptrdiff_t(z) * ptrdiff_t(Width) *
ptrdiff_t(Height)];
}
Another - better - solution is to change the types of the variables to a memsize-type:
typedef ptrdiff_t TCoord;
class Region {
float *array;
TCoord Width, Height, Depth;
float Region::GetCell(TCoord x, TCoord y, TCoord z) const;
...
};
float Region::GetCell(TCoord x, TCoord y, TCoord z) const {
return array[x + y * Width + z * Width * Height];
}
Diagnosis
Address arithmetic errors are well diagnosed by PVS-Studio tool. The analyzer warns you about
potentially dangerous expressions with the diagnostic warnings V102 and V108.
When possible, the analyzer tries to understand when a non-memsize type used in address arithmetic is
safe and refuse from generating a warning on this fragment. As a result, the analyzer's behavior may
seem strange. In such cases we ask users to take their time and examine the situation. Consider the
following code:
char Arr[] = { '0', '1', '2', '3', '4' };
char *p = Arr + 2;
cout << p[0u + 1] << endl;
cout << p[0u - 1] << endl; //V108
This code works correctly in the 32-bit mode and prints numbers 3 and 1 on the screen. On testing this
code we get a warning only on one string with the expression "p[0u - 1]". And this warning is quite right!
If you compile and launch this code sample in the 64-bit mode, you will see the value 3 printed on the
screen and the program will crash right after it.](https://image.slidesharecdn.com/13pattern05addressarithmetic-110713023547-phpapp02/85/Lesson-13-Pattern-5-Address-arithmetic-5-320.jpg)
Lesson 13. Pattern 5. Address arithmetic
- 1. Lesson 13. Pattern 5. Address arithmetic We have chosen the 13-th lesson to discuss the errors related to address arithmetic deliberately. The errors related to pointer arithmetic in 64-bit systems are the most insidious and it would be good that number 13 made you more attentive. The main idea of the pattern is - use only memsize-types in address arithmetic to avoid errors in 64-bit code. Consider this code: unsigned short a16, b16, c16; char *pointer; ... pointer += a16 * b16 * c16; This sample works correctly with pointers if the result of the expression "a16 * b16 * c16" does not exceed INT_MAX (2147483647). This code could always work correctly on a 32-bit platform, because on the 32-bit architecture a program does not have so much memory to create an array of such a size. On the 64-bit architecture, this limitation has been removed and the size of the array may well get larger than INT_MAX items. Suppose we want to shift the value of the pointer in 6.000.000.000 bytes, so the variables a16, b16 and c16 have the values 3000, 2000 and 1000 respectively. When calculating the expression "a16 * b16 * c16", all the variables will be cast to "int" type at first, according to C++ rules, and only then they will be multiplied. An overflow will occur during the multiplication. The incorrect result will be extended to the type ptrdiff_t and the pointer will be calculated incorrectly. You should be very attentive and avoid possible overflows when dealing with pointer arithmetic. It is good to use memsize-types or explicit type conversions in those expressions that contain pointers. Using an explicit type conversion we may rewrite our code sample in the following way: short a16, b16, c16; char *pointer; ... pointer += static_cast<ptrdiff_t>(a16) * static_cast<ptrdiff_t>(b16) * static_cast<ptrdiff_t>(c16); If you think that inaccurately written programs encounter troubles only when dealing with large data amounts, we have to disappoint you. Consider an interesting code sample working with an array that contains just 5 items. This code works in the 32-bit version and does not work in the 64-bit one: int A = -2; unsigned B = 1;
- 2. int array[5] = { 1, 2, 3, 4, 5 }; int *ptr = array + 3; ptr = ptr + (A + B); //Invalid pointer value on 64-bit platform printf("%in", *ptr); //Access violation on 64-bit platform Let us follow the algorithm of calculating the expression "ptr + (A + B)": • According to C++ rules, the variable A of the type int is converted to unsigned. • A and B are summed and we get the value 0xFFFFFFFF of unsigned type. • The expression "ptr + 0xFFFFFFFFu" is calculated. The result of this process depends upon the size of the pointer on a particular architecture. If the addition takes place in the 32-bit program, the expression is equivalent to "ptr - 1" and the program successfully prints the value "3". In the 64-bit program, the value 0xFFFFFFFFu is fairly added to the pointer. As a result, the pointer gets far outside the array while we encounter some troubles when trying to get access to the item by this pointer. Like in the first case, we recommend you to use only memsize-types in pointer arithmetic to avoid the situation described above. Here are two ways to correct the code: ptr = ptr + (ptrdiff_t(A) + ptrdiff_t(B)); ptrdiff_t A = -2; size_t B = 1; ... ptr = ptr + (A + B); You may argue and propose this way: int A = -2; int B = 1; ... ptr = ptr + (A + B); Yes, this code can work but it is bad due to some reasons: • It trains programmers to be inaccurate when working with pointers. You might forget all the details of the code some time later and again redefine one of the variables with unsigned type by mistake. • It is potentially dangerous to use non-memsize types together with the pointers. Suppose the variable Delta of int type participates in an expression with a pointer. This expression is quite correct. But an error may hide in the process of calculating the variable Delta because 32 bits might be not enough to perform the necessary calculations while working with large data arrays. You can automatically avoid this danger by using a memsize-type for the variable Delta.
- 3. • A code that uses the types size_t, ptrdiff_t and other memsize-types when working with pointers leads to a more appropriate binary code. We will speak about it in one of the following lessons. Array indexing We single out this type of errors to make our description more structured because array indexing with the use of square brackets is just another way of writing the address arithmetic we have discussed above. You may encounter errors related to indexing large arrays or eternal loops in programs that process large amounts of data. The following example contains 2 errors at once: const size_t size = ...; char *array = ...; char *end = array + size; for (unsigned i = 0; i != size; ++i) { const int one = 1; end[-i - one] = 0; } The first error lies in the fact that an eternal loop may occur if the size of the processed data exceeds 4 Gbytes (0xFFFFFFFF), because the variable "i" has "unsigned" type and will never reach a value larger than 0xFFFFFFFF. It is possible but not certain - it depends upon the code the compiler will build. For example, there will be no eternal loop in the debug mode while it will completely disappear in the release version, because the compiler will decide to optimize the code using the 64-bit register for the counter and the loop will become correct. All this adds confusion and a code that was good yesterday stops working today. The second error is related to negative values of the indexes serving to walk the array from end to beginning. This code works in the 32-bit mode but crashes in the 64-bit one right with the first iteration of the loop as an access outside the array's bounds occurs. Let us consider the cause of this behavior. Although everything written below is the same as in the example with "ptr = ptr + (A + B)", we resort to this repetition deliberately. We need to show you that a danger may hide even in simple constructs and take various forms. According to C++ rules, the expression "-i - one" will be calculated on a 32-bit system in the following way (i = 0 at the first step): 1. The expression "-i" has "unsigned" type and equals 0x00000000u. 2. The variable "one" is extended from the type "int" to the type "unsigned" and equals 0x00000001u. Note: the type "int" is extended (according to C++ standard) to the type "unsigned" if it participates in an operation where the second argument has the type "unsigned".
- 4. 3. Two values of the type "unsigned" participate in a subtraction operation and its result equals 0x00000000u - 0x00000001u = 0xFFFFFFFFu. Note that the result has "unsigned" type. On a 32-bit system, calling an array by the index 0xFFFFFFFFu is equivalent to using the index "-1". I.e. end[0xFFFFFFFFu] is analogous to end[-1]. As a result, the array's item is processed correctly. But the picture will be different in a 64-bit system: the type "unsigned" will be extended to the signed "ptrdiff_t" and the array's index will equal 0x00000000FFFFFFFFi64. It results in an overflow. To correct the code you need to use such types as ptrdiff_t and size_t. To completely convince you that you should use only memsize-types for indexing and in address arithmetic expressions, here is the code sample for you to consider. class Region { float *array; int Width, Height, Depth; float Region::GetCell(int x, int y, int z) const; ... }; float Region::GetCell(int x, int y, int z) const { return array[x + y * Width + z * Width * Height]; } This code is taken from a real program of mathematical modeling where the amount of memory is the most important resource, so the capability of using more than 4 Gbytes on a 64-bit architecture significantly increases the computational power. Programmers often use one-dimensional arrays in programs like this to save memory while treating them as three-dimensional arrays. For this purpose, they use functions analogous to GetCell which provide access to the necessary items. But the code above will work correctly only with arrays that contain less than INT_MAX items because it is 32-bit "int" types that are used to calculate the item's index. Programmers often make a mistake trying to correct the code in this way: float Region::GetCell(int x, int y, int z) const { return array[static_cast<ptrdiff_t>(x) + y * Width + z * Width * Height]; } They know that, according to C++ rules, the expression to calculate the index has the type "ptrdiff_t" and hope to avoid an overflow thereby. But the overflow may occur inside the expression "y * Width" or "z * Width * Height" because it is still the type "int" which is used to calculate them. If you want to correct the code without changing the types of the variables participating in the expression, you may explicitly convert each variable to a memsize-type:
- 5. float Region::GetCell(int x, int y, int z) const { return array[ptrdiff_t(x) + ptrdiff_t(y) * ptrdiff_t(Width) + ptrdiff_t(z) * ptrdiff_t(Width) * ptrdiff_t(Height)]; } Another - better - solution is to change the types of the variables to a memsize-type: typedef ptrdiff_t TCoord; class Region { float *array; TCoord Width, Height, Depth; float Region::GetCell(TCoord x, TCoord y, TCoord z) const; ... }; float Region::GetCell(TCoord x, TCoord y, TCoord z) const { return array[x + y * Width + z * Width * Height]; } Diagnosis Address arithmetic errors are well diagnosed by PVS-Studio tool. The analyzer warns you about potentially dangerous expressions with the diagnostic warnings V102 and V108. When possible, the analyzer tries to understand when a non-memsize type used in address arithmetic is safe and refuse from generating a warning on this fragment. As a result, the analyzer's behavior may seem strange. In such cases we ask users to take their time and examine the situation. Consider the following code: char Arr[] = { '0', '1', '2', '3', '4' }; char *p = Arr + 2; cout << p[0u + 1] << endl; cout << p[0u - 1] << endl; //V108 This code works correctly in the 32-bit mode and prints numbers 3 and 1 on the screen. On testing this code we get a warning only on one string with the expression "p[0u - 1]". And this warning is quite right! If you compile and launch this code sample in the 64-bit mode, you will see the value 3 printed on the screen and the program will crash right after it.
- 6. If you are sure that the indexing is correct, you may change the corresponding parameter of the analyzer on the settings tab Settings: General or use filters. You may also use an explicit type conversion. The course authors: Andrey Karpov (karpov@viva64.com), Evgeniy Ryzhkov (evg@viva64.com). The rightholder of the course "Lessons on development of 64-bit C/C++ applications" is OOO "Program Verification Systems". The company develops software in the sphere of source program code analysis. The company's site: http://www.viva64.com. Contacts: e-mail: support@viva64.com, Tula, 300027, PO box 1800.
