How vectors work in C++ and their allocation of memory

Chapter 15 – vector and
Free Store
Use vector as the default!
– Alex Stepanov

Overview: evolving a vector type
(and spanning the low-level/high-level language gap in the process)
• Chapter 15
• Dealing with “raw” memory: pointers and free store
• Destructors
• Chapter 16
• Arrays and pointers
• Pointers and references
• C-style strings
• Alternatives to low level facilities: span, array, and string
• Chapter 17
• Copying and moving
• Essential operations for managing object lifecycles
• Chapter 18
• Templates and generic programming
• Exceptions and scope-based resource management and error handling
(RAII)
• Resource management pointers: unique_ptr and shared_ptr
Stroustrup/Programming/2024/Chapter15 3

Vector
•vector is the most useful container
• ISO standard
• Simple to use
• Compactly stores elements of a given type
• Efficient access
• Expands to hold any number of elements
• Optionally range-checked access
• the PPP version is range checked
•How is that done?
• That is, how is vector implemented?
• We'll answer that gradually, feature after feature
•Prefer vector for storing elements unless there's
a good reason not to

Building from the ground up
•The hardware provides memory and addresses
• Low level
• Untyped
• Fixed-sized chunks of memory
• No checking
• As fast as the hardware architects can make it
•The application builder needs something like a
vector
• Higher-level operations
• Type checked
• Size varies (as we get more data)
• Run-time range checking
• Close to optimally fast

Building from the ground up
• At the lowest level, close to the hardware, life’s
simple and brutal
• You have to program everything yourself
• You have no type checking to help you
• Run-time errors are found when data is corrupted or the
program crashes
• We want to get to a higher level as quickly as we can
• To become productive and reliable
• To use a language “fit for humans”
• Chapters 15-18 basically show all the steps needed
• The alternative to understanding is to believe in “magic”
• The techniques for building vector are the ones underlying
all higher-level work with data structures

Vector
•A vector
• Our Vector will gradually be improved to approximate
the standard vector
• Can hold an arbitrary number of elements
• Up to whatever physical memory and the operating system can handle
• That number can vary over time
• E.g. by using push_back()
• Example
Vector<double> age(4);
age[0]=.33; age[1]=22.0; age[2]=27.2; age[3]=54.2;
4
0.33 22.0 27.2 54.2
age:
age[0]: age[1]: age[2]: age[3]:

Vector
class Vector { // a very simplified vector of doubles (like
vector<double>)
int sz; // the number of elements (“the size”)
double* elem; // pointer to the first element
public:
Vector(int s); // constructor: allocate s elements,
let elem point to them
int size() const { return sz; } // the current size
};
•* means “pointer to” so double* is a “pointer to
double”
• What is a “pointer”?
• How do we make a pointer “point to” elements?
• How do we “allocate” elements?

Pointer values
•Pointer values are memory addresses
• Think of them as a kind of integer values
• The first byte of memory is 0, the next 1, and so
on
• A pointer p can hold the address of a memory
location
0 1 2 2^20-1
7
600
p 600
• A pointer points to an object of a given type
• E.g., a double* points to a double, not to a string
• A pointer’s type determines how the memory referred to by the pointer’s value is used
• E.g. ,what a double* points to can be added but not, say, concatenated

The computer’s memory
•As a program sees it
• Local variables “live on the stack” (including
function arguments)
• Global variables are “static data”
• The executable code is in “the code section”

Vector (constructor)
Vector::Vector(int s) // Vector's constructor
:sz(s), // store the size s in sz
elem(new double[s]) // allocate s doubles on the free store
// store a pointer to those doubles in elem
{
// Note: new does not initialize elements (but the standard vector
does)
}
Free store:
4
• new allocates memory from the free store and
returns a pointer to the allocated memory
• We use new to allocate objects that have to
outlive the function that creates them
A pointer
sz: elem:

The free store
(sometimes called "the heap“ or “dynamic
memory”)
• You request memory “to be allocated” “on the free store” by the
new operator
• The new operator returns a pointer to the allocated memory
• A pointer is the address of the first byte of the memory
• int* p = new int; // allocate one uninitialized int
// int* means “pointer to int”
• int* q = new int[7]; // allocate seven uninitialized ints
// “an array of 7 ints”
• double* pd = new double[n]; // allocate n uninitialized
doubles
• A pointer points to an object of its specified type
• A pointer does not know how many elements it points to
p:
q:

Access
•Individual elements
int* p1 = new int; // get (allocate) a new
uninitialized int
int* p2 = new int(5); // get a new int initialized to 5
int x = *p2; // get/read the value pointed to by
p2
// (or “get the contents of what p2
points to”)
// in this case, the integer 5
int y = *p1; // undefined: y gets an undefined
5
p2:
???
p1:

Access
[0] [1] [2]
[3] [4]
• Arrays (sequences of elements)
int* p3 = new int[5]; // get (allocate) 5 ints
// array elements are numbered [0],
[1], [2], …
p3[0] = 7; // write to (“set”) the 1st element
of p3
p3[1] = 9;
int x2 = p3[1]; // get the value of the 2nd element of p3
int x3 = *p3; // we can also use the dereference
operator * for an array
7 9
p3:

Pointer values
• Pointer values are memory addresses
• Think of them as a kind of integer values
• The first byte of memory is 0, the next 1, and so on
// you can see a pointer value (but you rarely need/want to):
int* p1 = new int(7); // allocate an int and initialize it to 7
double* p2 = new double(7); // allocate a double and initialize it to 7.0
cout << "p1==" << p1 << " *p1==" << *p1 << "n"; // p1==??? *p1==c
cout << "p2==" << p2 << " *p2==" << *p2 << "n"; // p2==??? *p2=7
0 1 2 2^20-1
7
p2 *p2

Access
• A pointer does not know the number of elements that
it's pointing to (only the address of the first
element)
double* p1 = new double;
*p1 = 7.3; // ok
p1[0] = 8.2; // ok
p1[17] = 9.4; // ouch! Undetected error
p1[-4] = 2.4; // ouch! Another undetected error
double* p2 = new double[100];
*p2 = 7.3; // ok
p2[17] = 9.4; // ok
p2[-4] = 2.4; // ouch! Undetected error
• Fortunately, we have ways of avoiding such errors
7.3
8.2
7.3
p1:
p2:

Access
• A pointer does not know the number of elements that
it's pointing to
double* p1 = new double;
double* p2 = new double[100];
p1[17] = 9.4; // error (obviously)
p1 = p2; // assign the value of p2 to p1
p1[17] = 9.4; // now ok: p1 now points to the array of
100 doubles
p1:
p2:
p1:
(after the assignment)
[0]: [99]:

Access
• A pointer does know the type of the object that it’s
pointing to
int* pi1 = new int(7);
int* pi2 = pi1; // ok: pi2 points to the same object as pi1
double* pd = pi1; // error: can’t assign an int* to a
double*
char* pc = pi1; // error: can’t assign an int* to a char*
• There are no implicit conversions between a pointer to one
value type to a pointer to another value type
• However, there are implicit conversions between value types:
*pc = 8; // ok: we can assign an int to a char
*pc = *pi1; // ok: we can assign an int to a char
7
7
pi1:
pc:

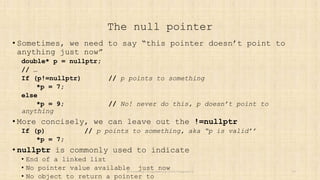

The null pointer
• Sometimes, we need to say “this pointer doesn’t point to
anything just now”
double* p = nullptr;
// …
If (p!=nullptr) // p points to something
*p = 7;
else
*p = 9; // No! never do this, p doesn’t point to
anything
• More concisely, we can leave out the !=nullptr
If (p) // p points to something, aka “p is valid’’
*p = 7;
• nullptr is commonly used to indicate
• End of a linked list
• No pointer value available just now
• No object to return a pointer to

A problem: memory leak
double* calc(int result_size, int max)
{
double* p = new double[max]; // allocate max doubles on free
store
double* result = new double[result_size];
// … use p to calculate results to be put in result …
return result;
}
double* r = calc(200,100); // oops!
• We “forgot” to give the memory allocated by new back to the
free store
• That doesn’t happen automatically (“no garbage collection”)
• Lack of de-allocation (usually called “memory leaks”) can be a
serious problem in real-world programs

We can give memory back to the free
store: detete
double* calc1(int result_size, int max)
{
double* tmp = new double[max]; // allocate max doubles on free
store
double* result = new double[result_size];
// … use tmp to calculate results to be put in result …
delete[] tmp; // return the memory pointed to by
tmp to the free store
return result;
}
double* r = calc1(200,100); // oops!
// … use r …
delete[ ] r; // return the memory pointed to by r to the
free store

Memory leaks – resource leaks
• A program that needs to run “forever” can’t afford any memory
leaks
• An operating system is an example of a program that “runs forever”
• If a function leaks 8 bytes every time it is called, how many
days can it run before it has leaked/lost a megabyte?
• Trick question: not enough data to answer, but about 130,000 calls
• All memory is returned to the system at the end of the program
• If you run using an operating system (Windows, Unix, whatever)
• Program that runs to completion with predictable memory usage
may leak without causing problems
• i.e., memory leaks aren’t “good/bad” but they can be a major problem in
specific circumstances
• Memory leaks is a major real-world problem
• Memory leaks is just a special case of resource leaks
• E.g., files, locks, sockets

Memory leaks
• Another way to get a memory
leak
void f()
{
double* p = new double[27];
// …
p = new double[42];
// …
delete[] p;
}
// 1st array (of 27 doubles)
leaked
p:
2nd value
1st value

Memory leaks
•How do we systematically and simply avoid
memory leaks?
• Use resource handles
• Use vector, etc.
• don't mess directly with new and delete
• Or use a garbage collector
• A garbage collector is a program the keeps track of all
of your allocations and returns unused free-store
allocated memory to the free store
• Not common in C++
• not covered in this course; see
http://www.stroustrup.com/C++.html
• Unfortunately, a garbage collector doesn’t prevent all
resource leaks
• Only memory leaks Stroustrup/Programming/2024/Chapter15 25

A problem: memory leak
void f(int x)
{
Vector v(x); // define a Vector (which allocates x
doubles on the free store)
// … use v …
// give the memory allocated by v back to the free store
// but how? (Vector's elem data member is private)
}

Vector (destructor)
// a very simplified Vector of doubles:
class Vector {
int sz; // the size
double* elem; // a pointer to the elements
public:
Vector(int s) :sz(s), elem(new double[s]) { } // constructor:
allocates/acquires memory
~Vector() { delete[ ] elem; } // destructor: de-
allocates/releases memory
// …
};
• Note: this is an example of a general and important
technique:
• acquire resources in a constructor
• release them in the destructor
• Examples of resources: memory, files, locks, threads,
sockets

Implicitly give memory back to the free
store
Vector<double> calc2(int result_size, int max)
{
Vector<double> tmp(max); // allocate max doubles
on free store
Vector<double> result(result_size);
// … use tmp to calculate results to be put in result …
return result;
} // tmp destroyed upon return
void user()
{
// …
auto res = calc2(200,100); // oops!
// … use r …
} // res destroyed upon return
Simpler and probably more efficient
than using new and delete explicitly
(yes, we can avoid copying a result v
- Next lecture)

Free store summary
• Allocate using new
• New allocates an object on the free store, sometimes initializes
it, and returns a pointer to it
• int* pi = new int; // default initialization (none for
int)
• char* pc = new char('a'); // explicit initialization
• double* pd = new double[10]; // allocation of (uninitialized)
array
• New throws a bad_alloc exception if it can't allocate (out of
memory)
• Deallocate using delete and delete[ ]
• delete and delete[ ] return the memory of an object allocated by
new to the free store so that the free store can use it for new
allocations
• delete pi; // deallocate an individual object
• delete pc; // deallocate an individual object
• delete[ ] pd; // deallocate an array
• Delete of a zero-valued pointer ("the null pointer") does nothing

Avoid “naked new” and “naked delete”
• Manual resource allocation and deallocation is error-prone
• We forget to hand resources back (Ask any librarian)
• We use pointers after the memory they point to has been deleted
• Use of “raw pointers” to manage memory leads to overuse of pointers
• Using vector leads to simpler code
• Compare calc1() and calc2()
• See the following lectures and chapters

Generated destructors
• If a member of a class has a destructor, then that destructor
will be called when the object containing the member is
destroyed.
struct Customer {
string name;
vector<string> addresses;
// ...
};
void some_fct()
{
Customer fred { "Fred", {"17 Oak St.", "232 Rock Ave."}};
// ... use fred ...
}
• That saves us a lot of work

Virtual destructors
• Destructors work correctly in class hierarchies
• Provided you declare the destructor virtual
Shape* fct()
{
Text tt {Point{200,200},"Anya"}; // local Text variable
// ...
return new Text{Point{100,100},"Courtney"}; // Text object
on the free store
}
void user()
{
Shape* q = fct();
// ... use the Shape without caring exactly which kind of shape it
is ...
delete q; // Shape’s destructor is virtual so
Text::~Text() is called if *q is a Text

But, what about “no naked deletes”?
• Use “resource-manegement” pointers ()
unique_ptr<Shape> fct()
{
Text tt {Point{200,200},"Annemarie"}; // local Text variable
// ...
return make_unique<Text>(Point{100,100},"Nicholas"); // Text object on the free store
}
void user()
{
unique_ptr<Shape> q = fct();
// ... use the Shape without caring exactly which kind of shape it is ...
}
• Equivalent to the previous example, but simpler

Access to elements
• But our Vector doesn’t have access operations
• So, let’s add very simple ones
class Vector { // a very simplified vector of doubles
public:
Vector(int s) :sz{s}, elem{new double[s]} { /* ... */ } // constructor
~Vector() { delete[] elem; } // destructor
int size() const { return sz; } // the current size
double get(int n) const { return elem[n]; } // access: read
void set(int n, double v) { elem[n]=v; } // access: write
private:
int sz; // the size
double* elem; // a pointer to the elements
};

Access to elements
• Not very elegant
• But it’ll do for now
Vector v(5);
for (int i=0; i<v.size(); ++i) {
v.set(i,1.1*i);
cout << "v[" << i << "]==" << v.get(i) << 'n';
}

Reminder
•Why look at the Vector implementation?
• To see how the standard library vector really works
• To introduce basic concepts and language features
• Free store (heap)
• Copying
• Dynamically growing data structures
• To see how to directly deal with memory
• To introduce the techniques and concepts we need to
understand C
• Including the dangerous ones (and see how to avoid those in
C++)
• To demonstrate class design techniques
• To see examples of “neat” code and good design

Next lecture
• We’ll see how we can change our Vector’s implementation to
better allow for changes in the number of elements. Then we’ll
modify Vector to take elements of an arbitrary type and add
range checking. That’ll imply looking at templates and
revisiting exceptions.

How vectors work in C++ and their allocation of memory

More Related Content

Similar to How vectors work in C++ and their allocation of memory (20)

Recently uploaded (20)

How vectors work in C++ and their allocation of memory
