Key features
• High expandability for investment protection
• Premium security and integrated management
• Multilayer reliability
• Convergence-ready support
• Outstanding quality of service (QoS)
Product overview
These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice
support capabilities for robust switching at the edge or aggregation layer of large enterprise
and campus networks, or in the core layer of SMB networks. The HPE 5500 EI Switch Series
consists of Layer 2 or 3 Gigabit Ethernet switches that can accommodate the most demanding
applications and provide resilient and secure connectivity as well as the latest traffic prioritization
technologies to enhance applications on convergent networks. With complete IPv4 or IPv6
dual-stack support, the series provides a migration path from IPv4 to IPv6 and has hardware support
for IPv6. Designed for increased flexibility, these switches are available with 24 or 48 Gigabit
Ethernet ports. Power over Ethernet (PoE) and non-PoE models are available with optional
1GbE and 10GbE expansion capability. The all-fiber model with dual power supplies is ideal
for applications that require the highest availability.
HPE 5500 EI Switch Series
Data sheet

Data sheet
Features and benefits
Software-defined networking
• OpenFlow
Supports OpenFlow 1.3 specifications to enable SDN by allowing separation of the data
(packet forwarding) and control (routing decision) paths
Quality of service (QoS)
• Storm restraint
Allows limitation of broadcast, multicast, and unknown unicast traffic rate to cut down on
unwanted broadcast traffic on the network
• Advanced classifier-based QoS
Classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies
QoS policies, such as setting priority level and rate limit, to bi-directional selected traffic on
a per-port, per-VLAN, or whole switch basis
• Powerful QoS feature
Creates traffic classes based on ACLs, IEEE 802.1p precedence, IP, DSCP, or ToS precedence;
supports filter, redirect, mirror, or remark; supports the following congestion actions: strict
priority queuing (SP), weighted round robin (WRR), SP+WRR, weighted fair queuing (WFQ),
and weighted random early discard (WRED)
• Traffic policing
Supports Committed Access Rate (CAR) and line rate
Management
• Friendly port names
Allows assignment of descriptive names to ports
• Remote configuration and management
Enables configuration and management through a secure Web browser or a CLI located
on a remote device
• Manager and operator privilege levels
Provide read-only (operator) and read/write (manager) access on CLI and Web browser
management interfaces
• Command authorization
Leverages HWTACACS to link a custom list of CLI commands to an individual network
administrator’s login; also provides an audit trail
• Secure Web GUI
Provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
• Dual flash images
Provide independent primary and secondary operating system files for backup while upgrading
• Multiple configuration files
Store easily to the flash image
• Complete session logging
Provides detailed information for problem identification and resolution

Data sheet
• SNMPv1, v2c, and v3
Facilitate centralized discovery, monitoring, and secure management of networking devices
• Remote monitoring (RMON)
Uses standard SNMP to monitor essential network functions; supports events, alarm, history,
and statistics group plus a private alarm extension group
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advertises and receives management information from adjacent devices on a network,
facilitating easy mapping by network management applications
• sFlow (RFC 3176)
Provides scalable ASIC-based wire-speed network monitoring and accounting with no impact
on network performance; this allows network operators to gather a variety of sophisticated
network statistics and information for capacity planning and real-time network monitoring
purposes
• Management VLAN
Segments traffic to and from management interfaces, including CLI or telnet, a Web browser
interface, and SNMP
• Remote Intelligent Mirroring
Mirrors ingress or egress ACL-selected traffic from a switch port or VLAN to a local or remote
switch port anywhere on the network
• Device Link Detection Protocol (DLDP)
Monitors a cable between two switches and shuts down the ports on both ends if the cable
is broken, preventing network problems such as loops
• IPv6 management
Provides future-proof networking because the switch is capable of being managed whether
the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6,
DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6
• Troubleshooting
Ingress and egress port monitoring enables network problem-solving; virtual cable tests
provide visibility into cable problems
• In-Service Software Upgrade (ISSU)
Enables operators to perform upgrades in the shortest possible amount of time with reduced
risk to network operations or traffic disruptions
Connectivity
• Auto-MDIX
Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
• Flow control
Provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations
• Jumbo packet support
Supports up to 9216-byte frame size to improve the performance of large data transfers
• High-density port connectivity
Provides up to 48 fixed 10/100/1000BASE-T or 24 SFP 100/1000BASE-X ports in a Layer 2
or Layer 3 stackable switch supporting unique IRF stacking

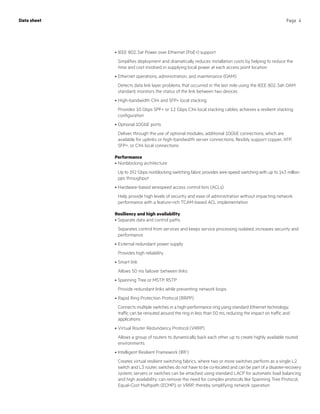

Data sheet
• IEEE 802.3at Power over Ethernet (PoE+) support
Simplifies deployment and dramatically reduces installation costs by helping to reduce the
time and cost involved in supplying local power at each access point location
• Ethernet operations, administration, and maintenance (OAM)
Detects data link layer problems that occurred in the last mile using the IEEE 802.3ah OAM
standard; monitors the status of the link between two devices
• High-bandwidth CX4 and SFP+ local stacking
Provides 10 Gbps SPF+ or 12 Gbps CX4 local stacking cables; achieves a resilient stacking
configuration
• Optional 10GbE ports
Deliver, through the use of optional modules, additional 10GbE connections, which are
available for uplinks or high-bandwidth server connections; flexibly support copper, XFP,
SFP+, or CX4 local connections
Performance
• Nonblocking architecture
Up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million
pps throughput
• Hardware-based wirespeed access control lists (ACLs)
Help provide high levels of security and ease of administration without impacting network
performance with a feature-rich TCAM-based ACL implementation
Resiliency and high availability
• Separate data and control paths
Separates control from services and keeps service processing isolated; increases security and
performance
• External redundant power supply
Provides high reliability
• Smart link
Allows 50 ms failover between links
• Spanning Tree or MSTP, RSTP
Provide redundant links while preventing network loops
• Rapid Ring Protection Protocol (RRPP)
Connects multiple switches in a high-performance ring using standard Ethernet technology;
traffic can be rerouted around the ring in less than 50 ms, reducing the impact on traffic and
applications
• Virtual Router Redundancy Protocol (VRRP)
Allows a group of routers to dynamically back each other up to create highly available routed
environments
• Intelligent Resilient Framework (IRF)
Creates virtual resilient switching fabrics, where two or more switches perform as a single L2
switch and L3 router; switches do not have to be co-located and can be part of a disaster-recovery
system; servers or switches can be attached using standard LACP for automatic load balancing
and high availability; can remove the need for complex protocols like Spanning Tree Protocol,
Equal-Cost Multipath (ECMP), or VRRP, thereby simplifying network operation

Data sheet
• IP Fast Reroute (FRR)
Forms backup paths and allows 50 ms switchover in case of a main path fault
• IRF capability
Provides single IP address management for a resilient virtual switching fabric of up to nine switches
Layer 2 switching
• 32K MAC addresses
Provide access to many Layer 2 devices
• IEEE 802.1ad QinQ and selective QinQ
Increase the scalability of an Ethernet network by providing a hierarchical structure; connect
multiple LANs on a high-speed campus or metro network
• GARP VLAN Registration Protocol
Allows automatic learning and dynamic assignment of VLANs
• IEEE 802.1ad QinQ
Increases the scalability of an Ethernet network by providing a hierarchical structure;
connects multiple LANs on a high-speed campus or metro network
• 10GbE port aggregation
Allows grouping of ports to increase overall data throughput to a remote device
• Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD)
protocol snooping
Controls and manages the flooding of multicast packets in a Layer 2 network
Layer 3 services
• Address Resolution Protocol (ARP)
Determines the MAC address of another IP host in the same subnet
• Dynamic Host Configuration Protocol (DHCP)
Simplifies the management of large IP networks and supports client and server; DHCP Relay
enables DHCP operation across subnets
• Loopback interface address
Define an address in Routing Information Protocol (RIP) and Open Standard Path First (OSPF),
improving diagnostic capability
• User Datagram Protocol (UDP) helper function
Allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet
broadcast addresses and prevents server spoofing for UDP services such as DHCP
• Route maps
Provide more control during route redistribution; allow filtering and altering of route metrics
Layer 3 routing
• IPv4 routing protocols
Support static routes, RIP, OSPF, ISIS, and BGP
• IPv6 routing protocols
Provide routing of IPv6 at wire speed; support static routes, RIPng, OSPFv3, IS-ISv6, and
BGP4+ for IPv6

Data sheet
• Equal-Cost Multipath (ECMP)
Enables multiple equal-cost links in a routing environment to increase link redundancy and
scale bandwidth
• Policy-based routing
Makes routing decisions based on policies set by the network administrator
• IGMPv1, v2, and v3
Allow individual hosts to be registered on a particular VLAN
• PIM-SSM, PIM-DM, and PIM-SM (for IPv4 and IPv6)
Support IP Multicast address management and inhibition of DoS attacks
• IPv6 tunneling
Allows a smooth transition from IPv4 to IPv6 by encapsulating IPv6 traffic over an existing
IPv4 infrastructure
• Unicast Reverse Path Forwarding (uRPF)
Limits erroneous or malicious traffic in accordance with RFC 3074
• Bidirectional Forwarding Detection (BFD)
Enables link connectivity monitoring and reduces network convergence time for RIP, OSPF,
BGP, IS-IS, VRRP, and IRF
Security
• Access control lists (ACLs)
Provide IP Layer 2 to Layer 4 traffic filtering; support global ACL, VLAN ACL, port ACL, and
IPv6 ACL. Up to 3,072 ingress ACLs and 448 egress ACLs are supported
• IEEE 802.1X
Is an industry-standard method of user authentication that uses an IEEE 802.1X supplicant
on the client in conjunction with a RADIUS server
• MAC-based authentication
Authenticates the client with the RADIUS server based on the client’s MAC address
• Identity-driven security and access control
––Per-user ACLs
Permit or deny user access to specific network resources based on user identity and time
of day, allowing multiple types of users on the same network to access specific network
services without risking network security or providing unauthorized access to sensitive data
––Automatic VLAN assignment
Automatically assigns users to the appropriate VLAN based on their identities
• Secure management access
Delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL,
or SNMPv3
• Secure FTP
Allows secure file transfer to and from the switch; protects against unwanted file downloads
or unauthorized copying of a switch configuration file
• Guest VLAN
Provides a browser-based environment to authenticated clients that is similar to IEEE 802.1X

Data sheet
• Endpoint Admission Defense (EAD)
Provides security policies to users accessing a network
• Port security
Allows access only to specified MAC addresses, which can be learned or specified by the
administrator
• Port isolation
Secures and adds privacy, and prevents malicious attackers from obtaining user information
• STP BPDU port protection
Blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing
forged BPDU attacks
• STP root guard
Protects the root bridge from malicious attacks or configuration mistakes
• DHCP protection
Blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
• Dynamic ARP protection
Blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
• IP source guard
Helps prevent IP spoofing attacks
• RADIUS or HWTACACS
Eases switch management security administration by using a password authentication server
• Multiple Customer Edge (MCE)
Facilitates MPLS VPN network integration with up to 64 VPNs support
• Unicast Reverse Path Forwarding (URPF)
Allows normal packets to be forwarded correctly, whereas the attaching packet will be discarded
due to lack of reverse path route or incorrect inbound interface; prevents source spoofing and
distributed attacks; supports distributed URPF
Convergence
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Facilitates easy mapping using network management applications with LLDP automated
device discovery protocol
• LLDP-MED
Is a standard extension that automatically configures network devices, including LLDP-capable
IP phones
• LLDP-CDP compatibility
Receives and recognizes CDP packets from Cisco’s IP phones for seamless interoperation
• IEEE 802.3af Power over Ethernet
Provides up to 15.4 W per port to PoE-powered devices such as IP phones, wireless access
points, and video cameras
• PoE allocations
Support multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified)
to allocate PoE power for more efficient energy savings

Data sheet
• Voice VLAN
Automatically assigns VLAN and priority for IP phones, simplifying network configuration and
maintenance
• IP multicast snooping (data-driven IGMP)
Prevents flooding of IP multicast traffic
• Internet Group Management Protocol (IGMP)
Utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4
multicast networks; supports IGMPv1, v2, and v3
• Protocol Independent Multicast (PIM)
Defines modes of Internet multicasting to allow one-to-many and many-to-many transmission
of information; supports PIM Dense Mode (DM), Sparse Mode (SM), and Source-Specific
Mode (SSM)
• Multicast Source Discovery Protocol (MSDP)
Allows multiple PIM-SM domains to interoperate; is used for inter-domain multicast applications
• Multicast Border Gateway Protocol (MBGP)
Allows multicast traffic to be forwarded across BGP networks and kept separate from unicast traffic
• Multicast VLAN
Allows multiple VLANs to receive the same IPv4 or IPv6 multicast traffic, lessening network
bandwidth demand by reducing or removing multiple streams to each VLAN
Device support
• Cisco prestandard PoE support
Detects and provides power to Cisco’s prestandard PoE devices such as wireless LAN access
points and IP phones
Additional information
• Green IT and power
Improves energy efficiency through the use of the latest advances in silicon development;
shuts off unused ports and utilizes variable-speed fans, reducing energy costs
• Green initiative support
Provides support for RoHS and WEEE regulations
Warranty and support
• Limited Lifetime Warranty
See hpe.com/networking/warrantysummary for warranty and support information
included with your product purchase
• Software releases
To find software for your product, refer to hpe.com/networking/support; for details on the
software releases available with your product purchase, refer to
hpe.com/networking/warrantysummary

Data sheet
Specifications HPE 5500-24G EI
Switch with 2 Interface Slots (JD377A)
HPE 5500-48G EI
HPE 5500-24G-SFP EI
I/O ports and slots 24 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T);
Media Type: Auto-MDIX; Duplex:
10BASE‑T/100BASE-TX: half or full;
1000BASE-T: full only
4 dual-personality ports;
autosensing 10/100/1000BASE-T or SFP
2 port expansion module slots
Supports a maximum
of 24 autosensing 10/100/1000 ports
48 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T,
IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T);
Media Type: Auto-MDIX; Duplex:
10BASE‑T/100BASE-TX: half or full;
1000BASE-T: full only
Supports a maximum
24 fixed Gigabit Ethernet SFP ports
Additional ports and slots 1 RJ-45 serial console port 1 RJ-45 serial console port 1 RJ-45 serial console port
Power supplies 2 power supply slots
1 minimum power supply required
includes: 1 x JD362A
(HPE 5800/5500 150W AC
Power Supply)
Physical characteristics
Dimensions
Weight
17.32(w) x 11.81(d) x 1.72(h) in
(44 x 30 x 4.36 cm) (1U height)
8.82 lb (4 kg)
17.32(w) x 11.81(d) x 1.72(h) in
(44 x 30 x 4.36 cm) (1U height)
9.92 lb (4.5 kg)
17.32(w) x 14.17(d) x 1.72(h) in
(44 x 36 x 4.36 cm) (1U height)
13.89 lb (6.3 kg)
Memory and processor 256 MB SDRAM, 32 MB flash; packet
buffer size: 2 MB
256 MB SDRAM, 32 MB flash; packet
buffer size: 4 MB
256 MB SDRAM, 32 MB flash; packet
buffer size: 2 MB
Mounting and enclosure Mounts in an
EIA-standard 19 in. telco rack or
equipment cabinet (hardware included)
Mounts in an
Mounts in an
Performance
1000 Mb Latency
10 Gbps Latency
Throughput
Routing/Switching capacity
Routing table size
< 3.2 µs
< 2.6 µs
107.2 million pps
144 Gbps
12000 entries (IPv4)
< 3.2 µs
< 2.6 µs
142.9 million pps
192 Gbps
< 3.2 µs
< 2.6 µs
107.2 million pps
144 Gbps
Environment
Operating temperature
Operating relative humidity
Nonoperating/Storage temperature
Nonoperating/Storage relative humidity
Acoustic
32°F to 113°F (0°C to 45°C)
10% to 90%, noncondensing
-40°F to 158°F (-40°C to 70°C)
Low-speed fan: 42.6 dB,
High-speed fan: 49.7 dB; ISO 7779
32°F to 113°F (0°C to 45°C)
-40°F to 158°F (-40°C to 70°C)
32°F to 113°F (0°C to 45°C)
-40°F to 158°F (-40°C to 70°C)

Data sheet
Specifications HPE 5500-24G EI
HPE 5500-48G EI
HPE 5500-24G-SFP EI
Electrical characteristics
Frequency
Maximum heat dissipation
AC voltage
DC voltage
Maximum power rating
50/60 Hz
375 BTU/hr (395.63 kJ/hr)
100 to 240 VAC
110 W
Notes:
Maximum power rating and maximum
heat dissipation are the worst-case
theoretical maximum numbers provided
for planning the infrastructure with
fully loaded PoE (if equipped), 100%
traffic, all ports plugged in, and all
modules populated.
50/60 Hz
528 BTU/hr (557.04 kJ/hr)
100 to 240 VAC
155 W
Notes:
modules populated.
50/60 Hz
392 BTU/hr (413.56 kJ/hr)
100 to 240 VAC
-48 to -60 VDC
115 W
Notes:
modules populated.
Safety UL 60950-1; EN 60825-1 Safety of Laser
Products-Part 1; EN 60825-2 Safety of
Laser Products-Part 2; IEC 60950‑1;
CAN/CSA-C22.2 No. 60950-1;
EN 60950‑1/A11; FDA 21 CFR Subchapter
J; ROHS Compliance
UL 60950-1; EN 60825-1 Safety of Laser
CAN/CSA-C22.2 No. 60950-1;
EN 60950-1/A11; FDA 21 CFR Subchapter
J; ROHS Compliance
CAN/CSA-C22.2 No. 60950-1;
EN 60950‑1/A11; FDA 21 CFR Subchapter
J; ROHS Compliance
Emissions FCC part 15 Class A; VCCI Class A;
EN 55022 Class A; CISPR 22 Class A;
ICES-003 Class A; ANSI C63.4 2003;
ETSI EN 300 386 V1.3.3; AS/NZS
CISPR 22 Class A; EN 61000-3-2;
EN 61000-3-3; EN 61000-4-2;
EN 61000-4-3; EN 61000-4-4;
EN 61000-4-5; EN 61000-4-6;
EN 61000-4-11; EN 61000-3-2:2006;
EN 61000-3-3:1995 +A1:2001+A2:2005;
EMC Directive 2004/108/EC;
FCC (CFR 47, Part 15) Class A
FCC part 15 Class A; VCCI Class A;
EN 61000-3-3; EN 61000-4-2;
EN 61000-4-3; EN 61000-4-4;
EN 61000-4-5; EN 61000-4-6;
EN 61000-4-11; EN 61000-3-2:2006;
EN 61000-3-3:1995 +A1:2001+A2:2005;
FCC part 15 Class A; VCCI Class A;
EN 61000-3-3; EN 61000-4-2;
EN 61000-4-3; EN 61000-4-4;
EN 61000-4-5; EN 61000-4-6;
EN 61000-4-11; EN 61000-3-2:2006;
EN 61000-3-3:1995 +A1:2001+A2:2005;
Management IMC—Intelligent Management Center;
command-line interface; Web browser;
SNMP Manager; IEEE 802.3 Ethernet MIB
IMC—Intelligent Management Center;
Notes 1 power supply included
Services Refer to the Hewlett Packard Enterprise
websiteathpe.com/networking/services
for details on the service-level descriptions
and product numbers. For details about
services, and response times in your area,
please contact your local Hewlett Packard
Enterprise sales office.
Refer to the Hewlett Packard Enterprise
Refer to the Hewlett Packard Enterprise
(continued)

Data sheet
Specifications HPE 5500-48G-PoE+ EI
Switch with 2 Interface Slots (JG240A)
HPE 5500-24G-PoE+ EI
I/O ports and slots 48 RJ-45 autosensing 10/100/1000 PoE+ ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u
Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T,
IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex:
10BASE-T/100BASE-TX: half or full; 1000BASE-T: full
only
Supports a maximum
24 RJ-45 autosensing 10/100/1000 PoE+ ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u
Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T,
IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex:
10BASE-T/100BASE-TX: half or full; 1000BASE-T: full
only
Supports a maximum
Additional ports and slots 1 RJ-45 serial console port 1 RJ-45 serial console port
Physical characteristics
Dimensions
Weight
17.32(w) x 16.54(d) x 1.72(h) in
(43.99 x 42.01 x 4.37 cm)
(1U height)
14.33 lb (6.5 kg)
17.32(w) x 16.54(d) x 1.69(h) in
(43.99 x 42.01 x 4.29 cm)
(1U height)
13.23 lb (6 kg)
Memory and processor 256 MB SDRAM, 32 MB flash; packet buffer size: 4 MB 256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB
Mounting and enclosure Mounts in an EIA-standard 19 in. telco rack or equipment
cabinet (hardware included)
Mounts in an EIA-standard 19 in. telco rack or equipment
cabinet (hardware included)
Performance
1000 Mb Latency
10 Gbps Latency
Throughput
Routing/Switching capacity
Routing table size
< 3.2 µs
< 2.6 µs
142.9 million pps
192 Gbps
< 3.2 µs
< 2.6 µs
107.2 million pps
144 Gbps
Environment
Operating temperature
Operating relative humidity
Nonoperating/Storage temperature
Nonoperating/Storage relative humidity
Acoustic
32°F to 113°F (0°C to 45°C)
-40°F to 158°F (-40°C to 70°C)
32°F to 113°F (0°C to 45°C)
-40°F to 158°F (-40°C to 70°C)

Data sheet
Specifications HPE 5500-48G-PoE+ EI
HPE 5500-24G-PoE+ EI
Electrical characteristics
Frequency
Maximum heat dissipation
AC voltage
Maximum power rating
PoE power
50/60 Hz
2255 BTU/hr (2379.02 kJ/hr). Max heat dissipation
for AC is 2255 BTU/hr and 3173 BTU/hr for DC.
100 to 240 VAC
661 W
740 W
Notes:
Maximum power rating and maximum heat dissipation
are the worst-case theoretical maximum numbers
provided for planning the infrastructure with fully loaded
PoE (if equipped), 100% traffic, all ports plugged in, and
all modules populated.
PoE power is the power supplied by the internal power
supply. It is dependent on the type and quantity of
power supplies and may be supplemented with the use
of an external power supply (EPS).
With AC input, the maximum power consumption
is 661 W; PoE is 370 W. With DC input, the maximum
power consumption is 930 W; PoE is 740 W.
50/60 Hz
2016 BTU/hr (2126.88 kJ/hr). Max heat dissipation
for AC is 2016 BTU/hr and 1678 BTU/hr for DC.
100 to 240 VAC
591 W
370 W
Notes:
Maximum power rating and maximum heat dissipation
are the worst-case theoretical maximum numbers
provided for planning the infrastructure with fully loaded
PoE (if equipped), 100% traffic, all ports plugged in, and
all modules populated.
PoE power is the power supplied by the internal power
supply. It is dependent on the type and quantity of power
supplies and may be supplemented with the use of an
external power supply (EPS).
With AC input, the maximum power consumption
is 591 W; PoE is 370 W. With DC input, the maximum
power consumption is 492 W; PoE is 370 W.
Safety UL 60950-1; EN 60825-1 Safety of Laser
Products-Part 1; EN 60825-2 Safety of Laser
Products-Part 2; IEC 60950‑1; CAN/CSA-C22.2 No.
60950-1; EN 60950‑1/A11; FDA 21 CFR Subchapter J;
ROHS Compliance
Products-Part 1; EN 60825-2 Safety of Laser
Products-Part 2; IEC 60950‑1; CAN/CSA-C22.2 No.
60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J;
ROHS Compliance
Emissions FCC part 15 Class A; VCCI Class A; EN 55022 Class A;
CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003;
ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A;
EN 61000-3-2; EN 61000-3-3; EN 61000-4-2;
EN 61000-4-3; EN 61000-4-4; EN 61000-4-5;
EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006;
EN 61000-3-3:1995+A1:2001+A2:2005;
EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
FCC part 15 Class A; VCCI Class A; EN 55022 Class A;
CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003;
ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A;
EN 61000-3-2; EN 61000-3-3; EN 61000-4-2;
EN 61000-4-3; EN 61000-4-4; EN 61000-4-5;
EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006;
EN 61000-3-3:1995+A1:2001+A2:2005;
EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Management IMC—Intelligent Management Center;
command-line interface; Web browser; SNMP
Manager; IEEE 802.3 Ethernet MIB
command-line interface; Web browser; SNMP
Manager; IEEE 802.3 Ethernet MIB
Services Refer to the Hewlett Packard Enterprise website at
hpe.com/networking/services for details on the
service-level descriptions and product numbers. For
details about services, and response times in your area,
please contact your local Hewlett Packard Enterprise
sales office.
Refer to the Hewlett Packard Enterprise website at
hpe.com/networking/services for details on the
service-level descriptions and product numbers. For
details about services, and response times in your area,
please contact your local Hewlett Packard Enterprise
sales office.
(continued)

Data sheet
Standards and Protocols
(applies to all products in series)
BGP RFC 1657 Definitions of Managed Objects
for BGPv4
RFC 1771 BGPv4 RFC 2858 BGP-4 Multi-Protocol
Extensions
Device management RFC 1157 SNMPv1/v2c
RFC 1305 NTPv3
RFC 1901 (Community based SNMPv2)
RFC 2452 MIB for TCP6
RFC 2454 MIB for UDP6
RFC 2573 (SNMPv3 Applications)
RFC 2576 (Coexistence between SNMP
V1, V2, V3)
RFC 2819 RMON
RFC 3410 (Management Framework)
RFC 3416 (SNMP Protocol Operations v2)
RFC 3417 (SNMP Transport Mappings)
HTML and telnet management
Multiple Configuration Files
SNMP v3 and RMON
RFC support
SSHv1/SSHv2 Secure Shell
General protocols IEEE 802.1ad Q-in-Q
IEEE 802.1ak Multiple Registration
Protocol (MRP) and Multiple VLAN
Registration Protocol (MVRP)
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q (GVRP)
IEEE 802.1v VLAN classification by
Protocol and Port
IEEE 802.1w Rapid Reconfiguration of
Spanning Tree
IEEE 802.3ab 1000BASE-T
IEEE 802.3ac (VLAN Tagging Extension)
IEEE 802.3ad Link Aggregation (LAG)
IEEE 802.3ae 10-Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at PoE+
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-X
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 854 TELNET
RFC 925 Multi-LAN Address Resolution
RFC 950 Internet Standard Subnetting
Procedure
RFC 951 BOOTP
RFC 1027 Proxy ARP
RFC 1058 RIPv1
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the
Internet checksum
RFC 1213 Management Information
Base for Network Management of
TCP/IP-based internets
RFC 1256 ICMP Router Discovery
Protocol (IRDP)
RFC 1305 NTPv3
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 1723 RIP v2
RFC 1812 IPv4 Routing
RFC 1887 An Architecture for
IPv6 Unicast Address Allocation
RFC 2131 DHCP
RFC 2236 IGMP Snooping
RFC 2338 VRRP
RFC 2375 IPv6 Multicast Address
Assignments
RFC 2616 HTTP Compatibility v1.1
RFC 2644 Directed Broadcast Control
RFC 2711 IPv6 Router Alert Option
RFC 2865 Remote Authentication Dial In
User Service (RADIUS)
RFC 2866 RADIUS Accounting
RFC 3246 Expedited Forwarding PHB
RFC 3410 Applicability Statements for
SNMP
RFC 3414 User-based Security Model
(USM) for version 3 of the Simple Network
Management Protocol (SNMPv3)
RFC 3415 View-based Access Control
Model (VACM) for the Simple Network
Management Protocol (SNMP)
RFC 3417 Transport Mappings for the
Simple Network Management Protocol
(SNMP)
RFC 3484 Default Address Selection for
Internet Protocol version 6 (IPv6)
RFC 3493 Basic Socket Interface
Extensions for IPv6
RFC 3542 Advanced Sockets Application
Program Interface (API) for IPv6
RFC 3587 IPv6 Global Unicast Address
Format
RFC 3596 DNS Extensions to Support IP
Version 6
RFC 3623 Graceful OSPF Restart
RFC 3704 Unicast Reverse Path
Forwarding (URPF)
RFC 3768 VRRP
RFC 3810 Multicast Listener Discovery
Version 2 (MLDv2) for IPv6
RFC 4113 Management Information Base
for the User Datagram Protocol (UDP)
RFC 4213 Basic IPv6 Transition
Mechanisms
RFC 4443 Internet Control Message
Protocol (ICMPv6) for the Internet
Protocol Version 6 (IPv6) Specification
RFC 4594 Configuration Guidelines for
DiffServ Service Classes
802.1r—GARP Proprietary Attribute
Registration Protocol (GPRP)
IP multicast RFC 2236 IGMPv2
(MLD) for IPv6
RFC 2858 Multiprotocol Extensions for
BGP-4
RFC 3376 IGMPv3
RFC 3569 An Overview of Source-Specific
Multicast (SSM)
RFC 3618 Multicast Source Discovery
Protocol (MSDP)
RFC 3973 PIM Dense Mode
RFC 4601 PIM Sparse Mode

Data sheet
Standards and Protocols (continued)
(applies to all products in series)
IPv6 RFC 1881 IPv6 Address Allocation
Management
RFC 1887 IPv6 Unicast Address
Allocation Architecture
RFC 1981 IPv6 Path MTU Discovery
RFC 2080 RIPng for IPv6
RFC 2373 IPv6 Addressing Architecture
RFC2375IPv6MulticastAddress
Assignments
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address
Auto-configuration
RFC 2463 ICMPv6
RFC 2464 Transmission of IPv6 over
Ethernet Networks
RFC 2475 IPv6 DiffServ Architecture
(MLD) for IPv6
RFC 2711 IPv6 Router Alert Option
RFC 2740 OSPFv3 for IPv6
RFC 2893 Transition Mechanisms for
IPv6 Hosts and Routers
RFC 2925 Definitions of Managed Objects
for Remote Ping, Traceroute, and Lookup
Operations (Ping only)
RFC 2925 Remote Operations MIB
(Ping only)
RFC 3056 Connection of IPv6 Domains
via IPv4 Clouds
RFC 3162 RADIUS and IPv6
RFC 3306 Unicast-Prefix-based
IPv6 Multicast Addresses
RFC 3307 IPv6 Multicast Address
Allocation
RFC 3315 DHCPv6 (client and relay)
RFC 3484 Default Address Selection for
IPv6
RFC 3493 Basic Socket Interface
Extensions for IPv6
RFC 3513 IPv6 Addressing Architecture
RFC 3542 Advanced Sockets API for IPv6
RFC 3587 IPv6 Global Unicast Address
Format
RFC 3596 DNS Extension for IPv6
RFC 3810 MLDv2 for IPv6
RFC 4113 MIB for UDP
RFC 4443 ICMPv6
RFC 5340 OSPFv3 for IPv6
MIBs RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1657 BGP-4 MIB
RFC 1724 RIPv2 MIB
RFC 1757 Remote Network Monitoring
MIB
RFC 1850 OSPFv2 MIB
RFC 2012 SNMPv2 MIB for TCP
RFC 2013 SNMPv2 MIB for UDP
RFC 2233 Interface MIB
RFC 2452 IPV6-TCP-MIB
RFC 2454 IPV6-UDP-MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMPv6 MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2573 SNMP-Target MIB
RFC 2574 SNMP USM MIB
RFC 2618 RADIUS Authentication Client
MIB
RFC 2620 RADIUS Accounting Client MIB
RFC 2665 Ethernet-Like-MIB
RFC 2674 Definitions of Managed Objects
for Bridges with Traffic Classes, Multicast
Filtering, and Virtual Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2787 VRRP MIB
RFC 2819 RMON MIB
RFC 2925 Ping MIB
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 4113 UDP MIB
Network management IEEE 802.1AB Link Layer Discovery
Protocol (LLDP)
IEEE 802.1D (STP)
RFC 1157 SNMPv1
RFC 1212 Concise MIB definitions
RFC 1215 SNMP Generic traps
RFC 1757 RMON 4 groups: Stats, History,
Alarms and Events
RFC 1901 SNMPv2 Introduction
RFC 1918 Private Internet Address
Allocation
RFC 2373 Remote Network Monitoring
Management Information Base for High
Capacity Networks
RFC 2571 An Architecture for Describing
SNMP Management Frameworks
RFC 2572 Message Processing and
Dispatching for the Simple Network
Management Protocol (SNMP)
RFC 2573 SNMP Applications
RFC 2574 SNMPv3 User-based Security
Model (USM)
RFC 2575 SNMPv3 View-based Access
Control Model (VACM)
RFC 2576 Coexistence between SNMP
versions
RFC 2578 SMIv2
RFC 2581 TCP6
RFC 2819 Four groups of RMON: 1
(statistics), 2 (history), 3 (alarm) and 9
(events)
RFC 2925 Definitions of Managed
Objects for Remote Ping, Traceroute, and
Lookup Operations
RFC 3176 sFlow
RFC 3410 Introduction to Version 3 of the
Internet-standard Network Management
Framework
RFC 3414 SNMPv3 User-based Security
Model (USM)
RFC 3415 SNMPv3 View-based Access
Control Model VACM)
ANSI/TIA-1057 LLDP Media Endpoint
Discovery (LLDP-MED)
SNMPv1/v2c/v3
OSPF RFC 1587 OSPF NSSA RFC 1850 OSPFv2 Management
Information Base (MIB), traps
RFC 2328 OSPFv2
RFC 2370 OSPF Opaque LSA Option
RFC 3623 Graceful OSPF Restart
QoS/CoS IEEE 802.1P (CoS)
RFC 2474 DSCP DiffServ
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding
(AF)
RFC2598DiffServExpeditedForwarding
(EF)
RFC 4594 Configuration Guidelines for
DiffServ Service Classes
Security IEEE 802.1X Port Based Network Access
Control
RFC 1492 TACACS+
RFC 1918 Address Allocation for Private
Internets
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting Access
Control Lists (ACLs)
MAC Authentication
Port Security
SSHv2 Secure Shell

Data sheet
HPE 5500 EI Switch Series accessories
Modules HPE 5500 2-port 10GbE XFP Module (JD359B)
HPE 5500 2-port 10GbE Local Connect Module (JD360B)
HPE 5500 1-port 10GbE XFP Module (JD361B)
HPE 5500/4800 2-port GbE SFP Module (JD367A)
HPE 5500/5120 2-port 10GbE SFP+ Module (JD368B)
HPE 5500/5120 2-port 10GBASE-T Module (JG535A)
Transceivers HPE X110 100M SFP LC FX Transceiver (JD102B)
HPE X110 100M SFP LC LH40 Transceiver (JD090A)
HPE X110 100M SFP LC LH80 Transceiver (JD091A)
HPE X110 100M SFP LC LX Transceiver (JD120B)
HPE X120 1G SFP LC BX 10-D Transceiver (JD099B)
HPE X120 1G SFP LC BX 10-U Transceiver (JD098B)
HPE X120 1G SFP LC LH40 1550nm Transceiver (JD062A)
HPE X120 1G SFP LC LX Transceiver (JD119B)
HPE X120 1G SFP LC SX Transceiver (JD118B)
HPE X120 1G SFP RJ45 T Transceiver (JD089B)
HPE X125 1G SFP LC LH40 1310nm Transceiver (JD061A)
HPE X125 1G SFP LC LH70 Transceiver (JD063B)
HPE X130 10G SFP+ LC ER 40km Transceiver (JG234A)
HPE X130 10G SFP+ LC LR Transceiver (JD094B)
HPE X130 10G SFP+ LC LRM Transceiver (JD093B)
HPE X130 10G SFP+ LC SR Transceiver (JD092B)
HPE X130 10G XFP LC LR Transceiver (JD108B)
HPE X130 10G XFP LC SR Transceiver (JD117B)
HPE X135 10G XFP LC ER Transceiver (JD121A)
HPE X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable (JC784C)
HPE X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable (JD095C)
HPE X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable (JD096C)
HPE X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable (JD097C)
HPE X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable (JG081C)
Cables HPE X230 Local Connect 100cm CX4 Cable (JD364B)
HPE X230 CX4 to CX4 3m Cable (JD365A)
HPE 0.5 m Multimode OM3 LC/LC Optical Cable (AJ833A)
HPE 1 m Multimode OM3 LC/LC Optical Cable (AJ834A)
HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable (QK732A)
HPE X230 Local Connect 50cm CX4 Cable (JD363B)

Sign up for updates
Data sheet
HPE 5500 EI Switch Series accessories (continued)
Power Supply HPE RPS 800 Redundant Power Supply (JD183A)1
HPE RPS1600 Redundant Power System (JG136A)1
HPE RPS1600 1600W AC Power Supply (JG137A)1
Power cords HPE X290 1000 A JD5 2m RPS Cable (JD187A)
HPE X290 1000 A JD5 Non-PoE 2m RPS Cable (JD188A)
HPE X290 1000 B JD5 2m RPS Cable (JD189A)
HPE X290 500/800 1m RPS Cable (JD190A)
HPE X290 500 U 1m RPS Cable (JD185A)
HPE 5500-24G-SFP EI Switch with 2 Interface Slots
(JD374A)
HPE X361 150W 100-240VAC to 12VDC Power Supply (JD362B)1
HPE X361 150W 48-60VDC to 12VDC Power Supply (JD366B)1
1
Products covered by 1 year warranty. See details at hpe.com/networking/warrantyquickref
Learn more at
hpe.com/networking
© Copyright 2010–2016 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without
notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
sFlow is a registered trademark of InMon Corp.
4AA3-0729ENW, October 2016, Rev. 12

Hp a5500

More Related Content

What's hot (20)

Similar to Hp a5500 (20)

Recently uploaded (20)

Hp a5500
