Hybrid Cryptography with examples in Ruby and Go Romek Szczesniak security consultant Hardcore Happy Cat Ltd Eleanor McHugh system architect Games With Brains January 2015
romek • an applied cryptographer since 1995 • secures systems from Biometrics to Firewalls • specialises in PKI, Smartcards, Biometrics
ellie • commercial developer since 1995 • mission-critical & performance sensitive systems • specialises in Ruby and Go
design credits
hybrid cryptography? • a mode of encryption that merges two or more encryption systems • incorporates a combination of asymmetric and symmetric encryption to benefit from the strengths of each form of encryption • these strengths are respectively defined as speed and security
hybrid encryption is considered a highly secure type of encryption
hybrid encryption is considered a highly secure type of encryption as long as the public and private keys are fully secure
• rarely mentioned in the literature • Cramer & Shoup (2004) • Dent (2005, 2009) • Telnic DNS (2006) • commonly discussed post-Snowden (2012) • used in PGP and PKCS#7 history
encryption
encryption • User A encrypts the Message with the symmetric key • User A encrypts the symmetric key with the receiver’s public key • User A sends the encrypted message and the encrypted key to User B
decryption
decryption • User B knows how the Message is encrypted • User B decrypts the symmetric key with his private key • User B decrypts the Message using the symmetric key
an example workflow 1. create public key pair for user B (RSA-4096) 2. create symmetric key K (AES-256-CBC) 3. encrypt K(MB) and PubB(K) for message MB 4. send PubB(K) and K(MB) to user B 5. decrypt K with PrivB 6. decrypt MB with K 7. send K(MA) to user A 8. change keys and repeat as required 9. all keys are stored in Base 64 encoding
key features • a point-to-point cryptosystem • fast, easy-to-use, user-specific system • independent of underlying cryptosystems • may change algorithms at any point • may change keys at any point
weasel words • danger! experimental code presented here! • all such code is provided for entertainment purposes only and should be used with extreme caution, under adult supervision, et al. • any resemblance to actual code and concepts, living or dead, is purely coincidental
a simple example • hybrid encryption with text strings • ruby 1.8 and later • uses OpenSSL as its crypto library
#!/usr/bin/env ruby -w require 'rubygems' require 'openssl' require 'base64' class Hybrid def initialize @privkey=0 @pubkey=0 @sessionkey=0 @iv=0 @f=0 @g=0 end end h = Hybrid.new
class Hybrid def keygen @privkey=OpenSSL::PKey::RSA.new(4096,65537) @pubkey=@privkey.public_key puts "4096-bit Key generated" @sessionkey=OpenSSL::Random.random_bytes(256/8){ putc "." } end end -----BEGIN RSA PUBLIC KEY----- MIICCgKCAgEA5DL16QdI+0uaBpprF9nxmKO5mkgnWvcmoCMRBxFaEpwjSOCiiYjq DdwXjChywMQQgx34nzqerXXKWjSIpLyy6sZV0akudiQ00JxnIv0y+STKZStzeNqF FlTTfSksVRIMGJ6JkRvtZQ3I+uYkuqyfSDpr4/rEivYk2oz9Ru3Zj6WMEUeqsYJA sz7mc5iFR+1Sr7RvRSAYXqxe6wM0PicSZ0vRGkSCbCvHXKNi4HteTGTXFXVr+s4l 3XfyF8i46e7tEq/9skJf9oaGxBhU26ALVQEH/xFc/TzFwCG5NDdVvdOcb8euE/sN DG6SvCNJ5+ClSevJ74n4eSo8ScQU9t6lnITQXlTaDYCibbjjknPBCE9e/puoD3KF YlvERwPTXtarLE/huZrx1llEubNaJjxrMoeJSIrs57DP7U6v4uQoTDbQM6yauwJC pj7eOdd/S+HHpDLdad+mDEKJGwqFbafalb2WrkxYgkDq4Loeipmge/zIxZxBQAsB dkCY+rSn6lskPcagfTfoAmx+0A+0A3cJP92oKzs0X2/flhuQAlrh5WmS6SSMVndt 988ayJ9z3QghxkNB59OgNleQjkKGxsoPTF/8Yvg0UBC4tVeTVpvROmFKX81tbPos yxfnJ9xqUPaX0azMqZrOWPUMty2spyhZ4IMru/xviRoZ2NMjOY5O9dECAwEAAQ== -----END RSA PUBLIC KEY—— -----BEGIN RSA PRIVATE KEY----- MIIJKAIBAAKCAgEA5DL16QdI+0uaBpprF9nxmKO5mkgnWvcmoCMRBxFaEpwjSOCi iYjqDdwXjChywMQQgx34nzqerXXKWjSIpLyy6sZV0akudiQ00JxnIv0y+STKZStz eNqFFlTTfSksVRIMGJ6JkRvtZQ3I+uYkuqyfSDpr4/rEivYk2oz9Ru3Zj6WMEUeq sYJAsz7mc5iFR+1Sr7RvRSAYXqxe6wM0PicSZ0vRGkSCbCvHXKNi4HteTGTXFXVr +s4l3XfyF8i46e7tEq/9skJf9oaGxBhU26ALVQEH/xFc/TzFwCG5NDdVvdOcb8eu E/sNDG6SvCNJ5+ClSevJ74n4eSo8ScQU9t6lnITQXlTaDYCibbjjknPBCE9e/puo D3KFYlvERwPTXtarLE/huZrx1llEubNaJjxrMoeJSIrs57DP7U6v4uQoTDbQM6ya uwJCpj7eOdd/S+HHpDLdad+mDEKJGwqFbafalb2WrkxYgkDq4Loeipmge/zIxZxB QAsBdkCY+rSn6lskPcagfTfoAmx+0A+0A3cJP92oKzs0X2/flhuQAlrh5WmS6SSM Vndt988ayJ9z3QghxkNB59OgNleQjkKGxsoPTF/8Yvg0UBC4tVeTVpvROmFKX81t bPosyxfnJ9xqUPaX0azMqZrOWPUMty2spyhZ4IMru/xviRoZ2NMjOY5O9dECAwEA AQKCAgEA0kmn1RLyjSiRCq64K6Wafme5/NOq+Keyv3UxFstFrsqVtW3UOluiHB2K 0YzgmoTTFpDC8LDLUtuuGkw48140nichJHD8MMCSrv7CCDs+AtuFa4+L/H2akQag UcFkagyUewd1i/QpYqs+Xv9AL4otyhiUHeWTwt6q/X9ZU0iR6U7L8YySXrvCNaus IDAX+j1XqjTjKNc3vd6oJXexZ+kHi4sRaVxit53sPJEP5/+n2Uw/7DVlyRy5Rgpn XMWKqYCUlVj6t4908S/s9r3ZTP6CEtY9cS6l+3NKZBBvpA+uAp0Dlvpyj1UVJDSt IZR/YZ/hkWooj4YcJEPohK2eCBUKlKEwbhEhV9HDwjLHxsUoT1N9AUO4nd78RZdY /YI0Y5QAaGCieWjgqrajW6jFTn4IzCGU487rMS1XoUubdzJjysyrr43Si9bL6mJz xQi8j23Xv4aTHjHuuNKyCMOu5iuNLPjC8sSaLoAN8NZETvOPpL7KydN721S1rojO igZEsruGsMrC3ZUIwWy1Q9uwoHnhlxF5rEIJONdlSdJPz3BIMleO79dSiFZKT4dt 5n0tjo/4u3Jdr/hpNSws8llX1c0PO9srQ3bhofe73EEo1hyDclttHLsLm28stbN8 Zzfvnw7FAYKx2VV86uL79wQaiPNxREUBr3wHpeTL3/s9Gg+/JkECggEBAPfa7/xm w+pLCvnqwprrU2pVMOVbI+uCU1aytNqMZyi5zeXR30452bAxSLtGJhKTUdhCvv6b td/+pQoQvn4tZxsHD7AJsMT8/gVIq/5w/k1m5X7p4cO5erCGtYZP2chTQsBkycpf QGJppRBoVdgxe2qkfY2Cv0u524e0MawKToPaBhzG4e9GGyzpbCRZ3q8I2hx/hX0F 2n4f62N51HM9TDzutoSin0qLhvNf8E9I7Kym4XWIrT6b3ms6Yd94Rp3ljhDCFrTE WOxLqD4H3jf7JlJ8j+58r3SYiQ0mN01y5DnD9tGi/VYxqFr1777VD/laGm7d1D2Z fTcCbN4TFFGE0gkCggEBAOuyqtC4DiyjPJ5310pyDEjkiC2myEDAZS+BjPWTZVRo qItGO8E5fuDTX44bENZ8/8isyVPTSCcGXhsaRTiFqb/NwGVK3c0t+2qDYCiqBuGp K1Ph4KwX/0nPClFSnEkUfXej4PDB8G9C7h2XCVh2kT85/qfWcezzF6UUrEGuUYlL 641VB3tr6RT0SMGz7m+2ovWyYy9VOr+K54LItLobIeFH8MsdP9JCIFiBHZ+D+ma7 q79g59jHgAEu2vgYfKaCpXAp2j6tOgWqPWF7mliqFD/GJKXyaaObXfz+ZpkEgqE/ vgQREOO/c5VVZFB/bOemJLUYM1WytQAbldMN01Rt14kCggEAOWywTXpByfa5BE4v 6FS9btVuDrWfDOGVDXE6FaiR/g2OdsC5TBZ7KSdCAqGuEH+xZrmQJs1Mxijpc/uN Jw695LUuHUsheYJkGDVOJBVp1eURJuZpOD+w/VU4mXXGr3Ma9Bhl6E1JTYPMipCh 0wUj4wFZVYAFcjYNdtN47rM0nbfV0rUBg75qbW1ncMSho0wZvKCO/PhuNuqOTu3b GxgIodVs1C4ZWdwZ2ClSNAxhSV8gvWp9ORRD4/QS2QO02MBmuds+B4O2Vojw4e5Q vgeiSVoyvr6EqC7vEezYw0jrN7b/aHKq312B9BEnCr+yg8MsfKNImT0GlcgqEQm6 m2h6gQKCAQBhe/pObXHfYHyYBnUTI2yVUYBJcWvt7CVtqqWEhLwqV0cuo5PfbUpe 7s3c1rD2JakddOmoNADpsyaFCy6KHC6DWDQ1MOvgCx6rhT7mUryZ5QA4p3nnc91w x6M603I0f7cNHsjQi0ZInmQh9PA2mIOmpPQAsx9Xo4uqCYzddZ3frXj1ca+wiodS 1V6qTyNVLTLlcCy5zQSJaIgsfZrSRpqStNCREb3t1s/OC0kXStzsVL7KXuhFru3w j1KdvnL/45VNeOH9fmQ7J5hPk3HZLi9F2UwbHtI2ivIqy4Xf0A+/Zb/PqsdTi0Hh B/p/mNSQUxVnmWTSEyHts3saWeOITg4RAoIBABx5l+sBHe+LQifjXZiFexCVQCeq 4Uimg/DCZAUcqFIc+a08gocgMgTwYp9lvwNO+VuBiCuvHa0iWGrMEERuMMb4D4PJ 4jjEvXXgZ4ncNS0U1a07ITNlw+fc08dzzysy9fSw9KnP9rdJh4uItneKxA0tLQnv Ry0SbPrkzc5mb3OUvhYluCcT4w+p5ikWbgdRwhzkRSQlko96PeusXBT3BDEWAEbo lYOnvEaEfVgmNQiE3JhC4NeX3FRecinORah0Qrf4EE1uWjkqRoGlzzO7UnzT1Gdn 04A9b1bn7oge3u1MU84EH1T12vNVGqcmE4HZV9zZakipzRklFwiWIL6eA4s= -----END RSA PRIVATE KEY-----
class Hybrid def encrypt puts "256-bit Key generated" string = "The cat sat on the mat" puts "String: #{string}n" c=OpenSSL::Cipher::Cipher.new("aes-256-cbc") c.encrypt c.key = @sessionkey c.iv=@iv=@iv=c.random_iv e=c.update(string) e << c.final @f = Base64.encode64(e) @g = Base64::encode64(@pubkey.public_encrypt(@sessionkey)) end end key 5rNZ8NMIipOzi1dLZ+OHVFKr13B3EizbpvXDsB6q8BE iv 7Bzvn1U06uZhMbbQJ8Nwxg==
class Hybrid def decrypt dec=0 @sessionkey=0 # Reset session key @sessionkey=@privkey.private_decrypt(Base64.decode64(@g)) dec=OpenSSL::Cipher::Cipher.new("aes-256-cbc") dec.decrypt dec.key = @sessionkey dec.iv=@iv d=dec.update(Base64.decode64(@f)) d << dec.final puts "Decrypted #{d}n" end end

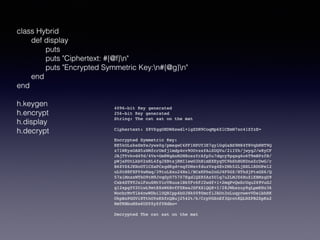

class Hybrid def display puts puts "Ciphertext: #{@f}n" puts "Encrypted Symmetric Key:n#{@g}n" end end h.keygen h.encrypt h.display h.decrypt 4096-bit Key generated 256-bit Key generated String: The cat sat on the mat Ciphertext: Z8VZggOHDWXswdl+igZDH9CoqMp6ZlCEmW7xc41ZfzE= Encrypted Symmetric Key: RE5kOLxkeSmYeJyws0g/pmegwC4PF1NPUY3E7gylGgGaBS9M84T8VqbNNT9Q z7lWKysOAH5zNMfcrUmfj1mdp4cv9OUvzsfAiSUQVu/2iIYh/jwygJ/w8yCF JAjTYvkvd4Td/4Vs+Gm8WgAnM2M8oxzYrAfp5u7dqcy9pgsg6o6T9mBPzfB/ pWjsPDtLkbV2xRL4fgJXBtsjRMI1ewO3hNimEXEyqTC9bShHGKDnsZrDwG/r B6ZVZ6JKNoOTlCSaPCsgdKgd+nqfDNsvfduzVxg4Ev2Mh52LjHXLlRDOPel2 uL0tN8FXPY4wNaq/39tuLXxu24Nsl/BCsKPhe2nGJ4F0GZ/HTkdjPtxGS6/Q 57siMnxxWTkO9tM9JvqGyD75707EgdlQZR5Az5Ulq7u2LMJZ6HuZiEBMzgD9 Cxb4ST9TJxiFxu6MtVicVRuus1BkYFv6FJ2wdf+1+2mqPvQwSrUqu269VuGJ g12xpgYY2UiwL9mtE8xW6BvfFZEesJSFXXiQQ8+I/28JWbxzuy8gLpmKHz36 WocbrMvTlb4nwWDbilUQBIpp4bUJHk0090mcfiJAUn3nLuqycwevVDeibhRK UkpBzPGGVi8TthOYsKSfcQBuj2542t/k/CrpVGSnEf3QrotKQLNZPB2SpKx2 HmTRBbuMZe6UDYZyZfYHdbo= Decrypted The cat sat on the mat
a complex example • ruby hybrid encryption with web pages • acquire a web page • roundtrip encrypt the web page
#!/usr/bin/env ruby -w require 'rubygems' require 'openssl' require 'base64' require 'nokogiri' require ‘open-uri' class HybridHTML < Hybrid end h = HybridHTML.new Allegra:FOSDEM eleanor$ ruby hybrid-html.rb 4096-bit Key generated 4096-bit Key generated Enter Web Page http://minimalsites.com/ Ciphertext: YCqp6e +Vngs84RtKdVTcsmhX5C9xzb6mDxOwJjSME8rAYTKqIi/pX1u1DH3a 2t3OrhJCbiX7mcYxFaqXfJWqHh6mhdVSGqFvgt7Qvg4zIr0Yo+nn9b4ZYGM6 6shKQ+OL6luFVY3K7QBQwQZJIyiGC8Y+6agOC7yMdOCTeYbFeaG6cuFuvLvb IMGtdWWVo0mCls1BwBZutVn7+xNODcKBhvoHjpXnpsJZYLoSP6XUFnGHwoCG hbpkTdxFW3wJ1y4cJyr8baX99OxjqkLSeYjd9PL7efJWXykJGJ4f53S9vzkI 4h79CX6yX3KR22rqWQtUzku3soILATIn38MRCClCwOfBXpC3nP6cDLOUZNYV muNdFJ3xY7ZSNqA8UiUQIeUFaIKhDfclhRQ1gvseu8TVdww/vYrFXUEXEgvi 1nFMeLRnb/TroPSbCYvO/gUC3+wT5X8ScvzHiD1a36w+PS0o1DHeS2ren66S RKs6DAyAnY4+9f7hF97xAWGGNUEGiVSbam+5S/naiuLya22dVxZaEVP8SVkL 4TLJEbS9EWm/MYDSjQEpzVmFA8esuPaIiKJ/r/ae7KO0x+PfJx9Wt+HiI+H1 uBEYLDWcC2LWktqcZzzLBgA0xP6kyHk7BYB47IZ0mfzwBsPR+sDcvgIUtLfT 4QVsQc7sgCjDkPWWaVGU+AduIzHIpNpZNSJHn/KGLsx+UIbCJnSFlSSQM86P SnleRHbIAt9Xb7vmsFQDmeRQDJlNUpY6CfkU6Lj6ATydvuWIFsQMwu2HXNri 9SXLgcQ+zV1MwK9OJlwgF5HAAKPO2AKHu/jl8zuh8S8xHQk7FZ1tk5T/cbdH fP2DDlwkZdwX0J3nztXVmghjjAweTlRoZYdeYzLFheBf8773bCS6NoXWJVLP LO9YkPCy/8h2ktoitcMsRpE8fk5Cq4AaHpOYovhKh8yUTDdYcCzh4XqQnTav Q3GiuhbnklB+MQmFMiPKL0OTdy++DUmvvFE4G+GjzMZJWGvi+RDH2gzRdZ+F gVBEhKbniju9dRhg172OJ+in+rdjR1V7d0gmLWwoeWqQrABzj2y2lHAlm25G 5wVAFcRqhEJxstASfBlMXgX9fqzRt3JSSgsrJquOfTAjSk0rWI5F2R2ebsvR BU1QW55hP9/cTHp/tGnTaSBd+ZoG/dSdV/UOKfgcflB1qsunGmIkNu3tx9vB c7sjLKOyWdvtRWpfVGlOV0tepIA3JXucUnYCslQbX7uK8BDSe/dLYvT8d+6H lCEuxBp1ugAlKch3rDKOy0Tnmts0bgTyMbTIllrP69M6l0wr5KBr3jUE36N3 7PI= Encrypted Symmetric Key: YeNraRPZFzeQN+IixCKuSSdWkTf7MxIUfWXqxRbJ62olwmylc7JJF8xbU4t/ suDMrLGjVIr07oAvCbaoXmxoUQmj8dQA129Pqtxz712JOyd3RvMSeRFMaBNC kjehFvTs53mu1HKO9bEHlZLxNm9c8+H31plc3hWGIpdy3YV+B6K+TNSRCFDY BV5arzDgBC1v3kGe/nifkh3Ph1A9AsWXLyUzLhebLkn1pa6Ojgue1IarhSCi XThojRUAuuCI6eMXbdE0K3fTe+pR7hklbcjraHwj/tIg9c15A6zFhTwUXEsE DEaPz9x3LSMR4KKnL0i8fdJsmuYpyESkc4ueCJBoEY2ww/n+8zhsJNVMD8yu r2o8RBnP4HRtxOvGRZ+1S+ddg5Q5KzHkp3+Qpfc1N8cpJ0q5HZeALDHKhVC+ IRirrjd92cDxm3ujCsyDWIrkeellhpPhFNX7PhUowyIyhKA9Rr1q7TKsGVON CDDLxV6VELc2im9r/+ghHM3relizr7K4yfo7ErhxvP4kmFMoStG/lB94/lgO 9Th4YaLWZReqFIjQGe8kwmWwpq3CH1ZMbb3JE/3Vgcc1ogn0m2ajGC3+79N0 f4lQSTwvZPWuQNxPGtfzFwui0gdZ+mq793g2PHB4gBxMkniz96pscwjXLp2M sOnrc/ZSb5EH/g9TGqALgHE= Decrypted Minimal Sites @import url(http://css-reset-sheet.googlecode.com/svn/ reset.css); @import url(http://fonts.googleapis.com/css?family=Karla); html, *{ font-family: 'Karla', sans-serif; font-weight: 400; background-color: #fff; color: #999; font-size: 1.5em; line-height: 1.3em; text-rendering: optimizeLegibility; } body{ padding: 0 3em 3em; } .hello{ margin: 2.4em 0; } .hello > h1{ color: #000; } .links{ list-style: none; padding-right: 6em; padding-top: .4em; border-top: 1px solid #000; display: inline-block; font-size: .7em; } .links > li{ display: inline-block; margin-right: 0.4em; } .links > li > a{ text-decoration: none; color: #000; } @media only screen and (max-width : 568px) { body{ padding: 0 1em 1em; font-size: .9em; } .hello{ margin: 1em 0; } .links{ display: block; padding-right: 0; } } Hello, Minimal Sites is taking a nap. See you in 2015.
class HybridHTML < Hybrid def encrypt puts "4096-bit Key generated" puts "nEnter Web Pagenn" file = /n/.match(gets()).pre_match() string=Nokogiri::HTML open(file) c=OpenSSL::Cipher::Cipher.new("aes-256-cbc") c.encrypt c.key = @sessionkey c.iv=@iv=@iv=c.random_iv e=c.update(string) e << c.final @f = Base64.encode64(e) @g = Base64::encode64(@pubkey.public_encrypt(@sessionkey)) end end
beyond http • nothing to stop us encrypting HTTPS pages too • difficult to show in terminal • DNS NAPTRs (RFCs 3401-3405) • needs further explanation…
Anchoring Trust: Rewriting DNS for the Semantic Network with Ruby and Rails
Anchoring Trust: Rewriting DNS for the Semantic Network with Ruby and Rails
to recap • this system is highly flexible • protocol independent • fast and algorithm independent • easy to setup and use • lightweight • great for user -> user communication
a complex example • a web storage service in go • stores and retrieves arbitrary text messages • client and server interacting over http • RSA encryption for symmetric key transfer • stream-based AES encryption for messages
the server
var server = NewFileServer("localhost:1024") func main() { server.GET("/", ServerStatus) server.GET("/key", PublicKey) server.POST("/key/:id", StoreKey) server.POST("/user", RegisterUser) server.GET("/user/:id", UserStatus) server.GET("/file/:id", ListFiles) server.GET("/file/:id/:filename", RetrieveFile) server.POST("/file/:id/:filename", StoreFile) server.ListenAndServe() } github.com/feyeleanor/webcryptodemo
import "crypto/rsa" import “net/http" import "github.com/julienschmidt/httprouter" type FileServer struct { PEM string *rsa.PrivateKey Started time.Time Address string *httprouter.Router UserDirectory Requests int } func (s *FileServer) ListenAndServe() { s.Started = time.Now() http.ListenAndServe(s.Address, s.Router) } github.com/feyeleanor/webcryptodemo
import “encoding/base32“ import “crypto/rand" type FileStore map[string]string type user struct { Key []byte ID string Registered time.Time FileStore } type UserDirectory map[string]*user func (u *UserDirectory) NewUserToken() string { b := make([]byte, 30) if _, e := rand.Read(b); e != nil { panic(fmt.Sprintf(“rand.Read failed: %v", e)) } return base32.StdEncoding.EncodeToString(b) } github.com/feyeleanor/webcryptodemo
import "html/template" import "os" var templates = template.Must( template.ParseFiles("server_status.txt", “server_status.html", "user_status.txt", "user_status.html", "list_files.txt", "list_files.html")) func renderTemplate(w io.Writer, t string, v interface{}) { if e := templates.ExecuteTemplate(os.Stderr, t+".txt", v); e != nil { fmt.Println(e) } if e := templates.ExecuteTemplate(w, t+".html", v); e != nil { fmt.Println(e) } } github.com/feyeleanor/webcryptodemo
server_status.html <html> <head> <title>Server Status</title> </head> <body> <table> <tr> <td>launched</td> <td>{{.Started}}</td> </tr> <tr> <td>current time</td> <td>{{.Now}}</td> </tr> <tr> <td>users</td> <td>{{.Users}}</td> </tr> <tr> <td>files</td> <td>{{.Files}}</td> </tr> <tr> <td>requests</td> <td>{{.Requests}}</td> </tr> </table> </body> </html> server_status.txt = = = = = = = = = Server Status = = = = = = = = = launched {{.Started}} current time {{.Now}} users {{.Users}} files {{.Files}} requests {{.Requests}} = = = = = = = = = = = = = = = = = = = = = = = = = = github.com/feyeleanor/webcryptodemo
func ServerStatus(w http.ResponseWriter, r *http.Request, _ httprouter.Params) { renderTemplate(w, "server_status", server) } func PublicKey(w http.ResponseWriter, r *http.Request, _ httprouter.Params) { server.Requests++ w.Header().Set("Content-Type", "text/plain; charset=utf-8") Fprint(w, server.PEM) } github.com/feyeleanor/webcryptodemo
import "crypto/rand" import "crypto/rsa" import "crypto/sha1" func EncryptRSA(key *rsa.PublicKey, m, l []byte) ([]byte, error) { return rsa.EncryptOAEP(sha1.New(), rand.Reader, key, m, l) } func DecryptRSA(key *rsa.PrivateKey, m, l []byte) ([]byte, error) { return rsa.DecryptOAEP(sha1.New(), rand.Reader, key, m, l) } github.com/feyeleanor/webcryptodemo
import "crypto/rsa" import "crypto/x509" import "encoding/pem" func LoadPrivateKey(b []byte) (r *rsa.PrivateKey, e error) { if block, _ := pem.Decode(b); block != nil { if block.Type == "RSA PRIVATE KEY" { r, e = x509.ParsePKCS1PrivateKey(block.Bytes) } } return } func LoadPublicKey(k string) (r interface{}, e error) { b, _ := pem.Decode([]byte(k)) return x509.ParsePKIXPublicKey(b.Bytes) } github.com/feyeleanor/webcryptodemo
import "crypto/rsa" import "crypto/x509" import "encoding/pem" func PublicKeyAsPem(k *rsa.PrivateKey) (r string) { if pubkey, e := x509.MarshalPKIXPublicKey(&k.PublicKey); e == nil { r = string(pem.EncodeToMemory(&pem.Block{ Type: "RSA PUBLIC KEY", Bytes: pubkey, })) } else { panic(e) } return } github.com/feyeleanor/webcryptodemo
the client
var PublicKey *rsa.PublicKey func main() { PublicKey = GetServerKey() u, k := RegisterUser() UserStatus(k, u) f := "this is a test file" StoreFile(k, u, "test", f) UserStatus(k, u) RetrieveFile(k, u, "test") if rf, e := RetrieveFile(k, u, "test"); e == nil { switch b, e := ioutil.ReadAll(rf); { case e != nil: Println(e) case string(b) != f: Println("Test file corrupted:", string(b)) default: Println("file returned correctly") } } } github.com/feyeleanor/webcryptodemo
func GetServerKey() (v *rsa.PublicKey) { if b, e := Do("GET", KEY); e == nil { if k, e := LoadPublicKey(string(b)); e == nil { v = k.(*rsa.PublicKey) } else { panic(e) } } return } github.com/feyeleanor/webcryptodemo Allegra:Hybrid eleanor$ ./client GET http://localhost:1024/key --> 200 OK POST http://localhost:1024/user --> 200 OK 66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R GET http://localhost:1024/user/66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R --> 200 OK <html> <head> <title>User Status</title> </head> <body> <table> <tr> <td>ID</td> <td>66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R</td> </tr> <tr> <td>Key</td> <td>6M5V5LC3BXVCQVRNKVX25I5XJSIG56JS6JK4K2GWDY4M3WS5G77A====</td> </tr> <tr> <td>Files</td> <td>0</td> </tr> </table> </body> </html> POST http://localhost:1024/file/66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R/ test --> 200 OK <html> <head> <title>User Status</title> </head> <body> <table> <tr> <td>ID</td> <td>66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R</td> </tr> <tr> <td>Key</td> <td>6M5V5LC3BXVCQVRNKVX25I5XJSIG56JS6JK4K2GWDY4M3WS5G77A====</td> </tr> <tr> <td>Files</td> <td>1</td> </tr> </table> </body> </html> GET http://localhost:1024/user/66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R --> 200 OK <html> <head> <title>User Status</title> </head> <body> <table> <tr> <td>ID</td> <td>66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R</td> </tr> <tr> <td>Key</td> <td>6M5V5LC3BXVCQVRNKVX25I5XJSIG56JS6JK4K2GWDY4M3WS5G77A====</td> </tr> <tr> <td>Files</td> <td>1</td> </tr> </table> </body> </html> GET http://localhost:1024/file/66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R/ test --> 200 OK this is a test file POST http://localhost:1024/key/66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R --> 200 OK <html> <head> <title>User Status</title> </head> <body> <table> <tr> <td>ID</td> <td>66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R</td> </tr> <tr> <td>Key</td> <td>MD45J5O2JUNTR2OBALT6BWWWBBLU3XS7HSRJWRX5LV5RS2UBQ6FA====</td> </tr> <tr> <td>Files</td> <td>1</td> </tr> </table> </body> </html> GET http://localhost:1024/user/66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R --> 200 OK <html> <head> <title>User Status</title> </head> <body> <table> <tr> <td>ID</td> <td>66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R</td> </tr> <tr> <td>Key</td> <td>MD45J5O2JUNTR2OBALT6BWWWBBLU3XS7HSRJWRX5LV5RS2UBQ6FA====</td> </tr> <tr> <td>Files</td> <td>1</td> </tr> </table> </body> </html> GET http://localhost:1024/file/66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R/ test --> 200 OK this is a test file file returned correctly Allegra:Hybrid eleanor$ ./server = = = = = = = = = = User Status = = = = = = = = = = ID 66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R Key 6M5V5LC3BXVCQVRNKVX25I5XJSIG56JS6JK4K2GWDY4M3WS5G77A==== Files 0 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = User Status = = = = = = = = = = ID 66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R Key 6M5V5LC3BXVCQVRNKVX25I5XJSIG56JS6JK4K2GWDY4M3WS5G77A==== Files 1 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = User Status = = = = = = = = = = ID 66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R Key 6M5V5LC3BXVCQVRNKVX25I5XJSIG56JS6JK4K2GWDY4M3WS5G77A==== Files 1 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = User Status = = = = = = = = = = ID 66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R Key MD45J5O2JUNTR2OBALT6BWWWBBLU3XS7HSRJWRX5LV5RS2UBQ6FA==== Files 1 = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = User Status = = = = = = = = = = ID 66I2PXXEYJ2UU6AY5VTIE4I5KACRVXVN74ADRUFSWPMQED4R Key MD45J5O2JUNTR2OBALT6BWWWBBLU3XS7HSRJWRX5LV5RS2UBQ6FA==== Files 1 = = = = = = = = = = = = = = = = = = = = = = = = = =
func RegisterUser() (u string, k []byte) { k = GenerateAESKey(256) if key, e := EncryptRSA(PublicKey, []byte(k), []byte("REGISTER")); e == nil { if v, e := Do("POST", USER, string(key)); e == nil { u = printResponse(v, e, k) } } return } func RetrieveFile(key []byte, id, tag string) (f io.Reader, e error) { r, e := Do("GET", FILE, id, tag) f = bytes.NewBufferString(printResponse(r, e, key)) return } github.com/feyeleanor/webcryptodemo
func Do(m, r string, p ...string) (b []byte, e error) { do(NewRequest(m, r, p...), func(res *http.Response) { b, e = ioutil.ReadAll(res.Body) }) return } func DoEncrypted(k []byte, m, r string, p ...string) (b []byte, e error) { do(NewEncryptedRequest(k, m, r, p...), func(res *http.Response) { DecryptAES(res.Body, k, func(s *cipher.StreamReader) { b, e = ioutil.ReadAll(s) }) }) return } func do(req *http.Request, f func(*http.Response)) { if res, e := http.DefaultClient.Do(req); e == nil { Printf("%v %v --> %vn", req.Method, req.URL, res.Status) f(res) } else { Println(e) } return } github.com/feyeleanor/webcryptodemo
import "crypto/aes" import "crypto/rand" func GenerateAESKey(n int) (b []byte) { switch n { case 128: b = make([]byte, 16) case 192: b = make([]byte, 24) case 256: b = make([]byte, 32) } rand.Read(b) return } func GenerateIV() (b []byte, e error) { b = make([]byte, aes.BlockSize) if _, e = rand.Read(b); e != nil { panic(e) } return } github.com/feyeleanor/webcryptodemo
import “crypto/cipher" import "io" func SendIV(w io.Writer, k []byte, f func([]byte)) { if iv, e := GenerateIV(); e == nil { if _, e = w.Write(iv); e == nil { f(iv) } else { fmt.Println(e) } } } func EncryptAES(w io.Writer, k []byte, f func(*cipher.StreamWriter)) (e error) { var b cipher.Block if b, e = aes.NewCipher(k); e == nil { SendIV(w, k, func(iv []byte) { f(&cipher.StreamWriter{S: cipher.NewCFBEncrypter(b, iv), W: w}) }) } return } github.com/feyeleanor/webcryptodemo
import "io" func ReadIV(r io.Reader, f func([]byte)) { iv := make([]byte, aes.BlockSize) if _, e := r.Read(iv); e == nil { f(iv) } else { fmt.Println(e) } } func DecryptAES(r io.Reader, k []byte, f func(*cipher.StreamReader)) (e error) { ReadIV(r, func(iv []byte) { var b cipher.Block if b, e = aes.NewCipher([]byte(k)); e == nil { f(&cipher.StreamReader{S: cipher.NewCFBDecrypter(b, iv), R: r}) } else { fmt.Println(e) } }) return } github.com/feyeleanor/webcryptodemo
Romek Szczesniak romeks@gmail.com Questions…?
