Infrastructure as code with Puppet and Apache CloudStack

Infrastructure as code with
Puppet and Apache CloudStack
David Nalley
ke4qqq@apache.org
@ke4qqq

#whoami
• Apache Software Foundation Member
• Apache CloudStack PMC Member
• Recovering Sysadmin
• Fedora Project Contributor
• Zenoss contributor
• Employed by Citrix in the Open Source Business Office

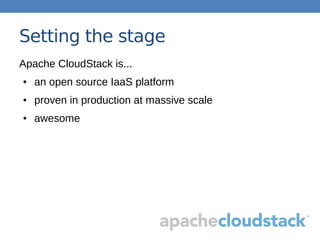

Setting the stage
Apache CloudStack is...
● an open source IaaS platform
● proven in production at massive scale
● awesome

API
● Native: http://cloudstack.apache.org/docs/api
● EC2

IaaS removes one constraint
No longer waiting days or weeks to get a VM provisioned

but introduces another...
Now you have to get a machine configured in a timely
manner.

Self service
● UI
● API
● Some external tool

People provision stuff...
Not ops folks
Often not familiar with environmental intricacies
Don't care

Classification
Problem: We spin up, dynamically, 1-500 VMs at any given time - how do
we decide what configurations apply.

Classification
The wrong way - dedicated images for each purpose

Classification
editing nodes.pp
node 'foo-356.cloud.com' {
include httpd
}

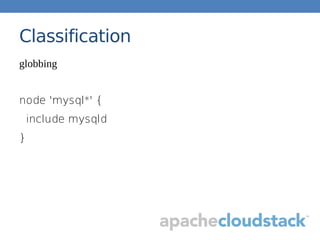

Classification
globbing
node 'mysql*' {
include mysqld
}

Classification
Everything is default
node 'default' {
include httpd
}

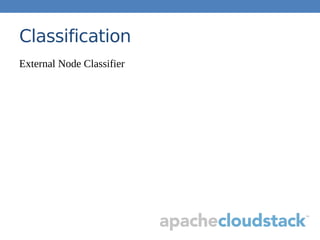

Classification
External Node Classifier

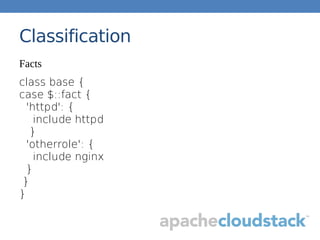

Classification
Facts
class base {
case $::fact {
'httpd': {
include httpd
}
'otherrole': {
include nginx
}
}
}

Classification - One Solution
● During instance provisioning define metadata.
● Custom fact for that metadata
● Case statement based on that fact

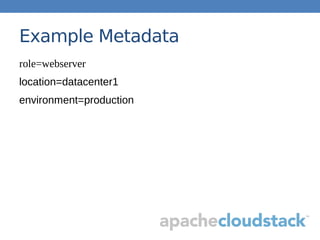

Example Metadata
role=webserver
location=datacenter1
environment=production

Corresponding manifest
class base {
case $::fact {
'webserver': {
include httpd
}
'database': {
include postgresql
}
}
}

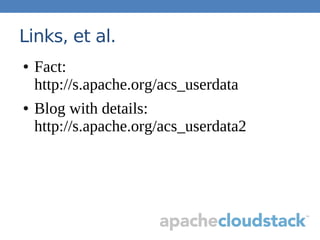

Links, et al.
● Fact:
http://s.apache.org/acs_userdata
● Blog with details:
http://s.apache.org/acs_userdata2

Video - go watch it
● I only have 45 minutes - so can't delve
into everything, you should watch the
video- it’s great.
● http://youtu.be/c8YWctfOpwo

And then there was a knife-plugin
The folks at Edmunds.com wrote a knife plugin for
CloudStack
The knife plugin had the ability to define an application
stack, potentially hundreds of nodes, that are interrelated,
and provision them with a single knife command.
https://github.com/cloudstack-extras/knife-cloudstack

Deploying a machine with knife
~ knife cs server create

{
"name": "hadoop_cluster_a",
"description": "A small hadoop cluster with hbase",
"version": "1.0",
"environment": "production",
"servers": [
{
"name": "zookeeper-a, zookeeper-b, zookeeper-c",
"description": "Zookeeper nodes",
"template": "rhel-5.6-base",
"service": "small",
"port_rules": "2181",
"run_list": "role[cluster_a], role[zookeeper_server]",
"actions": [
{ "knife_ssh": ["role:zookeeper_server", "sudo chef-client"] }
]
},
{
"name": "hadoop-master",
"description": "Hadoop master node",
"service": "large",
"networks": "app-net, storage-net",
"port_rules": "50070, 50030, 60010",
"run_list": "role[cluster_a], role[hadoop_master], role[hbase_master]"
},
{
"name": "hadoop-worker-a hadoop-worker-b hadoop-worker-c",
"description": "Hadoop worker nodes",
"service": "medium",
"port_rules": "50075, 50060, 60030",
"run_list": "role[cluster_a], role[hadoop_worker], role[hbase_regionserver]",
"actions": [
{ "knife_ssh": ["role:hadoop_master", "sudo chef-client"] },
{ "http_request": "http://${hadoop-master}:50070/index.jsp" }
]
}
}

Deploy that Hadoop cluster with
knife cs stack create hadoop_cluster_a

Then at FOSDEM 2012
● CloudStack user shows me Puppet types and resources
for OpenNebula.
● https://puppetlabs.com/blog/puppetizing-opennebula/
● They indicated they wanted this awesomeness for
CloudStack....

Why?
● They wanted to define each of their application
stacks in puppet, so that not only the configuration
of software on the machine, but the machines
themselves would be configured by Puppet.
● Automated deployment of test environments that
are exactly the same
● Really gets outside of machine configuration to
entire infrastructure configuration

What we are used to
● Puppet _defines_ the configuration
within the machine

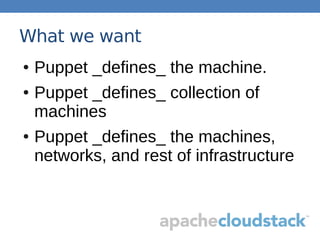

What we want
● Puppet _defines_ the machine.
● Puppet _defines_ collection of
machines
● Puppet _defines_ the machines,
networks, and rest of infrastructure

Then at Puppetconf
● There was Google Compute
Engine types and resources for
Puppet.
● Dan Bode gave a presentation showing off the work he
had done... that presentation is worth seeing...
● http://www.slideshare.net/bodepd/google-compute-presentati

Infrastructure as code with Puppet and Apache CloudStack

And then for Christmas
● puppet types and providers arrived - courtesy of Dan
Bode
● https://github.com/bodepd/cloudstack_resource
s

How does this work?
cloudstack_instance { 'foo1':
ensure => present,
flavor => 'Small Instance',
zone => 'FMT-ACS-001',
image => 'CentOS 5.6(64-bit) no GUI
(XenServer)',
network => 'puppetlabs-network',
# domain
# account
# hostname
}
●

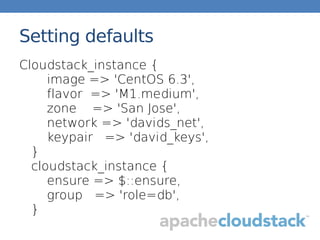

Setting defaults
Cloudstack_instance {
image => 'CentOS 6.3',
flavor => 'M1.medium',
zone => 'San Jose',
network => 'davids_net',
keypair => 'david_keys',
}
cloudstack_instance {
ensure => $::ensure,
group => 'role=db',
}

A simple stack
class my_web_stack {
ensure => present,
group => 'role=apache',
}
ensure => present,
group => 'role=db',
}
}

Contact
● Project
– http://cloudstack.apache.org
– #cloudstack on irc.freenode.net
● Me
– ke4qqq on irc.freenode.net
– ke4qqq@apache.org
