The document discusses Maven, an open source build automation tool used primarily for Java projects. It provides an overview of Maven's key features like dependency management, build lifecycles, and the project object model (POM). The presentation also demonstrates how to create a basic Maven project, configure dependencies and repositories, and manage multi-module builds.
![Versioning and Ranges
<major>.<minor>.<incremental> - <qualifier>
1.2.3 / 1.2.3-alpha-01
Be careful with string comparison, ordering at the qualifiers...
1.2.3-alpha-2 > 1.2.3-alpha-10
(, ) - Exclusive
[, ] - Inclusive
<version>[3.8 , 4.11)</version>
<version>[3.8]</version>
Dependency <version>[ , 3.8]</version>
Mediation](https://image.slidesharecdn.com/intelligentprojectwithmavendevfestistanbul-141208115314-conversion-gate02/85/Intelligent-Projects-with-Maven-DevFest-Istanbul-33-320.jpg)
Intelligent Projects with Maven - DevFest Istanbul
- 1. Intelligent Projects with Maven We’ll examine Maven framework with its architecture and create some sample projects! Dev Fest Istanbul December 2014 Mert ÇALIŞKAN @mertcal
- 2. Mert ÇALIŞKAN • ’02 Hacettepe Graduate • Lecturer @ Hacettepe • 10+ Years of Enterprise Java Experience • Coder @ t2.com.tr • Author • Open Source Software Advocate • Founder of Ankara JUG • Linkedin Profile available @ bit.ly/mertcaliskan
- 3. My Books Details available at http://amazon.com/author/mert
- 4. How many of you heard about Maven? Or using it?
- 5. Maven is… • A project management framework from ASF. • It’s a Uniform Build System. • Making the build as easy as possible. • Comprehensive model for software projects.
- 6. And Maven also is…
- 7. What Maven provides • Convention over Configuration (konfigurasyon yerine kurallar) • Common Interfaces The time of build engineers is over Stop building the build and focus on development ! • Dependency Management Public repositories • Plugin Architecture • Documentation Generate documentation, reports ...
- 8. Installing Maven • You need JDK (not the JRE). • Just download the binary from http://maven.apache.org/download.cgi. • Current latest version is 3.2.3. • Open it up to a folder and add it to the path of the OS / Environment Variable.
- 9. To understand Maven one first need to understand the Project Object Model (POM)
- 10. POM • It is what makes your project a Maven Project. • It’s an XML file. • Not just for building the project; but also, project’s relationship, list of team members, license, SCM and etc. • Not only for Java projects • you can build FLEX code with appropriate plugins • you can build Microsoft binaries from C# code
- 11. Anatomy of POM <project ...> <parent /> <groupId /> <artifactId /> <version /> <packaging /> <developers /> <contributors /> <scm>... </scm> <build> <plugins>....</plugins> </build> <dependencies>....</dependencies> <repositories>....</repositories> <pluginRepositories>... </pluginRepositories> <profiles>...</profiles> <reporting>... </reporting> </project>
- 12. Simplest POM <project> <modelVersion>4.0.0</modelVersion> <groupId>com.devfesttr</groupId> <artifactId>MavenApp</artifactId> <version>1.0.0</version> </project> $ mvn install } compile code run tests package as jar deploy to local repo
- 13. Simplest POM • GAV (groupid - artifactid - version) is the unique identifier for the project. • They are also called as the coordinates. • groupid: is the identifier for a collection of related modules. It’s more like a hierarchy that starts with the organization and then move on with the specific project group. (com.devfesttr) • artifactid: is the unique identifier or the simple name of the module within a group (MavenApp) • version: identifier for the build number of the project.
- 14. Question here is How is that possible with 6 lines of XML? Where do I define the source folders, test folders and all other stuff ?
- 15. Super POM • Same analogy with java.lang.Object • usr/share/Java/maven/lib/maven-model-builder- 3.2.3.jar:org/apache/maven/model/ pom-4.0.0.xml • Standard directory layout • Repo def. for http://repo1.maven.org/maven2 • To see the merged POM: mvn help:effective-pom
- 16. Let’s create a Maven Project • We’ll be using Eclipse Kepler • IDE for version JavaEE Developers is shipping with Maven Plugins. • We’ll also create a project with the archetype soon.
- 17. Build LifeCycle • Process for building and distributing an artefact is clearly defined. • 3 built-in Life Cycles default: handles project deployment clean: clean project files generated by a build site: generate project’s site doc. • Each lifecycle consists of phases in specific order. • Zero or more goals attached to each phase.
- 18. Build LifeCycle default integration-test validate compile test verify install deploy
- 19. default mvn integration -test validate compile test integration-test verify install deploy mvn phase mvn phase:goal mvn phase phase:goal mvn phase:goal phase:goal validate compile test integration-test
- 20. Build LifeCycle • validate - validate the project is correct and all necessary information is available • compile - compile the source code of the project • test - test the compiled source code using a suitable unit testing framework. These tests should not require the code be packaged or deployed • package - take the compiled code and package it in its distributable format, such as a JAR.
- 21. Build LifeCycle • integration-test - process and deploy the package if necessary into an environment where integration tests can be run • verify - run any checks to verify the package is valid and meets quality criteria • install - install the package into the local repository, for use as a dependency in other projects locally • deploy - done in an integration or release environment, copies the final package to the remote repository for sharing with other developers and projects.
- 22. default - full bundle (21 steps) validate Validates whether project is correct and all necessary information is available to complete the build process. initialize Initialises build state, for example set properties. generate-sources Generate any source code to be included in compilation phase. process-sources Process the source code, for example, filter any value. generate-resources Generate resources to be included in the package. process-resources Copy and process the resources into the destination directory, ready for packaging phase. compile Compile the source code of the project. process-classes Post-process the generated files from compilation, for example to do bytecode enhancement/optimization on Java classes. generate-test-sources Generate any test source code to be included in compilation phase. process-test-sources Process the test source code, for example, filter any values. test-compile Compile the test source code into the test destination directory. process-test-classes Process the generated files from test code file compilation.

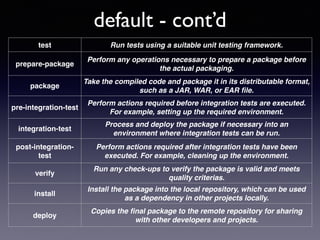

- 23. default - cont’d test Run tests using a suitable unit testing framework. prepare-package Perform any operations necessary to prepare a package before the actual packaging. package Take the compiled code and package it in its distributable format, such as a JAR, WAR, or EAR file. pre-integration-test Perform actions required before integration tests are executed. For example, setting up the required environment. integration-test Process and deploy the package if necessary into an environment where integration tests can be run. post-integration-test Perform actions required after integration tests have been executed. For example, cleaning up the environment. verify Run any check-ups to verify the package is valid and meets quality criterias. install Install the package into the local repository, which can be used as a dependency in other projects locally. deploy Copies the final package to the remote repository for sharing with other developers and projects.
- 24. Dependency Mechanism • It’s where Maven can ease the development when you have hundreds of modules. • You may also depend on external frameworks and maven will fetch them from repositories. • It happens with the Coordinates ! (GAV factor) <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-api</artifactId> <version>1.7.7</version> <scope>compile</scope> <optional>false</optional> </dependency>
- 25. Transitive Dependencies • Transitive Dependencies are introduced with Maven version 2.0. • It allows you get the libraries that your own dependencies require and include them automatically. You don’t need to take care of those explicitly. • There is no limit to the number of levels on dependencies.
- 26. Dependency Exclusion • If projectX depends on projectY and projectY depends on projectZ, the owner of projectX can define an exclusion on projectZ for not to fetch it while fetching projectY. X Y Z
- 27. Usage of <exclusion> <dependency> <groupId>mycompany</groupId> <artifactId>myproject</artifactId> <version>1.0</version> <exclusions> <exclusion> <groupId>mycompany</groupId> <artifactId>myotherproject</artifactId> </exclusion> </exclusions> </dependency>
- 28. Optional Dependencies • Let’s say projectY releases itself and mark its dependency on projectZ as optional. When projectX depends on the projectY, project X will only depend on the Y but not the Z. But it may also add the Z as a dependency if needed. X Y Z (optional)
- 29. Usage of <optional> • ProjectY defines ProjectZ as below with optional dep. <dependency> <groupId>mycompany</groupId> <artifactId>projectZ</artifactId> <version>1.0</version> <optional>true</optional> </dependency>
- 30. Sample <dependencies> <dependencies> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-core</artifactId> <version>4.1.2.RELEASE</version> </dependency> <dependency> <groupId>org.hibernate</groupId> <artifactId>hibernate-core</artifactId> <version>4.3.2.Final</version> </dependency> </dependencies>
- 31. Scope for Dependencies compile provided runtime test system import CCompile T Classpaths Test R Runtime
- 32. Scope for Dependencies compile default scope, compile scoped CTR dependencies will be in classpath provided similar to the compile, artefact should be provided by JDK / container @ runtime CT TR runtime not needed for compilation but need @ runtime T test dependency only needed for test compilation & execution CT system same as provided, but artefact should be provided with maven 2.0.9...dependency to be replaced with the dependencies in that POM's <dependencyManagement> section. --- import explicitly with <systemPath /> Classpath
- 33. Versioning and Ranges <major>.<minor>.<incremental> - <qualifier> 1.2.3 / 1.2.3-alpha-01 Be careful with string comparison, ordering at the qualifiers... 1.2.3-alpha-2 > 1.2.3-alpha-10 (, ) - Exclusive [, ] - Inclusive <version>[3.8 , 4.11)</version> <version>[3.8]</version> Dependency <version>[ , 3.8]</version> Mediation
- 34. Release and Snapshot Versioning • Snapshot versioning: Used by the projects during development as it implies that the project is still under development and it may change. <version>0.0.2-SNAPSHOT</version> • Release versioning: It’s the versioning that is assumed never to change. Only to be used for a single state of the project when it is released then updated to a next snapshot. <version>0.0.1</version>
- 35. Archetypes • Templates for Maven projects • Descriptor XML files + Velocity templates • To create a Maven project: mvn archetype:generate -DgroupId=com.devfesttr -DartifactId=sampleApp - Dversion=1.0-SNAPSHOT -DarchetypeGroupId=org.apache.maven.archetypes - DarchetypeArtifactId=maven-archetype-quickstart -DarchetypeVersion=1.0
- 36. Let’s create a Maven Project with an archetype • By using an archetype from JBOSS repository • https://repository.jboss.org/nexus/content/ repositories/releases/archetype-catalog.xml • We will have Domain classes, Web Pages, in memory database, REST services and etc.
- 37. How Maven resolve versions?
- 38. A : A : 1.0 C : C : 1.0 B : B : 1.0 B : B : 2.0 commons-logging commons-logging 1.0.1 commons-logging commons-logging 1.1.1 commons-logging commons-logging 1.1.1 D : D : 1.0 commons-logging commons-logging 1.0.4 Which B will Maven choose? B:2.0 the highest one? G:A: V
- 39. A : A : 1.0 C : C : 1.0 B : B : 1.0 B : B : 2.0 commons-logging commons-logging 1.0.1 commons-logging commons-logging 1.1.1 commons-logging commons-logging 1.1.1 D : D : 1.0 commons-logging commons-logging 1.0.4 Maven will choose the closest one.
- 40. A : A : 1.0 C : C : 1.0 B : B : 1.0 B : B : 2.0 ? commons-logging commons-logging 1.0.1 ? commons-logging commons-logging 1.1.1 commons-logging commons-logging 1.1.1 D : D : 1.0 commons-logging commons-logging 1.0.4 Which commons-logging? ? ?
- 41. The Sequential first at the same distance… A : A : 1.0 C : C : 1.0 B : B : 1.0 B : B : 2.0 commons-logging commons-logging 1.0.1 commons-logging commons-logging 1.1.1 commons-logging commons-logging 1.1.1 D : D : 1.0 commons-logging commons-logging 1.0.4
- 42. The Final Graph… A : A : 1.0 C : C : 1.0 B : B : 1.0 D : D : 1.0 commons-logging commons-logging 1.0.4
- 43. Question: Project A will work in the end OR not? A : A : 1.0 C : C : 1.0 B : B : 1.0 D : D : 1.0 commons-logging commons-logging 1.0.4
- 45. Inheritance ParentApp <<extends>> ChildApp <project> <modelVersion>4.0.0</modelVersion> <parent> <groupId>com.devfesttr</groupId> <artifactId>ParentApp</artifactId> <version>1.0.0-SNAPSHOT</version> </parent> <groupId>devfesttr.workshop</groupId> <artifactId>ChildApp</artifactId> <version>1.0.0-SNAPSHOT</version> </project>
- 46. Aggregation ProjectA ProjectB ProjectC <<depends>> <<depends>> root $ cd ProjectC projectC $ mvn compile projectC $ cd .. root $ cd ProjectB projectB $ mvn compile projectB $ cd .. root $ cd ProjectA projectA $ mvn compile } 8 lines !!!
- 47. Aggregation modulesapp ProjectA ProjectB ProjectC <<module>> <<module>> <<module>> root $ cd modulesapp modulesapp $ mvn compile modulesapp: <project> <modelVersion>4.0.0</modelVersion> <groupId>com.devfesttr</groupId> <artifactId>modulesapp</artifactId> <packaging>pom</packaging> <version>1.0</version> <name>modulesapp</name> <modules> <module>projectA</module> <module>projectB</module> <module>projectC</module> </modules> </project>
- 48. Question here is: With mvn compile which module will compile first? <modules> <module>projectA</module> <module>projectB</module> <module>projectC</module> </modules>
- 49. Repositories • To manage build artefacts and dependencies • local or remote repositories • Can store jar, war, ear, ejb, rar .... • Maven looks to at least 2 repository if none specified - local one (under user home) - http://repo.maven.apache.org/maven2 (defined in uber-pom) • Release & Snapshot repositories
- 50. Repositories <repository> <id>jboss-repo</id> <name>The Release JBoss maven repo</name> <url>http://repository.jboss.org/maven2</url> <releases> <enabled>true</enabled> </releases> </repository> <repository> <id>jboss-snapshot-repo</id> <name>The Snapshot JBoss maven repo</name> <url>http://snapshots.jboss.org/maven2</url> <snapshots> <enabled>true</enabled> </snapshots> </repository>
- 51. Plugins • Plugin-oriented Architecture plugin for even compiling the code.. • A maven artefact w/ descriptor (plugin.xml) and one or more MOJOs • A MOJO is a Maven plain Old Java Object. Each mojo is an executable goal in Maven, and a plugin is a distribution of one or more related MOJOs. • In short, a MOJO is a maven goal, to extend functionality not already found in Maven. • Plexus as its IoC. (Guice also introduced with version 3.x) Why not Spring? • List of plugins supported by Maven Project. https://maven.apache.org/plugins
- 52. Plugin Development <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/ XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/ maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.devfesttr</groupId> <artifactId>hello-maven-plugin</artifactId> <version>1.0-SNAPSHOT</version> <packaging>maven-plugin</packaging> <build> <plugins> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-plugin-plugin</artifactId> <version>3.2</version> <configuration> <skipErrorNoDescriptorsFound>true</skipErrorNoDescriptorsFound> </configuration> <executions> <execution> <id>mojo-descriptor</id> <goals> <goal>descriptor</goal> </goals> </execution> </executions> </plugin> </plugins> </build>
- 53. Plugin Development <dependencies> <dependency> <groupId>org.apache.maven</groupId> <artifactId>maven-plugin-api</artifactId> <version>2.0</version> </dependency> <dependency> <groupId>org.apache.maven.plugin-tools</groupId> <artifactId>maven-plugin-annotations</artifactId> <version>3.2</version> </dependency> </dependencies> </project>
- 54. Plugin Development Mojo Code import org.apache.maven.plugin.AbstractMojo; import org.apache.maven.plugin.MojoExecutionException; import org.apache.maven.plugins.annotations.Mojo; @Mojo( name = "sayhi") public class GreetingMojo extends AbstractMojo { public void execute() throws MojoExecutionException { getLog().info( "Hello world." ); } }
- 55. Use the plugin <build> <plugins> <plugin> <groupId>com.devfesttr</groupId> <artifactId>hello-maven-plugin</artifactId> <version>1.0-SNAPSHOT</version> <executions> <execution> <phase>compile</phase> <goals> <goal>sayhi</goal> </goals> </execution> </executions> </plugin> </plugins> </build>
- 56. What we did w/ plugins in PrimeFaces • maven-jsf-plugin • Component Class • Tag Handler Class • Declare Component, Tag, Renderer classes in faces-config.xml • Declare facelet tag definition • Declare tld tag definition • plugin available @ http://repository.primefaces.org/org/primefaces/maven-jsf-plugin
- 57. settings.xml • Maven provides 2 settings file, • Local settings.xml at %USER_HOME%/.m2/settings.xml • Global settings.xml at %M2_HOME%/conf/settings.xml • These files are not bundled with Maven project and don’t get distributed. • If both files exist, their contents get merged. • Local settings.xml overrides the global one.
- 58. Thank you..!
