- 1. An Introduction to Interaction Design g Mark Billinghurst HIT Lab NZ
- 2. Mark PhD Electrical Engineering University of Washington Interaction Design Museum experiences Tools for designers Augmented Reality Mobile AR, Evaluation AR Evaluation, Multimodal Interfaces, Collaborative Collaboration Enhanced FtF and remote collaboration Social networking
- 3. Workshop Overview 1. What is Interaction Design 2. 2 Understanding Interaction 3. Understanding User Experience 4. Design and Prototyping 5. 5 Evaluation 6. Design in the Real World 7. Resources

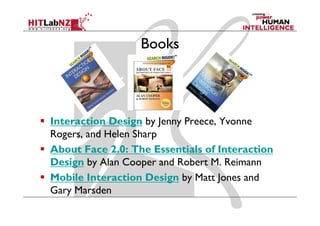

- 4. Source Material Interaction Design: Beyond Human p Computer-Interaction Rogers, Sharp, Preece http://www.id-book.com/ htt // id b k /
- 5. 1. What is Interaction Design? Mark Billinghurst Preece Chapter 1
- 6. What to do? Imagine I i You’re bringing a new product to market Your #2 competitor has been in the market for over a year, selling millions of units y g Your #1 competitor launches the same month Your technology is slower than your competitors Your technology is older than your competitors Your last product failed in the market

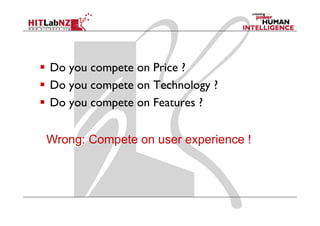

- 7. Do you compete on Price ? Do you compete on Technology ? Do you compete on Features ? Wrong: Compete on user experience !
- 9. Nintendo Wii Cheap - $500 Unique game play Wireless 3 DOF controller Position and orientation sensing Aiming to broaden user base g Can play previous games/downloads
- 11. Sales to Sept 2011
- 12. “The “Th product is no longer d i l the b i f l The th basis of value. Th experience is ” is. Venkat Ramaswamy The Future of Competition.
- 13. Gilmore + Pine: Experience Economy Gil Pi E i E experiences Emotion E ti services products components Function Sony CSL © 2004
- 14. The Value of Experience 50c 50 $3.50 20c
- 15. Good Experience Design Reactrix Top down projection Camera b d input C based i Reactive Graphics No instructions No training
- 18. Using the N-gage
- 22. Interaction Design “Designing interactive products to support people in their everyday and working lives” lives Preece, J., (2002). Interaction Design Design of User Experience with Technology
- 23. Goals of interaction design Develop usable products Usability means easy to learn, effective to use and y y , provide an enjoyable experience Involve users in the design process
- 24. Bill Verplank Interaction Design involves answering three questions: What do you do? - How do you affect the world? What do you feel? – What do you sense of the world? What do you know? – What do you learn? y y

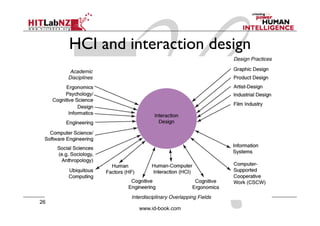

- 26. HCI and interaction design 26 www.id-book.com
- 28. Interaction Design Process I D P Identify needs/ establish requirements q (Re)Design Evaluate Build an interactive version Develop alternative prototypes/concepts and compare them Final product And iterate, iterate, iterate.... iterate iterate iterate
- 29. 2. Understanding Interaction Mark Billinghurst
- 30. Understanding the problem space What do you want to create? y What are your assumptions? What are your claims? Will it achieve what you hope it will? If so, how?
- 31. Analysing the problem space Are there problems with an existing product or user experience? p Why do you think there are problems? How do you think your proposed design ideas might overcome these? When designing for a new user experience how will the proposed design extend or change current ways of doing things? y g g
- 32. Conceptual model A conceptual model i t l d l is: “a high-level description of how a system is organized and operates. operates.” (Johnson and Henderson, 2002, p. 26) Need to first think about how the system will appear to users (i.e. how they will understand it) Not a description of the user interface but a structure outlining the concepts and relationships between them Benefits B f Enables “designers to straighten out their thinking before they start laying out their widgets” (p. 28) y g g (p ) Provides a working strategy and a framework of general concepts and their interrelations
- 33. Interface metaphors Designed be i il D i d to b similar to a physical entity b also has own h i l i but l h properties e.g. e g desktop metaphor, search engine metaphor Exploit user’s familiar knowledge, helping them to understand ‘the unfamiliar’ Conjures up the essence of the unfamiliar activity, enabling users to leverage of this to understand more aspects of the unfamiliar f ti lit f ili functionality People find it easier to learn and talk about what they are doing at the computer interface in terms familiar to them
- 34. Example: The spreadsheet Analogous to ledger sheet Interactive and computational p Easy to understand Greatly extending what accountants and others could do www.bricklin.com/history/refcards.htm
- 35. Why was it so good? It I was simple, clear, and obvious to the users how to l l d b h h use the application and what it could do “it i j “i is just a tool to allow others to work out their l ll h k h i ideas and reduce the tedium of repeating the same calculations. calculations ” capitalized on user’s familiarity with ledger sheets Got h G the computer to perform a range of different f f diff calculations in response to user input
- 36. Another classic 8010 S office system targeted at workers not Star ff d k interested in computing per se Spent several person-years at beginning working out S l b i i ki the conceptual model Simplified h l Si lifi d the electronic world, making it seem more i ld ki i familiar, less alien, and easier to learn Johnson et al (1989)
- 38. Benefits of interface metaphors Makes l M k learning new systems easier Helps users understand the underlying p y g conceptual model Can be innovative and enable the realm of computers and their applications to be made more accessible to a greater diversity of users
- 39. Problems with interface metaphors P bl h f h (Nielson, (Nielson 1990) Break conventional and cultural rules e.g., recycle bin placed on desktop Can constrain designers in the way they conceptualize a problem Conflict with design principles Forces users to only understand the system in terms of the metaphor Designers can inadvertently use bad existing designs and transfer the bad parts over h b d Limits designers’ imagination with new conceptual models
- 40. Microsoft Bob
- 41. Summary points Need to have a good understanding of the problem space specifying what it is you are doing, why, and how it will support p y g y g, y, pp users in the way intended A conceptual model is a high-level description of a product what users can do with it and the concepts they need to understand how to interact with it Decisions about conceptual d i should be made before D ii b l design h ld b d b f commencing any physical design Interface metaphors are commonly used as part of a conceptual model
- 42. 3. Understanding User Experience Mark Billinghurst
- 43. What is a Bad Experience ?
- 45. Cognitive Overload for Simple Task g p
- 46. Cognitive Overload for Simple Task
- 47. Dangerously Undermining Task Many p p in Palm Beach, Florida that wanted to vote for y people Al Gore, accidentally voted for Pat Buchanan Estimated 4000 voted “wrong“ wrong Another 19,000 punched both holes (invalid vote)
- 48. Interaction Design is User Centered A methodology for ensuring good user experiences with products by getting feedback from users to inform the design.
- 49. 1. User research and needs analysis Identify needs/ establish requirements i t (Re)Design Evaluate Build an interactive version Final p oduct a product
- 50. What, How and Why? •Why: Requirements definition: the stage where failure occurs most h f il t commonly Getting requirements right is crucial 50 www.id-book.com
- 52. What, how and why? •What 1. Understand users, task, context 2. Produce a stable set of requirements •How: Data th i D t gathering activities ti iti Data analysis activities Iterate Expression as ‘requirements’ requirements •Why: y Requirements definition: failure occurs most commonly Getting requirements right is crucial
- 53. What Wh are the Requirements? h R ? Functional What should the system do? What has it done? Data Environment or Context of use Physical: dusty? noisy? light? heat? humidity? …. Social: sharing of files of displays work alone .. files, displays, Organizational: IT support, hierarchy, training.. Users: Wh are they? U Who h ? Usability: learnability, throughput, flexibility..
- 54. Who are your Users? Everyone! y
- 55. Who REALLY are your Users/Stakeholders? •Not as obvious as you think: — those who interact directly with the product — those who manage direct users — those who receive output from the product — those who make the purchasing decision — those who use competitor s products competitor’s •Three categories of user (Eason, 1987): — primary: frequent hands-on p y q — secondary: occasional or via someone else — tertiary: affected by its introduction, or will influence its purchase
- 56. Who are the Stakeholders? Check-out operators • Suppliers • Local shop owners Managers and owners Customers C t
- 58. Designing for Everyone Designing for Everyone pleases No one
- 59. Consider the Whole User
- 60. Data Gathering Techniques (1) Questionnaires Looking for specific information Qualitative and quantitative results Good for getting data from a large dispersed group large, Interviews Good for exploring issues, using props Structured, unstructured or semi-structured But are time consuming and difficult to visit everyone
- 61. Data Gathering Techniques (2) Workshops or focus groups W kh f Group interviews/activities Good G d at gaining a consensus view and/or i i i d/ highlighting areas of conflict Observations Spending time with users in day to day tasks Good for understanding task context requires time and can result in a huge amount of data Documentation Procedures and rules written down in manuals
- 62. A day in the Life of.. Cultural Probes.. Role Playing..
- 63. Case Study: Equator Domestic Probes
- 64. Some Basic Guidelines • Focus on identifying the stakeholders’ needs • Involve all the stakeholder groups • Involve more than one person from each group • Use a combination of data gathering techniques •S Support the process with props such as prototypes h ih h • Consider carefully how to record the data y
- 65. User Interactions =The Golden Egg
- 66. Why? Users can give you lots of f db k about what your U l f feedback b h product does well and what it doesn’t do well. Users can give you insight into their lives and needs helping h l i you understand the context in which your d d h i hi h product will be used Users can inspire design solutions you haven’t thought of. h h f
- 67. Interviewing Techniques Good interviewing is a skill and needs to be done properly to ensure y maximize the p p y you opportunity you have with your users Tips for interacting with end users: 1. Listen 2. Watch 3. C t T t 3 Create Trust 4. Inform Designg
- 68. 1. Listen Most important part of interviewing. You are not there to train the user or to demonstrate how much you know. You are interviewing an expert to gain knowledge. Treat them like a precious partner and remember they know a lot more about their work then you do.
- 69. 2. Watch Remember users will tend to want to say what they think you want to hear. Create opportunities to observe users rather than ask users.
- 70. Case Study – A usability professional is interviewing a user: Professional: “Do you know how to set the margins?” User: “Oh yes, I do that all the time.” Professional: “Could you show me how to do it?” User: “Sure.” (user presses a series of buttons unrelated to setting margins – the button sequence is actually changing a different setting). “See it beeped so the margins are set ” See set.
- 71. 3. Create Trust Users will be nervous that they will appear stupid or incompetent. “We are testing design, not you” To get good data, user must feel relaxed and trusting.
- 72. A user’s perspective: Well okay, today’s the day. I have to report to some building on 14th street. I must admit I m a bit nervous. When I spoke to the woman on the phone, she asked I’m me a whole lot of questions about my background and experience. She seemed particularly gleeful that I wasn’t competent using computers and equipment. I’m g q p glad she is happy but for me it’s a recurring p ppy g problem. I’ve always felt intimidated with electronics. She wants me to use something on the computer while some people watch me. Well, it’s an easy $50 bucks and seeing that I don’t know the people, it can’t be too embarrassing… On the other hand, what if I’m the first person in the world that doesn’t understand how to do whatever I’m supposed to do? What if I totally bomb? What if they ask me a question that is embarrassing and they find out how stupid I really am. Well, I’ll give it a go this time but I don’t think I can do this again.
- 73. 4. Inform Design g User research does not dictate your design but rather informs you so that you design better. y y g
- 74. Woodblock Study Example y p Users were asked to place stickers representing f ti k ti functions ti On a block model. Resulting design did not copy word for word where the users placed buttons. Resulting design was informed by how users grouped buttons and by observation of users interacting with the stickers.
- 75. Summary Four basic activities in the design process 1. Establishing requirements 2. Designing alternatives 3. Prototyping 4. 4 Evaluating User-centered design rests on three principles 1. 1 Early focus on users and tasks E l f dt k 2. Empirical measurement using quantifiable & measurable usability criteria 3. Iterative design 75 www.id-book.com

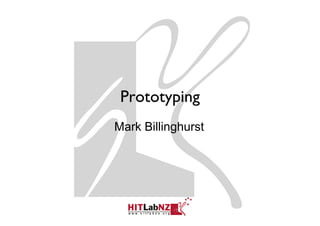

- 76. 4. Design and Prototyping Mark Billinghurst
- 77. 2. (Re)Design 2 (R )D Identify needs/ establish requirements q (Re)Design Evaluate Build an interactive version Final product
- 79. Discovering Unmet Needs Digital Cameras for Apple Late 80s – What would happen if we married a computer with a digital camera? Many studies of current photography use. Uncovering of unmet needs in traditional experience - not enough photos - not knowing whether photo good or not - ability t add sound bilit to dd d - ability to organize Features determined through research and designed Iteratively.

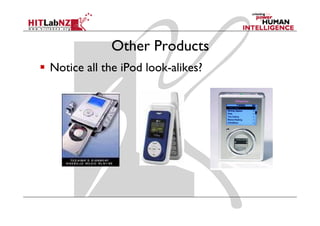

- 81. Other Products Notice all the iPod look-alikes?

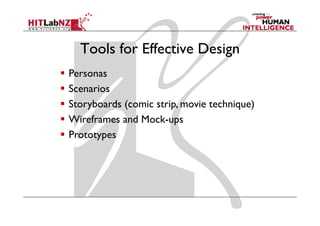

- 82. Tools for Effective Design Personas Scenarios Storyboards (comic strip, movie technique) Wireframes and Mock-ups yp Prototypes
- 83. Persona Technique P T h Personas are a design tool to help visualize who you are designing for and imagine how this person will use the product A persona is an archetype that represents the behavior and goals of a group of users Based on insights and observations from customer research
- 84. How to Develop a Persona Brainstorming Imagining different people using the technology Design Research Ethnographic Studies Contextual Inquiry Field Studies Usability Studies Marketing Research Focus Groups Sales Feedback
- 85. Gunther the Ad Guy Gunther is from Germany. He Travels extensively for work and As he is an advertising executive he needs to present concepts to clients quickly and easily. He is a person very well-versed in new technologies t h l i and wishes h had d i h he h d easier portable solutions for his presentations…..
- 86. 86 www.id-book.com
- 87. How to use your Personas Use them to find real people for usability testing. Use them as a foundation to discuss any design issues/feature issues that come up. /f h Use them to evaluate competitor’s products. Use them to keep you honest. Keep updating them as part of your continued user research.h Use them to find real customers you can have on- going relationships with with.
- 88. Scenarios Usage Scenarios are narrative descriptions of how the product meets the needs of a persona Short (2 pages max) Focus on unmet needs of persona Concrete story C Set of stories around essential tasks, problems... Use to test ideas
- 89. Scenario Technique Develop with personas Prioritize experiences to support Focus on top three experiences but support other experiences
- 90. A business woman travels from SF to Paris on a business trip. On her way to the airport she narrowly misses a traffic delay She avoids delay. the jam because her Smartphone beeps and send her a warning text message on her route from the office to the airport. Upon arrival the location-sensitive Smartphone notifies the airline that she‘ll check in shortly and an airline employee finds her immediately and takes her baggage Her display shows that her baggage. flight is on time and provides a map to her gate. On the way she downloads tourist information (maps, events) for Paris. Symbian
- 91. Once found her seat, she begins t review th d O f dh t h b i to i the downloaded l d d information. She books a ticket for an opera she wants to see. Her Smartphone makes the booking using her credit card number p g g stored in memory. The security software of the Smartphone protects her against fraud. The Smartphone stores the opera booking along with emails written ith ritten on the plane. As soon as she steps off the plane, it makes the calls and sends the emails. As she leaves the airport, a map appears on the display and guides her to her hotel Symbian
- 92. Storyboarding Sequence of sketches showing use of system in everyday use context Concrete example Easier (faster) to grasp than text based stories Means of communication with users and system developers p Sketches, not drawings... Use to test interaction and make sure design works
- 93. Turning Scenarios into Storyboards 1. Photographs to match personas (can be used to communicate environment or profession) 2. Drawings 3. Draw-over acted photos 4. Detail not important – communicate the experience rather than specifics specifics.
- 96. Wireframes & Mock Ups Roughly sketched sequences exploring and validating interaction design. Focus is on navigation and functionality. Usually explores one interaction but can also be used as the foundation for development of testing p prototypes. yp
- 100. Design and Prototyping D dP Identify needs/ establish requirements q (Re)Design Evaluate Build an interactive version Final product

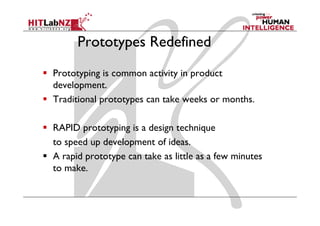

- 101. Prototypes Redefined Prototyping is common activity in product development. Traditional prototypes can take weeks or months. RAPID prototyping is a design technique to speed up d l d development of ideas. f d A rapid prototype can take as little as a few minutes to make.

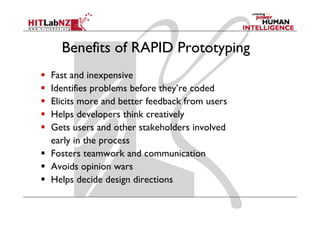

- 102. Benefits of RAPID Prototyping Fast and inexpensive Identifies problems before they re coded they’re Elicits more and better feedback from users Helps developers think creatively Gets users and other stakeholders involved early i th process l in the Fosters teamwork and communication Avoids i i A id opinion wars Helps decide design directions
- 103. Types of Prototypes Low Fidelity – quick and dirty, easy access materials like cardboard and paper. High Fidelity – more involved electronic versions similar in materials to final product.
- 104. Paper Prototyping (Low Fidelity) Quick and simple means of sketching interfaces Use ffi U office materials t i l Easier to criticize, quick to change Creative process (develop in team) Can also use for usability test (focus on flow of interaction rather than visuals) Used a lot to test out concepts before real design begins. g
- 105. Paper Proto: Create Widgets
- 108. Screen M kU Prototypes S MockUp P
- 110. Interactive Role Play in Environment IDEO.com
- 111. Half-functional prototypes More hi-fi HTML ((or Powerpoint) ... Mostly precoded flow, but allows clicking and experiencing flow
- 112. Wireframing T l Wi f i Tools Pidoco (websites mobile, desktop) (websites, mobile No programming http://www.pidoco.com WireframeSketcher Plug-in for Eclipse http://wireframesketcher.com/ htt // i f k t h / Omnigraffle (Mac) Digramming tool http://www.omnigroup.com/products/omnigraffle/ http://www omnigroup com/products/omnigraffle/
- 113. Mobile Rapid Prototype Tools Android: App Inventor http://appinventor.googlelabs.com/about/ iPhone – Meta collection http://iphoneized.com/2009/11/21-prototyping- mockup-wireframing-tools-iphone-app-development/ mockup wireframing tools iphone app development/
- 114. Tethered Prototypes (High Fidelity) Goal: Communicate Vision HIGH FIDELITY PROTOTYE
- 115. Rapid Prototyping Speed development time with quick hardware mockups handheld device connected to PC LCD screen USB phone keypad, Camera screen, keypad Can use PC development tools for rapid development Flash, Vi l Basic, Fl h Visual B i etc
- 116. ‘Wizard-of-Oz’ Prototyping • The user thinks they are interacting with a computer, but a developer is responding to output rather than the system. • Usually done early in design to understand users’ expectations User >Blurb blurb >Do this >Why? 116 www.id-book.com
- 117. Typical Iterations for HW/SW Product: 1. 1 Paper prototype to evaluate conceptual model 2. Interactive computer-based prototype with rough screens to evaluate feature placement p 3. Tethered prototype to evaluate button + screen interactions 4. Real device prototyped with major features working 5. Real device prototyped with all features working and graphic design implemented
- 118. Design and Prototyping D dP Identify needs/ establish requirements q (Re)Design Evaluate Build an interactive version Final product
- 119. Design Case Study
- 120. ITERATIVE DESIGN PROCESS Design (redesign) Prototype Evaluate Test Design with Users (Fix Issues) ( i ) (Note problems)
- 121. MOBILE AUGMENTED REALITY FOR SPATIAL NAVIGATION Sharon Brosnan 0651869 Bachelor of Science in Digital Media Design
- 122. BUNRATTY FOLK PARK Sharon Brosnan 0651869 Bachelor of Science in Digital Media Design
- 123. BUNRATTY FOLK PARK Irish visitor attraction run by Shannon Heritageg 19th 19 h century life is recreated lf d Buildings from the mid-west have been relocated t th 26-land surrounding Bunratty l t d to the 26 l d di B tt Castle 30 buildings are set in a rural or village setting
- 124. AUGMENTED REALITY In Bunratty Folk Park: Allows the visitor to point a camera at an exhibit, the device recognises its by it’s location and layers digital information on to f the display p y 3- dimensional virtual objects can be positioned with real ones on display Leads to dynamic combination of a live camera view and information
- 125. NAVIGATIONAL AID Smartphone Platform Most people carry mobile phones and are comfortable with them Ideal A Id l Augmented Reality Technology d R li T h l Global tracking tools g Wireless communication capabilities Location based computing Large display for interaction

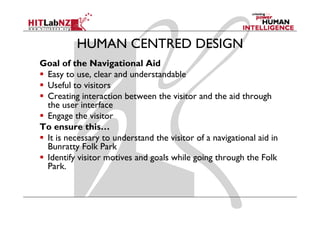

- 127. HUMAN CENTRED DESIGN Goal f the Navigational Aid G l of th N i ti l Easy to use, clear and understandable Useful to visitors Creating interaction between the visitor and the aid through the user interface Engage the visitor E h ii To ensure this… It is necessary to understand the visitor of a navigational aid in Bunratty Folk Park Identify visitor motives and goals while going through the Folk Park. P k
- 128. HUMAN CENTRED DESIGN Understanding the technology and Related Works Literature Similar Technologies g Electronic Tours in Museum Settings Interactions design in Outdoor Museums g Understanding the User over time Observations Ob Interviews te v ews
- 129. HUMAN CENTRED DESIGN Findings Most visitors do not use the map Most visitors have mobile phones Visitors want more information View the Folk Park at their own pace Information should be straight to the point Large social interaction within groups g g p
- 130. NEXT STEPS FROM RESEARCH Define Visitors Goals Define Functionalities f the D fi F ti liti of th Aid Develop Personas – visitors who use the Aid Develop Scenarios – how the persona uses the p p navigational aid in the Folk Park Draw up Storyboards on scenarios
- 131. FUNCTIONALITY View Options Augmented Reality Camera View Features for Map View navigation List View Text Information 3D Objects Sub Options Sub-Options 3D Tour Guide Places 3D Placement of Events Buildings g Restaurants
- 132. STORYBOARD
- 135. ITERATIVE DESIGN
- 136. ITERATIVE DESIGN PROCESS Prototyping and User Testing Low Fidelity Prototyping Sketches Paper Prototyping Post-It Prototyping PowerPoint Prototyping High Fidelity Prototyping Wikitude
- 137. INITIAL SKETCHES Pros: • Good for idea generation • Cheap • Concepts seem feasible Cons: • Not great feedback gained • Photoshop not fast enough for Photoshop not fast enough for making changes
- 138. POST IT PROTOTYPING Camera View with 3D Camera View with 3D First Draft Second Draft Third Draft • Selection Selection • Home button added Home button added highlighted in blue for easy navigation to main menu
- 139. POWERPOINT PROTOTYPING Benefits Benefits • Used for User Testing • Interactive • Functionalities work when following the Functionalities work when following the story of Scenario 1 • Quick •E Easy arrangement of slides t f lid User Testing • Participants found • 15 minute sessions screen captured • ‘Talk Allowed’ technique used Talk Allowed technique used • Notes taken • Post Interview Post‐Interview
- 140. WIKITUDE Popular augmented reality browser for mobile devices Mapping Point of Interest abilities Multiplatform M li l f Shows the points of interest of Bunratty Folk Park Markers can be selected in and an information pop-up appears
- 141. WIKITUDE User Testing Application well received Understandable Participants playful with the technology
- 142. FINAL CONCEPT DESIGN
- 143. FINAL DESIGN CONCEPT Key Issues K I Fix issues found in previous sessions Design with guidelines in mind Appealing to the Mental Model Icon Design Aesthetic Design Colour/Font Buttons Look
- 145. 5. User Evaluation Mark Billinghurst
- 146. 4. Evaluation Identify needs/ establish requirements i t (Re)Design Evaluate Build an interactive version Final product
- 147. What is evaluation? Evaluation is concerned with gathering d about the usability of h i data b h bili f a design or product by a specified group of users for a particular activity within a specified environment or work context
- 148. When to evaluate? Once the product has been developed p pros : rapid development, small evaluation cost p p , cons : rectifying problems redesign & design implementation evaluation reimplementation During design and development pros : find and rectify problems early fi d d if bl l cons : higher evaluation cost, longer development design implementation
- 149. Four evaluation paradigms ‘quick a dirty’ qu c and ty usability testing (lab studies) field studies predictive evaluation
- 150. Quick and dirty ‘quick & dirty’ evaluation: informal feedback from users or consultants to confirm that their ideas are in-line with users’ needs and are liked. Quick & dirty evaluations are done any time. Emphasis is on fast input to the design process rather than carefully documented findings.
- 151. Usability Testing Recording typical users’ performance on typical tasks in controlled settings. Field observations may be used. g y As the users perform these tasks they are watched & recorded on video & their key presses are logged. This data is used to calculate performance times, errors & help explain why the users did what they did. User satisfaction questionnaires & interviews are used to elicit users’ opinions.
- 152. Laboratory-based studies Laboratory-based studies can be used for evaluating the design, or the implemented system are carried out in an interruption free usability lab interruption-free can accurately record some work situations some studies are only possible in a lab environment some tasks can be adequately performed in a lab q yp are useful for comparing different designs in a controlled context
- 153. Laboratory-based studies Controlled, instrumented environment
- 154. Portable equipment for the field 154 www.id-book.com
- 155. Field Studies Field studies are done in natural settings The aim is to understand what users do naturally and y how technology impacts them. In product design field studies can be used to: - identify opportunities for new technology - determine design requirements - decide how to introduce new technology - evaluate technology in use use.
- 156. Predictive Evaluation Experts apply their knowledge of typical users, users often guided by heuristics to predict heuristics, usability problems. Can involve theoretically based models. A key feature of predictive evaluation is that users need not be present Relatively quick and inexpensive
- 157. Characteristics of approaches Usability Field Predictive testing studies Users do task natural not involved Location controlled natural anywhere When prototype early prototype Data quantitative qualitative problems Feed back measures & descriptions problems errors Type applied naturalistic expert
- 158. Evaluation approaches and methods Method Usability Field Predictive testing studies Observing x x Asking x x users Asking x x experts Testing x Modeling x

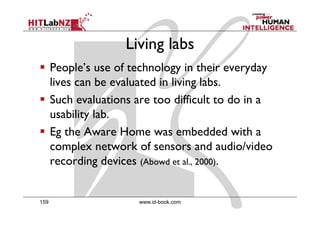

- 159. Living labs People’s use of technology in their everyday lives can be evaluated in living labs. g Such evaluations are too difficult to do in a usability lab lab. Eg the Aware Home was embedded with a complex network of sensors and audio/video recording devices (Abowd et al., 2000). 159 www.id-book.com
- 160. User Evaluation Process 160 www.id-book.com
- 161. DECIDE: A framework to guide evaluation - Determine the goals the evaluation addresses. - Explore the specific questions to be answered. - Choose the evaluation p di and t h i Ch th l ti paradigm d techniques - Identify the practical issues. - Decide how to deal with the ethical issues. - Evaluate, interpret and present the data.
- 162. DECIDE Framework Determine Goals: D G l What are the high-level goals of the evaluation? How wants the evaluation and why? H t th l ti d h ? Explore the Questions: Create well defined, relevant questions Choose the Evaluation Paradigm Influences the techniques used, how data is analyzed Identify Practical Issues How to select users, stay on budget & schedule How to find evaluators, select equipment
- 163. DECIDE Framework Decide on Ethical Issues Informed consent form Participants have a right to: -kknow th goals of th study and what will h the l f the t d d h t ill happen to the fi di t th findings - privacy of personal information Evaluate, Interpret and Present Data , p - Reliability: can the study be replicated? - Validity: is it measuring what you thought? y g y g - Biases: is the process creating biases? - Scope: can the findings be generalized? - E l i l validity: is the environment influencing the results? Ecological lidit i th i t i fl i th lt ?
- 164. Key K points • Many issues to consider before conducting an evaluation study. • These include: goals of the study; involvment or not of users; the methods to use; practical & ethical issues; how data will be collected analyzed & collected, presented. • Th DECIDE f The framework provides a useful checklist k id f l h kli for planning an evaluation study. 164 www.id-book.com
- 165. Usability Testing
- 166. Usability Testing U bl T Recording performance of typical users doing typical tasks tasks. Controlled settings. Users are observed and timed. U b d d d Data is recorded on video & key presses are logged. The data is used to calculate performance times, and to identify & explain errors. User satisfaction is evaluated using questionnaires & interviews. Field observations can provide contextual understanding. 166 www.id-book.com
- 167. Experiments & Usability Testing Experiments test hypotheses to discover new knowledge by investigating the relationship between g y g g p two or more things – i.e., variables. Usability testing is applied experimentation. y g pp p Developers check that the system is usable by the intended user population for their tasks. p p Experiments may also be done in usability testing. 167 www.id-book.com
- 168. Usability Testing Research U bilit T ti & R h Usability testing y g Experiments for p research Improve products Discover knowledge Few participants Many participants Results inform design Results validated Usually U ll not completely l l statistically replicable Must be replicable Conditions controlled as Strongly controlled much as possible conditions Procedure planned p Experimental design p g Results reported to Scientific report to developers scientific community 168 www.id-book.com
- 169. Pilot Studies A small trial run of the main study. Can identify majority of issues with interface design Pilot studies check: - that the evaluation plan is viable - you can conduct the procedure - that i h interview scripts, questionnaires, i i i i experiments, etc. work appropriately Iron out problems before doing the main study.
- 170. Controlled experiments Designer of a controlled experiment should carefully consider y proposed hypothesis selected subjects measured variables experimental methods data collection data analysis
- 171. Subjects The h Th choice of subjects is critical to the validity of f b l h ld f the results of an experiment subjects group should be representative of the expected user population In selecting the subjects it is important to consider things such as their g age group, education, skills, culture The sample size should be large enough (10+) to be statistically representative of the population
- 172. Variables V i bl Experiments manipulate and measure variables under controlled conditions There are two types of variables independent: variables that are manipulated to create different experimental conditions - e g number of items in menus, colour of the icons e.g. menus dependent: variables that are measured to find out the effects of changing the independent variables - e.g. speed of menu selection, speed of locating icons
- 173. “Other” Variables Control variables e.g. room light, noise… if controlled => less external validity Random variables (not controlled) ( ) e.g. fatigue more influence of random variable => less internal validity y Confounding variables practice previous experience
- 174. Hypothesis A hypothesis is a prediction of the outcome what will happen to the dependent variables when the independent variables are changed to show that the prediction is right - dependant variables don’t change by changing the independent variables - rejecting the null hypothesis (H0 )
- 175. Experimental methods It is important to select the right experimental p method so that the results of the experiment can be generalized There are mainly two experimental methods between-groups: each subject is assigned to one experimental condition within-groups: each subject performs under all the different conditions
- 176. Experimental methods Between-groups g p Within-groups g p Subjects Subjects Randomly Randomly assigned assigned rimental tasks rimental tasks rimental tasks Condition Condition Condition erimental task 1 2 3 Condition Condition Condition Condition Condition Condition 1 2 3 2 1 1 Expe Exper Exper Exper Condition Condition Condition 3 3 2 data data data data data data Statistical data analysis Statistical data analysis
- 177. Within vs. Between Subjects between subjects design each participant is tested on only one level/condition p p y a separate group of participants is used for each condition - one group uses HMD other group uses Handheld device within subjects d i i hi bj design participant is tested on each level/condition - e.g. participants use Handheld device and HMD repeated measurement p
- 178. Between Subjects Sometimes a factor must be between subjects e.g. gender, age, experience Between subjects advantage: avoids interference effects (e.g. practice / learning effect) ( g p g ) Between subjects disadvantage: Increased variability = need more subjects Important: randomised assignment to conditions
- 179. Within Subjects Sometimes a f t must be within subjects S ti factor t b ithi bj t e.g. measuring learning effects Within subjects advantages less participants needed (all p p p ( participants in all conditions) p ) differences (variability) between subjects the same across test conditions Counterbalance order of presenting conditions A => B => C B => C => A C => A => B The order is best governed by a Latin Square
- 180. Latin Square Design each condition occurs once in each row and column Note: In a balanced Latin Square each condition both b th precedes and f ll d d follows each other condition h th diti an equal number of times
- 181. Data collection and analysis The choice of a method is dependent on the type of data that needs to be collected In order to test a hypothesis the data has to be analysed using a statistical method The choice of a statistical method depends on the type of collected data h f ll dd All the decisions about an experiment should p be made before it is carried out
- 182. Observe and Measure Observations are gathered… manually ( y (human observers) ) automatically (computers, software, cameras, sensors, etc ) sensors etc.) A measurement is a recorded observation Objective metrics Subjective metrics
- 183. Typical objective metrics task completion time k l i i errors (number, percent,…) percent of task completed ratio of successes to failures number of repetitions number of commands used number of failed commands physiological data (heart rate,…) …
- 184. Typical subjective metrics user satisfaction subjective performance ratings ease of use intuitiveness judgments …
- 185. Data Types Subjective Subjective survey How easy was the task - Likert Scale, condition rankings Scale 1 2 3 4 5 Not very easy Very easy Observations - Think Aloud Interview responses Objective Performance measures - Time accuracy, errors Time, accuracy Process measures - Video/audio analysis
- 186. Experimental Measures E erimental Meas res Measure What does it tell us? How is it measured? Timings Performance Via a stopwatch, or automatically by the device. Errors Performance, Particular sticking points in a task By success in completing the task correctly. Through experimenter observation, examining the route walked. Perceived Workload Effort invested. User satisfaction Through NASA TLX scales and other questionnaires. i i Distance traveled and route Depending on the application, these can be used Using a pedometer, GPS or other taken to pinpoint errors and to indicate performance location-sensing system. By experimenter observation. Percentage preferred walking Performance By finding average walking speed, speed which is compared with normal walking speed. Comfort User satisfaction. Device acceptability Comfort Rating Scale and other questionnaires. User comments and User satisfaction and preferences. Particular Through questionnaires, interviews and preferences sticking points in a task. think alouds. think-alouds. Experimenter observations Different aspects, depending on the experimenter Through observation and note-taking and on the observations
- 187. Statistical Analysis Once data is collected statistics can be used for analysis Typical Statistical Techniques yp q Comparing between two results - Unpaired T-Test (for between subjects – assumes normal distribution, interval scale, homogeneity of variances) - Paired T-Test (for within subjects – assumes normal distribution, etc.) - Mann Whitney U test (between subjects – if assumptions are not met) Mann–Whitney U-test Comparing between > two results - Analysis of Variance – ANOVA - Followed by post-hoc analysis – Bonferroni adjustment - Kruskal–Wallis (does not assume normal distribution)
- 188. Case Study: A Wearable Information Space Head Stabilized Body Stabilized An A AR i t f interface provides spatial audio and visual cues id ti l di d i l Does a spatial interface aid performance? –Task time / accuracy
- 189. Task Performance Task T k find target icons on 8 pages remember information space b i f i Conditions A - head-stabilized pages B - cylindrical display with trackball C - cylindrical display with head tracking Subjects Within subjects (need fewer subjects) 12 subjects used
- 190. Experimental Measures Objective Ob spatial ability (pre-test) Many time to perform task information recall Different workload (NASA TLX) kl d Measures Subjective j Post Experiment Survey - rank conditions (forced choice) ( ) - Likert Scale Questions • “How intuitive was the interface to use?”
- 191. Post Experiment Survey For each of these conditions please answer: 1) How easy was it to find the target? 1 2 3 4 5 6 7 1=not very easy 7=very easy For the head stabilised condition (A): For the cylindrical condition with mouse input (B): For the head tracked condition (C): Rank all the conditions in order on a scale of one to three 1) Which condition was easiest to find target (1 = easiest, 3 = hardest) A: B: C:
- 192. Results Body St bili ti Improved P f B d Stabilization I d Performance search times significantly faster (One factor ANOVA) Head Tracking Improved Information recall no difference between trackball and stack case Head tracking involved more physical work
- 193. Subjective Impressions 5 4.5 4 3.5 3 Find Target 2.5 Enjoyable 2 1.5 15 1 0.5 0 A B C Subjects Felt Spatialized Conditions ( j p (ANOVA): ) More enjoyable Easier to find target
- 194. Subjective Impressions 3 2.5 2 Easiest 1.5 Understanding Intuitive 1 0.5 0 A B C Subject Rankings (Kruskal-Wallis) Spatialized easier to use than head stabilized S l d h h d bl d Body stabilized gave better understanding Head tracking most intuitive
- 195. Field Studies
- 196. Field S d F ld Studies Field studies are done in natural settings settings. “in the wild” is a term for prototypes being used freely in natural settings settings. Aim to understand what users do naturally and how technology impacts them them. Field studies are used in product design to: - identify opportunities for new technology; - determine design requirements; - decide how best to introduce new technology;gy; - evaluate technology in use. 196 www.id-book.com
- 197. Observation Direct observation in the field Structuring frameworks Degree of participation (i id or outsider) D f ti i ti (insider t id ) Ethnography Direct observation in controlled environments D b ll d Indirect observation: tracking users’ activities Diaries Interaction logging
- 198. Ethnography (1) • Ethnography is a philosophy with a set of techniques that include participant observation and interviews • Debate about differences between participant observation and ethnography • Ethnographers immerse themselves in the culture that they study • A researcher’s degree of participation can vary along a scale from ‘outside’ to ‘inside’ ‘ d ’ ‘ d ’ • Analyzing video and data logs can be time-consuming • Collections of comments, incidents, and artifacts are made
- 199. Ethnography (2) Co operation Co-operation of people being observed is required Informants are useful Data analysis is continuous Interpretivist technique Questions get refined as understanding grows Reports usually contain examples
- 200. Direct observation in a controlled setting g Think-aloud technique q Indirect observation Diaries Interaction logs Cultural C lt l probesb
- 201. Frameworks to Guide Observation - The person. Who? - The place. Where? - The thing What? thing. The Goetz and LeCompte (1984) framework: - Who is present? - What is their role? - What is happening? - When does the activity occur? - Wh i it happening? Where is h i ? - Why is it happening? - How is the activity organized? 201 www.id-book.com
- 203. Predictive models Provide a way of evaluating products or designs without directly involving users. g y g Less expensive than user testing. Usefulness limited to systems with predictable tasks - e.g., telephone answering systems, mobiles, systems mobiles cell phones etc phones, etc. Based on expert error-free behavior.
- 204. Fitts’ Law (Fitts 1954) Fitts’ Law predicts that the time to point at an object using a device is a function of the distance from the target object and the object’s size. The further away and the smaller the object, the object longer the time to locate it and point to it.
- 205. GOMS Model Goals h G l - the state the user wants to achieve e.g., find a h hi fi d website. Operators - the cognitive processes and physical actions needed to attain the goals Eg moving mouse to select icon g g Methods - the procedures for accomplishing the goals, e.g., drag mouse over icon, click on button. Selection rules - decide which method to select when there is more than one.
- 206. GOMS Response Times (Card et al., 1983) Operator Description Time (sec) K Pressing a single key or button g g y Average skilled typist (55 wpm) 0.22 Average non-skilled typist (40 wpm) 0.28 Pressing shift or control key 0.08 Typist unfamiliar withthekeyboard with the keyboard 1.20 120 P Pointing with a mouse or other device on a 0.40 display to select an object. This value is derived fromFitts’ Law which is discussed below. P1 Clicking the mouse or similar device 0.20 H Bring ‘home’ hands on the keyboard or other 0.40 device M Mentally prepare/respond 1.35 R(t) The response time is counted only if it causes t the user to wait.
- 207. Expert Inspections Several kinds. Experts use their knowledge of users and p g technology to review software usability. Expert critiques can be formal or informal reports. p q p Heuristic evaluation is a review guided by a set of heuristics. Walkthroughs involve stepping through a pre- p planned scenario noting potential problems. gp p
- 208. Nielsen’s heuristics Visibility of system status status. Match between system and real world. User control and freedom freedom. Consistency and standards. Error prevention. E Recognition rather than recall. Flexibility and efficiency of use. Aesthetic and minimalist design.g Help users recognize, diagnose, recover from errors. Help and documentation.
- 209. Three stages for doing heuristic evaluation Briefing session to tell experts what to do. Evaluation period of 1-2 hours in which: Each expert works separately; Take one pass to get a feel for the product; Take a second pass to focus on specific features. Debriefing session in which experts work together to prioritize problems. g p p
- 210. No. of evaluators & problems
- 211. Advantages and problems Few ethical and practical issues to consider because users not involved. Can be difficult and expensive to find experts. Best experts have knowledge of application domain and users. Biggest problems: Important problems may get missed; Many trivial problems are often identified; Experts have biases.
- 212. Data Collection
- 213. Overview • Fi k i Five key issues of d gathering f data h i • Data recording • Interviews • Questionnaires • Observation • Choosing and combining techniques 213 www.id-book.com
- 214. Five K I F Key Issues 1. Setting goals - Decide how to analyze data once collected 2. Identifying participants - Decide who to gather data from 3. Relationship with participants - Clear and professional - Informed consent when appropriate pp p 4. Triangulation - Look at data from more than one perspective 5. Pilot studies - Small trial of main study 214 www.id-book.com
- 215. Data recording Notes, audio, video, photographs Notes plus photographs Audio plus photographs Video 215 www.id-book.com
- 216. Interviews • Unstructured - are not directed by a script. Rich but not replicable. • St Structured - are ti htl scripted, often like a t d tightly i t d ft lik questionnaire. Replicable but may lack richness. richness • Semi-structured - guided by a script but interesting issues can be explored in more depth. Can provide a good balance between richness and replicability. 216 www.id-book.com
- 217. Interview Q i Questions i • Two types: − ‘closed questions’ have a predetermined answer format, e.g., ‘yes’ or ‘no’ − ‘open questions’ do not have a predetermined format • Closed questions are easier to analyze • A id Avoid: − Long questions − Compound sentences - split them into two − Jargon and language that the interviewee may not understand − Leading questions that make assumptions e.g., why do you like …? − Unconscious biases e.g., gender stereotypes eg 217 www.id-book.com
- 218. Enriching the interview process • Props - devices for prompting interviewee, e.g., a prototype, scenario 218 www.id-book.com
- 219. Questionnaires • Key Points • Can be administered to large populations • Paper email and the web used for dissemination Paper, • Sampling can be a problem when the size of a population is unknown as is common online • Design • Provide clear instructions • Questions can be closed or open • closed easier to analyze • The impact of a question can be influenced by order 219 Will phrases be positive, negative or mixed • www.id-book.com
- 220. Encouraging a Good Response Make sure purpose of study is clear y y Promise anonymity Ensure questionnaire is well designed Offer a short version for those who do not have time to complete a long questionnaire Follow-up with emails, phone calls, letters Provide an incentive 40% response rate is high, 20% is often acceptable p g p 220 www.id-book.com
- 221. Online Questionnaires • www.surveymonkey.com k • Good • Low cost • Responses are usually received quickly • Data automatically collected • Time required for data analysis is reduced • Bad • Sampling is problematic if population size is unknown • Preventing individuals from responding more than once 221 www.id-book.com
- 222. 6. Design in the Real World Mark Billinghurst
- 223. Product Development Balancing Act Marketing g Software Hardware Industrial Design Interaction Design Usability Manufacturing
- 224. Obstacles to Success Everyone has an opinion E h i i Design by committee Misunderstanding user research Too literal, not objective Power struggles Blue vs. Red Interface Losing focus of the end user Feature Creep Relying on assumptions/myths Featuritis = Requirements not well established
- 225. There is never only one design solution!!
- 226. Penny Wise = Dollar Poor Software/Hardware development rewarded g for fast work and low budgets. Interaction design activities take some budget and some time time. Investment at front end saves money overall.
- 227. Cost Justifying Usability Cost of Changes Design Alternatives Req. Dev. Build Phase Phase Phase Saving Development Costs
- 228. Cost Justifying Usability Increase Revenue “IBM’s Web presence has traditionally been made up of a difficult-to-navigate labyrinth of disparate subsidies, but a redesign made it more cohesive and subsidies user-friendly. According to IBM, the massive redesign effort quickly paid dividends. The company said in the month after re-launch that traffic to the Shop IBM online store increased 120 percent and sales went up 400%400%. (Battey, 1999) Increase Safety “Chapanis cites two independent studies that showed a 54% reduction In rear-end accidents with the use of human factors improvement: the centered high mount brake light on autos.” high-mount autos.
- 229. More Value for Interaction Design 1. US trade magazines score products on usability along with features and cost. 2. 1/3 of new products fail in market place. (PDMA) 3. Some big electronic chain stores do their own usability review of products before they will stock them. 4. Customers have become very sophisticated and DEMAND highly usable products (as do distributors, investors). distributors investors) 5. Enables companies to develop on-going relationships with customers to keep them current. p
- 230. Stories from the Field Connectix for Boeing Assumption that users would primarily be business travellers wanting to work. Studies showed primary user were indeed business travellers but wanting to RELAX.
- 231. In Conclusion…
- 232. 7. Resources
- 233. Books Interaction Design by Jenny Preece, Yvonne Rogers, and Helen Sharp g p About Face 2.0: The Essentials of Interaction Design by Alan Cooper and Robert M. Reimann M Mobile Interaction Design by Matt Jones and Gary Marsden
- 234. Resources: More books Designing Interactions. Bill Moggridge The Inmates Are Running the Asylum: Why High-Tech Products Drive Us Crazy and How to Restore the Sanity. Alan Cooper Interface Culture. Steven Johnson (history of the development of interfaces, well written, more on the ideas) The invisible Computer. D ld Norman Th i i ibl C Donald N Rapid Contextual Design. A How-to Guide to Key Techniques for User- Centered Desi n Karen H lt blatt Design. Holtzblatt Design Research. Brenda Laurel
- 235. Resources: Conferences OzCHI CHI (Computer Human Interaction, ACM) NordiCHI (Nordic CHI, ACM) MobileHCI (focused on mobile interaction/devices, ACM) IDC (Interaction Design and Children, ACM) Interact HCI International DIS (Designing Interactive Systems, ACM) - Design Research, open to different approaches t d i diff t h to design DPPI (Designing Pleasurable Products) - Product Design Conference DUX (Designing the User Experience, ACM) - more practicioners CSCW (Computer Supported Cooperative Work) UbiComp
- 236. Online http://www.interaction-design.org/ Interaction Design online p g g g encyclopedia http://www.baddesigns.com/ scrapbook of illustrated examples of things that are hard to use http://www.ixda.org/en/ Interaction Design Association http://dev.uxmatters.com/ (User Experience Matters - blog and newsletter) l ) http://www.nathan.com/ed/index.html (Nathan Shedroff‘s website on Experience Design) Web-Based User Interface Evaluation with Questionnaires, by Gary Perlman http://www.acm.org/~perlman/question.html http://usability.gov/ US D h // bili / Dept. Of Health and H H l h d Human Service S i http://www.paperprototyping.com/ (adjunct homepage to book on paper p p p prototyping) yp g)
- 237. Institutions D-School - Stanford University (USA) http://www.stanford.edu/group/dschool/ IIT Institute of Design (USA) http://www.id.iit.edu/ CMU School of Design (USA) www.design.cmu.edu/ MIT Media Lab (USA) www.media.mit.edu Interaction Design Institute + Domus Academy (Italy) I i D i I i D A d (I l ) http://www.interaction-ivrea.it/ Interaction Design, Royal Co ege of Art (UK) te act o es g , oya College o t (U ) http://www.interaction.rca.ac.uk/ University of Queensland (Australia) http://www.itee.uq.edu.au/~id/ htt // it d / id/
- 238. More Information • Mark Billinghurst – mark billinghurst@hitlabnz org mark.billinghurst@hitlabnz.org • Website – www.hitlabnz.org
