Introduction to JSP

01KPSBF
Progettazione di applicazioni web

Introduction to Java Server Pages

Fulvio Corno, Alessio Bosca
Dipartimento di Automatica e Informatica
Politecnico di Torino

PAW - JSP intro 1


Part I
Basic Java Server Pages

PAW - JSP intro 2

Presentation Overview
 What are Java Server
Pages?
 Structure of a JSP
document.
 ScripletTag
 Expression Tag
 Declaration Tag
 Directive Tag
 JSP Tags
 Processing Request
Parameters in JSPs.

PAW - JSP intro 3

The J2EE presentation tier
 Servlets
 Java classes that handle requests by producing
responses (e.g., HTTP requests and responses)
 JavaServer Pages (JSP)
 HTML-like pages with some dynamic content.
 Translated into servlets automatically
 JSP Standard Tag Library (JSTL)
 Set
of standard components for JSP
 Used inside JSP pages.

PAW - JSP intro 4

Organization of the platform
Your Your application
web pages

JSTL

JavaServer Pages (JSP)

Java Servlet API

Java language

PAW - JSP intro 5

Why use JSP Technology?
 Convenient:
 We already know Java and HTML!
 Provides an extensive infrastructure for:
 Tracking sessions.
 Managing cookies.
 Reading and sending HTML headers.
 Parsing and decoding HTML form data.
 Efficient:
 Every request for a JSP is handled by a simple Java
thread.

PAW - JSP intro 6

Why use JSP Technology?
 Portable
 JSP follow a well standardized API.
 The Java VM which is used to execute a JSP file is
supported on many architectures and operating
systems.
 Inexpensive
 There are a number of free or inexpensive Web Servers
 that are good for commercial-quality websites.

PAW - JSP intro 7

What is JSP?
 Java based technology that simplifies the developing
of dynamic web sites
 JSP pages are HTML pages with embedded code that
allows to access data from Java code running on the
server
 JSP provides separation of HTML presentation logic
from the application logic.

PAW - JSP intro 8

JSP Technology
 JSP technology provides a way to combine the worlds
of HTML and Java servlet programming.
 JSP specs are built on the Java Servlet API.
 JSP supports two different styles for adding dynamic
content to web pages:
 JSP pages can embed actual programming code
(typically Java)
 JSP supports a set of HTML-like tags that interact with
Java objects on the server (without the need for raw
Java code to appear in the page)

PAW - JSP intro 9

JSP Flow..
 JSP pages “live” within a container that manages its
interaction:
 HTTP Protocol (request, response, header)
 Sessions

PAW - JSP intro 10

How it really works... (1/2)
 Client requests a page
ending with “.jsp”
 Web Server fires up the
JSP engine
 JSP engine checks
whether JSP file is new
or changed
 JSP engine converts the
page into a Java servlet
(JSP parser)
 JSP engine compiles the
servlet (Java compiler)

PAW - JSP intro 11

How it really works... (2/2)
 Servlet Engine executes
the new Java servlet
using the standard API
 Servlet’s output is
transferred by Web
Server as a http
response

PAW - JSP intro 12

Structure of a JSP file.
 Similar to a HTML document. Four basic tags:
 Scriplet
 Expression
 Declaration
 Definition

<html>
<head>
<title>Hello World</head>
</head>
<body>
<h1>Hello, World</h1>
It’s <%=(new java.util.Date()).toString()%>
and all is well.
</body>
</html>

PAW - JSP intro 13

Scriptlet Tag
 Two forms:
 <% any java code %>
 <jsp:scriptlet> ... </jsp:scriptlet>
 (XML form)
 Embeds Java code in the JSP document that will be
executed each time the JSP page is processed.
 Code is inserted in the service() method of the
generated Servlet
<html>
<body>
<% for (int i = 0; i < 2; i++) { %>
Hello World! <html>
<% } %> <body>
</body> Hello World!
</html> Hello World!
</body>
</html>
PAW - JSP intro 14

Expression Tag
 <%= expr %>
 <jsp:expression> expr </jsp:expression>
 Expression expr is evaluated (in Java) and its value is
placed in the output.
 Note: no semi-colon “;” following expr

<html>
<body>
 html>
<%= Integer.toString( 5 * 5 ) %> <body>
 25
</body> </body>
</html> </html>

PAW - JSP intro 15

(Embedded) Expression language
 An EL expression always starts with a ${ and ends
with a }
 All EL expressions are evaluated at runtime
 The EL usually handles data type conversion and null
values -> easy to use
 The expression can include
 literals ( “1”, “100” etc)
 variables
 implicit variables

PAW - JSP intro 16

Examples
 ${1+2+3}
 ${param.Address}

PAW - JSP intro 17

EL Operators

== != < > <= >=
+ / div - *
&& and || or ! not
empty

PAW - JSP intro 18

JSP Implicit Objects
 In JSP, need to be able to access information about
the environment in which the page is running e.g. the
parameters passed in a request for a form, the
browser type of the user etc.
 Implicit objects are a set of Java objects that the JSP
Container makes available to developers in each
page. These objects may be accessed as built-in
variables via scripting elements
 The JSTL EL allows these objects to be accessed as
‘Implicit Variables’
 Implicit variable are just pre-agreed fixed variable
names that can be used in JSTL Expressions
 Think of as “variables that are automatically available to
your JSP page”
PAW - JSP intro 19

Implicit Objects in Expression language
 Very common implicit object is param
 param refers to parameter passed in a request
message (e.g. information entered into a form by a
user).
 Example
 ${param.userName}

PAW - JSP intro 20

Declaration Tag
 <%! declaration %>
 <jsp:declaration>
declaration(s)</jsp:declaration>
 Embeds Java declarations inside a JSP document
 Code is inserted in the body of the servlet class,
outside the service method.
 May declare instance variables
 May declare (private) member functions

<html>
<body>
<%! private int accessCount = 0; %>
 Accesses to page since server reboot:
<%= ++accessCount %>
</body>
</html>

PAW - JSP intro 21

Warning!
 JSP declarations add variables in the servlet instance
class
 Variables shared by all threads (all requests to the same
servlet)
 Until servlet container unloads servlet
 Beware simultaneous access! Must use synchronized
methods
<html>
<body>
<%! private int accessCount = 0; %>
 Accesses to page since server reboot:
<%= ++accessCount %>
</body>
</html>

PAW - JSP intro 22

Directive Tag
 <%@ directive att="value" %>
 <jsp:directive.page att="val" />
 Directives are used to convey special processing
information about the page to the JSP container.
 pagedirective
 include directive

<%@ page import="java.util.*" %>
<%@ page contentType="text/xml" %>
<%@ page errorPage="error.jsp" %>

PAW - JSP intro 23

The JSP @page Directive
 import="package.class" or
import="pkg.class1,...,pkg.classN"
 This lets you specify what packages should be
imported. The import attribute is the only one that is
allowed to appear multiple times.
 Example: <%@ page import="java.util.*" %>
 contentType="MIME-Type" or
contentType="MIME-Type;
charset=Character-Set"
 Specifies the MIME type of the output. Default is text/
html.
 Example: <%@ page contentType="text/plain" %>
equivalent to <% response.setContentType("text/plain");
%>
PAW - JSP intro 24

 session="true|false"
A value of true (the default) indicates that the
predefined variable session (of type HttpSession)
should be bound to the existing session if one exists,
otherwise a new session should be created and bound
to it.
 A value of false indicates that no sessions will be used,
and attempts to access the variable session will result in
errors at the time the JSP page is translated into a
servlet.

PAW - JSP intro 25

 errorPage="url"
 This specifies a JSP page that should process any
Throwables thrown but not caught in the current page.
 isErrorPage="true|false"
 This indicates whether or not the current page can act
as the error page for another JSP page. The default is
false.

PAW - JSP intro 26

 isThreadSafe="true|false"
A value of true (the default) indicates normal servlet
processing, where multiple requests can be processed
simultaneously with a single servlet instance, under the
assumption that the author synchronized access to
instance variables.
 A value of false indicates that the servlet should
implement SingleThreadModel, with requests either
delivered serially or with simultaneous requests being
given separate servlet instances.
 Don’t use it, since it reduces performance!

PAW - JSP intro 27

 buffer="sizekb|none"
 This specifies the buffer size for the jspWriter out. The
default is server-specific, but must be at least 8kb.
 autoflush="true|false"
A value of true, the default, indicates that the buffer
should be flushed when it is full.
 A value of false, rarely used, indicates that an exception
should be thrown when the buffer overflows.
 A value of false is illegal when also using buffer="none".

PAW - JSP intro 28

 extends="package.class"
 This indicates the superclass of servlet that will be
generated. Use this with extreme caution, since the
server may be using a custom superclass already.
 info="message"
 This defines a string that can be retrieved via the
getServletInfo method.
 language="java"
 Java is both the default and the only legal choice.

PAW - JSP intro 29

The JSP @include Directive
 <%@ include file="relative url" %>
 Include files at the time the JSP page is translated into a
servlet.
 The contents of the included file are parsed as regular
JSP text, and thus can include static HTML, scripting
elements,directives, and actions.
 Warning: when included files change, the page is not
automatically recompiled

<%@ include file="header.jsp" %>
Only the content of a page is unique.
Header and footer are reused from header.jsp and footer.jsp
<%@ include file="footer.jsp" %>

PAW - JSP intro 30

JSP Comments
 Regular (HTML) Comment

 Hidden (JSP) Comment
 <%-- comment --%>

<html>
 <html>
<%-- Hidden Comment --%>
<% </html>
// Java comment
%>
</html>

PAW - JSP intro 31

Scriptlet Example

PAW - JSP intro 32

JSP Pages content
 Actions
 <% Any Java code... %>
 Goes into the service() method
 Implicit objects accessible to actions
 page
 out
 config
 session
 request
 application
 response
 pageContext
 exception

PAW - JSP intro 33

Implicit Objects
 request
 The HttpServletRequest parameter
 Same usage as in servlets
 Mainly used for getting request parameters
 response
 The HttpServletResponse parameter
 Rarely used in JSP (directives already to the work for
us...)
 out
 The PrintWriter associated to the response (buffered)
 out.println()
 Not much used... just escape to HTML
 %>html code<%
PAW - JSP intro 34

Request object- getting parameters
 String getParameter(String name)
 Returns the value of a request parameter as a String, or
null if the parameter does not exist.
 Map getParameterMap()
 Returns a java.util.Map of the parameters
 Enumeration getParameterNames()
 Returns an Enumeration of String objects containing the
names of the parameters
 String[] getParameterValues(String name)
 Returns an array of String objects containing all of the
values the given request parameter has, or null if the
parameter does not exist.
 More methods: http://java.sun.com/javaee/5/docs/api/
 HttpServletRequest, ServletRequest
PAW - JSP intro 35

Implicit Objects
 session
 The HttpSession object associated to the request
 Created automatically
 application
 The ServletContext object
 Used to share variables across all servlets in the
application
 getAttribute and setAttribute methods
 config
 TheServletConfig object
 pageContext
 The PageContext object
PAW - JSP  Used for sharing JavaBeans
intro 36

Request Parameters
 JSP provides access to the implicit object request that
stores attributes related to the request for the JSP
page as parameters, the request type and the
incoming HTTP headers (cookies, referer, etc.).
 Example Request:
 http://localhost/example.jsp?
param1=hello&param2=world

<html>
<html>
<body>
<body>
<%= request.getParameter(“param1”) %> Hello
<%= request.getParameter(“param2”) %> World
</body> </body>
</html> </html>

PAW - JSP intro 37

JSP Example: Hello World

 1.

 2.

PAW - JSP intro 38

SimpleJSP.jsp

PAW - JSP intro 39


Part II
Advanced JSP tags and Java Beans

PAW - JSP intro 40

JSP Action elements
 Action elements are an important syntax element in
JSP
 They are represented by tags (as is HTML)
 They assist JSP developers to develop in tags rather
than scriplet programming
 Instead of <%, they just use the < character (like
HTML)

<prefix:action_name>
body
</prefix:action_name>

PAW - JSP intro 41

JSP Action elements
 JSP tags have a “start tag”, a “tag body” and an “end
tag”
 The start and end tag have the same name enclosed
in < and >
 The tag names have an embedded colon character “:”
in them
 the part before the colon (prefix) describes the type of
the tag
 the part after the “:” is the Action Name

<prefix:action_name>
body
</prefix:action_name>

PAW - JSP intro 42

JSP Action elements
 Tags have associated attributes (like HTML e.g. <img
src = “..”)
 Full syntax of JSP Action Elements is:
 <prefix:action_name attr1 = “value” attr2
= “value2”>
 action_body
 </prefix:action_name>
 If the element doesn’t have a body, can lose the end
tag and use shorthand syntax of:
 <prefix:action_name attr1 = “value” attr2
= “value2” />
 Example:
 <jsp:include page="scripts/login.jsp" />

PAW - JSP intro 43

JSP Action Elements
 JSP Pre-defined tags  External tag library
 Tag prefix: <jsp:...>  JSTL
 Also called Standard  Custom tag library
Action Elements  Tag prefix chosen by
page developer

PAW - JSP intro 44

JSP Predefined Tags
 Also called JSP Standard Action Elements
 <jsp:forward>
 <jsp:include>
 <jsp:param>
 <jsp:plugin>
 <jsp:useBean>
 <jsp:getProperty>
 <jsp:setProperty>
 See «JavaServer Pages™ Specification» for detailed
attributes and values
 http://jcp.org/aboutJava/communityprocess/final/jsr152/
 http://java.sun.com/products/jsp/2.1/docs/jsp-2_1-
pfd2/index.html

PAW - JSP intro 45

Standard JSP actions
 JSP actions use constructs in XML syntax to control
the behavior of the servlet engine.
 Available actions include:
 jsp:include - Include a file at the time the page is
requested.
 jsp:useBean - Find or instantiate a JavaBean.
 jsp:setProperty - Set the property of a JavaBean.
 jsp:getProperty - Insert the property of a JavaBean into

the output.
 jsp:forward - Forward the requester to a new page.
 jsp:plugin - Generate browser-specific code that makes
an OBJECT or EMBED tag for the Java plugin.

PAW - JSP intro 46

The jsp:forward Action
 This action lets you forward the request to another
page.
 It has a single attribute, page, which should consist of a
relative URL:
 a static value
 a string expression computed at request time.
 It emulates a new request from the browser

<jsp:forward page="/utils/errorReporter.jsp" />

<jsp:forward page="<%= someJavaExpression %>" />

PAW - JSP intro 47

Example
 Standard Action Example: <JSP: forward> tag
 Stops processing of one page and starts processing
the page specified by the page attribute
 Example:
<html>
<body>
Error occurred…please wait
<jsp:forward
page=“errorpage.jsp"/>
</body>
</html>

PAW - JSP intro 48

Forwarding with parameters
<jsp:forward page="urlSpec">
<jsp:param name="param1Name"
value="param1Value" />
<jsp:param name="param2Name"
value="param2Value" />
...
</jsp:forward>

PAW - JSP intro 49

The jsp:include Action
 Unlike the include directive, which inserts the file at
the time the JSP page is translated into a servlet, this
action inserts the file at the time the page is
requested:
 Small penalty in efficiency
 The included page cannot contain JSP code (only
HTML)
 Gains significantly in flexibility.

PAW - JSP intro 50

The <jsp:include> Action
 Standard Action Example: <jsp:include> tag
 Example:
<html>
<body>
Going to include hello.jsp...
<jsp:include page="hello.jsp"/>
</body>
</html>
 Executes the included JSP page and adds its output
into the page

PAW - JSP intro 51

Include vs. Include
 What’s the difference from using the ‘include’
directive?
 <%@ include file = ‘hello.jsp’ %>
 The include directive includes the contents of another
file at compilation time.
 Good for including common static code e.g. header file,
footer file.
 Good on performance: included only once.
 But, what if including dynamic common code (e.g. a
navigation bar where links are read from the DB?).
 Need to re-run the file each time a request is made -
use jsp:include
 jsp:include incorporates the output of the included
JSP file at run time
PAW - JSP intro 52

jsp:param with jsp:include
 Can be used to pass parameters when using
<jsp:include> or <jsp:forward>
 Example
<jsp:include page="login.jsp">
<jsp:param name="user" value="smith" />
</jsp:include>

 Executes a login page
 jsp:param passes in username to the login page

PAW - JSP intro 53

Java Beans
 Java Beans are reusable components. They are used
to separate Business logic from the Presentation logic.
 Internally, a bean is just an instance of a class.
 JSP’s provide three basic tags for working with Beans:
 <jsp:useBean >
 <jsp:setProperty>
 <jsp:getProperty>

PAW - JSP intro 54

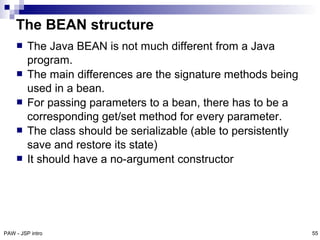

The BEAN structure
 The Java BEAN is not much different from a Java
program.
 The main differences are the signature methods being
used in a bean.
 For passing parameters to a bean, there has to be a
corresponding get/set method for every parameter.
 The class should be serializable (able to persistently
save and restore its state)
 It should have a no-argument constructor

PAW - JSP intro 55

The jsp:useBean Action
 This action lets you load in a JavaBean to be used in
the JSP page.
 This is a a very useful capability because it lets you
exploit the reusability of Java classes without
sacrificing the convenience that JSP adds over
servlets alone.
 The simplest syntax for specifying that a bean should
be used is:
<jsp:useBean id="name"
class="package.class" />

PAW - JSP intro 56

Java Beans
 To use a bean in a JSP page, three attributes must
be supplied
 an id, which provides a local name for the bean
 Creates a “variable” used to access the bean
 the bean's class name, which is used to instantiate the
bean if it does not exit
 Suggestion: always use packages to help Tomcat find
the class!
a scope, which specifies the lifetime of the bean.
<jsp:useBean id="bean name"
class="bean class"
scope = "page | request | session |
application" />
PAW - JSP intro 57

Bean Scopes
 There are four scopes available: page, request,
session, and application.
A page-scoped bean is available only within the JSP
page and is destroyed when the page has finished
generating its output for the request. By default all
beans have page scope
 A request-scoped bean is destroyed when the
response is sent.
 A session-scoped bean is destroyed when the session
is destroyed.
 An application-scoped bean is destroyed when the web
application is destroyed.

PAW - JSP intro 58

Bean Scopes

PAW - JSP intro 59

jsp:setProperty / jsp:getProperty
 You use jsp:setProperty to give values to properties of
beans that have been referenced earlier
 By default the values in jsp:setProperty is taken from a
parameter in the request with the same value.
 You use jsp:getProperty to retrieve the value of a bean
property, convert it to a string, and to insert it into the
output.
<jsp:useBean id="itemBean" ... /> ...
You must use a <ul>
<jsp:useBean> <li>Number of items:
tag to declare the <jsp:getProperty name="itemBean"
Bean before you property="numItems" /></li>
can use <li>Cost of each:
<jsp:getProperty name="itemBean"
<jsp:setProperty> property="unitCost" /></li>
</ul>
PAW - JSP intro 60

jsp:setProperty
 <jsp:setProperty name="beanName"
property="propertyName"
value="propertyValue" />
 Sets the property of the given bean to the specified
value
 beanName must be the same name used in the id of
jsp:useBean

value="<%= expr %>" />
 Uses a run-time expression to set a property value

PAW - JSP intro 61

jsp:setProperty
param="parameterName" />
 Sets the property to the value of a Request parameter
(HTML form)
 If the parameter is not present, or if it is empty, no action
is taken

property="propertyName" />
 Sets the property from a parameter name with the same
name of the property name

PAW - JSP intro 62

jsp:setProperty
property="*" />
 Automatically tries to set all (not-empty) Request
parameters

PAW - JSP intro 63

jsp:getProperty
 <jsp:getProperty name="beanName"
property="propertyName" />
 Gets the property from the given bean
 beanName must be the same name used in the id of
jsp:useBean
 The value will be converted to a String and inserted in
the HTML page

PAW - JSP intro 64

SimpleJSP.jsp - the Bean edition

PAW - JSP intro 65

SimpleJSP.jsp - the Bean edition

PAW - JSP intro 66

MVC design pattern

 A web application:
 Collects data and action requests from
users…
 …elaborates/stores them…
 …visualize the results

 MVC – Model View Controller paradigm
 The model represents the current state of the applications (with
respect to a finite state machine)
 The view corresponds to a presentation of the state
 The controller verifies collected data and updates the model

PAW - JSP intro 67

MVC
 Applications that present lots of data to the user, often
wish to separate data (Model) and user interface (View)
concerns
 Changing the user interface do not impact the data
handling, and that the data can be reorganized without
changing the user interface.
 The MVC design pattern solves this problem by
decoupling data access and business logic from data
presentation and user interaction.

PAW - JSP intro 68

MVC in the Java Server architecture

PAW - JSP intro 69

MVC with JSP only

PAW - JSP intro 70

MVC with JSP and servlets

PAW - JSP intro 71

MVC in J2EE: JSP, Servlet, EJB

PAW - JSP intro 72

Introduction to JSP

More Related Content

What's hot (20)

Similar to Introduction to JSP (20)

Recently uploaded (20)

Introduction to JSP
