Introduction to Ruby

LSINF2335:Prog.Paradigms:
Theory,Pract.andApplic.
Lecture 6 : 
Introduction to Ruby
LSINF 2335
Programming Paradigms
Prof. Kim Mens
UCL / EPL / INGI
Partly inspired on :
• the pickaxe book “Programming Ruby” by Dave Thomas
• slides by Prof. Tom Mens (UMons)
• slides by Prof. Wolfgang De Meuter (VUB)
• an update to the slides made by Benoît Daloze (UCL)

Lecture Overview
■ History of Ruby
■ Getting started with Ruby
■ The Ruby programming language
■ A worked-out example
■ Conclusion
2

What is Ruby?
■ Originally conceived by Yukihiro Matsumoto
– February 24, 1993, Japan
• first public release in 1995
• Feb 24, 2013: Ruby 2.0 release
– motivation:
• “wanted a scripting language [...] more powerful than Perl,
and more object-oriented than Python”
• wanted a natural and very expressive language in which
programmers can easily express themselves
– language named after a precious gemstone
• à la “Perl”
– is an open source project
3

What is Ruby?
■ Ruby is an interpreted, object-oriented,
dynamically typed programming language with
strong reflective and scripting facilities
– Compact syntax inspired by Python and Perl
– Semantics akin to dynamically class-based languages like
Smalltalk
– Scripting facilities akin to those of Python and Perl
• manipulation of text files
• file handling
• execution of system tasks
• support for regular expressions
• ... 4

Ruby’s “killer app”
■ Ruby on Rails (a.k.a. “Rails” or “RoR”)
– Open-source web-application framework
– Implemented in Ruby
– Allows you to quickly create powerful web applications
– Based on model-view-controller pattern
– Web-application =
• Ruby program + database + webserver
5

Scaffolding
■ “Scaffolding” in RoR is a particular use of meta-progamming to
construct database-backed web-applications
– essentially stub generation
■ [construction] : a temporary framework used to support people
and material in the construction or repair of large buildings
■ [programming] : a meta-programming technique for quickly
building software applications
– in RoR, rather than programming the application, the programmer specifies a
template from which the application code can be generated
• programmer specifies a template describing how the application
database may be used
• compiler uses this specification to generate application code
– to create, read, update and delete database entries
• template is a "scaffold" on which a more powerful application is built 6

Lecture Overview
■ History of Ruby
■ Conclusion
7

Theory,Pract.andApplic. Getting started with Ruby
8
RUBY VERSION
Kim:~ kimmens$ ruby -v
ruby 2.0.0p0 (2013-02-24 revision 39474) [x86_64-darwin10.8.0]
Kim:~ kimmens$ irb -v
irb 0.9.6(09/06/30)
SIMPLE COMMAND PROMPT EXAMPLES
Kim:~ kimmens$ irb
>> 3+4
=> 7
>> "Kim"+"Mens"
=> "KimMens"
PRINTING
>> puts "Hello World"
Hello World
=> nil
>> 3.times { puts "Ruby" }
Ruby
Ruby
Ruby
=> 3
irb = Interactive Ruby
puts is a standard Ruby
method that writes its argument(s)
to the console, adding a newline
after each.

Theory,Pract.andApplic. Getting started with Ruby
9
METHOD DEFINITIONS
>> def product(n1,n2)
>> n1 * n2
>> end
=> nil
>> product(3,4)
=> 12
>> def fib(n)
>> if n <= 1 then n
>> else fib(n-1) + fib(n-2)
>> end
>> end
=> nil
>> fib(1)
=> 1
>> fib(3)
=> 2
>> fib(5)
=> 5
>> fib(10)
=> 55

10
VARIABLES
>> a=1
=> 1
>> b=2
=> 2
>> a+b
=> 3
>> a = ""
=> ""
>> 3.times { a = a + "Ruby" }
=> 3
>> a
=> "RubyRubyRuby"
LOADING FROM FILE
>> require "./SINF2335/Ruby/FactorialProgram.rb"
51090942171709440000
=> true
def factorial(n) 
result = 1 
(2..n).each do |i| 
result *= i 
end 
result 
end 
 
puts factorial(21) 
Getting started with Ruby

Theory,Pract.andApplic. Making a Ruby script
11
①
1. create .rb ﬁle
2. put “shebang” on 1st line
3. make ﬁle executable
4. run it
③
④
②
chmod +x FirstRubyProgram.rb

./FirstRubyProgram.rb

Lecture Overview
■ History of Ruby
■ Conclusion
12

Ruby’s language features
■ Purely object-oriented (everything is an object)
■ Dynamically typed
■ Message passing is only control-structure
■ Single class based inheritance
■ Automatic garbage collection
■ Exception handling
■ First-class closures (blocks)
■ Reflective facilities
■ Features for program evolution (e.g., mixins)
■ Embedded scripting facilities (e.g. regular expressions)
■ In addition, it comes with a large standard library
13
Like Smalltalk

Everything is an object
# Numbers :
1 77.0 -12 12.5e23
# Symbols :
:a :red
# Strings :
"HellonWorld", 'Hello World'
# Booleans :
true false 1 < 2
# Arrays :
[] [1,2,3] [1,true,"Hello"]
# Hashes (a.k.a. dictionaries):
{ :PGD => 18, :GD => 16, :D => 14, :S => 12 }
# Even nil is an object (that happens to represent nothing)
# Even a class is an object 14
42.class => Fixnum
:foo.class => Symbol
"Ruby".class => String
true.class => TrueClass
[1,2,3].class => Array
{ :a => 1 }.class => Hash
nil.class => NilClass
Fixnum.class => Class
Similar to Smalltalk.
No primitive types as in Java.

Message passing
# Parameterless messages
"Ruby".reverse()
# Kernel messages with parameters
Kernel.print("Ruby") 
Kernel.print("Ruby","Ruby","Ruby")
# Message chaining
"Ruby".reverse().upcase().length()
# Undefined method error
"Ruby".foo()
# Arithmetic operators
-12.abs() 
4.+(5) 
"Ruby".*(3)
15
Every message send produces a
result (or an error)
receiver.message(arg1,arg2,...,argn)
receiver can be dropped
for Kernel methods
parentheses are optional

Theory,Pract.andApplic. The Kernel
16
Kernel#!~
Kernel#<=>
Kernel#===
Kernel#=~
Kernel.Array
Kernel.Complex
Kernel.Float
Kernel.Hash
Kernel.Integer
Kernel.Rational
Kernel.String
Kernel.__callee__
Kernel.__dir__
Kernel.__method__
Kernel.`
Kernel.abort
Kernel.at_exit
Kernel.autoload
Kernel.autoload?
Kernel.binding
Kernel.block_given?
Kernel.caller
Kernel.caller_locations
Kernel.catch
Kernel#class
Kernel#clone
Kernel#define_singleton_method
Kernel#display
Kernel#dup
Kernel#enum_for
Kernel#eql?
Kernel.eval
Kernel.exec
Kernel.exit
Kernel.exit!
Kernel#extend
Kernel.fail
Kernel.fork
Kernel.format
Kernel#freeze
Kernel#frozen?
Kernel.gets
Kernel.global_variables
Kernel#hash
Kernel#inspect
Kernel#instance_of?
Kernel#instance_variable_defined?
Kernel#instance_variable_get
Kernel#instance_variable_set
Kernel#instance_variables
Kernel#is_a?
Kernel.iterator?
Kernel#kind_of?
Kernel.lambda
Kernel.load
Kernel.local_variables
Kernel.loop
Kernel#method
Kernel#methods
Kernel#nil?
Kernel#object_id
Kernel.open
Kernel.p
Kernel.print
Kernel.printf
Kernel#private_methods
Kernel.proc
Kernel#protected_methods
Kernel#public_method
Kernel#public_methods
Kernel#public_send
Kernel.putc
Kernel.puts
Kernel.raise
Kernel.rand
Kernel.readline
Kernel.readlines
Kernel#remove_instance_variable
Kernel.require
Kernel.require_relative
Kernel#respond_to?
Kernel.select
Kernel#send
Kernel.set_trace_func
Kernel#singleton_class
Kernel#singleton_methods
Kernel.sleep
Kernel.spawn
Kernel.sprintf
Kernel.srand
Kernel.syscall
Kernel.system
Kernel#taint
Kernel#tainted?
Kernel#tap
Kernel.test
Kernel.throw
Kernel#to_enum
Kernel#to_s
Kernel.trace_var
Kernel.trap
Kernel#trust
Kernel#untaint
Kernel.untrace_var
Kernel#untrust
Kernel#untrusted?
Kernel.warn
To get these just type
Kernel.methods at the prompt

Shorthand notation
# Parameterless messages
"Ruby".reverse 
"Ruby".foo
# Messages with parameters
print "Ruby" 
print "Ruby", "Ruby", "Ruby" 
print("Ruby", "Ruby", "Ruby") 
Message chaining
"Ruby".reverse.upcase.length
-12.abs 
4 + 5 
"Ruby" * 3
17
To avoid the problem of knowing
what argument goes with what
method call, use parentheses...

Method naming conventions
# Predicate methods end by “?”
0.zero? 
[1,2,3].include? 2
# Destructive methods by “!”
a = "Ruby" 
a.reverse!
# For many destructive methods there is also a non-destructive variant
# Conversion methods start by to_
40.to_s.reverse 
"40".to_i 
(1..3).to_a
# Method names (usually) start with a lowercase letter
18

Control structures
19
postfix notation :
if <cond>
<body>
elsif <cond>
<body>
else
<body>
end
while <cond>
<body>
end
<expression> while <cond>
<expression> if <cond>
<expression> unless <cond>
<expression> until <cond>
until <cond>
<body>
end
In Ruby, only nil and false do not
represent the truth in conditions

Object creation
■ Ex-nihilo
– literal objects are created by writing them down without
an explicit constructor message
■ Instance creation method
– To create objects from classes
• Array.new, Hash.new, ComplexPolar.new(r,teta)
■ Initialize method
– initializes instance variables upon object creation
– is called by new, passing all parameters that were passed
to new
20

Class definition
class ComplexCartesian 
 
# Constructor method 
def initialize(x,y) 
@x = x # Instance variable 
@y = y # Instance variable 
end 
 
# Method definitions 
def r 
Math.sqrt(@x**2 + @y**2) 
end 
 
def theta 
Math.atan2(@y, @x) 
end 
 
end 
# Instance creation 
c = ComplexCartesian.new(1,2) 
# Using the instance 
puts c.r
21
Attention:
@x is an instance variable 
(‘@’ is part of its name)
x is a normal variable
No separators for statements.
Each statement on a separate line.
Indentation is not significant.
No need to explicitly declare
instance variables

Scoping and naming of Variables
■ Syntax:
– Global variables (globally visible)
$pi
– Class variables (same for all instances)
@@epsilon
– Instance variables (unique for each instance)
@x, @y
– Local (local to a method)
temp = y/x
– Block (parameters of a block)
{ |entry| entry * entry }
■ Rules:
– Variable names start with lowercase
– Constants start with uppercase and so most class and module names!
22
Variables are dynamically typed.
Variables don’t contain values
but pointers to objects (like in
Java or Smalltalk)
Global and class variables are
not often used.

Accessor methods
 
... 
 
# Getter methods 
def x 
@x 
end 
 
def y 
@y 
end 
 
# Setter methods 
def x=(new_x) 
@x = new_x 
end 
 
def y=(new_y) 
@y = new_y 
end 
 
end
23
# Constructor method 
@x = x  
@y = y  
end 
 
# Method definitions 
def r 
Math.sqrt(x**2 + y**2) 
end 
 
def theta 
Math.atan2(y,x) 
end

Accessor methods shorthand
 
... 
 
attr_reader :x, :y 
 
 
 
 
 
 
 
 
attr_writer :x, :y 
 
 
 
 
 
 
 
 
end
24
attr_accessor :x, :y
or simply:

Access control
■ Ruby provides 3 levels of access control for methods
– checked at run-time, not statically
1. public
• can be called by anyone
• default when nothing is specified
2. protected
• can be called by any object of the defining class and its
subclasses, very rarely used
3. private
– only on implicit receiver ( meth(arg), not self.meth(arg) )
25

Accessor methods
 
# public by default 
# Getter methods 
def x 
@x 
end 
 
def y 
@y 
end 
 
private 
# Setter methods 
def x=(new_x) 
@x = new_x 
end 
 
def y=(new_y) 
@y = new_y 
end 
 
#everything remains private here until declared otherwise 
end
26

Arrays, variables & side-effects
[12,46,35].max # => 46 
[12,46,35].reverse # => [35, 46, 12]
 
list = [7,4,1] # => [7, 4, 1] 
list.sort # => [1, 4, 7] 
list # => [7, 4, 1] 
list.sort! # => [1, 4, 7] 
# has destructively modified list: 
list # => [1, 4, 7] 
list.reverse! # => [7, 4, 1] 
# has destructively modified list
 
[ 1, 2 ] << "c" << "d" << [ 3, 4 ] 
# => [1, 2, "c", "d", [3, 4]]
27

Blocks
■ Blocks are “chunks of code”
– that can be passed to a method
– not really first-class functions
• but Ruby also has a notion of Procs which are first class objects (see later)
■ Examples
3.times { print "Ruby" } # prints 'Ruby' 3 times 
3.times do print "Ruby" end # alternative syntax 
 
['I', 'like', 'Ruby'].each do |entry| # using block to iterate 
print entry, ' ' # over a collection 
end 
[1,2,3,4,5].map { |entry| entry * entry }
# => [1, 4, 9, 16, 25] 
 
fact = 1 
1.upto(5) { |i| fact *= i } 
fact
Similar in usage to
Smalltalk blocks
(though not exactly the same)

Yielding blocks
■ Blocks are chunks of code that can be passed to
methods
– for example to implement iterators
■ Those methods can execute that block when needed
– by using the yield keyword
29
def say_something 
yield("I", "like") 
yield("We all", "love") 
end 
 
say_something do |person, verb|  
puts "#{person} #{verb} Ruby" 
end

Blocks and scoping
■ Block parameters are local to the block.
30
a = [1, 2, 3] 
a.each { |i| puts i } 
i # => NameError: undefined local variable or method `i'
a = [1, 2, 3] 
i = 42 
a.each { |i| puts i } 
i # => 42

Strings
■ Double quoted strings
– can contain special characters
"RubynRubynRubyn"
– and support expression extrapolation
"Good night, #{name}"  
"Good night, #{name.capitalize}" 
"#{$greeting}, #{@name}"
– and find-and-replace primitives
x = "RubynRubynRubyn" 
x["Ruby"] = "Dear" 
x => "DearnRubynRubyn"
– transform string into array of strings by line breaks
x.lines.to_a
– convert array of strings back in string with line breaks
x.join
31
Substitutes expression
#{expr} in the string by
its value converted by
to_s
Difference between
'...' and "..." is the
amount of processing
Ruby does on the string.

String manipulation
■ Break up a single string into an array
"RubynRubynRubyn".split("n")
■ Join an array of strings into a single string
["Ruby", "Ruby", "Ruby"].join("n")
■ Remove extra spaces before and at the end of a string
" Hello there ".strip # => "Hello there"
■ Arithmetic operators on strings
"Ruby" * 3 # => "RubyRubyRuby"
■ And many, many, many more: 
upcase, capitalize, center, chars, chomp, end_with?, (g)sub, scan, ...
32

Regular expressions
■ notation: /pattern/
/this|that/ # matches either 'this' or 'that' 
/th(is|at)/ # use of parens in patterns 
/ab+c/ # matches 'a', then one or more 'b', then 'c' 
/ab*c/ # matches 'a', then zero or more 'b', then 'c' 
/sdw./ # for whitespace, digit, character in word, 
any character
■ matching
line =~ /this|that/ # matches string with pattern 
line.sub(/this|that/, 'foo') # replaces first occurrence 
line.gsub(/this|that/, 'foo') # replaces every occurrence
■ regular expressions are objects too
/this|that/.class # => Regexp
33

Functional side: simplify the loops!
def factorial(n) 
 
# traditional loop 
fact = 1 
for i in (1..n) 
fact *= i 
end 
return fact 
 
# becomes 
(1..n).inject(1) { |fact, i| fact * i } 
 
# or even 
(1..n).inject(1, :*) 
 
end 
 
factorial(5) # => 120 
34

Sinatra, a simple web DSL
require 'sinatra' 
 
get '/' do 
"Hello, World!" 
end
$ curl localhost:4567 # => Hello, World!
35

Scripting, set mtime from exiftime
■ A simple script to set the modification time of a
JPG picture from its “time of capture”
#!/usr/bin/env ruby 
Dir["**/*.{jpg,JPG}"].each do |picture| 
times = `exiftime #{picture}` 
.scan(/(?:d+:d+:d+ ?){2}/) 
.map { |time| Time.new(*time.split(/W/) } 
 
unless times.all? { |time| time == times.first } 
raise "Not same times: #{times}" 
end 
File.utime(File.atime(picture), times.first, picture) 
end 
 
 
36

Lecture Overview
■ History of Ruby
■ Conclusion
37

Theory,Pract.andApplic. Complex numbers in Ruby
Cartesian coordinates
38
 
EPSILON = 0.00000001 
 
@x, @y = x, y 
end 
 
private 
attr_writer :x, :y 
 
public 
attr_reader :x, :y 
 
def r 
@r ||= Math.hypot(x, y) 
end 
 
...
# Class definition
# Constant
# Initialize instance vars
# Use of Math module
# Parallel declaration
# Private methods from here
# Setter methods
# Public methods from here
# Getter method
# Getter method with lazy
initialization
@r ||= expr

is shorthand for

@r = @r || expr

which is shorthand for

39
... 
 
def theta 
@theta ||= Math.atan2(y,x) 
end 
 
def to_s 
"#{x} + #{y}i" 
end 
 
def to_cartesian 
self # nothing needs to be done 
end 
 
def to_polar 
ComplexPolar.new(r, theta) 
end 
 
...
# Conversion method to string
# self refers to receiving
object
Complex numbers in Ruby (ctd.)
# Note the use of expression
extrapolation
to_s is called by Ruby
automatically whenever it
wants to print an object
# Instance creation
# More conversion methods

40
... 
 
def ==(c) 
same?(x, c.x) and same?(y, c.y) 
end 
 
private 
def same?(x, y) 
(x - y).abs < EPSILON 
end  
 
public 
def +(c) 
ComplexCartesian.new(self.x + c.x, self.y + c.y) 
end 
 
def *(c) 
ComplexPolar.new(self.r * c.r, self.theta + c.theta) 
end 
 
... 
end
# Equality method
# Auxilary method (private)
# Public methods again
# Use of constant

41
class ComplexPolar < ComplexCartesian 
 
def initialize(r, theta) 
@r, @theta = r, theta 
end 
 
def x 
@x ||= @r * Math.cos(@theta) 
end 
 
def y 
@y ||= @r * Math.sin(@theta) 
end 
 
private 
attr_writer :r, :theta 
 
public 
attr_reader :r, :theta 
 
... 
# Inheritance
Complex numbers in Ruby
Polar coordinates

42
class ComplexPolar < ComplexCartesian 
... 
 
# to_s 
# arithmetic operators 
# private def same?(x,y) 
 
def to_cartesian 
ComplexCartesian.new(x,y) 
end 
 
def to_polar 
self 
end 
 
def ==(c) 
same?(r, c.r) and same?(theta, c.theta) 
end 
 
end
# Inherited methods
# Overridden method
Polar coordinates

43

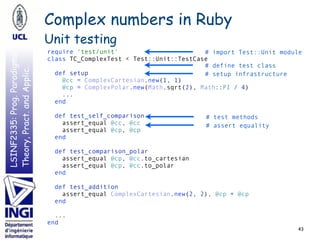

require 'test/unit' 
class TC_ComplexTest < Test::Unit::TestCase 
 
def setup 
@cc = ComplexCartesian.new(1, 1) 
@cp = ComplexPolar.new(Math.sqrt(2), Math::PI / 4) 
... 
end 
 
def test_self_comparison 
assert_equal @cc, @cc 
assert_equal @cp, @cp 
end 
 
def test_comparison_polar 
assert_equal @cp, @cc.to_cartesian 
assert_equal @cp, @cc.to_polar 
end 
 
def test_addition 
assert_equal ComplexCartesian.new(2, 2), @cp + @cp 
end 
 
... 
end
Unit testing
# import Test::Unit module
# define test class
# setup infrastructure
# test methods
# assert equality

44
require 'rspec' 
describe 'Complex numbers' do 
let :cartesian do 
ComplexCartesian.new(1, 1) 
end 
let :polar do 
ComplexPolar.new(Math.sqrt(2), Math::PI / 4) 
end 
 
it 'is identical to itself' do 
cartesian.should == cartesian 
polar.should == polar 
end 
 
it 'can be converted to the other type and still be equal' do 
polar.to_cartesian.should == cartesian 
cartesian.to_polar.should == polar 
end 
 
it 'supports addition' do 
(cartesian + cartesian).should == ComplexCartesian.new(2, 2) 
end 
 
... 
end
Behavioral testing with RSpec
# import RSpec gem
# define example group
# setup infrastructure
# example
# in natural order

Lecture Overview
■ History of Ruby
■ Conclusion
45

■ Ruby has become a popular language
■ Very low-entry cost
– read-eval-print loop (irb, pry)
– plug-and-play
■ Easy digestible and readable syntax
■ Extensive libraries: Rubygems
■ Very powerful (compared to other main-stream applications)
■ “Killer-app”: Ruby-on-Rails
■ Advanced reflective and meta-programming facilities
■ Advanced scripting facilities
Conclusion
46

Conclusion
■ Some negative points
– automatic declaration of instance variables
– often things can be done in many different ways
(alternative syntax, shorthand notations)
• can be seen as positive: use the one that works best for you
• can be seen as negative: need to be able to read the one
that doesn’t work best for you as well
– a method in a subclass can override its parent method’s
visibility rules
47
class Base  
def a_method  
puts "Got here"  
end  
private :a_method  
end
class Derived1 < Base  
public :a_method  
end  
 
class Derived2 < Base  
end

Introduction to Ruby

More Related Content

What's hot (20)

Similar to Introduction to Ruby (20)

More from kim.mens (20)

Recently uploaded (20)

Introduction to Ruby
