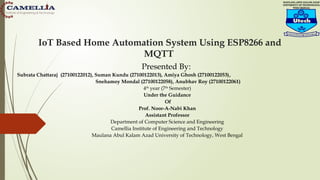

1. IoT Based Home Automation System Using ESP8266 and
MQTT
Presented By:
Subrata Chattaraj (27100122012), Suman Kundu (27100122013), Amiya Ghosh (27100122053),
Snehamoy Mondal (27100122058), Anubhav Roy (27100122061)
4th
year (7th
Semester)
Under the Guidance
Of
Prof. Noor-A-Nabi Khan
Assistant Professor
Department of Computer Science and Engineering
Camellia Institute of Engineering and Technology
Maulana Abul Kalam Azad University of Technology, West Bengal
2. INTRODUCTION
IOT-BASED HOME AUTOMATION SYSTEM
FEATURES DEFINING PROJECT OBJECTIVES CLEARLY
SCOPE OF THE HOME AUTOMATION PROJECT
LITERATURE REVIEW ON IOT TECHNOLOGIES SYSTEM
DESIGN OVERVIEW COMPREHENSIVE IMPLEMENTATION PLAN
COMPREHENSIVE TECHNOLOGY STACK
CONCLUSION ON IOT TECHNOLOGIES IN HOME AUTOMATION
FUTURE ENHANCEMENTS TO THE PROJECT
REFERENCES FOR PROJECT TECHNOLOGIES
CONTENTS
3. INTRODUCTION
With Home Automation, it has become a very useful concept in the
current era due to its focus on safety, security, energy efficiency,
and user comfort. This advanced system integrates an Android
smartphone, a Wi-Fi module, a Bluetooth module, and a relay
circuit to efficiently manage home appliances. Using wireless
technology, the Android app provides an intuitive interface for
individual device control and monitoring. Commands are sent via
Wi-Fi to the relay circuit, which switches devices ON/OFF based
on user input, offering a highly approachable and reliable smart
home solution.
4. IOT-BASED HOME AUTOMATION
SYSTEM FEATURES
1. ESP8266 MICROCONTROLLER UTILIZATION
2. MQTT PROTOCOL IMPLEMENTATION
3. REMOTE APPLIANCE MANAGEMENT
4. USER CONTROL AND PRIVACY
5. CONVENIENCE AND ENERGY EFFICIENCY
6. SELF-SUFFICIENT SOLUTION
5. DEFINING PROJECT OBJECTIVES CLEARLY
1. DESIGN A FUNCTIONAL
SYSTEM
2. IMPLEMENT AUTOMATION
RULES
3. USER-FRIENDLY
INTERFACE
4. ENSURE SECURITY
SCALABILITY
Key Goals of the Home Automation System Project

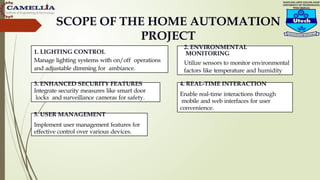

6. SCOPE OF THE HOME AUTOMATION
PROJECT
1. LIGHTING CONTROL
Manage lighting systems with on/off operations
and adjustable dimming for ambiance.
3. ENHANCED SECURITY FEATURES
Integrate security measures like smart door
locks and surveillance cameras for safety.
2. ENVIRONMENTAL
MONITORING
Utilize sensors to monitor environmental
factors like temperature and humidity
4. REAL-TIME INTERACTION
Enable real-time interactions through
mobile and web interfaces for user
convenience.
5. USER MANAGEMENT
Implement user management features for
effective control over various devices.
7. LITERATURE REVIEW ON IOT
TECHNOLOGIES
Examining the Impact of IoT on Home Automation
ESP8266 EFFICIENCY
ESP8266 is recognized for its cost-effectiveness in smart
devices, enhancing home automation.
MQTT PROTOCOL
MQTT stands out for minimal bandwidth use, ideal for
real-time IoT communications.
FRAMEWORKS
Using Next.js with Node.js creates scalable applications
that support real-time interactions
8. SYSTEM DESIGN OVERVIEW
FRONTEND DESIGN - Built with Next.js, featuring a responsive interface
tailored for appliance management.
CUSTOM USER INTERFACE - Includes custom buttons for easy
appliance management, enhancing user experience.
BACKEND DESIGN -Node.js processes API requests, managing data flow
between frontend and IoT devices.
DATABASE MANAGEMENT - MySQL is utilized for efficient
management of user and device data.
REAL-TIME COMMUNICATION - MQTT protocol enables
instantaneous command transmission, ensuring seamless device
interaction.
ESP8266 MICROCONTROLLER - The core for appliance management,
connecting over Wi-Fi and subscribing to MQTT
9. COMPREHENSIVE IMPLEMENTATION
PLAN
REQUIREMENT GATHERING-Identify devices and user interactions
for effective control.
FRONTEND DEVELOPMENT- Utilize Next.js to create a
customizable web interface.
BACKEND DEVELOPMENT - Employ Node.js for efficient request
handling and device configuration.
MQTT SETUP - Establish an MQTT broker for seamless real-time
communication.
INTEGRATION AND TESTING - Combine frontend and backend,
testing with actual ESP8266-controlled appliances.

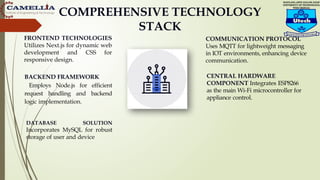

10. COMPREHENSIVE TECHNOLOGY
STACK
FRONTEND TECHNOLOGIES
Utilizes Next.js for dynamic web
development and CSS for
responsive design.
BACKEND FRAMEWORK
Employs Node.js for efficient
request handling and backend
logic implementation.
DATABASE SOLUTION
Incorporates MySQL for robust
storage of user and device
COMMUNICATION PROTOCOL
Uses MQTT for lightweight messaging
in IOT environments, enhancing device
communication.
CENTRAL HARDWARE
COMPONENT Integrates ESP8266
as the main Wi-Fi microcontroller for
appliance control.

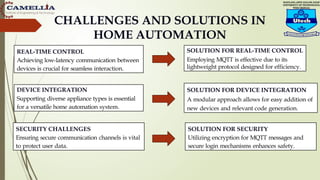

11. CHALLENGES AND SOLUTIONS IN
HOME AUTOMATION
DEVICE INTEGRATION
Supporting diverse appliance types is essential
for a versatile home automation system.
REAL-TIME CONTROL
Achieving low-latency communication between
devices is crucial for seamless interaction.
SECURITY CHALLENGES
Ensuring secure communication channels is vital
to protect user data.
SOLUTION FOR REAL-TIME CONTROL
Employing MQTT is effective due to its
lightweight protocol designed for efficiency.
SOLUTION FOR DEVICE INTEGRATION
A modular approach allows for easy addition of
new devices and relevant code generation.
SOLUTION FOR SECURITY
Utilizing encryption for MQTT messages and
secure login mechanisms enhances safety.

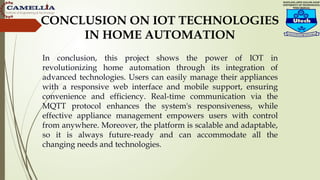

12. CONCLUSION ON IOT TECHNOLOGIES
IN HOME AUTOMATION
In conclusion, this project shows the power of IOT in
revolutionizing home automation through its integration of
advanced technologies. Users can easily manage their appliances
with a responsive web interface and mobile support, ensuring
convenience and efficiency. Real-time communication via the
MQTT protocol enhances the system's responsiveness, while
effective appliance management empowers users with control
from anywhere. Moreover, the platform is scalable and adaptable,
so it is always future-ready and can accommodate all the
changing needs and technologies.

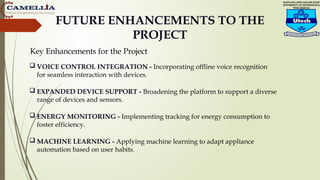

13. FUTURE ENHANCEMENTS TO THE
PROJECT
VOICE CONTROL INTEGRATION - Incorporating offline voice recognition
for seamless interaction with devices.
EXPANDED DEVICE SUPPORT - Broadening the platform to support a diverse
range of devices and sensors.
ENERGY MONITORING - Implementing tracking for energy consumption to
foster efficiency.
MACHINE LEARNING - Applying machine learning to adapt appliance
automation based on user habits.
Key Enhancements for the Project
