IS-IS Routing Lab WorkBook

RHC Technologies, profile picture
RHC Technologies

The document is a lab workbook for configuring ISIS routing on four routers - R1, R2, R3 and R4. It includes the router configurations, IP addresses, and ISIS settings for each router. It then verifies the ISIS neighbor adjacencies and routing tables. At the end, it changes the ISIS types for R1 and R4 to level-2-only and verifies the neighbor relationships and routing tables again.

Technology
Related topics:
Routing Protocols
1 of 24
Downloaded 153 times
1
2
Most read
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH ISIS Routing LAB WORKBOOK Prepared By Sai Linn Thu
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 R1   R2   int F0/0 ip add 10.1.12.1 255.255.255.0 ! Int lo0 ip add 1.1.1.1 255.255.255.0 ! int F0/0 ip add 10.1.12.2 255.255.255.0 ! int F0/1 ip add 10.1.23.2 255.255.255.0 ! Int lo0 ip add 2.2.2.2 255.255.255.0 ! R3   R4   int F0/0 ip add 10.1.23.3 255.255.255.0 ! int F1/0 ip add 10.1.34.3 255.255.255.0 ! Int lo0 ip add 3.3.3.3 255.255.255.0 ! int F0/0 ip add 10.1.34.4 255.255.255.0 ! Int lo0 ip add 4.4.4.4 255.255.255.0 ! Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH R1(config-­‐router)#is-­‐type  ?      level-­‐1              Act  as  a  sta=on  router  only      level-­‐1-­‐2          Act  as  both  a  sta=on  router  and  an  area  router      level-­‐2-­‐only    Act  as  an  area  router  only
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 R1  (L1)   R2  (L1-­‐L2)   router isis
 net 49.0001.0000.0000.0001.00 is-type level-1 ! int F0/0 ip router isis ! Int lo0 ip router isis ! router isis
 net 49.0001.0000.0000.0002.00 is-type level-1-2 ! int F0/0 ip router isis ! int F0/1 ip router isis ! Int lo0 ip router isis ! R3  (L1-­‐L2)   R4  (L2)   router isis
 net 49.0002.0000.0000.0003.00 is-type level-1-2 ! int F0/0 ip router isis ! int F1/0 ip router isis ! Int lo0 ip router isis ! router isis net 49.0002.0000.0000.0004.00 is-type level-1 ! int F0/0 ip router isis ! Int lo0 ip router isis ! Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Verify “show isis neighbors” on all routers.
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00 R1 R1#show ip route isis 2.0.0.0/24 is subnetted, 1 subnets i L1 2.2.2.0 [115/20] via 10.1.12.2, FastEthernet0/0 10.0.0.0/24 is subnetted, 2 subnets i L1 10.1.23.0 [115/20] via 10.1.12.2, FastEthernet0/0 i*L1 0.0.0.0/0 [115/10] via 10.1.12.2, FastEthernet0/0 R1# R4 R4#sh ip route isis 3.0.0.0/24 is subnetted, 1 subnets i L1 3.3.3.0 [115/20] via 10.1.34.3, FastEthernet0/0 10.0.0.0/24 is subnetted, 2 subnets i L1 10.1.23.0 [115/20] via 10.1.34.3, FastEthernet0/0 i*L1 0.0.0.0/0 [115/10] via 10.1.34.3, FastEthernet0/0 R4#
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00 R2 R2#sh ip route isis 1.0.0.0/24 is subnetted, 1 subnets i L1 1.1.1.0 [115/20] via 10.1.12.1, FastEthernet0/0 3.0.0.0/24 is subnetted, 1 subnets i L2 3.3.3.0 [115/20] via 10.1.23.3, FastEthernet1/0 4.0.0.0/24 is subnetted, 1 subnets i L2 4.4.4.0 [115/30] via 10.1.23.3, FastEthernet1/0 10.0.0.0/24 is subnetted, 3 subnets i L2 10.1.34.0 [115/20] via 10.1.23.3, FastEthernet1/0 R2#
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00 R3 R3#sh ip route isis 1.0.0.0/24 is subnetted, 1 subnets i L2 1.1.1.0 [115/30] via 10.1.23.2, FastEthernet0/0 2.0.0.0/24 is subnetted, 1 subnets i L2 2.2.2.0 [115/20] via 10.1.23.2, FastEthernet0/0 4.0.0.0/24 is subnetted, 1 subnets i L1 4.4.4.0 [115/20] via 10.1.34.4, FastEthernet1/0 10.0.0.0/24 is subnetted, 3 subnets i L2 10.1.12.0 [115/20] via 10.1.23.2, FastEthernet0/0 R3#
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Let’s change R1 & R4 as is-type level-2-only !

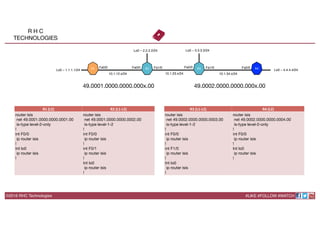

©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 R1  (L2)   R2  (L1-­‐L2)   router isis
 net 49.0001.0000.0000.0001.00 is-type level-2-only ! int F0/0 ip router isis ! Int lo0 ip router isis ! router isis
 net 49.0001.0000.0000.0002.00 is-type level-1-2 ! int F0/0 ip router isis ! int F0/1 ip router isis ! Int lo0 ip router isis ! R3  (L1-­‐L2)   R4  (L2)   router isis
 net 49.0002.0000.0000.0003.00 is-type level-1-2 ! int F0/0 ip router isis ! int F1/0 ip router isis ! Int lo0 ip router isis ! router isis net 49.0002.0000.0000.0004.00 is-type level-2-only ! int F0/0 ip router isis ! Int lo0 ip router isis ! Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Verify “show isis neighbors” on all routers.
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00 R1 R1#sh ip route isis 2.0.0.0/24 is subnetted, 1 subnets i L2 2.2.2.0 [115/20] via 10.1.12.2, FastEthernet0/0 3.0.0.0/24 is subnetted, 1 subnets i L2 3.3.3.0 [115/30] via 10.1.12.2, FastEthernet0/0 4.0.0.0/24 is subnetted, 1 subnets i L2 4.4.4.0 [115/40] via 10.1.12.2, FastEthernet0/0 10.0.0.0/24 is subnetted, 3 subnets i L2 10.1.23.0 [115/20] via 10.1.12.2, FastEthernet0/0 i L2 10.1.34.0 [115/30] via 10.1.12.2, FastEthernet0/0 R1#
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00 R4 R4#sho ip route isis 1.0.0.0/24 is subnetted, 1 subnets i L2 1.1.1.0 [115/40] via 10.1.34.3, FastEthernet0/0 2.0.0.0/24 is subnetted, 1 subnets i L2 2.2.2.0 [115/30] via 10.1.34.3, FastEthernet0/0 3.0.0.0/24 is subnetted, 1 subnets i L2 3.3.3.0 [115/20] via 10.1.34.3, FastEthernet0/0 10.0.0.0/24 is subnetted, 3 subnets i L2 10.1.12.0 [115/30] via 10.1.34.3, FastEthernet0/0 i L2 10.1.23.0 [115/20] via 10.1.34.3, FastEthernet0/0 R4#
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00 R2 R2#sh ip route isis 1.0.0.0/24 is subnetted, 1 subnets i L2 1.1.1.0 [115/20] via 10.1.12.1, FastEthernet0/0 3.0.0.0/24 is subnetted, 1 subnets i L2 3.3.3.0 [115/20] via 10.1.23.3, FastEthernet1/0 4.0.0.0/24 is subnetted, 1 subnets i L2 4.4.4.0 [115/30] via 10.1.23.3, FastEthernet1/0 10.0.0.0/24 is subnetted, 3 subnets i L2 10.1.34.0 [115/20] via 10.1.23.3, FastEthernet1/0 R2#
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00 R3 R3#sh ip route isis 1.0.0.0/24 is subnetted, 1 subnets i L2 1.1.1.0 [115/30] via 10.1.23.2, FastEthernet0/0 2.0.0.0/24 is subnetted, 1 subnets i L2 2.2.2.0 [115/20] via 10.1.23.2, FastEthernet0/0 4.0.0.0/24 is subnetted, 1 subnets i L2 4.4.4.0 [115/20] via 10.1.34.4, FastEthernet1/0 10.0.0.0/24 is subnetted, 3 subnets i L2 10.1.12.0 [115/20] via 10.1.23.2, FastEthernet0/0 R3#
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Let’s change R2 & R3 as is-type level-2-only !
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 R1  (L2)   R2  (L2)   router isis
 net 49.0001.0000.0000.0001.00 is-type level-2-only ! int F0/0 ip router isis ! Int lo0 ip router isis ! router isis
 net 49.0001.0000.0000.0002.00 is-type level-2-only ! int F0/0 ip router isis ! int F0/1 ip router isis ! Int lo0 ip router isis ! R3  (L2)   R4  (L2)   router isis
 net 49.0002.0000.0000.0003.00 is-type level-2-only ! int F0/0 ip router isis ! int F1/0 ip router isis ! Int lo0 ip router isis ! router isis net 49.0002.0000.0000.0004.00 is-type level-2-only ! int F0/0 ip router isis ! Int lo0 ip router isis ! Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Verify “show isis neighbors” on all routers.
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Verify “show ip route isis” on all routers.
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Let’s change R2 & R3 as is-type level-1 !
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Fa0/0 Fa0/0 Lo0 – 1.1.1.1/24 R4  R2   R3   49.0001.0000.0000.000x.00 R1   Fa1/0 Fa0/0 Fa1/0 Fa0/0 10.1.12.x/24 10.1.23.x/24 10.1.34.x/24 R1  (L2)   R2  (L1)   router isis
 net 49.0001.0000.0000.0001.00 is-type level-2-only ! int F0/0 ip router isis ! Int lo0 ip router isis ! router isis
 net 49.0001.0000.0000.0002.00 is-type level-1 ! int F0/0 ip router isis ! int F0/1 ip router isis ! Int lo0 ip router isis ! R3  (L1)   R4  (L2)   router isis
 net 49.0002.0000.0000.0003.00 is-type level-1 ! int F0/0 ip router isis ! int F1/0 ip router isis ! Int lo0 ip router isis ! router isis net 49.0002.0000.0000.0004.00 is-type level-2-only ! int F0/0 ip router isis ! Int lo0 ip router isis ! Lo0 – 4.4.4.4/24 Lo0 – 2.2.2.2/24 Lo0 – 3.3.3.3/24 49.0002.0000.0000.000x.00
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH Verify “show isis neighbors” on all routers.
©2016 RHC Technologies R H C TECHNOLOGIES #LIKE #FOLLOW #WATCH L1/L2 L1/L2 L1/L2 L1 L1 L1L1 L1 L2 L2 L2 L2 L2 49.0001 49.0002 49.0003 49.0004 49.0005
© www.rhctechnologies.com R H C TECHNOLOGIES RHC Technologies #LIKE #FOLLOW #WATCH
