Introducing the OSPF Protocol


Link-State Protocols

© 2008 Cisco, Inc. All rights reserved. Cisco Confidential 3

Link-State Data Structures

Neighbor table:
Also known as the adjacency database
Contains list of recognized neighbors
Topology table:
Typically referred to as LSDB
Contains all routers and their attached links in the area or
network
Identical LSDB for all routers within an area
Routing table:
Commonly named a forwarding database
Contains list of best paths to destinations


Link-State Routing Protocols

Link-state routers recognize more information about the network
than their distance vector counterparts.
Each router has a full picture of the topology.
Consequently, link-state routers tend to make more accurate
decisions.


Link-State Data Structure:
Network Hierarchy

Link-state routing requires a hierachical
network structure that is enforced by OSPF.
This two-level hierarchy consists of the following:
Transit area (backbone or area 0)
Regular areas (nonbackbone areas)


OSPF Areas

OSPF area
characteristics:
• Minimizes routing
table entries
• Localizes impact of
a topology change
within an area
• Detailed LSA
flooding stops at
the area boundary
• Requires a
hierarchical
network design


Area Terminology

• Routers A and B are
backbone routers.
• Backbone routers
make up area 0.
• Routers C, D, and E are
known as area border
routers (ABRs).
• ABRs attach all other
areas to area 0.


OSPF Adjacencies

Routers discover neighbors by exchanging hello packets.
Routers declare neighbors to be up after checking
certain parameters or options in the hello packet.


Forming OSPF Adjacencies

Point-to-point WAN links:
Both neighbors become fully adjacent.
LAN links:
Neighbors form a full adjacency with the DR and BDR.
Routers maintain two-way state with the other routers
(DROTHERs).
Routing updates and topology information are passed only
between adjacent routers.
Once an adjacency is formed, LSDBs are synchronized by
exchanging LSAs.
LSAs are flooded reliably throughout the area (or network).


OSPF Calculation

 Routers find the best paths to destinations by applying
Dijkstra’s SPF algorithm to the link-state database as
follows:
Every router in an area has the identical
link-state database.
Each router in the area places itself into
the root of the tree that is built.
The best path is calculated with respect to the
lowest total cost of links to a specific destination.
Best routes are put into the forwarding database (routing table).


SPF Calculation

Assume all links are Ethernet, with an OSPF cost of 10.


Link-State Data Structures: LSA
Operation


Summary

Link-state routing protocols respond quickly to changes, send
triggered updates when changes occur, and send periodic
updates every 30 minutes.
A two-tier hierarchical network structure is used by OSPF in
which the network is divided into areas. This area structure is
used to separate the LSDB into more manageable sizes.
Adjacencies are built by OSPF routers using the Hello protocol.
Over these logical adjacencies, LSUs are sent to exchange
database information between adjacent OSPF routers.


Summary (Cont.)

Dijkstra’s SPF algorithm is used to calculate best paths for all
destinations. SPF is run against the LSDB, and the outcome is
a table of best paths, known as the routing table.
After an LSA entry ages, the router that originated the entry
sends an LSU about the network to verify that the link is still
active. The LSU can contain one or more LSAs.


OSPF Packet Types


Neighborship: The Hello Packet

Establishing Bidirectional Communication

Discovering the Network Routes

Maintaining Routing Information

• Router A notifies all OSPF DRs on 224.0.0.6.
• DR notifies others on 224.0.0.5.

LSA Sequence Numbering

Each LSA in the LSDB maintains a sequence number.
The sequence numbering scheme is a 4-byte number
that begins with 0x80000001 and ends with
0x7FFFFFFF.
OSPF floods each LSA every 30 minutes to maintain
proper database synchronization. Each time the LSA
is flooded, the sequence number is incremented by
one.
Ultimately, an LSA sequence number will wrap around
to 0x80000001. When this occurs, the existing LSA
is prematurely aged to the maximum age (one hour)
and flushed.
When a router encounters two instances of an LSA, it
must determine which is more recent. The LSA
having the newer (higher) LS a sequence number is
more recent.

LSA Sequence Numbers and Maximum Age

RTC# show ip ospf database

OSPF Router with ID (192.168.1.67) (Process ID 10)
Router Link States (Area 1)
Link ID ADV Router Age Seq# Checksum Link count
192.168.1.67 192.168.1.67 48 0x80000008 0xB112 2
192.168.2.130 192.168.2.130 212 0x80000006 0x3F44 2
<output omitted>

Every OSPF router announces a router LSA
for those interfaces that it owns in that area.
Router with link ID 192.168.1.67 has been
updated eight times; the last update was 48
seconds ago.

debug ip ospf packet

Debug of a single packet
R1#debug ip ospf packet
OSPF packet debugging is on
R1#
*Feb 16 11:03:51.206: OSPF: rcv. v:2 t:1 l:48 rid:10.0.0.12
aid:0.0.0.1 chk:D882 aut:0 auk: from Serial0/0/0.2

• Shows fields in OSPF header

Summary
There are five OSPF packet types: hello, DBD, LSU,
LSR, and LSAck.
The Hello protocol forms logical neighbor adjacency
relationships. A DR may be required to coordinate
adjacency formations.
The exchange protocol passes through several states
(down, init, two-way, exstart, and exchange) before
finally reaching the goal of full state. Full state means
that databases are synchronized with adjacent
routers.

Summary (Cont.)
LSAs are sent on change but are also sent every 30
minutes to ensure database integrity. The maximum
time that an LSA will stay in the database, without an
update, is 1 hour. The LSA sequence number is
incremented every time it is advertised.
Each LSA in the LSDB has a sequence number, which
is incremented by one each time the LSA is flooded.
When a router encounters two instances of an LSA, it
must determine which is more recent. The LSA
having the newer (higher) LSA sequence number is
more recent.
Use the debug ip ospf packet command to verify that
OSPF packets are flowing properly between two
routers.

Configuring OSPF Routing


Configuring Basic OSPF

Router(config)#
router ospf process-id [vrf vpn-name]

• Enables one or more OSPF routing processes

Router(config-router)#
network ip-address wildcard-mask area area-id

• Defines the interfaces that OSPF will run on

Router(config-if)#
ip ospf process-id area area-id [secondaries none]

• Optional method to enable OSPF explicitly on an interface

Configuring OSPF on Internal Routers of a
Single Area

Configuring OSPF for Multiple Areas

OSPF Router ID

The router is known to OSPF by the OSPF router ID number.
LSDBs use the OSPF router ID to differentiate one router from the next.
By default, the router ID is the highest IP address on an active interface
at the moment of OSPF process startup.
A loopback interface can override the OSPF router ID. If a loopback
interface exists, the router ID is the highest IP address on any active
loopback interface.
The OSPF router-id command can be used to override the OSPF router
ID.
Using a loopback interface or a router-id command is recommended for
stability.

Loopback Interfaces

Router(config)#interface loopback 0
Router(config-if)#ip address 172.16.17.5 255.255.255.255

• If the OSPF process is already running, the router must be reloaded
or the OSPF process must be removed and reconfigured before the
new loopback address will take effect.

OSPF router-id Command

router-id ip-address

• This command is configured under the router ospf [process-id]
command.
• Any unique arbitrary 32-bit value in an IP address format (dotted
decimal) can be used.
• If this command is used on an OSPF process that is already active,
then the new router ID is used after the next reload or manual OSPF
process restart using:
Router#
clear ip ospf process

Router(config)#router ospf 1
Router(config-router)#router-id 172.16.1.1

Router#clear ip ospf process

OSPF Router ID Verification

RouterB#sh ip ospf
Routing Process "ospf 50" with ID 10.64.0.2
<output omitted>

Number of areas in this router is 2. 2 normal 0 stub 0 nssa
Number of areas transit capable is 0
External flood list length 0
Area BACKBONE(0)
Area BACKBONE(0)
Area has no authentication
SPF algorithm last executed 00:01:25.028 ago
SPF algorithm executed 7 times
<output omitted>

Area 1
Number of interfaces in this area is 1
Area has no authentication
SPF algorithm last executed 00:00:54.636 ago
SPF algorithm executed 3 times
<output omitted>

Verifying OSPF Operation

Router#
show ip protocols

• Verifies the configured IP routing protocol processes, parameters,
and statistics

Router#
show ip route ospf [process-id ]

• Displays all OSPF routes learned by the router

Router#
show ip ospf interface [type number]

• Displays the OSPF router ID, area ID, and adjacency information

Verifying OSPF Operation (Cont.)

Router#
show ip ospf

• Displays the OSPF router ID, timers, and statistics

Router#

show ip ospf neighbor [type number] [neighbor-id] [detail]

• Displays information about the OSPF neighbors, including DR and
BDR information on broadcast networks

Example: The show ip route ospf Command

RouterA#show ip route ospf
10.0.0.0/8 is variably subnetted, 3 subnets, 2 masks
O IA 10.2.1.0/24 [110/782] via 10.64.0.2, 00:03:05, FastEthernet0/0
RouterA#

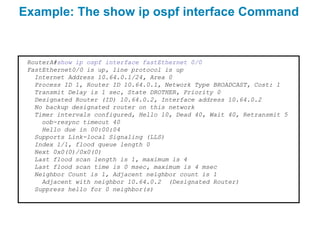

Example: The show ip ospf interface Command

RouterA#show ip ospf interface fastEthernet 0/0
FastEthernet0/0 is up, line protocol is up
Internet Address 10.64.0.1/24, Area 0
Process ID 1, Router ID 10.64.0.1, Network Type BROADCAST, Cost: 1
Transmit Delay is 1 sec, State DROTHER, Priority 0
Designated Router (ID) 10.64.0.2, Interface address 10.64.0.2
No backup designated router on this network
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Hello due in 00:00:04
Supports Link-local Signaling (LLS)
Index 1/1, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 1, maximum is 4
Last flood scan time is 0 msec, maximum is 4 msec
Neighbor Count is 1, Adjacent neighbor count is 1
Adjacent with neighbor 10.64.0.2 (Designated Router)
Suppress hello for 0 neighbor(s)

Example: The show ip ospf neighbor Command

RouterB# show ip ospf neighbor

Neighbor ID Pri State Dead Time Address Interface
10.64.0.1 0 FULL/DROTHER 00:00:30 10.64.0.1 FastEthernet0/0
10.2.1.1 0 FULL/ - 00:00:34 10.2.1.1 Serial0/0/1

RouterB# show ip ospf neighbor detail
Neighbor 10.64.0.1, interface address 10.64.0.1
In the area 0 via interface FastEthernet0/0
Neighbor priority is 0, State is FULL, 16 state changes
DR is 10.64.0.2 BDR is 0.0.0.0
<output omitted>

Neighbor 10.2.1.1, interface address 10.2.1.1
In the area 1 via interface Serial0/0/1
Neighbor priority is 0, State is FULL, 6 state changes
DR is 0.0.0.0 BDR is 0.0.0.0
<output omitted>

Summary

Configuration of OSPF is a two-step process:
Enter OSPF configuration with the router ospf command.
Use the network command to describe which interfaces will run
OSPF in which area.
OSPF selects a router ID at startup time:
The router ID’s specified in the router-id command under the
OSPF process.
Otherwise, the highest IP address of a loopback interface, if there
are any, is used.
By default, the highest IP address of all active interfaces
Use the show ip ospf command to verify the router ID.
Use the show ip protocols, show ip route ospf, show ip ospf interface,
show ip ospf, and show ip ospf neighbor commands to verify OSPF
operation.

OSPF Network Types


OSPF Network Types
• The three types of networks defined by OSPF are:
Point-to-point: A network that joins a single pair of
routers.

Broadcast: A multiaccess broadcast network, such as
Ethernet.

Nonbroadcast multiaccess (also called NBMA): A
network that interconnects more than two routers but
that has no broadcast capability. Frame Relay, ATM,
and X.25 are examples of NBMA networks.Five
modes of OSPF operation are available for NBMA
networks.

Point-to-Point Links

Usually a serial interface running either PPP or
HDLC.
May also be a point-to-point subinterface running
Frame Relay or ATM.
No DR or BDR election required.
OSPF autodetects this interface type.
OSPF packets are sent using multicast 224.0.0.5.

Multiaccess Broadcast Network

Generally these are, LAN technologies like Ethernet
and Token Ring.
DR and BDR selection are required.
All neighbor routers form full adjacencies with the DR
and BDR only.
Packets to the DR and the BDR use 224.0.0.6.
Packets from DR to all other routers use 224.0.0.5.

Electing the DR and BDR

Hello packets are exchanged via IP multicast.
The router with the highest OSPF priority is selected
as
the DR. The router with the second-highest priority
value is the BDR.
Use the OSPF router ID as the tiebreaker.
The DR election is nonpreemptive.

Setting Priority for DR Election

Router(config-if)#

ip ospf priority number

This interface configuration command assigns the
OSPF priority to an interface.
Different interfaces on a router may be assigned
different values.
The default priority is 1. The range is from 0 to 255.
0 means the router cannot be the DR or BDR.
A router that is not the DR or BDR is DROTHER.

NBMA Topology

A single interface interconnects multiple sites.
NBMA topologies support multiple routers, but
without broadcasting capabilities.

DR Election in NBMA Topology

OSPF considers NBMA to be like other broadcast media.
The DR and BDR need to have fully meshed connectivity
with all other routers, but NBMA networks are not
always fully meshed.
The DR and BDR need a list of neighbors.
OSPF neighbors are not automatically discovered by the
router.

OSPF over NBMA Topology Modes of
Operation

RFC 2328-compliant modes are as follows:
Nonbroadcast (NBMA)
Point-to-multipoint
Additional modes from Cisco are as follows:
Point-to-multipoint nonbroadcast
Broadcast
Point-to-point

Selecting the OSPF Network Type for NBMA
Networks

Router(config-if)#
ip ospf network [{broadcast | non-broadcast | point-to-
multipoint [non-broadcast] | point-to-point}]

• Defines OSPF network type

Example: Broadcast Mode
Router(config)#interface serial 0/0/0
Router(config-if)#encapsulation frame-relay
Router(config-if)#ip ospf network broadcast

Nonbroadcast Mode (NBMA Mode)

Treated as a broadcast
network by OSPF
(acts like a LAN).
All serial ports are part of
the same IP subnet.
Frame Relay, X.25, and
ATM networks default to
nonbroadcast mode.
Neighbors must be
statically configured.
Duplicates LSA updates.
Complies with RFC 2328.

Using the neighbor Command

neighbor ip-address [priority number] [poll-interval
number] [cost number] [database-filter all]

Used to statically define neighbor
relationships in an NBMA network

neighbor Command Example

RouterA(config)# router ospf 100
RouterA(config-router)# network 192.168.0.0 0.0.255.255 area 0
RouterA(config-router)# neighbor 192.168.1.2 priority 0
RouterA(config-router)# neighbor 192.168.1.3 priority 0
RouterA(config-router)# network 172.16.0.0 0.0.255.255 area 0

The show ip ospf neighbor Command

RouterA# show ip ospf neighbor

192.168.1.3 0 FULL/DROTHER 00:01:57 192.168.1.3 Serial0/0/0
192.168.1.2 0 FULL/DROTHER 00:01:33 192.168.1.2 Serial0/0/0
172.16.1.1 1 FULL/BDR 00:00:34 172.16.1.1 FastEthernet0/0

Point-to-Multipoint Mode

The point-to-multipoint mode allows for NBMA
networking.
The point-to-multipoint mode fixes partial-mesh and
star topologies.
No DR is required and only a single subnet is used.
A 30-second hello is used.
This mode is RFC 2328-compliant.

Point-to-Multipoint Configuration

Router A
interface Serial0/0/0
ip address 192.168.1.1 255.255.255.0
encapsulation frame-relay
ip ospf network point-to-multipoint
<output omitted>

router ospf 100
log-adjacency-changes
network 172.16.0.0 0.0.255.255 area 0
network 192.168.0.0 0.0.255.255 area 0

Router C
ip address 192.168.1.3 255.255.255.0
encapsulation frame-relay
ip ospf network point-to-multipoint
ip ospf priority 0

Point-to-Multipoint Example

RouterA#sh ip ospf int s0/0/0
Serial0/0/0 is up, line protocol is up
Internet Address 192.168.1.1/24, Area 0
Process ID 100, Router ID 192.168.1.1, Network Type POINT_TO_MULTIPOINT,
Cost: 781
Transmit Delay is 1 sec, State POINT_TO_MULTIPOINT
oob-resync timeout 120
Index 2/2, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 1, maximum is 1
Last flood scan time is 0 msec, maximum is 4 msec
Neighbor Count is 2, Adjacent neighbor count is 2
Adjacent with neighbor 192.168.1.3
Adjacent with neighbor 192.168.1.2
Suppress hello for 0 neighbor(s)
RouterA#

Point-to-Multipoint Nonbroadcast

• Cisco extension to RFC-compliant point-to-multipoint mode
• Must statically define neighbors, like nonbroadcast mode
• Like point-to-multipoint mode, DR and BDR not elected
• Used in special cases where neighbors cannot be automatically
discovered

Using Subinterfaces

Router(config)#
interface serial number.subinterface-number {multipoint |
point-to-point}

The physical serial port becomes multiple
logical ports.
Each subinterface requires an IP subnet.

Point-to-Point Subinterfaces

Router(config)#
interface serial number.subinterface-number point-to-point

Each PVC and SVC gets its own subinterface.
OSPF point-to-point mode is the default on
point-to-point Frame Relay subinterfaces.
No DR/BDR
Do not need to configure neighbors

Point-to-Point Subinterface Example

PVCs are treated like point-to-point links.
Each subinterface requires a subnet.

Multipoint Subinterfaces

Router(config)#
interface serial number.subinterface-number multipoint

Multiple PVCs and SVCs are on a single
subinterface.
OSPF nonbroadcast mode is the default.
DR and BDR are required.
Neighbors need to be statically configured.

Multipoint Subinterface Example

Single interface serial 0/0/0 has been logically separated into two subinterfaces:
one point-to-point (S0/0/0.1) and one point-to-multipoint (S0/0/0.2).
Each subinterface requires a subnet.
OSPF defaults to point-to-point mode on point-to-point subinterfaces.
OSPF defaults to nonbroadcast mode on point-to-multipoint subinterfaces.

OSPF over NBMA Topology Summary

NBMA Preferred Hello RFC or
OSPF Mode Subnet Address Adjacency
Topology Timer Cisco

Full or partial Automatic,
Broadcast Same 10 sec Cisco
mesh DR/BDR elected

Manual
Nonbroadcast Full or partial
Same 30 sec configuration, RFC
(NBMA) mesh
DR/BDR elected

Point-to- Partial-mesh Automatic,
Same 30 Sec RFC
multipoint or star no DR/BDR

Point-to- Manual
partial-mesh
multipoint Same 30 sec configuration, Cisco
or star
nonbroadcast no/DR/BDR
Partial-mesh or
Different for Each Automatic,
Point-to-point star, using 10 sec Cisco
Subinterface no DR/BDR
subinterface

Creation of Adjacencies for Point-to-Point
Mode

RouterA# debug ip ospf adj
OSPF: Interface Serial0/0/0.1 going Up
OSPF: Build router LSA for area 0, router ID 192.168.1.1, seq 0x80000023
OSPF: Rcv DBD from 192.168.1.2 on Serial0/0/0.1 seq 0xCF0 opt 0x52 flag 0x7 len 32
mtu 1500 state INIT
OSPF: 2 Way Communication to 192.168.1.2 on Serial0/0/0.1, state 2WAY
OSPF: Send DBD to 192.168.1.2 on Serial0/0/0.1 seq 0xF4D opt 0x52 flag 0x7 len 32
OSPF: NBR Negotiation Done. We are the SLAVE
OSPF: Send DBD to 192.168.1.2 on Serial0/0/0.1 seq 0xCF0 opt 0x52 flag 0x2 len 132
mtu 1500 state EXCHANGE
OSPF: Database request to 192.168.1.2
OSPF: sent LS REQ packet to 192.168.1.2, length 12
mtu 1500 state EXCHANGE
OSPF: Exchange Done with 192.168.1.2 on Serial0/0/0.1
OSPF: Synchronized with 192.168.1.2 on Serial0/0/0.1, state FULL
%OSPF-5-ADJCHG: Process 100, Nbr 192.168.1.2 on Serial0/0/0.1 from LOADING to FULL,
Loading Done
OSPF: Build router LSA for area 0, router ID 192.168.1.1, seq 0x80000024

Creation of Adjacencies for Broadcast Mode

RouterA# debug ip ospf adj
OSPF: Interface FastEthernet0/0 going Up
OSPF: Build router LSA for area 0, router ID 192.168.1.1,seq 0x80000008
OSPF: 2 Way Communication to 172.16.1.1 on FastEthernet0/0, state 2WAY
OSPF: end of Wait on interface FastEthernet0/0
<output omitted>

OSPF: Neighbor change Event on interface FastEthernet0/0
OSPF: DR/BDR election on FastEthernet0/0
OSPF: Elect BDR 172.16.1.1
OSPF: Elect DR 192.168.1.1
DR: 192.168.1.1 (Id) BDR: 172.16.1.1 (Id)
OSPF: Rcv DBD from 172.16.1.1 on FastEthernet0/0 seq 0x14B 7 opt 0x52 flag 0x7
len 32 mtu 1500 state EXSTART
OSPF: First DBD and we are not SLAVE-if)#
OSPF: Send DBD to 172.16.1.1 on FastEthernet0/0 seq 0xDCE opt 0x52 flag 0x7
len 32
OSPF: Retransmitting DBD to 172.16.1.1 on FastEthernet0/0[1]
OSPF: Rcv DBD from 172.16.1.1 on FastEthernet0/0 seq 0xDCE
opt 0x52 flag 0x2 len 152 mtu 1500 state EXSTART
<output omitted>

Summary
OSPF defines three types of networks: point-to-point,
broadcast, and NBMA.
On point-to-point links, adjacency is dynamic, uses
multicast addresses, and has no DR or BDR.
On broadcast links, adjacency is dynamic and includes
election of a DR and BDR. All updates are sent to the
DR, which forwards the updates to all routers.
The router with the highest OSPF priority is selected as
the DR. The router with the second-highest priority
value is the BDR.
By default on NBMA links, adjacency requires manual
definition of neighbors for the DR and BDR because
OSPF will consider the network similar to broadcast
media.

Summary (Cont.)
The OSPF mode of operation on Frame Relay depends
on the underlying Frame Relay network. OSPF mode
options include nonbroadcast, broadcast, point-to-
multipoint, point-to-multipoint nonbroadcast, and
point-to-point.
In nonbroadcast mode, a DR and BDR are elected, and
neighbors must be statically configured.
In point-to-multipoint mode, no DR and BDR are
needed and neighbors are automatically discovered.
In point-to-multipoint nonbroadcast mode, no DR and
BDR are needed, but neighbors must be statically
configured.
A physical interface can be split into multiple logical
interfaces called subinterfaces. Each subinterface
requires an IP subnet.
Using the debug ip ospf adj command enables you to
see OSPF packet exchanges and the status of
neighbor adjacencies.

Link-State Advertisements


Issues with Maintaining a Large OSPF
Network


The Solution: OSPF Hierarchical Routing

Consists of areas and autonomous systems
Minimizes routing update traffic


Types of OSPF Routers


Defining Virtual Links

• Virtual links are used to connect a discontiguous area to area 0.
• A logical connection is built between router A and router B.
• Virtual links are recommended for backup or temporary
connections.


Configuring Virtual Links
area area-id virtual-link router-id [authentication
[message-digest | null]] [hello-interval seconds]
[retransmit-interval seconds] [transmit-delay
seconds] [dead-interval seconds] [[authentication-
key key] | [message-digest-key key-id md5 key]]
Creates a virtual link

remoterouter#sh ip ospf
Routing Process "ospf 1000" with ID 10.2.2.2
Supports only single TOS(TOS0) routes
Supports opaque LSA
Supports area transit capability
It is an area border router
<output omitted>


OSPF Virtual Link Configuration
Example


The show ip ospf virtual-links Command

RouterA#sh ip ospf virtual-links
Virtual Link OSPF_VL0 to router 10.2.2.2 is up
Run as demand circuit
DoNotAge LSA allowed.
Transit area 1, via interface Serial0/0/1, Cost of using 781
Transmit Delay is 1 sec, State POINT_TO_POINT,
Adjacency State FULL (Hello suppressed)
Index 1/2, retransmission queue length 0, number of retransmission 1
First 0x0(0)/0x0(0) Next 0x0(0)/0x0(0)
Last retransmission scan length is 1, maximum is 1
Last retransmission scan time is 0 msec, maximum is 0 msec
RouterA#


LSA Types
LSA Type Description

1 Router LSAs

2 Network LSAs

3 or 4 Summary LSAs

Autonomous system
5
external LSAs

6 Multicast OSPF LSA

7 Defined for not-so-stubby areas

External attributes LSA for
8
Border Gateway Protocol (BGP)

9, 10, 11 Opaque LSAs


LSA Type 1: Router LSA

One router LSA (type 1) for every router in an area
Includes list of directly attached links
Each link identified by IP prefix assigned to link and link type
Identified by the router ID of the originating router
Floods within its area only; does not cross ABR


LSA Type 2: Network LSA

One network (type 2) LSA for each transit broadcast or NBMA network in
an area
Includes list of attached routers on the transit link
Includes subnet mask of link
Advertised by the DR of the broadcast network
Floods within its area only; does not cross ABR


LSA Type 3: Summary LSA

Type 3 LSAs are used to flood network information to areas outside the
originating area (interarea)
Describes network number and mask of link.
Advertised by the ABR of originating area.
Regenerated by subsequent ABRs to flood throughout the autonomous system.
By default, routes are not summarized, and type 3 LSA is advertised for every
subnet.


LSA Type 4: Summary LSA

Summary (type 4) LSAs are used to advertise an ASBR to all other areas in the
autonomous system.
They are generated by the ABR of the originating area.
They are regenerated by all subsequent ABRs to flood throughout the autonomous
system.
Type 4 LSAs contain the router ID of the ASBR.


LSA Type 5: External LSA

External (type 5) LSAs are used to advertise networks from other autonomous systems.
Type 5 LSAs are advertised and owned by the originating ASBR.
Type 5 LSAs flood throughout the entire autonomous system.
The advertising router ID (ASBR) is unchanged throughout the autonomous system.
Type 4 LSA is needed to find the ASBR.
By default, routes are not summarized.


Interpreting the OSPF Database

RouterA#show ip ospf database
OSPF Router with ID (10.0.0.11) (Process ID 1)
Router Link States (Area 0)
Link ID ADV Router Age Seq# Checksum Link count
10.0.0.11 10.0.0.11 548 0x80000002 0x00401A 1
10.0.0.12 10.0.0.12 549 0x80000004 0x003A1B 1
100.100.100.100 100.100.100.100 548 0x800002D7 0x00EEA9 2
Net Link States (Area 0)
Link ID ADV Router Age Seq# Checksum
172.31.1.3 100.100.100.100 549 0x80000001 0x004EC9
Summary Net Link States (Area 0)
Link ID ADV Router Age Seq# Checksum
10.1.0.0 10.0.0.11 654 0x80000001 0x00FB11
10.1.0.0 10.0.0.12 601 0x80000001 0x00F516
<output omitted>


Interpreting the Routing Table: Types of
Routes
Router Designator Description
• Networks from within the area of
OSPF intra-area the router
O (router LSA) and
network LSA • Advertised by way of router LSAs
and network LSA

• Networks from outside the area of
the router, but within the OSPF
OSPF interarea autonomous system
O IA
(summary LSA)
• Advertised by way of
summary LSAs

• Networks outside of the
O E1 Type 1 external routes
autonomous system of the router
• Advertised by way of external
O E2 Type 2 external routes
LSAs


Calculating Costs for E1 and E2 Routes


The show ip route Command

RouterB>show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route

Gateway of last resort is not set

172.31.0.0/24 is subnetted, 2 subnets
O IA 172.31.2.0 [110/1563] via 10.1.1.1, 00:12:35, FastEthernet0/0
C 10.200.200.13/32 is directly connected, Loopback0
C 10.1.3.0/24 is directly connected, Serial0/0/0
O 10.1.2.0/24 [110/782] via 10.1.3.4, 00:12:35, Serial0/0/0
C 10.1.1.0/24 is directly connected, FastEthernet0/0
O 10.1.0.0/24 [110/782] via 10.1.1.1, 00:12:37, FastEthernet0/0
O E2 10.254.0.0/24 [110/50] via 10.1.1.1, 00:12:37, FastEthernet0/0


OSPF LSDB Overload Protection
max-lsa maximum-number [threshold-percentage] [warning-
only] [ignore-time minutes] [ignore-count count-number]
[reset-time minutes]

Excessive LSAs generated by other routers can drain local
router resources.
This feature can limit the processing of non-self-generated LSAs
for a defined OSPF process.


Changing the Cost Metric
• Dijkstra’s algorithm determines the best path by adding all link costs
along a path.
• The cost, or metric, is an indication of the overhead to send packets
over an interface. Default = (100 Mbps) / (bandwidth in Mbps).

RouterA(config-if)#
ip ospf cost interface-cost

• Overrides the default cost calculation. Values from 1 to 65535 can
be defined.
RouterA(config-router)#

auto-cost reference-bandwidth ref-bw

• Sets the reference bandwidth to values other than 100 Mbps (legal
values range from 1 to 4,294,967 in megabits per second).


Summary

There are four OSPF router types: internal routers, backbone
routers, ABRs, and ASBRs.
A virtual link allows discontiguous area 0’ to be connected, or a
disconnected area to be connected to area 0, via a transit area.
Virtual links should be used only for temporary connections or
backup after a failure, not as a primary backbone design
feature.
There are 11 OSPF LSA types. The first five are the most
commonly used:
Type 1 router
Type 2 network
Type 3 and 4 summary
Type 5 external


Summary (Cont.)

In the IP routing table, OSPF routes are classified as either intra-
area, interarea, or external; external routes are subdivided into
E1 and E2.
OSPF LSDB overload protection limits the processing of non-
self-generated LSAs.
The OSPF cost defaults to (100 Mbps) / (bandwidth in megabits
per second). The cost can be changed on a per-interface basis,
and the reference bandwidth (100 Mbps) can also be changed.


OSPF Route Summarization


Benefits of Route Summarization

Minimizes number of routing table entries
Localizes impact of a topology change
Reduces LSA type 3 and 5 flooding and saves CPU resources

Using Route Summarization

Interarea summary link carries mask.
One or more entries can represent several subnets.


Configuring Route Summarization

area area-id range address mask [advertise | not-advertise]
[cost cost]

• Consolidates interarea routes on an ABR
summary-address ip-address mask [not-advertise] [tag tag]

• Consolidates external routes, usually on an ASBR


Route Summarization Configuration
Example at ABR


Route Summarization Configuration
Example at ASBR


Default Routes in OSPF

A default route is injected into OSPF as an external LSA
type 5.
Default route distribution is not on by default; use the
default-information originate command under the OSPF routing
process.


Configuring OSPF Default Routes
default-information originate [always] [metric metric-
value] [metric-type type-value] [route-map map-name]

• Normally, this command advertises a 0.0.0.0 default into the OSPF
network only if the default route already exists in the routing table.
• The always keyword allows the 0.0.0.0 default to be advertised even
when the default route does not exist in the routing table.


Default Route Configuration Example


Summary

Route summarization improves CPU utilization, reduces LSA
flooding, and reduces routing table sizes.
The area range command is used to summarize at
the ABR. The summary-address command is used to
summarize at the ASBR.
Default routes can be used in OSPF to prevent the need for a
specific route to all destination networks. The benefits include a
much smaller routing table and LSDB, with complete
reachability.
OSPF uses the default-information originate command to inject a
default route.


Configuring OSPF Special Area Types


Types of Areas


Stub and Totally Stub Area Rules

An area can be stub or totally stub if:
There is a single ABR, or if there is more than one ABR,
suboptimal routing paths to other areas or external autonomous
systems are acceptable.
All routers in the area are configured as stub routers.
There is no ASBR in the area.
The area is not area 0.
No virtual links go through the area.


Using Stub Areas

• External LSAs
are stopped.
• Default route
is advertised
into stub area
by the ABR.
• All routers in
area 50 must
be configured
as stub.


Stub Area Configuration


area area-id stub [no-summary]
• This command turns on stub area networking.
• All routers in a stub area must use the stub command.

area area-id default-cost cost

• This command defines the cost of a default route sent into the stub
area.
• The default cost is 1.


OSPF Stub Area Configuration Example


Using Totally Stubby Areas
• External LSAs
are stopped.
• Summary LSAs
are stopped.
• Routing table
is reduced to
a minimum.
• All routers must
be configured
as stub.
• ABR must be
configured as
totally stubby.
• This is a Cisco
proprietary
feature.


Totally Stubby Configuration
area area-id stub no-summary

• The addition of no-summary on the ABR creates a totally stubby area
and prevents all summary LSAs from entering the stub area.


Totally Stubby Configuration Example


Routing Table in a Standard Area
P1R3#sh ip route
<output omitted>

O IA 172.31.11.2 [110/782] via 10.1.3.4, 00:02:52, Serial0/0/0
[110/782] via 10.1.1.1, 00:02:52, FastEthernet0/0
O 10.1.2.0/24 [110/782] via 10.1.3.4, 00:03:23, Serial0/0/0
O E2 10.254.0.0/24 [110/50] via 10.1.1.1, 00:02:39, FastEthernet0/0
P1R3#


Routing Table in a Stub Area
P1R3#sh ip route
<output omitted>

Gateway of last resort is 10.1.1.1 to network 0.0.0.0
O IA 172.31.11.2 [110/782] via 10.1.3.4, 00:01:49, Serial0/0/0
[110/782] via 10.1.1.1, 00:01:49, FastEthernet0/0
O 10.1.2.0/24 [110/782] via 10.1.3.4, 00:01:50, Serial0/0/0
O*IA 0.0.0.0/0 [110/2] via 10.1.1.1, 00:01:51, FastEthernet0/0
P1R3#


Routing Table in a Stub Area with
Summarization
P1R3#sh ip route
<output omitted>

O 10.1.2.0/24 [110/782] via 10.1.3.4, 00:13:09, Serial0/0/0
P1R3#


Routing Table in a Totally Stubby Area
P1R3#sh ip route
<output omitted>

O 10.1.2.0/24 [110/782] via 10.1.3.4, 00:16:53, Serial0/0/0
P1R3#


Not-So-Stubby Areas

• NSSA breaks stub area rules. • ABR (R2) converts LSA type 7
• ASBR (R1) is allowed in to LSA type 5.
NSSA. • ABR sends default route into
• Special LSA type 7 defined, NSSA instead of external routes
sent by ASBR. from other ASBRs.
• NSSA is an RFC addendum.


NSSA Configuration
area area-id nssa [no-redistribution] [default-
information-originate [metric metric-value] [metric-
type type-value]] [no-summary]

• Use this command instead of the area stub command to define the
area as NSSA.
• The no-summary keyword creates an NSSA totally stubby area; this
is a Cisco proprietary feature.


Example: NSSA Configuration


NSSA Totally Stubby Configuration

• NSSA totally stubby area is a Cisco proprietary feature.


show Commands for Stub and NSSA
RouterA#
show ip ospf
• Displays which areas are normal, stub, or NSSA
RouterA#
show ip ospf database
• Displays details of LSAs
RouterA#
show ip ospf database nssa-external
• Displays specific details of each LSA type 7 update in database
RouterA#
show ip route
• Displays all routes


Summary

There are several OSPF area types: standard, backbone, stub,
totally stubby, and NSSA.
Use the area area-id stub command to define an area as stubby.
Use the area area-id stub command with the no-summary keyword
on the ABR only to define an area as totally stubby.
For stub areas, external routes are not visible in the routing table,
but are accessible via the intra-area default route. For totally
stubby areas, interarea and external routes are not visible in the
routing table, but are accessible via the intra-area default route.
Use the area area-id nssa command to define an area as NSSA.
Use show ip ospf, show ip ospf database, show ip route commands
to verify all types of stub areas. Use the show ip ospf database
nssa-external command to display details of type 7 LSAs.


Configuring OSPF Authentication


OSPF Authentication Types

OSPF supports 2 types of authentication:
Simple password (or plain text) authentication
MD5 authentication
Router generates and checks every OSPF packet. Router
authenticates the source of each routing update packet that it
receives.
Configure a “key” (password); each participating neighbor must
have same key configured.


Configuring OSPF Simple Password
Authentication
Router(config-if)#
ip ospf authentication-key password

• Assigns a password to be used with neighboring routers
Router(config-if)#
ip ospf authentication [message-digest | null]

• Specifies the authentication type for an interface (since
Cisco IOS software 12.0)

area area-id authentication [message-digest]

• Specifies the authentication type for an area (was in Cisco IOS
software before 12.0)


Example Simple Password
Authentication Configuration
Loopback 0
10.2.2.2


R2 Configuration for Simple Password
Authentication

<output omitted>
interface Loopback0
ip address 10.2.2.2 255.255.255.0

<output omitted>
ip address 192.168.1.102 255.255.255.224
ip ospf authentication
ip ospf authentication-key plainpas

<output omitted>
router ospf 10
network 10.2.2.2 0.0.0.0 area 0
network 192.168.1.0 0.0.0.255 area 0


Verifying Simple Password
Authentication
R1#sh ip ospf neighbor
10.2.2.2 0 FULL/ - 00:00:32 192.168.1.102 Serial0/0/1

R1#show ip route
<output omitted>
O 10.2.2.2/32 [110/782] via 192.168.1.102, 00:01:17, Serial0/0/1
C 192.168.1.96 is directly connected, Serial0/0/1

R1#ping 10.2.2.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.2.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 28/29/32 ms


Configuring OSPF MD5 Authentication
Router(config-if)#
ip ospf message-digest-key key-id md5 key

• Assigns a key ID and key to be used with neighboring routers

Router(config-if)#
ip ospf authentication [message-digest | null]

• Specifies the authentication type for an interface (since
Cisco IOS software 12.0)

area area-id authentication [message-digest]

• Specifies the authentication type for an area (was in Cisco IOS
software before 12.0)


Example MD5 Authentication
Configuration


R2 Configuration for MD5 Authentication

<output omitted>
interface Loopback0
ip address 10.2.2.2 255.255.255.0

<output omitted>
ip address 192.168.1.102 255.255.255.224
ip ospf authentication message-digest
ip ospf message-digest-key 1 md5 secretpass

<output omitted>
router ospf 10
network 10.2.2.2 0.0.0.0 area 0
network 192.168.1.0 0.0.0.255 area 0


Verifying MD5 Authentication
R1#sho ip ospf neighbor
10.2.2.2 0 FULL/ - 00:00:31 192.168.1.102 Serial0/0/1

R1#show ip route
<output omitted>
O 10.2.2.2/32 [110/782] via 192.168.1.102, 00:00:37, Serial0/0/1
C 192.168.1.96 is directly connected, Serial0/0/1

R1#ping 10.2.2.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.2.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 28/28/32 ms


Troubleshooting Simple Password
Authentication
Router#
debug ip ospf adj

• Displays the OSPF adjacency-related events
R1#debug ip ospf adj
OSPF adjacency events debugging is on
R1#
<output omitted>
*Feb 17 18:42:01.250: OSPF: 2 Way Communication to 10.2.2.2 on Serial0/0/1,
state 2WAY
*Feb 17 18:42:01.250: OSPF: Send DBD to 10.2.2.2 on Serial0/0/1 seq 0x9B6 opt
0x52 flag 0x7 len 32
*Feb 17 18:42:01.262: OSPF: Rcv DBD from 10.2.2.2 on Serial0/0/1 seq 0x23ED
opt0x52 flag 0x7 len 32 mtu 1500 state EXSTART
*Feb 17 18:42:01.262: OSPF: NBR Negotiation Done. We are the SLAVE
*Feb 17 18:42:01.262: OSPF: Send DBD to 10.2.2.2 on Serial0/0/1 seq 0x23ED opt
<output omitted>

R1#show ip ospf neighbor
10.2.2.2 0 FULL/ - 00:00:34 192.168.1.102 Serial0/0/1


Troubleshooting Simple Password
Authentication Problems
Simple authentication on R1, no authentication on R2
R1#
*Feb 17 18:51:31.242: OSPF: Rcv pkt from 192.168.1.102, Serial0/0/1 :
Mismatch Authentication type. Input packet specified type 0, we use type 1

R2#
Mismatch Authentication type. Input packet specified type 1, we use type 0

Simple authentication on R1 and R2, but different
passwords
R1#
Mismatch Authentication Key - Clear Text

R2#
Mismatch Authentication Key - Clear Text


Troubleshooting MD5 Authentication
R1#debug ip ospf adj
OSPF adjacency events debugging is on
<output omitted>
*Feb 17 17:14:06.530: OSPF: Send with youngest Key 1
*Feb 17 17:14:06.546: OSPF: 2 Way Communication to 10.2.2.2 on Serial0/0/1,
state 2WAY
*Feb 17 17:14:06.546: OSPF: Send DBD to 10.2.2.2 on Serial0/0/1 seq 0xB37 opt
*Feb 17 17:14:06.562: OSPF: Rcv DBD from 10.2.2.2 on Serial0/0/1 seq 0x32F opt
0x52 flag 0x7 len 32 mtu 1500 state EXSTART
*Feb 17 17:14:06.562: OSPF: NBR Negotiation Done. We are the SLAVE
*Feb 17 17:14:06.562: OSPF: Send DBD to 10.2.2.2 on Serial0/0/1 seq 0x32F opt
<output omitted>

R1#show ip ospf neighbor
10.2.2.2 0 FULL/ - 00:00:35 192.168.1.102 Serial0/0/1


Troubleshooting MD5 Authentication
Problems

MD5 authentication on both R1 and R2, but R1 has key 1
and R2 has key 2, both with the same passwords:
R1#
Mismatch Authentication Key - No message digest key 2 on interface

R2#
Mismatch Authentication Key - No message digest key 1 on interface


Summary

When authentication is configured, the router generates and
checks every OSPF packet and authenticates the source of
each routing update packet that it receives. OSPF supports two
types of authentication:
Simple password (or plain text) authentication: The router
sends an OSPF packet and key.
MD5 authentication: The router generates a message digest,
or hash, of the key, key ID, and message. The message
digest is sent with the packet; the key is not sent.
To configure simple password authentication, use the ip ospf
authentication-key password command and the ip ospf
authentication command.


Summary (Cont.)

To configure MD5 authentication, use the ip ospf message-
digest-key key-id md5 key command and the ip ospf
authentication message-digest command.
Use show ip ospf neighbor, show ip route, and debug ip ospf adj
to verify and troubleshoot both types of authentication.
With MD5 authentication, the debug ip ospf adj command output
indicates the key ID sent.


Module Summary


Module Summary

OSPF is an open-standard link-state routing protocol, offering
quick convergence and the ability to scale large networks.
There are five OSPF packet types: hello, DBD, LSU, LSR, and
LSAck.
Configuration of OSPF is a two-step process:
Enter OSPF configuration with the router ospf command.
Use the network command to describe which interfaces will
run OSPF in which area.
OSPF defines three types of networks: point-to-point, broadcast,
and NBMA. On NBMA networks, OSPF mode options include
nonbroadcast, broadcast, point-to-multipoint, point-to-multipoint
nonbroadcast, and point-to-point.


Module Summary (Cont.)

LSAs are the building blocks of the LSDB. There are 11 types of
OSPF LSAs.
Route summarization reduces OSPF LSA flooding and routing
table size, which reduces memory and CPU utilization on
routers.
Stub area techniques improve OSPF performance by reducing
the LSA flooding.
OSPF supports two types of authentication:
Simple password (or plain text) authentication
MD5 authentication


Cisco ospf

More Related Content

What's hot (20)

Similar to Cisco ospf (20)

Recently uploaded (20)

Cisco ospf
