DLint: dynamically checking bad coding practices in JavaScript (ISSTA'15 Slides)

Liang Gong1, Michael Pradel2, Manu Sridharan3 and Koushik Sen1
1 UC Berkeley 2 TU Darmstadt 3 Samsung Research America
DLint: Dynamically Checking
Bad Coding Practices in JavaScript

Why JavaScript?
…2
• The RedMonk Programming Language Ranking (1st)
– Based on GitHub and StackOverflow
• Assembly language for the web
• Web applications, DSL, Desktop apps, Mobile apps

3
• Designed and Implemented in 10 days
• Not all decisions were well-thought
• Problematic language features
– Error prone
– Poor performance
– Prone to security vulnerabilities
• Problematic features are still around
– Backward compatibility
Problematic JavaScript
Liang Gong, Electric Engineering & Computer Science, University of California, Berkeley.

4
Problematic JavaScript

• Good coding practices
• Informal rules
• Improve code quality
• Better quality means:
• Fewer correctness issues
• Better performance
• Better usability
• Better maintainability
• Fewer security loopholes
• Fewer surprises
• …
5

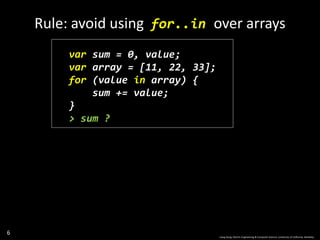

What are coding practices?

6
var sum = 0, value;
var array = [11, 22, 33];
for (value in array) {
sum += value;
}
> sum ?
Rule: avoid using for..in over arrays

7
var sum = 0, value;
var array = [11, 22, 33];
sum += value;
}
> sum ?
11 + 22 + 33 => 66
array index
(not array value)
0 + 1 + 2 => 3 array index : string
0+"0"+"1"+"2" => "0012"

• Cross-browser issues
• Result depends on the Array prototype object
8
var sum = 0, value;
var array = [11, 22, 33];
sum += value;
}
> sum ?
11 + 22 + 33 => 66
array index
(not array value)
0 + 1 + 2 => 3 array index : string
0+"0"+"1"+"2" => "0012"
> "0012indexOftoString..."

9
var sum = 0, value;
var array = [11, 22, 33];
sum += value;
}
> sum ?
for (i=0; i < array.length; i++) {
sum += array[i];
}
function addup(element, index, array) {
sum += element;
}
array.forEach(addup);

10
var sum = 0, value;
var array = [11, 22, 33];
sum += value;
}
> sum ?
for (i=0; i < array.length; i++) {
sum += array[i];
}
function addup(element, index, array) {
sum += element;
}
array.forEach(addup);

Coding Practices and Lint Tools
• Existing Lint-like checkers
– Inspect source code
– Rule-based checking
– Detect common mistakes
• Limitations:
– Approximates behavior
– Unknown aliases
– Lint tools favor precision over soundness
• Difficulty: Precise static program analysis
11

12

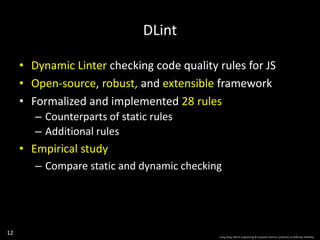

• Dynamic Linter checking code quality rules for JS
• Open-source, robust, and extensible framework
• Formalized and implemented 28 rules
– Counterparts of static rules
– Additional rules
• Empirical study
– Compare static and dynamic checking
DLint

a.f = b.g PutField(Read("a", a), "f", GetField(Read("b", b), "g"))
if (a.f()) ... if (Branch(Method(Read("a", a), "f")()) ...
x = y + 1 x = Write("x", Binary(‘+’,Read("y", y), Literal(1))
analysis.Literal(c) analysis.Branch(c)
analysis.Read(n, x) analysis.Write(n, x)
analysis.PutField(b, f, v) analysis.Binary(op, x, y)
analysis.Function(f, isConstructor) analysis.GetField(b,f)
analysis.Method(b, f, isConstructor) analysis.Unary(op, x)
...
13
Jalangi: A Dynamic Analysis Framework for JavaScript
[Sen et al. ESEC/FSE'2013]

• Single-event: Stateless checking
• Multi-event: Stateful checking
14

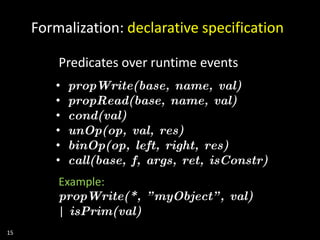

Runtime Patterns

• propWrite(base, name, val)
• propRead(base, name, val)
• cond(val)
• unOp(op, val, res)
• binOp(op, left, right, res)
• call(base, f, args, ret, isConstr)
Predicates over runtime events
Example:
propWrite(*, "myObject", val)
| isPrim(val)
Formalization: declarative specification
15

16

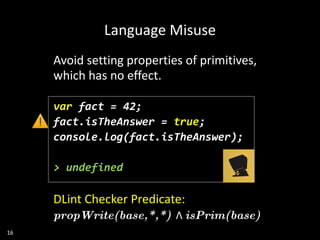

Language Misuse
Avoid setting properties of primitives,
which has no effect.
var fact = 42;
fact.isTheAnswer = true;
console.log(fact.isTheAnswer);
> undefined
DLint Checker Predicate:
propWrite(base,*,*) Λ isPrim(base)

17

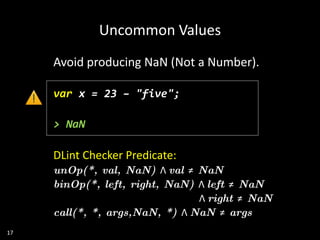

Avoid producing NaN (Not a Number).
var x = 23 – "five";
> NaN
unOp(*, val, NaN) Λ val ≠ NaN
binOp(*, left, right, NaN) Λ left ≠ NaN
Λ right ≠ NaN
call(*, *, args,NaN, *) Λ NaN ≠ args
Uncommon Values

18

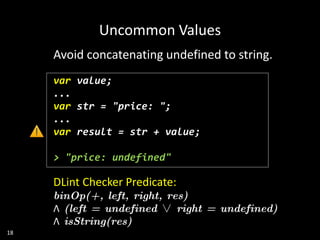

Avoid concatenating undefined to string.
var value;
...
var str = "price: ";
...
var result = str + value;
> "price: undefined"
binOp(+, left, right, res)
Λ (left = undefined ∨ right = undefined)
Λ isString(res)
Uncommon Values

19

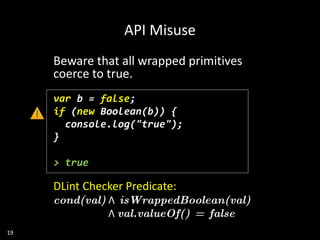

Beware that all wrapped primitives
coerce to true.
var b = false;
if (new Boolean(b)) {
console.log("true");
}
> true
cond(val) Λ isWrappedBoolean(val)
Λ val.valueOf() = false
API Misuse

Avoid accessing the undefined property.
var x; // undefined
var y = {};
y[x] = 23; // { undefined: 23 }
propWrite(*, "undefined",*)
propRead(*, "undefined", *)
20
Type Related Checker

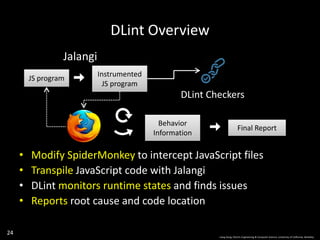

• Modify SpiderMonkey to intercept JavaScript files
• Transpile JavaScript code with Jalangi
• DLint monitors runtime states and finds issues
• Reports root cause and code location
24
JS program
Instrumented
JS program
Behavior
Information
Final Report
DLint Checkers
Jalangi
DLint Overview

25
Evaluation
Research Questions
• DLint warnings vs. JSHint warnings?
• Additional warnings from DLint?
• Coding convention vs. page popularity?
Experimental Setup
• 200 web sites (top 50 + others)
• Comparison to JSHint

26
• Some sites: One approach finds all
• Most sites: Better together
0% 20% 40% 60% 80% 100%
% of warnings on each site
Websites
JSHint Unique Common DLint Unique
% of Warnings: DLint vs. JSHint

27

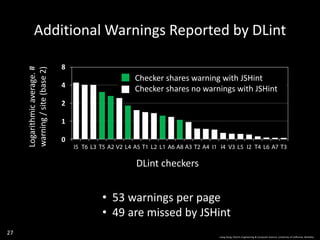

• 53 warnings per page
• 49 are missed by JSHint
0
1
2
3
4
I5 T6 L3 T5 A2 V2 L4 A5 T1 L2 L1 A6 A8 A3 T2 A4 I1 I4 V3 L5 I2 T4 L6 A7 T3
Logarithmicaverage.#
warning/site(base2)
DLint checkers
8
4
2
1
0
Checker shares warning with JSHint
Checker shares no warnings with JSHint
Additional Warnings Reported by DLint

28

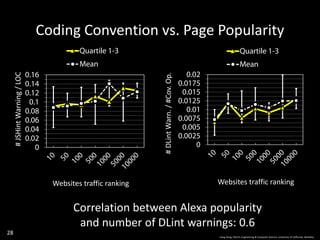

Correlation between Alexa popularity
and number of DLint warnings: 0.6
0
0.0025
0.005
0.0075
0.01
0.0125
0.015
0.0175
0.02
#DLintWarn./#Cov.Op.
Websites traffic ranking
Quartile 1-3
Mean
0
0.02
0.04
0.06
0.08
0.1
0.12
0.14
0.16
#JSHintWarning/LOC
Websites traffic ranking
Quartile 1-3
Mean
Coding Convention vs. Page Popularity

29
74
359
191
416
1401
62
202
2335
4933
79
205
62
125
167
6
15
26
8
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Do not use Number, Boolean, String as a constructor.
The Function constructor is a form of eval.
The object literal notation {} is preferable.
The array literal notation [] is preferable.
document.write can be a form of eval.
Do not override built-in variables.
Implied eval (string instead of function as argument).
eval can be harmful.
Missing 'new' prefix when invoking a constructor.
Fount by JSHint Only Common with DLint

30
E.g., 181 calls of eval(), Function(), etc. missed by JSHint
31
77
181
74
833
79
187
413
6
8
0% 20% 40% 60% 80% 100%
WrappedPrimitives
Literals
DoubleEvaluation
ArgumentsVariable
ConstructorFunctions
A8L4A1L1T5
Found by Dlint Only Common with JSHint

31

32

33

34

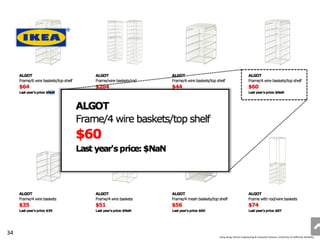

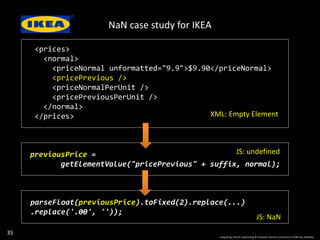

NaN case study for IKEA
35
<prices>
<normal>
<priceNormal unformatted="9.9">$9.90</priceNormal>
<pricePrevious />
<priceNormalPerUnit />
<pricePreviousPerUnit />
</normal>
</prices>
previousPrice =
getElementValue("pricePrevious" + suffix, normal);
parseFloat(previousPrice).toFixed(2).replace(...)
.replace('.00', ''));
XML: Empty Element
JS: undefined
JS: NaN

36

37

38

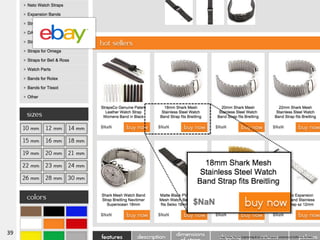

39

40
var decode64 = "";
if (dataLength > 3 && dataLength % 4 == 0) {
while (index < dataLength) {
decode64 += String.fromCharCode(...);
}
if (sixbits[3] >= 0x40) {
decode64.length -= 1;
}
}
From Google Octane’s Game Boy Emulator benchmark:
Rule: avoid setting field on primitive values

41
var decode64 = "";
if (dataLength > 3 && dataLength % 4 == 0) {
while (index < dataLength) {
decode64 += String.fromCharCode(...);
}
if (sixbits[3] >= 0x40) {
decode64.length -= 1;
}
}
From Google Octane’s Game Boy Emulator benchmark:
No effect because decode64 is a primitive string.
Rule: avoid setting field on primitive values

42

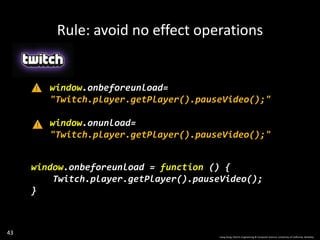

window.onbeforeunload=
"Twitch.player.getPlayer().pauseVideo();"
window.onunload=
Rule: avoid no effect operations

43
window.onbeforeunload=
window.onunload=
window.onbeforeunload = function () {
Twitch.player.getPlayer().pauseVideo();
}
Rule: avoid no effect operations

www.google.com/chrome,
included code from Modernizr:
https://github.com/Modernizr/Modernizr/pull/1419
44
Rule: avoid using for..in on arrays
for (i in props) { // props is an array
prop = props[i];
before = mStyle.style[prop];
...
}

45

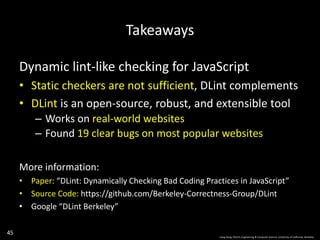

Takeaways
Dynamic lint-like checking for JavaScript
• Static checkers are not sufficient, DLint complements
• DLint is an open-source, robust, and extensible tool
– Works on real-world websites
– Found 19 clear bugs on most popular websites
More information:
• Paper: “DLint: Dynamically Checking Bad Coding Practices in JavaScript”
• Source Code: https://github.com/Berkeley-Correctness-Group/DLint
• Google “DLint Berkeley”

46
Takeaways
Thanks!
Dynamic lint-like checking for JavaScript
• Static checkers are not sufficient, DLint complements
• DLint is an open-source, robust, and extensible tool
– Works on real-world websites
– Found 19 clear bugs on most popular websites
More information:
• Paper: “DLint: Dynamically Checking Bad Coding Practices in JavaScript”
• Source Code: https://github.com/Berkeley-Correctness-Group/DLint
• Google “DLint Berkeley”

47
