Java EE 6 & GlassFish v3: Paving the path for the future
Arun Gupta, Java EE & GlassFish Guy
blogs.sun.com/arungupta, @arungupta

The following/preceding is intended to outline our
general product direction. It is intended for
information purposes only, and may not be
incorporated into any contract. It is not a
commitment to deliver any material, code, or
functionality, and should not be relied upon in
making purchasing decisions.
The development, release, and timing of any
features or functionality described for Oracle’s
products remains at the sole discretion of Oracle.

2

Are you tweeting ?

#glassfish
#uberconf

3

Java EE: Past & Present Flexible
Ease of
Development Java EE 6
Pruning
Java EE 5 Extensibility
Web Ease of
Services Prof les
i
Development
Annotations
Ease-of-dev
J2EE 1.4 EJB 3.0 EJB Lite
Web Services, Persistence API RESTful WS
Robustness Management, New and CDI
Enterprise Deployment, Updated
Java J2EE 1.3 Async. Web Services
Platform CMP, Connector
Connector
Architecture ` Java EE 6
J2EE 1.2
Servlet, JSP, Web Prof le
i
EJB, JMS
JPE RMI/IIOP
Project
Managed
Bean 1.0

May 1998 Dec 1999 Sep 2001 Nov 2003 May 2006 Dec 2009
10 specs 13 specs 20 specs 23 specs 28 specs

4

Compatible Java EE 5 Impl

http://java.sun.com/javaee/overview/compatibility-javaee5.jsp

5

Compatible Java EE 6 Impls

Today:

Announced:
6

Goals for the Java EE 6 Platform

• Flexible & Light-weight
• Extensible
• Embrace Open Source Frameworks
• Easier to use, develop on
• Continue on path set by Java EE 5

7

Java EE 6 is Flexible

• Decouple specs to allow more combinations
• Expands potential licensee ecosystem
• Profiles
• Targeted bundle of technologies
• Defined through the JCP
• Web Profile Defined
• Defined by the Java EE 6 Expert Group

8

Java EE 6 Web Profile 1.0

• Fully functional mid-sized profile
• Actively discussed in the Java EE 6 Expert
Group and outside it
• Technologies
• Servlets 3.0, JSP 2.2, EL 2.2, Debugging Support for
Other Languages 1.0, JSTL 1.2, JSF 2.0, Common
Annotations 1.1, EJB 3.1 Lite, JTA 1.1, JPA 2.0, Bean
Validation 1.0, Managed Beans 1.0, Interceptors 1.1,
Context & Dependency Injection 1.0, Dependency
Injection for Java 1.0

9

Java EE 6 is Lightweight

• Pruning
• Make some technologies optional
• Pruned today, means
• Optional in the next release
• Deleted in the subsequent releases
• Technologies marked in Javadocs
• JAX-RPC, EJB 2.x Entity Beans, JAXR, JSR 88

10

Java EE 6 - Done

09
• Specifications approved by the JCP
• Reference Implementation is GlassFish v3

20
• TCK

ec
D

11

Java EE 6 Specifications

• The Platform
• Java EE 6 Web Profile 1.0
• Managed Beans 1.0

12

New

• Contexts and Dependency Injection for
Java EE (JSR 299)
• Bean Validation 1.0 (JSR 303)
• Java API for RESTful Web Services (JSR 311)
• Dependency Injection for Java (JSR 330)

13

Extreme Makeover

• Java Server Faces 2.0 (JSR 314)
• Java Servlets 3.0 (JSR 315)
• Java Persistence 2.0 (JSR 317)
• Enterprise Java Beans 3.1 & Interceptors 1.1
(JSR 318)
• Java EE Connector Architecture 1.6 (JSR 322)

14

Updates

• Java API for XML-based Web Services 2.2 (JSR 224)
• Java API for XML Binding 2.2 (JSR 222)
• Web Services Metadata MR3 (JSR 181)
• JSP 2.2/EL 2.2 (JSR 245)
• Web Services for Java EE 1.3 (JSR 109)
• Common Annotations 1.1 (JSR 250)
• Java Authorization Contract for Containers 1.3 (JSR 115)
• Java Authentication Service Provider Interface for
Containers 1.0 (JSR 196)

15

As is

• JDBC 4.0 API
• Java Naming and Directory Interface 1.2
• Java Message Service 1.1
• Java Transaction API 1.1
• Java Transaction Service 1.0
• JavaMail API Specification 1.4
• JavaBeans Activation Framework 1.1
• Java API for XML Processing 1.3
• Java API for XML-based RPC 1.1
• SOAP with Attachments API for Java 1.3
• Java API for XML Registries 1.0
• Java EE Management Specification 1.1 (JSR 77)
• Java EE Deployment Specification 1.2 (JSR 88)
• Java Management Extensions 1.2
• Java Authentication and Authorization Service 1.0
• Debugging Support for Other Languages (JSR 45)
• Standard Tag Library for JSP 1.2 (JSR 52)
• Streaming API for XML 1.0 (JSR 173)

16

Managed Beans 1.0

EJB CDI JSF JAX-WS JAX-RS JPA ...

@Stateful
@Managed @Web
@Stateless @Named @Path @Entity ...
Bean Service
@Singleton

@javax.annotation.ManagedBean

17

Managed Beans 1.0

• JavaBeans component model for Java EE
• Simple and Universally useful
• Advanced concepts in companion specs
• Basic Services
• Resource Injection
• Lifecycle Callbacks
• Interceptors
• Available as
• @Resource / @Inject
• java:app/<module-name>/<bean-name>
• java:module/<bean-name>
18

Managed Beans 1.0 - Sample

@javax.annotation.ManagedBean @Resource
public class MyManagedBean { MyManagedBean bean;
@PostConstruct
public void setupResources() {
// setup your resources
}
@Inject
@PreDestroy MyManagedBean bean;
public void cleanupResources() {
// collect them back here
}

public String sayHello(String name) {
return "Hello " + name;
}
}

http://blogs.sun.com/arungupta/entry/totd_129_managed_beans_1

19

Interceptors 1.1
• Interpose on invocations and lifecycle
events on a target class
• Defined
• Using annotations or DD
• On target class or an interceptor class
associated with the target class
• Default Interceptors (only in DD)
• Class & Method Interceptors

20

Interceptors 1.1 - Code

@InterceptorBinding
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD, ElementType.TYPE})
public @interface MyInterceptorBinding {
}

@Interceptor
@MyInterceptorBinding
public class MyInterceptor {
. . .
}

21

Interceptors 1.1 – Sample Code

@Interceptors(MyInterceptor.class)
public class MyManagedBean {
. . .
}

@Inject / @Resource
MyManagedBean bean;

@Interceptors({MyInterceptor.class,
MyInterceptor2.class})
public class MyManagedBean {
. . .
}

http://blogs.sun.com/arungupta/entry/totd_134_interceptors_1_1

22

Java EE 6 & Ease-of-development

• Continue advancements of Java EE 5
• Primary focus: Web Tier
• General principles
• Annotation-based programming model
• Reduce or eliminate need for DD
• Traditional API for advanced users

23

Servlets in Java EE 5
At least 2 files


<web-app> package com.sun;
<servlet> public class MyServlet extends
<servlet-name>MyServlet HttpServlet {
</servlet-name> public void
<servlet-class> doGet(HttpServletRequest
com.sun.MyServlet req,HttpServletResponse res)
</servlet-class> {
</servlet>
...
<servlet-mapping>
<servlet-name>MyServlet }
</servlet-name> ...
<url-pattern>/myApp/* }
</url-pattern>
</servlet-mapping>
...
</web-app>

24

Servlets 3.0 (JSR 315)
Annotations-based @WebServlet

package com.sun;
@WebServlet(name=”MyServlet”, urlPattern=”/myApp/*”)
public class MyServlet extends HttpServlet {
public void doGet(HttpServletRequest req,
HttpServletResponse res)
{
<web-app>
... <servlet>
<servlet-name>MyServlet</servlet-name>
} <servlet-class>
com.sun.MyServlet
</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>MyServlet</servlet-name>
<url-pattern>/myApp/*</url-pattern>
</servlet-mapping>
...
</web-app>

http://blogs.sun.com/arungupta/entry/totd_81_getting_started_with

25

Servlets 3.0
Annotations-based @WebServlet

@WebServlet(name="mytest",
urlPatterns={"/myurl"},
initParams={
@InitParam(name="n1", value="v1"),
@InitParam(name="n2", value="v2")
}
)
public class TestServlet extends
javax.servlet.http.HttpServlet {
....
}

26

Servlets 3.0
Annotations-based @WebListeners
<listener>
<listener-class>
server.LoginServletListener
</listener-class>
</listener>

package server;

. . .

@WebListener()
public class LoginServletListener implements
ServletContextListener {

27

Servlets 3.0
Annotations-based @WebFilter
<filter>
<filter-name>PaymentFilter</filter-name>
<filter-class>server.PaymentFilter</filter-class>
<init-param>
<param-name>param1</param-name>
<param-value>value1</param-value>
package server; </init-param>
. . . </filter>
@WebFilter( <filter-mapping>
filterName="PaymentFilter", <url-pattern>/*</url-pattern>
InitParams={ </filter-mapping>
@WebInitParam( <filter-mapping>
name="param1", <servlet-name>PaymentServlet</servlet-name>
value="value1") <dispatcher>REQUEST</dispatcher>
} </filter-mapping>
urlPatterns={"/*"},
servletNames={"PaymentServlet"},
dispatcherTypes={DispatcherType.REQUEST}
)
public class PaymentFilter implements Filter {
. . .

28

Servlets 3.0
Asynchronous Servlets

• Useful for Comet, long waits
• Must declare
@WebServlet(asyncSupported=true)
AsyncContext context = request.startAsync();
context.addListener(new AsyncListener() { … });
context.dispatch(“/request.jsp”);
//context.start(Runnable action);
. . .
context.complete();

29

Servlets 3.0
Extensibility

• Plugin libraries using web fragments
• Modular web.xml
• Bundled in framework JAR file in META-INF
directory
• Zero-configuration, drag-and-drop for web
frameworks
• Servlets, servlet filters, context listeners for a framework
get discovered and registered by the container
• Only JAR files in WEB-INF/lib are used

30

Servlets 3.0
Extensibility

<web-fragment>
<filter>
<filter-name>wicket.helloworld</filter-name>
<filter-class>org.apache.wicket.protocol.http.WicketFilter</filter-class>
<init-param>
<param-name>applicationClassName</param-name>
<param-value>...</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>wicket.helloworld</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-fragment>
http://blogs.sun.com/arungupta/entry/totd_91_applying_java_ee

31

Servlets 3.0
Extensibility

<web-fragment>
<filter>
<filter-name>LiftFilter</filter-name>
<display-name>Lift Filter</display-name>
<description>The Filter that intercepts lift calls</description>
<filter-class>net.liftweb.http.LiftFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>LiftFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-fragment>

http://blogs.sun.com/arungupta/entry/totd_101_applying_servlet_3

32

Servlets 3.0
Resource Sharing

• Static and JSP no longer confined to
document root of the web application
• May be placed in WEB-INF/lib/
[*.jar]/META-INF/resources
• Resources in document root take
precedence over those in bundled JAR
myapp.war
WEB-INF/lib/catalog.jar
/META-INF/resources/catalog/books.html

http://localhost:8080/myapp/catalog/books.html

33

Servlets 3.0
Much more ...

• Programmatic authentication, login, logout
> HttpServletRequest.authenticate
> HttpServletRequest.login
> HttpServletRequest.logout
• File upload support
• Servlet Security <error-page>
<error-code>...</error-code>
> @ServletSecurity <exception-type>...</exception-type>
<location>/404.html</location>
• Default Error Page </error-page>

> Any HTTP status code
> http://blogs.sun.com/arungupta/entry/
totd_136_default_error_page
34

EJB 3.1 (JSR 318)
Package & Deploy in a WAR

Java EE 5 Java EE 6
foo.war
foo.ear
WEB-INF/classes
foo_web.war com.sun.FooServlet
com.sun.TickTock
WEB-INF/web.xml com.sun.FooBean
WEB-INF/classes com.sun.FooHelper
com.sun.FooServlet
com.sun.TickTock

foo_ejb.jar
com.sun.FooBean web.xml ?
com.sun.FooHelper

http://blogs.sun.com/arungupta/entry/totd_95_ejb_3_1

35

EJB 3.1

• No interface view – one source file per bean
• Only for Local and within WAR
• Required for Remote
• No location transparency
• Component initialization in @PostConstruct
• No assumptions on no-arg ctor

36

EJB 3.1
Portable Global JNDI Name Syntax

• Portable
• Global
• Application/Module-scoped
• Derived from metadata such as name,
component name etc.

37

EJB 3.1
Portable Global JNDI Name Syntax
Base name of ejb-jar/WAR
Only within EAR (or ejb-jar.xml/web.xml)
Base name of EAR
(or application.xml)

java:global[/<app-name>]/<module-name>/<bean-name>
[!<fully-qualified-interface-name>]

Unqualified name of the bean class
• Until now, only java:comp Annotation/name attribute
Or ejb-jar.xml
• Local & Remote business
• No-interface
• Also in java:app, java:module

38

EJB 3.1
Embeddable API – Simple Bean

@Stateless
public class App {
public String sayHello(String name) {
return "Hello " + name;
}
}

39

EJB 3.1
Embeddable API – Deploy the Bean

public void testEJB() throws NamingException {
EJBContainer ejbC =
EJBContainer.createEJBContainer();
Context ctx = ejbC.getContext();
App app = (App)
ctx.lookup("java:global/classes/App");
assertNotNull(app);
String NAME = "Duke";
String greeting = app.sayHello(NAME);
assertNotNull(greeting);
assertTrue(greeting.equals("Hello " + NAME));
ejbC.close();
}

http://blogs.sun.com/arungupta/entry/totd_128_ejbcontainer_createejbcontainer_embedded

40

EJB 3.1
Singleton Beans
• One instance per app/VM, not pooled
• Useful for caching state
• CMT/BMT
• Access to container services for injection, resource
manager, timers, startup/shutdown callbacks, etc.
• Enable eager initialization using @Startup
• Always supports concurrent access
• Define initialization ordering using @Depends
@Singleton
public class MyEJB {
. . .
}

41

EJB 3.1
Asynchronous Session Beans
• Light-weight JMS
• Control returns to the client before the
container dispatches the invocation to a
bean instance
• @Asynchronous – method or class
• Return type – void or Future<V>
• Transaction context does not propagate
• REQUIRED → REQUIRED_NEW
• Security principal propagates

42

EJB 3.1
Asynchronous Session Beans – Code Sample
@Stateless
@Asynchronous
public class SimpleAsyncEJB {
public Future<Integer> addNumbers(int n1, int n2) {
Integer result;

result = n1 + n2;
try {
// simulate JPA queries + reading file system
Thread.currentThread().sleep(2000);
} catch (InterruptedException ex) {
ex.printStackTrace();
}
return new AsyncResult(result);
}
}

http://blogs.sun.com/arungupta/entry/totd_137_asynchronous_ejb_a

43

EJB 3.1
Timers
• Automatically created EJB Timers
• Calendar-based Timers – cron like semantics
• @Schedule(dayOfWeek=”Mon,Wed”)
• (hour=”14”, dayOfMonth=”Last Thu”,
month=”Nov”)
• (minute=”*/5”, hour=”*”)
• Automatically created EJB Timers
• Based upon @Schedule
• Non-persistent timer, e.g. Cache

44

EJB 3.1
EJB 3.1 Lite

A proper subset of the full EJB 3.1 API that
includes a small, powerful selection of EJB
features suitable for writing portable
transactional business logic
...
suitable for inclusion in a wider range
of Java products, many of which have much
smaller installation and runtime footprints
than a typical full Java EE implementation

45

EJB 3.1
EJB 3.1 Lite – Feature Comparison

46

Contexts & Dependency Injection
(JSR 299)
• Type-safe Dependency Injection
• Builds on @Inject API
• Context/Scope management
• Works with multiple bean types
• Includes ELResolver

47

CDI
Injection Points

• Field, Method, Constructor
• 0 or more qualifiers
Which one ?
• Type (Qualifier)

@Inject @LoggedIn User user
Request What ?
Injection (Type)

48

CDI
Basics

• Separate from @Resource but can co-
exist
• @Resource for container managed DI
• @Inject for application managed DI
• Strong typing, loose coupling
• Clients only declare dependencies via injection
points
• Bean selection is done by CDI

49

CDI – Sample Client Code
Field and Method Injection

public class CheckoutHandler {

@Inject @LoggedIn User user;

@Inject PaymentProcessor processor;

@Inject void setShoppingCart(@Default Cart cart) {
…
}

}

50

CDI – Sample Client Code
Constructor Injection


@Inject
CheckoutHandler(@LoggedIn User user,
PaymentProcessor processor,
@Default Cart cart) {
...
}

}

51

CDI - Sample Client Code
Multiple Qualifiers and Qualifiers with Arguments


@Inject
CheckoutHandler(@LoggedIn User user,
@Reliable
@PayBy(CREDIT_CARD)
PaymentProcessor processor,
@Default Cart cart) {
...
}

}

52

CDI - How to configure ?
There is none!

• Discovers bean in all modules in which CDI
is enabled
• Beans are automatically selected for
injection
• Possible to enable groups of bean
selectively via a descriptor

53

CDI - Scopes

• Beans can be declared in a scope
• Everywhere: @ApplicationScoped,
@RequestScoped
• Web app: @SessionScoped
• JSF app: @ConversarionScoped
• Pseudo-scope (default): @Dependent
• CDI runtime will make sure the right
bean is created at the right time
• Client do NOT have to be scope-aware

54

CDI - Named Beans
Built-in support for the Unified EL

• Beans give themselves a name with
@Named(“cart”)
• Then refer to it from a JSF or JSP page
using the EL:
<h:commandButton
value=”Checkout”
action=“#{cart.checkout}”/>

55

CDI
Much more ...

• Producer methods and fields
• Bridging Java EE resources
• Alternatives
• Interceptors
• Decorators
• Stereotypes

56

Java Server Faces 2.0 (JSR 314)

• Facelets as “templating language” for the page
• Custom components much easier to develop
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:ui="http://java.sun.com/jsf/facelets"
xmlns:h="http://java.sun.com/jsf/html">
<h:head>
<title>Enter Name & Password</title>
</h:head>
<h:body>
<h1>Enter Name & Password</h1>
<h:form>
<h:panelGrid columns="2">
<h:outputText value="Name:"/>
<h:inputText value="#{simplebean.name}" title="name"
id="name" required="true"/>
<h:outputText value="Password:"/>
<h:inputText value="#{simplebean.password}" title="password"
id="password" required="true"/>
</h:panelGrid>
<h:commandButton action="show" value="submit"/>
</h:form>
</h:body>
</html>

57

JSF 2 Composite Components

58

JSF 2 Composite Components
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:ui="http://java.sun.com/jsf/facelets"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:ez="http://java.sun.com/jsf/composite/ezcomp">
<h:head>
<title>Enter Name & Password</title>
</h:head>
<h:body>
<h1>Enter Name & Password</h1>
<h:form>
<ez:username-password/>
</h:form>
. . .
</h:body>
WEB-INF
</html>
index.xhtml
resources/
ezcomp/
username-password.xhtml

http://blogs.sun.com/arungupta/entry/totd_135_jsf2_custom_components

59

Java Server Faces 2.0
Integrated Ajax Support

• f:ajax

<h:commandButton
actionListener="#{sakilabean.findActors}"
value="submit">
<f:ajax execute="length"
render="actorTable totalActors"/>
</h:commandButton>

http://blogs.sun.com/arungupta/entry/totd_123_f_ajax_bean

60


• “faces-config.xml” optional in common cases
• <managed-bean> → @ManagedBean or @Named
• Validator, Renderer, Listener, ...
• Default navigation rules – match a view on the disk

@Named(“simplebean”)
public class SimpleBean {
. . .
}

61

Much more ...
<navigation-case>
<from-outcome>success</from-outcome>
• Runs on Servlet 2.5+ <to-view-id>/page2.xhtml</to-view-id>

<if>#{foo.someCondition}</if>
</navigation-case>

• Project Stages
• Development, UnitTest, SystemTest, Production
• Custom Scopes for Managed Beans
• Bookmarkable URLs
• h:link, h:button <h:link outcome="viewEntry" value="Link">
<f:param name="entry" value="#{aBean.entry}"/>
</h:link>

<a href="http://localhost:8080/myapp/viewEntry.xhtml?
entry=entry1">Link</a>

62

Java Persistence API 2 (JSR 317)
Sophisticated mapping/modeling options

• Collection of basic types

@Entity
public class Person {
@Id protected String ssn;
protected String name;
protected Date birthDate;
. . .
@ElementCollection
@CollectionTable(name=”ALIAS”)
protected Set<String> nickNames;
}

63

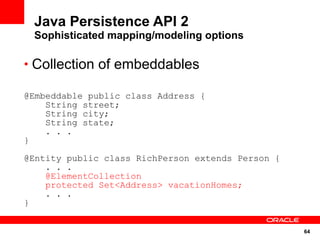

Java Persistence API 2

• Collection of embeddables

@Embeddable public class Address {
String street;
String city;
String state;
. . .
}

@Entity public class RichPerson extends Person {
. . .
@ElementCollection
protected Set<Address> vacationHomes;
. . .
}

64


• Multiple levels of embedding

@Embeddable public class ContactInfo {
@Embedded Address address;
. . .
}

@Entity public class Employee {
@Id int empId;
String name;
ContactInfo contactInfo;
. . .
}

65


• Improved Map support

@Entity public class VideoStore {
@Id Integer storeId;
Address location;
. . .
@ElementCollection
Map<Movie, Integer> inventory;
}

@Entity public class Movie {
@Id String title;
@String director;
. . .
}

66

Expanded JPQL

• Support for all new modeling/mapping
features
• Operators and functions in select list
• INDEX, KEY/VALUE ENTRY
// Inventory is Map<Movie, Integer>

SELECT v.location.street, KEY(i).title, VALUE(i),
FROM VideoStore v JOIN v.inventory i
WHERE KEY(i).director LIKE '%Hitchcock%'
AND VALUE(i) > 0

67

Expaded JPQL – CASE Expression

UPDATE Employee e
SET e.salary =
CASE e.rating
WHEN 1 THEN e.salary * 1.05
WHEN 2 THEN e.salary * 1.02
ELSE e.salary * 0.95
END

68

Type-safe Criteria API

EntityManager em = …;
CriteriaBuilder cb = em.getCriteriaBuilder();
CriteriaQuery<ResultType> cquery =
cb.createQuery(ResultType.class);
Root<MyEntity> e = cquery.from(MyEntity.class);
Join<MyEntity, RelatedEntity> j = e.join(…);
…
cquery.select(…)
.where(…)
.orderBy(…)
.groupBy(…);

TypedQuery<ResultType> tq = em.createQuery(cquery);
List<ResultType> result = tq.getResultList();

69

Much more ...

• 2nd-level Cache
• @Cacheable on entities
• contain, evict ...
• New locking modes
• PESSIMISTIC_READ – grab shared lock
• PESSIMISTIC_WRITE – grab exclusive lock
• PESSIMISTIC_FORCE_INCREMENT – update version
• Standard configuration options
• javax.persistence.jdbc.[driver | url | user | password]

70

Bean Validation (JSR 303)
• Tier-independent mechanism to define
constraints for data validation
• Represented by annotations
• javax.validation.* package
• Integrated with JSF and JPA
• JSF: f:validateRequired, f:validateRegexp
• JPA: pre-persist, pre-update, and pre-remove
• @NotNull(message=”...”), @Max, @Min,
@Size
• Fully Extensible
• @Email String recipient;

71

Bean Validation
Integration with JPA
• Managed classes may be configured
• Entities, Mapped superclasses, Embeddable classes
• Applied during pre-persist, pre-update, pre-
remove lifecycle events
• How to enable ?
• “validation-mode” in persistence.xml
• “javax.persistence.validation.mode” key in
Persistence.createEntityManagerFactory
• Specific set of classes can be targeted
• javax.persistence.validation.group.pre-[persist|update|
remove]

72

Bean Validation
Integration with JSF

• Individual validators not required
• Integration with EL
• f:validateBean, f:validateRequired
<h:form>
<f:validateBean>
<h:inputText value=”#{model.property}” />
<h:selectOneRadio value=”#{model.radioProperty}” > …
</h:selectOneRadio>

</f:validateBean>
</h:form>

73

JAX-RS 1.1

• Java API for building RESTful Web Services
• POJO based
• Annotation-driven
• Server-side API
• HTTP-centric

74

JAX-RS 1.1
Code Sample - Simple

@Path("helloworld")
public class HelloWorldResource {
@Context UriInfo ui;

@GET
@Produces("text/plain")
public String sayHello() {
return "Hello World";
}

@Path("morning")
public String morning() {
return “Good Morning!”;
}
}

75

JAX-RS 1.1
Code Sample – Specifying Output MIME type

@Path("/helloworld")
@Produces("text/plain")
public class HelloWorldResource {
@GET
public String doGetAsPlainText() {
. . .
}

@GET
@Produces("text/html")
public String doGetAsHtml() {
. . .
} @GET
} @Produces({
"application/xml",
"application/json"})
public String doGetAsXmlOrJson() {
. . .
}

76

JAX-RS 1.1
Code Sample – Specifying Input MIME type

@POST
@Consumes("text/plain")
public String saveMessage() {
. . .
}

77

JAX-RS 1.1
Code Sample

import javax.inject.Inject;
import javax.enterprise.context.RequestScoped;

@RequestScoped
public class ActorResource {
@Inject DatbaseBean db;

public Actor getActor(int id) {
return db.findActorById(id);
}
}

78

JAX-RS 1.1
Code Sample
import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.PathParam;
import javax.inject.Inject;
import javax.enterprise.context.RequestScoped;

@Path("/actor/{id}")
@RequestScoped
public class ActorResource {
@Inject DatbaseBean db;

@GET
@Produces("application/json")
public Actor getActor(@PathParam("id") int id) {
return db.findActorById(id);
}
} http://blogs.sun.com/arungupta/entry/totd_124_using_cdi_jpa

79

JAX-RS 1.1
More Code Samples

• Processing POSTed HTML Form
@POST
@Consumes("application/x-www-form-urlencoded")
public void post(@FormParam("name") String name) {
// Store the message
}

• Sub-Resources
@Singleton
@Path("/printers")
public class PrintersResource {

@GET @Path("/list")
@Produces({"application/json", "application/xml"})
public WebResourceList getListOfPrinters() { ... }

@GET @Path("/ids/{printerid}")
@Produces({"application/json", "application/xml"})
public Printer getPrinter(@PathParam("printerid") String printerId) { ... }

80

JAX-RS 1.1
Integration with Java EE 6 – Servlets 3.0

• No or Portable “web.xml”
<web-app> @ApplicationPath(“resources”)
<servlet>
<servlet-name>Jersey Web Application</servlet-name>public class MyApplication {
<servlet-class> @Override
com.sun.jersey.spi.container.servlet.ServletContainer
</servlet-class>
public Set<Class<?>> getClasses() {
<init-param> return new HashSet<Class<?>(
<param-name>javax.ws.rs.Application</param-name>
Arrays.asList(
<param-value>com.foo.MyApplication</param-value>
</init-param> AResource.class,
</servlet>
AnotherResource.class));
<servlet-mapping>
<servlet-name>Jersey Web Application</servlet-name> }
<url-pattern>/resources/*</url-pattern>
}
</servlet-mapping>
</web-app>

81

JAX-RS 1.1
Integration with Java EE 6 – EJB 3.1

• Use stateless or singleton EJBs in the
WAR as resource and provider classes
@Path(“stateless”)
@Stateless @Singleton
public class MyStatelessRootResource { public class MyStatelessResource {
@Context UriInfo ui; @Context UriInfo ui;

@GET …
public String get() { return “GET”; } }

@EJB MyStatelessResource subResource;

@Path(“sub-resource”)
public MyStatelessResource sub() {
return subResource;
}
}

82

JAX-RS 1.1
Jersey Client-side API

• Consume HTTP-based RESTful Services
• Easy-to-use
• Better than HttpURLConnection!
• Reuses JAX-RS API
• Resources and URI are first-class citizens
• Not part of JAX-RS yet
• com.sun.jersey.api.client

83

JAX-RS 1.1
Jersey Client API – Code Sample

Client client = Client.create();

WebResource resource = client.resource(“...”);

//curl http://example.com/base
String s = resource.get(String.class);

//curl -HAccept:text/plain http://example.com/base
String s = resource.
accept(“text/plain”).
get(String.class);

http://blogs.sun.com/enterprisetechtips/entry/consuming_restful_web_services_with

84

JAX-RS 1.1
Jersey Client API – NetBeans Code Generation

85

JAX-RS 1.1
WADL Representation of Resources

• Machine processable description of
HTTP-based Applications
• Generated OOTB for the application
<application xmlns="http://research.sun.com/wadl/2006/10">
<doc xmlns:jersey="http://jersey.dev.java.net/"
jersey:generatedBy="Jersey: 1.1.4.1 11/24/2009 01:37 AM"/>
<resources base="http://localhost:8080/HelloWADL/resources/">
<resource path="generic">
<method id="getText" name="GET">
<response>
<representation mediaType="text/plain"/>
</response>
</method>
<method id="putText" name="PUT">
<request>
<representation mediaType="text/plain"/>
</request>
</method>
</resource>
</resources>
</application>

86

JAX-RS 1.1
Much more ...

• Jersey is the Reference Implementation,
included in GlassFish
• RESTEasy, Restlet, CXF, Wink
• Hypermedia support (only in Jersey)
• Integration with Spring, Guice, Atom, …
• WADL representation
• Complete, Per resource
• Jersey 1.2 modules are OSGi compliant

87

IDE Support for Java EE 6

88

Books on Java EE

89

http://education.oracle.com/pls/web_prod-plq-dad/db_pages.getlppage?page_id=212&path=SADJ

90

What is GlassFish ?

• A community
• Users, Partners, Testers, Developers, ...
• Started in 2005 on java.net
• Application Server
• Open Source (CDDL & GPL v2)
• Java EE Reference Implementation

91

GlassFish Distributions
Distribution License Features

GlassFish Open Source CDDL & • Java EE 6 Compatibility
Edition 3.0 GPLv2 • No Clustering
• Clustering planned in 3.1
• mod_jk for load balancing

GlassFish Open Source CDDL & • Java EE 5 Compatibility
Edition 2.1.1 GPLv2 • In memory replication
• mod_loadbalancer
Oracle GlassFish Server 3.0 Commercial • GlassFish Open Source Edition 3.0
• GlassFish Server Control Clustering
• Clustering planned in 3.1 Coming
Soon!
Oracle GlassFish Server Commercial • GlassFish Open Source Edition
2.1.1 2.1.1
• Enterprise Manager
• HADB

92

GlassFish 3

• Modular
• Maven 2 – Build & Module description
• Felix – OSGi runtime (200+ bundles)
• Allow any type of Container to be plugged
• Start Container and Services on demand

• Embeddable: runs in-VM
• Extensible
• Rails, Grails, Django, ...
• Administration, Monitoring, Logging, Deployment, ...

http://blogs.sun.com/dochez/entry/glassfish_v3_extensions_part_5

93

GlassFish 3 & OSGi
• No OSGi APIs are used in GlassFish
• HK2 provides abstraction layer
• All GlassFish modules are OSGi bundles
• Felix is default, also runs on Knopflerfish & Equinox
• Can run in an existing shell

http://blogs.sun.com/arungupta/entry/totd_103_glassfish_v3_with

94

Dynamic Languages & Frameworks

http://glassfish-scripting.dev.java.net

95

Demo
NetBeans / Eclipse & Java EE 6

http://blogs.sun.com/arungupta/entry/screencast_27_simple_web_application
http://blogs.sun.com/arungupta/entry/screencast_28_simple_web_application
http://blogs.sun.com/arungupta/entry/screencast_26_develop_run_debug/
http://blogs.sun.com/arungupta/entry/totd_93_getting_started_with/
http://blogs.sun.com/arungupta/entry/totd_94_a_simple_java
http://blogs.sun.com/arungupta/entry/totd_95_ejb_3_1
http://blogs.sun.com/arungupta/entry/totd_102_java_ee_6
http://blogs.sun.com/arungupta/entry/totd_99_creating_a_java

96

Demo
GlassFish 3 Administration

98

Light Weight & On-demand Monitoring

• Event-driven light-weight and non-intrusive
monitoring
• Modules provide domain specific probes
(monitoring events)
• EJB, Web, Connector, JPA, Jersey, Orb, Ruby
• End-to-end monitoring on Solaris using
DTrace
• 3rd party scripting clients
• JavaScript to begin with

99

Demo
GlassFish 3 Monitoring

http://blogs.sun.com/arungupta/entry/totd_104_glassfish_v3_monitoring

100

REST Interface

• REST interface to management and
monitoring data
• Configuration data, commands invocation,
(start/stop instance, deploy, undeploy, ...), CRUD
resources (JMS, JDBC, ...)
•localhost:4848/management/domain
•localhost:4848/monitoring/domain
• GET, POST, DELETE methods
• XML, JSON, HTML reps

101

Demo
GlassFish 3 REST Interface

http://blogs.sun.com/arungupta/entry/totd_113_javafx_front_end
http://blogs.sun.com/arungupta/entry/totd_116_glassfish_v3_administration

102

Boost your productivity
Retain session across deployment
asadmin redeploy –properties keepSessions=true helloworld.war

103

Boost your productivity
Deploy-on-Save

104

Books on GlassFish

105

GlassFish 3 Performance

http://weblogs.java.net/blog/sdo/archive/2009/12/08/first-look-v3-performance

106

GlassFish 3 Performance

http://weblogs.java.net/blog/sdo/archive/2009/12/08/first-look-v3-performance

107

GlassFish 3.1
• Main Features
• Clustering and Centralized Administration
• High Availability
• Other ...
• Application Versioning
• Embedded (extensive)
• Admin Console based on RESTful API

108

GlassFish Roadmap

• Oracle committed to GlassFish community
• No changes to the operation of GlassFish OSS
• Remains transparent and participatory
• GlassFish strengthened by Oracle stewardship
• Oracle wants to grow the community
• Customer and community driven roadmap

http://glassfish.org/roadmap

109

Fusion Middleware Integration Strategy
• Commercial version will have
integrations with Fusion Middleware
• Certification on JRockit
• Integration with Coherence and TopLink
• Fusion Middleware and Fusion
Applications currently not planned to be
certified on GlassFish
• Initial integrations will be interoperability
• Web services, Web services policy, Identity
Management (OAM)

111

References

• glassfish.org
• blogs.sun.com/theaquarium
• oracle.com/goto/glassfish
• glassfish.org/roadmap
• Follow @glassfish

112

Java EE 6 & GlassFish 3

More Related Content

What's hot (19)

Viewers also liked (18)

Similar to Java EE 6 & GlassFish 3 (20)

More from Arun Gupta (20)

Recently uploaded (20)

Java EE 6 & GlassFish 3
