JavaOne 2014 - Securing RESTful Resources with OAuth2
34 likes18,099 views
The document discusses securing RESTful resources using OAuth2, highlighting its importance for application data access without credential sharing. It covers key concepts like grant types, tokens, and Java implementations, emphasizing OAuth2's security benefits and its architecture's vulnerabilities. The presentation outlines various OAuth2 roles, flow, and pros and cons while providing examples of Java frameworks that support OAuth2 integration.
JavaOne 2014 - Securing RESTful Resources with OAuth2
- 1. Securing RESTful Resources with OAuth2 Rodrigo Cândido da Silva @rcandidosilva JavaOne 2014 CON4990
- 2. About Me • Brazilian guy ;) • Software Architect • Java Platform • Work for Integritas Tech • http://integritastech.com • JUG Leader of GUJavaSC • http://gujavasc.org • Twitter • @rcandidosilva • Personal • http://rodrigocandido.me
- 3. Agenda • Why use OAuth2? • OAuth2 concepts • Grant types • OAuth2 Tokens • Java Implementations • Demo
- 4. Public Web Service API’s
- 5. Security Closed Closed Open Authentication Authorization
- 6. Securing APIs • Securing resources strategies • Basic Auth (HTTP Basic) • Sending user credentials in http authentication header • Mutual Authentication (HTTP Digest) • Based on certificates, server authenticate to client, client to server • RESTful architecture not defines security procedures • HTTP methods: GET, POST, PUT, DELETE • REST API’s are equal vulnerable as standard web apps • Injection attacks, replay attacks, cross-site scripting, etc.
- 8. With OAuth
- 9. Why OAuth • Open standard protocol specification defined by IETF • Enables applications to access each other’s data without sharing credentials • Avoid password issues • User and password authentication is fine, but what if your API needs to be used by other apps? • Required for delegating access • Third party applications • For specified resource • For limited time • Can be selectively be revoked
- 10. Who is using OAuth
- 11. OAuth Timeline • OAuth 1.0 • Core specification published in Dec 2007 • OAuth 1.0a • Revised specification published in June 2009 • Related to fix a security issue • OAuth 2.0 • Standardized since Oct-2012 • Be more secure, simple, and standard • Additional RFCs are still being worked on
- 12. OAuth2 • No username or passwords (only tokens) • Protocol for authorization – not authentication • Delegated model • Fix the password anti-pattern • Trust relationship between resource, identity server and client app • Goal was simplicity • Relies heavily on TLS/SSL • Not backwards compatible • Easily to revoke
- 13. OAuth2 Roles • Resource Owner • Entity capable of granting access to a protected resource • Client Application • Application making protected resource requests on behalf of the resource owner • Resource Server • The server hosting the protected resources • Authorization Server • The server issuing access tokens to the clients
- 15. OAuth2 Grant Types • Authorization Code (web apps) • Optimized for confidential clients • Uses a authorization code from the server • Implicit (browser-based and mobile apps) • Optimized for script heavy web apps • User can see the access token • Resource Owner Password Credentials (user / password) • Used in cases where the user trusts the client • Exposes user credentials to the client • Client Credentials (application) • Clients gets an access token based on client credentials only
- 17. Implicit
- 18. Resource Owner Password Credentials
- 20. OAuth2 Tokens • Types • Bearer • Large random token • Need SSL to protect it in transit • Server needs to store it securely hashed like a user password • Mac • Uses a nonce to prevent replay • Does not required SSL • OAuth 1.0 only supported • Access Token • Short-lived token • Refresh Token • Long-lived token { "access_token":"2YotnFZFEjr1zCsicMWpAA", "token_type":“bearer", "expires_in":3600, "refresh_token":"tGzv3JOkF0XG5Qx2TlKWIA", }
- 21. OAuth2 Pros & Cons • Pros • Integration of third party apps to any sites • Access can be granted for limited scope or duration • No need for users to give password on third party site • Cons • Writing an authorization server is somewhat complex • Interoperability issues • Bad implementations can be security issues
- 22. OAuth2 Java Implementations • Some Java implementations available • Jersey • Apache Oltu • Spring Security OAuth2 • And others: CXF, Google OAuth2 API, etc • Not available as Java EE standard yet
- 23. Jersey • Open source RESTful Web services framework • The JAX-RS reference implementation • Integrates with the Java EE standard security • @RolesAllowed • @PermitAll • @DenyAll • Supports entity filtering features • @EntityFiltering • Only supports OAuth2 at client side :/
- 24. Jersey Java EE security integration @Path("restricted-resource") @Produces("application/json") public class RestrictedResource { @GET @Path(”denyAll") @DenyAll public RestrictedEntity denyAll() { ... } @GET @Path("rolesAllowed") @RolesAllowed({"manager"}) public RestrictedEntity rolesAllowed() { ... } }

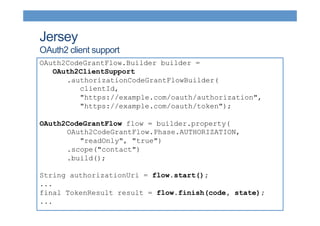

- 25. Jersey OAuth2 client support OAuth2CodeGrantFlow.Builder builder = OAuth2ClientSupport .authorizationCodeGrantFlowBuilder( clientId, "https://example.com/oauth/authorization", "https://example.com/oauth/token"); OAuth2CodeGrantFlow flow = builder.property( OAuth2CodeGrantFlow.Phase.AUTHORIZATION, "readOnly", "true") .scope("contact") .build(); String authorizationUri = flow.start(); ... final TokenResult result = flow.finish(code, state); ...
- 26. Apache Oltu • Apache OAuth protocol implementation • It also covers others related implementations • JSON Web Token (JWT) • JSON Web Signature (JWS) • OpenID Connect • Supports the full OAuth2 features • Authorization Server • Resource Server • Client • Provides predefined OAuth2 client types • Facebook, Foursquare, Github, Google, etc • Still being improved…
- 27. Apache Oltu Authorization endpoint protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { //dynamically recognize an OAuth profile and perform validation OAuthAuthzRequest oauthRequest = new OAuthAuthzRequest(request); validateRedirectionURI(oauthRequest) //build OAuth response OAuthResponse resp = OAuthASResponse .authorizationResponse(HttpServletResponse.SC_FOUND) .setCode(oauthIssuerImpl.authorizationCode()) .location(ex.getRedirectUri()) .buildQueryMessage(); response.sendRedirect(resp.getLocationUri()); }
- 28. Apache Oltu Token endpoint protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { OAuthIssuer oauthIssuerImpl = new OAuthIssuerImpl(new MD5Generator()); OAuthTokenRequest oauthRequest = new OAuthTokenRequest(request); validateClient(oauthRequest); String authzCode = oauthRequest.getCode(); String accessToken = oauthIssuerImpl.accessToken(); String refreshToken = oauthIssuerImpl.refreshToken(); OAuthResponse r = OAuthASResponse(...); }
- 29. Apache Oltu Protecting the resources protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { // Make the OAuth Request and validate it OAuthAccessResourceRequest oauthRequest = new OAuthAccessResourceRequest(request, ParameterStyle.BODY); // Get the access token String accessToken = oauthRequest.getAccessToken(); //... validate access token }
- 30. Apache Oltu OAuth2 client OAuthClientRequest request = OAuthClientRequest .tokenProvider(OAuthProviderType.FACEBOOK) .setGrantType(GrantType.AUTHORIZATION_CODE) .setClientId("your-facebook-application-client-id") .setClientSecret("your-facebook-application-client-secret") .setRedirectURI("http://www.example.com/redirect") .setCode(code) .buildQueryMessage(); //create OAuth client that uses custom http client under the hood OAuthClient oAuthClient = new OAuthClient(new URLConnectionClient()); OAuthAccessTokenResponse oAuthResponse = oAuthClient.accessToken(request); String accessToken = oAuthResponse.getAccessToken(); String expiresIn = oAuthResponse.getExpiresIn();
- 31. Spring Security OAuth • Provides OAuth (1a) and OAuth2 support • Implements 4 types of authorization grants • Supports the OAuth2 full features • Authorization Server • Resources Server • Client • Good integration with JAX-RS and Spring MVC • Configuration using annotation support • Integrates with the Spring ecosystem
- 32. Spring Authorization Server • @EnableAuthorizationServer • Annotation used to configure OAuth2 authorization server • There is also XML configuration related <authorization-server/> • ClientDetailsServiceConfigurer • Defines the client details service • In-memory or JDBC implementation • AuthorizationServerTokenServices • Operations to manage OAuth2 tokens • Tokens in-memory, JDBC or JSON Web Token (JWT) • AuthorizationServerEndpointConfigurer • Grant types supported by the server • All grant types are supported except password types
- 33. Spring Resource Server • Can be the same as Authorization Server • Or deployed in a separate application • Provides a authentication filter for web protection • @EnableResourceServer • Annotation used to configure OAuth2 resource server • There is also XML configuration related <resource-server/> • Supports expression-based access control • #oauth2.clientHasRole • #oauth2.clientHasAnyRole • #oauth2.denyClient
- 34. Spring OAuth2 Client • Creates a filter to store the current request and context • Manages the redirection to and from the OAuth authentication URI • @EnableOAuth2Client • Annotation used to configure OAuth2 client • There is also XML configuration related <client/> • OAuth2RestTemplate • Wrapper client object to access the resources
- 35. Demo • OAuth2 Use Case • Conference application sharing resources with different clients • http://github.com/rcandidosilva/rest-oauth2-sample
- 36. Questions ?
- 37. References • http://oauth.net/2/ • http://tools.ietf.org/html/rfc6749 • http://projects.spring.io/spring-security-oauth/ • https://github.com/spring-projects/spring-security-oauth • http://cxf.apache.org/docs/jax-rs-oauth2.html • https://jersey.java.net/documentation/latest/security.html#d0e10940 • https://oltu.apache.org
- 38. Thank you! @rcandidosilva rodrigocandido.me
