This document covers the creation of visually appealing, fast, and smooth Java client applications using JavaFX, highlighting features like FXML for user interface design, a comprehensive set of UI controls, and advanced event handling. It provides examples of JavaFX components, event handling structures, and CSS styling for user interfaces, demonstrating how to effectively use JavaFX for application development. The content is geared toward offering training and resources for utilizing Java's capabilities in building modern applications.
![javafx.application.Application
public class HelloJavaFX extends Application {
Top level container
@Override
public void start(Stage stage) {
Root container
BorderPane root = new BorderPane();
Button btn = new Button("Hello JavaFX!");
root.setCenter(btn);
}
}
Place Button
Scene scene = new Scene(root, 300, 250);
stage.setScene(scene);
stage.show();
public static void main(String[] args) {
launch(args);
}
Run...](https://image.slidesharecdn.com/jcd2012lccfinal-140116082404-phpapp02/85/JCD-2012-JavaFX-2-34-320.jpg)
JCD 2012 JavaFX 2
- 6. Java EE JavaFX Java SE Java ME Java Card JVM Java ME VM Card VM Java Programming Language
- 7. • Java language features • FXML for defining user interfaces • New graphics pipeline for modern GPUs • Rich set of UI controls • Powerful Properties Model • Swing and AWT Interoperability
- 8. JavaFX Public APIs and Scene Graph Quantum Toolkit Prism Java 2D Open GL 3D Glass Windowing Toolkit Media Engine Web Engine
- 9. • Over 50+ components • CSS skinning and layout • Advanced UI controls
- 24. Animation
- 28. Belgium Antwerp
- 31. FXML

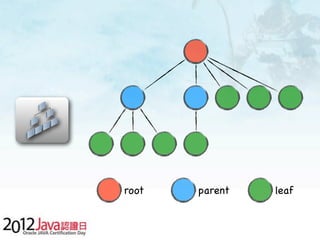

- 33. root parent leaf
- 34. javafx.application.Application public class HelloJavaFX extends Application { Top level container @Override public void start(Stage stage) { Root container BorderPane root = new BorderPane(); Button btn = new Button("Hello JavaFX!"); root.setCenter(btn); } } Place Button Scene scene = new Scene(root, 300, 250); stage.setScene(scene); stage.show(); public static void main(String[] args) { launch(args); } Run...
- 35. • Region & Pane • AnchorPane • BorderPane • FlowPane & TilePane • GridPane • VBox & HBox • StackPane
- 37. • All new event structure and Handler • Working with convenience methods • Support Multi-Touch
- 39. listener? Button btn = new Button("Hello JavaFX!"); Generic Event type Register btn.setOnAction(new EventHandler<ActionEvent>() { @Override public void handle(ActionEvent event) { /* Do something */ Generic Event type } }); Override
- 40. final Circle circle = new Circle(radius, Color.RED); circle.setOnMouseEntered(new EventHandler<MouseEvent>() { public void handle(MouseEvent me) { /* Do something */ } }); circle.setOnMouseExited(new EventHandler<MouseEvent>() { public void handle(MouseEvent me) { /* Do something */ } }); circle.setOnMousePressed(new EventHandler<MouseEvent>() { public void handle(MouseEvent me) { /* Do something */ } }); handle EventHandler
- 41. final Ellipse oval = new Ellipse(100, 50); oval.setOnZoom(new EventHandler<ZoomEvent>() {...}); oval.setOnScroll(new EventHandler<ScrollEvent>() {...}); oval.setOnRotate(new EventHandler<RotateEvent>() {...});
- 42. • JavaBean Component architecture • Expanded JavaBean properties • In conjunction with Binding
- 43. Label mile = new Label(); KM to mile double kmValue = 32.5; double mileValue = kmValue * 0.621371192; String mileText = Double.toString(kmValue); mile.setText(mileText); Set Label text Double to String
- 44. KM Property Object DoubleProperty kmPro = new SimpleDoubleProperty(); Label mile = new Label(); StringBinding Object, hold KM to mile value StringBinding mileBinding = kmPro.multiply(0.621371192).asString(); mile.textProperty().bind(mileBinding); ... Bind mile value to Text Property kmPro.set(32.5); Change KM Property value
- 45. DoubleProperty kmPro = new SimpleDoubleProperty(); Label mile = new Label(); Extends Binding Class StringBinding mileBinding = new StringBinding() { { Binding Property super.bind(kmPro); } Override computeValue method @Override protected String computeValue() { return Double.toString(kmPro.get() * 0.621371192); } Produce value here }; mile.textProperty().bind(mileBinding); ... kmPro.set(32.5);
- 48. Login.css .root { -‐fx-‐background-‐image: url("background.jpg"); } .label { ... } #welcome-‐text { ... } #ac@ontarget { ... } .buAon { ... } .buAon:hover { ... }
- 49. Scene scene = new Scene(grid, 300, 275); scene.getStylesheets().add("login/Login.css"); Text scenetitle = new Text("Welcome"); scenetitle.setId("welcome-text"); Text actiontarget = new Text(); actiontarget.setId("actiontarget"); Login.css .root { -‐fx-‐background-‐image: url("background.jpg"); } .label { ... } #welcome-‐text { ... } #ac,ontarget { ... } .buAon { ... } .buAon:hover { ... }
- 50. FXML • XML-based language • Separate UI from your code • Support localize • Support any JVM language
- 51. BorderPane border = new BorderPane(); Label topPaneText = new Label("Label - TOP"); border.setTop(topPaneText); Button centerPaneButton = new Button("Button - CENTER"); border.setCenter(centerPaneButton);
- 52. FXML <BorderPane> <top> <Label text="Label - TOP"/> </top> <center> <Button text="Button - CENTER"/> </center> </BorderPane>
- 53. Parent root = FXMLLoader.load(getClass().getResource("Sample.fxml")); Scene scene = new Scene(root); stage.setScene(scene); stage.show(); Sample.fxml <BorderPane> <top> <Label text="Label - TOP"/> </top> <center> <Button text="Button - CENTER"/> </center> </BorderPane>
- 54. Sample.fxml <BorderPane fx:controller="SampleController" > <top> <Label text="Label - TOP" fx:id="label" /> </top> <center> <Button text="Button - CENTER" fx:id="button" onAction="#handleButtonAction"/> </center> </BorderPane> ... public class SampleController implements Initializable { @FXML private Label label; @FXML private Button button; SampleController.java @FXML private void handleButtonAction(ActionEvent event) { button.setText("Button Pressed!"); label.setText("Button Pressed!"); } ... }
- 55. • UI Layout Tool • FXML Visual Editor • Integrated Developer Workflow • Preview Your Work • CSS support
- 59. 59
