Jiro is a management framework that was standardized by Sun Microsystems and the Java Community Process. It introduces a middle tier of management that separates control logic from data paths to automate management across distributed systems. Jiro divides the management environment into domains with shared and private management servers and defines base services like transactions, logging, and events that are available to all services in a domain. It also supports dynamic services through FederatedBeans components that can be developed and reused to manage different resources.
Jiro technology

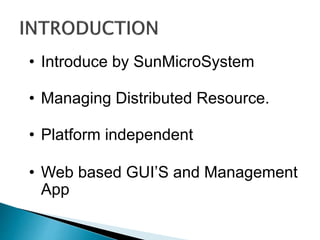

- 2. • Introduce by SunMicroSystem • Managing Distributed Resource. • Platform independent • Web based GUI’S and Management App
- 3. Jiro is a Management Framework infrastructure based on a distributed runtime environment. It was standardized as JSR 9 by the Java Community Process.
- 4. • Integrated and Automated Management Software. • A standard extension to the Java platform, is specified by the Federated Management Architecture (FMA). • Jiro goes further than just platform independence, however, and introduces Jini- connection technology for distributed management across a network.
- 5. Jiro divides a management environment into domains. Each domain only a shared management server (a Java Virtual Machine running Jiro services) that represents the domain as a whole.
- 6. MANAGEMENT CONSOLE STATIC MANAGEMENT SERVICES DYNAMIC MANAGEMENT SERVICES JIRO TECHNOLOGY CIM DEVICES SNMP DEVICES OTHER DEVICES Distributed Management logic layer

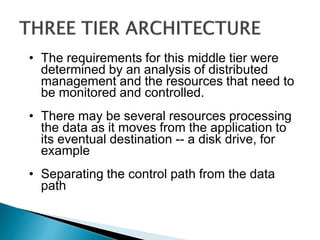

- 7. • The requirements for this middle tier were determined by an analysis of distributed management and the resources that need to be monitored and controlled. • There may be several resources processing the data as it moves from the application to its eventual destination -- a disk drive, for example • Separating the control path from the data path
- 8. Jiro introduces a middle tier of management between the client/GUI and other Java-based agent technologies such as JMX and JDMK. This middle tier is where the automation of management take place.
- 9. • Partition the Management environment • private management servers can host management services that are specific to their hosts • The servers (including the shared server) can be replicated to achieve higher availability. • These servers form an intra domain federation for the management domain. The shared management servers can also communicate with each other.
- 11. • known as FederatedBeans base services -- are a guaranteed part of the environment in a management domain. The base services include transaction, controller, logging, events, and scheduling. • They are available for use by the clients and services belonging to a management domain, and do not depend on the dynamic services model. • There is only one of each type of service available in each management domain.
- 12. • These base services are located with the ServiceFinder convenience class, as shown below: public final class ServiceFinder { private ServiceFinder() {} public static TransactionManager getTransactionService() throws ServiceNotFoundException; public static ControllerService getControllerService() throws ServiceNotFoundException; public static LogService getLogService() throws ServiceNotFoundException; public static EventService getEventService() throws ServiceNotFoundException; public static SchedulingService getSchedulingService() throws ServiceNotFoundException; ...}
- 13. • The Transaction service is a Jini transaction manager serving a particular management domain. • The Controller service provides for the reservation of ownership within the management domain. • Management software can use the Log service to log decisions and state changes, as well as to maintain audit trails. • The Event service provides a set of topics to which management services can post and listen. This allows management services to react to both changing conditions in the environment and decisions that other management services have made. • The Scheduling service allows a management service to perform periodic or scheduled operations, such as polling.
- 14. • The FederatedBeans dynamic services model extends Java's Remote Method Invocation (RMI) to support the higher level of abstraction appropriate for management application. • Additional management capabilities (security, transaction, controller) that can be added to any Jiro-based component • Transactional persistence • Remote class method (procedural) invocations • Remote object instantiation
- 15. •The first set of Jiro components that need to be developed for these situations are called Management Facades. •The resource vendor typically develops the Management Facades for its products that enable the products to be managed by Jiro -based software. •FederatedBeans components will typically use a standard protocol, such as SNMP, to talk to the resource (in the case of a device or system) or native library (in the case of software). •We'll create two FederatedBeans components for this example. The first component maintains a pool of spare disks that can be used for multiple applications and hosts in the storage network.
- 16. •The second FederatedBeans component will monitor file system utilization and try to predict when the file system will run out of space. •It accesses usage information from the filesystem's Management Facade and tracks its usage over time. After predicting an out-of-space condition based on the history of past usage, it then calls the Storage Pool Bean to get a disk from its pool. •When the Storage Pool Bean gets the request for the disk, it calls the switch's Management Facade to change the zone of the newly allocated disk to that of the host
- 17. • Jiro makes possible software that can increase availability and help reduce the cost and complexity of management. • The new paradigm for management software is multiple-vendor creation and reuse of these FederatedBeans components.
