International Journal of Engineering Science Invention
ISSN (Online): 2319 – 6734, ISSN (Print): 2319 – 6726
www.ijesi.org Volume 2 Issue 6 ǁ June. 2013 ǁ PP.63-71
www.ijesi.org 63 | Page
Performance and Emissions Evaluation of Diesel Engine with
Pre-Heated Bio Diesel
1
R.B.V.Murali, 2
Y.V.Hanumantha Rao, 3
K.Venkateswarlu, 4
V.Ranjith Kumar
(1
M.Tech Student, Mechanical Engineering Department, KL University, Vijayawada.)
(2
Professor, Head of the Department, Mechanical Engineering, KL University, Vijayawada).
(3
Associate Professor, Mechanical Engineering Department, KL University, Vijayawada.)
(4
Assistant Professor, Mechanical Engineering Department, KL University, Vijayawada.)
ABSTRACT: In this present work the performance and emission evaluation of diesel engine, with various
samples of bio diesel is considered. Bio-diesel is taken in pre-Heated condition and is injected into the
combustion chamber. The pre-heated condition increases the temperature of biodiesel. We evaluate the
performance and combustion parameters in terms of BP,IP, BMEP,BSEC, IMEP, MFC, heat balance, heat
release ,CO,NOX, cylinder pressure at various crank angles and volume. And the process is done at various
loads.
KEYWORDS: Bio-Diesel, Pre-Heating, Crank angle and emissions etc.
I. INTRODUCTION
The highly increasing trend of oil price especially in year 2013 has had a great impact on both the
agricultural and industrial sectors because of the higher cost of production. The tremendous loss of foreign
exchange through the import of petroleum products has caused the government and private sector to consider
new sources of energy to substitute for the expensive petroleum products. Using biodiesel is an alternative to
diesel fuel, which will improve the environment, reduce foreign imports and increase the use of renewable fuels.
It can be produced from various vegetable and/or animal oils with methanol or ethanol, yielding methyl or ethyl
ester – or biodiesel – with glycerol as the by-product. The production of biodiesel entails emissions to the
environment such as fertilizers and herbicides during plantation and emissions from fuel use during oil
extraction, transportation, etc. Hence, the environmental implications of biodiesel production need to be
addressed. Life from raw material extraction through production, to use and disposal. Evaluation of Biodiesel
Production from Palm Oil in a Life Cycle Perspective. Estimating assessing the environmental impacts
attributable to the life cycle a product, such as climate change, stratospheric ozone depletion, photochemical
ozone (smog) creation, eutrophication, acidification, toxicological stress on human health and ecosystems, the
depletion of resources, water use and others. The emissions and consumption of resources, as well as other
environmental exchanges at every relevant stage (phase) in a product’s life cycle are compiled. After the
compilation and preliminary analysis of all environmental exchanges (emissions, resource, consumptions, etc.),
it is often necessary to calculate, as well as to interpret, indicators of the potential impacts associated with such
exchanges with the natural environment.
II. ENGINE AND EXPERIMENTAL SETUP
2.1. Description of the Test Rig:
The setup consists of single cylinder, four strokes, water-cooled diesel engine coupled to eddy current
dynamometer with the help of flexible rubber coupling is mounted on a centrally balanced base frame made of
ms channels. The set up has stand alone fully powder coated panel box consisting of air box, fuel tank,
manometer, fuel measuring unit digital indicators and transmitter for measuring various parameters. It is also
provided with necessary sensors with transmitters for combustion pressure and crank angle measurements. All
these signals are interfaced to computer through signal conditioner and signal converter for computerization.
The engine is arranged with pre heated setup with thermo stator arrangement, as the process is fully arranged
with computerized setup. As the thermo stator is arranged it automatically prefixes the inlet temperature of bio-
diesel entering into engine.

Performance and emissions evaluation of diesel…
Fig: 2.1: Experimental Setup of Preheating
2.2. Test rig specification:
 ENGINE: 4 stroke 1 cylinder water cooled diesel engine
 Make: kirloskar
 Rated power: 3.7KW (5HP)
 Bore diameter: 80mm
 Stroke length: 110mm
 Connecting rod length: 234mm
 Swept volume: 562cc
 Compression ratio:16.5:1
 Rated speed: 1500 rpm
 DYNAMOMETER: eddy current dynamometer
 Make: POWER MAG
 Rated torque:2.4kg-m
 Arm length: 150mm
2.3. Test rig constants:
 Orifice diameter: 20mm
 Density of air: 1.193kg/
 Density of water: 1000kg/
 Density of diesel: .82 gram/cc
 CV of diesel: 44500kJ/kg
 Value of Cd: 0.62
 Value of “CP” for water: 4.18KJ/kg k
2.3. Preheating set up:
This Pre-heating set up is maintained at constant temperature of 55o
C water bath and the blends
entering into the combustion chamber is at 45o
C. This is maintained at all the load conditions and for all the
blends. This Pre-Heated set up is having Thermostat in order to regulate the temperature.
Fig: 2.3.Preparation of preheating setup

2.4. Dissolved Oxygen & Properties:
Dissolved oxygen is measured for 200ml of biodiesel; at room temperature of 27o
c.And it is taken at a
pressure of 760mm of Hg.There are some standard inputs like value of distilled water is 6.4 ppm.In this process
Dissolved oxygen measurer probe is taken. The Probe is filled with 0.1% concentrated KOH solution inside the
apparatus. And the apparatus should in wet condition before calibrating the values.
Fig: 2.4.Dissolve oxygen Probe
2.5. Working Procedure:
Palm sterin Bio diesel is taken in a glass jar of 200ml and is freely left into the atmosphere, at room
temperature.
KOH filled probe is dipped into the glass jar.
1. The Probe is left for few minutes. All the particles are allowed to settle down
2. The Readings are calibrated.
Palm sterin biodiesel the dissolved oxygen levels will vary as shown in the Table.

III. RESULTS AND DISCUSSION
In this study four stroke single cylinder water cooled naturally aspirated stationary Diesel engine
characteristics are investigated using palm sterin oil and its blends under pre heated condition. The obtained
results were compared with standard base line petroleum diesel. The tests were conducted on engine at
1/4.,1/2,3/4,full load and this section highlights the performance characteristics such as
BSFC,BTHE,IMEP,EGT,Mechanical effiency and combustion characteristics such as burnt, peak pressure, heat
release, cumulative heat release. The load variations and other blends are taken at Pre heated condition at
constant temperature which is taken in a water bath of heated condition.
3.1. Comparisons of BSFC and Load:
Graph: 3.1.Comparisons of BSFC and Load
Generally BSFC gradually decreases with increasing load due to increase in break power. It is even
applicable to various blends .As the percentage of bio diesel in blend increases the calorific value of fuel
decreases and kinematic viscosity of fuel increases so break specific fuel consumption decreases. While coming
to the case of B10, B20, B30and B100 the viscosity of pure diesel is less so BSFC is more.
3.2. Comparisons of Break Thermal Efficiency and Load:
Brake thermal efficiency increase with increasing load for all fuels even for bio diesel blends, however
Brake thermal efficiency of bio diesel blends is less compared to diesel at all loads. This is due the reason that
BP and MFC of fuel is less when compared to diesel because they are oxygenated fuels so they result in
effective combustion. Viscosity of fuel is an important factor, even though all blends are same in composition
viscosity of fuel is less for pure diesel than that of B100i.e pre heating of fuel leads to effective flow resulting in
increasing of brake thermal efficiency.

3.3. Comparisons of IMEP and load:
IMEP was found to be increasing with increasing loads for all fuels .IMEP was found to be more for
bio diesels because of effective combustion of fuel when compared to diesel. Imep is always high at all the pre
heating conditions.
3.4. Comparisons of mechanical efficiency and load:
Graph: 3.4.Comparisons of mechanical efficiency and load
Mechanical effiency was found to be increasing with increasing loads for all fuels .Mechanical effiency
was found to be similar for bio diesels because of effective combustion of fuel when compared to diesel.
Mechanical effiency is always same at all the pre heating conditions because the load on the engine and the heat
release during combustion is same at combustion reaction.
3.5. Comparisons of EGT and load:
Graph: 3.5.Comparisons of EGT and load

Generally fuel consumption also increases with increasing load i.e increasing fuel consumption leads to
emission of more un combustible products leading to increase in exhaust temperature In case of bio diesel
blends EGT increased with increased load.
3.6.Comparisons of MSFC and load:
Graph: 3.6.Comparisons of MSFC and load:
Fuel consumption of fuel increase with increasing load for all the fuels. As MSFC is directly
proportional to viscosity of fuel the fuel consumption showed the trend of increasing fuel consumption with
increasing composition of Palm sterin biodiesel blends.
3.7. Exhaust emissions of CO and NOX:
Graph: 3.7.Exhaust emissions of CO
Graph: 3.7.Exhaust emissions of NOx
The exhaust emissions of CO and Nox emissions are slowly gradually decreasing as the combustion
rate of the fuel is used in the combustion chamber. In this Palm sterin biodiesel the decrease of emissions is
observed.

3.8. Comparisons of Heat carried away and load:
Graph: 3.8.Comparisons of Heat carried away and load:
Graph:3.8.Comparisons of Unaccounted Heat carried away and load:
Energy supplied to engine is heat value of fuel consumed is heat value of fuel consumed. As it is
known that of the energy produced only a part is transformed in to useful work and rest is wasted.
However it may be stated that some amount of frictional power is accounted in raise of cooling water
temperature and lubricating oil temperature, so FP is taken in to account to show that frictional losses also
include blow down and pumping losses so it is not appropriate to show them in heat balance sheet so they are
termed as un accounted losses.
3.9. Combustion Graphs:
The Below four graphs represents the cumulative heat release rate vs. crank angle for B10,B20,B30 and
B100 since it is a cumulative heat release, the graph showed a progressive increase in heat release.
3.9.1. Comparison of heat release and crank angle:
Graph: 3.9.1.Comparison of heat release and crank angle at B10

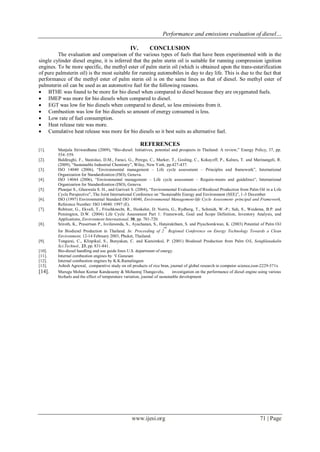

IV. CONCLUSION
The evaluation and comparison of the various types of fuels that have been experimented with in the
single cylinder diesel engine, it is inferred that the palm sterin oil is suitable for running compression ignition
engines. To be more specific, the methyl ester of palm sterin oil (which is obtained upon the trans-esterification
of pure palmsterin oil) is the most suitable for running automobiles in day to day life. This is due to the fact that
performance of the methyl ester of palm sterin oil is on the same lines as that of diesel. So methyl ester of
palmsterin oil can be used as an automotive fuel for the following reasons.
 BTHE was found to be more for bio diesel when compared to diesel because they are oxygenated fuels.
 IMEP was more for bio diesels when compared to diesel.
 EGT was low for bio diesels when compared to diesel, so less emissions from it.
 Combustion was low for bio diesels so amount of energy consumed is less.
 Low rate of fuel consumption.
 Heat release rate was more.
 Cumulative heat release was more for bio diesels so it best suits as alternative fuel.
REFERENCES
[1]. Manjula Siriwardhana (2009), “Bio-diesel: Initiatives, potential and prospects in Thailand: A review,” Energy Policy, 37, pp.
554–559.
[2]. Baldiraghi, F., Stanislao, D.M., Faraci, G., Perego, C., Marker, T., Gosling, C., Kokayeff, P., Kalnes, T. and Marinangeli, R.
(2009), “Sustainable Industrial Chemistry”, Wiley, New York, pp.427-437.
[3]. ISO 14040 (2006), “Environmental management – Life cycle assessment – Principles and framework”, International
Organization for Standardization (ISO), Geneva.
[4]. ISO 14044 (2006), “Environmental management – Life cycle assessment – Require-ments and guidelines”, International
Organization for Standardization (ISO), Geneva.
[5]. Pleanjai S., Gheewala S. H., and Garivait S. (2004), “Environmental Evaluation of Biodiesel Production from Palm Oil in a Life
Cycle Perspective”, The Joint International Conference on “Sustainable Energy and Environment (SEE)”, 1-3 December
[6]. ISO (1997) Environmental Standard ISO 14040, Environmental Management-life Cycle Assessment- principal and Framework,
Reference Number: ISO 14040: 1997 (E).
[7]. Rebitzer, G., Ekvall, T., Frischknecht, R., Hunkeler, D. Norris, G., Rydberg, T., Schmidt, W.-P.; Suh, S., Weidema, B.P. and
Pennington, D.W. (2004) Life Cycle Assessment Part 1: Framework, Goal and Scope Definition, Inventory Analysis, and
Applications, Environment International, 30, pp. 701-720.
[8]. Sriroth, K., Prasertsan P., Isvilanonda, S., Ayachanan, S., Hatairaktham, S. and Piyachomkwan, K. (2003) Potential of Palm Oil
for Biodiesel Production in Thailand. In: Proceeding of 2
nd
Regional Conference on Energy Technology Towards a Clean
Environment, 12-14 February 2003, Phuket, Thailand.
[9]. Tongurai, C., Klinpikul, S., Bunyakan, C. and Kiatsimkul, P. (2001) Biodiesel Production from Palm Oil, Songklanakalin
Sci.Technol., 23, pp. 831-841.
[10]. Bio-diesel handling and use guide lines U.S. department of energy.
[11]. Internal combustion engines by V.Ganesan
[12]. Internal combustion engines by K.K.Ramalingam
[13]. Ashish Agrawal, comparative study on oil products of rice bran, journal of global research in computer science,issn-2229-371x
[14]. Murugu Mohan Kumar Kandasamy & Mohanraj Thangavelu, investigation on the performance of diesel engine using various
biofuels and the effect of temperature variation, journal of sustainable development
