Lect_01_Intro.ppt

EE895KR
Advanced VLSI Design
Kaushik Roy
Purdue University
Dept. of ECE
kaushik@purdue.edu

2
Course Overview
• Targeted for graduate students who have
already taken basic VLSI design classes
• Real world challenges and solutions in
designing high-performance and low-power
circuits
• Relations to VLSI Design
– Recent developments in digital IC design
– Project oriented
– Student participation: class presentation

3
Prerequisite
• MOS VLSI Design or equivalent
– MOS transistor
– Static, dynamic logic
– Adder
• Familiarity with VLSI CAD tools
– Magic or Cadence: LVS, DRC
– HSPICE
• Basic knowledge on solid-state physics

4
Class Materials
• Lecture notes: primary reference
• K. Roy, S. Prasad, Low Power CMOS VLSI
Circuit Design, John Wiley
• A. Chandrakasan, W. Bowhill, F. Fox, Design of
High-Performance Microprocessor Circuits,
IEEE Press, 2001.
• Y. Taur, T. Ning, Fundamentals of Modern VLSI
Devices, Cambridge University Press, 2002.
• J. Rabaey, A. Chandrakasan, B. Nikolic, Digital
Integrated Circuits: A Design Perspective,
Prentice Hall, 2nd edition, 2003. (prerequisite)

5
Class Organization
• One exam (40% of overall grade)
• Term-long project (60%)
– Proposal (5%)
– Midterm presentation (15%) – background
material and proposed work
– Final presentation (20%)
– Final report (20%)

6
CAD Tools
• Cadence
– Schematic editor, layout editor, DRC, LVS
• HSPICE, awaves
• Technology files
– TSMC 0.18μm, BPTM 70nm, …
• Synopsys design compiler, library compiler
• Taurus-device, Taurus-medici
• Everyone should have some experience with
these tools

7
Term Project
• Single person project
• Proposal (~week 3)
– 2 pages
– Topic, problem statement, research plan, references
• Midterm presentation (~week 7)
– 15 mins
– Literature survey
– Off campus students can give presentations over the
phone
• Final presentation (early December)
– 20 mins
– Background, final results, contributions
• Final report (Dec. 10)
– Publishable quality

8
Project Topic
• Students pick the research topic they want to work on
• After the literature survey, choose a paper that you
would like to evaluate yourself
• Has to be on digital VLSI circuit DESIGN
– Op-amp design alone is not acceptable
– Op-amp design for digital applications is acceptable
• Show the paper’s claim using your own simulations
• Your contribution must be clearly shown at the end
– Improve previous design
– New circuit, modeling technique
– Show limitation of previous techniques
• Talk to the instructor in case you need help

9
How to Find a Project Topic?
• Conferences
– International Solid-State Circuits Conference (ISSCC,
top conference!): slides posted on IEEExplore
– Symposium on VLSI Circuits (VLSIC), DAC, ICCAD
– Custom Integrated Circuits Conference (CICC)
• Journal
– IEEE TVLSI, IEEE TCAD, IEEE TED
– IEEE Journal of Solid-State Circuits (JSSC)
– Intel Technology Journal
– IBM Journal on R & D

10
How to Find a Project Topic?
• Funding agencies
– Research needs document (www.src.org)
• Presentation
– University of Michigan VLSI seminar series
(www.eecs.umich.edu/vlsi_seminar/)
– Design automation conference (www.dac.com)
• Pick a recent issue in VLSI design (< 5 years)
• I suggest you start doing the literature survey
ASAP (deadline coming up in 3 weeks)

11
Acknowledgements
• Prof. Chris Kim
• Intel circuit research labs (S. Borkar and many
others)
• IBM
• Copy right 2002 J. Rabaey et al.

12
Academic Misconduct
• Students caught engaging in an academically
dishonest practice will receive a failing grade
for the course.
• University policy on academic dishonesty will
be followed strictly.

13
Course Topics
• Scaling issues
• High performance design
– High performance logic family, clocking strategies,
interconnects
• Low power design
– Low voltage designs, leakage control techniques,
circuit/device/technology issues, low power SRAM
• Variation tolerant design
– Process compensating techniques
• Power delivery, interconnect, reliability
• Bulk and SOI

14
A physical system as a computing
medium
• We need to create a bit first. Information processing always
requires physical carrier, which are material particles.
• First requirement to physical realization of a bit implies creating
distinguishable states within a system of such material particles.
• The second requirement is conditional change of state.
• The properties of distinguishability and conditional change of
state are two fundamental properties of a material subsystem to
represent information. These properties can be obtained by
creating energy barriers in a material system.

15
Particle Location is an Indicator of State
1 1 0 0 1 0

17
Barrier engineering in
semiconductors
n n
p
By doping, it is possible to create a built-in field and energy barriers of
controllable height and length within semiconductor. It allows one to achieve
conditional complex electron transport between different energy states inside
semiconductors that is needed in the physical realization of devices for
information processing.

18
Kroemer’s Lemma of Proven
Ignorance
• If in discussing a semiconductor
problem, you cannot draw an Energy-
Band-Diagram, this shows that you
don’t know what are you talking about
• If you can draw one, but don’t, then your
audience won’t know what are you
talking about

19
Moore’s Law
 Intel founder and chairman Gordon Moore predicted in
1965 that the number of transistors on a chip will double
every 18-24 months

20
Transistor Scaling
 Constant E-field scaling: voltage and dimensions (both
horizontal and vertical) are scaled by the same factor k,
(~1.4), such that the electrical field remains unchanged.

21
Technology Scaling
2
2
7
.
0
reduction)
delay
(30%
7
.
0
7
.
0
7
.
0
7
.
0
)
(
,
,
7
.
0








 





 





 




 


 


 

scales
dd
scales
dd
scales
t
dd
scales
t
scales
dd
scale
CV
E
I
CV
D
V
V
T
kW
I
V
V
Dimensions
ox

22
IC Frequency & Power Trends
• Clock
frequency
improves
50%
• Gate delay
improves
~30%
• Power
increases
50%
• Power =
CL V2 f
Frequency
(MHz)
1.0 0.8 0.6 .35 .25 .18
Technology Generation (m)
0.01
0.1
1
10
100
1000
1 2 3 4 5 6 7
Chip
Power
(W)
0
200
400
600
800
1000
Frequency
(M
Hz)
Frequency
Power
486DX
CPU
Pentium
Processor
386
Pentium II
Processor
R
R
1000
100
10
1
0.1
0.01
Chip
Power
(W)
1000
800
600
400
200
0
 Active switched capacitance “CL” is increasing.

23
Vdd vs. Vt scaling
• Recently:
constant e-field
scaling, aka
voltage scaling
• VCC  1V
• VCC & modest VT
scaling
• Loss in gate
overdrive (VCC-VT)
1.4 1.0 0.8 0.6 .35 .25 .18
Technology Generation (m)
0
1
2
3
4
5
0 1 2 3 4 5 6 7
V
CC
or
V
T
(V) VT=.45V
VCC=1.8V
VCC
VT
(VCC- VT)
Gate over drive
V
CC
or
V
T
(V)
5
4
3
2
1
0
 Voltage scaling is good for controlling IC’s active power,
but it requires aggressive VT scaling for high performance

24
Delay
2
W
W
1 .
t 

+
CL T
ox
V
DD
V
T
V
DD
n p
05 05
03 09 13
2
. .
. ( . ) .
( ) [1]
[1] C. Hu, “Low Power Design Methodologies,”
Kluwer Academic Publishers, p. 25.
D
DD
L
d
I
V
C

t
2
)
1
(
)
2
(
DD
T
DD
ox
L
d
V
V
V
C
L
W
C



t
)
1
(
DD
T
SAT
ox
L
d
V
V
WC
C



t
Long Channel MOSFET
Short Channel MOSFET
Performance significantly degrades when VDD approaches 3VT.

25
VT Scaling: VT and IOFF Trade-off
 As VT decreases, sub-threshold leakage increases
 Leakage is a barrier to voltage scaling
Performance vs Leakage:
VT  IOFF  ID(SAT)  Low VT
High VT
VG
VTL VTH
I
DS
IOFFL
IOFFH
VD = VDD
fixed Tox
ID(SAT)
)
(
)
( 3 T
GS
SAT
ox
eff
D V
V
C
W
K
SAT
I 
 
2
2 )
(
)
( T
GS
eff
eff
D V
V
K
L
W
SAT
I 

)
(
1
T
GS V
V
eff
eff
subth
OFF e
K
L
W
I
I 



26
Constant Field Scaling
Device and circuit parameters Factor
Scaling
assumptions
Device dimensions (tox, L, W, Xj)
Doping concentration (Na, Nd)
Voltage (V)
1/k
k
1/k
Device
parameters
Electric field (E)
Capacitance (C=εA/t)
Current (I)
Channel resistance (Rch)
1
1/k
1/k
1
Circuit
parameters
Delay (CV/I)
Power (VI)
Switching energy (CV2)
Circuit density (1/A)
Power density (P/A)
1/k
1/k2
1/k3
k2
1

27
Scaling in the Vertical Dimension
• Transistor Vt rolls off as the channel length is
reduced
• Shallow junction depth reduces Vt roll-off
• However, sheet resistance increases

28
Scaling in the Vertical Dimension
• Vertical dimension scales less than horizontal
• Aggravates short channel effect (Vt roll-off)

29
Constant Voltage Scaling
Device and circuit parameters Factor
Scaling
assumptions
Device dimensions (tox, L, W, Xj)
Doping concentration (Na, Nd)
Voltage (V)
1/k
k
1
Device
parameters
Electric field (E)
Capacitance (C=εA/t)
Current (I)
Channel resistance (Rch)
k
1/k
k
1/k
Circuit
parameters
Delay (CV/I)
Power (VI)
Switching energy (CV2)
Circuit density (1/A)
Power density (P/A)
1/k2
k
1/k
k2
k3

30
Constant Voltage Scaling
• More aggressive scaling than constant field
• Limitations
– Reliability problems due to high field
– Power density increases too fast
• Both constant field and constant voltage
scaling have been followed in practice
• Field and power density has gone up as a
byproduct of high performance, but till now
designers are able to handle the problems

31
ITRS Roadmap
• International Technology Roadmap for Semiconductors
2002 projection (http://public.itrs.net/)

32
Transistor Scaling
 90nm is in production, 65nm in research phase
 New technology generation introduced every 2-3 years

33
Cost per Transistor
 You can buy 10M transistors for a buck
 They even throw in the interconnect and package for free

34
Transistors Shipped Per Year
 Today, there are about 100 transistors for every ant
- Gordon Moore, ISSCC ‘04

35
Transistors per Chip
 1.7B transistors in Montecito (next generation Itanium)
 Most of the devices used for on-die cache memory

37
Chip Frequency
 30% higher frequency every new generation

38
Die Size
 ~15% larger die every new generation
 This means more than 2X increase in transistors per chip

39
Supply Voltage Scaling
 Supply voltage is reduced for active power control
f
V
C
P dd
active
2


40
4 Decades of Transistor Scaling:
Itanium 2 Processor

41
Power Density
Year
Power
density
(W/cm
2
)
 High-end microprocessors: Packaging, cooling
 Mobile/handheld applications: Short battery life

42
Active and Leakage Power
Year
Power
(W)
 Transistors are becoming dimmers
dd
t
L
V
V
C
delay


1
)
/
exp(
q
mkT
V
I t
leak



43

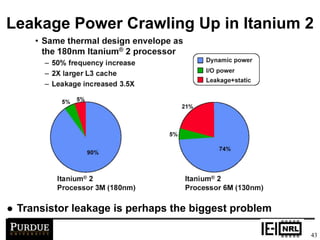

Leakage Power Crawling Up in Itanium 2
 Transistor leakage is perhaps the biggest problem

44
Leakage Power versus Temp.
 Leakage power is problematic in active mode for
high performance microprocessors
0.18, 15mm die, 1.4V
0% 0% 1% 1% 2% 3% 5% 7% 9%
-
10
20
30
40
50
60
70
Temp (C)
Power
(Watts)
Leakage
Active
0.1, 15mm die, 0.7V
6% 9% 14%
19%
26%
33%
41%
49%
56%
-
10
20
30
40
50
60
70
Temp (C)
Power
(Watts)
Leakage
Active

45
Thermal Runaway
 Destructive positive feedback mechanism
 Leakage increases exponentially with temperature
 May destroy the test socket  thermal sensors required
Increased
heating
Higher
leakage
Higher power
dissipation
Increased
static current

46
Gate Oxide Thickness
 Electrical tox > Physical tox
 Due to gate depletion and carrier quantization in the
channel

47
Gate Tunneling Leakage
 MOSFET no longer have infinite input resistance
 Impacts both power and functionality of circuits

48
Process Variation in Microprocessors
 Fast chips burn too much power
 Slow chips cannot meet the frequency requirement

49
Process Variation in Transistors
 More than 2X variation in Ion, 100X variation Ioff
 Within-dies, die-to-die, lot-to-lot
0.4
0.6
0.8
1.0
1.2
1.4
0.01 0.1 1 10 100
Normalized IOFF
Normalized
I
ON
NMOS
PMOS
100X
2X
150nm, 110°C

50
Sources of Process Variation
 Intrinsic parameter variation (static)
- Channel length, random dopant fluctuation
 Environmental variation (dynamic)
- Temperature, supply variations

52
Line Edge/Width Roughness
• Ioff and Idsat impacted by LER and LWR

53
Random Dopant Fluctuation
 Vt variation caused by non-uniform channel
dopant distribution

54
Supply Voltage Integrity
• IR noise due to large current consumption
• Ldi/dt noise due to new power reduction
techniques (clock gating, power gating, body
biasing) with power down mode

55
Supply Voltage Integrity
• Degrades circuit
performance
• Supply voltage
overshoot causes
reliability issues
• Power wasted by
parasitic resistance
causes self-heating
• Vdd fluctuation should
be less than 10%
Courtesy IBM

56
 Design complexity surpasses manpower
 Effective CAD tools, memory dominated chips
Productivity Gap

57
Lithography Tool Cost
 What will end Moore’s law, economics or physics?

58
Interconnect Scaling
• Global interconnects get longer due to larger
die size
• Wire scaling increases R, L and C
• Example: local vs. global interconnect delay

59
Interconnect Delay Problem
 Local interconnect has sped up (shorter wires)
 Global interconnect has slowed down (RC doesn’t scale)
1997 SIA
technology
roadmap

60
Interconnect Metal Layers
 Local wires have high density to accommodate the
increasing number of devices
 Global wires have low RC (tall, wide, thick, scarce wires)
M1
M2
M3
M4
M5
M6

Interconnect distribution scaling trends
• RC/m scaling trend is only one side of the story...
10 100 1,000 10,000 100,000
Length (u)
No
of
nets
(Log
Scale)
Pentium Pro (R)
Pentium(R) II
Pentium (MMX)
Pentium (R)
Pentium (R) II
Source:
Intel

62
Power Delivery & Distribution Challenges
• High-end microprocessors approaching > 10 GHz
• How to deliver and distribute ~100A at < 1V for < $20!
• On-die power density >>> hot-plate power density
• crossover happened back in 0.6m technology!
• di/dt noise only worsening with scaling: drivers are one of the sources.
P6
P5
P4
P3
1.E+00
1.E+01
1.E+02
1.E+03
1.E+04
1.E+05
1.E+06
1.E+07
1.E+08
1.5
1
0.8
0.6
0.35
0.25
0.18
0.13
0.09
0.06
di/dt
in
AU
Lead Processors
First compaction
Second compaction
0
10
20
30
40
50
60
70
Watts/cm
2

Example multi-layer system
0.80 x 1.6m
0.64m
1.6m
0.32 x 0.64m
0.64m
0.25 x 0.48m
0.50m
M4
M5
M3
M2
M1
Poly
Substrate
0.32 x 0.64m
1.00 x 1.80m
2.00m
M6
1.00 x 1.80m
2.00m
M7 Al
0.80 x 1.6m
1.6m
K. Soumyanath et. al. [2]

64
Cross Talk Noise
 As wires are brought closer with scaling, capacitive
coupling becomes significant
 Adjacent wires on same layer have stronger coupling

65
Cross Talk Noise
 Multiple aggressors multiple victims possible
 Cross talk noise can cause logic faults in dynamic circuits

66
Cross Talk and Delay
 Capacitive cross talk
can affect delay
 If aggressor(s) switch
in opposite direction,
effective coupling
capacitance is doubled
 On the other hand, if
aggressor(s) switch in
the same direction, Cc
is eliminated
 Significant difference in
RC delay depending on
adjacent switching
activity

67
Soft Error In Storage Nodes
• Soft errors are caused by
– Alpha particles from package materials
– Cosmic rays from outer space
Logic 1 Logic 0
Vinduced

68
Soft Error In Storage Nodes
• Error correction code
• Shielding
• SOI
• Radiation-hardened
cell

69
More Roadblocks
 Memory stability
 Long term reliability
 Mixed signal design issues
 Mask cost
 Testing multi-GHz processors
 Skeptics: Do we need a faster computer?
 …
 Eventually, it all boils down to economics

70
Summary
 Digital IC Business is Unique
 Things Get Better Every Few Years
 Companies Have to Stay on Moore’s Law Curve to
Survive
 Benefits of Transistor Scaling
 Higher Frequencies of Operation
 Massive Functional Units, Increasing On-Die Memory
 Cost/MIPS Going Down
 Downside of Transistor Scaling
 Power (Dynamic and Static)
 Process Variation
 Design/Manufacturing Cost
 ….
