Lecture 2 inheritance

Chapter 10 – Inheritance
Big Java by Cay Horstmann
Copyright © 2009 by John Wiley & Sons. All rights reserved.

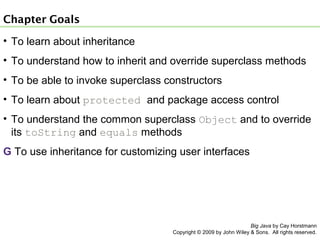

Chapter Goals
• To learn about inheritance
• To understand how to inherit and override superclass methods
• To be able to invoke superclass constructors
• To learn about protected and package access control
• To understand the common superclass Object and to override
its toString and equals methods
G To use inheritance for customizing user interfaces

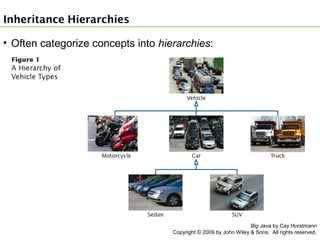

Inheritance Hierarchies
• Often categorize concepts into hierarchies:

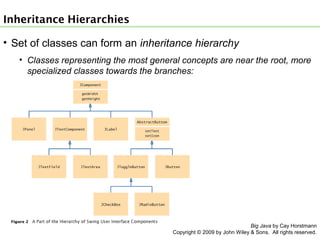

• Set of classes can form an inheritance hierarchy
• Classes representing the most general concepts are near the root, more
specialized classes towards the branches:

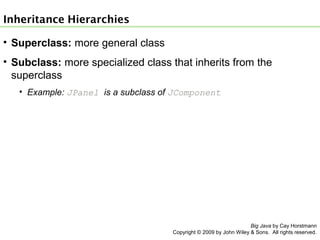

• Superclass: more general class
• Subclass: more specialized class that inherits from the
superclass
• Example: JPanel is a subclass of JComponent


• Example: Different account types:
1. Checking account:
•No interest
•Small number of free transactions per month
•Charges transaction fee for additional transactions
2. Savings account:
•Earns interest that compounds monthly

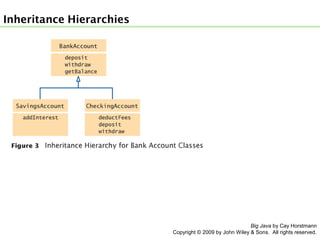

• Superclass: BankAccount
• Subclasses: CheckingAccount & SavingsAccount

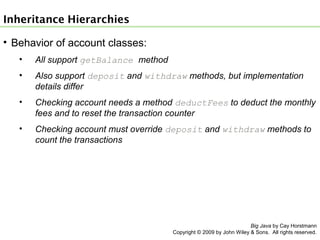

• Behavior of account classes:
•

All support getBalance method

•

Also support deposit and withdraw methods, but implementation
details differ

•

Checking account needs a method deductFees to deduct the monthly
fees and to reset the transaction counter

•

Checking account must override deposit and withdraw methods to
count the transactions

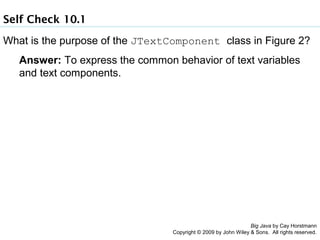

Self Check 10.1
What is the purpose of the JTextComponent class in Figure 2?
Answer: To express the common behavior of text variables
and text components.

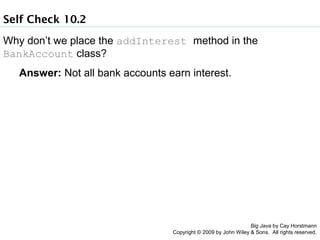

Self Check 10.2
Why don’t we place the addInterest method in the
BankAccount class?
Answer: Not all bank accounts earn interest.

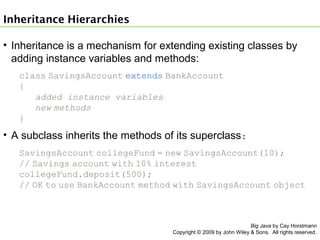

• Inheritance is a mechanism for extending existing classes by
adding instance variables and methods:
class SavingsAccount extends BankAccount
{
added instance variables
new methods
}

• A subclass inherits the methods of its superclass:
SavingsAccount collegeFund = new SavingsAccount(10);
// Savings account with 10% interest
collegeFund.deposit(500);
// OK to use BankAccount method with SavingsAccount object


• In subclass, specify added instance variables, added methods,
and changed or overridden methods:
public class SavingsAccount extends BankAccount
{
private double interestRate;
public SavingsAccount(double rate)
{
Constructor implementation
}
public void addInterest()
{
Method implementation
}
}

• Instance variables declared in the superclass are present in
subclass objects
• SavingsAccount object inherits the balance instance variable
from BankAccount, and gains one additional instance variable,
interestRate:


• Implement the new addInterest method:
{
{
interestRate = rate;
}
{
double interest = getBalance() * interestRate / 100;
deposit(interest);
}
}


• A subclass has no access to private instance variables of its
superclass
• Encapsulation: addInterest calls getBalance rather than
updating the balance variable of the superclass (variable is
private)
• Note that addInterest calls getBalance without specifying
an implicit parameter (the calls apply to the same object)
• Inheriting from a class differs from implementing an interface:
the subclass inherits behavior from the superclass


ch10/accounts/SavingsAccount.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

/**
An account that earns interest at a fixed rate.
*/
{
/**
Constructs a bank account with a given interest rate.
@param rate the interest rate
*/
{
interestRate = rate;
}

Continued

ch10/accounts/SavingsAccount.java (cont.)
17
18
19
20
21
22
23
24
25

/**
Adds the earned interest to the account balance.
*/
{
deposit(interest);
}
}

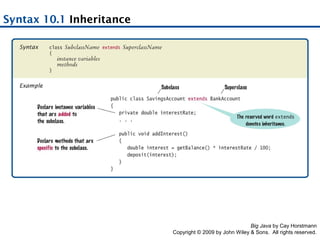

Syntax 10.1 Inheritance


Self Check 10.3
Which instance variables does an object of class
SavingsAccount have?
Answer: Two instance variables: balance and
interestRate.

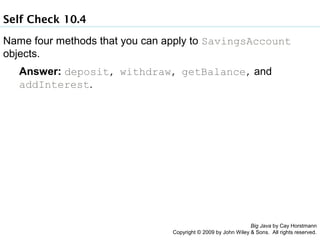

Self Check 10.4
Name four methods that you can apply to SavingsAccount
objects.
Answer: deposit, withdraw, getBalance, and
addInterest.


Self Check 10.5
If the class Manager extends the class Employee, which class is
the superclass and which is the subclass?
Answer: Manager is the subclass; Employee is the
superclass.

Big Java by Cay Big Java by Cay Horstmann
Horstmann

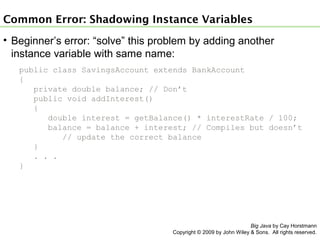

Common Error: Shadowing Instance Variables
• A subclass has no access to the private instance variables of the
superclass:
{
{
balance = balance + interest; // Error
}
. . .
}


• Beginner’s error: “solve” this problem by adding another
instance variable with same name:
{
private double balance; // Don’t
{
balance = balance + interest; // Compiles but doesn’t
// update the correct balance
}
. . .
}


• Now the addInterest method compiles, but it doesn’t update the
correct balance!


Overriding Methods
• A subclass method overrides a superclass method if it has the
same name and parameter types as a superclass method
• When such a method is applied to a subclass object, the overriding
method is executed

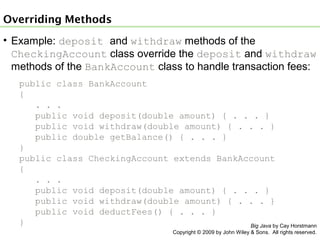

Overriding Methods
• Example: deposit and withdraw methods of the
CheckingAccount class override the deposit and withdraw
methods of the BankAccount class to handle transaction fees:
public class BankAccount
{
. . .
public void deposit(double amount) { . . . }
public void withdraw(double amount) { . . . }
public double getBalance() { . . . }
}
public class CheckingAccount extends BankAccount
{
. . .
public void deposit(double amount) { . . . }
public void withdraw(double amount) { . . . }
public void deductFees() { . . . }
}

Overriding Methods
• Problem: Overriding method deposit can't simply add amount
to balance:
{
. . .
public void deposit(double amount)
{
transactionCount++;
// Now add amount to balance
balance = balance + amount; // Error
}
}

• If you want to modify a private superclass instance variable, you
must use a public method of the superclass
• deposit method of CheckingAccount must invoke the
deposit method of BankAccount

Overriding Methods
• Idea:
{
{
transactionCount++;
deposit; // Not complete
}
}

• Won't work because compiler interprets
deposit(amount);

as
this.deposit(amount);

which calls the method we are currently writing ⇒ infinite
recursion

Overriding Methods
• Use the super reserved word to call a method of the
superclass:
{
{
transactionCount++;
super.deposit
}
}


Overriding Methods
• Remaining methods of CheckingAccount also invoke a
superclass method:
{
private static final int FREE_TRANSACTIONS = 3;
private static final double TRANSACTION_FEE = 2.0;
private int transactionCount;
. . .
public void withdraw(double amount
{
transactionCount++;
// Now subtract amount from balance
super.withdraw(amount);
}
Continued

Overriding Methods (cont.)
public void deductFees()
{
if (transactionCount > FREE_TRANSACTIONS)
{
double fees = TRANSACTION_FEE *
(transactionCount - FREE_TRANSACTIONS);
super.withdraw(fees);
}
transactionCount = 0;
}
. . .
}


Syntax 10.2 Calling a Superclass Method


Animation 10.1: Inheritance


Self Check 10.6
Categorize the methods of the SavingsAccount class as
inherited, new, and overridden.
Answer: The SavingsAccount class inherits the deposit,
withdraw, and getBalance methods. The addInterest
method is new. No methods override superclass methods.


Self Check 10.7
Why does the withdraw method of the CheckingAccount
class call super.withdraw?
Answer: It needs to reduce the balance, and it cannot access
the balance variable directly.

Horstmann

Self Check 10.8
Why does the deductFees method set the transaction count to
zero?
Answer: So that the count can reflect the number of
transactions for the following month.


Subclass Construction
• To call the superclass constructor, use the super reserved word
in the first statement of the subclass constructor:
{
public CheckingAccount(double initialBalance)
{
// Construct superclass
super(initialBalance);
// Initialize transaction count
}
...
}


Subclass Construction
• When subclass constructor doesn't call superclass constructor,
the superclass must have a constructor with no parameters
• If, however, all constructors of the superclass require parameters, then
the compiler reports an error


ch10/accounts/CheckingAccount.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

/**
A checking account that charges transaction fees.
*/
{
private static final int FREE_TRANSACTIONS = 3;
private static final double TRANSACTION_FEE = 2.0;
private int transactionCount;
/**
Constructs a checking account with a given balance.
@param initialBalance the initial balance
*/
public CheckingAccount(double initialBalance)
{
// Construct superclass
super(initialBalance);
// Initialize transaction count
}

Continued

ch10/accounts/CheckingAccount.java (cont.)
24
25
26
27
28
29
30
31
32
33
34
35
36
37

{
transactionCount++;
super.deposit(amount);
}
public void withdraw(double amount)
{
transactionCount++;
// Now subtract amount from balance
super.withdraw(amount);
}

Continued

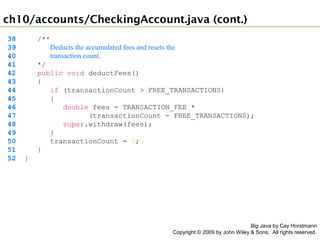

ch10/accounts/CheckingAccount.java (cont.)
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

/**
Deducts the accumulated fees and resets the
transaction count.
*/
public void deductFees()
{
if (transactionCount > FREE_TRANSACTIONS)
{
double fees = TRANSACTION_FEE *
(transactionCount - FREE_TRANSACTIONS);
super.withdraw(fees);
}
}
}

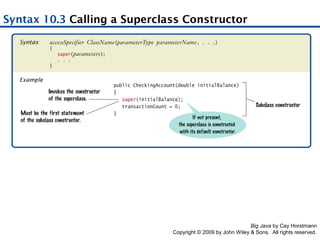

Syntax 10.3 Calling a Superclass Constructor


Self Check 10.9
Why didn’t the SavingsAccount constructor in Section 10.2 call
its superclass constructor?
Answer: It was content to use the default constructor of the
superclass, which sets the balance to zero.

Horstmann

Self Check 10.10
When you invoke a superclass method with the super keyword,
does the call have to be the first statement of the subclass
method?
Answer: No — this is a requirement only for constructors. For
example, the SavingsAccount.deposit method first
increments the transaction count, then calls the superclass
method.


Converting Between Subclass and Superclass Types
• OK to convert subclass reference to superclass reference:
SavingsAccount collegeFund = new SavingsAccount(10);
BankAccount anAccount = collegeFund;
Object anObject = collegeFund;

• The three object references stored in collegeFund,
anAccount, and anObject all refer to the same object of type
SavingsAccount


• Superclass references don’t know the full story:
anAccount.deposit(1000); // OK
anAccount.addInterest();
// No--not a method of the class to which anAccount
// belongs

• Why would anyone want to know less about an object?
• Reuse code that knows about the superclass but not the subclass:
public void transfer(double amount, BankAccount other)
{
withdraw(amount);
other.deposit(amount);
}

Can be used to transfer money from any type of BankAccount

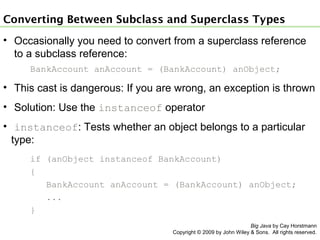

• Occasionally you need to convert from a superclass reference
to a subclass reference:
BankAccount anAccount = (BankAccount) anObject;

• This cast is dangerous: If you are wrong, an exception is thrown
• Solution: Use the instanceof operator
• instanceof: Tests whether an object belongs to a particular
type:
if (anObject instanceof BankAccount)
{
BankAccount anAccount = (BankAccount) anObject;
...
}

Syntax 10.4 The instanceof Operator


Self Check 10.11
Why did the second parameter of the transfer method have to
be of type BankAccount and not, for example,
SavingsAccount?
Answer: We want to use the method for all kinds of bank
accounts. Had we used a parameter of type
SavingsAccount, we couldn’t have called the method with a
CheckingAccount object.


Self Check 10.12
Why can’t we change the second parameter of the transfer
method to the type Object?
Answer: We cannot invoke the deposit method on a
variable of type Object.


Polymorphism and Inheritance
• Type of a variable doesn’t completely determine type of object to
which it refers:
BankAccount aBankAccount = new SavingsAccount(1000);
// aBankAccount holds a reference to a SavingsAccount
• BankAccount anAccount = new CheckingAccount();
anAccount.deposit(1000);
Which deposit method is called?

• Dynamic method lookup: When the virtual machine calls an
instance method, it locates the method of the implicit
parameter's class


• Example:
public void transfer(double amount, BankAccount other)
{
withdraw(amount);
other.deposit(amount);
}

• When you call
anAccount.transfer(1000, anotherAccount);

two method calls result:
anAccount.withdraw(1000);
anotherAccount.deposit(1000);

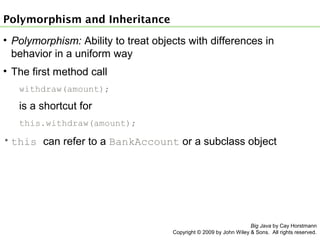

• Polymorphism: Ability to treat objects with differences in
behavior in a uniform way
• The first method call
withdraw(amount);

is a shortcut for
this.withdraw(amount);

• this can refer to a BankAccount or a subclass object


ch10/accounts/AccountTester.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

/**
This program tests the BankAccount class and
its subclasses.
*/
public class AccountTester
{
public static void main(String[] args)
{
SavingsAccount momsSavings = new SavingsAccount(0.5);
CheckingAccount harrysChecking = new CheckingAccount(100);
momsSavings.deposit(10000);
momsSavings.transfer(2000, harrysChecking);
harrysChecking.withdraw(1500);
momsSavings.transfer(1000, harrysChecking);

Continued

ch10/accounts/AccountTester.java (cont.)
22
23
24
25
26
27
28
29
30
31
32
33
34

// Simulate end of month
momsSavings.addInterest();
harrysChecking.deductFees();
System.out.println("Mom’s savings balance: "
+ momsSavings.getBalance());
System.out.println("Expected: 7035");
System.out.println("Harry’s checking balance: "
+ harrysChecking.getBalance());
System.out.println("Expected: 1116");
}
}

Program Run:
Mom's savings balance: 7035.0
Expected: 7035
Harry's checking balance: 1116.0
Expected: 1116

Self Check 10.13
If a is a variable of type BankAccount that holds a non-null
reference, what do you know about the object to which a refers?
Answer: The object is an instance of BankAccount or one of
its subclasses.

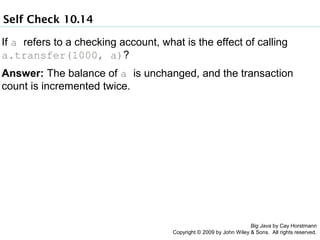

Self Check 10.14
If a refers to a checking account, what is the effect of calling
a.transfer(1000, a)?
Answer: The balance of a is unchanged, and the transaction
count is incremented twice.


Protected Access
• Protected features can be accessed by all subclasses and by all
classes in the same package
• Solves the problem that CheckingAccount methods need
access to the balance instance variable of the superclass
BankAccount:
public class BankAccount
{
. . .
protected double balance;
}


Protected Access
• The designer of the superclass has no control over the authors
of subclasses:
• Any of the subclass methods can corrupt the superclass data
• Classes with protected instance variables are hard to modify — the
protected variables cannot be changed, because someone somewhere
out there might have written a subclass whose code depends on them

• Protected data can be accessed by all methods of classes in the
same package
• It is best to leave all data private and provide accessor methods
for the data


Object: The Cosmic Superclass
• All classes defined without an explicit extends clause
automatically extend Object:


Object: The Cosmic Superclass
• Most useful methods:
• String toString()
• boolean equals(Object otherObject)
• Object clone()

• Good idea to override these methods in your classes


Overriding the toString Method
• Returns a string representation of the object
• Useful for debugging:
Rectangle box = new Rectangle(5, 10, 20, 30);
String s = box.toString();
// Sets s to "java.awt.Rectangle[x=5,y=10,width=20,
// height=30]"

• toString is called whenever you concatenate a string with an
object:
"box=" + box;
// Result: "box=java.awt.Rectangle[x=5,y=10,width=20,
// height=30]"


• Object.toString prints class name and the hash code of
the object:
BankAccount momsSavings = new BankAccount(5000);
String s = momsSavings.toString();
// Sets s to something like "BankAccount@d24606bf"


• To provide a nicer representation of an object, override
toString:
public String toString()
{
return "BankAccount[balance=" + balance + "]";
}

• This works better:
BankAccount momsSavings = new BankAccount(5000);
String s = momsSavings.toString();
// Sets s to "BankAccount[balance=5000]"


Overriding the equals Method
• equals tests for same contents:
if (coin1.equals(coin2)) . . .
// Contents are the same


• == tests for references to the same object:
if (coin1 == (coin2)) . . .
// Objects are the same


• Need to override the equals method of the Object class:
public class Coin
{
...
public boolean equals(Object otherObject)
{
...
}
...
}


• Cannot change parameter type; use a cast instead:
public class Coin
{
...
public boolean equals(Object otherObject)
{
Coin other = (Coin) otherObject;
return name.equals(other.name) && value ==
other.value;
}
...
}

• You should also override the hashCode method so that equal
objects have the same hash code

The clone Method
• Copying an object reference gives two references to same
object:
BankAccount account = newBankAccount(1000);
BankAccount account2 = account;
account2.deposit(500); // Now both account and account2
// refer to a bank account with a balance of 1500

• Sometimes, need to make a copy of the object:

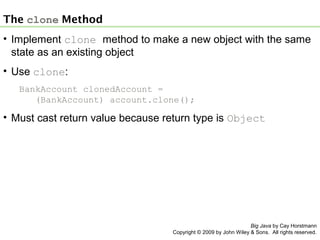

The clone Method
• Implement clone method to make a new object with the same
state as an existing object
• Use clone:
BankAccount clonedAccount =
(BankAccount) account.clone();

• Must cast return value because return type is Object


The Object.clone Method
• Creates shallow copies:

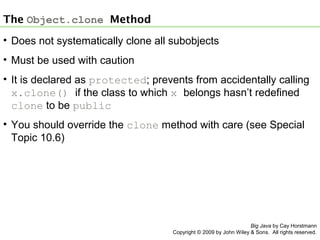

The Object.clone Method
• Does not systematically clone all subobjects
• Must be used with caution
• It is declared as protected; prevents from accidentally calling
x.clone() if the class to which x belongs hasn’t redefined
clone to be public
• You should override the clone method with care (see Special
Topic 10.6)

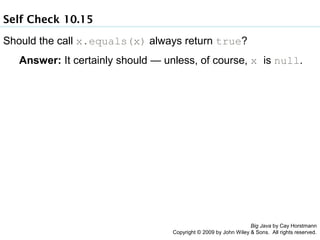

Self Check 10.15
Should the call x.equals(x) always return true?
Answer: It certainly should — unless, of course, x is null.


Self Check 10.16
Can you implement equals in terms of toString? Should you?
Answer: If toString returns a string that describes all
instance variables, you can simply call toString on the
implicit and explicit parameters, and compare the results.
However, comparing the variables is more efficient than
converting them into strings.


Scripting Languages


Using Inheritance to Customize Frames
• Use inheritance for complex frames to make programs easier to
understand
• Design a subclass of JFrame
• Store the components as instance variables
• Initialize them in the constructor of your subclass
• If initialization code gets complex, simply add some helper
methods


ch10/frame/InvestmentFrame.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

import
import
import
import
import
import
import

java.awt.event.ActionEvent;
java.awt.event.ActionListener;
javax.swing.JButton;
javax.swing.JFrame;
javax.swing.JLabel;
javax.swing.JPanel;
javax.swing.JTextField;

public class InvestmentFrame extends JFrame
{
private JButton button;
private JLabel label;
private JPanel panel;
private BankAccount account;
private static final int FRAME_WIDTH = 400;
private static final int FRAME_HEIGHT = 100;
private static final double INTEREST_RATE = 10;
private static final double INITIAL_BALANCE = 1000;

Continued

ch10/frame/InvestmentFrame.java
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

public InvestmentFrame()
{
account = new BankAccount(INITIAL_BALANCE);
// Use instance variables for components
label = new JLabel("balance: " + account.getBalance());
// Use helper methods
createButton();
createPanel();
setSize(FRAME_WIDTH, FRAME_HEIGHT);
}
private void createButton()
{
button = new JButton("Add Interest");
ActionListener listener = new AddInterestListener();
button.addActionListener(listener);
}

Continued

Example: Investment Viewer Program (cont.)
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

private void createPanel()
{
panel = new JPanel();
panel.add(button);
panel.add(label);
add(panel);
}
class AddInterestListener implements ActionListener
{
public void actionPerformed(ActionEvent event)
{
double interest = account.getBalance() * INTEREST_RATE / 100;
account.deposit(interest);
label.setText("balance: " + account.getBalance());
}
}
}

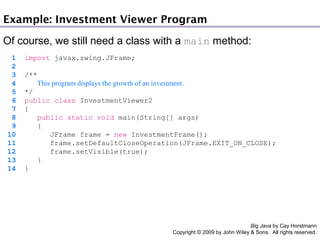

Example: Investment Viewer Program
Of course, we still need a class with a main method:
1
2
3
4
5
6
7
8
9
10
11
12
13
14

import javax.swing.JFrame;
/**
This program displays the growth of an investment.
*/
public class InvestmentViewer2
{
public static void main(String[] args)
{
JFrame frame = new InvestmentFrame();
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.setVisible(true);
}
}

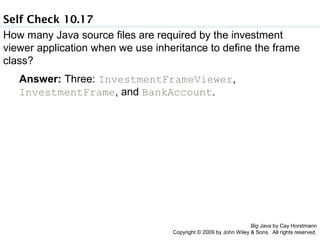

Self Check 10.17
How many Java source files are required by the investment
viewer application when we use inheritance to define the frame
class?
Answer: Three: InvestmentFrameViewer,
InvestmentFrame, and BankAccount.

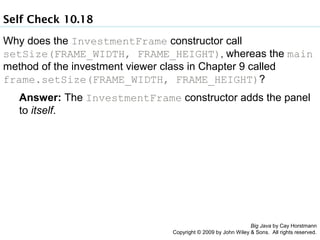

Self Check 10.18
Why does the InvestmentFrame constructor call
setSize(FRAME_WIDTH, FRAME_HEIGHT), whereas the main
method of the investment viewer class in Chapter 9 called
frame.setSize(FRAME_WIDTH, FRAME_HEIGHT)?
Answer: The InvestmentFrame constructor adds the panel
to itself.


Lecture 2 inheritance

More Related Content

Viewers also liked (20)

Similar to Lecture 2 inheritance (20)

More from Nada G.Youssef (20)

Recently uploaded (20)

Lecture 2 inheritance
