- 1. A Linked Sensor Data Cube for a 100 year homogenised daily temperature dataset Laurent Lefort 5th Semantic Sensor Network Workshop, 12 November 2012 CSIRO ICT CENTRE
- 2. Outline • ACORN-SAT dataset • Role of SSN ontology • Role of RDF Data Cube vocabulary • Integration of SSN and RDF Data Cube • Lessons learned • Conclusions A Linked Sensor Data Cube for a 100 year homogenised daily temperature 2 | dataset | Laurent Lefort
- 3. The ACORN-SAT dataset • Released by Aus. Bureau of Meteorology (23 March 2012) • Available at http://www.bom.gov.au/climate/change/acorn-sat/ • 112 stations in total - 60 from 1910 to 2011 • Homogenised (adjusted) daily temperatures • Tabular format (1 file per time series/station) A Linked Sensor Data Cube for a 100 year homogenised daily temperature 3 | dataset | Laurent Lefort
- 4. The Linked Data version of ACORN-SAT • Experimental version of ACORN-SAT data • Available at http://lab.environment.data.gov.au/ • Developed for the Australian Bureau of Meteorology (BOM) by CSIRO in cooperation with the Australian Government Information Management Office (AGIMO) • Temperature (homogenised) plus Rainfall (not homogenised) • First version presented at Australian GovHack Day • Alternative to tabular data • Last version, uploaded to LOD cloud • http://thedatahub.org/dataset/acorn-sat A Linked Sensor Data Cube for a 100 year homogenised daily temperature 4 | dataset | Laurent Lefort
- 5. Motivation: linked gov. agencies data in Australia • Linked data (and well managed URIs) to build the bridges between the different agencies • Current linked data pilot is one agency (BoM) and one server but applies solutions and schemes already in place in multi-agencies and multi-service providers context (e.g. UK) • Thanks to AGIMO for helping us to set up http://lab.environment.data.gov.au/
- 6. SSN Ontology • SSN-XG report http://www.w3.org/2005/Incubator/ssn/XGR-ssn/ • SSN Ontology http://purl.oclc.org/NET/ssnx/ssn • Navigable documentation on wiki auto derived http://www.w3.org/2005/Incubator/ssn/wiki/SSN A Linked Sensor Data Cube for a 100 year homogenised daily temperature 6 | dataset | Laurent Lefort
- 7. SSN: deployed systems and observations Device Skeleton Deployment PlatformSite System ssn:System onPlatform hasSubsystem deploymentProcesPart ssn:DeploymentRelatedProcess hasDeployment ssn:Deployment deployedSystem deployedOnPlatform ssn:Platform attachedSystem ssn:Device ssn:Sensor ssn:SensingDevice observes inDeployment observedBy ssn:Property observedProperty ssn:Observation
- 8. Specific challenges for the SSN Ontology • ACORN-SAT data derived from multiple stations with complex history • Uses homogenisation algorithm to make adjustments to raw data • “Metadata” used by the algorithm to identify “breakpoints” in time series – Site changes (moves, building or vegetation having an impact on the quality of observation), sensor (and sensor screens) changes, procedure changes (hours of observations) • BoM station numbering system “somewhat confusing over time” • Desire to retain a single site number for upper-air observations at obs sites • Several numbering conventions have been used at one or more locations where an overlap occurs between an old (comparison) and new site: – Old site retains old number, new site opens with new number. – Old site switches to new number for the duration of the comparison, new site takes over old number from the start of its observations. – New site opens under new number then switches to old number after end of comparison. A Linked Sensor Data Cube for a 100 year homogenised daily temperature 8 | dataset | Laurent Lefort
- 9. Linked ACORN SAT deployment data with SSN • Data describing the deployment history • Available in ACORN-SAT station catalogue (pdf) • Not available in tabular format distribution • ACORN-SAT composite stations – System composed of one or several BoM stations • BoM (Bureau of Meteorology) stations – System composed of one or several station sharing the same codes • Textual description of significant events • Data describing the detailed conditions of observations • Sensors • Screens • Automatic Weather stations • Procedures e.g. hours of observation A Linked Sensor Data Cube for a 100 year homogenised daily temperature 9 | dataset | Laurent Lefort
- 10. Example (Darwin) Time series – Weather stations – Sites – (Sensors) Darwin Post Office 014016 (1910-1942) Darwin Airport 014015 (1941-2007 & 2001-now) 2 sites – 1km apart – same code used A Linked Sensor Data Cube for a 100 year homogenised daily temperature 10 | dataset | Laurent Lefort
- 11. Deployment phases in Darwin A Linked Sensor Data Cube for a 100 year homogenised daily temperature 11 | dataset | Laurent Lefort
- 12. RDF Data cube http://purl.org/linked-data/cube • RDF Data Cube: a method to organise linked data in slices • A vocabulary published by the W3C Government Linked Data (GLD) Working Group (Working Draft) • Also the method used to publish statistics data and environmental data in Europe e.g. for Bathing Water Quality in UK http://www.epimorphics.com/web/projects/bathing-water-quality • Advantages • Allows multiple views on the same data (similar to OLAP) • Generic approach which supports the links to domain-specific definitions • Useable: • In any browser via Linked Data API (HTML output) • In JavaScript via Linked Data API (JSON output) • In R via SPARQL 12 | A Linked Sensor Data Cube for a 100 year homogenised daily temperature dataset | Laurent Lefort
- 13. From: The RDF Data Cube Vocabulary W3C Working Draft 05 April 2012 http://www.w3.org/TR/vocab-data-cube/ 13 | A Linked Sensor Data Cube for a 100 year homogenised daily temperature dataset | Laurent Lefort
- 14. Data cube, slice and observation A Linked Sensor Data Cube for a 100 year homogenised daily temperature 14 | dataset | Laurent Lefort Dimension d7 Dimension d6 Dimension d1 Dimension d2 Dimension d3 Dimension d4 Dimension d5 Measure m1, m2, … Attribute a1, a2, … Cube Slice Observation
- 15. QB: Dataset, Slice, Observation Cube and Slice qb:Slice qb:Dataset slice Cube observation observation qb:Observation subslice
- 16. Data Cube Structure: dimensions, measure, attributes Current Data Cube structure (and URI/API logic) Observation - MinTemperature - MaxTemperature - Rainfall - Booleans for missing data (2) Year (3) Month Day A Linked Sensor Data Cube for a 100 year homogenised daily temperature 16 | dataset | Laurent Lefort (1) ACORN-SAT Series/System (station) • Stations/time series • Year • Month • All linking to observations
- 17. Slices and URI scheme A Linked Sensor Data Cube for a 100 year homogenised daily temperature 17 | dataset | Laurent Lefort

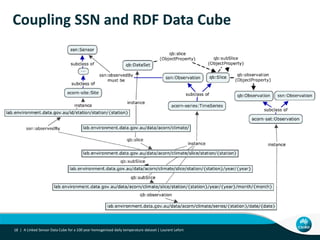

- 18. Coupling SSN and RDF Data Cube A Linked Sensor Data Cube for a 100 year homogenised daily temperature 18 | dataset | Laurent Lefort
- 19. Device Skeleton acorn-system Cube observation observation structure qb:DataStructureDefinition component qb:ComponentSpecification deployedSystem deploymentProcesPart bom-station acorn-deploy hasSubsystem bom-station:System acorn-site raindist locatedIn parentADM1 parentFeature, parentCountry parentADM1, parentADM2 bom-station:Station deployedOnPlatform acorn-site:Site A Linked Sensor Data Cube for a 100 year homogenised daily temperature 19 | dataset | Laurent Lefort acorn-deploy:Deployment deployment- ProcessPart currentSite acorn-system:System concept etcddi etcddi:xxx acorn-series:xxx acorn-series acorn-series:TimeSeries acorn-deploy:StandaloneOperation acorn-sat:Observation acorn-sat observation acorn-deploy:PreDeployment acorn-deploy:PostDeployment observedBy acorn-sat:xxx time:Interval (Instant) Intervals OWL Time interval:CalendarInterval (Instant) raindist:RainfallDistrict rainstate rainstate:RainfallState gn:Feature geonames Deployment System PlatformSite ssn:System onPlatform hasSubsystem hasDeployment ssn:DeploymentRelatedProcess ssn:Deployment ssn:Platform deployedOnPlatform attachedSystem ssn:Device ssn:Sensor ssn:SensingDevice observes inDeployment observedBy ssn:Property observedProperty Cube and Slice qb:Slice qb:Dataset slice qb:Observation qb:ComponentProperty DSD componentProperty Dataset void:Dataset Concepts skos:Concept ssn:Observation
- 20. Access to data with Elda via http://lab.environment.data.gov.au/ ssn:hasSubSystem ssn:hasDeployment ssn:observedBy ssn:deploymentProcessPart A Linked Sensor Data Cube for a 100 year homogenised daily temperature 20 | dataset | Laurent Lefort
- 21. Mashups • Display the station locations and their average temperature readings on a map • http://lab.environment.data.gov.au/mashup/drilldown • Select a Date range for climate readings for a given location • http://lab.environment.data.gov.au/mashup A Linked Sensor Data Cube for a 100 year homogenised daily temperature 21 | dataset | Laurent Lefort
- 22. Lessons learned • Flexible URI scheme • ELDA-friendly, UK-style: using nested list endpoints and item endpoints – http://lab.environment.data.gov.au/data/acorn/climate/slice/station – http://lab.environment.data.gov.au/data/acorn/climate/slice/station/014015 • Extra slice(s) easy to add to allow multiple access to the same observations • RDF Data Cube vocabulary (QB) • Some clarifications needed for qb:structure, qb:sliceKey, qb:sliceStructure, qb:component and qb:componentAttachment properties e.g. through the publication of validation rules • Coupling of SSN ontology and RDF Data Cube vocabulary • Different ecosystems (OWL vs. RDF/RDFS) – OK for RDF Data Cube, not OK for other reused vocabularies e.g. UK Intervals (Jena Eyeball used for validation) • Observed properties are classes in the SSN ontology and properties in the RDF Data Cube – Possibility to reuse/extend the qb:concept properties defined to manage references to skos:Concept in QB A Linked Sensor Data Cube for a 100 year homogenised daily temperature 22 | dataset | Laurent Lefort
- 23. Conclusions • Approach is applicable to all climate time series • Several climate-specific issues not addressed • Transparency/reproducibility of homogenisation process – Require raw data plus extra (meta)data (sensors, screen types, sensors exposure, “qualified” observed properties during a specific observation interval), plus data used/generated during homogenisation algorithm (ACORN-SAT uses different values for different value distribution percentiles) – More ontology work needed (compared to SSN) on homogenisation algorithms parameters, types of breakpoints and types of adjustment lookup table • Opportunities to link to other datasets (Australia, World) • Geo-features (e.g. GeoNames - done) for weather station sites, districts • Other climate data e.g. regional and world climate data archives, cyclone tracks (not yet available as linked data) • Other environmental data (not yet available as linked data) A Linked Sensor Data Cube for a 100 year homogenised daily temperature 23 | dataset | Laurent Lefort
- 24. Thank you Division/Unit Name Laurent Lefort Ontologist t +61 2 9123 4567 e laurent.lefort@csiro.au w ict.csiro.au CSIRO ICT CENTRE
- 25. Images credits • Blair Trewin The ACORN-SAT station at Butlers Gorge in central Tasmania (surfacetemperatures.blogspot.com.au ) A Linked Sensor Data Cube for a 100 year homogenised daily temperature 25 | dataset | Laurent Lefort
- 26. Reused ontologies Ontology Short Description URL DOLCE Ultra Lite (DUL) A lightweight foundational ontology for modeling either physical or social contexts http://www.loa-cnr. it/ontologies/DUL.owl Semantic Sensor Network An ontology for the description of sensors and observations, and related concepts. http://purl.oclc.org/NET/ssnx/ssn RDF Data Cube A vocabulary for the publication of multi-dimensional data as linked data http://purl.org/linked-data/cube OWL Time An ontology of temporal concepts http://www.w3.org/2006/time Intervals A vocabulary (and URI scheme) for the definition of instants and intervals. http://reference.data.gov.uk/def/in tervals WGS84_Pos A vocabulary for representing latitude, longitude and altitude information in the WGS84 geodetic reference datum http://www.w3.org/2003/01/geo/w gs84_pos GeoNames An ontology for the description of geographical features, their characteristics and relationships http://www.geonames.org/ontolog y/ontology_v3.01.rdf VoID (Vocabula-ry of Interlinked Datasets) A vocabulary for expressing metadata about RDF datasets http://vocab.deri.ie/void A Linked Sensor Data Cube for a 100 year homogenised daily temperature 26 | dataset | Laurent Lefort
- 27. Developed ontologies Ontology Short Description URL ETCCDI Indicators defined by the joint CCl/CLIVAR/JCOMM Expert Team on Climate Change Detection and Indices A Linked Sensor Data Cube for a 100 year homogenised daily temperature 27 | dataset | Laurent Lefort http://purl.oclc.org/NET/ssnx/etccdi Rainfall districts and states Geographical areas defined as part of the Bureau's numbering system for observation sites http://lab.environment.data.gov.au/ def/stations/raindist …/rainstate BoM Station Definition for the weather stations registered in the Bureau’s Weather Station Directory http://lab.environment.data.gov.au/ def/stations/station Surface Air Temperature ACORN-SAT observation (temperature, rainfall) for one day http://lab.environment.data.gov.au/ def/acorn/sat Time Series Time series data defined as data cube slices (aggregated at different levels) http://lab.environment.data.gov.au/ def/acorn/time-series ACORN-SAT deployment Phases and sub-phases recorded in the ACORN-SAT documentation pack http://lab.environment.data.gov.au/ def/acorn/deployment ACORN-SAT system The sensing asset used for a deployment phases (or sub-phase) http://lab.environment.data.gov.au/ def/acorn/system ACORN-SAT site The site used for a deployment phase (or sub-phase) http://lab.environment.data.gov.au/ def/acorn/site
- 28. RDF Data Cube (qb:ComponentAttachement) A Linked Sensor Data Cube for a 100 year homogenised daily temperature 28 | dataset | Laurent Lefort
- 29. Reference to skos:Concept A Linked Sensor Data Cube for a 100 year homogenised daily temperature 29 | dataset | Laurent Lefort
Editor's Notes
- #4: The ACORN-SAT dataset replaces the previously released long term climate time series datasets released by the bureau (eg High Quality dataset)
- #7: OWL2 ontology, SRIQ(D) 41 concepts & 39 object properties, organised into ten conceptual modules 117 concepts and 142 object properties in total, including DUL Aligned to DOLCE UltraLite
- #13: Working Draft http://www.w3.org/TR/vocab-data-cube/
- #14: Need rdfs:Class, qb:Atachable and
- #21: Similar to UK Bathing Water project
