Making the case for write-optimized database algorithms / Mark Callaghan (Facebook)
- 1. Making the case for write-optimized database algorithms Mark Callaghan Member of Technical Staff, Facebook
- 2. RocksDB • Embedded key-value storage engine MyRocks • RocksDB storage engine for MySQL • coming to Percona Server and MariaDB Server MongoRocks • RocksDB storage engine for MongoDB • In Percona Server today RocksDB, MyRocks & MongoRocks
- 3. • Good read efficiency • Better write efficiency • Best space efficiency RocksDB, MyRocks & MongoRocks • Use less SSD • Use lower endurance SSD In some cases, better read efficiency is possible Efficient performance is the goal
- 4. Benchmarketing? Sysbench read-write, in-memory 0 50000 100000 150000 200000 1 2 4 8 16 24 32 40 48 64 80 96 128 MyRocks InnoDB
- 5. Better is not just about throughput tpmC iostat rKB/t iostat wKB/t vmstat CPU/t Size (GB) p99 response (ms) MyRocks +zlib 95680 2.19 2.02 528 82 29.9 InnoDB 91981 2.67 7.49 400 222 18.4 tpcc-mysql, 1000 warehouses, IO-bound • QPS - average throughput • QoS - worst case throughput • Efficiency - hardware per query
- 6. Peak performance is overrated Performance Performance & Efficiency Meet performance goals Then optimize for efficiency
- 7. RUM or RWS? • RUM = Read, Update, Memory • RWS = Read, Write, Space Efficiency • Synonym for amplification • Related to, but not equivalent to, performance. An algorithm can’t be optimal for all of read, write & space amplification • See Designing Access Methods: The RUM Conjecture • daslab.seas.harvard.edu/rum-conjecture RUM Conjecture
- 8. For any useful database algorithm there exists another useful algorithm that has better read, write or space amplification. Define: optimal
- 9. Read, Write • physical work per logical request Space • sizeof(database files) / sizeof(data) Define: amplification
- 10. Storage • random operations • bytes read • bytes written Define: work CPU • blocks (un)compressed • memory/cache operations • hash searches • key comparisons • CPU seconds
- 11. Basic operations: • point read • range read • put • delete Complex operations: • query • transaction Define: operation Update is one of: • put • point read, put • point read, delete, put
- 12. Everything is relative tpmC iostat rKB/t iostat wKB/t vmstat CPU/t Size (GB) MyRocks+zlib 95680 2.19 2.02 528 82 InnoDB 91981 2.67 7.49 400 222 InnoDB/ MyRocks 0.96 1.22 3.71 0.76 2.71 tpcc-mysql, 1000 warehouses, IO-bound
- 13. Efficiency: B-Tree Example: InnoDB Read • logN key compares Write • sizeof(page) / sizeof(row) Space • 1.5X if leaf pages are 2/3 full Update-in-Place B-Tree • InnoDB Copy-on-Write B-Tree • WiredTiger • LMDB
- 14. Efficiency: leveled LSM Example: RocksDB, Cassandra Read • logN + log(N/10) + log(N/100) + log(N/1000) key compares • point reads can use bloom filter Write • rewrite previously written rows • worse than size-tiered LSM, better than B-Tree Space • 1.1X
- 15. Efficiency: size-tiered LSM Example: RocksDB, Cassandra, HBase Read • more than leveled LSM • point reads can use bloom filter Write • rewrite previously written rows • better than leveled LSM, better than B-Tree Space • ~2X, worse than leveled LSM
- 16. Efficiency: summary Read Write Space B-Tree best good leveled LSM good for point good best size-tiered LSM best

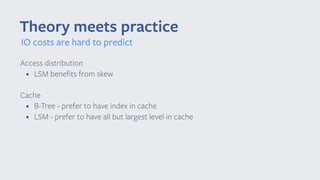

- 17. Theory meets practice Access distribution • LSM benefits from skew Cache • B-Tree - prefer to have index in cache • LSM - prefer to have all but largest level in cache IO costs are hard to predict
- 18. Linkbench, IO-bound TPS iostat r/t iostat wKB/t CPU usecs/t Size (GB) p99 update (ms) MyRocks+zlib 28965 1.03 1.25 999 374 1 InnoDB 21474 1.16 19.70 914 14xx 6 InnoDB+zlib 20734 1.07 14.59 1199 880 6 MyRocks: best throughput & QoS, most efficient
- 19. Space efficiency • Fragmentation • Fixed page size • More per-row metadata • No prefix encoding (InnoDB) Why did RocksDB beat a B-Tree? Write efficiency • Uses more space = more data to write • Working set larger than cache • sizeof(page) / sizeof(row) • Double write buffer (InnoDB)
- 20. Page size & write amplification Page size TPS iostat wKB/t MyRocks+zlib 16kb 28965 1.25 InnoDB 4kb 24845 6.13 InnoDB 8kb 24352 10.52 InnoDB 16kb 21414 19.70
- 21. Advantage B-Tree • Fewer key comparisons • Less IO for range queries Read efficiency: B-Tree vs LSM? Advantage LSM • Uses less space = more data in cache • Prefix key encoding when uncompressed • Efficient writes saves IO for reads • Read-free index maintenance • Bloom filter Performance is complex
- 22. Save on writes, spend more on reads MyRocks zlib TPS InnoDB TPS Ratio (MyRocks / InnoDB) Disk array 2195 414 5.3 Slow SSD 23484 10143 2.3 Fast SSD 28965 21414 1.4

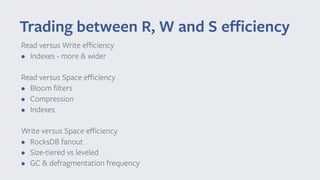

- 23. Read versus Write efficiency • Indexes - more & wider Read versus Space efficiency • Bloom filters • Compression • Indexes Write versus Space efficiency • RocksDB fanout • Size-tiered vs leveled • GC & defragmentation frequency Trading between R, W and S efficiency
- 24. Write versus space amplification Space vs write amplification for a log-based algorithm WriteAmplification 0 2.5 5 7.5 10 Space Amplification 1.11 1.25 1.33 1.67 2 • space amplification = 100 / %full • write amplification = 100 / (100 - %full)
- 25. One size doesn’t fit all • B-Tree + LSM sharing one redo log Adaptive algorithms • DBA sets high-level goals • Algorithm adapts to achieve them More open source • MyRocks in MariaDB Server & Percona Server • MongoRocks in Percona Server • More features in RocksDB What comes next? More performance results are coming • YCSB • sysbench • time series • bulk load • tpcc-mysql
