Meet up slides_mumbai_05022020_final

[02nd May 2020]: [Securing Data Transmission and Logging
Mechanism using Splunk & Mule 4 Dockerization]
[Mumbai - India]

All contents © MuleSoft Inc. 2
• 1.Please keep yourself muted unless you have any question.
• 2.We encourage keeping your video for making our meetup
interactive.
• 3.You'll can also write down your questions in chat section.
• 4.Once you join write down your name in chat section so we will
have an attendance.
• 5.As this is our first online Meetup we appreciate your valuable
feedback. Thanks.
Guidelines for Mumbai MuleSoft Meetup #10 [Online]

• Training and certification update:
• MuleSoft training is hosting FREE instructor lectures through the end
of May to accompany our free self-paced Development Fundamentals
course.
• Also, any certification set to expire on or after Feb 1, 2020 is now
valid through July 31, 2020.
• Please participate!
>> Share this link
>> Training slides
• MuleSoft Global Connect is Virtual! Register for free to be a part.
https://connect.mulesoft.com/
Important Announcement

All contents © MuleSoft Inc.
Agenda
4
 Introductions
 Secure Data Transmission
 Logging Mechanism Using SPLUNK
 Dockers
 Containers
 Demo and Configurations to create Mule 4 image
 Networking time

Introductions
5
• About the organizers:
– Sudeshna Mitra
– Manish Yadav
– Akshata Sawant
• About the sponsors: MuleSoft
A SHOW OF HANDS:
Who is new to this MeetUp?

Speaker
6

Why Security of data is Important ?
8

Session will cover
9
• What is Encryption/Decryption Process?
• What are its benefits?
• How can we achieve encryption /decryption of data using Mulesoft?
• What are the different methods to achieve it?
• Tools used – Mulesoft, GPA, Kleopatra
• Demos
• Question and answers

• Sensitive information can be protected; others cannot view it and cannot be stolen over the
internet.
• Information can be shared securely within a group of users or company departments.
• Files are compressed to a smaller size before being sent over the network.
• There is no need to purchase private key or certificates.
• Secure mail and text cannot be infiltrated by hackers or infected and misused through email
attacks.
• Future-proof technology and complete compatibility with other applications.
• In-built key manager to securely manage yours and others' keys.
• Provides absolute assurance that data receives or sent has not been modified in transit.
• Provides protection against viruses and the newest blended email threat.
Advantages of Security

MuleSoft provides various encryption strategies to
encrypt your messages.
Encryption strategy Description
JCE encrypter
Encrypts stream, byte[], or
string.
XML encrypter
Encrypts string; encrypts
individual fields using xpath
expressions.
PGP encrypter
Encrypts stream, byte[], or
string; applies tighter
security (relative to JCE and
XML); increases processing
load (relative to JCE and
XML).

Using password and keys

Mule 3 Vs. Mule 4 for plugin installation

Mule 3 Vs. Mule 4 for operations

Mule 3 ----- Encryption Process
To download module for mule 4

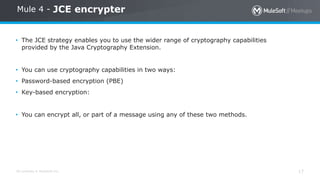

Mule 4 - JCE encrypter
• The JCE strategy enables you to use the wider range of cryptography capabilities
provided by the Java Cryptography Extension.
• You can use cryptography capabilities in two ways:
• Password-based encryption (PBE)
• Key-based encryption:
• You can encrypt all, or part of a message using any of these two methods.

Mule 4 - XML encrypter
• The XML strategy enables you to use the wider range of cryptography
capabilities
• Key-based encryption
• Encrypts string; encrypts individual fields using xpath expressions.

Mule 4 - PGP encrypter
• Mule can encrypt all or part of a message using Pretty Good Privacy
(PGP). PGP combines data compression and data encryption to secure
messages. The compression reduces the size of the payload to help
reduce the transmission time later on your application.
• This section addresses these scenarios:
• Encryption: Using another party’s public key to encrypt an outgoing
message in a Mule app.
• Decryption: Using your own private key to decrypt an incoming
message in a Mule app.

Mule 4 - PGP encrypter
Encrypted
message 

[Logging Mechanism Using
SPLUNK]

Why logging is Important ?
22
?

Logger component in Mulesoft
23
Levels:
1. DEBUG
2. ERROR
3. INFO
4. TRACE
5. WARN

• Splunk is a software platform to search, analyze and visualize the
machine-generated data gathered from the websites, applications,
sensors, devices etc. which make up your IT infrastructure and
business. Splunk performs capturing, indexing, and correlating the
real-time data in a searchable container from which it can produce
graphs, reports, alerts, dashboards, and visualizations.
• Benefits :
– Splunk Automatically collects the data in Real-time from Multiple systems.
– Splunk can accept any data like csv, json, log formats, xml etc.
– Splunk can give Alerts/Everts Notifications.
– Using Splunk data and analytics, Dashboards can be created.
– And Many more…
What is SPLUNK ?

Features of SPLUNK:

How SPLUNK Look Like ?

• With the help of default + custom fields given Below:
– Index – Its kind of Directory
– host (default)
– source (default)
– sourceType (default)
– flowName
– Severity
– message
– messageType
– messageSize
– event
– KPI
– Correlation id
– Marker
How SPLUNK can be effective in terms of Logging?

• An index is a collection of directories and files .
• By default, All events will be stored under “main” index. The default
Splunk Enterprise index. All processed external data is stored here
unless otherwise specified
• Create the new index by navigating to settings->indexes->create
New
– Enter your index name
– The index data type. For event data, click Events. This is the default data type.
– Set the size for your index , default is 500 GB.
Splunk Query : index=“dev_mulesoft”
Index

Why there is a need to have multiple indexes ?
• To control user access.
• To speed searches in certain situations.

• A default field that contains the host name that generate an event.
• the host field is used in searches to narrow the search results to
events that originate from a specific device.
• Each event has a host name.
• For example ,it can be “Mulesoft” , “Java” etc.
• If no other host rules are specified for a source, Splunk software
assigns the host field a default value that applies to all data coming
into the instance from any input.
• Splunk Query : index=“dev_mulesoft” host=mulesoft
Host:

• The source of an event is the name of the file, stream, or other
input from which the event originates.
• For example : “application name” , “Configuration.xml name” etc.
• The source type of an event is the format of the data input from
which it originates like for windows .evt files from event viewer
• For example : “Any point studio” , “application name” etc.
• Splunk Query : index=“dev_mulesoft” source=customer-exp-api
Source and sourceType:

• flowName is a custom field that can be created in order to track the
flow level events logged in SPLUNK.
• Severity field can be created in order to track the success and
failure events logged in SPLUNK.
• Which can accept the only below values from API:
– Success/INFO
– Failure/ERROR
– Splunk Query : index=“dev_mulesoft” flowname=customer-exp-api-post
– Splunk Query : index=“dev_mulesoft” severity=Success
flowName and severity:

• message is the field which holds the actual Payload or data in each
event.
• messageType field can be created to hold the datatype of particular
message in each event.
• For example : “order”, “customer”, “employee” etc.
• messageSize field can be created to describe the size of particular
message in the event.
message, messageType and messageSize

• A Correlation ID, also known as a Transit ID, is a
unique identifier value that is attached to requests and messages
that allow reference to a particular transaction or event chain.
• By using this field, we can get the result of each transaction in one
go.
• For example : Experience , Process and System layer logs.
• Splunk Query : index="test_mulesoft" 4cd2dc81-3daf-11ea-bf82-
0a7661ac9eeb
Correlation id

• We can create event field to track the end to end transaction of
Mulesoft API.
• which can accept the values given below:
– Received and sent
– Source and target
• It can also be used to analyze the transactions in case of any errors.
• Splunk Query : index=“dev_mulesoft” event=received
Event:

• In Marker property you can set information of the particular event.
• This field can be act as optional though.
• For example :
– Order information received from SAP
– Data successfully sent to Salesforce.
Marker

• A Key Performance Indicator (KPI) is a measurable value that
demonstrates how effectively a company is achieving
key business objectives. Organizations use KPIs to evaluate their
success at reaching targets.
• Its an mandatory criteria to implement the Dashboards which are
known as KPI dashboards.
• KPI Dashboards are the perfect tool for your performance tracking
reports as they can be used to visually depict the performance of an
enterprise, a specific department, or a key business operation.
KPI (Key Performance Indicators)

For Example :

• {
“message” : “{…}”, <- for eg: customer data JSON
“host” : “Mulesoft”,
“source” : “sales-exp-api”,
“sourceType” : “Anypoint studio”,
“flowName” : “customer-order-post-flow”,
“severity” : “INFO”,
“messageType : “Customer”,
“messageSize” : “500KB”,
“event” : “Received”,
“correlationId : “8d82dce0-87dc-11ea-96a3-12c261b2ccf9”,
“KPI” : {
key: quantity,
value: 5
},
“marker” : “Customer data received from SAP”
}
SPLUNK event will look like?

• Makes life easy for developers especially when there is a need to
troubleshoot the application, detect issues, review the performance
of the application, etc.
• Easy to utilize other features of SPLUNK like Alerts , Reports,
Dashboards and Visualization etc which takes your business to the
next level.
Benefits of Smart logging in SPLUNK:

What is Docker?
42
• Developing apps today requires so much more than writing code.
Multiple languages, frameworks, architectures, and discontinuous
interfaces between tools for each lifecycle stage creates enormous
complexity. Docker simplifies and accelerates your workflow, while
giving developers the freedom to innovate with their choice of tools,
application stacks, and deployment environments for each project.
• In 2013, Docker introduced what would become the industry
standard for containers. Containers are a standardized unit of
software that allows developers to isolate their app from its
environment, solving the “it works on my machine” headache. For
millions of developers today, Docker is the de facto standard to build
and share containerized apps - from desktop, to the cloud.

Container: A standardized unit of software
Containers?
43
• A container is a standard unit of software that packages up code and all its
dependencies so the application runs quickly and reliably from one computing
environment to another. A Docker container image is a lightweight, standalone,
executable package of software that includes everything needed to run an
application: code, runtime, system tools, system libraries and settings.
• Container images become containers at runtime and in the case of Docker
containers - images become containers when they run on Docker Engine. Available
for both Linux and Windows-based applications, containerized software will always
run the same, regardless of the infrastructure. Containers isolate software from its
environment and ensure that it works uniformly despite differences for instance
between development and staging.

Docker-Container: What's in it for us?
What is good about all this?
44
• Standard: Docker created the industry standard for containers, so they could be
portable anywhere
• Lightweight: Containers share the machine’s OS system kernel and therefore do
not require an OS per application, driving higher server efficiencies and reducing
server and licensing costs
• Secure: Applications are safer in containers and Docker provides the strongest
default isolation capabilities in the industry

Container Vs VM
Hey but we have VM’s then why Container?
45
Containers VM
An abstraction at the app layer that
packages code and dependencies
together. Multiple containers can run on
the same machine and share the OS
kernel with other containers, each
running as isolated processes in user
space. Containers take up less space than
VMs (container images are typically tens
of MBs in size), can handle more
applications and require fewer VMs and
Operating systems.
(VMs) are an abstraction of physical
hardware turning one server into many
servers. The hypervisor allows multiple
VMs to run on a single machine. Each VM
includes a full copy of an OS, the app,
necessary binaries and libraries - taking
up tens of GBs. VMs can also be slow to
boot.

[Demo and Configurations to
create Mule 4 image]

Prerequisites
Demo Time !!!
47
• Windows Docker Desktop is installed on your machine.
https://hub.docker.com/search?q=&type=edition&offering=community&sort=updat
ed_at&order=desc
• Make sure you have switched to Linux based containers. Click on Docker Desktop
icon and click on “Switch to Linux Containers”.
• Anypoint Studio (7.4.2) is installed and you have a valid license (or trial) version of
Mule Runtime “mule-ee-distribution-standalone-4.2.2.zip” placed in your system.
• A Sample Hello-World Application created in Mule 4 and create a deployable archive
out of it using Studio Export capability. We will not go in detail about this as this
tutorial assumes that audience already has a brief knowledge of Mule based
application development.

Local settings:
Configurations to create Mule 4 image
48
• 1. Create a folder on your desktop to place the required items for this PoC. For example:
• C:UsersankurDesktopDocker Demo
• Place following items in this folder:
• a) mule-ee-distribution-standalone-4.2.2.zip
• b) mule-hello.jar
• c) muleLicenseKey.lic (this is provided by your respective MuleSoft Customer Success Manager)
• d) DockerFile
• 2. Now check if the Docker Desktop is up and running.
• 3. Populate DockerFile:
• Github Link : https://github.com/ancur4u/DockerDemo

Encryption strategies -
https://docs.mulesoft.com/mule-runtime/4.2/cryptography
Kleopatra tool -
https://www.openpgp.org/software/kleopatra/
GPA tool -
https://www.gnupg.org/related_software/gpa/index.html
pgp-encryption and decryption -
https://dzone.com/articles/pgp-encryption-and-decryption-with-mule-esb
Splunk documentation -
https://docs.splunk.com/Documentation
Reference links

Take a stand !
50
• Nominate yourself for
the next meetup speaker
and suggest a topic as
well.

What’s next
51
• Share:
– Tweet your pictures with the hashtag #MuleMeetup #MuleSoftMeetup
– Invite your network to join: https://meetups.mulesoft.com/mumbai/
• Feedback:
– Contact your organizers Manish Yadav, Sudeshna Mitra and Akshata Sawant to suggest topics
– Tweet your organizers at @SudeshnaMitra14, @Manish_Kyadav, @sawantakshata02
– Contact MuleSoft at meetup@mulesoft.com for ways to improve the program
– Follow us on Instagram (mumbai_mulesoftofficialpage)
– Your Feedback is Food for us
• Our next meetup:
– Date: TBD
– Location: Mumbai
– Topic: TBD

Networking time
Introduce yourself to your neighbors!

See you next time
Please send topic suggestions to the organizer

Meet up slides_mumbai_05022020_final

Meet up slides_mumbai_05022020_final

More Related Content

What's hot (20)

Similar to Meet up slides_mumbai_05022020_final (20)

More from Akshata Sawant (18)

Recently uploaded (20)

Meet up slides_mumbai_05022020_final
