Motorola solutions wing 5.2.2 wireless controller cli reference guide (part no. 72 e 159607-01 rev. a)

Motorola Solutions
WiNG 5.2.2
Wireless Controller
CLI Reference Guide

MOTOROLA SOLUTIONS WING 5
CLI REFERENCE GUIDE
72E-159607-01
Revision A
January 2012

ii CLI Reference Guide

No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Motorola Solutions. This includes electronic or mechanical means, such as
photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to
change without notice.

The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on
a licensed basis. Motorola Solutions grants to the user a non-transferable and non-exclusive license to use
each software or firmware program delivered hereunder (licensed program). Except as noted below, such
license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of
Motorola Solutions. No right to copy a licensed program in whole or in part is granted, except as permitted
under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program
with other program material, create a derivative work from a licensed program, or use a licensed program in a
network without written permission from Motorola Solutions. The user agrees to maintain Motorola Solution’s
copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized
copies it makes, in whole or in part. The user agrees not to decompile, disassemble, decode, or reverse
engineer any licensed program delivered to the user or any portion thereof.

Motorola Solutions reserves the right to make changes to any software or product to improve reliability,
function, or design.

Motorola Solutions does not assume any product liability arising out of, or in connection with, the application or
use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under any Motorola Solutions,
Inc., intellectual property rights. An implied license only exists for equipment, circuits, and subsystems
contained in Motorola Solutions products.

iii

Revision History
Changes to the original guide are listed below:

Change Date Description

Rev A January 2012 Final version for WiNG 5.2.2 release

TABLE OF CONTENTS

ABOUT THIS GUIDE

Chapter 1, INTRODUCTION
1.1 CLI Overview ...........................................................................................................................................................1-3
1.2 Getting Context Sensitive Help ..............................................................................................................................1-7
1.3 Using the No Command ..........................................................................................................................................1-9
1.3.1 Basic Conventions .........................................................................................................................................1-9
1.4 Using CLI Editing Features and Shortcuts ............................................................................................................1-10
1.4.1 Moving the Cursor on the Command Line ..................................................................................................1-11
1.4.2 Completing a Partial Command Name ........................................................................................................1-12
1.4.3 Command Output pagination ......................................................................................................................1-12
1.4.4 Creating Profiles ..........................................................................................................................................1-13
1.4.5 Change the default profile by creating vlan 150 and mapping to ge3 Physical interface .........................1-13
1.4.5.1 Viewing Configured APs ....................................................................................................................1-13
1.4.6 Remote Administration ...............................................................................................................................1-14
1.4.6.1 Configuring Telnet for Management Access ....................................................................................1-14
1.4.6.2 Configuring ssh ..................................................................................................................................1-16

Chapter 2, USER EXEC MODE COMMANDS
2.1 User Exec Commands .............................................................................................................................................2-2
2.1.1 ap-upgrade ....................................................................................................................................................2-4
2.1.2 change-passwd .............................................................................................................................................2-9
2.1.3 clear .............................................................................................................................................................2-10
2.1.4 clock ............................................................................................................................................................2-13
2.1.5 cluster ..........................................................................................................................................................2-14
2.1.6 connect ........................................................................................................................................................2-15
2.1.7 crypto ...........................................................................................................................................................2-16
2.1.8 disable .........................................................................................................................................................2-28
2.1.9 enable ..........................................................................................................................................................2-29
2.1.10 exit .............................................................................................................................................................2-30

vi WiNG 5 System Reference Guide

2.1.11 logging ......................................................................................................................................................2-31
2.1.12 mint ...........................................................................................................................................................2-32
2.1.13 no ..............................................................................................................................................................2-34
2.1.14 page ..........................................................................................................................................................2-38
2.1.15 ping ...........................................................................................................................................................2-39
2.1.16 ssh .............................................................................................................................................................2-40
2.1.17 telnet .........................................................................................................................................................2-41
2.1.18 terminal .....................................................................................................................................................2-42
2.1.19 time-it ........................................................................................................................................................2-43
2.1.20 traceroute ..................................................................................................................................................2-44
2.1.21 watch ........................................................................................................................................................2-45

Chapter 3, PRIVILEGED EXEC MODE COMMANDS
3.1 Privileged Exec Mode Commands ..........................................................................................................................3-3
3.1.1 ap-upgrade ....................................................................................................................................................3-5
3.1.2 archive .........................................................................................................................................................3-10
3.1.3 boot .............................................................................................................................................................3-12
3.1.4 cd .................................................................................................................................................................3-13
3.1.5 change-passwd ...........................................................................................................................................3-14
3.1.6 clear ............................................................................................................................................................3-15
3.1.7 clock ............................................................................................................................................................3-19
3.1.8 cluster .........................................................................................................................................................3-20
3.1.9 configure .....................................................................................................................................................3-21
3.1.10 connect ......................................................................................................................................................3-22
3.1.11 copy ...........................................................................................................................................................3-23
3.1.12 crypto ........................................................................................................................................................3-24
3.1.13 delete ........................................................................................................................................................3-36
3.1.14 disable .......................................................................................................................................................3-37
3.1.15 diff .............................................................................................................................................................3-38
3.1.16 dir ..............................................................................................................................................................3-39
3.1.17 edit ............................................................................................................................................................3-41
3.1.18 enable .......................................................................................................................................................3-42
3.1.19 erase .........................................................................................................................................................3-43
3.1.20 exit ............................................................................................................................................................3-44
3.1.21 format ........................................................................................................................................................3-45
3.1.22 halt ............................................................................................................................................................3-46
3.1.23 join-cluster ................................................................................................................................................3-47
3.1.24 logging ......................................................................................................................................................3-48
3.1.25 mkdir .........................................................................................................................................................3-49
3.1.26 mint ...........................................................................................................................................................3-50
3.1.27 more ..........................................................................................................................................................3-52
3.1.28 no ..............................................................................................................................................................3-53
3.1.29 page ..........................................................................................................................................................3-57
3.1.30 ping ...........................................................................................................................................................3-58
3.1.31 pwd ...........................................................................................................................................................3-59
3.1.32 reload ........................................................................................................................................................3-60

Table of Contents vii

3.1.33 rename ......................................................................................................................................................3-62
3.1.34 rmdir ..........................................................................................................................................................3-63
3.1.35 self .............................................................................................................................................................3-64
3.1.36 ssh .............................................................................................................................................................3-65
3.1.37 telnet .........................................................................................................................................................3-66
3.1.38 terminal .....................................................................................................................................................3-67
3.1.39 time-it ........................................................................................................................................................3-68
3.1.40 traceroute ..................................................................................................................................................3-69
3.1.41 upgrade .....................................................................................................................................................3-70
3.1.42 upgrade-abort ............................................................................................................................................3-71
3.1.43 watch .........................................................................................................................................................3-72

Chapter 4, GLOBAL CONFIGURATION COMMANDS
4.1 Global Configuration Commands ............................................................................................................................4-3
4.1.1 aaa-policy ......................................................................................................................................................4-6
4.1.2 advanced-wips-policy ...................................................................................................................................4-7
4.1.3 ap300 .............................................................................................................................................................4-8
4.1.4 ap621 .............................................................................................................................................................4-9
4.1.5 ap650 ...........................................................................................................................................................4-10
4.1.6 ap6511 .........................................................................................................................................................4-11
4.1.7 ap6521 .........................................................................................................................................................4-12
4.1.8 ap6532 .........................................................................................................................................................4-13
4.1.9 ap71xx .........................................................................................................................................................4-14
4.1.10 association-acl-policy ...............................................................................................................................4-15
4.1.11 auto-provisioning-policy ............................................................................................................................4-16
4.1.12 captive portal ............................................................................................................................................4-17
4.1.12.1 captive-portal ..................................................................................................................................4-18
4.1.12.2 captive-portal-mode commands ......................................................................................................4-19
4.1.13 clear ...........................................................................................................................................................4-37
4.1.14 critical-resource-policy ..............................................................................................................................4-38
4.1.14.1 critical-resource-policy ....................................................................................................................4-39
4.1.14.2 critical-resource-policy-mode ..........................................................................................................4-40
4.1.15 customize ..................................................................................................................................................4-44
4.1.16 device ........................................................................................................................................................4-51
4.1.17 device-categorization ................................................................................................................................4-53
4.1.17.1 device-categorization ......................................................................................................................4-54
4.1.17.2 device-categorization-mode commands .........................................................................................4-55
4.1.18 dhcp-server-policy .....................................................................................................................................4-60
4.1.19 dns-whitelist .............................................................................................................................................4-61
4.1.19.1 dns-whitelist ....................................................................................................................................4-62
4.1.19.2 dns-whitelist mode commands .......................................................................................................4-63
4.1.20 do ...............................................................................................................................................................4-66
4.1.21 end .............................................................................................................................................................4-77
4.1.22 event-system-policy ..................................................................................................................................4-78
4.1.22.1 event-system-policy ........................................................................................................................4-79
4.1.22.2 event-system-policy mode commands ............................................................................................4-80

viii WiNG 5 System Reference Guide

4.1.23 firewall-policy .........................................................................................................................................4-101
4.1.24 host .........................................................................................................................................................4-102
4.1.25 igmp-snoop-policy ...................................................................................................................................4-103
4.1.26 ip .............................................................................................................................................................4-105
4.1.27 mac ..........................................................................................................................................................4-107
4.1.28 management-policy ................................................................................................................................4-109
4.1.29 mint-policy ..............................................................................................................................................4-110
4.1.30 nac-list ....................................................................................................................................................4-111
4.1.30.1 nac-list ...........................................................................................................................................4-112
4.1.30.2 nac-list-mode ................................................................................................................................4-113
4.1.31 no ............................................................................................................................................................4-117
4.1.32 password-encryption ..............................................................................................................................4-119
4.1.33 profile ......................................................................................................................................................4-120
4.1.34 radio-qos-policy ......................................................................................................................................4-124
4.1.35 radius-group ............................................................................................................................................4-125
4.1.36 radius-server-policy ................................................................................................................................4-126
4.1.37 radius-user-pool-policy ...........................................................................................................................4-127
4.1.38 rf-domain .................................................................................................................................................4-128
4.1.38.1 rf-domain .......................................................................................................................................4-129
4.1.38.2 rf-domain-mode .............................................................................................................................4-131
4.1.39 rfs4000 ....................................................................................................................................................4-153
4.1.40 rfs6000 ....................................................................................................................................................4-154
4.1.41 rfs7000 ....................................................................................................................................................4-155
4.1.42 role-policy ...............................................................................................................................................4-156
4.1.43 self ..........................................................................................................................................................4-157
4.1.44 smart-rf-policy .........................................................................................................................................4-158
4.1.45 wips-policy ..............................................................................................................................................4-159
4.1.46 wlan ........................................................................................................................................................4-160
4.1.46.1 wlan ...............................................................................................................................................4-161
4.1.46.2 wlan-mode commands ..................................................................................................................4-162
4.1.47 wlan-qos-policy .......................................................................................................................................4-213

Chapter 5, COMMON COMMANDS
5.1 Common Commands ...............................................................................................................................................5-2
5.1.1 clrscr ..............................................................................................................................................................5-3
5.1.2 commit ..........................................................................................................................................................5-4
5.1.3 end ................................................................................................................................................................5-5
5.1.4 exit ................................................................................................................................................................5-6
5.1.5 help ...............................................................................................................................................................5-7
5.1.6 no ................................................................................................................................................................5-11
5.1.7 revert ...........................................................................................................................................................5-13
5.1.8 service .........................................................................................................................................................5-14
5.1.9 show ............................................................................................................................................................5-40
5.1.10 write ..........................................................................................................................................................5-42

Table of Contents ix

Chapter 6, SHOW COMMANDS
6.1 show commands .....................................................................................................................................................6-2
6.1.1 show ..............................................................................................................................................................6-4
6.1.2 adoption ........................................................................................................................................................6-8
6.1.3 advanced-wips ............................................................................................................................................6-10
6.1.4 ap-upgrade ..................................................................................................................................................6-12
6.1.5 boot .............................................................................................................................................................6-14
6.1.6 captive-portal ..............................................................................................................................................6-15
6.1.7 cdp ...............................................................................................................................................................6-18
6.1.8 clock ............................................................................................................................................................6-20
6.1.9 cluster ..........................................................................................................................................................6-21
6.1.10 commands .................................................................................................................................................6-23
6.1.11 context .......................................................................................................................................................6-25
6.1.12 critical-resources .......................................................................................................................................6-26
6.1.13 crypto .........................................................................................................................................................6-27
6.1.14 debug .........................................................................................................................................................6-30
6.1.15 debugging ..................................................................................................................................................6-33
6.1.16 device-categorization ................................................................................................................................6-36
6.1.17 event-history .............................................................................................................................................6-37
6.1.18 event-system-policy ..................................................................................................................................6-38
6.1.19 file .............................................................................................................................................................6-39
6.1.20 firewall ......................................................................................................................................................6-40
6.1.21 interface ....................................................................................................................................................6-44
6.1.22 ip ................................................................................................................................................................6-47
6.1.23 ip-access-list-stats ....................................................................................................................................6-52
6.1.24 licenses .....................................................................................................................................................6-53
6.1.25 lldp .............................................................................................................................................................6-54
6.1.26 logging .......................................................................................................................................................6-55
6.1.27 mac-access-list-stats ................................................................................................................................6-56
6.1.28 mac-address-table ....................................................................................................................................6-57
6.1.29 mint ...........................................................................................................................................................6-58
6.1.30 noc .............................................................................................................................................................6-61
6.1.31 ntp .............................................................................................................................................................6-64
6.1.32 password-encryption .................................................................................................................................6-65
6.1.33 power ........................................................................................................................................................6-66
6.1.34 remote-debug ............................................................................................................................................6-67
6.1.35 rf-domain-manager ...................................................................................................................................6-68
6.1.36 role ............................................................................................................................................................6-69
6.1.37 running-config ...........................................................................................................................................6-70
6.1.38 session-changes ........................................................................................................................................6-74
6.1.39 session-config ...........................................................................................................................................6-75
6.1.40 sessions .....................................................................................................................................................6-76
6.1.41 smart-rf ......................................................................................................................................................6-77
6.1.42 spanning-tree ............................................................................................................................................6-80
6.1.43 startup-config ............................................................................................................................................6-83
6.1.44 terminal .....................................................................................................................................................6-84
6.1.45 timezone ....................................................................................................................................................6-85

x WiNG 5 System Reference Guide

6.1.46 upgrade-status ..........................................................................................................................................6-86
6.1.47 version .......................................................................................................................................................6-88
6.1.48 wireless .....................................................................................................................................................6-89
6.1.49 wwan ......................................................................................................................................................6-106

Chapter 7, PROFILES
7.1 Creating Profiles .....................................................................................................................................................7-2
7.1.1 aaa ................................................................................................................................................................7-5
7.1.2 adopted-mode ...............................................................................................................................................7-7
7.1.3 ap-upgrade ....................................................................................................................................................7-8
7.1.4 ap300 ............................................................................................................................................................7-9
7.1.5 ap-mobility ..................................................................................................................................................7-10
7.1.6 arp ...............................................................................................................................................................7-11
7.1.7 auto-learn-staging-config ...........................................................................................................................7-13
7.1.8 autoinstall ...................................................................................................................................................7-14
7.1.9 bridge commands ........................................................................................................................................7-15
7.1.9.1 bridge ................................................................................................................................................7-16
7.1.9.2 bridge-vlan-mode commands ............................................................................................................7-17
7.1.10 cdp .............................................................................................................................................................7-30
7.1.11 cluster .......................................................................................................................................................7-32
7.1.12 configuration-persistence .........................................................................................................................7-34
7.1.13 controller ...................................................................................................................................................7-35
7.1.14 crypto ........................................................................................................................................................7-37
7.1.15 isakmp-policy ............................................................................................................................................7-43
7.1.15.1 authentication .................................................................................................................................7-45
7.1.15.2 encryption ........................................................................................................................................7-46
7.1.15.3 group ...............................................................................................................................................7-47
7.1.15.4 hash .................................................................................................................................................7-48
7.1.15.5 lifetime ............................................................................................................................................7-49
7.1.15.6 no .....................................................................................................................................................7-50
7.1.16 crypto-group ..............................................................................................................................................7-52
7.1.16.1 dns ...................................................................................................................................................7-53
7.1.16.2 wns ..................................................................................................................................................7-54
7.1.17 dscp-mapping ............................................................................................................................................7-55
7.1.18 email-notification ......................................................................................................................................7-56
7.1.19 enforce-version .........................................................................................................................................7-58
7.1.20 events ........................................................................................................................................................7-60
7.1.21 ip ..............................................................................................................................................................7-61
7.1.22 nat-pool ....................................................................................................................................................7-65
7.1.22.1 address ............................................................................................................................................7-66
7.1.22.2 no .....................................................................................................................................................7-67
7.1.23 interface ....................................................................................................................................................7-68
7.1.24 Interface Config Instance ..........................................................................................................................7-70
7.1.24.1 cdp ...................................................................................................................................................7-72
7.1.24.2 channel-group .................................................................................................................................7-73
7.1.24.3 description .......................................................................................................................................7-74

Table of Contents xi

7.1.24.4 dot1x ................................................................................................................................................7-75
7.1.24.5 duplex ..............................................................................................................................................7-76
7.1.24.6 ip ......................................................................................................................................................7-77
7.1.24.7 lldp ...................................................................................................................................................7-79
7.1.24.8 no .....................................................................................................................................................7-80
7.1.24.9 qos ...................................................................................................................................................7-82
7.1.24.10 shutdown .......................................................................................................................................7-83
7.1.24.11 spanning-tree ................................................................................................................................7-84
7.1.24.12 speed .............................................................................................................................................7-87
7.1.24.13 switchport ......................................................................................................................................7-88
7.1.24.14 use .................................................................................................................................................7-90
7.1.25 Interface vlan Instance ..............................................................................................................................7-91
7.1.25.1 crypto ...............................................................................................................................................7-92
7.1.25.2 description .......................................................................................................................................7-93
7.1.25.3 dhcp-relay-incoming ........................................................................................................................7-94
7.1.25.4 ip ......................................................................................................................................................7-95
7.1.25.5 no .....................................................................................................................................................7-97
7.1.25.6 shutdown .......................................................................................................................................7-100
7.1.25.7 use .................................................................................................................................................7-101
7.1.26 led ............................................................................................................................................................7-102
7.1.27 legacy-auto-downgrade ..........................................................................................................................7-103
7.1.28 legacy-auto-update .................................................................................................................................7-104
7.1.29 lldp ...........................................................................................................................................................7-105
7.1.30 load-balancing .........................................................................................................................................7-107
7.1.31 local .........................................................................................................................................................7-112
7.1.32 logging .....................................................................................................................................................7-113
7.1.33 mac-address-table ..................................................................................................................................7-115
7.1.34 mint .........................................................................................................................................................7-117
7.1.35 misconfiguration-recovery-time ..............................................................................................................7-120
7.1.36 monitor ....................................................................................................................................................7-121
7.1.37 neighbor-inactivity-timeout .....................................................................................................................7-122
7.1.38 neighbor-info-interval .............................................................................................................................7-123
7.1.39 no .............................................................................................................................................................7-124
7.1.40 noc ...........................................................................................................................................................7-127
7.1.41 ntp ...........................................................................................................................................................7-128
7.1.42 preferred-controller-group ......................................................................................................................7-130
7.1.43 power-config ...........................................................................................................................................7-131
7.1.44 radius .......................................................................................................................................................7-133
7.1.45 rf-domain-manager ...............................................................................................................................7-134
7.1.46 spanning-tree ..........................................................................................................................................7-135
7.1.47 use ...........................................................................................................................................................7-138
7.1.48 vpn ...........................................................................................................................................................7-141
7.1.49 wep-shared-key-auth ..............................................................................................................................7-142
7.2 Device Specific Commands ................................................................................................................................7-143
7.2.1 area ...........................................................................................................................................................7-148
7.2.2 channel-list ................................................................................................................................................7-149
7.2.3 contact .......................................................................................................................................................7-150

xii WiNG 5 System Reference Guide

7.2.4 country-code .............................................................................................................................................7-151
7.2.5 dhcp-redundancy .......................................................................................................................................7-152
7.2.6 floor ...........................................................................................................................................................7-153
7.2.7 hostname ..................................................................................................................................................7-154
7.2.8 layout-coordinates ....................................................................................................................................7-155
7.2.9 location .....................................................................................................................................................7-156
7.2.10 mac-name ...............................................................................................................................................7-157
7.2.11 neighbor-info-interval .............................................................................................................................7-158
7.2.12 no ............................................................................................................................................................7-159
7.2.13 override-wlan ..........................................................................................................................................7-163
7.2.14 remove-override ......................................................................................................................................7-165
7.2.15 rsa-key .....................................................................................................................................................7-167
7.2.16 sensor-server ..........................................................................................................................................7-168
7.2.17 stats ........................................................................................................................................................7-169
7.2.18 timezone ..................................................................................................................................................7-170
7.2.19 trustpoint .................................................................................................................................................7-171

Chapter 8, AAA-POLICY
8.1 aaa-policy ..............................................................................................................................................................8-2
8.1.1 accounting .....................................................................................................................................................8-3
8.1.2 authentication ...............................................................................................................................................8-7
8.1.3 health-check ................................................................................................................................................8-11
8.1.4 mac-address-format ....................................................................................................................................8-12
8.1.5 no ................................................................................................................................................................8-13
8.1.6 server-pooling-mode ...................................................................................................................................8-16
8.1.7 use ...............................................................................................................................................................8-17

Chapter 9, AUTO-PROVISIONING-POLICY
9.1 auto-provisioning-policy .........................................................................................................................................9-2
9.1.1 adopt .............................................................................................................................................................9-3
9.1.2 default-adoption ...........................................................................................................................................9-7
9.1.3 deny ...............................................................................................................................................................9-8
9.1.4 no ................................................................................................................................................................9-11

Chapter 10, ADVANCED-WIPS-POLICY
10.1 advanced-wips-policy .........................................................................................................................................10-2
10.1.1 event .........................................................................................................................................................10-3
10.1.2 no ............................................................................................................................................................10-10
10.1.3 server-listen-port ....................................................................................................................................10-13
10.1.4 terminate .................................................................................................................................................10-14
10.1.5 use ...........................................................................................................................................................10-15

Chapter 11, ASSOCIATION-ACL-POLICY
11.1 association-acl-policy .........................................................................................................................................11-2

Table of Contents xiii

11.1.1 deny ...........................................................................................................................................................11-3
11.1.2 no ...............................................................................................................................................................11-5
11.1.3 permit ........................................................................................................................................................11-7

Chapter 12, ACCESS-LIST
12.1 ip-access-list .......................................................................................................................................................12-3
12.1.1 deny ...........................................................................................................................................................12-4
12.1.2 no ...............................................................................................................................................................12-9
12.1.3 permit ......................................................................................................................................................12-15
12.2 mac-access-list .................................................................................................................................................12-21
12.2.1 deny .........................................................................................................................................................12-22
12.2.2 no .............................................................................................................................................................12-25
12.2.3 permit ......................................................................................................................................................12-28

Chapter 13, DHCP-SERVER-POLICY
13.1 dhcp-server-policy ...............................................................................................................................................13-2
13.1.1 bootp .........................................................................................................................................................13-3
13.1.2 dhcp-class .................................................................................................................................................13-4
13.1.2.1 dhcp-class ........................................................................................................................................13-5
13.1.2.2 dhcp-class-mode .............................................................................................................................13-6
13.1.3 dhcp-pool .................................................................................................................................................13-10
13.1.3.1 dhcp-pool .......................................................................................................................................13-11
13.1.3.2 dhcp-pool-mode .............................................................................................................................13-13
13.1.3.3 static-binding .................................................................................................................................13-37
13.1.4 no .............................................................................................................................................................13-55
13.1.5 option ......................................................................................................................................................13-57
13.1.6 ping ..........................................................................................................................................................13-58

Chapter 14, FIREWALL-POLICY
14.1 firewall-policy .....................................................................................................................................................14-3
14.1.1 alg ..............................................................................................................................................................14-4
14.1.2 clamp .........................................................................................................................................................14-5
14.1.3 dhcp-offer-convert ....................................................................................................................................14-6
14.1.4 dns-snoop ..................................................................................................................................................14-7
14.1.5 firewall ......................................................................................................................................................14-8
14.1.6 flow ...........................................................................................................................................................14-9
14.1.7 ip ..............................................................................................................................................................14-11
14.1.8 ip-mac ......................................................................................................................................................14-17
14.1.9 logging .....................................................................................................................................................14-20
14.1.10 no ...........................................................................................................................................................14-22
14.1.11 proxy-arp ...............................................................................................................................................14-30
14.1.12 stateful-packet-inspection-12 ...............................................................................................................14-31
14.1.13 storm-control .........................................................................................................................................14-32
14.1.14 virtual-defragmentation .......................................................................................................................14-35

xiv WiNG 5 System Reference Guide

Chapter 15, IGMP-SNOOP-POLICY
15.1 igmp-snoop-policy ..............................................................................................................................................15-2
15.1.1 igmp-snooping ..........................................................................................................................................15-3
15.1.2 no ..............................................................................................................................................................15-4
15.1.3 querier .......................................................................................................................................................15-6
15.1.4 robustness-variable ..................................................................................................................................15-7
15.1.5 unknown-multicast-fwd ............................................................................................................................15-8

Chapter 16, MINT-POLICY
16.1 mint-policy ..........................................................................................................................................................16-2
16.1.1 level ...........................................................................................................................................................16-3
16.1.2 mtu ............................................................................................................................................................16-4
16.1.3 udp ............................................................................................................................................................16-5
16.1.4 no ..............................................................................................................................................................16-6

Chapter 17, MANAGEMENT-POLICY
17.1 management-policy ............................................................................................................................................17-2
17.1.1 aaa-login ...................................................................................................................................................17-3
17.1.2 banner .......................................................................................................................................................17-5
17.1.3 ftp ..............................................................................................................................................................17-6
17.1.4 http ............................................................................................................................................................17-8
17.1.5 https ..........................................................................................................................................................17-9
17.1.6 idle-session-timeout ...............................................................................................................................17-10
17.1.7 no ............................................................................................................................................................17-11
17.1.8 restrict-access .........................................................................................................................................17-14
17.1.9 snmp-server ............................................................................................................................................17-17
17.1.10 ssh .........................................................................................................................................................17-21
17.1.11 telnet .....................................................................................................................................................17-22
17.1.12 user .......................................................................................................................................................17-23

Chapter 18, RADIUS-POLICY
18.1 radius-group ........................................................................................................................................................18-2
18.1.1 guest .........................................................................................................................................................18-3
18.1.2 policy .........................................................................................................................................................18-4
18.1.3 rate-limit ...................................................................................................................................................18-7
18.1.4 no ..............................................................................................................................................................18-8
18.2 radius-server-policy ..........................................................................................................................................18-10
18.2.1 authentication .........................................................................................................................................18-11
18.2.2 crl-check ..................................................................................................................................................18-13
18.2.3 ldap-group-verification ...........................................................................................................................18-14
18.2.4 ldap-server ..............................................................................................................................................18-15
18.2.5 local .........................................................................................................................................................18-18
18.2.6 nas ...........................................................................................................................................................18-19
18.2.7 no ............................................................................................................................................................18-20

Table of Contents xv

18.2.8 proxy ........................................................................................................................................................18-23
18.2.9 session-resumption .................................................................................................................................18-25
18.2.10 use .........................................................................................................................................................18-26
18.3 radius-user-pool-policy .....................................................................................................................................18-27
18.3.1 user ..........................................................................................................................................................18-28
18.3.2 no .............................................................................................................................................................18-30

Chapter 19, RADIO-QOS-POLICY
19.1 radio-qos-policy ..................................................................................................................................................19-2
19.1.1 accelerated-multicast ...............................................................................................................................19-3

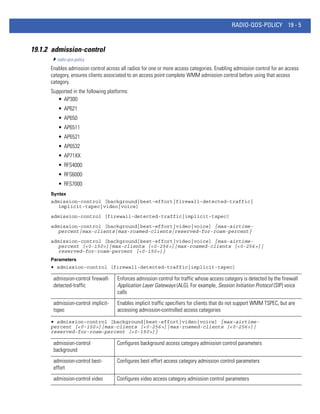

19.1.2 admission-control ......................................................................................................................................19-5
19.1.3 no ...............................................................................................................................................................19-7
19.1.4 wmm ........................................................................................................................................................19-10

Chapter 20, ROLE-POLICY
20.1 role-policy ..........................................................................................................................................................20-2
20.1.1 default-role ................................................................................................................................................20-3
20.1.2 no ...............................................................................................................................................................20-5
20.1.3 user-role ....................................................................................................................................................20-7
20.1.3.1 user-role ..........................................................................................................................................20-8
20.1.3.2 user-role commands ........................................................................................................................20-9

Chapter 21, SMART-RF-POLICY
21.1 smart-rf-policy .....................................................................................................................................................21-2
21.1.1 assignable-power ......................................................................................................................................21-4
21.1.2 auto-assign-sensor ....................................................................................................................................21-5
21.1.3 channel-list ................................................................................................................................................21-6
21.1.4 channel-width ...........................................................................................................................................21-7
21.1.5 coverage-hole-recovery .............................................................................................................................21-8
21.1.6 enable ......................................................................................................................................................21-10
21.1.7 group-by ..................................................................................................................................................21-11
21.1.8 interference-recovery ..............................................................................................................................21-12
21.1.9 neighbor-recovery ...................................................................................................................................21-14
21.1.10 no ...........................................................................................................................................................21-16

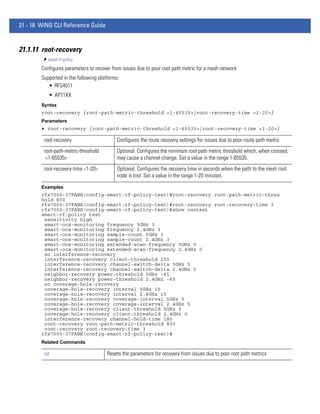

21.1.11 root-recovery .........................................................................................................................................21-18
21.1.12 sensitivity ..............................................................................................................................................21-19
21.1.13 smart-ocs-monitoring ............................................................................................................................21-20
21.1.14 smart-ocs-monitoring (AP71XX) ............................................................................................................21-23

Chapter 22, WIPS-POLICY
22.1 wips-policy ..........................................................................................................................................................22-2
22.1.1 ap-detection ..............................................................................................................................................22-3
22.1.2 enable ........................................................................................................................................................22-4
22.1.3 event ..........................................................................................................................................................22-5

xvi WiNG 5 System Reference Guide

22.1.4 history-throttle-duration ...........................................................................................................................22-9
22.1.5 no ............................................................................................................................................................22-10
22.1.6 signature .................................................................................................................................................22-14
22.1.6.1 signature .......................................................................................................................................22-15
22.1.6.2 signature mode commands ...........................................................................................................22-16
22.1.7 use ...........................................................................................................................................................22-31

Chapter 23, WLAN-QOS-POLICY
23.1 wlan-qos-policy ..................................................................................................................................................23-2
23.1.1 accelerated-multicast ...............................................................................................................................23-3
23.1.2 classification .............................................................................................................................................23-5
23.1.3 multicast-mask ..........................................................................................................................................23-7
23.1.4 no ..............................................................................................................................................................23-8
23.1.5 qos ...........................................................................................................................................................23-11
23.1.6 rate-limit .................................................................................................................................................23-12
23.1.7 svp-prioritization ....................................................................................................................................23-14
23.1.8 voice-prioritization .................................................................................................................................23-15
23.1.9 wmm .......................................................................................................................................................23-16

Chapter 24, INTERFACE-RADIO COMMANDS
24.1 interface-radio Instance .....................................................................................................................................24-3
24.1.1 aeroscout ..................................................................................................................................................24-5
24.1.2 ack-timeout ...............................................................................................................................................24-6
24.1.3 aggregation ...............................................................................................................................................24-7
24.1.4 antenna-diversity ....................................................................................................................................24-10
24.1.5 airtime-fairness .......................................................................................................................................24-11
24.1.6 antenna-gain ...........................................................................................................................................24-12
24.1.7 antenna-mode .........................................................................................................................................24-13
24.1.8 beacon .....................................................................................................................................................24-14
24.1.9 channel ....................................................................................................................................................24-16
24.1.10 data-rates ..............................................................................................................................................24-17
24.1.11 description ............................................................................................................................................24-20
24.1.12 dynamic-chain-selection .......................................................................................................................24-21
24.1.13 ekahau ...................................................................................................................................................24-22
24.1.14 guard-interval ........................................................................................................................................24-23
24.1.15 lock-rf-mode ..........................................................................................................................................24-24
24.1.16 max-clients ............................................................................................................................................24-25
24.1.17 mesh ......................................................................................................................................................24-26
24.1.18 meshpoint .............................................................................................................................................24-27
24.1.19 no ..........................................................................................................................................................24-28
24.1.20 non-unicast ...........................................................................................................................................24-31
24.1.21 off-channel-scan ...................................................................................................................................24-33
24.1.22 placement .............................................................................................................................................24-34
24.1.23 power ....................................................................................................................................................24-35
24.1.24 preamble-short ......................................................................................................................................24-36

Table of Contents xvii

24.1.25 probe-response .....................................................................................................................................24-37
24.1.26 radio-share-mode ..................................................................................................................................24-38
24.1.27 rate-selection ........................................................................................................................................24-39
24.1.28 rf-mode ..................................................................................................................................................24-40
24.1.29 rifs .........................................................................................................................................................24-41
24.1.30 rts-threshold ..........................................................................................................................................24-42
24.1.31 shutdown ...............................................................................................................................................24-43
24.1.32 sniffer-redirect ......................................................................................................................................24-44
24.1.33 stbc ........................................................................................................................................................24-45
24.1.34 txbf ........................................................................................................................................................24-46
24.1.35 use .........................................................................................................................................................24-47
24.1.36 wireless-client .......................................................................................................................................24-48
24.1.37 wlan .......................................................................................................................................................24-49

Chapter 25, FIREWALL LOGGING
25.1 Firewall Log Terminology and Syslog Severity Levels .......................................................................................25-2
25.1.1 Date format in Syslog messages ..............................................................................................................25-3
25.1.2 FTP data connection log ............................................................................................................................25-4
25.1.3 UDP packets log ........................................................................................................................................25-5
25.1.4 ICMP type logs ..........................................................................................................................................25-6
25.1.5 ICMP type logs ..........................................................................................................................................25-7
25.1.6 Raw IP Protocol logs ...............................................................................................................................25-8
25.1.7 Raw IP Protocol logs ................................................................................................................................25-9
25.1.8 Firewall startup log .................................................................................................................................25-10
25.1.9 Manual time change log .........................................................................................................................25-11
25.1.10 Firewall ruleset log ...............................................................................................................................25-12
25.1.11 TCP Reset Packets log ...........................................................................................................................25-14
25.1.12 ICMP Destination log ...........................................................................................................................25-15
25.1.13 ICMP Packet log ....................................................................................................................................25-16
25.1.14 SSH connection log ...............................................................................................................................25-17
25.1.15 Allowed/Dropped Packets Log ..............................................................................................................25-18

Chapter 26, MESHPOINT
26.1 meshpoint ...........................................................................................................................................................26-2
26.1.1 allowed-vlans ............................................................................................................................................26-4
26.1.2 beacon-format ...........................................................................................................................................26-5
26.1.3 control-vlan ...............................................................................................................................................26-6
26.1.4 data-rates ..................................................................................................................................................26-7
26.1.5 description ...............................................................................................................................................26-11
26.1.6 meshid .....................................................................................................................................................26-12
26.1.7 neighbor ..................................................................................................................................................26-13
26.1.8 no .............................................................................................................................................................26-14
26.1.9 root ..........................................................................................................................................................26-17
26.1.10 security-mode ........................................................................................................................................26-18
26.1.11 service ...................................................................................................................................................26-19

xviii WiNG 5 System Reference Guide

26.1.12 shutdown ..............................................................................................................................................26-20
26.1.13 use .........................................................................................................................................................26-21
26.1.14 wpa2 .....................................................................................................................................................26-22
26.2 meshpoint-qos-policy .......................................................................................................................................26-24
26.2.1 accelerated-multicast .............................................................................................................................26-26
26.2.2 no ............................................................................................................................................................26-27
26.2.3 rate-limit .................................................................................................................................................26-29
26.3 Other Meshpoint commands ............................................................................................................................26-31
26.3.1 meshpoint-device ....................................................................................................................................26-32
26.3.2 no ............................................................................................................................................................26-33
26.3.3 preferred .................................................................................................................................................26-34
26.3.4 root ..........................................................................................................................................................26-35

Appendix A, CONTROLLER MANAGED WLAN USE CASE
A.1 Creating a First Controller Managed WLAN ......................................................................................................... A-2
A.1.1 Assumptions ................................................................................................................................................ A-2
A.1.2 Design .......................................................................................................................................................... A-3
A.1.3 Using the Command Line Interface to Configure the WLAN ...................................................................... A-4
A.1.3.1 Logging Into the Controller for the First Time ................................................................................... A-4
A.1.3.2 Creating a RF Domain ........................................................................................................................ A-5
A.1.3.3 Creating a Wireless Controller Profile .............................................................................................. A-6
A.1.3.4 Creating an AP Profile ....................................................................................................................... A-7
A.1.3.5 Creating a DHCP Server Policy .......................................................................................................... A-9
A.1.3.6 Completing and Testing the Configuration ..................................................................................... A-10

Appendix B, CUSTOMER SUPPORT

ABOUT THIS GUIDE

This manual supports the following wireless controllers and connected access points:
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
This section is organized into the following:
• Document Convention
• Notational Conventions

xx WiNG CLI Reference Guide

Document Convention
The following conventions are used in this document to draw your attention to important information:

NOTE: Indicates tips or special requirements.

! CAUTION: Indicates conditions that can cause equipment damage or data loss.

WARNING! Indicates a condition or procedure that could result in personal
injury or equipment damage.

Switch Note: Indicates caveats unique to a RFS7000, RFS6000 or RFS4000 model
controller.

Getting Started with the Mobile Computer xxi

Notational Conventions
The following notational conventions are used in this document:
• Italics are used to highlight specific items in the general text, and to identify chapters and sections in this and related
documents
• Bullets (•) indicate:
• lists of alternatives
• lists of required steps that are not necessarily sequential
• action items
• Sequential lists (those describing step-by-step procedures) appear as numbered lists
Understanding Command Syntax

<variable> Variables are described with a short description enclosed within a ‘<‘ and
a ‘>’ pair.
For example, the command,
rfs7000-37FABE>show interface ge 1
is documented as
show interface ge <idx>
• show – The command – Display information
• interface – The keyword – The interface
• <idx> – The variable – ge Index value
| The pipe symbol. This is used to separate the variables/keywords in a list.
For example, the command
rfs7000-37FABE> show .....
is documented as
show [adoption|advanced-wips|boot|captive-
portal|......]
where:
• show – The command
• [adoption|advanced-wips|boot|captive-portal|......] – Indicates the different
commands that can be combined with the show command. However, only one
of the above list can be used at a time.
show adoption ...
show advanced-wips ...
show boot ...

xxii WiNG CLI Reference Guide

[] Of the different keywords and variables listed inside a ‘[‘ & ‘]’ pair, only
one can be used. Each choice in the list is separated with a ‘|’ (pipe)
symbol.
rfs7000-37FABE# clear ...
is documented as
clear [arp-cache|cdp|crypto|event-history|
firewall|ip|spanning-tree]
where:
• clear – The command
• [arp-cache|cdp|crypto|event-history|firewall|ip|spanning-tree] – Indicates that
seven keywords are available for this command and only one can be used at a
time
{} Any command/keyword/variable or a combination of them inside a ‘{‘ & ‘}’
pair is optional. All optional commands follow the same conventions as
listed above. However they are displayed italicized.
rfs7000-37FABE> show adoption ....
is documented as
show adoption info {on <DEVICE-OR-DOMAIN-NAME>}
Here:
• show adoption info – The command. This command can also be used as
show adoption info
• {on <DEVICE-OR-DOMAIN-NAME>} – The optional keyword on <device-or-
domain-name>. The command can also be extended as
show adoption info {on <DEVICE-OR-DOMAIN-NAME>}
Here the keyword {on <DEVICE-OR-DOMAIN-NAME>} is optional.

Getting Started with the Mobile Computer xxiii

command / keyword The first word is always a command. Keywords are words that must be
entered as is. Commands and keywords are mandatory.
For example, the command,
rfs7000-37FABE>show wireless
is documented as
show wireless
where:
• show – The command
• wireless – The keyword
() Any command/keyword/variable or a combination of them inside a ‘(‘ & ‘)’
pair are recursive. All recursive commands can be listed in any order and
can be used once along with the rest of the commands.
crypto pki export request generate-rsa-key
test autogen-subject-name ...
is documented as
rfs7000-37FABE#crypto pki export request
generate-rsa-key test autogen-subject-name
(<URL>,email <EMAIL>,fqdn <FQDN>,ip-address
<IP>)
Here:
• crypto pki export request generate-rsa-key <RSA-KEYPAIR-NAME>
auto-gen-subject-name – is the command
rfs7000-37FABE#crypto pki export request
generate-rsa-key test autogen-subject-name
• (<URL>,email <EMAIL>,fqdn <FQDN>,ip-address <IP>) – is the set of
recursive parameters that can be used in any order.
where every recursive command is separated by a comma ‘,’

xxiv WiNG CLI Reference Guide

Motorola Solutions Enterprise Mobility Support Center
If you have a problem with your equipment, contact Motorola Solutions Enterprise Mobility Support for your region.
Contact information is available by visiting the URL:
http://www.motorolasolutions.com/Business/XP-EN/Pages/Contact_Us#contactus_tab
When contacting Enterprise Mobility support, please provide the following information:
• Serial number of the unit
• Model number or product name
• Software type and version number
Motorola Solutions responds to calls by e-mail, telephone or fax within the time limits set forth in support agreements. If
you purchased your Enterprise Mobility business product from a Motorola Solutions business partner, contact that
business partner for support.

Customer Support Web Site
Motorola Solutions' Support Central Web site, accessed via the Symbol-branded products link under Support for Business,
provides information and online assistance including developer tools, software downloads, product manuals and online
repair requests. Product support can be found at:
http://www.motorolasolutions.com/Business/XP-EN/Pages/Contact_Us#support_tab

Product Sales and Product Information
Motorola Solutions, Inc.
One Motorola Plaza
Holtsville, New York 11742-1300

Tel: 1-631-738-2400 or 1-800-722-6234
Fax: 1-631-738-5990

General Information
For general information, contact Motorola Solutions at:
Telephone (North America): 1-800-722-6234
Telephone (International): +1-631-738-5200

Website: http://www.motorolasolutions.com

Getting Started with the Mobile Computer xxv

Motorola Solutions, Inc.
End-User License Agreement
BY DOWNLOADING, INSTALLING, OR USING THE SOFTWARE DESCRIBED IN THIS DOCUMENT, YOU OR THE ENTITY OR COMPANY
THAT YOU REPRESENT ("LICENSEE") ARE UNCONDITIONALLY CONSENTING TO BE BOUND BY AND ARE BECOMING A PARTY TO
THIS LICENSE AGREEMENT ("AGREEMENT"). LICENSEE'S USE OR CONTINUED USE OF THE DOWNLOADED OR INSTALLED
MATERIALS SHALL ALSO CONSTITUTE ASSENT TO THE TERMS OF THIS AGREEMENT. IF LICENSEE DOES NOT UNCONDITIONALLY
AGREE TO ALL OF THE TERMS OF THIS AGREEMENT, DO NOT CONTINUTE THE INSTALLATION PROCESS. IF THESE TERMS ARE
CONSIDERED AN OFFER, ACCEPTANCE IS EXPRESSLY LIMITED TO AND EXPRESSLY CONTINGENT UPON THESE TERMS. IF YOU ARE
ACCEPTING THESE TERMS ON BEHALF OF A COMPANY, ANOTHER PERSON OR ANY OTHER LEGAL ENTITY, YOU REPRESENT AND
WARRANT THAT YOU HAVE THE AUTHORITY TO BIND THAT COMPANY, PERSON OR ENTITY.
1. LICENSE GRANT. Subject to the terms of this Agreement, Motorola Solutions, Inc. and/or its subsidiaries ("Licensor") hereby
grants Licensee a limited, personal, non-sublicensable, non transferable, non-exclusive license to use the software that
Licensee is about to download or install and the documentation that accompanies it (collectively, the "Software") for
Licensee's personal use in connection with hardware produced by Licensor and only in accordance with the accompanying
documentation. Licensee may download, install and use the Software only on a single computer. Licensee may make one
copy of the Software (excluding any documentation) for backup purposes, provided that copyright and other restricted rights
notices of Licensor and its suppliers are reproduced exactly.
2. LICENSE RESTRICTIONS. Except as expressly permitted by this Agreement, Licensee shall not, nor permit anyone else to,
directly or indirectly: (i) copy (except for one backup copy), modify, distribute or create derivative works based upon the
Software; (ii) reverse engineer, disassemble, decompile or otherwise attempt to discover the source code or structure,
sequence and organization of the Software; or (iii) rent, lease, or use the Software for timesharing or service bureau
purposes, or otherwise use the Software for any commercial purpose/on behalf of any third party. Licensee shall maintain
and not remove or obscure any proprietary notices on the Software, and shall reproduce such notices exactly on all permitted
copies of the Software. All title, ownership rights, and intellectual property rights in and to the Software, and any copies or
portions thereof, shall remain in Licensor and its suppliers or licensors. Licensee understands that Licensor may modify or
discontinue offering the Software at any time. The Software is protected by the copyright laws of the United States and
international copyright treaties. The Software is licensed, not sold. This Agreement does not give Licensee any rights not
expressly granted herein.
3. INTELLECTUAL PROPERTY; CONTENT. All title and intellectual property rights in and to the Software (including but not
limited to any images, photographs, animations, video, audio, music, text and "applets" incorporated into the Software), and
any copies you are permitted to make herein are owned by Licensor or its suppliers. All title and intellectual property rights
in and to the content which may be accessed through use of the Software is the property of the respective content owner
and may be protected by applicable copyright or other intellectual property laws and treaties. This EULA grants you no rights
to use such content. As a condition to Licensee's use of the Software, Licensee represents, warrants and covenants that
Licensee will not use the Software: (i) to infringe the intellectual property rights or proprietary rights, or rights of publicity
or privacy, of any third party; (ii) to violate any applicable law, statute, ordinance or regulation; (iii) to disseminate information
or materials in any form or format ("Content") that are harmful, threatening, abusive, harassing, tortuous, defamatory, vulgar,
obscene, libelous, or otherwise objectionable; or (iv) to disseminate any software viruses or any other computer code, files
or programs that may interrupt, destroy or limit the functionality of any computer software or hardware or
telecommunications equipment. Licensee, not Licensor, remains solely responsible for all Content that Licensee uploads,
posts, e-mails, transmits, or otherwise disseminates using, or in connection with, the Software.
4. FEES; SUPPORT AND UPGRADES. Licensor may, at Licensor's sole option, provide support services related to the Software
("Support Services"). Nothing in this Agreement grants Licensee any right to receive any Support Services. Use of any
Support Services provided is governed by the Licensor policies and programs described in the user manual, in "online"
documentation, and/or in other Licensor-provided materials or support agreements. Any supplemental software code
provided to you as part of any Support Services shall be considered part of the Software and subject to the terms and
conditions of this EULA. With respect to technical information you provide to Licensor as part of any Support Services,

xxvi WiNG CLI Reference Guide

Licensor may use such information for its business purposes, including for product support and development. Licensor will
not utilize such technical information in a form that personally identifies Licensee.
5. TERMINATION. Either party may terminate this Agreement at any time, with or without cause, upon written notice. Any
termination of this Agreement shall also terminate the licenses granted hereunder. Upon termination of this Agreement for
any reason, Licensee shall return all copies of the Software to Licensor, or destroy and remove from all computers, hard
drives, networks, and other storage media all copies of the Software, and shall so certify to Licensor that such actions have
occurred. Sections 2-13 shall survive termination of this Agreement.
6. DISCLAIMER OF WARRANTIES. To the maximum extent permitted by applicable law, Licensor and its suppliers provide the
Software and any (if any) Support Services AS IS AND WITH ALL FAULTS, and hereby disclaim all warranties and conditions,
either express, implied or statutory, including, but not limited to, any (if any) implied warranties or conditions of
merchantability, of fitness for a particular purpose, of lack of viruses, of accuracy or completeness of responses, of results,
and of lack of negligence or lack of workmanlike effort, all with regard to the Software, and the provision of or failure to
provide Support Services. ALSO, THERE IS NO WARRANTY OR CONDITION OF TITLE, QUIET ENJOYMENT, QUIET
POSSESSION, CORRESPONDENCE TO DESCRIPTION, OR NONINFRINGEMENT WITH REGARD TO THE SOFTWARE. THE
ENTIRE RISK AS TO THE QUALITY OF OR ARISING OUT OF USE OR PERFORMANCE OF THE SOFTWARE AND SUPPORT
SERVICES, IF ANY, REMAINS WITH LICENSEE.
7. EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, IN NO EVENT SHALL LICENSOR OR ITS SUPPLIERS BE LIABLE FOR ANY GENERAL, SPECIAL,
INCIDENTAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, BUT NOT LIMITED TO,
DAMAGES FOR LOSS OF PROFITS OR CONFIDENTIAL OR OTHER INFORMATION, FOR BUSINESS INTERRUPTION, FOR
PERSONAL INJURY, FOR LOSS OF PRIVACY, FOR FAILURE TO MEET ANY DUTY INCLUDING OF GOOD FAITH OR OF
REASONABLE CARE, FOR NEGLIGENCE, AND FOR ANY OTHER PECUNIARY OR OTHER LOSS WHATSOEVER) ARISING OUT
OF OR IN ANY WAY RELATED TO THE USE OF OR INABILITY TO USE THE SOFTWARE, THE PROVISION OF OR FAILURE TO
PROVIDE SUPPORT SERVICES, OR OTHERWISE UNDER OR IN CONNECTION WITH ANY PROVISION OF THIS AGREEMENT,
EVEN IN THE EVENT OF THE FAULT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY, BREACH OF CONTRACT OR BREACH
OF WARRANTY OF LICENSOR OR ANY SUPPLIER, AND EVEN IF LICENSOR OR ANY SUPPLIER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
8. LIMITATION OF LIABILITY AND REMEDIES. Notwithstanding any damages that Licensee might incur for any reason
whatsoever (including, without limitation, all damages referenced above and all direct or general damages), the entire
liability of Licensor and any of its suppliers under any provision of this Agreement and Licensee's exclusive remedy for all of
the foregoing shall be limited to the greater of the amount actually paid by Licensee for the Software or U.S.$5.00. The
foregoing limitations, exclusions and disclaimers shall apply to the maximum extent permitted by applicable law, even if any
remedy fails its essential purpose.

Getting Started with the Mobile Computer xxvii

9. INDEMNITY. Licensee agrees that Licensor shall have no liability whatsoever for any use Licensee makes of the Software.
Licensee shall indemnify and hold harmless Licensor from any claims, damages, liabilities, costs and fees (including
reasonable attorney fees) arising from Licensee's use of the Software as well as from Licensee's failure to comply with any
term of this Agreement.
10. FAULT TOLERANCE. The Software is not fault-tolerant and is not designed, manufactured or intended for use or resale in on-
line control equipment in hazardous environments requiring fail-safe performance, such as, but not limited to, the operation
of nuclear facilities, aircraft navigation or communication systems, air traffic control, life support machines, or weapons
systems, in which the failure of the Software could lead directly or indirectly to death, personal injury, or physical or
environmental damage ("High Risk Activities"). Licensor and its suppliers specifically disclaim any express or implied
warranty of fitness for High Risk Activities.
11. U.S. GOVERNMENT LICENSE RIGHTS. Software provided to the U.S. Government pursuant to solicitations issued on or after
December 1, 1995 is provided with the commercial license rights and restrictions described elsewhere herein. Software
provided to the U.S. Government pursuant to solicitations issued prior to December 1, 1995 is provided with "Restricted
Rights" as provided for in FAR, 48 CFR 52.227-14 (JUNE 1987) or DFAR, 48 CFR 252.227- 7013 (OCT 1988), as applicable. The
"Manufacturer" for purposes of these regulations is Motorola Solutions, Inc., One Symbol Plaza, Holtsville, NY 11742.
12. EXPORT RESTRICTIONS. Licensee shall comply with all export laws and restrictions and regulations of the Department of
Commerce, the United States Department of Treasury Office of Foreign Assets Control ("OFAC"), or other United States or
foreign agency or authority, and Licensee shall not export, or allow the export or re-export of the Software in violation of any
such restrictions, laws or regulations. By downloading or using the Software, Licensee agrees to the foregoing and
represents and warrants that Licensee is not located in, under the control of, or a national or resident of any restricted
country.
13. MISCELLANEOUS. Licensee may not sublicense, assign, or transfer this Agreement, or its rights or obligations hereunder,
without the prior written consent of Licensor. Any attempt to otherwise sublicense, assign, or transfer any of the rights,
duties, or obligations hereunder is null and void. Licensor may assign this Agreement in its sole discretion. In the event that
any of the provisions of this Agreement shall be held by a court or other tribunal of competent jurisdiction to be illegal, invalid
or unenforceable, such provisions shall be limited or eliminated to the minimum extent necessary so that this Agreement
shall otherwise remain in full force and effect. No waiver or modification of this Agreement will be binding upon a party
unless made in writing and signed by a duly authorized representative of such party and no failure or delay in enforcing any
right will be deemed a waiver. This Agreement shall be governed by the laws of the State of New York without regard to the
conflicts of law provisions thereof. The application the United Nations Convention of Contracts for the International Sale of
Goods is expressly excluded. Unless waived by Licensor for a particular instance, any action or proceeding arising out of this
Agreement must be brought exclusively in the state or federal courts of New York and Licensee hereby consents to the
jurisdiction of such courts for any such action or proceeding. This Agreement supersedes all prior discussions and writings
and constitutes the entire agreement between the parties with respect to the subject matter hereof. The prevailing party in
any action arising out of this Agreement shall be entitled to costs and attorneys' fees.

xxviii WiNG CLI Reference Guide

CHAPTER 1 INTRODUCTION

This chapter describes the commands available using the wireless controller Command Line Interface (CLI). CLI is available
for wireless controllers as well as access points (APs).
Access the CLI by using:
• A terminal emulation program running on a computer connected to the serial port on the wireless controller. The serial
port is located on the front of the wireless controller.
• A Telnet session through Secure Shell (SSH) over a network.
Configuration for connecting to a Wireless Controller using a terminal emulator
If connecting through the serial port, use the following settings to configure your terminal emulator:

Bits Per Second 19200
Data Bits 8
Parity None
Stop Bit 1
Flow Control None

When a CLI session is established, complete the following (user input is in bold):
login as: <username>
administrator’s login password: <password>
User Credentials
Use the following credentials when logging into a device for the first time:

User Name admin
Password motorola

When logging into the CLI for the first time, you are prompted to change the password.

1-2 WiNG CLI Reference Guide

Examples in this reference guide
Examples used in this reference guide are generic to the each supported wireless controller model and AP. Commands that
are not common, are identified using the notation “Supported in the following platforms.” For an example, see below:
Supported in the following platforms:
• RFS6000
The above example indicates the command is only available for a RFS6000 model wireless controller.

INTRODUCTION 1-3

1.1 CLI Overview
The CLI is used for configuring, monitoring, and maintaining the wireless controller managed network. The user interface
allows you to execute commands on supported wireless controllers and APs, using either a serial console or a remote
access method.
This chapter describes basic CLI features. Topics covered include an introduction to command modes, navigation and
editing features, help features and command history.
The CLI is segregated into different command modes. Each mode has its own set of commands for configuration,
maintenance and monitoring. The commands available at any given time depend on the mode you are in, and to a lesser
extent, the particular model used. Enter a question mark (?) at the system prompt to view a list of commands available for
each command mode/instance.
Use specific commands to navigate from one command mode to another. The standard order is: USER EXEC mode, PRIV
EXEC mode and GLOBAL CONFIG mode.

Figure 1-1 Hierarchy of User Modes
Command Modes
A session generally begins in the USER EXEC mode (one of the two access levels of the EXEC mode). For security, only a
limited subset of EXEC commands are available in the USER EXEC mode. This level is reserved for tasks that do not change
the wireless controller configuration.
rfs7000-37FABE>
The system prompt signifies the device name and the last three bytes of the device MAC address.
To access commands, enter the PRIV EXEC mode (the second access level for the EXEC mode). Once in the PRIV EXEC mode,
enter any EXEC command. The PRIV EXEC mode is a superset of the USER EXEC mode.
rfs7000-37FABE> enable
rfs7000-37FABE#
Most of the USER EXEC mode commands are one-time commands and are not saved across wireless controller reboots.
Save the command by executing ‘commit’ command. For example, the show command displays the current configuration
and the clear command clears the interface.


Access the GLOBAL CONFIG mode from the PRIV EXEC mode. In the GLOBAL CONFIG mode, enter commands that set
general system characteristics. Configuration modes, allow you to change the running configuration. If you save the
configuration later, these commands are stored across wireless controller reboots.
Access a variety of protocol specific (or feature-specific) modes from the global configuration mode. The CLI hierarchy
requires you to access specific configuration modes only through the global configuration mode.
rfs7000-37FABE# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
rfs7000-37FABE(config)#
You can also access sub-modes from the global configuration mode. Configuration sub-modes define specific features
within the context of a configuration mode.
rfs7000-37FABE(config)# aaa-policy test
rfs7000-37FABE(config-aaa-policy-test)#
Table 1.1 summarizes available wireless controller commands
Table 1.1 Wireless Controller modes and commands

User Exec Mode Priv Exec Mode Global Configuration Mode
ap-upgrade ap-upgrade aaa-policy
change-passwd archive advanced-wips-policy
clear boot ap300
clock cd ap621
cluster change-passwd ap650
commit clear ap6511
connect clock ap6521
crypto cluster ap6532
debug commit ap71xx
disable configure association-acl-policy
enable connect auto-provisioning-policy
help copy captive-portal
logging crypto clear
mint debug critical-resource-policy
no delete customize
page diff device
ping dir device-categorization
remote-debug disable dhcp-sever-policy
revert edit dns-whitelist
service enable event-system-policy
show erase firewall-policy

INTRODUCTION 1-5


ssh format help
telnet halt host
terminal help igmp-snoop-policy
time-it logging ip
traceroute mint mac
watch mkdir management-policy
write more mint-policy
clrscr no nac-list
exit page no
ping password-encryption
pwd profile
reload radio-qos-policy
remote-debug radius-group
rename radius-server-policy
revert radius-user-pool-policy
rmdir rf-domain
self rfs4000
service rfs6000
show rfs7000
ssh role-policy
telnet self
terminal smart-rf-policy
time-it wips-policy
traceroute wlan
upgrade wlan-qos-policy
upgrade-abort write
watch clrscr
write commit
clrscr do
exit end



exit
revert
service
show

INTRODUCTION 1-7

1.2 Getting Context Sensitive Help
Enter a question mark (?) at the system prompt to display a list of commands available for each mode. Obtain a list of
arguments and keywords for any command using the CLI context-sensitive help.
Use the following commands to obtain help specific to a command mode, command name, keyword or argument:

Command Description
(prompt)# help Displays a brief description of the help system
(prompt)# abbreviated-command-entry? Lists commands in the current mode that begin with a
particular character string
(prompt)# abbreviated-command-entry<Tab> Completes a partial command name
(prompt)# ? Lists all commands available in the command mode
(prompt)# command ? Lists the available syntax options (arguments and keywords)
for the command
(prompt)# command keyword ? Lists the next available syntax option for the command

NOTE: The system prompt varies depending on which configuration mode your in.

NOTE: Enter Ctrl + V to use ? as a regular character and not as a character used for
displaying context sensitive help. This is required when the user has to enter a URL that
ends with a ?

NOTE: The escape character used through out the CLI is “”. To enter a "" use ""
instead.

When using context-sensitive help, the space (or lack of a space) before the question mark (?) is significant. To obtain a
list of commands that begin with a particular sequence, enter the characters followed by a question mark (?). Do not
include a space. This form of help is called word help, because it completes a word.
rfs7000-37FABE#service?
service Service Commands
rfs7000-37FABE#service


Enter a question mark (?) (in place of a keyword or argument) to list keywords or arguments. Include a space before the
“?”. This form of help is called command syntax help. It shows the keywords or arguments available based on the
command/keyword and argument already entered.
rfs7000-37FABE>service ?
advanced-wips Advanced WIPS service commands
clear Clear
cli-tables-expand Expand the cli-table in drapdown format
cli-tables-skin Choose a formatting layout/skin for CLI tabular outputs
cluster Cluster Protocol
locator Enable leds flashing on the device
pktcap Start packet capture
radio Radio parameters
show Show running system information
smart-rf Smart-RF Management Commands
traceroute Trace route to destination
wireless Wireless commands
rfs7000-37FABE>service
It’s possible to abbreviate commands and keywords to allow a unique abbreviation. For example, “configure terminal” can
be abbreviated as config t. Since the abbreviated command is unique, the wireless controller accepts the
abbreviation and executes the command.
Enter the help command (available in any command mode) to provide the following description:
rfs7000-37FABE>help
CLI provides advanced help feature. When you need help,
anytime at the command line please press '?'.

If nothing matches, the help list will be empty and you must backup
until entering a '?' shows the available options.
Two styles of help are provided:
1. Full help is available when you are ready to enter a
command argument (e.g. 'show ?') and describes each possible
argument.
2. Partial help is provided when an abbreviated argument is entered and you want to
know what arguments match the input
(e.g. 'show ve?'.)

INTRODUCTION 1-9

1.3 Using the No Command
Almost every command has a no form. Use no to disable a feature or function or return it to its default value. Use the
command without the no keyword to re-enable a disabled feature.

1.3.1 Basic Conventions
Keep the following conventions in mind while working within the wireless controller CLI:
• Use ? at the end of a command to display available sub-modes. Type the first few characters of the sub-mode and press
the tab key to add the sub-mode. Continue using ? until you reach the last sub-mode.
• Pre-defined CLI commands and keywords are case-insensitive: cfg = Cfg = CFG. However (for clarity), CLI commands
and keywords are displayed (in this guide) using mixed case. For example, apPolicy, trapHosts, channelInfo.
• Enter commands in uppercase, lowercase, or mixed case. Only passwords are case sensitive.

1 - 10 WiNG CLI Reference Guide

1.4 Using CLI Editing Features and Shortcuts
A variety of shortcuts and edit features are available. The following describe these features:
• Moving the Cursor on the Command Line
• Completing a Partial Command Name
• Command Output pagination

INTRODUCTION 1 - 11

1.4.1 Moving the Cursor on the Command Line
Table 1.2 on page 1-11
Shows the key combinations or sequences to move the command line cursor. Ctrl defines the control key, which must be
pressed simultaneously with its associated letter key. Esc means the escape key (which must be pressed first), followed
by its associated letter key. Keys are not case sensitive. Specific letters are used to provide an easy way of remembering
their functions. In Table 1.2 on page 1-11, bold characters indicate the relation between a letter and its function.
Table 1.2 Keystrokes Details

Keystrokes Function Summary Function Details
Left Arrow Back character Moves the cursor one character to the left
or When entering a command that extends beyond a
Ctrl-B single line, press the Left Arrow or Ctrl-B keys
repeatedly to move back to the system prompt.
Right Arrow or Ctrl-F Forward character Moves the cursor one character to the right
Esc- B Back word Moves the cursor back one word
Esc- F Forward word Moves the cursor forward one word
Ctrl-A Beginning of line Moves the cursor to the beginning of the command
line
Ctrl-E End of line Moves the cursor to the end of the command line
Ctrl-D Deletes the current character
Ctrl-U Deletes text up to cursor
Ctrl-K Deletes from the cursor to end of the line
Ctrl-P Obtains the prior command from memory
Ctrl-N Obtains the next command from memory
Esc-C Converts the letter at the cursor to uppercase
Esc-L Converts the letter at the cursor to lowercase
Esc-D Deletes the remainder of a word
Ctrl-W Deletes the word up to the cursor
Ctrl-Z Returns to the root prompt
Ctrl-T Transposes the character to the left of the cursor with
the character located at the cursor
Ctrl-L Clears the screen


1.4.2 Completing a Partial Command Name
If you cannot remember a command name (or if you want to reduce the amount of typing you have to perform), enter the
first few letters of a command, then press the Tab key. The command line parser completes the command if the string
entered is unique to the command mode. If your keyboard does not have a Tab key, press Ctrl-L.
The CLI recognizes a command once you have entered enough characters to make the command unique. If you enter “conf”
within the privileged EXEC mode, the CLI associates the entry with the configure command, since only the configure
command begins with conf.
In the following example, the CLI recognizes a unique string in the privileged EXEC mode when the Tab key is pressed:
rfs7000-37FABE# conf<Tab>
rfs7000-37FABE# configure
When using the command completion feature, the CLI displays the full command name. The command is not executed until
the Return or Enter key is pressed. Modify the command if the full command was not what you intended in the
abbreviation. If entering a set of characters (indicating more than one command), the system lists all commands beginning
with that set of characters.
Enter a question mark (?) to obtain a list of commands beginning with that set of characters. Do not leave a space between
the last letter and the question mark (?).
For example, entering U lists all commands available in the current command mode:
rfs7000-37FABE# co?
commit Commit all changes made in this session
configure Enter configuration mode
connect Open a console connection to a remote device
copy Copy from one file to another
rfs7000-37FABE# co

NOTE: The characters entered before the question mark are reprinted to the screen to
complete the command entry.

1.4.3 Command Output pagination
Output often extends beyond the visible screen length. For cases where output continues beyond the screen, the output is
paused and a
--More--
prompt displays at the bottom of the screen. To resume the output, press the Enter key to scroll down one line or press the
Spacebar to display the next full screen of output.

INTRODUCTION 1 - 13

1.4.4 Creating Profiles
Profiles are sort of a ‘template’ representation of configuration. The system has:
• a default wireless controller profile
• a default profile for each of the following APs:
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP7131
• AP7161
To modify the default profile to assign an IP address to the management port:
rfs7000-37FABE(config)#profile rfs7000 default-rfs-7000
rfs7000-37FABE(config-profile-default-rfs-7000)#interface me1
rfs7000-37FABE(config-profile-default-rfs-7000-if-me1)#ip address 172.16.10.2/24
rfs7000-37FABE(config-profile-default-rfs-7000-if-me1)#commit
rfs7000-37FABE(config-profile-default-rfs-7000)#exit
The following command displays default ap7131 profile:
rfs7000-37FABE(config)#profile ap7131 default-ap7131
rfs7000-37FABE(config-profile-default-ap7131)#show context

1.4.5 Change the default profile by creating vlan 150 and mapping to ge3 Physical interface
Logon to the wireless controller in config mode and follow the procedure below:
rfs7000-37FABE(config-profile-default-rfs7000)# interface vlan 150
rfs7000-37FABE(config-profile-default-rfs7000-if-vlan150)# ip address
192.168.150.20/24
rfs7000-37FABE(config-profile-default-rfs7000-if-vlan150)# exit
rfs7000-37FABE(config-profile-default-rfs7000)# interface ge 3
rfs7000-37FABE(config-profile-default-rfs7000-if-ge3)# switchport access vlan 150
rfs7000-37FABE(config-profile-default-rfs7000-if-ge3)# commit write
[OK]
rfs7000-37FABE(config-profile-default-rfs7000-if-ge3)# show interface vlan 150
Interface vlan150 is UP
Hardware-type: vlan, Mode: Layer 3, Address: 00-15-70-37-FA-BE
Index: 8, Metric: 1, MTU: 1500
IP-Address: 192.168.150.20/24
input packets 43, bytes 12828, dropped 0, multicast packets 0
input errors 0, length 0, overrun 0, CRC 0, frame 0, fifo 0, missed 0
output packets 0, bytes 0, dropped 0
output errors 0, aborted 0, carrier 0, fifo 0, heartbeat 0, window 0
collisions 0

1.4.5.1 Viewing Configured APs
To view previously configured APs, enter the following command:
rfs7000-37FABE(config)#show wireless ap configured


1.4.6 Remote Administration
A terminal server may function in remote administration mode if either the terminal services role is not installed on the
machine or the client used to invoke the session has enabled the admin wireless controller.
• A terminal emulation program running on a computer connected to the serial port on the wireless controller. The serial
port is located on the front of the wireless controller.
• A Telnet session through a Secure Shell (SSH) over a network. The Telnet session may or may not use SSH depending
on how the wireless wireless controller is configured. Motorola Solutions recommends using SSH for remote
administration tasks.

1.4.6.1 Configuring Telnet for Management Access
Login through the serial console. Perform the following:
1. A session generally begins in the USER EXEC mode (one of the two access levels of the EXEC mode).
2. Access the GLOBAL CONFIG mode from the PRIV EXEC mode.
rfs7000-37FABE> en
3. Go to ‘default-management-policy’ mode.
rfs7000-37FABE(config)# management-policy ?
rfs7000-37FABE(config)# management-policy default
rfs7000-37FABE(config-management-policy-default)#
4. Enter Telnet and the port number at the command prompt. The port number is optional. The default port is 23. Commit
the changes after every command. Telnet is enabled.
rfs7000-37FABEconfig-management-policy-default)# telnet
rfs7000-37FABE(config-management-policy-default)# commit write
5. Connect to the wireless wireless controller through Telnet using its configured IP address. Use the following
credentials when logging on to the device for the first time:

User Name admin
Password motorola

When logging into the wireless controller for the first time, you are prompted to change the password.
To change user credentials:
1. Enter the username, password, role and access details
rfs7000-37FABE(config-management-policy-default)# user testuser password symbol
role helpdesk access all
rfs7000-37FABE(config-management-policy-default)# commit
rfs7000-37FABE(config-management-policy-default)# show context
management-policy default
telnet
http server
ssh
user admin password 1
c9745a77bb8663fbe9422c0bab93087208e68c40add8edd0a3b4a985aa96a682 role superuser
access all
user testuser password 1
fd6af6a0e74ede3fc4bd54519e4864b078554aa2d97a623eedefae2ede682c13 role helpdesk
access all
rfs7000-37FABE(config-management-policy-default)# sow con
rfs7000-37FABE(config-management-policy-default)# sow conin
rfs7000-37FABE(config-management-policy-default)# show context include-factory
secure-management

INTRODUCTION 1 - 15

telnet port 23
http server
no https server
no ftp
ssh port 22
user admin password 1
c9745a77bb8663fbe9422c0bab93087208e68c40add8edd0a3b4a985aa96a682 role superuser
access all
user testuser password 1
fd6af6a0e74ede3fc4bd54519e4864b078554aa2d97a623eedefae2ede682c13 role helpdesk
access all
snmp-server manager v2
snmp-server manager v3
no snmp-server enable traps
rfs7000-37FABE(config-management-policy-default)# user testuser password symbol
role helpdesk access all ?
2. Logon to the Telnet console and provide the user details configured in the previous step to access the wireless
controller.
RFS7000 release 5.2.0.0-048B
rfs7000-37FABE login: testuser
Password:
Welcome to CLI
Starting CLI...
rfs7000-37FABE>


1.4.6.2 Configuring ssh
By default, SSH is enabled from the factory settings on the wireless controller. The wireless controller requires an IP
address and login credentials.
To enable SSH access in the default profile, login through the serial console. Perform the following:
1. Access the GLOBAL CONFIG mode from the PRIV EXEC mode.
rfs7000-37FABE> en
rfs7000-37FABE> en
2. Go to ‘default-management-policy’ mode.
rfs7000-37FABE(config)# management-policy default
3. Enter SSH at the command prompt.
rfs7000-37FABE(config-management-policy-default)# ssh
4. Log into the wireless wireless controller through SSH using appropriate credentials.
5. Use the following credentials when logging on to the device for the first time:

User Name admin
Password motorola

When logging into the wireless controller for the first time, you are prompted to change the password.
• To change the user credentials:
RFS7000 release 5.2.0.0-048B
rfs7000-37FABE login: testuser
Password:
Welcome to CLI
Starting CLI...
rfs7000-37FABE>

CHAPTER 2 USER EXEC MODE
COMMANDS
Logging in to the wireless controller places you within the USER EXEC command mode. Typically, a login requires a user
name and password. You have three login attempts before the connection attempt is refused. USER EXEC commands
(available at the user level) are a subset of the commands available at the privileged level. In general, USER EXEC
commands allow you to connect to remote devices, perform basic tests and list system information.
To list available USER EXEC commands, use? at the command prompt. The USER EXEC prompt consists of the device host
name followed by an angle bracket (>).
rfs7000-37FABE?
User Exec commands:
ap-upgrade AP firmware upgrade
change-passwd Change password
clear Clear
clock Configure software system clock
cluster Cluster commands
crypto Encryption related commands
debug Debugging functions
disable Turn off privileged mode command
enable Turn on privileged mode command
help Description of the interactive help system
logging Modify message logging facilities
mint MiNT protocol
no Negate a command or set its defaults
page Toggle paging
ping Send ICMP echo messages
remote-debug Troubleshoot remote system(s)
revert Revert changes
ssh Open an ssh connection
telnet Open a telnet connection
terminal Set terminal line parameters
time-it Check how long a particular command took between request and
completion of response
watch Repeat the specific CLI command at a periodic interval
write Write running configuration to memory or terminal

clrscr Clears the display screen
exit Exit from the CLI
rfs7000-37FABE>


2.1 User Exec Commands
Table 2.1 summarizes User Exec Mode commands
Table 2.1 User Exec Mode Commands

Command Description Reference
ap-upgrade Enables an automatic adopted AP firmware upgrade page 2-4
change-passwd Changes the password of a logged user page 2-4
clear Resets the last saved command page 2-10
clock Configures the system clock page 2-13
cluster Accesses the cluster context page 2-14
connect Establishes a console connection to a remote device page 2-15
crypto Enables encryption page 2-16
disable Turns off (disables) the privileged mode command set page 2-28
enable Turns on (enables) the privileged mode command set page 2-29
logging Modifies message logging facilities page 2-31
mint Configures MiNT protocol page 2-32
no Negates a command or sets its default value page 2-34
page Toggles to the wireless controller paging function page 2-38
ping Sends ICMP echo messages to a user-specified location page 2-39
ssh Opens an SSH connection between two network devices page 2-40
telnet Opens a Telnet session page 2-41
terminal Sets the length/number of lines displayed within the terminal window page 2-42
time-it Verifies the time taken by a particular command between request and page 2-43
response
traceroute Traces the route to its defined destination page 2-44
watch Repeats a specific CLI command at a periodic interval page 2-45
clrscr Clears the display screen page 5-3
commit Commits (saves) changes made in the current session page 5-4
exit Ends the current mode and moves to the previous mode page 5-6
help Displays the interactive help system page 5-7
revert Reverts changes to their last saved configuration page 5-13
service Invokes service commands to troubleshoot or debug (config-if) page 5-14
instance configurations

USER EXEC MODE COMMANDS 2-3

Table 2.1 User Exec Mode Commands

show Displays running system information page 6-4
write Writes information to memory or terminal page 5-42


2.1.1 ap-upgrade
User Exec Commands
Enables an automatic firmware upgrade on an adopted AP or a set of APs. APs of the same type can be upgraded together.
Once APs have been upgraded, they can be forced to reboot. This command also loads the firmware on to the wireless
controller.
The AP upgrade command also upgrades APs in a specified RF Domain.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ap-upgrade [<MAC/HOSTNAME>|all|ap621|ap650|ap6511|ap6521|ap6532|
ap71xx|cancel-upgrade|load-image|rf-domain]

ap-upgrade [<MAC/HOSTNAME>|all] {no-reboot|reboot-time <TIME>|
upgrade-time <TIME> {no-reboot|reboot-time <TIME>}}

ap-upgrade [ap621|ap650|ap6511|ap6521|ap6532|ap71xx] all
{no-reboot|reboot-time <TIME>|upgrade-time <TIME> {no-reboot|
reboot-time <TIME>}}]

ap-upgrade cancel-upgrade [<MAC/HOSTNAME>|all|ap621|ap650|ap6511|
ap6521|ap6532|71xx|on]
ap-upgrade cancel-upgrade [<MAC/HOSTNAME>|all]
ap-upgrade cancel-upgrade [ap621|ap650|ap6511|ap6521|ap6532|71xx] all
ap-upgrade cancel-upgrade on rf-domain [<RF-DOMAIN-NAME>|all]

ap-upgrade load-image [ap621|ap650|ap6511|ap6521|ap6532|ap71xx]
<IMAGE-URL>

ap-upgrade rf-domain [<RF-DOMAIN-NAME>|all] [all|ap621|ap650|ap6511|
ap6521|ap6532|ap71xx] {no-reboot|no-via-rf-domain|reboot-time <TIME>|
ap621|ap6532|ap71xx] {no-via-rf-domain} {no-reboot|reboot-time <TIME>|
upgrade-time <TIME>}


Parameters
• ap-upgrade [<MAC/HOSTNAME>|all] {no-reboot|reboot-time <TIME>|upgrade-time <TIME>
{no-reboot|reboot-time <TIME>}}

[<MAC/HOSTNAME>|all] Upgrades firmware on a specified AP or all APs adopted by the wireless controller
• <MAC/HOSTNAME> – Specify the MAC address or hostname of the AP.
• all – Upgrades all APs adopted by the wireless controller
no-reboot Optional. Disables automatic reboot after a successful upgrade (the wireless
controller must be manually restarted)
reboot-time <TIME> Optional. Schedules an automatic reboot after a successful upgrade
• <TIME> – Specify the reboot time in the MM/DD/YYYY-HH:MM or HH:MM format.
upgrade-time <TIME> Optional. Schedules an automatic firmware upgrade
{no-reboot|reboot-time • <TIME> – Specify the upgrade time in the MM/DD/YYYY-HH:MM or HH:MM
<TIME>} format. After a scheduled upgrade, these actions can be performed.
• no-reboot – Disables automatic reboot after a successful upgrade (the wireless
• reboot-time <TIME> – Optional. Schedules an automatic reboot after a success-
ful upgrade. Specify the reboot time in the MM/DD/YYYY-HH:MM or HH:MM
format.
• ap-upgrade [ap621|ap650|ap6511|ap6521|ap6532|ap71xx] all {no-reboot|reboot-time
<TIME>|upgrade-time <TIME> {no-reboot|reboot-time <TIME>}}

[ap621|ap650|ap6511|ap6521| Upgrades firmware on all adopted APs
ap6532|ap71xx] all • AP621 all – Upgrades firmware on all AP621s
• AP650 all – Upgrades firmware on all AP650s
• AP71XX all – Upgrades firmware on all AP71XXs
After selecting the AP type, you can schedule an automatic upgrade and/or an
automatic reboot.
no-reboot Optional. Disables automatic reboot after a successful upgrade (the wireless controller
must be manually restarted)
• <TIME> – Optional. Specify the reboot time in the MM/DD/YYYY-HH:MM or
HH:MM format.
upgrade-time <TIME> Optional. Schedules firmware upgrade on an AP adopted by the wireless controller
{no-reboot|reboot-time • <TIME> – Specify the upgrade time in the MM/DD/YYYY-HH:MM or HH:MM
<TIME>} format. After a scheduled upgrade, these actions can be performed.
• no-reboot – Optional. Disables automatic reboot after a successful upgrade (the
wireless controller must be manually restarted)
• reboot-time <TIME> – Optional. Schedules an automatic reboot after a
successful upgrade. Specify the reboot time in the MM/DD/YYYY-HH:MM or
HH:MM format.


• ap-upgrade cancel-upgrade [<MAC/HOSTNAME>|all]

cancel-upgrade [ Cancels scheduled firmware upgrade on a specified AP or all APs adopted by the
<MAC/HOSTNAME>|all] wireless controller
• all – Cancels scheduled upgrade on all APs

• ap-upgrade cancel-upgrade [ap621|ap650|ap651|ap6521|ap6532|ap71xx] all

cancel-upgrade Cancels scheduled firmware upgrade on all adopted APs
[ap621|ap650|ap6511|ap6521| • AP621 all – Cancels scheduled upgrade on all AP621s
ap6532|ap71xx] all
• AP650 all – Cancels scheduled upgrade on all AP650s
• AP71XX all – Cancels scheduled upgrade on all AP71XXs

• ap-upgrade cancel-upgrade on rf-domain [<DOMAIN-NAME>|all]

cancel-upgrade on rf-domain Cancels scheduled firmware upgrade on a specified RF Domain or all RF Domains
[<RF-DOMAIN-NAME>|all] • <RF-DOMAIN-NAME> – Specify the RF Domain name.
• all – Cancels scheduled upgrades on all RF Domains

• ap-upgrade load-image [ap621|ap650|ap6511|ap6521|ap6532|ap71xx] <IMAGE-URL>

load-image Loads AP firmware images on the wireless controller. Select the AP type and provide
[ap621|ap650|6511|6521|6532| the location of the AP firmware image.
ap71xx] • AP621 <IMAGE-URL> – Loads AP621 firmware image
• AP650 <IMAGE-URL> – Loads AP650 firmware image
• AP71XX <IMAGE-URL> – Loads AP71XX firmware image
<IMAGE-URL> Specify the AP firmware image location in the following format:
ftp://<user>:<passwd>@<hostname|IP>[:port]/path/file
sftp://<user>:<passwd>@<hostname|IP>[:port]>/path/file
http://<hostname|IP>[:port]/path/file
cf:/path/file
usb1:/path/file
usb2:/path/file


• ap-upgrade rf-domain [<RF-DOMAIN-NAME>|all] [all|ap621|ap650|ap6511|

rf-domain Upgrades AP firmware on devices in a specified RF Domain or all RF Domains
[<RF-DOMAIN-NAME>|all] • <RF-DOMAIN-NAME> – Upgrades firmware in a specified RF Domain. Specify the
RF Domain name.
• all – Upgrades firmware on all RF Domains
[all|ap621|ap650|ap6511|ap652 After specifying the RF Domain, select the AP type.
1|ap6532|ap71xx] • all – Upgrades firmware on all APs
• AP621 – Upgrades firmware on all AP621s
• AP71XX – Upgrades firmware on all AP71XXs
{no-reboot|no-via-rf-domain The following actions can be performed:
|reboot-time <TIME>| • no-reboot – Optional. Disables automatic reboot after a successful upgrade (the
upgrade-time <TIME>} wireless controller must be manually restarted)
• no-via-rf-domain – Optional. Performs AP firmware upgrade from the adopted
device
• reboot-time <TIME> – Optional. Schedules an automatic reboot, after a successful
upgrade. Specify the reboot time in the MM/DD/YYYY-HH:MM or HH:MM format.
• upgrade-time <TIME> – Optional. Schedules an automatic firmware upgrade.
Specify the upgrade time in the MM/DD/YYYY-HH:MM or HH:MM format.
{no-reboot|reboot-time <TIME>} The following are common to the [no-via-rf-domain upgrade <TIME>] and upgrade
parameters:
• no-reboot – Optional. Disables automatic reboot after a successful upgrade of
firmware (the wireless controller must be manually restarted)
• reboot-time <TIME> – Optional. Schedules an automatic reboot after a successful


Examples
rfs7000-37FABE>ap-upgrade ap621 all
--------------------------------------------------------------------------
CONTROLLER STATUS MESSAGE
--------------------------------------------------------------------------
00-15-70-37-FA-BE Success Queued 0 APs to upgrade
--------------------------------------------------------------------------
rfs7000-37FABE>
rfs7000-37FABE>ap-upgrade all
rfs7000-37FABE>
rfs7000-37FABE>ap-upgrade default/rfs7000-37FABE no-reboot
--------------------------------------------------------------------------
--------------------------------------------------------------------------
00-23-68-88-0D-A7 Success Queued 0 APs to upgrade
--------------------------------------------------------------------------
rfs7000-37FABE>

rfs7000-37FABE>ap-upgrade rfs7000-37FABE reboot-time 06/01/2011-12:01
--------------------------------------------------------------------------
--------------------------------------------------------------------------
--------------------------------------------------------------------------
rfs7000-37FABE>


2.1.2 change-passwd
User Exec Mode Commands
Changes the password of a logged user. When this command is executed without any parameters, the password can be
changed interactively.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
change-passwd {<OLD-PASSWORD> <NEW-PASSWORD>}
Parameters
• change passwd {<OLD-PASSWORD> <NEW-PASSWORD>}

<OLD-PASSWORD> Optional. The password can also be changed interactively. To do so, press [Enter] after
<NEW-PASSWORD> the command.
• <OLD-PASSWORD> – Specify the password that needs to be changed
• <NEW-PASSWORD> – Specify the password to change to
Usage Guidelines
A password must be from 1 - 64 characters.
Examples
rfs7000-37FABE#change-passwd
Enter old password:
Enter new password:
Password for user 'admin' changed successfully
Please write this password change to memory(write memory) to be persistent.
rfs7000-37FABE#write memory
OK
rfs7000-37FABE#


2.1.3 clear
User Exec Commands
Clears parameters, cache entries, table entries, and other similar entries. The clear command is available for specific
commands only. The information cleared using this command varies depending on the mode where the clear command is
executed.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000

NOTE: Refer to the interface details below when using clear
• ge <index> – RFS4000 supports 5GEs and RFS6000 supports 8 GEs
• me1 – Available in both RFS7000 and RFS6000-up1- Uplink interface on RFS4000

Syntax
clear [arp-cache|cdp|crypto|event-history|ip|lldp|spanning-tree]
clear arp-cache {on <DEVICE-NAME>}

clear [cdp|lldp] neighbors {on <DEVICE-NAME>}

clear crypto [ipsec|isakmp] sa [<IP>|all] {on <DEVICE-NAME>}

clear event-history

clear ip dhcp bindings [<IP>|all] {on <DEVICE-NAME>}

clear spanning-tree detected-protocols {interface|on}
clear spanning-tree detected-protocols {on <DEVICE-NAME>}
clear spanning-tree detected-protocols {interface [<INTERFACE>|
ge <1-4>|me1|port-channel <1-2>|vlan <1-4094>]} {on <DEVICE-NAME>}}
Parameters
• clear arp-cache {on <DEVICE-NAME>}

arp-cache Clears Address Resolution Protocol (ARP) cache entries on an AP or wireless controller.
This protocol matches the layer 3 IP addresses to the layer 2 MAC addresses.
on <DEVICE-NAME> Optional. Clears ARP cache entries on a specified AP or wireless controller
• <DEVICE-NAME> – Specify the name of the AP or wireless controller.

USER EXEC MODE COMMANDS 2 - 11

• clear [cdp|lldp] neighbors {on <DEVICE-NAME>}

cdp Clears Cisco Discovery Protocol (CDP) table entries
lldp Clears Link Layer Discovery Protocol (LLDP) table entries
neighbors Clears CDP or LLDP neighbor table entries based on the option selected in the preceding
step
on <DEVICE-NAME> Optional. Clears CDP or LLDP neighbor table entries on a specified AP or wireless
controller

• clear crypto [ipsec|isakmp] sa [<IP>|all] {on <DEVICE_NAME>}

crypto Clears encryption module database
ipsec sa Clears Internet Protocol Security (IPSec) database security associations (SAs)
isakmp sa Clears Internet Security Association and Key Management Protocol (ISAKMP) database
SAs
[<IP>|all] The following are common to the IPSec and ISAKMP parameters:
• <IP> – Clears IPSec or ISAKMP SAs for a certain peer
• all – Clears IPSec or ISAKMP SAs for all peers
on <DEVICE-NAME> Optional. Clears IPSec or ISAKMP SA entries on a specified AP or wireless controller

• clear event-history

event-history Clears event history cache entries
• clear ip dhcp bindings [<IP>|all]

ip Clears a DHCP server’s IP address bindings entries
dhcp bindings Clears Dynamic Host Configuration Protocol (DHCP) connections and server bindings
• bindings – Clears DHCP address binding entries
<IP> Clears address binding entries on a specified DHCP server. Specify the DHCP server’s IP
address.
all Clears address binding entries on all DHCP servers
• clear spanning-tree detected-protocols {on <DEVICE-NAME>}

spanning-tree Clears spanning tree protocols on an interface, and also restarts protocol migration
detected-protocols Restarts protocol migration
on <DEVICE-NAME> Optional. Clears spanning tree protocols on a specified AP or wireless controller
• <DEVICE-NAME> – Optional. Specify the name of the AP or wireless controller.


• clear spanning-tree detected-protocols {interface [<INTERFACE>|ge <1-4>|
me1|port-channel <1-2>|vlan <1-4094>]} {on <DEVICE-NAME>}

interface [<INTERFACE>| Optional. Clears spanning tree protocols on different interfaces
ge <1-4>|me1| • <INTERFACE> – Clears information on a specified interface. Specify the interface
port-channel <1-2>| name.
vlan <1-4094>]
• ge <1-4> – Clears GigabitEthernet interface information. Select the GigabitEthernet
interface index from 1 - 4.
• me1 – Clears FastEthernet interface status (up1 - Clears the uplink interface)
• port-channel <1-2> – Clears port channel interface information. Select the port
channel index from 1 - 2.
• vlan <1-4094> – Clears VLAN interface information. Select a Switch Virtual Interface
(SVI) VLAN ID from 1- 4094.
on <DEVICE-NAME> Optional. Clears spanning tree protocol entries on a selected AP or wireless controller
Examples
rfs7000-37FABE>clear crypto isakmp sa 111.222.333.01 on rfs7000-37FABE
rfs7000-37FABE>

rfs7000-37FABE>clear event-history
rfs7000-37FABE>

rfs7000-37FABE>clear spanning-tree detected-protocols interface port-channel 1 on
rfs7000-37FABE
rfs7000-37FABE>

rfs7000-37FABE>clear ip dhcp bindings 172.16.10.9 on rfs7000-37FABE
rfs7000-37FABE>

rfs7000-37FABE>clear cdp neighbors on rfs7000-37FABE
rfs7000-37FABE>
rfs7000-37FABE>clear spanning-tree detected-protocols interface ge 1
rfs7000-37FABE>

rfs7000-37FABE>clear lldp neighbors
rfs7000-37FABE>


2.1.4 clock
User Exec Commands
Sets a device’s system clock
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
clock set <HH:MM:SS> <1-31> <MONTH> <1993-2035> {on <DEVICE-NAME>}
Parameters
• clock set <HH:MM:SS> <1-31> <MONTH> <1993-2035> {on <DEVICE-NAME>}

clock set Sets a device’s software system clock
<HH:MM:SS> Sets the current time (in military format hours, minutes and seconds)
<1-31> Sets the numerical day of the month
<MONTH> Sets the month of the year (Jan to Dec)
<1993-2035> Sets a valid four digit year from 1993 - 2035
on <DEVICE-NAME> Optional. Sets the clock on a specified device
Examples
rfs7000-37FABE>clock set 18:16:30 7 JUL 2011 on rfs7000-37FABE
clock set 18:16:30 7 JUL 2011 on rfs7000-37FABE
rfs7000-37FABE>


2.1.5 cluster
User Exec Commands
Initiates cluster context. The cluster context provides centralized management to configure all cluster members from any
one member.
Commands executed under this context are executed on all members of the cluster.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
cluster start-selection
Parameters
• cluster start-selection

start-selection Starts a new cluster master election
Examples
rfs7000-37FABE>cluster start-election
rfs7000-37FABE>


2.1.6 connect
User Exec Commands
Begins a console connection to a remote device using the remote device’s MiNT ID or name
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
connect [mint-id <MINT-ID>|<REMOTE-DEVICE-NAME>]
Parameters
• connect [mint-id <MINT-ID>|<REMOTE-DEVICE-NAME>]

mint-id <MINT-ID> Connects to the remote system using the MiNT ID
• <MINT-ID> – Specify the remote device’s MiNT ID.
<REMOTE-DEVICE-NAME> Connects to the remote system using its name
• <REMOTE-DEVICE-NAME> – Specify the remote device’s name.
Examples
rfs7000-37FABE>show mint lsp-db
2 LSPs in LSP-db of 01.42.14.79:
LSP 01.42.14.79 at level 1, hostname "rfs7000-37FABE", 1 adjacencies, seqnum 5069
LSP 01.44.54.C0 at level 1, hostname "ap6500-4454C0", 1 adjacencies, seqnum 5265

rfs7000-37FABE>connect mint-id 01.44.54.C0

Entering character mode
Escape character is '^]'.

AP650 release 5.2.2.0-033B
ap650-4454C0 login:

rfs7000-37FABE>show mint lsp-db
1 LSPs in LSP-db of 70.37.FA.BE:
LSP 70.37.FA.BE at level 1, hostname "rfs7000-37FABE", 0 adjacencies, seqnum 65562
rfs7000-37FABE>


2.1.7 crypto
User Exec Mode Commands
Enables RSA Keypair management. Use this command to generate, delete, export, or import an RSA Keypair. It encrypts
the RSA Keypair before an export operation. This command also enables Public Key Infrastructure (PKI) management.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
crypto [key|pki]
crypto key [export|generate|import|zeroise]

crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL>
{background|on|passphrase}
crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {background}
{on <DEVICE-NAME>}
crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {passphrase
<KEY-PASSPHRASE>} {background} {on <DEVICE-NAME>}
crypto key generate rsa <RSA-KEYPAIR-NAME> <1024-2048>{on <DEVICE-NAME>}

crypto key import rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL>
crypto key import rsa <RSA-KEYPAIR-NAME> <IMPORT-FROM-URL>
{background} {on <DEVICE-NAME>}
crypto key import rsa <RSA-KEYPAIR-NAME> <IMPORT-FROM-URL> passphrase
<KEY-PASSPHRASE> {background} {on <DEVICE-NAME>}
crypto key zeroise rsa <RSA-KEYPAIR-NAME> {force} {on <DEVICE-NAME>}

crypto pki [authenticate|export|generate|import|zeroise]

crypto pki authenticate <TRUST-POINT> <URL> {background{on <DEVICE-NAME>}|
on <DEVICE-NAME>}

crypto pki export [request|trustpoint]

crypto pki export request [generate-rsa-key|use-rsa-key] <RSA-KEYPAIR-NAME>
autogen-subject-name [<EXPORT-TO-URL>, email <SEND-TO-EMAIL>, fqdn <FQDN>,
ip-address <IP>]
autogen-subject-name <EXPORT-TO-URL> {background {on <DEVICE-NAME>}|
on <DEVICE-NAME>}
crypto pki export request [generate-rsa-key|use-rsa-key] <RSA-KEYPAIR-
NAME> subject-name <COMMON-NAME> <COUNTRY> <STATE> <CITY> <ORGANIZATION>
<ORGANIZATION-UNIT> [<EXPORT-TO-URL>, email <SEND-TO-EMAIL>, fqdn <FQDN>,
ip-address <IP>]


crypto pki export trustpoint <TRUSTPOINT-NAME> <EXPORT-TO-URL> {background
{on <DEVICE-NAME>}|on <DEVICE-NAME>|passphrase <KEY-PHRASE> {background
{on <DEVICE-NAME>}|on <DEVICE-NAME>}}

crypto pki generate self-signed <TRUSTPOINT-NAME> [generate-rsa-key|
use-rsa-key] <RSA-KEYPAIR-NAME> [autogen-subject-name|subject-name]

use-rsa-key] <RSA-KEYPAIR-NAME> autogen-subject-name {email <SEND-TO-EMAIL>,
fqdn <FQDN>, ip-address <IP>, on <DEVICE-NAME>}
use-rsa-key] <WORD> subject-name <COMMON-NAME> <COUNTRY> <STATE> <CITY>
<ORGANIZATION> <ORGANIZATION-UNIT> {email <SEND-TO-EMAIL>, fqdn <FQDN>,
ip-address <IP>, on <DEVICE-NAME>}

crypto pki import [certificate|crl|trustpoint]

crypto pki import [certificate|crl] <TRUSTPOINT-NAME> <IMPORT-FROM-URL>
{background {on <DEVICE-NAME>}|on <DEVICE-NAME>}]

crypto pki import trustpoint <TRUSTPOINT-NAME> <IMPORT-FROM-URL>
{background {on <DEVICE-NAME>}|on <DEVICE-NAME>|passphrase <word>
{background {on <DEVICE-NAME>}|on <DEVICE-NAME>}

crypto pki zeroise trustpoint <TRUSTPOINT-NAME> {del-key {on <DEVICE-NAME>}|
on <DEVICE-NAME>}
Parameters
• crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {on <DEVICE-NAME>}

key Enables RSA Keypair management. Use this command to export, import, generate, or
delete a RSA key.
export rsa Exports a RSA Keypair to a specified destination
<RSA-KEYPAIR-NAME> • <RSA-KEYPAIR-NAME> – Specify the RSA Keypair name.
<EXPORT-TO-URL> Specify the RSA Keypair destination address in the following format:
{on <DEVICE-NAME>} tftp://<hostname|IP>[:port]/path/file
sftp://<user>@<hostname|IP>[:port]>/path/file
cf:/path/file
usb1:/path/file
usb2:/path/file
• on <DEVICE-NAME> – Optional. Performs the export operation on a specified device

• crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {background}
{on <DEVICE-NAME>}

delete a RSA key.


{background} tftp://<hostname|IP>[:port]/path/file
{on <DEVICE-NAME>}
cf:/path/file
usb1:/path/file
usb2:/path/file
• background – Optional. Performs the export operation in the background
• on <DEVICE-NAME> – Optional. Performs the export operation on a specific device
• crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {passphrase <KEY-
PASSPHRASE> {background {on <DEVICE-NAME>}|on <DEVICE-NAME>}

delete a RSA key.
• <RSA-KEYPAIR-NAME> – Specify the RSA Keypair name.
{passphrase} tftp://<hostname|IP>[:port]/path/file
<KEY-PASSPHRASE>
cf:/path/file
usb1:/path/file
usb2:/path/file
• passphrase – Optional. Encrypts RSA Keypair before exporting it
• <KEY-PASSPHRASE> – Specify a passphrase to encrypt the RSA Keypair.
on <DEVICE-NAME> Optional. Performs the export operation on a specified device

• crypto key generate rsa <RSA-KEYPAIR-NAME> <1024-2048> {on <DEVICE-NAME>}

delete a RSA key.
generate rsa Generates a new RSA Keypair
<1024-2048> • <1024-2048> – Sets the size of the RSA key in bits from 1024 - 2048
on <DEVICE-NAME> Optional. Generates the new RSA Keypair on a specified device


• crypto key import rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {on <DEVICE-NAME>}

delete a RSA key.
import rsa Imports a RSA Keypair from a specified source
<IMPORT-TO-URL> Specify the RSA Keypair source address in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
• on <DEVICE-NAME> – Optional. Performs the import operation on a specified device

• crypto key import rsa <RSA-KEYPAIR-NAME> <IMPORT-TO-URL> {background}
{on <DEVICE-NAME>}

delete a RSA key.
{on <DEVICE-NAME>}
cf:/path/file
usb1:/path/file
usb2:/path/file
• background – Optional. Performs the import operation in the background
• on <DEVICE-NAME> – Optional. Performs the import operation on a specified de-
vice
• crypto key import rsa <RSA-KEYPAIR-NAME> <IMPORT-TO-URL>
{passphrase <KEY-PASSPHRASE>} {background {on <DEVICE-NAME>}|on <DEVICE-NAME>}

delete a RSA key.
import rsa Decrypts and imports a RSA Keypair from a specified source


<KEY-PASSPHRASE>
cf:/path/file
usb1:/path/file
usb2:/path/file
• passphrase – Optional. Decrypts the RSA Keypair before importing it
• <KEY-PASSPHRASE> – Specify the passphrase to decrypt the RSA Keypair.
on <DEVICE-NAME> Optional. Performs the import operation on a specified device

• crypto key zeroise <RSA-KEYPAIR-NAME> {force} {on <DEVICE-NAME>}

delete a RSA key.
zeroise rsa Deletes a specified RSA Keypair
force {on <DEVICE-NAME>} Optional. Forces deletion of all certificates associated with the RSA Keypair
• on <DEVICE-NAME> – Optional. Forces deletion of all certificates associated with
the RSA Keypair on a specified device

• crypto pki authenticate <TRUSTPOINT-NAME> <URL> {background {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

pki Enables Private Key Infrastructure (PKI) management. Use this command to
authenticate, export, generate, or delete a trustpoint and its associated Certificate
Authority (CA) certificates.
authenticate Authenticates a CA certificate
<TRUSTPOINT-NAME> • <TRUSTPOINT-NAME> – Specify the trustpoint name.
<URL> Specify the CA certificate location in the following format:
tftp://<hostname|IP>[:port]/path/file
cf:/path/file
usb1:/path/file
usb2:/path/file


background Optional. Performs authentication in the background
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Performs authentication on a specified device
on <DEVICE-NAME> Optional. Performs authentication on a specified device

• crypto pki request [generate-rsa-key|use-rsa-key] <RSA-KEYPAIR-NAME>
autogen-subject-name [<EXPORT-TO-URL>|email <SEND-TO-EMAIL>|fqdn <FQDN>|
ip-address <IP>]

pki Enables PKI management. Use this command to authenticate, export, generate, or
delete a trustpoint and its associated CA certificates.
request Sends a Certificate Signing Request (CSR) to the CA for digital identity certificate. The
CSR contains the applicant’s details and the RSA Keypair’s public key.
[generate-rsa-key| Generates a new RSA Keypair or uses an existing RSA Keypair
use-rsa-key] • generate-rsa-key – Generates a new RSA Keypair for digital authentication
<RSA-KEYPAIR-NAME>
• use-rsa-key – Uses an existing RSA Keypair for digital authentication
• <RSA-KEYPAIR-NAME> – If generating a new RSA Keypair, specify a name for it.
If an existing RSA Keypair, specify its name.
autogen-subject-name Auto generates the subject name from configuration parameters. The subject name
helps to identify the certificate.
<EXPORT-TO-URL> Specify the CSR location in the following format:
{background {on <DEVICE- tftp://<hostname|IP>[:port]/path/file
NAME}|
on <DEVICE-NAME>}
cf:/path/file
usb1:/path/file
• on <DEVICE-NAME> – Optional. Performs the export operation on a specified
device
email <SEND-TO-EMAIL> Exports CSR to a specified e-mail address
• <SEND-TO-EMAIL> – Specify the e-mail address of the CA.
fqdn <FQDN> Exports CSR to a specified Fully Qualified Domain Name (FQDN)
• <FQDN> – Specify the FQDN of the CA.
ip address <IP> Exports CSR to a specified device or system
• <IP> – Specify the IP address of the CA.


subject-name <COUNTRY> <STATE> <CITY> <ORGANIZATION> <ORGANIZATION-UNIT>
[<EXPORT-TO-URL>, email <SEND-TO-EMAIL>, fqdn <FQDN>, ip-address <IP>

request Sends CSR to the CA for a digital identity certificate.The CSR contains the applicant’s
details and the RSA Keypair’s public key.
<RSA-KEYPAIR-NAME>
If using an existing RSA Keypair, specify its name.
subject-name Specify a subject name to identify the certificate.
<COMMON-NAME> • <COMMON-NAME> – Specify the common name used with the CA certificate. The
name should enable you to identify the certificate easily.
<COUNTRY> Sets the deployment country name (2 character ISO code)
<STATE> Sets the state name (2 to 64 characters)
<CITY> Sets the city name (2 to 64 characters)
<ORGANIZATION> Sets the organization name (2 to 64 characters)
<ORGANIZATION-UNIT> Sets the organization unit (2 to 64 characters)
<EXPORT-TO-URL> Specify the CSR location in the following format:
NAME}|on <DEVICE-NAME>}
cf:/path/file
usb1:/path/file
• on <DEVICE-NAME> – Optional. Performs the export operation on a specific
device.
fqdn <FQDN> Exports CSR to a specified FQDN
• Specify the FQDN of the CA.
• Specify the IP address of the CA.


• crypto pki trustpoint <TRUSTPOINT-NAME> <EXPORT-TO-URL> {background {on <DEVICE-
NAME>}|on <DEVICE-NAME>|passphrase <KEY-PASSPHRASE> background {on <DEVICE-NAME>}|
on <DEVICE-NAME>}}

trustpoint Exports a trustpoint CA certificate, Certificate Revocation List (CRL), server certificate,
<TRUSTPOINT-NAME> and private key
• <TRUSTPOINT-NAME> – Specify the trustpoint name.
<EXPORT-TO-URL> Specify the destination address in the following format:
cf:/path/file
usb1:/path/file usb2:/path/file
background Optional. Performs the export operation in the background
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Performs the export operation on a specified
device
passphrase Optional. Encrypts the key with a passphrase before exporting it
<KEY-PASSPHRASE> • <KEY-PASSPHRASE> – Specify the passphrase.
{background {on <DEVICE- • background – Optional. Performs the export operation in the background
NAME>}| • on <DEVICE-NAME> – Optional. Performs the export operation on a specified
on <DEVICE-NAME> device

• crypto pki generate self-signed <TRUSTPOINT-NAME> [generate-rsa-key|
use-rsa-key] <RSA-KEYPAIR-NAME> autogen-subject-name {email <SEND-TO-EMAIL>|
fqdn <FQDN>|ip-address <IP>|on <DEVICE-NAME>}

generate Generates a CA certificate and a trustpoint
self-signed Generates a self-signed CA certificate and a trustpoint
<TRUSTPOINT-NAME> • <TRUSTPOINT-NAME> – Specify a name for the certificate and its trustpoint.
[generate-rsa-key| Generates a new RSA Keypair, or uses an existing RSA Keypair
<RSA-KEYPAIR-NAME>
• <RSA-KEYPAIR-NAME> – If generating a new RSA Keypair, specify a name for
it. If using an existing RSA Keypair, specify its name.


autogen-subject-name Auto generates the subject name from the configuration parameters. The subject
name helps to identify the certificate
ip-address <IP> Exports CSR to a specified device or system
on <DEVICE-NAME> Exports the CSR on a specified device
use-rsa-key] <RSA-KEYPAIR-NAME> subject-name <COMMON-NAME> <COUNTRY>
<STATE> <CITY> <ORGANIZATION> <ORGANIZATION-UNIT> {email <SEND-TO-EMAIL>|

<RSA-KEYPAIR-NAME>
email <SEND-TO-EMAIL> Exports the CSR to a specified e-mail address


fqdn <FQDN> Exports the CSR to the CA by providing the FQDN of the CA
ip address <IP> Exports the CSR to a specified device or system
• <IP> – Specify the IP address of the CA

• crypto pki import [certificate|crl] <TRUSTPOINT-NAME> <IMPORT-FROM-URL> {background
{on <DEVICE-NAME>}|on <DEVICE--NAME>}

import Imports certificates, CRL, or a trustpoint to the selected device
[certificate|crl] Imports a signed server certificate or CRL
<TRUSTPOINT-NAME> • certificate – Imports signed server certificate
• crl – Imports CRL
• <TRUSTPOINT-NAME> – Specify the trustpoint name (should be authenticated).
<IMPORT-FROM-URL> Specify the signed server certificate or CRL source address in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
background Optional. Performs the import operation in the background
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Performs the import operation on a specified device

• crypto pki import trustpoint <TRUSTPOINT-NAME> <IMPORT-FROM-URL> {background {on
<DEVICE-NAME>}|on <DEVICE--NAME>}

trustpoint Imports a trustpoint and its associated CA certificate, server certificate, and private
<TRUSTPOINT-NAME> key


<IMPORT-FROM-URL> Specify the trustpoint source address in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
passphrase Optional. Encrypts the trustpoint with a passphrase before importing it
<KEY-PASSPHRASE> • <KEY-PASSPHRASE> – Specify a passphrase.
{background {on <DEVICE- • background – Optional. Imports the encrypted trustpoint in the background
NAME>}| • on <DEVICE-NAME> – Optional. Imports the encrypted trustpoint on a
on <DEVICE-NAME>} specified device
• <DEVICE-NAME.> – Specify the name of the AP or wireless controller.
• crypto pki zeroise trustpoint <TRUSTPOINT-NAME> {del-key {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

zeroise Deletes a trustpoint and its associated CA certificate, server certificate, and private key
<TRUSTPOINT-NAME> • <TRUSTPOINT-NAME> – Specify the trustpoint name (should be authenticated).
del-key Optional. Deletes the private key associated with the server certificate
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Deletes private key on a specific device
on <DEVICE-NAME> Optional. Deletes the trustpoint on a specified device


ExamplesJ
rfs7000-37FABE#crypto key generate rsa key 1025
RSA Keypair successfully generated
rfs7000-37FABE#

rfs7000-37FABE#crypto key import rsa moto123 url passphrase word background on
rfs7000-37FABE
RSA key import operation is started in background
rfs7000-37FABE#

rfs7000-37FABE#crypto pki generate self-signed word generate-rsa-key word autogen-
subject-name fqdn word
Successfully generated self-signed certificate
rfs7000-37FABE#

rfs7000-37FABE#crypto pki zeroize trustpoint word del-key on rfs7000-37FABE
Successfully removed the trustpoint and associated certificates
%Warning: Applications associated with the trustpoint will start using default-
trustpoint
rfs7000-37FABE#
rfs7000-37FABE#crypto pki authenticate word url background on rfs7000-37FABE
Import of CA certificate started in background
rfs7000-37FABE#

rfs7000-37FABE#crypto pki import trustpoint word url passphrase word on rfs7000-37FABE
Import operaton started in background
rfs7000-37FABE#
Related Commands

no Resets or disables the crypto commands


2.1.8 disable
User Exec Commands
Turns off (disables) the privileged mode command set. This command returns to the User Executable mode.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
disable
Parameters
None
Examples
rfs7000-37FABE#disable
rfs7000-37FABE>


2.1.9 enable
User Exec Commands
Turns on (enables) the privileged mode command set. This command does not do anything in the Privilege Executable
mode.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
enable
Parameters
None
Examples
rfs7000-37FABE>enable
rfs7000-37FABE#


2.1.10 exit
User Exec Commands
Ends the current CLI session and closes the session window
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
exit
Parameters
None
Examples
rfs7000-37FABE>exit


2.1.11 logging
User Exec Commands
Modifies message logging settings
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
logging monitor {<0-7>|alerts|critical|debugging|emergencies|errors|
informational|warnings|notifications}
Parameters
• logging monitor {<0-7>|alerts|critical|debugging|emergencies|errors|

monitor Sets the terminal lines logging levels. The logging severity levels can be set from
0 - 7. The system configures default settings, if no logging severity level is specified.
• <0-7> – Optional. Specify the logging severity level from 0-7. The various levels and
their implications are as follows:
• alerts – Optional. Immediate action needed (severity=1)
• critical – Optional. Critical conditions (severity=2)
• debugging – Optional. Debugging messages (severity=7)
• emergencies – Optional. System is unusable (severity=0)
• errors – Optional. Error conditions (severity=3)
• informational – Optional.Informational messages (severity=6)
• notifications – Optional. Normal but significant conditions (severity=5)
• warnings – Optional. Warning conditions (severity=4)
Examples
rfs7000-37FABE>logging monitor warnings ?
rfs7000-37FABE>

rfs7000-37FABE>logging monitor 2
rfs7000-37FABE>
Related Commands

no Resets the terminal lines logging levels


2.1.12 mint
User Exec Commands
Uses MiNT protocol to perform a ping and a traceroute to a remote device
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
mint [ping|traceroute]

mint ping <MINT-ID> {count [<1-60>]|size [<1-64000>]|timeout [<1-10>]}
mint traceroute <MINT-ID> {destination-port [<1-65535>]|max-hops [<1-255>]|
source-port [<1-65535>]|timeout [<1-255>]}
Parameters
• mint ping <MINT-ID> {count [<1-60>]|size [<1-64000>]|timeout [<1-10>]}

ping <MINT-ID> Sends a MiNT echo message to a MiNT destination
• <MINT-ID> – Specify the MiNT destination ID to ping.
count <1-60> Optional. Sets the number of times to ping the MiNT destination
• <1-60> – Specify a value from 1 - 60. The default is 3.
size <1-64000> Optional. Sets the MiNT payload size in bytes
• <1-64000> – Specify a value from 1 - 640000. The default is 64 bytes.
timeout <1-10> Optional. Sets a response time in seconds
• <1-10> – Specify a value from 1 - 10 seconds. The default is 1 second.
• mint traceroute <MINT-ID> {destination-port [<1-65535>]|max-hops [<1-255>]|
source-port [<1-65535>]|timeout [<1-255>]}

traceroute <MINT-ID> Prints the route packets trace to a device
• <MINT-ID> – Specify the MiNT destination ID.
destination-port Optional. Sets the Equal-cost Multi-path (ECMP) routing destination port
<1-65535> • <1-65535> – Specify a value from 1 - 65535. The default port is 45.
max-hops <1-255> Optional. Sets the maximum number of hops a traceroute packet traverses in the forward
direction


source-port <1-65535> Optional. Sets the ECMP source port
• <1-65535> – Specify a value from 1 - 65535. The default port is 45.
timeout <1-255> Optional. Sets the minimum response time period
• <1-65535> – Specify a value from 1 - 255 seconds. The default is 30 seconds.
Examples
rfs7000-37FABE>mint ping 70.37.FA.BF count 20 size 128
MiNT ping 70.37.FA.BF with 128 bytes of data.
Response from 70.37.FA.BF: id=1 time=0.292 ms

--- 70.37.FA.BF ping statistics ---
20 packets transmitted, 20 packets received, 0% packet loss
round-trip min/avg/max = 0.138/0.177/0.292 ms


2.1.13 no
User Exec Commands
Use the no command to revert a command or to set parameters to their default. This command is useful to turn off an
enabled feature or set default values for a parameter.

NOTE: The commands have their own set of parameters that can be reset.

• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no [adoption|captive-portal|crypto|debug|logging|page|service|terminal|wireless]

no adoption {on <DEVICE-OR-DOMAIN-NAME>}

no captive-portal client [captive-portal <CAPTIVE-PORTAL-NAME>|<MAC>]
{on <DEVICE-OR-DOMAIN-NAME>}

no crypto pki [server|trustpoint]
no crypto pki [server|trustpoint] <TRUSTPOINT-NAME> {del-key {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

no logging monitor

no page

no service [ap300|cli-tables-expand|locator]
no service ap300 locator <MAC>
no service [cli-tables-expand <LINE>|locator {on <DEVICE-NAME>}]

no terminal [length|width]

no wireless client [all {filter|on}|<MAC>]
no wireless client all {filter [wlan [<WLAN-NAME>]]}
no wireless client all {on <DEVICE-OR-DOMAIN-NAME> {filter [wlan [<WLAN-NAME>]]}}
no wireless client <MAC> {on <DEVICE-OR-DOMAIN-NAME>}
Parameters
• no adoption {on <DEVICE-OR-DOMAIN-NAME>}

no adoption Resets the adoption status of a specified device or all devices adopted by a device
{on <DEVICE-OR-DOMAIN- • <DEVICE-OR-DOMAIN-NAME> – Optional. Specify the name of the AP, wireless
NAME>} controller, or RF Domain.


• no captive-portal client [captive-portal <CAPTIVE-PORTAL-NAME>|<MAC>]

no captive-portal client Disconnects captive portal clients from the network
captive-portal Disconnects captive portal clients
<CAPTIVE-PORTAL-NAME> • <CAPTIVE-PORTAL-NAME> – Specify the captive portal name.
<MAC> Disconnects a specified client
• <MAC> – Specify the MAC address of the client.
on Optional. Disconnects clients on a specified device or RF Domain
<DEVICE-OR-DOMAIN- • <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless controller, or
NAME> RF Domain.

• no crypto pki [server|trustpoint] <TRUSTPOINT-NAME> {del-key {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

no crypto pki Deletes all PKI authentications
[server|trustpoint] Deletes PKI authentications, such as server certificates and trustpoints
<TRUSTPOINT-NAME> • server – Deletes server certificates
• trustpoint – Deletes a trustpoint and its associated certificates
The following is common to the server and trustpoint parameters:
• <TURSTPOINT-NAME> – Deletes a trustpoint or its server certificate. Specify the
trustpoint name.
del-key Optional. Deletes the private key associated with a server certificate or trustpoint. The
{on <DEVICE-NAME>} operation will fail if the private key is in use by other trustpoints.
• on <DEVICE-NAME> – Optional. Deletes the private key on a specified device

• no logging monitor

no logging monitor Resets terminal lines message logging levels
• no page

no page Resets wireless controller paging function to its default. Disabling the “page” command
displays the CLI command output at once, instead of page by page.

• no service ap300 locator <MAC>

no service Disables LEDs on AP300s or a specified device in the WLAN. It also resets the CLI table
expand and MiNT protocol configurations.
no ap300 locator <MAC> Disables LEDs on AP300s
• <MAC> – Specify the MAC address of the AP300.


• no service [cli-tables-expand <LINE>|locator {on <DEVICE-NAME>}]

cli-tables-expand <LINE> Resets the expand configuration of the CLI table, so that the table does not expand in the
drop-down format
locator Disables LEDs on a specified device
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Specify the name of the AP or wireless controller.

• no terminal [length|width]

no terminal [length|width] Resets the width of the terminal window or the number of lines displayed within the
terminal window
• length – Resets the number of lines displayed on the terminal window to its default
• width – Resets the width of the terminal window to its default

• no wireless client all {filter [wlan [<WLAN-NAME>]]}

no wireless client all Disassociates all clients on a specified device or domain
filter Optional. Specifies additional client selection filter
wlan <WLAN-NAME> • wlan – Optional. Filters clients based on the WLAN
• <WLAN-NAME> – Specify the WLAN name.

• no wireless client all {on <DEVICE-OR-DOMAIN-NAME> {filter [wlan <WLAN-NAME>]}}

no wireless client all on Disassociates all wireless clients on a specified device or domain
NAME> RF Domain.
filter The following are optional filter parameters:
wlan <WLAN-NAME> • filter – Optional. Specifies additional client selection filter
• wlan – Filters clients based on the WLAN
Usage Guidelines
The no command negates any command associated with it. Wherever required, use the same parameters associated with
the command getting negated.
Examples
rfs7000-37FABE>no adoption
rfs7000-37FABE>

rfs7000-37FABE>no page
rfs7000-37FABE>

rfs7000-37FABE>no service cli-tables-expand line
rfs7000-37FABE>


Related Commands

auto-provisioning-policy Resets the adoption state of a device and all devices adopted to it
captive portal Manages captive portal clients
logging Modifies message logging settings
page Resets the wireless controller paging function to its default
service Performs different functions depending on the parameter passed
terminal Sets the length or the number of lines displayed within the terminal window
wireless-client Manages wireless clients


2.1.14 page
User Exec Commands
Toggles wireless controller paging. Enabling this command displays the CLI command output page by page, instead of
running the entire output at once.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
page
Parameters
None
Examples
rfs7000-37FABE>page
rfs7000-37FABE>
Related Commands

no Disables wireless controller paging


2.1.15 ping
User Exec Commands
Sends Internet Controller Message Protocol (ICMP) echo messages to a user-specified location
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ping [<IP>|<HOSTNAME>]
Parameters
• ping [<IP>|<HOSTNAME>]

<IP> Optional. Specify the destination IP address to ping. When entered without any
parameters, this command prompts for an IP.
<HOSTNAME> Optional. Specify the destination hostname to ping. When entered without any
parameters, this command prompts for a hostname.
Examples
rfs7000-37FABE>ping 172.16.10.3
PING 172.16.10.3 (172.16.10.3): 100 data bytes
108 bytes from 172.16.10.3: seq=0 ttl=64 time=7.100 ms

--- 172.16.10.3 ping statistics ---
rfs7000-37FABE>


2.1.16 ssh
User Exec Commands
Opens a Secure Shell (SSH) connection between two network devices
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ssh <IP> <USER-NAME>
Parameters
• ssh <IP> <USER-NAME>

[<IP>/<HOSTNAME>] Specify the IP address or hostname of the remote system.
<USERNAME> Specify the name of the user requesting SSH connection with the remote system.
Examples
rfs7000-37FABE>ssh 172.16.10.3 172.16.10.1
ssh: connect to host 172.16.10.3 port 22: No route to host
rfs7000-37FABE>


2.1.17 telnet
User Exec Commands
Opens a Telnet session between two network devices
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
telnet <IP> {<TCP-PORT>}
Parameters

<IP> Configures the IP address of the remote system to connect to. The Telnet session is
established between the connecting system and the remote system.
• <IP> – Specify the IP address of the remote system.
<TCP-PORT> Optional. Specify the Transmission Control Protocol (TCP) port number.
Examples
rfs7000-37FABE>telnet 172.16.10.1

rfs7000-37FABE release 5.2.2.0-048B
rfs7000-37FABE login: admin
Password:
rfs7000-37FABE>


2.1.18 terminal
User Exec Commands
Sets the length or the number of lines displayed within the terminal window
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
terminal [length|width] <0-512>
Parameters
• terminal [length|width] <0-512>

length <0-512> Sets the number of lines displayed on a terminal window
• <0-512> – Specify a value from 0 - 512.
width <0-512> Sets the width or number of characters displayed on a terminal window
Examples
rfs7000-37FABE>terminal length 150
rfs7000-37FABE>

rfs7000-37FABE>terminal width 215
rfs7000-37FABE>

rfs7000-37FABE>show context
Terminal Type: vt102
Length: 150 Width: 0
rfs7000-37FABE>
Related Commands

no Resets the width of the terminal window or the number of lines displayed within the
terminal window


2.1.19 time-it
User Exec Commands
Verifies the time taken by a particular command between request and response
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
time-it <COMMAND>
Parameters
• time-it <COMMAND>

time-it <COMMAND> Verifies the time taken by a particular command to execute and provide a result
• <COMMAND> – Specify the command.
Examples
rfs7000-37FABE>time-it enable
That took 0.00 seconds..
rfs7000-37FABE#


2.1.20 traceroute
User Exec Commands
Traces the route to a defined destination
Use ‘--help’ or ‘-h’ to display a complete list of parameters for the traceroute command
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
traceroute <LINE>
Parameters
• traceroute <LINE>

traceroute <LINE> Traces the route to a destination IP address or hostname
• <LINE> – Specify a traceroute argument. For example, “service traceroute-h”.
Examples
rfs7000-37FABE>traceroute --help
BusyBox v1.14.1 () multi-call binary

Usage: traceroute [-FIldnrv] [-f 1st_ttl] [-m max_ttl] [-p port#] [-q nqueries]
[-s src_addr] [-t tos] [-w wait] [-g gateway] [-i iface]
[-z pausemsecs] HOST [data size]

Trace the route to HOST

Options:
-F Set the don't fragment bit
-I Use ICMP ECHO instead of UDP datagrams
-l Display the ttl value of the returned packet
-d Set SO_DEBUG options to socket
-n Print hop addresses numerically rather than symbolically
-r Bypass the normal routing tables and send directly to a host
-v Verbose
-m max_ttl Max time-to-live (max number of hops)
-p port# Base UDP port number used in probes (default is 33434)
-q nqueries Number of probes per 'ttl' (default 3)
-s src_addr IP address to use as the source address
-t tos Type-of-service in probe packets (default 0)
-w wait Time in seconds to wait for a response (default 3 sec)
-g Loose source route gateway (8 max)
rfs7000-37FABE>traceroute 172.16.10.2
traceroute to 172.16.10.2 (172.16.10.2), 30 hops max, 38 byte packets
1 172.16.10.1 (172.16.10.1) 3002.008 ms !H 3002.219 ms !H 3003.945 ms !H


2.1.21 watch
User Exec Commands
Repeats the specified CLI command at periodic intervals
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
watch <1-3600> <LINE>
Parameters
• watch <1-3600> <LINE>

watch Repeats a CLI command at a specified interval
<1-3600> Select an interval from 1 - 3600 seconds. Pressing CTRL-Z halts execution of the
command.
<LINE> Specify the CLI command.
Examples
rfs7000-37FABE>watch 45 page
rfs7000-37FABE>

rfs7000-37FABE>watch 45 ping 172.16.10.2
PING 172.16.10.2 (172.16.10.2): 100 data bytes

rfs7000-37FABE>

CHAPTER 3 PRIVILEGED EXEC MODE
COMMANDS
Most PRIV EXEC commands set operating parameters. Privileged-level access should be password protected to prevent
unauthorized use. The PRIV EXEC command set includes commands contained within the USER EXEC mode. The PRIV EXEC
mode also provides access to configuration modes, and includes advanced testing commands.
The PRIV EXEC mode prompt consists of the hostname of the device followed by a pound sign (#).
To access the PRIV EXEC mode, enter the following at the prompt:
rfs7000-37FABE>enable
rfs7000-37FABE#
The PRIV EXEC mode is often referred to as the enable mode, because the enable command is used to enter the mode.
There is no provision to configure a password to get direct access to PRIV EXEC (enable) mode.
rfs7000-37FABE#?
Priv Exec commands:
archive Manage archive files
boot Boot commands
cd Change current directory
clear Clear
delete Deletes specified file from the system.
diff Display differences between two files
dir List files on a filesystem
edit Edit a text file
erase Erase a filesystem
format Format file system
halt Halt the system
join-cluster Join the cluster
mint MiNT protocol
mkdir Create a directory
more Display the contents of a file


page Toggle paging
pwd Display current directory
reload Halt and perform a warm reboot
rename Rename a file
rmdir Delete a directory
self Config context of the device currently logged into
upgrade Upgrade software image
upgrade-abort Abort an ongoing upgrade


rfs7000-37FABE#

PRIVILEGED EXEC MODE COMMANDS 3-3

3.1 Privileged Exec Mode Commands
Table 3.1 summarizes the PRIV EXEC Mode commands:.
Table 3.1 Privileged Exec Commands

ap-upgrade Enables an automatic firmware upgrade on an adopted AP page 3-5
archive Manages file archive operations page 3-10
boot Specifies the image used after reboot page 3-12
cd Changes the current directory page 3-13
change-passwd Changes the password of a logged user page 3-14
clear Clears parameters, cache entries, table entries, and other similar entries page 3-15
clock Configures the system clock page 3-19
cluster Initiates a cluster context page 3-20
configure Enters the configuration mode page 3-21
connect Begins a console connection to a remote device page 3-22
copy Copies a file from any location to the wireless controller page 3-23
crypto Enables encryption page 3-24
delete Deletes a specified file from the system page 3-36
diff Displays the differences between two files page 3-38
dir Displays the list of files on a file system page 3-39
edit Edits a text file page 3-41
enable Turns on (enables) the privileged mode commands set page 3-42
erase Erases a file system page 3-43
exit Ends the current CLI session and closes the session window page 3-44
format Formats the file system page 3-45
halt Stops the wireless controller page 3-46
join-cluster Adds a wireless controller to an existing cluster of devices page 3-47
logging Modifies message logging parameters page 3-48
mint Configures MiNT protocols page 3-50
mkdir Creates a new directory in the file system page 3-49
more Displays the contents of a file page 3-52
no Reverts a command or sets values to their default settings page 3-53


Table 3.1 Privileged Exec Commands

page Toggles wireless controller paging page 3-57
ping Sends ICMP echo messages to a user-specified location page 3-58
pwd Displays the current directory page 3-59
reload Halts the wireless controller and performs a warm reboot page 3-60
rename Renames a file in the existing file system page 3-62
rmdir Deletes an existing file from the file system page 3-63
self Displays the configuration context of the device page 3-64
ssh Connects to another device using a secure shell page 3-65
telnet Opens a Telnet session page 3-66
terminal Sets the length/number of lines displayed within the terminal window page 3-67
time-it Verifies the time taken by a particular command between request and page 3-68
response
traceroute Traces the route to a defined destination page 3-69
upgrade Upgrades the software image page 3-70
upgrade-abort Aborts an ongoing software image upgrade page 3-71
watch Repeats the specific CLI command at a periodic interval page 3-72
commit Commits (saves) the changes made in the current session page 5-4
do Runs commands from EXEC mode page 4-66
end Ends and exits the current mode and moves to the PRIV EXEC mode page 5-5
help Displays interactive help system page 5-7


3.1.1 ap-upgrade
Privileged Exec Commands
Enables an automatic firmware upgrade on an adopted AP or a set of APs. APs of the same type can be upgraded together.
Once APs have been upgraded, they can be forced to reboot. This command also loads the firmware on to the wireless
controller.
The AP upgrade command also upgrades APs in a specified RF Domain.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ap-upgrade [<MAC/HOSTNAME>|all|ap621|ap650|ap6511|ap6521|ap6532|
ap71xx|cancel-upgrade|load-image|rf-domain]

ap-upgrade [<MAC/HOSTNAME>|all] {no-reboot|reboot-time <TIME>|

ap-upgrade [ap621|ap650|ap6511|ap6521|ap6532|ap71xx] all
{no-reboot|reboot-time <TIME>|upgrade-time <TIME> {no-reboot|
reboot-time <TIME>}}]

ap-upgrade cancel-upgrade [<MAC/HOSTNAME>|all|ap621|ap650|ap6511|
ap6521|ap6532|71xx|on]
ap-upgrade cancel-upgrade [<MAC/HOSTNAME>|all]
ap-upgrade cancel-upgrade [ap621|ap650|ap6511|ap6521|ap6532|71xx] all
ap-upgrade cancel-upgrade on rf-domain [<RF-DOMAIN-NAME>|all]

ap-upgrade load-image [ap621|ap650|ap6511|ap6521|ap6532|ap71xx]
<IMAGE-URL>

ap621|ap6532|ap71xx] {no-via-rf-domain} {no-reboot|reboot-time <TIME>|


Parameters
• ap-upgrade [<MAC/HOSTNAME>|all] {no-reboot|reboot-time <TIME>|upgrade-time <TIME>
{no-reboot|reboot-time <TIME>}}

[<MAC/HOSTNAME>|all] Upgrades firmware on a specified AP or all APs adopted by the wireless controller
• all – Upgrades all APs adopted by the wireless controller
• <TIME> – Specify the reboot time in the MM/DD/YYYY-HH:MM or HH:MM format.
upgrade-time <TIME> Optional. Schedules an automatic firmware upgrade
{no-reboot| • <TIME> – Specify the upgrade time in the MM/DD/YYYY-HH:MM or HH:MM
reboot-time <TIME>} format. After a scheduled upgrade, these actions can be performed.
• no-reboot – Disables automatic reboot after a successful upgrade (the wireless
HH:MM format.
• ap-upgrade [ap621|ap650|ap6511|ap6521|ap6532|ap71xx] all {no-reboot|reboot-time
<TIME>|upgrade-time <TIME> {no-reboot|reboot-time <TIME>}}

[ap621|ap650|ap6511|ap6521| Upgrades firmware on all adopted APs
ap6532|ap71xx] all • AP621 all – Upgrades firmware on all AP621s
• AP71XX all – Upgrades firmware on all AP71XXs
After selecting the AP type, you can schedule an automatic upgrade and/or an
automatic reboot.
• <TIME> – Optional. Specify the reboot time in the MM/DD/YYYY-HH:MM or
HH:MM format.
upgrade-time <TIME> Optional. Schedules firmware upgrade on an AP adopted by the wireless controller
{no-reboot| • <TIME> – Specify the upgrade time in the MM/DD/YYYY-HH:MM or HH:MM
reboot-time <TIME>} formats. After a scheduled upgrade, these actions can be performed.
HH:MM format.


• ap-upgrade cancel-upgrade [<MAC/HOSTNAME>|all]

cancel-upgrade [ Cancels scheduled firmware upgrade on a specified AP or all APs adopted by the
<MAC/HOSTNAME>|all] wireless controller
• all – Cancels scheduled upgrade on all APs

• ap-upgrade cancel-upgrade [ap621|ap650|ap651|ap6521|ap6532|ap71xx] all

cancel-upgrade Cancels scheduled firmware upgrade on all adopted APs
[ap621|ap650|ap6511|ap6521| • AP621 all – Cancels scheduled upgrade on all AP621s
ap6532|ap71xx] all
• AP71XX all – Cancels scheduled upgrade on all AP71XXs

• ap-upgrade cancel-upgrade on rf-domain [<DOMAIN-NAME>|all]

cancel-upgrade on rf-domain Cancels scheduled firmware upgrade on a specified RF Domain or all RF Domains
[<RF-DOMAIN-NAME>|all] • <RF-DOMAIN-NAME> – Specify the RF Domain name.
• all – Cancels scheduled upgrades on all RF Domains

• ap-upgrade load-image [ap621|ap650|ap6511|ap6521|ap6532|ap71xx] <IMAGE-URL>

load-image Loads AP firmware images on the wireless controller. Select the AP type and provide
[ap621|ap650|6511|6521| the location of the AP firmware image.
6532|ap71xx] • AP621 <IMAGE-URL> – Loads AP621 firmware image
• AP71XX <IMAGE-URL> – Loads AP71XX firmware image
<IMAGE-URL> Specify the AP firmware image location in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file


• ap-upgrade rf-domain [<RF-DOMAIN-NAME>|all] [all|ap621|ap650|ap6511|

rf-domain Upgrades AP firmware on devices in a specified RF Domain or all RF Domains
[<RF-DOMAIN-NAME>|all] • <RF-DOMAIN-NAME> – Upgrades firmware in a specified RF Domain. Specify the
RF Domain name.
• all – Upgrades firmware on all RF Domains
[all|ap621|ap650|ap6511| After specifying the RF Domain, select the AP type.
ap6521|ap6532|ap71xx] • all – Upgrades firmware on all APs
• AP71XX – Upgrades firmware on all AP71XXs
{no-reboot|no-via-rf-domain The following actions can be performed:
|reboot-time <TIME>| • no-reboot – Optional. Disables automatic reboot after a successful upgrade (the
upgrade-time <TIME>} wireless controller must be manually restarted)
• no-via-rf-domain – Optional. Performs AP firmware upgrade from the adopted
device
• reboot-time <TIME> – Optional. Schedules an automatic reboot, after a successful
• upgrade-time <TIME> – Optional. Schedules an automatic firmware upgrade
Specify the upgrade time in the MM/DD/YYYY-HH:MM or HH:MM format.
{no-reboot| The following are common to the [no-via-rf-domain upgrade <TIME>] and upgrade
reboot-time <TIME>} parameters:
• reboot-time <TIME> – Optional. Schedules an automatic reboot after a successful


Examples
rfs7000-37FABE#ap-upgrade AP621 all
--------------------------------------------------------------------------
--------------------------------------------------------------------------
--------------------------------------------------------------------------
rfs7000-37FABE#
rfs7000-37FABE#ap-upgrade allrfs7000-37FABE#

RFS4000-880DA7#ap-upgrade default/RFS4000-880DA7 no-reboot
--------------------------------------------------------------------------
--------------------------------------------------------------------------
00-23-68-88-0D-A7 Success Queued 0 APs to upgrade
--------------------------------------------------------------------------
RFS4000-880DA7#

rfs7000-37FABE#ap-upgrade rfs7000-37FABE reboot-time 06/01/2011-12:01
--------------------------------------------------------------------------
--------------------------------------------------------------------------
--------------------------------------------------------------------------
rfs7000-37FABE#


3.1.2 archive
Privileged Exec Mode Commands
Manages file archive operations
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
archive tar /table [<FILE>|<URL>]
archive tar /create [<FILE>|<URL>] <FILE>
archive tar /xtract [<FILE>|<URL>] <DIR>]
Parameters
• archive tar /table [<FILE>|<URL>]

tar Manipulates (creates, lists or extracts) a tar file
/table Lists the files in a tar file
<FILE> Defines a tar filename
<URL> Sets the tar file URL

• archive tar /create [<FILE>|<URL>] <FILE>

/create Creates a tar file
<FILE> Defines tar filename
• archive tar /xtract [<FILE>|<URL>] <DIR>]

/xtract Extracts content from a tar file
<FILE> Defines tar filename

PRIVILEGED EXEC MODE COMMANDS 3 - 11

<DIR> Specify a directory name. When used with /create, dir is the source directory for the tar
file. When used with /xtract, dir is the destination file where contents of the tar file are
extracted.
Examples
How to zip the folder flash:/log/?
rfs7000-37FABE#archive tar /create flash:/out.tar flash:/log/
tar: Removing leading '/' from member names
flash/log/
flash/log/snmpd.log
flash/log/messages.log
flash/log/startup.log
flash/log/radius/
rfs7000-37FABE#dir flash:/


3.1.3 boot
Specifies the image used after reboot
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
boot system [primary|secondary] {on <DEVICE-NAME>}
Parameters
• boot system [primary|secondary] {on <DEVICE-NAME>}

system [primary|secondary] Specifies the image used after a device reboot
• primary – Uses a primary image after reboot
• secondary – Uses a secondary image after reboot
on <DEVICE-NAME> Optional. Specifies the primary or secondary image location on a specified device
Examples
rfs7000-37FABE#boot system primary on rfs7000-37FABE
Updated system boot partition
rfs7000-37FABE#


3.1.4 cd
Changes the current directory
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
cd {<DIR>}
Parameters
• cd {<DIR>}

<DIR> Optional. Changes the current directory to DIR. If a directory name is not provided, the
system displays the current directory name.
Examples

rfs7000-37FABE#cd flash:/log/
rfs7000-37FABE#pwd
flash:/log/
rfs7000-37FABE#


3.1.5 change-passwd
Changes the password of a logged user. When this command is executed without any parameters, the password can be
changed interactively.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
change-passwd {<OLD-PASSWORD> <NEW-PASSWORD>}
Parameters
• change passwd {<OLD-PASSWORD> <NEW-PASSWORD>}

<OLD-PASSWORD> Optional. The password can also be changed interactively. To do so, press [Enter] after
<NEW-PASSWORD> the command.
• <OLD-PASSWORD> – Specify the password that needs to be changed
• <NEW-PASSWORD> – Specify the password to change to
Usage Guidelines
A password must be from 1 - 64 characters.
Examples
rfs7000-37FABE#change-passwd
Enter old password:
Enter new password:
Password for user 'admin' changed successfully
Please write this password change to memory(write memory) to be persistent.
rfs7000-37FABE#write memory
OK
rfs7000-37FABE#


3.1.6 clear
Clears parameters, cache entries, table entries, and other entries. The clear command is available for specific commands
only. The information cleared using this command varies depending on the mode where the clear command is executed.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000

NOTE: Refer to the interface details below when using clear
• ge <index> – RFS4000 supports 5GEs, RFS6000 supports 8 GEs and RFS7000 supports
4GEs
• me1 – Available in both RFS7000 and RFS6000 - up1 - Uplink interface on RFS4000

Syntax
clear [arp-cache|cdp|counters|crypto|event-history|firewall|
ip|lldp|spanning-tree]

clear arp-cache {on <DEVICE-NAME>}

clear [cdp|lldp] neighbors {on <DEVICE-NAME>}
clear counters [all|bridge|router|thread]
clear counters interface [<INTERFACE>|all|ge <1-4>|me1|
port-channel <1-2>|vlan <1-4094>]

clear crypto [ipsec|isakmp] sa [<IP>|all] {on <DEVICE-NAME>}

clear event-history

clear firewall [dhcp snoop-table|dos stats|flows] {on <DEVICE-NAME>}

clear ip dhcp bindings [<IP>|all] {on <DEVICE-NAME>}

clear spanning-tree detected-protocols {interface |on <DEVICE-NAME>}
clear spanning-tree detected-protocols {interface [<INTERFACE>|
ge <1-4>|me1|port-channel <1-2>|vlan <1-4094>]} {on <DEVICE-NAME}


Parameters
• clear arp-cache {on <DEVICE-NAME>}

arp-cache Clears Address Resolution Protocol (ARP) cache entries on an AP or wireless controller
on <DEVICE-NAME> Optional. Clears ARP cache entries on a specified device

• clear [cdp|lldp] neighbors {on <DEVICE-NAME>}

cdp Clears Cisco Discovery Protocol (CDP) table entries
ldp Clears Link Layer Discovery Protocol (LLDP) neighbor table entries
neighbors Clears CDP or LLDP neighbor table entries based on the option selected in the
preceding step
on <DEVICE-NAME> Optional. Clears CDP or LLDP neighbor table entries on a specified device

• clear counters [all|bridge|router|thread]

counters Clears counters on a system
[all|bridge|router|thread] • all – Clears all counters irrespective of the interface type
• bridge – Clears bridge counters
• router – Clears router counters
• thread – Clears per-thread counters

• clear counters interface [<INTERFACE>|all|ge <1-4>|me1|port-channel <1-2>|
vlan <1-4094>]

counters interface Clears interface counters for a specified interface
[<INTERFACE>|all|ge <1-4>| • <INTERFACE> – Clears a specified interface counters. Specify the interface name.
me1|port-channel <1-2>|
• all – Clears all interface counters
vlan <1-4094>]
• ge – Clears GigabitEthernet interface counters. Specify the GigabitEthernet
• me1 – Clears FastEthernet interface counters
• port-channel – Clears port-channel interface counters. Specify the port channel
• vlan – Clears interface counters. Specify the Switch Virtual Interface (SVI) VLAN ID
from 1 - 4094.

• clear crypto [ipsec|isakmp] sa [<IP>|all] {on <DEVICE-NAME>}

crypto Clears encryption module database
ipsec sa Clears Internet Protocol Security (IPSec) database security associations (SAs)
isakmp sa Clears Internet Security Association and Key Management Protocol (ISAKMP)
database SAs


[<IP>|all] The following are common to the IPSec and ISAKMP parameters:
• Clears IPSec or ISAKMP SAs for a certain peer
• Clears IPSec or ISAKMP SAs for all peers
on <DEVICE-NAME> Optional. Clears IPSec or ISAKMP SA entries on a specified device


event-history Clears event history cache entries

• clear ip dhcp bindings [<IP>|all]

ip Clears Dynamic Host Configuration Protocol (DHCP) server IP address bindings
dhcp bindings Clears DHCP connections and server bindings
• bindings – Clears DHCP address binding entries
<IP> Clears DHCP address binding entries on a specified DHCP server. Specify the DHCP
server IP address.
all Clears DHCP address binding entries on all DHCP servers

• clear firewall [dhcp snoop-table|dos stats|flows] {on <DEVICE-NAME>}

firewall Clears firewall event entries
DHCP snoop-table Clears DHCP snoop table entries
dos stats Clears denial of service statistics
flows Clears established firewall sessions
on <DEVICE-NAME> The following are common to the DHCP, DOS, and flows parameters:
• on <DEVICE-NAME> – Optional. Clears DHCP snoop table entries, denial of service
statistics, or the established firewall sessions on a specified device

• clear spanning-tree detected-protocols {on <DEVICE-NAME>}

on <DEVICE-NAME> Optional. Clears spanning tree protocols on a specified device

• clear spanning-tree detected-protocols {interface [<INTERFACE>|ge <1-4>|me1|
port-channel <1-2>|vlan <1-4094>]} {on <DEVICE-NAME>}



interface [<INTERFACE>| Optional. Clears spanning tree protocols on specified interfaces
ge <1-4|me1| • <INTERFACE> – Clears information on a specified interface. Specify the interface
port-channel <1-2>| name.
vlan <1-4094>]
• ge <1-4> – Clears a GigabitEthernet interface. Specify the GigabitEthernet
interface index from 1- 4.
• me1 – Clears a FastEthernet interface (up1 - Clears the uplink interface)
• port-channel <1-2> – Clears a port channel interface. Specify the port channel
index from 1 - 2.
• vlan <1-4094> – Clears a VLAN interface. Specify a Switch Virtual Interface (SVI)
VLAN ID from 1 - 4094.
on <DEVICE-NAME> The following parameters are common to all interfaces:
• on <DEVICE-NAME. – Optional. Clears spanning tree protocol entries on a
specified device
Examples
rfs7000-37FABE>clear crypto isakmp sa 111.222.333.01 on rfs7000-37FABE
rfs7000-37FABE>

rfs7000-37FABE>clear event-history
rfs7000-37FABE>

rfs7000-37FABE>clear spanning-tree detected-protocols interface port-channel 1 on
rfs7000-37FABE
rfs7000-37FABE>

rfs7000-37FABE>clear ip dhcp bindings 172.16.10.9 on rfs7000-37FABE
rfs7000-37FABE>

rfs7000-37FABE#clear cdp neighbors on rfs7000-37FABE
rfs7000-37FABE#

RFS4000-880DA7#clear spanning-tree detected-protocols interface ge 1
RFS4000-880DA7#

RFS4000-880DA7#clear lldp neighbors
RFS4000-880DA7#


3.1.7 clock
Sets a device’s system clock
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
Parameters

clock set Sets a device’s system clock
<HH:MM:SS> Sets the current time (in military format hours, minutes and seconds)
<1-31> Sets the numerical day of the month
<MONTH> Sets the month of the year (Jan to Dec)
<1993-2035> Sets a valid four digit year from 1993 - 2035
on <DEVICE-NAME> Optional. Sets the clock on a specified device
Examples
rfs7000-37FABE#clock set 10:07:00 29 JUL 2011
rfs7000-37FABE#

rfs7000-37FABE#show clock
2011-07-29 10:07:36 UTC
rfs7000-37FABE#


3.1.8 cluster
Initiates the cluster context. The cluster context provides centralized management to configure all cluster members from
any one member.
Commands executed under this context are executed on all members of the cluster.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
cluster start-selection
Parameters
• cluster start-selection

start-selection Starts a new cluster master election
Examples
rfs7000-37FABE#cluster start-election
rfs7000-37FABE#


3.1.9 configure
Enters the configuration mode. Use this command to enter the current device’s configuration mode, or enable configuration
from the terminal.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
configure {self|terminal}
Parameters
• configure {self|terminal}

self Optional. Enables the current device’s configuration mode
terminal Optional. Enables configuration from the terminal
Examples
rfs7000-37FABE#configure self
rfs7000-37FABE(config-device-00-15-70-37-FA-BE)#
rfs7000-37FABE#configure terminal


3.1.10 connect
Begins a console connection to a remote device using the remote device’s MiNT ID or name
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
connect [mint-id <MINT-ID>|<REMOTE-DEVICE-NAME>]
Parameters
• connect [mint-id <MINT-ID>|<REMOTE-DEVICE-NAME>]

mint-id <MINT-ID> Connects to a remote system using the MiNT ID
• <MINT-ID> – Specify the remote device MiNT ID.
<REMOTE-DEVICE-NAME> Connects to a remote system using its name
• <REMOTE-DEVICE-NAME> – Specify the remote device name.
Examples
rfs7000-37FABE#connect RFDOMAIN_UseCase1/RFS7000-37FAAA
RFS7000 release 5.2.2.0-048B
rfs7000-37FABE login: admin
Password:
Welcome to CLI
RFS7000-37FAAA>

rfs7000-37FABE#show mint lsp-db
2 LSPs in LSP-db of 01.42.14.79:
LSP 01.42.14.79 at level 1, hostname "RFS6000-421479", 1 adjacencies, seqnum 5069
LSP 01.44.54.C0 at level 1, hostname "ap650-4454C0", 1 adjacencies, seqnum 5265

rfs7000-37FABE>connect mint-id 01.44.54.C0
AP650 release 5.2.2.0-026D
ap650-4454C0 login:


3.1.11 copy
Copies a file (config,log,txt...etc) from any location to the wireless controller and vice-versa
NOTE: Copying a new config file onto an existing running-config file merges it with the existing
running-config on the wireless controller. Both the existing running-config and the new config file are
applied as the current running-config.
Copying a new config file onto a start-up config files replaces the existing start-up config file with the
parameters of the new file. It is better to erase the existing start-up config file and then copy the new
config file to the startup config.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
copy [<SOURCE-FILE>|<SOURCE-URL>] [<DESTINATION-FILE>|<DESTINATION-URL>]
Parameters
• copy [<SOURCE-FILE>|<SOURCE-URL>] [<DESTINATION-FILE>|<DESTINATION-URL>]

<SOURCE-FILE> Specify the source file to copy
<SOURCE-URL> Specify the source file URL
<DESTINATION-FILE> Specify the destination file to copy to
<DESTINATION-URL> Specify the destination file URL
Examples
Transferring file snmpd.log to remote tftp server.
rfs7000-37FABE#copy flash:/log/snmpd.log
tftp://157.235.208.105:/snmpd.log
Accessing running-config file from remote tftp server into switch running-config.
rfs7000-37FABE#copy tftp://157.235.208.105:/running-config running-config


3.1.12 crypto
Enables RSA Keypair management. Use this command to generate, delete, export, or import a RSA Keypair. It encrypts the
RSA Keypair before an export operation. This command also enables Public Key Infrastructure (PKI) management.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
crypto [key|pki]
crypto key [export|generate|import|zeroise]

crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL>
crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {background}
{on <DEVICE-NAME>}
crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {passphrase
<KEY-PASSPHRASE>} {background} {on <DEVICE-NAME>}
crypto key generate rsa <RSA-KEYPAIR-NAME> <1024-2048>{on <DEVICE-NAME>}

crypto key import rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL>
crypto key import rsa <RSA-KEYPAIR-NAME> <IMPORT-FROM-URL>
{background} {on <DEVICE-NAME>}
crypto key import rsa <RSA-KEYPAIR-NAME> <IMPORT-FROM-URL> passphrase
<KEY-PASSPHRASE> {background} {on <DEVICE-NAME>}
crypto key zeroise rsa <RSA-KEYPAIR-NAME> {force} {on <DEVICE-NAME>}

crypto pki [authenticate|export|generate|import|zeroise]

crypto pki authenticate <TRUST-POINT> <URL> {background{on <DEVICE-NAME>}|
on <DEVICE-NAME>}

crypto pki export [request|trustpoint]

autogen-subject-name [<EXPORT-TO-URL>, email <SEND-TO-EMAIL>, fqdn <FQDN>,
ip-address <IP>]
autogen-subject-name <EXPORT-TO-URL> {background {on <DEVICE-NAME>}|
on <DEVICE-NAME>}
crypto pki export request [generate-rsa-key|use-rsa-key] <RSA-KEYPAIR-
NAME> subject-name <COMMON-NAME> <COUNTRY> <STATE> <CITY> <ORGANIZATION>
<ORGANIZATION-UNIT> [<EXPORT-TO-URL>, email <SEND-TO-EMAIL>, fqdn <FQDN>,
ip-address <IP>]


crypto pki export trustpoint <TRUSTPOINT-NAME> <EXPORT-TO-URL> {background
{on <DEVICE-NAME>}|on <DEVICE-NAME>|passphrase <KEY-PHRASE> {background
{on <DEVICE-NAME>}|on <DEVICE-NAME>}}

use-rsa-key] <RSA-KEYPAIR-NAME> [autogen-subject-name|subject-name]

use-rsa-key] <RSA-KEYPAIR-NAME> autogen-subject-name {email <SEND-TO-EMAIL>,
fqdn <FQDN>, ip-address <IP>, on <DEVICE-NAME>}
use-rsa-key] <WORD> subject-name <COMMON-NAME> <COUNTRY> <STATE> <CITY>
<ORGANIZATION> <ORGANIZATION-UNIT> {email <SEND-TO-EMAIL>, fqdn <FQDN>,
ip-address <IP>, on <DEVICE-NAME>}

crypto pki import [certificate|crl|trustpoint]

crypto pki import [certificate|crl] <TRUSTPOINT-NAME> <IMPORT-FROM-URL>
{background {on <DEVICE-NAME>}|on <DEVICE-NAME>}]

crypto pki import trustpoint <TRUSTPOINT-NAME> <IMPORT-FROM-URL>
{background {on <DEVICE-NAME>}|on <DEVICE-NAME>|passphrase <word>
{background {on <DEVICE-NAME>}|on <DEVICE-NAME>}

crypto pki zeroise trustpoint <TRUSTPOINT-NAME> {del-key {on <DEVICE-NAME>}|
on <DEVICE-NAME>}
Parameters
• crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {on <DEVICE-NAME>}

delete a RSA key.
export rsa <RSA-KEYPAIR- Exports a RSA Keypair to a specified destination
NAME> • <RSA-KEYPAIR-NAME> – Specify the RSA Keypair name.
cf:/path/file
usb1:/path/file
usb2:/path/file
• on <DEVICE-NAME> – Optional. Performs the export operation on a specified device

• crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {background}
{on <DEVICE-NAME>}

delete a RSA key.


{on <DEVICE-NAME>}
cf:/path/file
usb1:/path/file
usb2:/path/file
device

• crypto key export rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL>
{passphrase <KEY-PASSPHRASE> {background {on <DEVICE-NAME>}|on <DEVICE-NAME>}

delete a RSA key.
• <RSA-KEYPAIR-NAME> – Specify the RSA Keypair name.
<KEY-PASSPHRASE>
cf:/path/file
usb1:/path/file
usb2:/path/file
• passphrase – Optional. Encrypts RSA Keypair before exporting it
• <KEY-PASSPHRASE> – Specify a passphrase to encrypt the RSA Keypair.
• crypto key generate rsa <RSA-KEYPAIR-NAME> <1024-2048> {on <DEVICE-NAME>}

delete a RSA key.


generate rsa Generates a new RSA Keypair
<1024-2048> • <1024-2048> – Specify the size of the RSA key in bits from 1024 - 2048.
on <DEVICE-NAME> Optional. Generates a new RSA Keypair on a specified device

• crypto key import rsa <RSA-KEYPAIR-NAME> <EXPORT-TO-URL> {on <DEVICE-NAME>}

delete a RSA key.
cf:/path/file
usb1:/path/file
usb2:/path/file
• on <DEVICE-NAME> – Optional. Performs the import operation on a specified device
• crypto key import rsa <RSA-KEYPAIR-NAME> <IMPORT-TO-URL> {background}
{on <DEVICE-NAME>}

delete a RSA key.
{background} {on <DEVICE- tftp://<hostname|IP>[:port]/path/file
NAME>}
cf:/path/file
usb1:/path/file
usb2:/path/file
• background – Optional. Performs the import operation in the background
• on <DEVICE-NAME> – Optional. Performs the import operation on a specified
device


• crypto key import rsa <RSA-KEYPAIR-NAME> <IMPORT-TO-URL> {passphrase <KEY-
PASSPHRASE>} {background {on <DEVICE-NAME>}|on <DEVICE-NAME>}

delete a RSA key.
import rsa Decrypts and imports RSA Keypair from a specified source
<KEY-PASSPHRASE>
cf:/path/file
usb1:/path/file
usb2:/path/file
• passphrase – Optional. Decrypts RSA Keypair before importing it
• <KEY-PASSPHRASE> – Specify the passphrase to decrypt the RSA Keypair.

• crypto key zeroise <RSA-KEYPAIR-NAME> {force} {on <DEVICE-NAME>}

delete a RSA key.
zeroise rsa Deletes a specified RSA Keypair
force {on <DEVICE-NAME>} Optional. Forces deletion of all certificates associated with the RSA Keypair
• on <DEVICE-NAME> – Optional. Forces deletion of all certificates on a specified
device

• crypto pki authenticate <TRUSTPOINT-NAME> <URL> {background {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

pki Enables Private Key Infrastructure (PKI) management. Use this command to
authenticate, export, generate, or delete a trustpoint and its associated Certificate
Authority (CA) certificates.
authenticate Authenticates a CA certificate


<URL> Specify the CA certificate location in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
background Optional. Performs authentication in the background
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Performs authentication on a specified device
on <DEVICE-NAME> Optional. Performs authentication on a specified device

autogen-subject-name [<EXPORT-TO-URL>|email <SEND-TO-EMAIL>|fqdn <FQDN>|
ip-address <IP>]

request Sends a Certificate Signing Request (CSR) to the CA for digital identity certificate. The
CSR contains the applicant’s details and the RSA Keypair’s public key.
<RSA-KEYPAIR-NAME>
If an existing RSA Keypair, specify its name.
<EXPORT-TO-URL> Specify the CSR destination address in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
device


fqdn <FQDN> Exports CSR to a specified Fully Qualified Domain Name (FQDN)

subject-name <COUNTRY> <STATE> <CITY> <ORGANIZATION> <ORGANIZATION-UNIT>
[<EXPORT-TO-URL>, email <SEND-TO-EMAIL>, fqdn <FQDN>, ip-address <IP>

request Sends a CSR to the CA for digital identity certificate. The CSR contains the applicant’s
details and the RSA Keypair’s public key
<RSA-KEYPAIR-NAME>
<EXPORT-TO-URL> Specify the CSR destination address in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
device


• Specify the FQDN of the CA.
• Specify the IP address of the CA.

• crypto pki trustpoint <TRUSTPOINT-NAME> <EXPORT-TO-URL> {background {on <DEVICE-
NAME>}|on <DEVICE-NAME>|passphrase <KEY-PASSPHRASE> background {on <DEVICE-NAME>}|
on <DEVICE-NAME>}}

trustpoint Exports trustpoint CA certificate, Certificate Revocation List (CRL), server certificate,
<TRUSTPOINT-NAME> and private key
• <TRUSTPOINT-NAME> – Specify the trustpoint name.
<EXPORT-TO-URL> Specify the destination address in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
background Optional. Performs the export operation in the background
{on-DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Performs the export operation on a specified
device
passphrase Optional. Encrypts key with a passphrase before exporting it
<KEY-PASSPHRASE> • <KEY-PASSPHRASE> – Specify the passphrase.
{background {on <DEVICE- • background – Optional. Performs the export operation in the background
NAME>}| • on <DEVICE-NAME> – Optional. Performs the export operation on a specified
on <DEVICE-NAME> device
use-rsa-key] <RSA-KEYPAIR-NAME> autogen-subject-name {email <SEND-TO-EMAIL>|



<RSA-KEYPAIR-NAME>
• <RSA-KEYPAIR-NAME> – If generating a new RSA Keypair, specify a name for
it. If using an existing RSA Keypair, specify its name.
ip-address <IP> Exports CSR to a specified device or system
on <DEVICE-NAME> Exports the CSR on a specified device

use-rsa-key] <RSA-KEYPAIR-NAME> subject-name <COMMON-NAME> <COUNTRY>
<STATE> <CITY> <ORGANIZATION> <ORGANIZATION-UNIT> {email <SEND-TO-EMAIL>|

[generate-rsa-key|use-rsa- Generates a new RSA Keypair, or uses an existing RSA Keypair
key] <RSA-KEYPAIR-NAME> • generate-rsa-key – Generates a new RSA Keypair for digital authentication
subject-name Enter a subject name to identify the certificate.



• crypto pki import [certificate|crl] <TRUSTPOINT-NAME> <IMPORT-FROM-URL> {background
{on <DEVICE-NAME>}|on <DEVICE--NAME>}

import Imports certificates, CRL, or a trustpoint to a selected device
[certificate|crl] Imports a signed server certificate or a certificate revocation list
<TRUSTPOINT-NAME> • certificate – Imports a signed server certificate
• crl – Imports a CRL
<IMPORT-FROM-URL> Specify the signed server certificate or CRL source address in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
• <DEVICE-NAME> – Enter the name of the AP or wireless controller.

• crypto pki import trustpoint <TRUSTPOINT-NAME> <IMPORT-FROM-URL> {background {on
<DEVICE-NAME>}|on <DEVICE--NAME>}

trustpoint Imports a trustpoint and its associated CA certificate, server certificate, and private
<TRUSTPOINT-NAME> key


<IMPORT-FROM-URL> Specify the trustpoint source address in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
passphrase Optional. Encrypts trustpoint with a passphrase before importing it
<KEY-PASSPHRASE> • <KEY-PASSPHRASE> – Specify a passphrase.
{background {on <DEVICE- • background – Optional. Imports encrypted trustpoint in the background
NAME>}| • on <DEVICE-NAME> – Optional. Imports encrypted trustpoint on a specified
on <DEVICE-NAME>} device
• crypto pki zeroise trustpoint <TRUSTPOINT-NAME> {del-key {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

delete a trustpoint and its associated CA certificates
zeroise Deletes a trustpoint and its associated CA certificate, server certificate, and private key
del-key Optional. Deletes the private key associated with the server certificate
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Deletes the private key on a specified device
on <DEVICE-NAME> Optional. Deletes trustpoint on a specified device


Examples
rfs7000-37FABE#crypto key generate rsa key 1025
RSA Keypair successfully generated
rfs7000-37FABE#

rfs7000-37FABE#crypto key import rsa moto123 url passphrase word background on
rfs7000-37FABE
RSA key import operation is started in background
rfs7000-37FABE#

rfs7000-37FABE#crypto pki generate self-signed word generate-rsa-key word autogen-
subject-name fqdn word
Successfully generated self-signed certificate
rfs7000-37FABE#

rfs7000-37FABE#crypto pki zeroize trustpoint word del-key on rfs7000-37FABE
Successfully removed the trustpoint and associated certificates
%Warning: Applications associated with the trustpoint will start using default-
trustpoint
rfs7000-37FABE#
rfs7000-37FABE#crypto pki authenticate word url background on rfs7000-37FABE
Import of CA certificate started in background
rfs7000-37FABE#

rfs7000-37FABE#crypto pki import trustpoint word url passphrase word on rfs7000-37FABE
Import operaton started in background
rfs7000-37FABE#
Related Commands

no Resets or disables the crypto commands


3.1.13 delete
Deletes a specified file from the device’s file system
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
delete [/force <FILE>|/recursive <FILE>|<FILE>]
Parameters
• delete [/force <FILE>|/recursive <FILE>|<FILE>]

/force Forces deletion without a prompt
/recursive Performs a recursive delete
<FILE> Specifies the filenames to delete
Examples
rfs7000-37FABE#delete flash:/out.tar flash:/out.tar.gz
Delete flash:/out.tar [y/n]? y
Delete flash:/out.tar.gz [y/n]? y

rfs7000-37FABE#delete /force flash:/tmp.txt
rfs7000-37FABE#

rfs7000-37FABE#delete /recursive flash:/backup/
Delete flash:/backup//fileMgmt_350_180B.core

[y/n]? y
Delete

flash:/backup//fileMgmt_350_18212X.core_bk

[y/n]? n

Delete flash:/backup//imish_1087_18381X.core.gz

[y/n]? n
rfs7000-37FABE#


3.1.14 disable
Privileged Exec Commands
Turns off (disables) the privileged mode command set. This command returns to the User Executable mode.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
disable
Parameters
None
Examples
rfs7000-37FABE#disable
rfs7000-37FABE>


3.1.15 diff
Displays the differences between two files on a device’s file system or a particular URL
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
diff [<FILE>|<URL>] [<FILE>|<URL>]
Parameters
• diff [<FILE>|<URL>] [<FILE>|<URL>]

FILE The first <FILE> is the source file for the diff. The second <FILE> is the file to compare it
with.
URL The first <URL> is the source URL for the file for the diff. The second <URL> is the URL
of the file to compare it with.
Examples
rfs7000-37FABE#diff startup-config running-config
--- startup-config
+++ running-config
@@ -1,3 +1,4 @@
+!### show running-config
!
! Configuration of RFS7000 version 5.2.2.0-048B
!
@@ -80,7 +81,6 @@
excluded-address 172.16.10.9 172.16.10.10
bootp ignore
!
-gui default
!
firewall-policy default
!
rfs7000-37FABE#


3.1.16 dir
Lists files on a device’s file system
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
dir {[/all|/recursive|<DIR>|all-filesystems]}
Parameters
• dir {[/all|/recursive|<DIR>|all-filesystems]}

/all Optional. Lists all files
/recursive Optional. Lists files recursively
<DIR> Optional. Lists files in the named file path
all-filesystems Optional. Lists files on all file systems


Examples
rfs7000-37FABE#dir
Directory of flash:/.

drwx Thu Apr 29 12:36:29 2010 log
-rw- 39 Tue Dec 29 11:41:00 2009 FILE
drwx Thu Apr 29 11:34:11 2010 crashinfo
drwx Sat Jan 1 00:00:25 2000 hotspot
drwx Mon Dec 14 14:09:39 2009 TestDir
drwx Fri Dec 11 15:38:25 2009 Testdir
rfs7000-37FABE#
rfs7000-37FABE#dir all-filesystems
Directory of flash:/

drwx Thu Apr 29 12:36:29 2010 log
-rw- 39 Tue Dec 29 11:41:00 2009 FILE
drwx Thu Apr 29 11:34:11 2010 crashinfo
drwx Mon Dec 14 14:09:39 2009 TestDir
drwx Fri Dec 11 15:38:25 2009 Testdir
Directory of nvram:/

-rw- 3460 Fri Dec 11 14:42:44 2009 startup-config.save
-rw- 1638 Tue Jan 5 14:27:17 2010 startup-config-unused
-rw- 3393 Mon Dec 14 13:55:51 2009 startup-config.save.1
-rw- 8059 Thu Apr 29 12:36:27 2010 startup-config

Directory of system:/

drwx Thu Apr 29 12:35:52 2010 proc

rfs7000-37FABE#


3.1.17 edit
Edits a text file on the device’s file system
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
edit <FILE>
Parameters
• edit <FILE>

<FILE> Specify the name of the file to modify.
Examples
rfs7000-37FABE#edit startup-config
GNU nano 1.2.4 File: startup-config

!
!
! version 2.0
!
!
smart-rf-policy default
!
smart-rf-policy test
enable
calibration wait-time 4
!
wlan-qos-policy default
!
^G Get Help ^O WriteOut ^R Read File ^Y Prev Page ^K Cut Text ^C Cur Pos
^X Exit ^J Justify ^W Where Is ^V Next Page ^U UnCut Txt ^T To Spell


3.1.18 enable
Turns on (enables) the privileged mode command set. This command does not do anything in the Privilege Executable
mode.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
enable
Parameters
None
Examples
rfs7000-37FABE#enable
rfs7000-37FABE#


3.1.19 erase
Erases a device’s file system
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
erase [cf:|flash:|nvram:|startup-config|usb1:]
Parameters
• erase [cf:|flash:|nvram:|startup-config|usb1:]

cf: Erases everything in wireless controller cf:
flash: Erases everything in wireless controller flash:
nvram: Erases everything in wireless controller nvram:
startup-config Erases the wireless controller’s startup configuration file. The startup configuration file is
used to configure the device when it reboots.
usb1: Erases everything in wireless controller usb1:
Examples
rfs7000-37FABE#erase startup-config
Erase startup-config? (y/n): n
rfs7000-37FABE#


3.1.20 exit
Ends the current CLI session and closes the session window
For more information, see exit.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
exit
Parameters
None
Examples
rfs7000-37FABE#exit


3.1.21 format
Formats the device’s compact flash file system
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
format cf:
Parameters
• format cf:

cf: Formats the compact flash file system
Examples
rfs7000-37FABE#format cf:

Warning: This will destroy the contents of compact flash.
Do you want to continue [y/n]? n

rfs7000-37FABE#


3.1.22 halt
Stops (halts) a device or a wireless controller. Once halted, the system must be restarted manually.
This command stops the device immediately. No indications or notifications are provided while the device shuts down.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
halt {on <DEVICE-NAME>}
Parameters
• halt {on <DEVICE-NAME>}

halt {on <DEVICE-NAME>} Optional. Halts a device or a wireless controller
Examples
rfs7000-37FABE#halt on rfs7000-37FABE
rfs7000-37FABE#


3.1.23 join-cluster
Adds a wireless controller to an existing cluster of devices. Use this command to add a new wireless controller to an
existing cluster. Before a wireless controller can be added to a cluster, a static address must be assigned to it.
• RFS4000
• RFS6000
• RFS7000
Syntax
join-cluster <IP> user <USERNAME> password <WORD> level [1|2]
Parameters
• join-cluster <IP> user <USERNAME> password <WORD> level [1|2]

join-cluster Adds a new wireless controller to an existing cluster
<IP> Specify the IP address of the cluster member.
user <USERNAME> Specify a user account with super user privileges on the new cluster member
password <WORD> Specify password for the account specified in the user parameter
level [1|2] Configures the routing level
• 1 – Configures level 1 routing
• 2 – Configures level 2 routing
Usage Guidelines
To add a wireless controller to an existing cluster:
• A static IP address must be configured on the wireless controller being added.
• Username and password of one of the following accounts, superuser, network admin, system admin, or operator
account for the new wireless controller must be provided.
Once a wireless controller is added to the cluster, a manual “write memory” command must be executed. Without this
command, the configuration will not persist across reboots.
Examples
rfs7000-37FABE#join-cluster 172.16.10.10 user admin password motorola
Joining cluster at 172.16.10.10... Done
Please execute “write memory” to save cluster configuration.

rfs7000-37FABE#


3.1.24 logging
Modifies message logging settings
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
logging monitor {<0-7>|alerts|critical|debugging|emergencies|errors|
Parameters
• logging monitor {<0-7>|alerts|critical|debugging|emergencies|errors|

monitor Sets terminal lines logging levels. The logging severity levels can be set from
0 - 7. The system configures default settings, if no logging severity level is specified.
• <0-7> – Optional. Enter the logging severity level from 0 - 7. The various levels and
their implications are:
• alerts – Optional. Immediate action needed (severity=1)
• critical – Optional. Critical conditions (severity=2)
• debugging – Optional. Debugging messages (severity=7)
• emergencies – Optional. System is unusable (severity=0)
• errors – Optional. Error conditions (severity=3)
• informational – Optional.Informational messages (severity=6)
• notifications – Optional. Normal but significant conditions (severity=5)
• warnings – Optional. Warning conditions (severity=4)
Examples
rfs7000-37FABE#logging monitor warnings
rfs7000-37FABE#

rfs7000-37FABE#logging monitor 2
rfs7000-37FABE#
Related Commands

no Resets terminal lines logging levels


3.1.25 mkdir
Creates a new directory in the file system
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
mkdir <DIR>
Parameters
• mkdir <DIR>

<DIR> Specify a directory name.
Examples
rfs7000-37FABE#dir

drwx Fri Jul 8 08:44:33 2011 log
drwx Wed Jul 28 19:01:08 2010 cache
drwx Fri Jul 8 08:45:36 2011 crashinfo
drwx Sat Jan 1 00:00:09 2000 floorplans
rfs7000-37FABE#mkdir testdir
rfs7000-37FABE#dir

drwx Fri Jul 8 08:45:36 2011 testdir


3.1.26 mint
Uses MiNT protocol to perform a ping and a traceroute to a remote device
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
mint [ping|traceroute]

mint ping MINT-ID {count <1-60>|size <1-64000>|timeout <1-10>}
mint traceroute MINT-ID {destination-port <1-65535>|max-hops <1-255>|
source-port <1-65535>|timeout <1-255>}
Parameters
• mint ping MINT-ID {count <1-60>|size <1-64000>|timeout <1-10>}

ping MINT-ID Sends a MiNT echo message to a MiNT destination
• <MINT-ID> – Specify the MiNT destination ID to ping.
count <1-60> Optional. Sets the number of times to ping the MiNT destination
size <1-64000> Optional. Sets the MiNT payload size in bytes
• <1-64000> – Specify a value from 1 - 640000 bytes. The default is 64 bytes.
timeout <1-10> Optional. Sets a response time in seconds
• <1-10> – Specify a value from 1 - 10 seconds. The default is 1 second.
• mint traceroute MINT-ID {destination-port <1-65535>|max-hops <1-255>|
source-port <1-65535>|timeout <1-255>}

traceroute MINT-ID Prints the route packets trace to a device
• <MINT-ID> – Specify the MiNT destination ID.
destination-port <1-65535> Optional. Sets the Equal-cost Multi-path (ECMP) routing destination port
max-hops <1-255> Optional. Sets the maximum number of hops a traceroute packet traverses in the
forward direction


source-port <1-65535> Optional.Sets the ECMP source port
timeout <1-255> Optional. Sets the minimum response time period
• <1-65535> – Specify a value from 1 - 255 seconds. The default is 30 seconds.
Examples
rfs7000-37FABE#mint ping 70.37.FA.BF count 20 size 128
MiNT ping 70.37.FA.BF with 128 bytes of data.

--- 70.37.FA.BF ping statistics ---


3.1.27 more
Displays contents of a file on the device’s file system. This command navigates and displays specific files in the device’s
file system. To do so, provide the complete path to the file.
The more command also displays the startup configuration file.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
more <FILE>
Parameters
• more <FILE>

<FILE> Specify the file name.
Examples
rfs7000-37FABE#more flash:/log/messages.log
May 03 11:45:05 2010: %PM-6-PROCSTART: Starting process "/usr/sbin/dpd2"
May 03 11:45:14 2010: %KERN-6-INFO: 0| ioctl.c:335 dev_dataplane_fw_ioctl DHCP trust
of port 0 (ge1) set to 1 by 1021 cfgd.
May 03 11:45:14 2010: %NSM-4-IFDOWN: Interface vlan1 is down
May 03 11:45:14 2010: %NSM-4-IFUP: Interface vlan4 is up
May 03 11:45:15 2010: %NSM-4-IFUP: Interface vlan44 is up
May 03 11:45:15 2010: %NSM-4-IFDOWN: Interface vlan44 is down
May 03 11:45:15 2010: %PM-6-PROCSTART: Starting process "/usr/sbin/lighttpd"
May 03 11:45:15 2010: %FILEMGMT-5-HTTPSTART: lighttpd started in external mode with
pid 0
May 03 11:45:15 2010: %USER-5-NOTICE: FILEMGMT[1064]: FTP: ftp server stopped
May 03 11:45:15 2010: %PM-6-PROCSTART: Starting process "/usr/sbin/telnetd"
May 03 11:45:17 2010: %AUTH-6-INFO: sshd[1371]: Server listening on 0.0.0.0 port 22.
May 03 11:45:17 2010: %AUTOINSTD-5-AUTOCLCONFDISAB: Autoinstall of cluster
configuration is disabled
May 03 11:45:17 2010: %AUTOINSTD-5-AUTOCONFDISAB: Autoinstall of startup configuration
is disabled
May 03 11:45:17 2010: %AUTOINSTD-5-AUTOIMAGEDISAB: Autoinstall of image upgrade is
disabled
May 03 11:45:18 2010: %KERN-6-INFO: dataplane enabled.
rfs7000-37FABE#


3.1.28 no
Use the no command to revert a command or set parameters to their default. This command is useful to turn off an enabled
feature or set defaults for a parameter.
The no commands have their own set of parameters that can be reset.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no [adoption|captive-portal|crypto|debug|logging|page|service|
terminal|upgrade|wireless]

no adoption {on <DEVICE-OR-DOMAIN-NAME>}
no captive-portal client [captive-portal <CAPTIVE-PORTAL-NAME>|<MAC>] {on
<DEVICE-OR-DOMAIN-NAME>}

no crypto pki [server|trustpoint]
no crypto pki [server|trustpoint] <TRUSTPOINT-NAME> {del-key {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

no logging monitor

no page

no service [ap300|cli-tables-expand|locator|mint]
no service ap300 locator <MAC>
no service [cli-tables-expand <LINE>|locator {on <DEVICE-NAME>}]
no service mint silence

no terminal [length|width]
no upgrade <PATCH-NAME> {on <DEVICE-NAME>}

no wireless client [all {filter|on}|<MAC>]
no wireless client all {filter} wlan <WLAN-NAME>
no wireless client all on <DEVICE-OR-DOMAIN-NAME> {filter} wlan <WLAN-NAME>
no wireless client <MAC> {on <DEVICE-OR-DOMAIN-NAME>}
Parameters
• no adoption {on <DEVICE-OR-DOMAIN-NAME>}

no adoption Resets the adoption status of a specified device or all devices
{on <DEVICE-OR-DOMAIN- • <DEVICE-OR-DOMAIN-NAME> – Optional. Enter the name of the AP, wireless


• no captive-portal client [captive-portal <CAPTIVE-PORTAL-NAME>|<MAC>] {on <DEVICE-
OR-DOMAIN-NAME>}

no captive-portal client Disconnects captive portal clients from the network
captive-portal Disconnects captive portal clients
<CAPTIVE-PORTAL-NAME> • <CAPTIVE-PORTAL-NAME> – Specify the captive portal name.
<MAC> Disconnects a specified client
on <DEVICE-OR-DOMAIN- Optional. Disconnects captive portal clients or a specified client on a specified device
NAME> or RF Domain
• <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless controller,
or RF Domain.

• no crypto pki [server|trustpoint] <TRUSTPOINT-NAME> {del-key {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

no crypto pki Deletes all PKI authentications
[server|trustpoint] Deletes PKI authentications, such as server certificates and trustpoints
<TRUSTPOINT-NAME> • server – Deletes server certificates
• trustpoint – Deletes a trustpoint and its associated certificates
The following is common to the server and trustpoint parameters:
• <TURSTPOINT-NAME> – Deletes a trustpoint or its server certificate. Specify
the trustpoint name.
del-key {on <DEVICE-NAME>} Optional. Deletes the private key associated with a server certificate or trustpoint.
The operation will fail if the private key is in use by other trustpoints.
• on <DEVICE-NAME> – Deletes the private key on a specified device
• no logging monitor

no logging monitor Resets terminal lines message logging levels

• no page

no page Resets wireless controller paging function to its default. Disabling the “page”
command displays the CLI command output at once, instead of page by page.
• no service ap300 locator <MAC>

no service Disables LEDs on AP300s or a specified device in the WLAN. It also resets the CLI
table expand and MiNT protocol configurations.
ap300 locator <MAC> Disables LEDs on AP300s


• no service [cli-tables-expand <LINE>|locator {on <DEVICE-NAME>}]

cli-tables-expand <LINE> Resets the expand configuration of the CLI table, so that the table does not expand in
the drop-down format
locator Disables LEDs on a specified device
{on <DEVICE-NAME>} • <DEVICE-NAME> – Optional. Specify the name of the AP or wireless controller.

• no service mint silence

no service mint silence Disables LEDs on AP300s or a specified device in the WLAN. It also resets the CLI table
• mint – Resets MiNT protocol configurations. Disables ping and traceroute
parameters
• silence – Disables MiNT echo messaging and tracing of route packets
• no upgrade <PATCH-NAME> {on <DEVICE-NAME>}

no upgrade <PATCH-NAME> Removes a patch installed on a specified device
• <PATCH-NAME> – Specify the name of the patch.
on <DEVICE-NAME> Optional. Removes a patch on a specified device

• no terminal [length|width]

no terminal [length|width] Resets the width of the terminal window, or the number of lines displayed within the
terminal window
• length – Resets the number of lines displayed on the terminal window to its default
• width – Resets the width of the terminal window to its default.
• no wireless client all {filter} wlan <WLAN-NAME>

no wireless client all Disassociates all wireless clients on a specified device or domain
filter wlan <WLAN-NAME> Optional. Specifies an additional client selection filter
• no wireless client all on <DEVICE-OR-DOMAIN-NAME> {filter} wlan <WLAN-NAME>

no wireless client all on Disassociates all clients on a specified device or domain
<DEVICE-OR-DOMAIN-NAME> • <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless controller,
or RF Domain.
filter wlan <WLAN-NAME> Optional. Specifies an additional client selection filter


Usage Guidelines
Examples
rfs7000-37FABE#no adoption
rfs7000-37FABE#

rfs7000-37FABE#no page
rfs7000-37FABE#

rfs7000-37FABE#no service cli-tables-expand line
rfs7000-37FABE#
Related Commands

adoption Resets the adoption state of a device and all devices adopted to it
captive-portal Manages captive portal clients
debug Disables debug commands
logging Modifies message logging settings
page Resets wireless controller paging function to its default
service Performs different functions depending on the parameter passed
terminal Sets the length or the number of lines displayed within the terminal window
upgrade Upgrades software image on a device
wireless-client Manages wireless clients


3.1.29 page
Toggles wireless controller paging. Enabling this command displays the CLI command output page by page, instead of
running the entire output at once.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
page
Parameters
None
Examples
rfs7000-37FABE#page
rfs7000-37FABE#
Related Commands

no Disables wireless controller paging


3.1.30 ping
Sends Internet Controller Message Protocol (ICMP) echo messages to a user-specified location
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ping [<IP>/HOSTNAME>]
Parameters
• ping [<IP>/HOSTNAME>]

<IP> Optional. Specify the destination IP address to ping. When entered without any
parameters, this command prompts for an IP.
<HOSTNAME> Optional. Specify the destination hostname to ping. When entered without any
parameters, this command prompts for a hostname.
Examples
rfs7000-37FABE#ping 172.16.10.3
PING 172.16.10.3 (172.16.10.3): 100 data bytes

rfs7000-37FABE#


3.1.31 pwd
Displays the full path of the present working directory, similar to the UNIX pwd command
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
pwd
Parameters
None
Examples
rfs7000-37FABE#pwd
flash:/
rfs7000-37FABE#dir


rfs7000-37FABE#cd log
rfs7000-37FABE#pwd
flash:/log
rfs7000-37FABE#


3.1.32 reload
Halts the wireless controller and performs a warm reboot of the device
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
reload {cancel|force|in|on}

reload {on <DEVICE-OR-DOMAIN-NAME>}
reload {cancel|force} {on <DEVICE-OR-DOMAIN-NAME>}

reload {in} <1-999> {on <DEVICE-OR-DOMAIN-NAME>}
Parameters
• reload {on <DEVICE-OR-DOMAIN-NAME>}

on <DEVICE-OR-DOMIN- Optional. Performs reload on an AP, wireless controller, or RF Domain. Halts a system and
NAME> performs a warm reboot
• <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless controller, or
RF Domain.

• reload {cancel|force} {on <DEVICE-OR-DOMAIN-NAME>}

cancel Optional. Cancels pending reloads
force Optional. Forces reboot, while ignoring conditions like upgrade in progress, unsaved
changes etc.
on <DEVICE-OR-DOMAIN- Optional. Cancels or forces a reload on an a specified device
NAME> • <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless controller, or
the RF Domain.


• reload {in} <1-999> {on <DEVICE-OR-DOMAIN-NAME>}

in <1-9999> Schedules a reload after a specified time period
• <1-9999> – Specify the time from 1 - 999 minutes.
on <DEVICE-OR-DOMAIN- Optional. Reloads on a specified device
RF Domain.
Examples
rfs7000-37FABE#reload force on rfs7000-37FABE
rfs7000-37FABE#


3.1.33 rename
Renames a file in the devices’ file system
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
rename <OLD-FILE-NAME> <NEW-FILE-NAME>
Parameters
• rename <OLD-FILE-NAME> <NEW-FILE-NAME>

<OLD-FILE-NAME> Specify the file to rename
<NEW-FILE-NAME> Specify the new file name
Examples
rfs7000-37FABE#dir

drwx Fri Jul 8 10:16:43 2011 test

rfs7000-37FABE#rename flash:/test/ testdir
rfs7000-37FABE#dir



3.1.34 rmdir
Deletes an existing directory from the file system (only empty directories can be removed)
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
rmdir <DIR>
Parameters
• rmdir <DIR>

rmdir <DIR> Specifies the directory name
Examples
rfs7000-37FABE#dir


rfs7000-37FABE#
rfs7000-37FABE#rmdir testdir
rfs7000-37FABE#dir



3.1.35 self
Displays the logged device’s configuration context
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
self
Parameters
None
Examples
rfs7000-37FABE#self


3.1.36 ssh
Opens a Secure Shell (SSH) connection between two network devices
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ssh [<IP/HOSTNAME>] [<USERNAME>]
Parameters
• ssh [<IP/HOSTNAME>] [<USERNAME>]

[<IP>/<HOSTNAME>] Specify the IP address or hostname of the remote system.
<USERNAME> Specify the name of the user requesting the SSH connection.
Usage Guidelines
To exit of the other device’s context, use the command that is relevant to that device.
Examples
rfs7000-37FABE#ssh 172.16.10.9 admin
ssh: connect to host 172.16.10.9 port 22


RFS7000 release 5.2.3.0-048B
Login as 'cli' to access CLI.

RFS7000 login: cli

User Access Verification

Username: admin
Password:
Welcome to CLI

RFS7000>


3.1.37 telnet
Opens a Telnet session between two network devices
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
Parameters
• telnet <IP> {<TCP-PORT>}

<IP> Configures the remote system’s IP address. The Telnet session will be established
between the connecting system and the remote system.
• <IP> – Specify the remote system IP address.
<TCP-PORT> Optional. Specify the Transmission Control Protocol (TCP) port.
Usage Guidelines
To exit of the other device’s context, use the command relevant to that device.
Examples
rfs7000-37FABE#telnet 172.16.10.2


RFS7000 release 5.2.3.0-048B
Login as 'cli' to access CLI.

RFS7000 login: cli

User Access Verification

Username: admin
Password:
Welcome to CLI

RFS7000>


3.1.38 terminal
Sets the number of characters per line, and the number of lines displayed within the terminal window
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
terminal [length|width] <0-512>
Parameters
• terminal [length|width] <0-512>

length <0-512> Sets the number of lines displayed on a terminal window
width <0-512> Sets the width or number of characters displayed on the terminal window
Examples
rfs7000-37FABE#terminal length 150
rfs7000-37FABE#

rfs7000-37FABE#terminal width 215
rfs7000-37FABE#
Related Commands

no Resets the width of the terminal window or the number of lines displayed on a terminal
window


3.1.39 time-it
Verifies the time taken by a particular command between request and response
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
time-it <COMMAND>
Parameters
• time-it <COMMAND>

time-it <COMMAND> Verifies the time taken by a particular command to execute and provide a result
• <COMMAND> – Specify the command to time execution.
Examples
rfs7000-37FABE#time-it enable
That took 0.00 seconds..
rfs7000-37FABE#


3.1.40 traceroute
Traces the route to a defined destination
Use ‘--help’ or ‘-h’ to display a complete list of parameters for the traceroute command
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
traceroute <LINE>
Parameters
• traceroute <LINE>

<LINE> Traces route to a destination IP address or hostname
• <LINE> – Specify a traceroute argument. For example, “service traceroute-h”.
Examples
rfs7000-37FABE#traceroute 172.16.10.2
traceroute to 172.16.10.2 (172.16.10.2), 30 hops max, 38 byte packets
1 172.16.10.1 (172.16.10.1) 3002.008 ms !H 3002.219 ms !H 3003.945 ms !H
rfs7000-37FABE#


3.1.41 upgrade
Upgrades software image on a device
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
upgrade [<FILE>|<URL>]
Parameters
• upgrade [<FILE>|<URL>]

<URL> Specify the target firmware image location in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
background Performs upgrade in the background
on <DEVICE-NAME> Optional. Upgrades the software image on a remote AP or wireless controller
Examples
rfs7000-37FABE#upgrade tftp://157.235.208.105:/img
var2 is 10 percent full
/tmp is 2 percent full
Free Memory 161896 kB
FWU invoked via Linux shell
Running from partition /dev/hda5, partition to
rfs7000-37FABE#upgrade tftp://157.125.208.235/img
Running from partition /dev/mtdblock7, partition to update is /dev/mtdblock6
Related Commands

no Removes a patch installed on a specified device


3.1.42 upgrade-abort
Aborts an ongoing software image upgrade
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
upgrade-abort {on <DEVICE-OR-DOMAIN-NAME>}
Parameters
• upgrade-abort {on <DEVICE-OR-DOMAIN-NAME>}

upgrade-abort Aborts an ongoing software image upgrade
on <DEVICE-OR-DOMAIN- Optional. Aborts an ongoing software image upgrade on a specified device
RF Domain.
Examples
rfs7000-37FABE#upgrade-abort on rfs7000-37FABE
Error: No upgrade in progress
rfs7000-37FABE#


3.1.43 watch
Repeats a specified CLI command at periodic intervals
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
watch <1-3600> <LINE>
Parameters
• watch <1-3600> <LINE>

watch <1-3600> Repeats a CLI command at a specified interval
<1-3600> Select an interval from 1- 3600 seconds. Pressing CTRL-Z halts execution of the
command
<LINE> Specify the CLI command name.
Examples
rfs7000-37FABE#watch 1 show clock
rfs7000-37FABE#

CHAPTER 4 GLOBAL CONFIGURATION
COMMANDS
This chapter summarizes the global-configuration commands in the CLI command structure.
The term global indicates characteristics or features effecting the system as a whole. Use the Global Configuration Mode
to configure the system globally, or enter specific configuration modes to configure specific elements (such as interfaces
or protocols). Use the configure terminal command (under PRIV EXEC) to enter the global configuration mode.
The example below describes the process of entering the global configuration mode from the privileged EXEC mode:

NOTE: The system prompt changes to indicate you are now in the global configuration
mode. The prompt consists of the device host name followed by (config) and a pound
sign (#).

Commands entered in the global configuration mode update the running configuration file as soon as they are entered.
However, these changes are not saved in the startup configuration file until a commit write memory command is issued.
rfs7000-37FABE(config)#?
Global Configuration commands:
aaa-policy Configure a
authentication/accounting/authorization policy
advanced-wips-policy Configure a advanced-wips policy
AP300 Configure an AP300
AP621 AP621 access point
AP71XX AP71XX access point
association-acl-policy Configure an association acl policy
auto-provisioning-policy Configure an auto-provisioning policy
captive-portal Configure a captive portal
clear Clear
critical-resource-policy Create a critical resource monitoring policy
customize Customize the output of summary cli commands
device Configuration on multiple devices
device-categorization Configure a device categorization object
dhcp-server-policy DHCP server policy
dns-whitelist Configure a whitelist
event-system-policy Configure a event system policy
firewall-policy Configure firewall policy


host Enter the configuration context of a device by
specifying its hostname
igmp-snoop-policy Create igmp snoop policy
ip Internet Protocol (IP)
mac MAC configuration
management-policy Configure a management policy
mint-policy Configure the global mint policy
nac-list Configure a network access control list
password-encryption Encrypt passwords in configuration
profile Profile related commands - if no parameters are
given, all profiles are selected
radio-qos-policy Configure a radio quality-of-service policy
radius-group Configure radius user group parameters
radius-server-policy Create device onboard radius policy
radius-user-pool-policy Configure Radius User Pool
rf-domain Create a RF Domain or enter rf-domain context for
one or more rf-domains
RFS4000 RFS4000 wireless controller
role-policy Role based firewall policy
smart-rf-policy Configure a Smart-RF policy
wips-policy Configure a wips policy
wlan Create a new WLAN or enter WLAN configuration
context for one or more WLANs
wlan-qos-policy Configure a wlan quality-of-service policy

do Run commands from Exec mode
end End current mode and change to EXEC mode
exit End current mode and down to previous mode


GLOBAL CONFIGURATION COMMANDS 4-3

4.1 Global Configuration Commands
Table 4.1 summarizes Global configuration commands
Table 4.1 Global Config Commands

aaa-policy Configures a AAA policy page 4-6
advanced-wips- Configures an advanced WIPS policy page 4-7
policy
ap300 Adds a AP300 to the wireless controller managed network, and creates a page 4-8
general profile for the access point
ap621 Adds a AP621 to the wireless controller managed network page 4-9
ap71xx Adds a AP7131 or AP7161 to the wireless controller managed network page 4-14
association-acl- Configures an association ACL policy page 4-15
policy
auto-provisioning- Configures an auto provisioning policy page 4-16
policy
captive portal Configures a captive portal page 4-18
clear Clears the event history page 4-37
critical-resource- Configures a critical resource policy page 4-38
policy
customize Customizes the CLI command summary output page 4-44
device Specifies configuration on multiple devices page 4-51
device- Configures a device categorization object page 4-53
categorization
dhcp-server-policy Configures a DHCP server policy page 4-60
dns-whitelist Configures a DNS whitelist page 4-62
do Runs commands from the EXEC mode page 4-66
event-system-policy Configures an event system policy page 4-78
firewall-policy Configures a firewall policy page 4-101
host Sets the system's network name page 4-102
igmp-snoop-policy Configures an IGMP snoop policy page 4-103



ip Configures Internet Protocol (IP) components page 4-105
mac Configures MAC access lists (goes to the MAC Access Control List (ACL) page 4-107
mode)
management-policy Configures a management policy page 4-109
mint-policy Configures a MiNT security policy page 4-110
nac-list Configures a network ACL page 4-112
no Negates a command or sets its default page 4-117
password- Enables password encryption page 4-119
encryption
profile Configures profile related commands page 4-120
radio-qos-policy Configures a radio qos policy page 4-124
radius-group Configures a RADIUS group page 4-125
radius-server-policy Configures a RADIUS server policy page 4-126
radius-user-pool- Configures a RADIUS user pool policy page 4-127
policy
rf-domain Creates a RF Domain page 4-129
rfs4000 Adds a RFS4000 wireless controller to a network page 4-153
role-policy Configures a role policy page 4-156
self Displays a logged device’s configuration context page 4-157
smart-rf-policy Configures a Smart RF policy page 4-158
wips-policy Configures a WIPS policy page 4-159
wlan Configures a wireless WLAN page 4-161
wlan-qos-policy Configures a WLAN QoS policy page 4-213


4.1.1 aaa-policy
Global Configuration Commands
Configures an Authentication, Accounting, and Authorization (AAA) policy. This policy configures multiple servers for
authentication and authorization. Up to six servers can be configured for providing AAA services.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
aaa-policy <AAA-POLICY-NAME>
Parameters
• aaa-policy <AAA-POLICY-NAME>

<AAA-POLICY-NAME> Specify the AAA policy name. If the policy does not exist, it is created.
Examples
rfs7000-37FABE(config)#aaa-policy test
rfs7000-37FABE(config-aaa-policy-test)#
Related Commands

no Resets values or disables commands

NOTE: For more information on the AAA policy commands, see Chapter 8, AAA-POLICY.


4.1.2 advanced-wips-policy
Configures advanced WIPS policy parameters. The Wireless Intrusion Prevention System (WIPS) prevents unauthorized
access to a managed network.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
advanced-wips-policy <ADVANCED-WIPS-POLICY-NAME>
Parameters
• advanced-wips-policy <ADVANCED-WIPS-POLICY-NAME>

<ADVANCED-WIPS-POLICY- Specify the advanced WIPS policy name. If the policy does not exist, it is created.
NAME>
Examples
rfs7000-37FABE(config)#advanced-wips-policy test
rfs7000-37FABE(config-advanced-wips-policy-test)#
Related Commands


NOTE: For more information on WIPS, see Chapter 10, ADVANCED-WIPS-POLICY.


4.1.3 ap300
Adds a AP300 access point to the wireless controller managed network. If a profile for the AP is not available, a new profile
is created.
• RFS4000
• RFS6000
• RFS7000
Syntax
ap300 {<MAC>|enter}
Parameters
• ap300 {<MAC>|enter}

<MAC> Optional. Specify the MAC address of the AP300.
When the ap300 command is issued without any parameters, the default AP300 profile is
configured.
enter Optional. Creates a AP300 general profile
Examples
rfs7000-37FABE(config)#AP300 11-22-33-44-55-66 ?
rfs7000-37FABE(config-AP300-11-22-33-44-55-66)#

+-----+-----------------+---------------------+------------------+--------
| IDX | NAME | MAC | PROFILE | RF-DOMAIN |
+-----+-----------------+---------------------+------------------+--------
| 1 | AP7131-889EC4 | 00-15-70-88-9E-C4 | default-AP7131 | default |
| 2 | AP300-445566 | 11-22-33-44-55-66 | default-AP300 | default |
+-----+-----------------+---------------------+------------------+--------
Related Commands



4.1.4 ap621
is created.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ap621 <MAC>
Parameters
• ap621 <MAC>

<MAC> Specify the MAC address of the AP621.
Examples
rfs7000-37FABE(config)#ap621 11-22-33-44-55-66 ?
rfs7000-37FABE(config-device-11-22-33-44-55-66)#

+-----+-----------------+---------------------+------------------+--------
+-----+-----------------+---------------------+------------------+--------
+-----+-----------------+---------------------+------------------+--------
Related Commands



4.1.5 ap650
is created.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ap650 <MAC>
Parameters
• ap650 <MAC>

Examples
rfs7000-37FABE(config)#ap650 11-22-33-44-55-66 ?
rfs7000-37FABE(config-device-11-22-33-44-55-66)

+-----+-----------------+---------------------+------------------+--------
+-----+-----------------+---------------------+------------------+--------
+-----+-----------------+---------------------+------------------+--------
Related Commands


GLOBAL CONFIGURATION COMMANDS 4 - 11

4.1.6 ap6511
Adds a AP6511 access point to the wireless controller network. If a profile for the AP is not available, a new profile is
created.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ap6511 <MAC>
Parameters
• ap6511 <MAC>

Examples
rfs7000-37FABE(config)#ap6511 00-17-70-88-9E-C4 ?
rfs7000-37FABE(config-device-00-17-70-88-9E-C4)#
Related Commands



4.1.7 ap6521
created.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ap6521 <MAC>
Parameters
• ap6521 <MAC>

Examples
rfs7000-37FABE(config)#AP6521 77-88-99-01-F0-AB ?
rfs7000-37FABE(config-device-77-88-99-01-F0-AB)#
Related Commands



4.1.8 ap6532
created.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ap6532 <MAC>
Parameters
• ap6532 <MAC>

Examples
rfs7000-37FABE(config)#AP6532 00-27-70-89-9F-E4 ?
rfs7000-37FABE(config-device-00-27-70-89-9F-E4)#
Related Commands



4.1.9 ap71xx
Adds a AP71XX series access point to the wireless controller network. If a profile for the AP is not available, a new profile
is created.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ap71xx <MAC>
Parameters
• ap71xx <MAC>

<MAC> Specify the MAC address of the AP71XX.
Examples
rfs7000-37FABE(config)#AP71XX 00-15-70-88-9E-C4
rfs7000-37FABE(config-device-00-15-70-88-9E-C4)#
Related Commands



4.1.10 association-acl-policy
Configures an association ACL policy. This policy configures a list of devices allowed or denied access to the wireless
controller managed network.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
association-acl-policy <ASSOCIATION-ACL-POLICY-NAME>
Parameters
• association-acl-policy <ASSOCIATION-ACL-POLICY-NAME>

<ASSOCIATION-ACL- Specify the association ACL policy name. If the policy does not exist, it is created.
POLICY-NAME>
Examples
rfs7000-37FABE(config)#association-acl-policy test
rfs7000-37FABE(config-assoc-acl-test)#
Related Commands


NOTE: For more information on the association-acl-policy, see Chapter 11,
ASSOCIATION-ACL-POLICY.


4.1.11 auto-provisioning-policy
Configures an auto provisioning policy. This policy is used to configure the automatic provisioning of device adoption. The
policy configures how an AP is adopted based on its type.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
auto-provisioning-policy <AUTO-PROVISIONING-POLICY>
Parameters
• auto-provisioning-policy <AUTO-PROVISIONING-POLICY>

<AUTO-PROVISIONING- Specify the auto provisioning policy name. If the policy does not exist, it is created.
POLICY>
Examples
rfs7000-37FABE(config)#auto-provisioning-policy test
rfs7000-37FABE(config-auto-provisioning-policy-test)#

Related Commands


NOTE: For more information on the association-acl-policy, see Chapter 9, AUTO-
PROVISIONING-POLICY.


4.1.12 captive portal
The captive portal mode configures a hotspot. Table 4.2 lists the command to enter the captive portal configuration mode.
Table 4.2 Captive-Portal Commands

captive-portal Configures captive portal Web page parameters page 4-18


4.1.12.1 captive-portal
captive portal
Configures a captive portal. A captive portal is a hotspot type guest WLAN where users access wireless controller
resources.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
captive-portal <CAPTIVE-PORTAL>
Parameters
• captive-portal <CAPTIVE-PORTAL>

<CAPTIVE-PORTAL> Specify the captive portal name. If the captive portal does not exist, it is created.
Examples
rfs7000-37FABE(config)#captive-portal testportal
rfs7000-37FABE(config-captive-portal-testportal)#
Related Commands



4.1.12.2 captive-portal-mode commands
Table 4.3 summarizes captive portal mode commands
Table 4.3 Captive-Portal-Mode Commands

access-time Defines a client’s access time. It is used when no session time is defined in the page 4-20
RADIUS response
access-type Configures a captive portal’s access type page 4-21
accounting Enables a captive portal’s accounting records page 4-22
connection-mode Configures a captive portal’s connection mode page 4-23
custom-auth Configures custom user information page 4-24
inactivity-timeout Defines an inactivity timeout in seconds page 4-25
no Resets or disables captive portal commands page 4-26
server Configures the captive portal server parameter page 4-30
simultaneous- Specifies a username used by a MAC address pool page 4-31
users
terms-agreement Enforces the user to agree to terms and conditions (included in login page) for page 4-32
captive portal access
use Defines captive portal configuration settings page 4-33
webpage-location Specifies the location of Web pages used for captive portal authentication page 4-34
webpage Configures captive portal Web page parameters page 4-35
service Invokes service commands to troubleshoot or debug (config-if) instance page 5-14
configurations


4.1.12.2.1 access-time
captive-portal-mode commands
Defines the permitted access time for a client. It is used when no session time is defined in the RADIUS response.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
access-time <30-10080>
Parameters
• access-time <30-10080>

<30-10080> Defines the access time allowed for a wireless client from 30 - 10080 minutes
Examples
rfs7000-37FABE(config-captive-portal-test)#access-time 35
rfs7000-37FABE(config-captive-portal-test)#
Related Commands

no Resets or disables captive portal commands


4.1.12.2.2 access-type
Defines the captive portal access type
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
access-type [custom-auth-radius|logging|no-auth|radius]
Parameters
• access-type [custom-auth-radius|logging|no-auth|radius]

custom-auth-radius Verifies custom user information for authentication
logging Generates a logging record of users and allowed access
no-auth Configures a no authentication required for a guest (redirected to welcome message)
radius Enables RADIUS authentication for wireless clients
Examples
rfs7000-37FABEE(config-captive-portal-test)#access-type radius

rfs7000-37FABE(config-captive-portal-testportal)#access-type logging
Related Commands



4.1.12.2.3 accounting
Enables accounting records for a captive portal
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
accounting [radius|syslog]

accounting radius

accounting syslog host <IP/HOSTNAME> {port <1-65535>}
Parameters
• accounting radius

radius Enables support for RADIUS accounting messages

• accounting syslog host <IP/HOSTNAME> {port <1-65535>}

syslog Enables support for syslog accounting messages
host <IP/HOSTNAME> • host <IP/HOSTNAME> – Specifies the syslog server host address. Specify the IP
address or hostname of the syslog server.
port <1-65535> Optional. Specifies the syslog server’s listener port
• <1-65535> – Specify the UDP port from 1- 65535.
Examples
rfs7000-37FABE(config-captive-portal-test)#accounting syslog host 172.16.10.13 port 1
Related Commands



4.1.12.2.4 connection-mode
Configures a captive portal’s connection mode. HTTP uses plain unsecured connection for user requests. HTTPS uses
encrypted connection to support user requests.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
connection-mode [http|https]
Parameters
connection-mode [http|https]

http Sets HHTP as the default connection mode
https Sets HHTPS as the default connection mode
HTTPS is a more secure version of HTTP, and uses encryption while sending and receiving
requests
Examples
rfs7000-37FABE(config-captive-portal-test)#connection-mode https
Related Commands



4.1.12.2.5 custom-auth
Configures custom user information when authenticating with the RADIUS server
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
custom-auth info <LINE>
Parameters
• custom-auth info <LINE>

info <LINE> Configures information used for RADIUS lookup when custom auth radius access type
is configured
• <LINE> – Guest data needs to be provided. Specify the name, e-mail address and
telephone number of the user.
Examples
rfs7000-37FABE(config-captive-portal-test)#custom-auth info testuser
robert@symbol.com

rfs7000-37FABE(config-captive-portal-testportal)#custom-auth info bob,
bob@symbol.com, 9902833119
rfs7000-37FABE(config-captive-portal-testportal)#show context
captive-portal testportal
access-type logging
custom-auth info bob, bob@symbol.com, 9902833119
Related Commands



4.1.12.2.6 inactivity-timeout
Defines an inactivity timeout in seconds. If a frame is not received from a client for the specified time interval, the current
session is terminated.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
inactivity-timeout <300-1800>
Parameters
• inactivity-timeout <300-1800>

<300-1800> Defines the duration of inactivity after which a captive portal session is automatically
terminated. Set a timeout interval from 300 - 1800 seconds.
Examples
rfs7000-37FABE(config-captive-portal-test)#inactivity-timeout 750
Related Commands



4.1.12.2.7 no
The no command disables captive portal mode commands or resets parameters to their default.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no [access-time|access-type|accounting|connection-mode|custom-auth|
inactivity-timeout|server|simultaneous-users|terms-agreement|use|webpage|
webpage-location]

no [access-time|access-type|connection-mode|inactivity-timeout|simultaneous-users|
terms-agreement|webpage-location]

no accounting [radius|syslog]
no custom-auth info

no server host
no server mode {centralized-controller hosting-vlan-interface}

no use [aaa-policy|dns-whitelist

no webpage external [agreement|fail|login|welcome]
no webpage internal [org-name|org-signature]
no webpage internal [agreement|fail|login|welcome] [description|footer|header|
main-logo|small-logo|title]
Parameters
• no [access-time|access-type|connection-mode|inactivity-timeout|
simultaneous-users|terms-agreement|webpage-location]

no access-time Resets client access time
no access-type Resets the client access type
no connection-mode Resets the connection mode to HTTP
no inactivity-timeout Resets the inactivity timeout interval
no simultaneous-users Resets the number of MAC addresses that can use a single user name, to its default of 1


no terms-agreement Resets the terms agreement requirement for logging in. The user no longer has to agree
to terms & conditions before connecting to a captive portal.
no webpage-location Resets the use of custom Web pages for login, welcome, terms, and failure page. The
default of automatically created Web pages is used.
• no accounting [radius|syslog]

no accounting Disables accounting configurations
radius Disables support for sending RADIUS accounting messages
syslog Disables support for sending syslog messages to remote syslog servers

• no custom-auth info

no custom-auth Resets custom authentication information
info Resets the configuration of custom user information sent to the RADIUS server (for
custom-auth-radius access type)

• no server host

no server host Clears captive portal server address
• no server mode {centralized-controller hosting-vlan-interface}

no server mode Configures the captive portal server mode
centralized-controller Optional. Resets the hosting VLAN interface for centralized captive portal server to its
hosting-vlan-interface default value of zero (0)

• no use [aaa-policy|dns-whitelist

no use Resets profiles used with a captive portal policy
aaa-policy Removes the AAA policy used with a captive portal policy
dns-whitelist Removes the DNS whitelist used with a captive portal policy
• no webpage external [agreement|fail|login|welcome]

no webpage external Resets the configuration of external Web pages displayed when a user interacts with
the captive portal
agreement Resets the agreement page
fail Resets the fail page
login Resets the login page
welcome Resets the welcome page

• no webpage internal [org-name|org-signature]

no webpage external Resets the configuration of internal Web pages displayed when a user interacts with
the captive portal


org-name Resets the organization name that is included at the top of Web pages
org-signature Resets the organization signature (email, addresses, phone numbers) included at the
bottom of Web pages

• no webpage internal [agreement|fail|login|welcome]
[description|footer|header|main-logo|small-logo|title]

no webpage external Resets the configuration of internal Web pages displayed when a user interacts with
the captive portal
agreement Resets the agreement page
fail Resets the fail page
login Resets the login page
welcome Resets the welcome page
description Resets the description part of each Web page. This is the area where information
about the captive portal and user state is displayed to the user.
footer Resets the footer portion of each Web page. A footer can contain the organization
signature
header Resets the header portion of each Web page
main-logo Resets the main logo of each Web page
small-logo Resets the small logo of each Web page
title Resets the title of each Web page
Examples
rfs7000-37FABE(config-captive-portal-testportal)#no webpage internal login header

rfs7000-37FABE(config-captive-portal-testportal)#no use aaa-policy

rfs7000-37FABE(config-captive-portal-testportal)#no custom-auth info

rfs7000-37FABE(config-captive-portal-testportal)#no accounting radius


Related Commands

access-time Configures the allowed access time for each captive portal client
access-type Configures a captive portal authentication and logging information
accounting Configures a captive portal accounting information
connection-mode Configures how clients connect to a captive portal
custom-auth Configures the captive portal parameters required for client access
inactivity-timeout Configures the client inactivity timeout interval
server Configures the captive portal server parameters
simultaneous-users Configures the maximum number of clients that can use a single captive portal user
name
terms-agreement Configures if a client has to accept terms and conditions before logging to the captive
portal
use Configures a AAA policy and DNS whitelist with this captive portal policy
webpage-location Configures the location of Web pages displayed when the user interacts with the
captive portal
webpage Configures Web pages used by the captive portal to interact with users
aaa-policy Configures a AAA policy
dns-whitelist Configures a DNS whitelist


4.1.12.2.8 server
Configures captive portal server parameters, such as the hostname, IP, and mode of operation
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
server [host <WORD|mode]

server host <IP/HOSTNAME>

server mode [centralized|centralized-controller|self]
Parameters
• server host <IP/HOSTNAME>

host <IP/HOSTNAME> Configures the captive portal authentication server
• <IP/HOSTNAME> – Specify the IP address or hostname of the captive portal server.
• server mode [centralized|centralized-controller|self]

mode Configures the captive portal server mode
centralized Considers the configured server hostname or IP address as the centralized captive portal
server
centralized-controller Uses the configured hostname as the virtual captive portal server name across the
wireless controller
self Selects the captive portal server as the same device supporting the WLAN
Examples
rfs7000-37FABE(config-captive-portal-test)#server mode self

rfs7000-37FABE(config-captive-portal-test)#server host 172.16.10.9
Related Commands



4.1.12.2.9 simultaneous-users
Specifies the number of MAC addresses that can simultaneously use a particular username
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
simultaneous-users <1-8192>
Parameters
• simultaneous-users <1-8192>

<1-8192> Specifies the number of MAC addresses that can simultaneously use a particular
username. Select a number from 1 - 8192.
Examples
rfs7000-37FABE(config-captive-portal-test)#simultaneous-users 5
Related Commands



4.1.12.2.10 terms-agreement
Enforces the user to agree to terms and conditions (included in the login page) for captive portal guest access
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
terms-agreement
Parameters
None
Examples
rfs7000-37FABE(config-captive-portal-test)#terms-agreement
Related Commands



4.1.12.2.11 use
Configures a AAA policy and DNS whitelist with this captive portal policy. AAA policies are used to configure servers for
this captive portal. DNS whitelists provide a method to restrict users to a set of configurable domains on the internet
accessed through the captive portal.
For more information on AAA policy, see Chapter 8, AAA-POLICY.
For more information on DNS whitelists, see Chapter 4, GLOBAL CONFIGURATION COMMANDS.
Defines captive portal configuration settings
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
use [aaa-policy <AAA-POLICY>|dns-whitelist <DNS-WHITELIST>]
Parameters
• use [aaa-policy <AAA-POLICY>|dns-whitelist <DNS-WHITELIST>]

aaa-policy <AAA-POLICY> Configures a AAA policy with this captive portal policy. AAA policies configure servers
for the captive portal.
• <AAA-POLICY> – Specify the AAA policy name.
dns-whitelist <DNS- Configures a DNS whitelist to use with this captive portal policy. DNS whitelists
WHITELIST> restrict access of URLs from a captive portal.
• <DNS-WHITELIST> – Specify the DNS whitelist name.
Examples
rfs7000-37FABE(config-captive-portal-test)#use aaa-policy test
rfs7000-37FABE(config-captive-portal-test)#use dns-whitelist
Captive_Portal_Allowed_URL_list
Related Commands

dns-whitelist Configures a DNS whitelist
aaa-policy Configures a AAA policy


4.1.12.2.12 webpage-location
Specifies the location of the Web pages used for authentication. These pages can either be hosted on the system or on an
external Web server.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
webpage-location [advanced|external|internal]
Parameters
webpage-location [advanced|external|internal]

advanced Uses Web pages for login, welcome, failure, and terms created and stored on the
wireless controller
external Uses Web pages for login, welcome, failure, and terms located on an external server.
Provide the URL for each of these pages
internal Uses Web pages for login, welcome, and failure that are automatically generated
Examples
rfs7000-37FABE(config-captive-portal-test)#webpage-location internal

rfs7000-37FABE(config-captive-portal-test)#webpage internal agreement title test123
Related Commands

webpage Configures Web pages displayed for the login, welcome, fail, and terms pages for a
captive portal


4.1.12.2.13 webpage
Configures Web pages displayed when interacting with a captive portal. There are four (4) different pages.
• agreement – This page displays “Terms and Conditions” that a user needs to accept before allowed access to the
captive portal.
• fail – This page is displayed when the user is not authenticated to use the captive portal.
• login – This page is displayed when the user connects to the captive portal. Use this page to fetch login credentials
from the user.
• welcome – This page is displayed to welcome an authenticated user to the captive portal.
The Web pages for interacting with the users of a captive portal can be located either on the wireless controller or an
external location.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
webpage [external|internal]

webpage external [agreement|fail|login|welcome] <URL>

webpage internal [agreement|fail|login|org-name|org-signature|welcome]
webpage internal [agreement|fail|login|welcome] [description|footer|
header|title] <CONTENT>
webpage internal [agreement|fail|login|welcome] [main-logo|small-logo] <URL>
Parameters
• webpage external [agreement|fail|login|welcome] <URL>

external Indicates the Web pages being served are external to the captive portal
agreement Indicates the page is displayed for “Terms & Conditions”
fail Indicates the page is displayed for login failure
login Indicates the page is displayed for getting user credentials for log in to the captive portal
welcome Indicates the page is displayed after a user has successfully logged in to the captive portal
<URL> Indicates the URL to the Web page displayed


• webpage internal [agreement|fail|login|welcome] description|footer|header|title]
<CONTENT>

internal Indicates the Web pages being served are internal
description Indicates the content is the description portion of each internal, agreement, fail, and
welcome page
footer Indicates the content is the footer portion of each internal, agreement, fail, and welcome
page. The footer portion contains the signature of the organization that hosts the captive
portal.
header Indicates the content is the header portion of each internal, agreement, fail, and welcome
page. The header portion contains the heading information for each of these pages.
title Indicates the content is the title of each internal, agreement, fail, and welcome page. The
title for each of these pages is configured here.
<CONTENT> Specify the content displayed for each of the different components of the Web page. You
can enter 900 characters for the description and 256 characters each for header, footer,
and title.
• webpage internal [agreement|fail|login|welcome] [main-logo|small-logo] <URL>

internal Indicates the Web pages being served are internal
main-logo Indicates the main logo displayed in the header portion of each Web page
small-logo Indicates the logo image displayed in the footer portion of each Web page, and constitutes
the organization’s signature
<URL> Indicates the complete URL of the main-log and small-logo files
Examples
rfs7000-37FABE(config-captive-portal-test)#webpage external fail www.symbol.com
Related Commands



4.1.13 clear
Clears parameters, cache entries, table entries, and other similar entries. The clear command is available for specific
commands only. The information cleared using this command varies depending on the mode where executed.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
clear event-history
Parameters

event-history Clears the event history file
Examples
rfs7000-37FABE(config)#clear event-history


4.1.14 critical-resource-policy
Creates a critical resource monitoring policy. A critical resource is a device (wireless controller, router, gateway, etc.)
considered critical to the health of the wireless controller. This is a list of IP addresses pinged regularly by the wireless
controller. If there is a connectivity issue with a device on the critical resource list, an event is generated stating a critical
resource is unavailable. The wireless controller does not attempt to restore connection to a critical resource. All critical
devices are listed in a critical resource policy.
Table 4.4 Critical Resource Policy Commands

critical-resource-policy Configures captive portal Web page parameters page 4-39


4.1.14.1 critical-resource-policy
critical-resource-policy
Creates or enters a Critical-resource Monitoring (CRM) policy. If the defined policy is not present, it is created.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
critical-resource-policy <CRITICAL-RESOURCE-POLICY>
Parameters
• critical-resource-policy <CRITICAL-RESOURCE-POLICY>

<CRITICAL-RESOURCE- Specify the critical resource monitoring policy name. If the policy does not exist, it is
POLICY> created.
Examples
rfs7000-37FABE(config)#critical-resource-policy test
rfs7000-37FABE(config-critical-resource-policy-test)#?

rfs7000-37FABE(config-critical-resource-policy-test)#?
commands:
monitor Critical resource monitoring


rfs7000-37FABE(config-critical-resource-policy-test)#
Related Commands

no Disables a critical resource policy


4.1.14.2 critical-resource-policy-mode
Table 4.5 summarizes critical resource monitoring policy commands
Table 4.5 critical-resource-policy

monitor Performs critical resource monitoring page 4-41
no Cancels the monitoring of a critical resource page 4-43
do Runs commands from the EXEC mode page 4-66
configurations


4.1.14.2.1 monitor
critical-resource-policy-mode
Monitors critical resources. Use this command to configure a critical policy and set the interval the availability of the
critical resource is checked.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
monitor [<IP>|ping-interval

monitor [ping-interval <5-86400>]
monitor <IP> ping-mode [arp-icmp|arp-only vlan <1-4094>]
Parameters
• monitor ping-interval <5-86400>

ping-interval <5-86400> Configures the ping interval. This is the duration between two successive pings to a
critical resource.
• <5-86400> – Specify the ping interval from 5 - 86400 seconds.

• monitor <IP> ping-mode [arp-icmp|arp-only vlan <1-4094>]

<IP> Specify the IP address of the critical resource.
ping-mode Configures the type of ping packets to use. For pinging critical resources that do not have
an IP address, use the arp-only mode.
arp-icmp Use Address Resolution Protocol (ARP) requests or Internet Control Message Protocol
(ICMP) echo requests to monitor a critical resource. To use this ping mode, an IP address
must be configured for each device in the critical resource list.
arp-only vlan <1-4094> Uses ARP requests to monitor a critical resource. This mode can be used for devices that
do not have a configured IP address.
• vlan – Configures the VLAN to ping for the critical resource
• <1-4094> – Specify a VLAN ID from 1 - 4094


Examples
rfs7000-37FABE(config-critical-resource-policy-test)#monitor ping-interval 10

rfs7000-37FABE(config-critical-resource-policy-test)#monitor 172.16.10.2 ping-mode
arp-only vlan 1
Related Commands

no Resets or disables critical resource policy commands


4.1.14.2.2 no
critical-resource-policy-mode
Removes a device from the critical resource list. This command also resets the ping interval to its default.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no monitor [<IP>|ping-interval]
Parameters
• no monitor [<IP>|ping-interval]

monitor Configures critical resource monitoring parameters
<IP> Removes a specified device from the list of monitored devices
ping-interval Resets the ping interval for pinging critical resources
Examples
rfs7000-37FABE(config-critical-resource-policy-test)#no monitor 172.16.10.2
Related Commands

monitor Adds a device to the critical resource policy list


4.1.15 customize
Customizes the output of the summary CLI commands. Use this command to define the data displayed as a result of various
show commands.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
customize [hostname-column-width|show-wireless-client|show-wireless-client-stats|
show-wireless-client-stats-rf|show-wireless-radio|show-wireless-radio-stats|
show-wireless-radio-stats-rf]

customize hostname-column-width <1-64>

customize show-wireless-client (ap-name <1-64>,auth,bss,enc,hostname <1-64>,ip,
last-active,location <1-64>,mac,radio-alias <3-67>,radio-id,radio-type,state,
username <1-64>,vendor,vlan,wlan)

customize show-wireless-client-stats (hostname <1-64>,mac,rx-bytes,rx-errors,
rx-packets,rx-throughput,tx-bytes,tx-dropped,tx-packets,tx-throughput)

customize show-wireless-client-stats-rf (average-retry-number,error-rate,
hostname <1-64>,mac,noise,q-index,rx-rate,signal,snr,t-index,tx-rate)

customize show-wireless-radio (adopt-to,ap-name <1-64>,channel,location <1-64>,
num-clients,power,radio-alias <3-67>,radio-id,radio-mac,rf-mode,state)

customize show-wireless-radio-stats (radio-alias <3-67>,radio-id,radio-mac,
rx-bytes,rx-errors,rx-packets,rx-throughput,tx-bytes,tx-dropped,tx-packets,
tx-throughput)
customize show-wireless-radio-stats-rf (average-retry-number,error-rate,noise,
q-index,radio-alias <3-67>,radio-id,radio-mac,rx-rate,signal,snr,t-index,
tx-rate)
Parameters
• customize hostname-column-width <1-64>

hostname-column-width Configures the default width of the hostname column in all show commands
<1-64> • <1-64> – Specify the hostname column width from 1 - 64 characters.


• customize show-wireless-client (ap-name <1-64>,auth,bss,enc,hostname <1-64>,ip,
last-active,location <1-64>,mac,radio-alias <3-67>,radio-id,radio-type,state,
username <1-64>,vendor,vlan,wlan)

show-wireless-client Customizes the columns displayed for the show wireless client command
ap-name <1-64> Includes the ap-name column in the show wireless client command.
• <1-64> – Specify the ap-name column width from 1 - 64 characters.
auth Includes the auth column in the show wireless client command. The auth column displays
the authorization protocol used by the wireless client.
bss Includes the BSS column in the show wireless client command. The BSS column displays
the BSSID the wireless client is associated with.
enc Includes the enc column in the show wireless client command. The enc column displays the
encryption suite used by the wireless client.
hostname <1-64> Includes the hostname column in the show wireless client command. The hostname column
displays the hostname of the wireless client.
• <1-64> – Specify the hostname column width from 1 - 64 characters.
ip Includes the IP column in the show wireless client command. The IP column displays the
current IP address of the wireless client.
last-active Includes the last-active column in the show wireless client command. The last-active
column displays the time of the last activity seen from the wireless client.
location <1-64> Includes the location column in the show wireless client command. The location column
displays the location of the AP the wireless client is associated with.
• <1-64> – Specify the location column width from 1 - 64 characters.
mac Includes the MAC column in the show wireless client command. The MAC column displays
the MAC address of the wireless client.
radio-alias <3-67> Includes the radio-alias column in the show wireless client command. The radio-alias
column displays the radio alias with the AP's hostname and the radio interface number in
the “HOSTNAME:RX” format.
• <1-64> – Specify the radio-alias column width from 3 - 67 characters.
radio-id Includes the radio-id column in the show wireless client command. The radio-id column
displays the radio ID with the AP’s MAC address and the radio interface number in the
“AA-BB-CC-DD-EE-FF:RX” format.
radio-type Includes the radio-type column in the show wireless client command. The radio-type
column displays the radio type of the wireless client.
state Includes the state column in the show wireless client command. The state column displays
the current availability state of the wireless client.
username <1-64> Includes the username column in the show wireless client command. The username column
displays the username used to logon by the wireless client.
• <1-64> – Specify the username column width from 1 - 64 characters.
vendor Includes the vendor column in the show wireless client command. The vendor column
displays the vendor ID of the wireless client.


vlan Includes the VLAN column in the show wireless client command. The VLAN column displays
the VLAN assigned to the wireless client.
wlan Includes the WLAN column in the show wireless client command. The WLAN column
displays the WLAN assigned to the wireless client.
• customize show-wireless-client-stats (hostname <1-64>,mac,rx-bytes,rx-errors,
rx-packets,rx-throughput,tx-bytes,tx-dropped,tx-packets,tx-throughput)

show-wireless-client- Customizes the columns displayed for the show wireless client statistics command
stats
hostname <1-64> Includes the hostname column in the show wireless client statistics command. The
hostname column displays the hostname of the wireless client.
• <1-64> – Sets the hostname column width from 1 - 64 characters
mac Includes the MAC column in the show wireless client statistics command. The MAC column
displays the MAC address of the wireless client.
rx-bytes Includes the rx-bytes column in the show wireless client statistics command. The rx-bytes
column displays the total number of bytes received by the wireless client.
rx-errors Includes the rx-error column in the show wireless client statistics command. The rx-error
column displays the total number of receive errors received by the wireless client.
rx-packets Includes the rx-packets column in the show wireless client statistics command. The
rx-packets column displays the total number of packets received by the wireless client.
rx-throughput Includes the rx-throughput column in the show wireless client statistics command. The
rx-throughput column displays the receive throughput at the wireless client.
tx-bytes Includes the tx-bytes column in the show wireless client statistics command. The tx-bytes
column displays the total number of bytes transmitted by the wireless client.
tx-dropped Includes the tx-dropped column in the show wireless client statistics command. The
tx-dropped column displays the total number of dropped packets by the wireless client.
tx-packets Includes the tx-packets column in the show wireless client statistics command. The
tx-packets column displays the total number of packets transmitted by the wireless client.
tx-throughput Includes the tx-throughput column in the show wireless client statistics command. The
tx-throughput column displays the transmission throughput at the wireless client.

• customize show-wireless-client-stats-rf (average-retry-number,error-rate,
hostname <1-64>,mac,noise,q-index,rx-rate,signal,snr,t-index,tx-rate)

show-wireless-client- Customizes the columns displayed for the show wireless client stats rf command
stats-rf
average-retry-number Includes the average-retry-number column in the show wireless client statistics RF
command. The average-retry-number column displays the average number of
retransmissions per packet.
error-rate Includes the error-rate column in the show wireless client statistics rf command. The
error-rate column displays the error rate information for the wireless client.


hostname <1-64> Includes the hostname column in the show wireless client statistics RF command. The
hostname column displays the hostname of the wireless client.
• <1-64> – Specify the hostname column width from 1 - 64 characters.
mac Includes the MAC column in the show wireless client statistics RF command. The MAC
column displays the MAC address of the wireless client.
noise Includes the noise column in the show wireless client statistics RF command. The MAC
column displays the noise as detected by the wireless client.
q-index Includes the q-index column in the show wireless client statistics RF command. The q-
index column displays the RF quality index where a higher value indicates better RF quality.
rx-rate Includes the rx-rate column in the show wireless client statistics RF command. The rx-rate
column displays the receive rate at the particular wireless client.
signal Includes the signal column in the show wireless client statistics RF command. The signal
column displays the signal strength at the particular wireless client.
snr Includes the snr column in the show wireless client statistics RF command. The snr column
displays the signal to noise ratio at the particular wireless client.
t-index Includes the t-index column in the show wireless client statistics RF command. The t-index
column displays the traffic utilization index at the wireless controller.
tx-rate Includes the tx-rate column in the show wireless client statistics RF command. The tx-rate
column displays the packet transmission rate at the particular wireless client.

• customize show-wireless-radio (adopt-to,ap-name <1-64>,channel,location <1-64>,
num-clients,power,radio-alias <3-67>,radio-id,radio-mac,rf-mode,state)

show-wireless-radio Customizes the columns displayed for the show wireless radio command.
adopt-to Includes the adopt-to column in the show wireless radio command. The adopt-to column
displays information about the wireless controller adopting this AP.
ap-name <1-64> Includes the ap-name column in the show wireless radio command. The adopt-to column
displays information about the AP this radio belongs.
• <1-64> – Specify the ap-name column width from 1 - 64 characters.
channel Includes the channel column in the show wireless radio command. The channel column
displays information about the configured and current channel of operation for this radio.
location <1-64> Includes the location column in the show wireless radio command. The location column
displays the location of the AP this radio belongs.
• <1-64> – Specify the location column width from 1 - 64 characters.
num-clients Includes the num-clients column in the show wireless radio command. The num-clients
column displays the number of clients associated with this radio.
power Includes the power column in the show wireless radio command. The power column
displays the configured and current transmit power of the radio.


radio-alias <3-67> Includes the radio-alias column in the show wireless radio command. The radio-alias
column displays the radio alias along with the AP's hostname and the radio interface
number in the “HOSTNAME:RX” formate.
radio-id Includes the radio-id column in the show wireless radio command. The radio-id column
displays the Radio ID along with the AP’s MAC address and the radio interface number in
the “AA-BB-CC-DD-EE-FF:RX” format.
radio-mac Includes the radio-mac column in the show wireless radio command. The radio-mac
column displays the base MAC address of the radio.
rf-mode Includes the rf-mode column in the show wireless radio command. The rf-mode column
displays the mode in which the radio operates. The radio mode can be 2.4GHz, 4.9GHz,
5GHz, or sensor.
state Includes the state column in the show wireless radio command. The state column displays
the current operational state of the radio.

• customize show-wireless-radio-stats (radio-alias <3-67>,radio-id,radio-mac,
rx-bytes,rx-errors,rx-packets,rx-throughput,tx-bytes,tx-dropped,tx-packets,
tx-throughput)

show-wireless-radio-stats Customizes the columns displayed for the show wireless radio statistics command.
radio-alias <3-67> Includes the radio-alias column in the show wireless radio statistics command. The
radio-alias column displays the radio alias along with the AP's hostname and the radio
interface number in the “HOSTNAME:RX” format.
radio-id Includes the radio-id column in the show wireless radio statistics command. The radio-id
column displays the Radio ID along with the AP’s MAC address and the radio interface
number in the “AA-BB-CC-DD-EE-FF:RX” format.
radio-mac Includes the radio-mac column in the show wireless radio statistics command. The
radio-mac column displays the base MAC address of the radio.
rx-bytes Includes the rx-bytes column in the show wireless radio statistics command. The rx-bytes
column displays the total number of bytes received by the wireless radio.
rx-errors Includes the rx-error column in the show wireless radio statistics command. The rx-error
column displays the total number of receive errors received by the wireless radio.
rx-packets Includes the rx-packets column in the show wireless radio statistics command. The
rx-packets column displays the total number of packets received by the wireless radio.
rx-throughput Includes the rx-throughput column in the show wireless radio statistics command. The
rx-throughput column displays the receive throughput at the wireless radio.
tx-bytes Includes the tx-bytes column in the show wireless radio statistics command. The tx-bytes
column displays the total number of bytes transmitted by the wireless radio.
tx-dropped Includes the tx-dropped column in the show wireless radio statistics command. The
tx-dropped column displays the total number of dropped packets by the wireless radio.


tx-packets Includes the tx-packets column in the show wireless radio statistics command. The
tx-packets column displays the total number of packets transmitted by the wireless radio.
tx-throughput Includes the tx-throughput column in the show wireless radio statistics command. The
tx-throughput column displays the transmission throughput at the wireless radio.
• customize show-wireless-radio-stats-rf (average-retry-number,error-rate,noise,
q-index,radio-alias <3-67>,radio-id,radio-mac,rx-rate,signal,snr,t-index,
tx-rate)

show-wireless-radio-stats- Customizes the columns displayed for the show wireless radio stats RF command
rf
average-retry-number Includes the average-retry-number column in the show wireless radio statistics RF
command. The average-retry-number column displays the average number of
retransmissions per packet.
error-rate Includes the error-rate column in the show wireless radio statistics RF command. The
error-rate column displays the error rate information for the wireless radio.
noise Includes the noise column in the show wireless radio statistics RF command. The mac
column displays the noise as detected by the wireless radio.
q-index Includes the q-index column in the show wireless client statistics RF command. The
q-index column displays the RF quality index where a higher value indicates better RF
quality.
radio-alias <3-67> Includes the radio-alias column in the show wireless radio statistics RF command. The
radio-alias column displays the radio alias along with AP's hostname and the radio
interface number in the “HOSTNAME:RX” format.
• <3-67> – Specify the radio-alias width column from 3 - 67 characters.
radio-id Includes the radio-id column in the show wireless radio statistics rf command. The radio-
id column displays the Radio ID along with the AP’s MAC address and the radio interface
number in the “AA-BB-CC-DD-EE-FF:RX” format.
radio-mac Includes the radio-mac column in the show wireless radio statistics RF command. The
radio-mac column displays the base MAC address of the radio.
rx-rate Includes the rx-rate column in the show wireless radio statistics RF command. The rx-rate
column displays the receive rate at the particular wireless radio.
signal Includes the signal column in the show wireless radio statistics RF command. The signal
column displays the signal strength at the particular wireless radio.
snr Includes the snr column in the show wireless radio statistics RF command. The snr column
displays the signal to noise ratio at the particular wireless radio.
t-index Includes the t-index column in the show wireless radio statistics RF command. The t-index
column displays the traffic utilization index at the wireless controller.
tx-rate Includes the tx-rate column in the show wireless radio statistics RF command. The tx-rate
column displays the packet transmission rate at the particular wireless radio.


Examples
rfs7000-37FABE(config)*#customize show-wireless-client ap-name auth
rfs7000-37FABE(config)*#commit
rfs7000-37FABE(config)*#show wireless client
-----------------------
AP-NAME AUTH
-----------------------
-----------------------
Total number of wireless clients displayed: 0
rfs7000-37FABE(config)*#
Related Commands

wireless Displays wireless configuration and other information


4.1.16 device
Enables simultaneous configuration of multiple devices
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
device {containing|filter}

device
device containing <STRING> {filter type [ap621|ap650|ap6511|ap6521|ap6532|ap71xx|
rfs4000|rfs6000|rfs7000]}
device filter type [ap621|ap650|ap6511|ap6521|ap6532|ap71xx|rfs4000|rfs6000|
rfs7000]
Parameters
• device

device Configures a basic device profile

• device containing <STRING> {filter type [ap621|ap650|ap6511|ap6521|ap6532|ap71xx|
rfs4000|rfs6000|rfs7000]}

containing <STRING> Configures the search string to search for in the device’s hostname. Only those devices
that have the search string in their hostname can be configured.
• <STRING> – Specify the string to search for in the hostname of the devices
filter type Optional. Filters out a specific device type
ap621 Optional. Filters out all devices other than AP621s
ap650 Optional. Filters out devices other than AP650s
ap71xx Optional. Filters out devices other than AP71XXs
rfs4000 Optional. Filters out devices other than RFS4000s



• device filter type [ap621|ap650|ap6511|ap6521|ap6532|ap71xx|rfs4000|rfs6000|
rfs7000]

filter type Filters out a specific device type
ap621 Filters out all devices other than AP621s
ap650 Filters out devices other than AP650s
ap71xx Filters out devices other than AP71XXs
rfs4000 Filters out devices other than RFS4000s

rfs7000-37FABE(config)#device containing ap filter type AP71XX
% Error: Parsing cmd line (1)

rfs7000-37FABE(config)#device containing ap filter type ap650
rfs7000-37FABE(config-device-{'type': 'ap650', 'con)#
Related Commands



4.1.17 device-categorization
Categorizes devices as sanctioned or neighboring. Categorization of devices enables quick identification and blocking of
rogue/unsanctioned devices in the wireless controller managed network.

device-categorization Configures a device categorization list page 4-54


4.1.17.1 device-categorization
device-categorization
Configures a device categorization list. This list categorizes devices as sanctioned or neighboring. This information
determines which devices are allowed access to the wireless controller managed network and which are rogue devices.
If a device categorization list does not exist, it is created.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
device-categorization <DEVICE-CATEGORIZATION-LIST-NAME>
Parameters
device-categorization <DEVICE-CATEGORIZATION-LIST-NAME>

<DEVICE-CATEGORIZATION- Specify the device categorization list name. If a list with the same name does not
LIST-NAME> exist, it is created.
Examples
rfs7000-37FABE(config)#device-categorization RFS7000

rfs7000-37FABE(config-device-categorization-RFS7000)#?
Device Category Mode commands:
mark-device Add a device


rfs7000-37FABE(config-device-categorization-RFS7000)#
Related Commands



4.1.17.2 device-categorization-mode commands
device-categorization
Table 4.7 summarizes device categorization mode commands
Table 4.7 device-categorization-mode commands

mark-device Adds a device to the device categorization list page 4-56
no Removes a device from the device categorization list page 4-58
configurations


4.1.17.2.1 mark-device
device-categorization-mode commands
Adds a device to the device categorization list as sanctioned or neighboring. Devices are further classified as AP or client.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
mark-device [sanctioned|neighboring] [ap|client]

mark-device [sanctioned|neighboring] ap [<MAC>|any] ssid [<SSID>|any]

mark-device [sanctioned|neighboring] client [<MAC>|any]
Parameters
• mark-device [sanctioned|neighboring] ap [<MAC>|any] ssid [<SSID>|any]

sanctioned Marks a device as sanctioned. A sanctioned device is authorized to use network
resources by providing correct credentials.
neighboring Marks a device as neighboring. A neighboring device is a neighbor in the same network
as this device.
ap [<MAC>|any] Marks all or a specified AP as sanctioned or neighboring based on their MAC addresses
• <MAC> – Specify the MAC address of the AP.
• any – Indicates all APs are marked
ssid [<SSID>|any] Configures the SSID for the AP. Any AP with the configured SSID is automatically marked.
When the ‘any’ parameter is used, any AP with any SSID is automatically marked.
• <SSID> – Specify the SSID.
• any – Indicates any SSID to match
• mark-device [sanctioned|neighboring] client [<MAC>|any]

sanctioned Marks the wireless client as sanctioned. A sanctioned device is authorized to use
network resources by providing correct credentials.


neighboring Marks the wireless client as neighboring. A neighboring device is a neighbor in the same
network as this device.
client [<MAC>|any] Marks all or a specified wireless client as sanctioned or neighboring based on the MAC
address
• <MAC> – Specify the MAC address of the wireless client.
• any – Indicates all wireless clients are marked
Examples
rfs7000-37FABE(config-device-categorization-RFS7000)#mark-device sanctioned ap any
ssid any

rfs7000-37FABE(config-device-categorization-RFS7000)#mark-device neighboring client
11-22-33-44-55-66
Related Commands

no Resets or disables mark device commands


4.1.17.2.2 no
device-categorization-mode commands
Removes a device from the device categorization list
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no mark-device [neighboring|sanctioned] [ap|client] [<MAC>|any]

mark-device [sanctioned|neighboring] client [<MAC>|any]

mark-device [sanctioned|neighboring] ap [<MAC>|any] ssid [<SSID>|any]
Parameters
• no mark-device [sanctioned|neighboring] ap [<MAC>|any] ssid [<SSID>|any]

no mark-device Removes a device from the marked device list
sanctioned Removes a device marked as sanctioned. A sanctioned device is authorized to use
neighboring Removes a device marked as neighboring. A neighboring device is a neighbor in the same
network as this device.
ap [<MAC>|any] Removes all or a specified AP as sanctioned or neighboring
• <MAC> – Specify the MAC address of the AP.
• any – Indicates all APs are marked
ssid [<SSID>|any] Configures the AP’s SSID. Any AP with the configured SSID is removed from the marked
list. When the ‘any’ parameter is used, any AP with any SSID is removed from the marked
list.
• <SSID> – Specify the SSID.
• any – Indicates any SSID to match

• no mark-device [sanctioned|neighboring] client [<MAC>|any]

no mark-device Removes a device from the marked device list
sanctioned Marks the wireless client as sanctioned. A sanctioned device is authorized to use


neighboring Removes a wireless client marked as neighboring. A neighboring device is a neighbor in
the same network as this device.
client [<MAC>|any] Removes all or a specified wireless client marked as sanctioned or neighboring
• any – Indicates all wireless clients are removed from the marked list
Examples
rfs7000-37FABE(config-device-categorization-RFS7000)#no mark-device authorized ap any
ssid 1
%% Error: Parsing cmd line
Related Commands

mark-device Adds a device to a list of sanctioned or neighboring devices


4.1.18 dhcp-server-policy
Configures DHCP server policy parameters, such as class, address range, and options. A new policy is created if it does
not exist.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
dhcp-server-policy <DHCP-POLICY-NAME>
Parameters
• dhcp-server-policy <DHCP-POLICY-NAME>

<DHCP-POLICY-NAME> Specify the DHCP policy name. If the policy does not exist, it is created.
Examples
rfs7000-37FABE(config)#dhcp-policy test
rfs7000-37FABE(config)#?
Related Commands


NOTE: For more information on DHCP policy, see Chapter 13, DHCP-SERVER-POLICY.


4.1.19 dns-whitelist
Configures a whitelist of devices permitted to access the wireless controller managed network or a hotspot

dns-whitelist Configures the DNS whitelist page 4-62


4.1.19.1 dns-whitelist
dns-whitelist
Configures a DNS whitelist. A DNS whitelist is a list of domains allowed access to the wireless controller managed
network.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
dns-whitelist <DNS-WHITELIST>
Parameters
dns-whitelist <DNS-WHITELIST>

<DNS-WHITELIST> Specify the DNS whitelist name. If the whitelist does not exist, it is created.
Examples
rfs7000-37FABE(config-dns-whitelist-test)#?
DNS Whitelist Mode commands:
permit Match a host


rfs7000-37FABE(config-dns-whitelist-test)#
Related Commands



4.1.19.2 dns-whitelist mode commands
dns-whitelist
Table 4.9 summarizes DNS white list mode commands
Table 4.9 dns-whitelist commands

permit Matches a host page 4-64
no Negates a command or sets its default values page 4-65
configurations


4.1.19.2.1 permit
dns-whitelist mode commands
A whitelist is a list of host names and IP addresses permitted access to the wireless controller managed network or captive
portal. This command adds a device by its hostname or IP address to the DNS whitelist.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
permit <IP/HOSTNAME> {suffix}
Parameters
• permit <IP/HOSTNAME> {suffix}

<IP/HOSTNAME> Specify the IP address or hostname of the device, to add to the DNS whitelist.
suffix Optional. Matches any hostname including the specified name as suffix
Examples
rfs7000-37FABE(config-dns-whitelist-test)#permit motorolasolutions.com suffix

rfs7000-37FABE(config-dns-whitelist-test)#show context
dns-whitelist test
permit motorolasolutions.com suffix
Related Commands

no Resets or disables DNS whitelist commands


4.1.19.2.2 no
dns-whitelist mode commands
Removes a specified host or IP address from the DNS whitelist, and prevents it from accessing network resources
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no permit <IP/HOSTNAME>
Parameters
• no permit <IP/HOSTNAME>

<IP/HOSTNAME> Specify the device’s IP address or hostname to remove from the DNS whitelist.
Examples
rfs7000-37FABE(config-dns-whitelist-test)#no permit joysportsview.com
Related Commands

permit Adds a device to the DNS whitelist


4.1.20 do
Use the do command to run commands from the EXEC mode. These commands perform tasks, such as clearing caches,
setting device clock, upgrades etc.
Generally use the do command to execute commands from the Privilege Executable or User Executable modes.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
do [ap-upgrade|archive|boot|cd|change-passwd|clear|clock|clrscr|cluster|commit|
configure|connect|copy|crypto|debug|delete|diff|dir|disable|edit|enable|
erase|exit|format|halt|help|logging|mint|mkdir|more|no|page|ping|pwd|reload|
remote-debug|rename|revert|rmdir|self|service|show|telnet|terminal|time-it|
traceroute|upgrade|upgrade-abort|watch|write|ssh

do ap-upgrade [<DEVICE-NAME>|all|all|ap621|ap650|ap6511|ap6521|ap6532|ap71xx|load-
image|rf-domain|cancel-upgrade]

do archive tar [/create|/table|/xtract] [<FILE>|<URL>]
do boot system [primary|secondary] {on <DEVICE-NAME>}

do cd {<DIR>}

do change-passwd {<OLD-PASSWORD>} {<NEW-PASSWORD>}

do clear [arp-cache|cdp|counters|event-history|firewall|ip|lldp|spanning-tree|
crypto]
do clock set <TIME> <DAY> <MONTH> <YEAR>

do clrscr

do cluster start-election

do commit write memory

do configure [terminal|self]

do connect [<REMOTE-DEVICE>|mint-id <DEVICE-MINT-ID>]

do copy [<SOURCE-FILE>|<SOURCE-URL>] [<DESTINATION-FILE>|<DESTINATION-URL>]

do crypto [key|pki]

do delete /force /recursive <FILE>


do diff [<FILE1>|<URL1>] [<FILE2>|<URL2>]

do dir {/all} {/recursive} {<DIR>} {all-filesystems}

do disable

do edit <FILE>

do enable

do erase [cf:|flash:|nvram:|startup-config|usb1]

do exit

do format cf:

do halt {on <DEVICE>}
do help {[search|show]}

do logging monitor {[<0-7>|alerts|critical|debugging|emergencies|errors|
informational|notification|warnings]}

do mint [ping|traceroute] <MINT-DEVICE-ID>

do mkdir <DIR>

do more <FILE>

do no [adoption|captive-portal|crypto|debug|page|service|terminal|upgrade|
wireless|logging]
do page

do ping <IP>

do pwd

do reload {[cancel|force|in|on]}

do rename <FILE>

do revert

do rmdir <DIR>

do self

do service [advanced-wips|ap300|clear|cli-tables-expand|cli-tables-skin|cluster|
copy|force-send-config|locator|mint|noc|pktcap|pm|radio|radius|set|show|
smart-rf|start-shell|wireless|signal

do show [adoption|advanced-wips|ap-upgrade|boot|captive-portal|cdp|clock|cluster|
commands|critical-resources|crypto|debug|debugging|device-categorization|
event-history|event-system-policy|file|firewall|interface|ip|
ip-access-list-stats|licenses|lldp|logging|mac-access-list-stats|
mac-address-table|mint|noc|ntp|password-encryption|power|reload|remote-debug|
rf-domain-manager|role|running-config session-changes|session-config|
sessions smart-rf|spanning-tree|startup-config|terminal|timezone|upgrade-status|
version|wireless|wwan|context]

do ssh <IP>

do telnet <IP/HOSTNAME>

do terminal [length <LINES>|width <CHARACTERS>]

do time-it <CLI-COMMAND>

do traceroute <ARGS>


do upgrade [<FILE>|<URL>

do upgrade-abort {on <DEVICE>}

do watch <TIME> <CLI-COMMAND>

do write [memory|terminal]
Parameters
• do ap-upgrade [<DEVICE-NAME>|all|all|ap621|ap650|ap6511|ap6521|ap6532|ap71xx|
load-image|rf-domain|cancel-upgrade]

ap-upgrade Runs the ap-upgrade command
For more information on the AP upgrade command, see ap-upgrade.

• do archive tar [/create|/table|/xtract] [<FILE>|<URL>]

archive Runs the archive command
For more information on the archive command, see archive.

• do boot system [primary|secondary] {on <DEVICE-NAME>}

boot Configures the image used for the next boot
For more information on the boot command, see boot.

• do cd {<DIR>}

cd <DIR> Runs the command to change the present working directory
For more information on the cd command see dir.

• do change-passwd {<OLD-PASSWORD>} {<NEW-PASSWORD>}

change-passwd Changes password of the logged user
{<OLD-PASSWORD>} For more information on the clear command, see change-passwd.
{<NEW-PASSWORD>}

• do clear [arp-cache|cdp|counters|event-history|firewall|ip|lldp|spanning-tree|
crypto]

clear Clears some configurations
For more information on the clear command, see clear.

• do clock set <TIME> <DAY> <MONTH> <YEAR>

clock set <TIME> <DAY> Sets the device’s time and date
<MONTH> <YEAR> For more information on the clock command, see clock.

• do clrscr

clrscr Clears the current screen
For more information on the clrscr command, see clrscr.

• do cluster start-election

cluster start-election Starts the configuration for creating a cluster of servers
For more information on the cluster command, see cluster.


• do commit writer memory

commit write memory Commits the changes made in the current CLI session
For more information on the commit command, see commit.

• do configure [terminal|self]

configure [terminal|self] Changes the configuration mode
For more information on the configure command, see configure.

• do connect [<REMOTE-DEVICE>|mint-id <DEVICE-MINT-ID>]

connect [<REMOTE-DEVICE>| Connects to a remote device to configure it. This command uses a device’s hostname or
mint-id <DEVICE-MINT-ID>] its MiNT ID to connect.
For more information on the connect command, see connect.

• do copy [<SOURCE-FILE>|<SOURCE-URL>] [<DESTINATION-FILE>|<DESTINATION-URL>]

copy [<SOURCE-FILE>| Copies a file from one location to another
<SOURCE-URL>] For more information on the copy command, see copy.
[<DESTINATION-FILE>|
<DESTINATION-URL>]

• do crypto [key|pki]

crypto [key|pki] Configures the crypto command
For more information on the crypto command, see crypto.

• do delete /force /recursive <FILE>

delete /force /recursive <FILE> Deletes a file from the device’s file system
For more information on the delete command, see disable.

• do diff [<FILE1>|<URL1>] [<FILE2>|<URL2>]

diff [<FILE1>|<URL1>] Compares two files and displays the difference between them
[<FILE2>|<URL2>] For more information on the diff command, see diff.

• do dir {/all} {/recursive} {<DIR>} {all-filesystems}

dir {/all} {/recursive} {<DIR>} Displays the content of a directory in the device’s file system
{all-filesystems} For more information on the dir command, see dir.

• do disable

disable Moves the control to the User Exec mode
For more information on the disable command, see disable.

• do edit <FILE>

edit <FILE> Edits a file
For more information on the edit command, see edit.


• do enable

enable Moves the mode to Privilege Exec mode
For more information on the enable command, see enable.

• do erase [cf:|flash:|nvram:|startup-config|usb1]

do erase [cf:|flash:|nvram:| Erases the content of the specified storage device. Also erases the startup
startup-config|usb1] configuration to restore the device to its default.
For more information on the erase command, see erase.

• do exit

exit Exits the CLI
For more information on the exit command, see exit.

• do format cf:

format cf: Formats the CF card installed on the device
For more information on the format command, see format.

• do halt {on <DEVICE-NAME>}

halt {on <DEVICE-NAME>} Stops the device
For more information on the halt command, see halt.

• do help {[search|show]}

help {[search|show]} Displays the command line interface help
For more information on the help command, see help.

• do logging monitor {[<0-7>|alerts|critical|debugging|emergencies|errors|
informational|notification|warnings]}

logging monitor Configures the logging level for the device
{<0-7>|alerts|critical| For more information on the logging command, see logging.
debugging|emergencies|
errors|informational|
notification|warnings}

• do mint [ping|traceroute] <MINT-DEVICE-ID>

mint [ping|traceroute] Performs MiNT operations such as ping and traceroute
<MINT-DEVICE-ID> For more information on the mint command, see mint.

• do mkdir <DIR>

mkdir <DIR> Creates a directory in the device’s file structure
For more information on the dir command, see mkdir.

• do more <FILE>

more <FILE> Displays a file in the console window
For more information on the more command, see more.


• do no [adoption|captive-portal|crypto|debug|page|service|terminal|
upgrade|wireless|logging]

no [adoption| Reverts or negates a command
captive-portal| For more information on the no command, see the respective profiles and modes.
crypto|debug|page|
service|
terminal|upgrade|
wireless|logging]

• do page

page Toggles paging of the command line interface
For more information on the page command, see page.

• do ping <IP>

ping <IP> Pings a device to check its availability
For more information on the ping command, see ping.

• do pwd

pwd Displays the current working directory
For more information on the pwd command, see pwd.

• do reload {[cancel|force|in|on]}

reload {[cancel|force|in|on]} Halts the device and performs a warm reboot
For more information on the reload command, see reload.
• do rename <FILE>

rename <FILE> Renames a file on the device’s file system
For more information on the rename command, see rename.

• do revert

revert Reverts the changes made to the system during the current CLI session
For more information on the revert command, see revert.

• do rmdir <DIR>

rmdir <DIR> Removes a directory in the device’s file system
For more information on the rmdir command, see rmdir.
• do self

self Loads the configuration context of the device currently logged into
For more information on the self command, see self.


• do telnet <IP/HOSTNAME>

telnet <IP/HOSTNAME> Connects to a device using the Telnet protocol
For more information on the Telnet command, see telnet.

• do terminal [length <LINES>|width <CHARACTERS>]

do terminal [length <LINES>| Configures the CLI display characteristics
width <CHARACTERS>] For more information on the terminal command, see terminal.

• do time-it <CLI-COMMAND>

time-it <CLI-COMMAND> Captures the time required to execute a command in the CLI
For more information on the time-it command, see time-it.

• do traceroute <ARGS>

traceroute <ARGS> Traces the path to the target devices through the network
For more information on the traceroute command, see traceroute.

• do upgrade [<FILE>|<URL>

upgrade [<FILE>|<URL> Upgrades the device’s firmware from a file or a location
For more information on the upgrade command, see upgrade.

• do upgrade-abort {on <DEVICE>}

upgrade-abort {on <DEVICE- Aborts an upgrade in progress on the logged device or remote device
NAME>} For more information on the upgrade abort command, see upgrade-abort.

• do watch <TIME> <CLI-COMMAND>

watch <TIME> Repeats a CLI command at a periodic interval
<CLI-COMMAND> For more information on the watch command, see watch.

• do write [memory|terminal]

write [memory|terminal] Writes the changes made to the running configuration to the memory or to the
terminal
For more information on the write command, see write.


Examples
rfs7000-37FABE(config)#do ?
archive Manage archive files
boot Boot commands
cd Change current directory
clear Clear
delete Deletes specified file from the system.
diff Display differences between two files
dir List files on a filesystem
edit Edit a text file
erase Erase a filesystem
format Format file system
halt Halt the system
mint MiNT protocol
mkdir Create a directory
more Display the contents of a file
page Toggle paging
pwd Display current directory
reload Halt and perform a warm reboot
rename Rename a file
rmdir Delete a directory
upgrade Upgrade software image
upgrade-abort Abort an ongoing upgrade


Related Commands

ap-upgrade Runs the ap update command
archive Runs the archive command
boot Configures the image used for the next boot
cd Runs the command to change the present working directory


change-passwd Changes the password for the current login user
clear Clears some configurations
clock Configures a device’s time and date
clrscr Clears the current screen
cluster Starts the configuration for creating a cluster of servers
commit Commits changes made in the current CLI session
configure Changes the configuration mode
connect Configures a remote device. This command uses a device’s hostname or MiNT ID to connect.
copy Copies a file from one location to another
crypto Configures the crypto command
delete Deletes a file from a device’s filesystem
diff Compares two files and displays the difference
dir Displays the content of a directory in the device’s file system
disable Moves the control to the User Exec mode
edit Edits a file
enable Moves the mode to Privilege Exec mode
enable Erases the content of the specified storage device. Also erases the startup configuration to
restore the device to its default.
exit Exits from the CLI
format Formats the CF card installed on a device
halt Stops a device
help Displays the CLI help
logging Configures a device’s logging
mint Performs MiNT operations such as ping and traceroute
mkdir Creates a directory in the device’s file structure
more Displays a file in the console window
no Reverts or negates a command
page Toggles paging of the command line interface
ping Pings a device to check its availability
pwd Displays the current working directory
reload Halts a device and performs a warm reboot
rename Renames a file on a device’s file system


revert Reverts changes made to the system during the current CLI session
rmdir Removes a directory in a device’s file system
self Loads a device’s configuration context
service Executes service commands
ssh Connects to a device using SSH
show Displays a device’s state, configuration, and statistics
telnet Uses Telnet to connect to a device
terminal Configures the CLI display characteristics
time-it Captures the time required to execute a command in the CLI
traceroute Traces the path to target devices
upgrade Upgrades a device’s firmware from a file or a location
upgrade-abort Aborts an upgrade in progress on a logged or a remote device
watch Repeats a CLI command at a periodic interval
write Writes the changes made in the current session to the memory


4.1.21 end
Ends and exits the current mode and moves to the PRIV EXEC mode
The prompt changes to the PRIV EXEC mode.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
end
Parameters
None
Examples
rfs7000-37FABE(config)#end
rfs7000-37FABE#


4.1.22 event-system-policy
Configures how events are supported by the wireless controller. Each event can be configured individually to perform an
action such as sending an e-mail or forwarding a notification to its parent wireless controller etc.
Table 4.10 Event System Policy Commands

event-system-policy Configures the event system policy page 4-79


4.1.22.1 event-system-policy
event-system-policy
Configures a system wide events handling policy
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
event-system-policy <EVENT-SYSTEM-POLICY>
Parameters
• event-system-policy <EVENT-SYSTEM-POLICY>

<EVENT-SYSTEM-POLICY> Specify the event system policy name. If the policy does not exist, it is created.
Examples
rfs7000-37FABE(config)#event-system-policy event-testpolicy
rfs7000-37FABE(config-event-system-policy-event-testpolicy)#?

rfs7000-37FABE(config-event-system-policy-event-testpolicy)#?
Event System Policy Mode commands:
event Configure an event


rfs7000-37FABE(config-event-system-policy-event-testpolicy)#
Related Commands

no Removes an event system policy


4.1.22.2 event-system-policy mode commands
event-system-policy
Table 4.11 summarizes event system policy mode commands
Table 4.11 event-system-policy mode commands

event Configures an event page 4-81
no Negates a command or sets its default values page 4-91
configurations


4.1.22.2.1 event
event-system-policy mode commands
Configures an event and sets the action performed when the event happens
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
event <EVENT-TYPE> <EVENT> (email,forward-to-switch,snmp,syslog) [default|on|off]

NOTE: The parameter values for <event type> and <event name> are summarized in the
table under the Parameters section.


Parameters
• event <EVENT-TYPE> <EVENT> (email,forward-to-switch,snmp,syslog) [default|on|off]

<event type> <event name>
aaa Configures authentication, authorization, and accounting related event messages
• radius-discon-msg – RADIUS disconnection message
• radius-session-expired – RADIUS session expired message
• radius-session-not-started – RADIUS session not started message
• radius-vlan-update – RADIUS VLAN update message
adv-wips Configures advanced WIPS related event messages
• adv-wips-event-1 – Event adv-wips-event-1 message
• adv-wips-event-21 – Event adv-wips-event-21message


ap Configures AP event messages
• adopted – Event AP adopted message
• adopted-to-controller – Event AP adopted to wireless controller message
• ap-adopted – Event access port adopted message
• ap-autoup-done – Event AP autoup done message
• ap-autoup-fail – Event AP autoup fail message
• ap-autoup-needed – Event AP autoup needed message
• ap-autoup-no-need – Event AP autoup not needed message
• ap-autoup-reboot – Event AP autoup reboot message
• ap-autoup-timeout – Event AP autoup timeout message
• ap-autoup-ver – Event AP autoup version message
• image-parse-failure – Event image parse failure message
• legacy-auto-update – Event legacy auto update message
• no-image-file – Event no image file message
• reset – Event reset message
• sw-conn-lost – Event software connection lost message
• unadopted – Event unadopted message
captive-portal Configures captive portal (hotspot) related event messages
• allow-access – Event client allowed access message
• auth-failed – Event authentication failed message
• auth-success – Event authentication success message
• client-disconnect – Event client disconnected message
• client-removed – Event client removed message
• flex-log-access – Event flexible log access granted to client message
• inactivity-timeout – Event client time-out due to inactivity message
• purge-client – Event client purged message
• session-timeout – Event session timeout message


certmgr Configures certificate manager related event messages
• ca-cert-actions-failure – Event CA certificate actions failure message
• ca-cert-actions-success – Event CA certificate actions success message
• ca-key-actions-failure – Event CA key actions failure message
• ca-key-actions-success – Event CA key actions success message
• cert-expiry – Event certificate expiry message
• crl-actions-failure – Event Certificate Revocation List (CRL) actions failure
message
• crl-actions-success – Event CRL actions success message
• csr-export-failure – Event CSR export failure message
• csr-export-success – Event CSR export success message
• delete-trustpoint-action – Event delete trustpoint action message
• export-trustpoint – Event export trustpoint message
• import-trustpoint – Event import trustpoint message
• rsa-key-actions-failure – Event RSA key actions failure message
• rsa-key-actions-success – Event RSA key actions success message
• svr-cert-actions-success – Event server certificate actions success message
• svr-cert-actions-failure – Event server certificate actions failure message
cfgd Configures configuration daemon module related event messages
• acl-attached-altered – Event Access List (ACL) attached altered message
• acl-rule-altered – Event ACL rule altered message
cluster Configures cluster module related messages
• max-exceeded – Event maximum cluster count exceeded message
crm Configures Critical Resource Monitoring related event messages
• critical-resource-down – Event Critical Resource Down message
• critical-resource-up – Event Critical Resource Up message
dhcpsvr Configures DHCP server related event messages
• dhcp-start – Event DHCP server started message
• dhcpsvr-stop – Event DHCP sever stopped message
• relay-iface-no-ip – Event no IP address on DHCP relay interface message
• relay-no-iface – Event no interface for DHCP relay message
• relay-start – Event relay agent started
• relay-stop – Event DHCP relay agent stopped


diag Configures diagnostics module related event messages
• autogen-tech-sprt – Event autogen technical support message
• buf-usage – Event buffer usage message
• cpu-load – Event CPU load message
• disk-usage – Event disk usage message
• elapsed-time – Event elapsed time message
• fan-underspeed – Event fan underspeed message
• fd-count – Event forward count message
• free-flash-disk – Event free flash disk message
• free-flash-inodes – Event free flash inodes message
• free-nvram-disk – Event free nvram disk message
• free-nvram-inodes – Event free nvram inodes message
• free-ram – Event free ram message
• free-ram-disk – Event free ram disk message
• free-ram-inodes – Event free ram inodes message
• head-cache-usage – Event head cache usage message
• high-temp – Event high temp message
• ip-dest-usage – Event ip destination usage message
• led-identify – Event led identify message
• low-temp – Event low temp message
• new-led-state – Event new led state message
• over-temp – Event over temp message
• over-voltage – Event over voltage message
• poe-init-fail – Event PoE init fail message
• poe-power-level – Event PoE power level message
• poe-read-fail – Event PoE read fail message
• poe-state-change – Event PoE state change message
• ram-usage – Event ram usage message
• under-voltage – Event under voltage message
• wd-reset-sys – Event wd reset system message
• wd-state-change – Event wd state change message


dot11 Configures 802.11 management module related event messages
• client-associated – Wireless client associated event message
• client-denied-assoc – Event client denied association message
• client-disassociated – Wireless client disassociated message
• country-code – Event country code message
• country-code-error – Event country code error message
• eap-cached-keys – Event EAP cached keys message
• eap-client-timeout – Event EAP client timeout message
• eap-failed – Event EAP failed message
• eap-opp-cached-keys – Event EAP opp cached keys message
• eap-preauth-client-timeout – Event EAP pre authentication client timeout
message
• eap-preauth-failed – Event EAP pre authentication failed message
• eap-preauth-server-timeout – Event EAP pre authentication server timeout
message
• eap-preauth-success – Event EAP pre authentication success message
• eap-server-timeout – Event EAP server timeout message
• eap-success – Event EAP success message
• kerberos-client-failed – Event Kerberos client failed message
• kerberos-client-success – Event Kerberos client success message
• kerberos-wlan-failed – Event Kerberos WLAN failed message
• kerberos-wlan-success – Event Kerberos WLAN success message
• kerberos-wlan-timeout – Event Kerberos WLAN timeout message
• tkip-cntrmeas-end – Event TKIP cntrmeas end message
• tkip-cntrmeas-start – Event TKIP cntrmeas start message
• tkip-mic-fail-report – Event TKIP mic fail report message
• tkip-mic-failure – Event TKIP mic failure message
• unsanctioned-ap-active – Event unsanctioned AP active message
• unsanctioned-ap-inactive – Event unsanctioned AP inactive message
• unsanctioned-ap-status-change – Event unsanctioned AP status change
• voice-call-completed – Event voice call completed message
• voice-call-failed – Event voice call failed message
• wpa-wpa2-failed – Event WPA-WPA2 failed message
• wpa-wpa2-key-rotn – Event WPA-WPA2 key rotn message
• wpa-wpa2-success – Event WPA-WPA2 success message


filemgmt Configures file management module related event messages
• http – Event HTTP message
• httplocal – Event HTTP local message
• https-start – Event HTTPS start message
• https-wait – Event HTTPS wait message
• httpstart – Event HTTP start message
• keyadded – Event key added message
• keydeleted – Event key deleted message
• trustpointdeleted – Event trustpoint deleted message
fwu Configures firmware update related event messages
• fwuaborted – Event fwu aborted message
• fwubadconfig – Event fwu bad config message
• fwucorruptedfile – Event fwu corrupted file message
• fwucouldntgetfile – Event fwu could not get file message
• fwudone – Event fwu done message
• fwufileundef – Event fwu file undefined message
• fwunoneed – Event fwu no need message
• fwuprodmismatch – Event fwu prod mismatch message
• fwuserverundef – Event fwu server undefined message
• fwuserverunreachable – Event fwu server unreachable message
• fwusignmismatch – Event fwu signature mismatch message
• fwusyserr – Event fwu system error message
• fwuunsupportedhw – Event fwu unsupported hardware message
• fwuvermismatch – Event fwu version mismatch message
licmgr Configures license manager module related event messages
• lic-installed-count – Event total number of license installed count message
• lic-installed-default – Event default license installation message
• lic-installed – Event license installed message
• lic-invalid – Event license installation failed message
• lic-removed – Event license removed message
mesh Configures mesh module related event messages
• mesh-link-down – Event mesh link down message
• mesh-link-up – Event mesh link up message


nsm Configures Network Service Module (NSM) related event message
• dhcpc-err – Event DHCP certification error message
• dhcpdefrt – Event DHCP defrt message
• dhcpip – Event DHCP IP message
• dhcpipchg – Event DHCP IP change message
• dhcpipnoadd – Event DHCP IP overlaps static IP address message
• dhcplsexp – Event DHCP lease expiry message
• dhcpnak – Event DHCP server returned DHCP NAK response
• ifdown – Event interface down message
• ifipcfg – Event interface IP config message
• ifup – Event interface up message
pm Configures process monitor module related event messages
• procid – Event proc ID message
• procmaxrstrt – Event proc max restart message
• procnoresp – Event proc no response message
• procrstrt – Event proc restart message
• procstart – Event proc start message
• procstop – Event proc stop message
• procsysrstrt – Event proc system restart message
• startupcomplete – Event startup complete message
radconf Configures RADIUS configuration daemon related event messages
• could-not-stop-radius – Event could not stop RADIUS server message
• radiusdstart – Event RADIUS server started message
• radiusdstop – Event RADIUS server stopped message
radio Configures radio module related event messages
• acs-scan-complete – Event ACS scan completed
• acs-scan-started – Event ACS scan started
• radar-detected – Event radar detected message
• radar-scan-completed – Event radar scan completed message
• radar-scan-started – Event radar scan started message
• radio-state-change – Event radio state change message
• resume-home-channel – Event resume home channel message
securitymgr Configures the security manager module related event messages
• deprecatedcli – Event deprecated CLI message
• fatal-hit – Event fatal hit message
• log-cli-error – Event log CLI error message
• userpassstrength – Event user pass strength message


smrt Configures SMART RF module related event messages
• calibration-done – Event calibration done message
• calibration-started – Event calibration started message
• config-cleared – Configuration cleared event message
• cov-hole-recovery – Event coverage hole recovery message
• cov-hole-recovery-done – Event coverage hole recovery done message
• interference-recovery – Event interference recovery message
• neighbor-recovery – Event neighbor recovery message
• power-adjustment – Event power adjustment message
smtpnot Configures SMTP module related event messages
• cfg – Event cfg message
• cfginc – Event cfg inc message
• net – Event net message
• proto – Event proto message
• smtpauth – Event SMTP authentication message
• smtperr – Event SMTP error message
• smtpinfo – Event SMTP information message
system Configures system module related event messages
• clock-reset – Event clock reset message
• login – Event successful login message
• login-fail – Event login fail message. Occurs when user authentication fails.
• login-fail-access – Event login fail access message.Occurs in case of access
violation.
• login-fail-bad-role – Event login fail bad role message. Occurs when user uses an
invalid role to logon.
• logout – Event logout message
• panic – Event panic message
• system-autoup-disable – Event system autoup disable message
• system-autoup-enable – Event system autoup enable message
• ui-user-auth-fail – Event user authentication fail message
• ui-user-auth-success – Event user authentication success message


test Configures the test module related event messages
• testalert – Event test alert message
• testargs – Event test arguments message
• testcrit – Event test critical message
• testdebug – Event test debug message
• testemerg – Event test emergency message
• testerr – Event test error message
• testinfo – Event test information message
• testnotice – Event test notice message
• testwarn – Event test warning message
wips Configures the Wireless IPS module related event messages
• wips-client-blacklisted – Event WIPS client blacklisted message
• wips-client-rem-blacklist – Event WIPS client rem blacklist message
• wips-event – Event WIPS event triggered message
email Sends e-mail notifications to a pre configured e-mail ID
forward-to-switch Forwards the messages to an external server
snmp Logs an SNMP event
syslog Logs event to syslog
default Performs the default action for the event
off Switches the event off, when the event happens, no action is performed
on Switches the event on, when the event happens, the configured action is taken
Examples
rfs7000-37FABE(config-event-system-policy-event-testpolicy)#event aaa radius-discon-
msg email on forward-to-switch default snmp default syslog default
rfs7000-37FABE(config-event-system-policy-event-testpolicy)#

rfs7000-37FABE(config-event-system-policy-adv-wips)#

rfs7000-37FABE(config-event-system-policy-testpolicy)#show context
event-system-policy testpolicy
event sole adaptererr syslog off snmp off forward-to-switch off
rfs7000-37FABE(config-event-system-policy-testpolicy)#
Related Commands

no Resets or disables events commands


4.1.22.2.2 no
event-system-policy mode commands
Negates an event configuration
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no [<event type>] [<event name>] [email|forward-to-switch|snmp|syslog]
[default|on|off]


Parameters
• no event <EVENT-TYPE> <EVENT> (email,forward-to-switch,snmp,syslog)
[default|on|off]

aaa Resets authentication, authorization, and accounting related event messages
• radius-discon-msg – RADIUS disconnection message
• radius-session-expired – RADIUS session expired message
• radius-session-not-started – RADIUS session not started message
• radius-vlan-update – RADIUS VLAN update message
adv-wips Resets advanced WIPS related event messages
• adv-wips-event-21 – Event adv-wips-event-21message


ap Resets AP event messages
• adopted – Event AP adopted message
• adopted-to-controller – Event AP adopted to wireless controller message
• ap-adopted – Event access port adopted message
• ap-autoup-done – Event AP autoup done message
• ap-autoup-fail – Event AP autoup fail message
• ap-autoup-needed – Event AP autoup needed message
• ap-autoup-no-need – Event AP autoup not needed message
• ap-autoup-reboot – Event AP autoup reboot message
• ap-autoup-timeout – Event AP autoup timeout message
• ap-autoup-ver – Event AP autoup version message
• image-parse-failure – Event image parse failure message
• legacy-auto-update – Event legacy auto update message
• no-image-file – Event no image file message
• reset – Event reset message
• sw-conn-lost – Event software connection lost message
• unadopted – Event unadopted message
captive-portal Resets captive portal (hotspot) related event messages
• allow-access – Event client allowed access message
• auth-failed – Event authentication failed message
• auth-success – Event authentication success message
• client-disconnect – Event client disconnected message
• client-removed – Event client removed message
• flex-log-access – Event flexible log access granted to client message
• inactivity-timeout – Event client timed out due to inactivity message
• purge-client – Event client purged message
• session-timeout – Event session timeout message


certmgr Resets certificate manager related event messages
• ca-cert-actions-failure – Event CA certificate actions failure message
• ca-cert-actions-success – Event CA certificate actions success message
• ca-key-actions-failure – Event CA key actions failure message
• ca-key-actions-success – Event CA key actions success message
• cert-expiry – Event certificate expiry message
• crl-actions-failure – Event CRL actions failure message
• crl-actions-success – Event CRL actions success message
• csr-export-failure – Event CSR export failure message
• csr-export-success – Event CSR export success message
• delete-trustpoint-action – Event delete trustpoint action message
• export-trustpoint – Event export trustpoint message
• import-trustpoint – Event import trustpoint message
• rsa-key-actions-failure – Event RSA key actions failure message
• rsa-key-actions-success – Event RSA key actions success message
• srv-cert-actions-success – Event server certificate actions success message
• svr-cert-actions-failure – Event server certificate actions failure message
cfgd Resets configuration daemon module related event messages
• acl-attached-altered – Event ACL attached altered message
• acl-rule-altered – Event ACL rule altered message
cluster Resets cluster module related messages
• max-exceeded – Event maximum cluster count exceeded message
crm Resets Critical Resource Monitoring related event messages
• critical-resource-down – Event Critical Resource Down message
• critical-resource-up – Event Critical Resource Up message
dhcpsvr Resets DHCP server related event messages
• dhcp-start – Event DHCP server started message
• dhcpsvr-stop – Event DHCP sever stopped message
• relay-iface-no-ip – Event no IP address on DHCP relay interface message
• relay-no-iface – Event no interface for DHCP relay message
• relay-start – Event relay agent started
• relay-stop – Event DHCP relay agent stopped


diag Resets diagnostics module related event messages
• autogen-tech-sprt – Event autogen technical support message
• buf-usage – Event buffer usage message
• cpu-load – Event CPU load message
• disk-usage – Event disk usage message
• elapsed-time – Event elapsed time message
• fan-underspeed – Event fan underspeed message
• fd-count – Event forward count message
• free-flash-disk – Event free flash disk message
• free-flash-inodes – Event free flash inodes message
• free-nvram-disk – Event free nvram disk message
• free-nvram-inodes – Event free nvram inodes message
• free-ram – Event free ram message
• free-ram-disk – Event free ram disk message
• free-ram-inodes – Event free ram inodes message
• head-cache-usage – Event head cache usage message
• high-temp – Event high temp message
• ip-dest-usage – Event ip destination usage message
• led-identify – Event led identify message
• low-temp – Event low temp message
• new-led-state – Event new led state message
• over-temp – Event over temp message
• over-voltage – Event over voltage message
• poe-init-fail – Event PoE init fail message
• poe-power-level – Event PoE power level message
• poe-read-fail – Event PoE read fail message
• poe-state-change – Event PoE state change message
• ram-usage – Event ram usage message
• under-voltage – Event under voltage message
• wd-reset-sys – Event wd reset system message
• wd-state-change – Event wd state change message


dot11 Resets 802.11 management module related event messages
• client-associated – Wireless client associated event message
• client-denied-assoc – Event client denied association message
• client-disassociated – Wireless client disassociated message
• country-code – Event country code message
• country-code-error – Event country code error message
• eap-cached-keys – Event EAP cached keys message
• eap-client-timeout – Event EAP client timeout message
• eap-failed – Event EAP failed message
• eap-opp-cached-keys – Event EAP opp cached keys message
• eap-preauth-client-timeout – Event EAP pre authentication client timeout
message
• eap-preauth-failed – Event EAP pre authentication failed message
• eap-preauth-server-timeout – Event EAP pre authentication server timeout
message
• eap-preauth-success – Event EAP pre authentication success message
• eap-server-timeout – Event EAP server timeout message
• eap-success – Event EAP success message
• kerberos-client-failed – Event Kerberos client failed message
• kerberos-client-success – Event Kerberos client success message
• kerberos-wlan-failed – Event Kerberos WLAN failed message
• kerberos-wlan-success – Event Kerberos WLAN success message
• kerberos-wlan-timeout – Event Kerberos WLAN timeout message
• tkip-cntrmeas-end – Event TKIP cntrmeas end message
• tkip-cntrmeas-start – Event TKIP cntrmeas start message
• tkip-mic-fail-report – Event TKIP mic fail report message
• tkip-mic-failure – Event TKIP mic failure message
• unsanctioned-ap-active – Event unsanctioned AP active message
• unsanctioned-ap-inactive – Event unsanctioned AP inactive message
• unsanctioned-ap-status-change – Event unsanctioned AP status change
• voice-call-completed – Event voice call completed message
• voice-call-failed – Event voice call failed message
• wpa-wpa2-failed – Event WPA-WPA2 failed message
• wpa-wpa2-key-rotn – Event WPA-WPA2 key rotn message
• wpa-wpa2-success – Event WPA-WPA2 success message


filemgmt Resets file management module related event messages
• httplocal – Event HTTP local message
• https-start – Event HTTPS start message
• https-wait – Event HTTPS wait message
• httpstart – Event HTTP start message
• keyadded – Event key added message
• keydeleted – Event key deleted message
• trustpointdeleted – Event trustpoint deleted message
fwu Resets firmware update related event messages
• fwuaborted – Event aborted message
• fwubadconfig – Event bad config message
• fwucorruptedfile – Event corrupted file message
• fwucouldntgetfile – Event could not get file message
• fwudone – Event done message
• fwufileundef – Event file undefined message
• fwunoneed – Event no need message
• fwuprodmismatch – Event prod mismatch message
• fwuserverundef – Event server undefined message
• fwuserverunreachable – Event server unreachable message
• fwusignmismatch – Event signature mismatch message
• fwusyserr – Event system error message
• fwuunsupportedhw – Event unsupported hardware message
• fwuvermismatch – Event version mismatch message
licmgr Resets license manager module related event messages
• lic-installed-count – Event total number of license installed count message
• lic-installed-default – Event default license installation message
• lic-installed – Event license installed message
• lic-invalid – Event license installation failed message
• lic-removed – Event license removed message
mesh Resets mesh module related event messages
• mesh-link-down – Event mesh link down message
• mesh-link-up – Event mesh link up message


nsm Resets NSM related event messages
• dhcpc-err – Event DHCP certification error message
• dhcpdefrt – Event DHCP defrt message
• dhcpip – Event DHCP IP message
• dhcpipchg – Event DHCP IP change message
• dhcpipnoadd – Event DHCP IP overlaps static IP address message
• dhcplsexp – Event DHCP lease expiry message
• dhcpnak – Event DHCP server returned DHCP NAK response
• ifdown – Event interface down message
• ifipcfg – Event interface IP config message
• ifup – Event interface up message
pm Resets process monitor module related event messages
• procid – Event proc ID message
• procmaxrstrt – Event proc max restart message
• procnoresp – Event proc no response message
• procrstrt – Event proc restart message
• procstart – Event proc start message
• procsysrstrt – Event proc system restart message
• startupcomplete – Event startup complete message
radconf Resets RADIUS configuration daemon related event messages
• could-not-stop-radius – Event could not stop RADIUS server message
• radiusdstart – Event RADIUS server started message
• radiusdstop – Event RADIUS server stopped message
radio Resets radio module related event messages
• acs-scan-complete – Event ACS scan completed
• acs-scan-started – Event ACS scan started
• radar-detected – Event radar detected message
• radar-scan-completed – Event radar scan completed message
• radar-scan-started – Event radar scan started message
• radio-state-change – Event radio state change message
• resume-home-channel – Event resume home channel message
securitymgr Resets the security manager module related event messages
• deprecatedcli – Event deprecated CLI message
• fatal-hit – Event fatal hit message
• log-cli-error – Event log CLI error message
• userpassstrength – Event user pass strength message


smrt Resets SMART RF module related event messages
• calibration-done – Event calibration done message
• calibration-started – Event calibration started message
• config-cleared – Configuration cleared event message
• cov-hole-recovery – Event coverage hole recovery message
• cov-hole-recovery-done – Event coverage hole recovery done message
• interference-recovery – Event interference recovery message
• neighbor-recovery – Event neighbor recovery message
• power-adjustment – Event power adjustment message
smtpnot Resets SMTP module related event messages
• cfg – Event cfg message
• cfginc – Event cfg inc message
• net – Event net message
• proto – Event proto message
• smtpauth – Event SMTP authentication message
• smtperr – Event SMTP error message
• smtpinfo – Event SMTP information message
system Resets system module related event messages
• clock-reset – Event clock reset message
• login – Event successful login message
• login-fail – Event login fail message. Occurs when user authentication fails.
• login-fail-access – Event login fail access message.Occurs in case of access
violation.
• login-fail-bad-role – Event login fail bad role message. Occurs when user uses an
invalid role to logon.
• logout – Event logout message
• panic – Event panic message
• system-autoup-disable – Event system autoup disable message
• system-autoup-enable – Event system autoup enable message
• ui-user-auth-fail – Event ui user authentication fail message
• ui-user-auth-success – Event ui user authentication success message


test Resets the test module related event messages
• testalert – Event test alert message
• testargs – Event test arguments message
• testcrit – Event test critical message
• testdebug – Event test debug message
• testemerg – Event test emergency message
• testerr – Event test error message
• testinfo – Event test information message
• testnotice – Event test notice message
• testwarn – Event test warning message
wips Resets the Wireless IPS module related event messages
• wips-client-blacklisted – Event WIPS client blacklisted message
• wips-client-rem-blacklist – Event WIPS client rem blacklist message
• wips-event – Event WIPS event triggered message
Examples
rfs7000-37FABE(config-event-system-policy-testpolicy)#

rfs7000-37FABE(config-event-system-policy-testpolicy)#no event aaa
% Error: event_system_policy[aaa] does not exist, unable to delete
Related Commands

event Configures the action taken for each event


4.1.23 firewall-policy
Configures a firewall policy. This policy defines a set of rules for managing network traffic and prevent unauthorized access
to the network behind the firewall while allowing authorized devices access.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
firewall-policy <FIREWALL-POLICY-NAME>
Parameters
• firewall-policy <FIREWALL-POLICY-NAME>

<FIREWALL-POLICY-NAME> Specify the firewall policy name. If a firewall policy does not exist, it is created.
Examples
rfs7000-37FABE(config)#firewall-policy test
rfs7000-37FABE(config-fw-policy-test)#
Related Commands

no Removes an existing firewall policy

NOTE: For more information on Firewall policy, see Chapter 14, FIREWALL-POLICY.


4.1.24 host
Enters the configuration context of a remote device using its hostname
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
host <DEVICE-NAME>
Parameters
• host <DEVICE-NAME>

<DEVICE-NAME> Specify the device’s hostname. All discovered devices are displayed when ‘Tab’ is
pressed to auto complete this command.
Examples
rfs7000-37FABE(config)#host rfs7000-37FABE


4.1.25 igmp-snoop-policy
Configures an IGMP snoop policy. IGMP snooping filters out multicast IGMP packets for those clients not subscribed to the
IGMP multicast group. A wireless controller floods all ports in a IGMP broadcast domain by default. This can cause
unnecessary load on host devices that have not subscribed to these streams, requiring them to process these unwanted
packets.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
• RFS7000
Syntax
igmp-snoop-policy <IGMP-SNOOP-POLICY-NAME>
Parameters
• igmp-snoop-policy <IGMP-SNOOP-POLICY-NAME>

<IGMP-SNOOP-POLICY- Specify the IGMP snoop policy name. This policy is created if it does not exist.
NAME>
Examples
rfs7000-37FABE(config)#igmp-snoop-policy test
rfs7000-37FABE(config-igmp-snoop-policy-test)#

rfs7000-37FABE(config-igmp-snoop-policy-test)#?
commands:
igmp-snooping Enable IGMP snooping
querier Configure IGMP querier
robustness-variable Configure IGMP Robustness Variable
unknown-multicast-fwd Forward Unknown Multicast Packet

rfs7000-37FABE(config-igmp-snoop-policy-test)#


Related Commands

no Removes an IGMP snoop policy

NOTE: For more information on IGMP snooping and how to configure an IGMP snooping
policy, see Chapter 15, IGMP-SNOOP-POLICY.


4.1.26 ip
Configures IP access control lists
Access lists define access to the wireless controller managed network using a set of rules. Each rule specifies an action
taken when a packet matches a given set of rules. If the action is deny, the packet is dropped. If the action is permit, the
packet is allowed.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ip access-list <IP-ACCESS-LIST-NAME>
Parameters
• ip access-list <IP-ACCESS-LIST-NAME>

access-list Configures an IP access list
<IP-ACCESS-LIST-NAME> • <IP-ACCESS-LIST-NAME> – Specify the ACL name. If the access list does not exist,
it is created.


Examples
rfs7000-37FABE(config)#ip access-list test
rfs7000-37FABE(config-ip-acl-test)#

rfs7000-37FABE(config-ip-acl-test)#?
ACL Configuration commands:
deny Specify packets to reject
permit Specify packets to forward


rfs7000-37FABE(config-ip-acl-test)#
Related Commands

no Removes an IP access control list

NOTE: For more information on Access Control Lists, see Chapter 12, ACCESS-LIST.


4.1.27 mac
Configures MAC access control lists
Access lists define access to the wireless controller managed network using a set of rules. Each rule specifies an action
taken when a packet matches a given set of rules. If the action is deny, the packet is dropped. If the action is permit, the
packet is allowed.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
mac access-list <MAC-ACCESS-LIST-NAME>
Parameters
• mac access-list <MAC-ACCESS-LIST-NAME>

access-list Configures a MAC access control list
<IP-ACCESS-LIST-NAME> • <MAC-ACCESS-LIST-NAME> – Specify the ACL name. If the access control list does
not exist, it is created.


Examples
rfs7000-37FABE(config)#mac access-list test
rfs7000-37FABE(config-mac-acl-test)#

rfs7000-37FABE(config-mac-acl-test)#?
MAC Extended ACL Configuration commands:
deny Specify packets to reject
permit Specify packets to forward


rfs7000-37FABE(config-mac-acl-test)#
Related Commands

no Removes a MAC access control list

NOTE: For more information on Access Control Lists, see Chapter 12, ACCESS-LIST.


4.1.28 management-policy
Configures a management policy. This policy configures parameters, such as services that run on a device, welcome
messages, banners, and others.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
management-policy <MANAGEMENT-POLICY-NAME>
Parameters
• management-policy <MANAGEMENT-POLICY-NAME>

<MANAGEMENT-POLICY- Specify the management policy name. If the policy does not exist, it is created.
NAME>
Examples
rfs7000-37FABE(config)#management-policy test
rfs7000-37FABE(config-management-policy-test)#
Related Commands

no Removes an existing management policy

NOTE: For more information on the parameters that can be configured in a management
policy, see Chapter 17, MANAGEMENT-POLICY.


4.1.29 mint-policy
Configures the global MiNT policy
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
mint-policy global-default
Parameters
• mint-policy global-default

global-default Uses the global default policy
Examples
rfs7000-37FABE(config)#mint-policy global-default
rfs7000-37FABE(config-mint-policy-global-default)#
Related Commands

no Removes an existing MiNT policy

NOTE: For more information on MiNT policy, see Chapter 16, MINT-POLICY.


4.1.30 nac-list
Configures a policy, which configures a list of devices that can access a managed network based on their MAC addresses.
Table 4.12 NAC List Commands

nac-list Creates a NAC list policy page 4-112


4.1.30.1 nac-list
Configures a Network Access Control (NAC) list that controls access to the wireless controller managed network
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
nac-list <NAC-LIST-NAME>
Parameters
• nac-list <NAC-LIST-NAME>

<NAC-LIST-NAME> Specify the NAC list name. If the NAC list does not exist, it is created.
Examples
rfs7000-37FABE(config)#nac-list test
rfs7000-37FABE(config-nac-list-test)#

rfs7000-37FABE(config-nac-list-test)#?
NAC List Mode commands:
exclude Specify MAC addresses to be excluded from the NAC enforcement list
include Specify MAC addresses to be included in the NAC enforcement list

Related Commands

no Removes a NAC list


4.1.30.2 nac-list-mode
Table 4.13 summarizes NAC list mode commands
Table 4.13 nac-list-mode commands

exclude Specifies the MAC addresses excluded from the NAC enforcement list page 4-114
include Specifies the MAC addresses included in the NAC enforcement list page 4-115
no Cancels an exclude or an include NAC list rule page 4-116


4.1.30.2.1exclude
nac-list-mode
Specifies the MAC addresses excluded from the NAC enforcement list
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
exclude <START-MAC> [<END-MAC> precedence <1-1000>|precedence <1-1000>]
Parameters
• exclude <START-MAC> [<END-MAC> precedence <1-1000>|precedence <1-1000>]

<START-MAC> Specifies a range of MAC addresses or a single MAC address to exclude from the NAC
enforcement list
Specify the first MAC address in the range.
Use this parameter to specify a single MAC address.
<END-MAC> Specify the last MAC address in the range.
precedence <1-1000> Sets the rule precedence. Exclude entries are checked in the order of their rule
precedence.
Examples
rfs7000-37FABE(config-nac-list-test)#exclude 00-40-96-B0-BA-2A precedence 1


4.1.30.2.2include
nac-list-mode
Specifies the MAC addresses included in the NAC enforcement list
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
include <START-MAC> [<END-MAC> precedence <1-1000>|precedence <1-1000>]
Parameters
• include <START-MAC> [<END-MAC> precedence <1-1000>|precedence <1-1000>]

<START-MAC> Specifies a range of MAC addresses or a single MAC address to include in the NAC
enforcement list
Use this parameter to specify a single MAC address
precedence <1-1000> Sets the rule precedence. Exclude entries are checked in the order of their rule
precedence.
Examples
rfs7000-37FABE(config-nac-list-test)#include 00-40-96-B0-BA-2A precedence 1


4.1.30.2.3no
nac-list-mode
Cancels an exclude or an include NAC list rule
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no [exclude|include]

no [exclude|include] <START-MAC> [<END-MAC> precedence <1-1000>|
precedence <1-1000>]
Parameters
• no [exclude|include] <START-MAC> [<END-MAC> precedence <1-1000>|
precedence <1-1000>]

no exclude Removes an exclude rule
no include Removes an include rule
<START-MAC> Specifies a range of MACs included in/removed from the NAC enforcement list
Use this parameter to specify a single MAC address.
precedence <1-1000> Sets the rule precedence for this rule. Exclude entries are checked in the order of their
rule precedence.
Examples
rfs7000-37FABE(config-nac-list-test)#no include 00-40-96-B0-BA-2A precedence 1
rrfs7000-37FABE(config-nac-list-test)#show context
nac-list test
Related Commands

exclude Specifies MAC addresses excluded from the NAC enforcement list
include Specifies MAC addresses included in the NAC enforcement list


4.1.31 no
Negates a command, or reverts configured settings to their default values
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no <parameter>
Parameters
None
Examples
rfs7000-37FABE(config)#no ?
aaa-policy Delete a aaa policy
advanced-wips-policy Delete an advanced-wips policy
ap300 Delete an AP300
ap621 Delete an AP621 access point
ap71xx Delete an AP71XX access point
association-acl-policy Delete an association-acl policy
auto-provisioning-policy Delete an auto-provisioning policy
captive-portal Delete a captive portal
critical-resource-policy Remove device onboard critical resource policy
customize Restore the custom cli commands to default
device Delete multiple devices
device-categorization Delete device categorization object
dns-whitelist Delete a whitelist object
event-system-policy Delete a event system policy
igmp-snoop-policy Remove device onboard igmp snoop policy
management-policy Delete a management policy
nac-list Delete an network access control list
password-encryption Disable password encryption in configuration
profile Delete a profile and all its associated
configuration
radio-qos-policy Delete a radio QoS configuration policy
radius-group Local radius server group configuration
radius-server-policy Remove device onboard radius policy
rf-domain Delete one or more RF-domains and all their
associated configurations


RFS4000 Delete an RFS4000 wireless controller
smart-rf-policy Delete a smart-rf-policy
wips-policy Delete a wips policy
wlan Delete a wlan object
wlan-qos-policy Delete a wireless lan QoS configuration policy




4.1.32 password-encryption
Enables password encryption within a configuration
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
password-encryption secret 2 <LINE>
Parameters
• password-encryption secret 2 <LINE>

secret 2 <LINE> Encrypts passwords with a secret phrase
• 2 – Specifies the encryption type as either SHA256 or AES256
• <LINE> – Specify the encryption passphrase.
Examples
rfs7000-37FABE(config)#password-encryption secret 2 symbol


4.1.33 profile
Configures profile related commands. If no parameters are given, all profiles are selected.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
profile {ap621|ap650|ap6511|ap6521|ap6532|ap71xx|containing|filter|
rfs4000|rfs6000|rfs7000}

profile {ap621|ap650|ap6511|ap6521|ap6532|ap71xx|rfs4000|rfs6000|rfs7000}
[<DEVICE-PROFILE-NAME>]

profile {containing [<DEVICE-PROFILE-NAME>] {filter [type [ap621|ap650|ap6511|
ap6521|ap6532|ap71xx|rfs4000|rfs6000|rfs7000]]}}

profile {filter [type [ap621|ap650|ap6511|ap6521|ap6532|ap71xx|rfs4000|
rfs6000|rfs7000]]}
Parameters
• profile {ap621|ap650|ap6511|ap6521|ap6532|ap71xx|containing|filter|
rfs4000|rfs6000|rfs7000} [<DEVICE-PROFILE-NAME>]

profile Configures device profile commands. If no device profile is specified, the system configures
all device profiles.
ap621 Optional. Configures AP621 profile commands
ap71xx Optional. Configures AP71XX profile commands
rfs4000 Optional. Configures RFS4000 profile commands


<DEVICE-PROFILE- After specifying the profile type, specify a substring in the profile name to filter profiles
NAME>

• profile {containing [<DEVICE-PROFILE-NAME>] {filter [type [ap621|ap650|ap6511|
ap6521|ap6532|ap71xx|rfs4000|rfs6000|rfs7000]]}}

profile Configures device profile commands
containing Optional. Configures profiles that contain a specified sub-string in the hostname
<DEVICE-PROFILE- • <DEVICE-PROFILE-NAME> – Specify a substring in the profile name to filter profiles.
NAME>
filter type Optional. An additional filter used to configure a specific type of device profile. If no device
type is specified, the system configures all device profiles.
• type – Filters profiles by the device type. Select a device type from the following options:
ap621 Selects a AP621 profile
ap71xx Selects a AP71XX profile
rfs4000 Selects a RFS4000 profile

• profile {filter [type [ap621|ap650|ap6511|ap6521|ap6532|ap71xx|rfs4000|
rfs6000|rfs7000]]}

profile Configures device profile commands
filter type Optional. An additional filter used to configure a specific type of device profile. If no device
type is specified, the system configures all device profiles.
• type – Filters profiles by the device type. Select a device type from the following options:
ap71xx Selects a AP71XX profile


Examples
rfs7000-37FABE(config)#profile RFS7000 test1
rfs7000-37FABE(config-profile-test1)#?
Profile Mode commands:
aaa VPN AAA authentication settings
adopted-mode Set Device Running in Adopted Mode
ap300 Adopt/unadopt AP300 device to this
profile/device
arp Address Resolution Protocol (ARP)
auto-learn-staging-config Enable learning network configuration of the
devices that come for adoption
autoinstall Autoinstall Configuration commands
bridge Ethernet bridge
cdp Cisco Discovery Protocol
cluster Cluster configuration
configuration-persistence Enable persistence of configuration across
reloads (startup config file)
controller WLAN controller configuration
dscp-mapping Configure IP DSCP to 802.1p priority mapping
for untagged frames
email-notification Email notification configuration
enforce-version Check the firmware versions of devices
before interoperating
events System event messages
interface Select an interface to configure
led Turn LEDs on/off on the device
legacy-auto-downgrade Enable device firmware to auto downgrade
when other legacy devices are detected
legacy-auto-update Enable legacy device firmware auto update
lldp Link Layer Discovery Protocol
load-balancing Configure load balancing parameter
local Local user authentication database for VPN
mac-address-table MAC Address Table
mint MiNT protocol
misconfiguration-recovery-time Check controller connectivity after
configuration is received
monitor Critical resource monitoring
neighbor-inactivity-timeout Configure neighbor inactivity timeout
neighbor-info-interval Configure neighbor information exchange
interval
noc Configure the noc related setting
ntp Ntp server A.B.C.D
power-config Configure power mode
preferred-controller-group Controller group this system will prefer for
adoption
radius Configure device-level radius authentication
parameters
rf-domain-manager RF Domain Manager
spanning-tree Spanning tree
use Set setting to use
vpn Vpn configuration
wep-shared-key-auth Enable support for 802.11 WEP shared key
authentication



write Write running configuration to memory or
terminal

rfs7000-37FABE(config-profile-test1)#

NOTE: For more information on profiles and how to configure profiles, see Chapter 7,
PROFILES.


4.1.34 radio-qos-policy
Configures a radio quality-of-service (QoS) policy
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
radio-qos-policy <RADIO-QOS-POLICY-NAME>
Parameters
• radio-qos-policy <RADIO-QOS-POLICY-NAME>

<RADIO-QOS-POLICY- Specify the radio QoS policy name. If the policy does not exist, it is created.
NAME>
Examples
rfs7000-37FABE(config)#radio-qos-policy test

NOTE: For more information on radio qos policy, see Chapter 19, RADIO-QOS-POLICY.


4.1.35 radius-group
Configures RADIUS user group parameters
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
radius-group <RADIUS-GROUP-NAME>
Parameters
• radius-group <RADIUS-GROUP-NAME>

<RADIUS-GROUP-NAME> Specify a RADIUS user group name. The name should not exceed 64 characters. If the
RADIUS user group does not exist, it is created.
Examples
rfs7000-37FABE(config)#radius-group testgroup

NOTE: For more information on RADIUS user group commands, see Chapter 18,
RADIUS-POLICY.


4.1.36 radius-server-policy
Creates an onboard device RADIUS policy
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
radius-server-policy <RADIUS-SERVER-POLICY-NAME>
Parameters
• radius-server-policy <RADIUS-SERVER-POLICY-NAME>

<RADIUS-SERVER-POLICY- Specify the RADIUS server policy name. If the policy does not exist, it is created.
NAME>
Examples
rfs7000-37FABE(config)#radius-server-policy testpolicy

RADIUS-POLICY.


4.1.37 radius-user-pool-policy
Configures a RADIUS user pool
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
radius-user-pool-policy <RADIUS-USER-POOL-POLICY-NAME>
Parameters
• radius-user-pool-policy <RADIUS-USER-POOL-POLICY-NAME>

<RADIUS-USER-POOL- Specify the RADIUS user pool policy name. If the policy does not exist, it is created.
POLICY-NAME>
Examples
rfs7000-37FABE(config)#radius-user-pool-policy testpool

RADIUS-POLICY.


4.1.38 rf-domain
An RF Domain groups devices that can logically belong to one network. The RF Domain policy configures a set of
parameters that enable devices configured quickly as belonging to a particular RF Domain.
Table 4.14 RF Domain Commands

rf-domain Creates a RF Domain policy page 4-129


4.1.38.1 rf-domain
rf-domain
Creates a RF Domain or enters RF Domain context for one or more RF Domains. If the policy does not exist, it creates a
new policy.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
rf-domain {<RF-DOMAIN-NAME>|containing <DOMAIN-NAME>}
Parameters
• rf-domain {<RF-DOMAIN-NAME>|containing <DOMAIN-NAME>}

rf-domain Creates a new RF Domain or enters RF Domain context for one or more existing RF
Domains
<RF-DOMAIN-NAME> Specify the RF Domain name. The name should not exceed 32 characters and should
represent the intended purpose. Once created, the name cannot be edited.
containing Specify an existing RF Domain that contains a specified sub-string in the domain name
<DOMAIN-NAME> • <DOMAIN-NAME> – Specify a sub-string of the RF Domain name.


Examples
rfs7000-37FABE(config)#rf-domain RFS7000
rfs7000-37FABE(config-rf-domain-RFS7000)#

RFS4000-880DA7(config)#rf-domain default
RFS4000-880DA7(config-rf-domain-default)#

rfs7000-37FABE(config-rf-domain-RFS7000)#?
RF Domain Mode commands:
channel-list Configure channel list to be advertised to wireless
clients
contact Configure the contact
control-vlan VLAN for control traffic on this RF Domain
country-code Configure the country of operation
dhcp-redundancy Enable DHCP redundancy
layout Configure layout
location Configure the location
mac-name Configure MAC address to name mappings
override-smartrf Configured RF Domain level overrides for smart-rf
override-wlan Configure RF Domain level overrides for wlan
sensor-server Motorola AirDefense sensor server configuration
stats Configure the stats related setting
timezone Configure the timezone


rfs7000-37FABE(config-rf-domain-RFS7000)#


4.1.38.2 rf-domain-mode
rf-domain
This section describes the default commands under RF Domain.
Table 4.15 summarises RF Domain commands
Table 4.15 rf-domain Commands

channel-list Configures the channel list advertised by radios page 4-133
contact Configures details of the person to contact (the network administrator) in page 4-134
case of any problems impacting the RF Domain
control-vlan Configures VLAN for traffic control on a RF Domain page 4-135
country-code Configures the country of operation page 4-136
dhcp-redundancy Enables DHCP redundancy on a RF Domain page 4-137
layout Configures layout information page 4-138
location Configures the physical location of a RF Domain page 4-140
mac-name Maps MAC addresses to names page 4-141
no Negates a command or reverts configured settings to their default values page 4-142
override-smart-rf Configures RF Domain level overrides for Smart RF page 4-144
override-wlan Configures RF Domain level overrides for WLAN page 4-145
sensor-server Configures a AirDefense sensor server on this RF Domain page 4-147
stats Configures stats related settings on this RF Domain. These settings define page 4-149
how RF Domain statistics are updated
timezone Configures a RF Domain’s geographic time zone page 4-151
use Enables the use of a specified Smart RF and/or WIPS policy page 4-152


Table 4.15 rf-domain Commands



4.1.38.2.1 channel-list
rf-domain-mode
Configures the channel list advertised by radios. This command also enables dynamic update of a channel list
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
channel-list [2.4GHz|5GHz|dynamic]

channel-list dynamic

channel-list [2.4GHz|5GHz] <CHANNEL-LIST>
Parameters
• channel-list dynamic

dynamic Enables dynamic update of a channel list

• channel-list [2.4GHz|5GHz] <CHANNEL-LIST>

2.4GHz <CHANNEL-LIST> Configures the channel list advertised by radios operating in the 2.4GHz mode
• <CHANNLE-LIST> – Specify the list of channels separated by commas or hyphens.
5GHz <CHANNEL-LIST> Configures the channel list advertised by radios operating in the 5GHz mode
• <CHANNLE-LIST> – Specify the list of channels separated by commas or hyphens.
Examples
rfs7000-37FABE(config-rf-domain-default)#channel-list 2.4GHz 1-10

rfs7000-37FABE(config-rf-domain-default)#show context
rf-domain RFDOMAIN_UseCase1
location SanJose
contact txyr399@motorola-solutions.com
timezone America/Los_Angeles
country-code us
channel-list 2.4GHz 1,2,3,4,5,6,7,8,9,10
rfs7000-37FABE(config-rf-domain-default)#
Related Commands

no Removes the list of channels configured on the selected RF Domain for 2.4GHz and 5GHz
bands. Also disables dynamic update of a channel list.


4.1.38.2.2 contact
rf-domain-mode
Configures the contact (the network administrator) in case of problems or issues impacting the RF Domain
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
contact <WORD>
Parameters
• contact <WORD>

contact <WORD> Specify contact details, such as name and number.
Examples
rfs7000-37FABE(config-rf-domain-default)#contact Bob+919620011529

rf-domain default
contact Bob+919620011529
stats update-interval 200
no country-code
use smart-rf-policy Smart-RF1
use wips-policy WIPS1
sensor-server 2 ip 172.16.10.3
override-wlan test vlan-pool 2 limit 20
Related Commands

no Removes contact details configured for a RF Domain


4.1.38.2.3 control-vlan
rf-domain-mode
Configures VLAN for traffic control in this RF Domain
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
control-vlan <1-4094>
Parameters
• control-vlan <1-4094>

<1-4094> Specify the VLAN ID from 1 - 4094.
Examples
rfs7000-37FABE(config-rf-domain-default)#control-vlan 1
rf-domain RFDOMAIN_UseCase1
location SanJose
contact txyr399@motorola-solutions.com
country-code us
channel-list 2.4GHz 1,2,3,4,5,6,7,8,9,10
control-vlan 1
Related Commands

no Disables the VLAN for controlling traffic in a RF Domain


4.1.38.2.4 country-code
rf-domain-mode
Configures a RF Domain’s country of operation. Since device channels transmit in specific channels unique to the country
of operation, it is essential to configure the country code correctly or risk using the access point illegally.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
country-code [<WORD>]
Parameters
• country-code [<WORD>]

country-code Configures the RF Domain’s country of operation
<WORD> Specify the 2 letter ISO-3166 country code.
Examples
rfs7000-37FABE(config-rf-domain-default)#country-code in

rf-domain default
country-code in
Related Commands

no Removes the country of operation configured on a RF Domain


4.1.38.2.5 dhcp-redundancy
rf-domain-mode
Enables DHCP redundancy in this RF Domain
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
dhcp-redundancy
Parameters
None
Examples
rfs7000-37FABE(config-rf-domain-default)#dhcp-redundancy

rf-domain default
country-code in
dhcp-redundancy
Related Commands

no Removes RF Domain DHCP redundancy


4.1.38.2.6 layout
rf-domain-mode
Configures the RF Domain layout in terms of area, floor, and location on a map. It allows users to place APs across the
deployment map. A maximum of 256 layouts is permitted.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
layout [area|floor|map-location]

layout [area|floor|map-location] {(area [<AREA-NAME>]|floor [<FLOOR-NAME>]|
map-location [<URL> units [feet|meters] {area [<AREA-NAME>]|floor [<FLOOR-
NAME>]}}
Parameters
• layout [area|floor|map-location] {(area [<AREA-NAME>]|floor [<FLOOR-NAME>]|
map-location [<URL> units [feet|meters] {area [<AREA-NAME>]|floor [<FLOOR-NAME>]}}

layout Configures the RF Domain layout in terms of area, floor, and location on a map
area <AREA-NAME> Configures the RF Domain area name
• <AREA-NAME> – Specify the area name.
floor <FLOOR-NAME> Configures the RF Domain floor name
• <FLOOR-NAME> – Specify the floor name.
map-location <URL> units Configures the location of the RF Domain on the map
[feet|meters] • <URL> – Specify the URL to configure the map location.
• units – Configures the map units in terms of feet or meters
• feet – Selects the unit of measurement as feet
• meters – Selects the unit of measurement as meters


Examples
rfs7000-37FABE(config-rf-domain-default)#layout map-location www.firstfloor.com
units meters area Ecospace floor Floor5

rf-domain default
country-code us
sensor-server 1 ip 172.16.10.14 port 1
channel-list dynamic
channel-list 2.4GHz 1,2,3,4,5,6,7,8,9,10
layout map-location www.firstfloor.com units meters area Ecospace floor Floor5
Related Commands

no Removes the RF Domain layout details


4.1.38.2.7 location
rf-domain-mode
Configures the physical location of the wireless controller RF Domain. The location could be as specific as the building
name or floor number. Or it could be generic and include an entire site. The location defines the physical area where a
common set of device configurations are deployed and managed by a RF Domain policy.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
location <WORD>
Parameters
• location <WORD>

location <WORD> Configures the RF Domain location by specifying the area or building name
• <WORD> – Specify the location.
Examples
rfs7000-37FABE(config-rf-domain-default)#location SanJose

rf-domain default
location SanJose
no country-code
Related Commands

no Removes the RF Domain location


4.1.38.2.8 mac-name
rf-domain-mode
Configures a relevant name for each MAC address
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
mac-name <MAC> <NAME>
Parameters
• mac-name <MAC> <NAME>

mac-name Configures a relevant name for each MAC address
<MAC> <NAME> Specifies the MAC address
• <NAME> – Specify a friendly name for this MAC address to use in events and
statistics.
Examples
rfs7000-37FABE(config-rf-domain-default)#mac-name 11-22-33-44-55-66 TestDevice

rf-domain default
location SanJose
no country-code
mac-name 11-22-33-44-55-66 TestDevice
Related Commands

no Removes the MAC address to name mapping


4.1.38.2.9 no
rf-domain-mode
Negates a command or reverts configured settings to their default. When used in the config RF Domain mode, the no
command negates or reverts RF Domain settings.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no [channel-list|contact|control-vlan|country-code|dhcp-redundancy|layout|location|
mac-name|override-smartrf|override-wlan|sensor-server|stats|timezone|use]
Parameters
• no [channel-list|contact|control-vlan|country-code|dhcp-redundancy|layout|
location|mac-name|override-smartrf|override-wlan|sensor-server|stats|timezone|
use]

no channel-list Removes the channel list for 2.4GHz and 5GHz bands. Also disables dynamic update
of a channel list
no contact Removes contact details configured
no control-vlan Removes VLAN configured for controlling traffic
no country-code Removes the country of operation configured
no dhcp-redundancy Removes DHCP redundancy
no layout Removes the RF Domain layout details
no location Removes the RF Domain location details
no mac-name Removes the MAC address to name mapping
no override-smartrf Resets the override Smart RF settings to default
no override-wlan Resets the override WLAN settings to default
no sensor-server Disables a AirDefense sensor server details
no stats Resets RF Domain stats settings
no timezone Removes the RF Domain’s time zone
no use Resets RF Domain profile settings


Examples
rfs7000-37FABE(config-rf-domain-default)#mac-name 11-22-33-44-55-66 TestDevice

rf-domain default
location SanJose
no country-code
Related Commands

channel-list Configures the channel list advertised by radios, and enables dynamic update of channel
lists
contact Configures details of the person to contact (or the administrator) in case of any problems
or issues impacting the RF Domain
control-vlan Configures a VLAN for traffic control
country-code Configures a RF Domain’s country of operation
dhcp-redundancy Enables a RF Domain’s DHCP redundancy
layout Configures a RF Domain’s layout maps
location Configures a RF Domain’s deployment location
mac-name Configures a relevant name for each MAC address
override-smart-rf Configures RF Domain level overrides for Smart RF
override-wlan Configures RF Domain level overrides for WLAN
sensor-server Configures a AirDefense sensor server
stats Configures RF Domain stats settings
timezone Configures a RF Domain’s geographic time zone
use Enables the use of a Smart RF and/or WIPS policy


4.1.38.2.10 override-smart-rf
rf-domain-mode
Configures RF Domain level overrides for a Smart RF policy
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
override-smartrf channel-list [2.4GHz|5GHZ] <WORD>
Parameters
• override-smartrf channel-list [2.4GHz|5GHZ] <WORD>

override-smartrf Configures RF Domain level overrides for a Smart RF policy
channel-list Enables the selection of a channel list for a Smart RF policy
2.4GHz <WORD> Selects the 2.4GHz band
• <WORD> – Specify a list of channels separated by commas.
5GHz <WORD> Selects the 5GHz band
• <WORD> – Specify a list of channels separated by commas.
Examples
rfs7000-37FABE(config-rf-domain-default)#override-smartrf channel-list 2.4GHz 1
,2,3
rf-domain default
location SanJose
no country-code
override-smartrf channel-list 2.4GHz 1,2,3
Related Commands

no Resets the override Smart RF settings its default


4.1.38.2.11 override-wlan
rf-domain-mode
Configures RF Domain level overrides for a WLAN
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
overrides-wlan <WLAN> [ssid|vlan-pool|wpa-wpa2-psk]

overrides-wlan <WLAN> [ssid <SSID>|vlan-pool <1-4094> {limit}|wpa-wpa2-psk <WORD>]
Parameters
• overrides-wlan <WLAN> [ssid <SSID>|vlan-pool <1-4094> {limit}|wpa-wpa2-psk <WORD>]

<WLAN> Configures the WLAN name
The name should not exceed 32 characters and should represent the WLAN coverage
area. After creating the WLAN, configure its override parameters.
ssid <SSID> Configures a override Service Set Identifier (SSID) associated with this WLAN
The SSID should not exceed 32 characters.
vlan-pool <1-4094> limit Configures the override VLANs available to this WLAN
• <1-4094> – Specify the VLAN ID from 1 - 4094.
• limit – Optional. Sets a limit to the number of users on this VLAN. The maximum
client limit is 8192 per VLAN. The default is 0.
wpa-wpa2-psk <WORD> Configures the WPA-WPA2 key or passphrase for this WLAN
• <WORD> – Specify a WPA-WPA2 key or passphrase.


Examples
rfs7000-37FABE(config-rf-domain-default)#override-wlan test vlan-pool 2 limit 2
0

rf-domain default
no country-code
Related Commands

no Resets the override WLAN settings its default


4.1.38.2.12 sensor-server
rf-domain-mode
Configures a AirDefense sensor server on this RF Domain. Sensor servers allow network administrators to monitor and
download data from multiple sensors remote locations using Ethernet TCP/IP or serial communications. This enables
administrators to respond quickly to interferences and coverage problems.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
sensor-server <1-3> ip <IP> port [443|8443|<1-65535>]
Parameters
• sensor-server <1-3> ip <IP> port [443|8443|<1-65535>]

Sensor-server <1-3> Configures a AirDefense sensor server parameters
• <1-3> – Select the server ID from 1 - 3. The server with the lowest defined ID is
reached first by the wireless controller. The default is 1.
ip <IP> Configures the (non DNS) IP address of the sensor server
• <IP> – Specify the IP address of the sensor server.
port [443|8443|<1-65535>] Configures the sensor server port. The options are:
• 443 – Configures port 443, the default port used by the AirDefense server
• 8843 – Configures port 883, the default port used by advanced WIPS on a wireless
controller
• <1-6553> – Allows you to select a WIPS/AirDefense sensor server port from
1 - 65535


Examples
rfs7000-37FABE(config-rf-domain-default)#sensor-server 2 ip 172.16.10.3 port 44
3

rf-domain default
no country-code
Related Commands

no Disables a AirDefense sensor server parameters


4.1.38.2.13 stats
rf-domain-mode
Configures stats settings that define how RF Domain statistics are updated
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
stats [open-window|update-interval

stats open-window <1-2> {sample-interval [<5-86640>] {size [<3-100>]}}

stats update-interval [<5-300>|auto]]
Parameters
• stats open-window <1-2> {sample-interval [<5-86640>] {size [<3-100>]}}

stats Configures stats related settings on this RF Domain
open-window <1-2> Opens a stats window to get trending data
• <1-2> – Configures a numerical index ID for this RF Domain statistics
sample-interval <5-86640> Optional. Configures the interval at which the wireless controller captures statistics
supporting this RF Domain
• <5-86640> – Specify the sample interval from 5 - 86640 seconds. The default is 5
seconds.
size <3-100> Optional. After specifying the interval time you might specify the number of samples
used by the wireless controller to define RF Domain statistics.
• <3-100> – Specify the number of samples from 3 - 100. The default is 6 samples.

• stats update-interval [<5-300>|auto]

stats Configures stats related settings on this RF Domain
update-interval Configures the interval at which RF Domain statistics are updated. The options are:
[<5-300>|auto] • <5-300> – Specify an update interval from 5 - 300 seconds.
• auto – The RF Domain manager automatically adjusts the update interval based on
the load.


Examples
rfs7000-37FABE(config-rf-domain-default)#stats update-interval 200

rfs7000-37FABE(config-rf-domain-default)*#show context
rf-domain default
no country-code
rfs7000-37FABE(config-rf-domain-default)*#
Related Commands

no Resets stats related settings


4.1.38.2.14 timezone
rf-domain-mode
Configures the RF Domain’s geographic time zone. Configuring the time zone is essential for RF Domains deployed across
different geographical locations.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
timezone <TIMEZONE>
Parameters
• timezone <TIMEZONE>

time <TIMEZONE> Specify the RF Domain’s time zone.
Examples
rfs7000-37FABE(config-rf-domain-default)#timezone America/Los_Angeles

rf-domain default
no country-code
Related Commands

no Removes a RF Domain’s time zone


4.1.38.2.15 use
rf-domain-mode
Enables the use of Smart RF and WIPS with this RF Domain
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
use [smart-rf-policy|wips-policy]

use [smart-rf-policy <SMART-RF-POLICY-NAME>|wips-policy <WIPS-POLICY-NAME>]
Parameters
• use [smart-rf-policy <SMART-RF-POLICY-NAME>|wips-policy <WIPS-POLICY-NAME>]

use Uses a Smart RF policy with this RF Domain
smart-rf-policy Specifies a Smart RF policy
<SMART-RF-POLICY-NAME> • <SMART-RF-POLICY-NAME> – Specify the Smart RF policy name.

wips-policy Specifies a WIPS policy
<WIPS-POLICY-NAME> <WIPS-POLICY-NAME> – Specify the WIPS policy name.
Examples
rfs7000-37FABE(config-rf-domain-default)#use smart-rf-policy Smart-RF1

rfs7000-37FABE(config-rf-domain-default)#use wips-policy WIPS1

rf-domain default
no country-code
use smart-rf-policy Smart-RF1
Related Commands

no Resets profiles used with this RF Domain


4.1.39 rfs4000
Adds an RFS4000 wireless controller to the network
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
rfs4000 <DEVICE-RFS4000>
Parameters
• rfs4000 <DEVICE-RFS4000>

<DEVICE-RFS4000> Specify the MAC address of the RFS4000.
Examples
rfs7000-37FABEconfig)#RFS4000 10-20-30-40-50-60


4.1.40 rfs6000
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
Parameters

<DEVICE-RFS6000> Specify the MAC address of a RFS6000.
Examples
rfs7000-37FABE(config)#RFS6000 11-20-30-40-50-61


4.1.41 rfs7000
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
Parameters

<DEVICE-RFS7000> Specify the MAC address of a RFS7000.
Examples
rfs7000-37FABE(config)#RFS7000 12-20-30-40-50-62


4.1.42 role-policy
Configures a role-based firewall policy
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
role-policy <ROLE-POLICY-NAME>
Parameters
• role-policy <ROLE-POLICY-NAME>

<ROLE-POLICY-NAME> Specify the role policy name. If the policy does not exist, it is created.
Examples
rfs7000-37FABE(config)#role-policy role1

NOTE: For more information on Role policy commands, see Chapter 20, ROLE-POLICY.


4.1.43 self
Displays the device’s configuration context
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
self
Parameters
None
Examples
rfs7000-37FABE(config)#self


4.1.44 smart-rf-policy
Configures a Smart RF policy
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
smart-rf-policy <SMART-RF-POLICY-NAME>
Parameters
• smart-rf-policy <SMART-RF-POLICY-NAME>

<SMART-RF-POLICY- Specify the Smart RF policy name. If the policy does not exist, it is created.
NAME>
Examples
rfs7000-37FABE(config)#smart-rf-policy test
rfs7000-37FABE(config-smart-rf-policy-test)#

NOTE: For more information on smart-rf policy commands, see Chapter 21, SMART-RF-
POLICY.


4.1.45 wips-policy
Configures a WIPS policy
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
wips-policy <WIPS-POLICY-NAME>
Parameters
• wips-policy <WIPS-POLICY-NAME>

<WIPS-POLICY-NAME> Specify the WIPS policy name. If the policy does not exist, it is created.
Examples
rfs7000-37FABE(config)#wips-policy test
rfs7000-37FABE(config-wips-policy-test)#

NOTE: For more information on WIPS policy commands, see Chapter 22, WIPS-POLICY.


4.1.46 wlan
Configures a wireless LAN
Table 4.16 WLAN Commands

wlan Configures a wireless LAN page 4-129


4.1.46.1 wlan
wlan
Configures a WLAN or enters WLAN configuration context for one or more WLANs
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
wlan {<WLAN-NAME>|containing <WLAN-NAME>}
Parameters
• wlan {<WLAN-NAME>|containing <WLAN-NAME>}

wlan <WLAN-NAME> Configures a new wireless LAN
• <WLAN-NAME> – Optional. Specify the WLAN name.
containing <WLAN-NAME> Optional. Configures an existing WLAN’s configuration context
• <WLAN-NAME> – Specify a sub-string in the WLAN name. Use this parameter to
filter a WLAN
Examples
rfs7000-37FABE(config)#wlan 1
rfs7000-37FABE(config-wlan-1)#

rfs7000-37FABE(config)#wlan containing wlan1
rfs7000-37FABE(config-wlan-{'containing': 'wlan1'})#


4.1.46.2 wlan-mode commands
wlan
Configures WLAN mode commands. Manual WLAN mappings are erased when the actual WLAN is disabled and then
enabled immediately
Use the (config) instance to configure WLAN related parameters.
To navigate to this instance, use the following commands:
rfs7000-37FABE(config)#wlan <WLAN>
Table 4.17 summarizes WLAN mode commands
Table 4.17 wlan-mode commands

802.11w Enables support for Protected Management Frame (IEEE 802.11w) settings page 4-164
accounting Defines WLAN accounting configuration page 4-165
acl Defines the actions based on an ACL rule configuration page 4-166
answer- Allows a WLAN to respond to probes for broadcast ESS page 4-167
broadcast-probes
authentication- Sets a WLAN’s authentication type page 4-168
type
bridging-mode Configures how packets to/from this WLAN are bridged page 4-170
broadcast-dhcp Configures broadcast DHCP packet handling page 4-171
broadcast-ssid Advertises a WLAN’s SSID in beacons page 4-172
captive-portal- Configures a WLAN’s captive portal enforcement page 4-173
enforcement
client-access Enables WLAN client access (normal data operations) page 4-174
client-client- Allows the switching of frames from one wireless client to another on a WLAN page 4-175
communication
client-load- Enables load balancing of WLAN clients page 4-176
balancing
data-rates Specifies the 802.11 rates supported on the WLAN page 4-178
description Sets a WLAN’s description page 4-182
encryption-type Sets a WLAN’s encryption type page 4-183
enforce-dhcp Drops packets from clients with a static IP address page 4-185
ip Configures IP settings page 4-186
kerberos Configures Kerberos authentication parameters page 4-188
motorola- Enables support for Motorola Solutions specific extensions to 802.11 page 4-190
extensions


Table 4.17 wlan-mode commands

no Negates a command or sets its default value page 4-192
proxy-arp-mode Enables the proxy ARP mode for ARP requests page 4-195
radius Configures the RADIUS related parameters page 4-196
shutdown Closes a WLAN page 4-197
ssid Configures a WLAN’s SSID page 4-198
use Defines WLAN mode configuration settings page 4-199
vlan Sets VLAN assignment for a WLAN page 4-201
vlan-pool-member Adds a member VLAN to the pool of VLANs for a WLAN page 4-202
wep128 Configures WEP128 parameters page 4-204
wep64 Configures WEP64 parameters page 4-206
wireless-client Configures the transmit power for wireless clients transmission page 4-208
wpa-wpa2 Modifies TKIP and CCMP (WPA/WPA2) related parameters page 4-210


4.1.46.2.1 802.11w
wlan-mode commands
Enables support for Protected Management Frames (PMF) (IEEE 802.11w) settings
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
802.11w [mandatory|optional|sa-query]

802.11w [mandatory|optional]

802.11w sa-query [attempts <1-15>|timeout <100-6000>]
Parameters
• 802.11w [mandatory|optional]

802.11w mandatory Enforces WLAN PMF settings
802.11w optional Advertises support for PMF, but it is enforced only for clients that indicate their support

• 802.11w sa-query [attempts <1-15>|timeout <100-6000>]

802.11w sa-query Enables security association (SA) query settings
attempts <1-15> Sets the number of times an SA query message is attempted
time-out <100-600> Sets the timeout period, when waiting for a response to an sa query, before re-sending
Examples
rfs7000-37FABE(config-wlan-wlan1)#802.11w sa-query timeout 110
rfs7000-37FABE(config-wlan-wlan1)#

rfs7000-37FABE(config-wlan-wlan1)#802.11w sa-query attempts 1

rfs7000-37FABE(config-wlan-wlan1)#show context
wlan wlan1
ssid wlan1
bridging-mode tunnel
encryption-type none
authentication-type none
802.11w sa-query timeout 110
802.11w sa-query attempts 1


4.1.46.2.2 accounting
wlan-mode commands
Defines the WLAN’s accounting configuration
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
accounting [radius|syslog]

accounting radius

accounting [syslog host <IP/HOSTNAME> {port [<1-65535>]}]
Parameters
• accounting radius

accounting radius Enables support for WLAN RADIUS accounting messages

• accounting [radius|syslog host <IP/HOSTNAME> {port [<1-65535>]}]

accounting syslog Enables support for WLAN syslog accounting messages
host <IP/HOSTNAME> Configures a syslog destination hostname or IP address for accounting records
• <IP/HOSTNAME> – Specify the IP address or name of the destination host.
port <1-65535> Optional. Configures the syslog server’s UDP port (this port is used to connect to the server)
• <1-65535> – Specify the port from 1 - 65535.
Examples
rfs7000-37FABE(config-wlan-wlan1)#accounting syslog host 172.16.10.12 port 2

wlan wlan1
ssid wlan1
accounting syslog host 172.16.10.12 port 2


4.1.46.2.3 acl
wlan-mode commands
Defines the actions taken based on an ACL rule configuration
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
acl exceed-rate wireless-client-denied-traffic <0-1000000> {blacklist
|disassociate}
acl exceed-rate wireless-client-denied-traffic <0-1000000> {blacklist
<0-86400>|disassociate}
Parameters
• acl exceed-rate wireless-client-denied-traffic <0-1000000> {blacklist
<0-86400>|disassociate}

acl exceed-rate Sets the actions taken based on an ACL rule configuration (for example, drop a packet)
• exceed-rate – Action is taken when the rate exceeds a specified value
wireless-client-denied- Sets the action to deny traffic to the wireless client, when the rate exceeds the specified
traffic <0-1000000> value
• <0-1000000> – Specify a allowed rate threshold of disallowed traffic in packets/sec.
blacklist <0-86400> Optional. When enabled, sets the time interval to blacklist a wireless client
disassociate Optional. When enabled, disassociates a wireless client
Examples
rfs7000-37FABE(config-wlan-wlan1)#acl exceed-rate wireless-client-denied-traffic
20 disassociate
wlan wlan1
ssid wlan1
acl exceed-rate wireless-client-denied-traffic 20 disassociate


4.1.46.2.4 answer-broadcast-probes
wlan-mode commands
Allows the WLAN to respond to probe requests that do not specify an SSID. These probes are for broadcast ESS.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
answer-broadcast-probes
Parameters
None
Examples
rfs7000-37FABE(config-wlan-wlan1)#answer-broadcast-probes


4.1.46.2.5 authentication-type
wlan-mode commands
Sets the WLAN’s authentication type
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
authentication-type [eap|eap-mac|eap-psk|kerberos|mac|none]
Parameters
• authentication-type [eap|eap-mac|eap-psk|kerberos|mac|none]

authentication-type Configures a WLAN’s authentication type
The authentication types are: EAP, EAP-MAC, EAP-PSK, Kerberos, MAC, and none.
eap Configures Extensible Authentication Protocol (EAP) authentication (802.1X)
eap-mac Configures EAP or MAC authentication depending on client
eap-psk Configures EAP authentication or pre-shared keys depending on client (This setting is only
valid with Temporal Key Integrity Protocol (TKIP) or Counter Mode with Cipher Block Chaining
Message Authentication Code Protocol (CCMP))
kerberos Configures Kerberos authentication (encryption will change to WEP128 if it’s not already
WEP128 or Keyguard)
mac Configures MAC authentication (RADIUS lookup of MAC address)
none No authentication is used or the client uses pre-shared keys


Examples
rfs7000-37FABE(config-wlan-wlan1)#authentication-type eap

wlan wlan1
ssid wlan1
authentication-type eap


4.1.46.2.6 bridging-mode
wlan-mode commands
Configures how packets are bridged to and from a WLAN
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
bridging-mode [local|tunnel]
Parameters
• bridging-mode [local|tunnel]

bridging-mode Configures how packets are bridged to and from a WLAN. The options available are local and
tunnel.
local Bridges packets between WLAN and local ethernet ports
tunnel Tunnels packets to other devices (typically a wireless controller)

Examples
rfs7000-37FABE(config-wlan-wlan1)#bridging-mode local

wlan wlan1
ssid wlan1
bridging-mode local


4.1.46.2.7 broadcast-dhcp
wlan-mode commands
Configures the broadcast DHCP packet handling parameters
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
broadcast-dhcp validate-offer
Parameters
• broadcast-dhcp validate-offer

validate-offer Validates the broadcast DHCP packet destination (a wireless client associated to the
radio) before forwarding over the air
Examples
rfs7000-37FABE(config-wlan-wlan1)#broadcast-dhcp validate-offer

wlan wlan1
ssid wlan1
bridging-mode local


4.1.46.2.8 broadcast-ssid
wlan-mode commands
Advertises the WLAN SSID in beacons
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
broadcast-ssid
Parameters
None
Examples
rfs7000-37FABE(config-wlan-wlan1)#broadcast-ssid


4.1.46.2.9 captive-portal-enforcement
wlan-mode commands
Configures the WLAN’s captive portal enforcement
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
captive-portal-enforcement {fall-back}
Parameters
• captive-portal-enforcement {fall-back}

captive-portal-enforcement Enables captive portal enforcement on a WLAN
fall-back Optional. Enforces captive portal validation if WLAN authentication fails (applicable to
EAP or MAC authentication only)
Examples
rfs7000-37FABE(config-wlan-wlan1)#captive-portal-enforcement fall-back

wlan wlan1
ssid wlan1
bridging-mode local
captive-portal-enforcement fall-back


4.1.46.2.10 client-access
wlan-mode commands
Enables WLAN client access (for normal data operations)
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
client-access
Parameters
None
Examples
rfs7000-37FABE(config-wlan-wlan1)#client-access


4.1.46.2.11 client-client-communication
wlan-mode commands
Allows frame switching from one client to another on a WLAN
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
client-client-communication
Parameters
None
Examples
rfs7000-37FABE(config-wlan-wlan1)#client-client-communication
rfs7000-37FABE(config-wlan-wlan1)#s


4.1.46.2.12 client-load-balancing
wlan-mode commands
Configures client load balancing on a WLAN
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
client-load-balancing {allow-single-band-clients|band-discovery-intvl|
capability-ageout-time|max-probe-req|probe-req-invl}

client-load-balancing {allow-single-band-clients [2.4Ghz|5Ghz]|
band-discovery-intvl [<0-10000>]|capability-ageout-time [<0-10000>]}

client-load-balancing {{max-probe-req|probe-req-intvl} [2.4Ghz|5Ghz] [<0-10000>]}
Parameters
• client-load-balancing {allow-single-band-clients [2.4Ghz|5Ghz]|
band-discovery-intvl [<0-10000>]|capability-ageout-time [<0-10000>]}

client-load-balancing Configures client load balancing on a WLAN
allow-single-band-clients Optional. Allows single band clients to associate even during load balancing
[2.4GHz|5GHz] • 2.4GHz – Enables load balancing across 2.4GHz channels
• 5GHz – Enables load balancing across 5GHz channels
band-discovery-intvl Optional. Configures time interval to discover a client's band capability before
<0-10000> associating it
• <0-10000> – Specify a value from 0 - 10000 seconds.
capability-ageout-time Optional. Configures a client's capability ageout interval
<0-10000> • <0-10000> – Specify a value from 0 - 10000 seconds.

• client-load-balancing {{max-probe-req|probe-req-intvl} [2.4Ghz|5Ghz]
[<0-10000>]}

client-load-balancing Configures load balancing of clients on a WLAN


max-probe-req Optional. Configures client probe request interval limits for association
[2.4GHz|5GHz] <0-10000> • 2.4GHz – Configures maximum client probe requests on 2.4GHz radios
• 5GHz – Configures maximum client probe requests on 5GHz radios
• <0-10000> – Specify a client probe request threshold from 0 - 100000.
probe-req-intvl Optional. Configures client probe request interval limits for association
2.4GHz|5GHz] <0-10000> • 2.4GHz – Configures client probe request interval on 2.4GHz radios
• 5GHz – Configures client probe request interval on 5GHz radios
Examples
rfs7000-37FABE(config-wlan-wlan1)#client-load-balancing allow-single-band-clients
2.4ghz

rfs7000-37FABE(config-wlan-wlan1)#client-load-balancing band-discovery-intvl 2

rfs7000-37FABEconfig-wlan-wlan1)#client-load-balancing probe-req-intvl 5ghz 5

wlan wlan1
ssid wlan1
bridging-mode local
client-load-balancing probe-req-intvl 5ghz 5
client-load-balancing band-discovery-intvl 2


4.1.46.2.13 data-rates
wlan-mode commands
Specifies the 802.11 rates supported on a WLAN
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
data-rates [2.4GHz|5GHz]

data-rates 2.4GHz [b-only|bg|bgn|custom|default|g-only|gn]

data-rates 2.4GHz [b-only|bg|bgn|default|g-only|gn]

data-rates 2.4GHz custom [1|11|12|18|2|24|36|48|5.5|54|6|9|
basic-1|basic-11|basic-12|basic-18|basci-2|basic-24|basic-36|
basic-48|basic-5.5|basic-54|basic-6|basic-9|basic-mcs0-7|mcs0-15|
mcs0-7|mcs8-15]

data-rates 5GHz [a-only|an|custom|default]

data-rates 5GHz [a-only|an|default]

data-rates 5GHz custom [12|18|24|36|48|54|6|9|basic-1|basi-11|
basic-12|basic-18|basic-2|basic-24|basic-36|basic-48|basic-5.5|basic-54|
basic-6|basic-9|basic-mcs0-7|mcs0-15|mcs0-7|mcs8-15]
Parameters
• data-rates 2.4GHz [b-only|bg|bgn|default|g-only|gn]

data-rates Specifies the 802.11 rates supported when mapped to a 2.4GHz radio
b-only Uses rates that support only 11b clients
bg Uses rates that support both 11b and 11g clients
bgn Uses rates that support 11b, 11g and 11n clients
default Uses the default rates configured for a 2.4GHz radio
g-only Uses rates that support operation in the 11g only mode
gn Uses rates that support 11g and 11n clients


• data-rates 5GHz [a-only|an|default]

data-rates Specifies the 802.11 rates supported when mapped to a 5GHz radio
a-only Uses rates that support operation in 11a only
an Uses rates that support 11a and 11n clients
default Uses default rates configured for a 5GHz

• data-rates [2.4GHz|5GHz] custom [1|11|12|18|2|24|36|48|5.5|54|6|9|
basic-1|basic-11|basic-12|basic-18|basic-2|basic-24|basic-36|
basic-48|basic-5.5|basic-54|basic-6|basic-9|basic-mcs0-7|mcs0-15|
mcs0-7|mcs8-15]

data-rates [2.4GHz|5GHz] Specifies the 802.11 rates supported when mapped to a 2.4GHz or 5GHz radio
custom Configures a data rates list by specifying each rate individually. Use 'basic-' prefix before
a rate to indicate it is used as a basic rate (For example, 'data-rates custom basic-1 basic-
2 5.5 11').
The data-rates for 2.4GHz and 5GHz channels are the same with a few exceptions. The
2.4GHz channel has a few extra data rates: 1, 11, 2, and 5.5.


1,11,2,5.5 The following data rates are specific to the 2.4GHz channel:
• 1 – 1-Mbps
• 11 – 11-Mbps
• 2 – 2-Mbps
• 5.5 – 5.5-Mbps
12,18,24,36,48,54,6,9, The following data rates are common to both the 2.4Ghz and 5GHz channels:
basic-1,basic-11, • 12 – 12 Mbps
basic-12,basic-18,basic-2,
• 18 – 18-Mbps
basic-36,basic-48,basic-
5.5, • 24 – 24 Mbps
basic-54,basic-6,basic-9, • 36 – 36-Mbps
basic-mcs0-7,mcs0-15, • 48 – 48-Mbps
mcs0-7,mcs8-15 • 54 – 54-Mbps
• 6 – 6-Mbps
• 9 – 9-Mbps
• basic-1 – basic 1-Mbps
• basic-5.5 – basic 5.5-Mbps
• basic-mcs0-7 – Modulation and coding scheme 0-7 as a basic rate
• mcs0-15 – Modulation and coding scheme 0-15


Examples
rfs7000-37FABE(config-wlan-wlan1)#data-rates 2.4GHz gn

wlan wlan1
ssid wlan1
bridging-mode local
data-rates 2.4GHz gn


4.1.46.2.14 description
wlan-mode commands
Defines the WLAN description
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
description <LINE>
Parameters
• description <LINE>

<LINE> Specify a WLAN description
Examples
rfs7000-37FABE(config-wlan-wlan1)#description testwlan

wlan wlan1
description testwlan
ssid wlan1
bridging-mode local


4.1.46.2.15 encryption-type
wlan-mode commands
Sets a WLAN’s encryption type
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
encryption-type [ccmp|keyguard|none|tkip|tkip-ccmp|wep128|
web128-keyguard|wep64]
Parameters
• encryption-type [ccmp|keyguard|none|tkip|tkip-ccmp|wep128|
web128-keyguard|wep64]

encryption-type Configures the WLAN’s data encryption parameters
ccmp Configures Advanced Encryption Standard (AES) Counter Mode CBC-MAC Protocol
(AES-CCM/CCMP)
keyguard Configures Keyguard-MCM (Mobile Computing Mode)
tkip Configures TKIP
tkip-ccmp Configures the TKIP and AES-CCM/CCMP encryption modes
wep128 Configures WEP with 128 bit keys
wep128-keyguard Configures WEP128 as well as Keyguard-MCM encryption modes
wep64 Configures WEP with 64 bit keys. A WEP64 configuration is insecure when two WLANs
are mapped to the same VLAN, and one uses no encryption while the other uses WEP.


Examples
rfs7000-37FABEconfig-wlan-wlan1)#encryption-type tkip-ccmp

wlan wlan1
ssid wlan1
bridging-mode local
encryption-type tkip-ccmp


4.1.46.2.16 enforce-dhcp
wlan-mode commands
Drops packets from clients with a static IP address
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
enforce-dhcp
Parameters
None
Examples
rfs7000-37FABE(config-wlan-wlan1)#enforce-dhcp

wlan wlan1
ssid wlan1
bridging-mode local
enforce-dhcp


4.1.46.2.17 ip
wlan-mode commands
Configures Internet Protocol (IP) settings
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ip [arp|dhcp]

ip arp [header-mismatch-validation|trust]

ip dhcp trust
Parameters
• ip arp [header-mismatch-validation|trust]

ip arp Configures the IP settings for ARP packets
header-mismatch- Verifies mismatch of source MAC address in the ARP and Ethernet headers
validation
trust Sets ARP responses as trusted for a WLAN/range
• ip dhcp trust

ip dhcp Configures the IP settings for DHCP packets
trust Sets DHCP responses as trusted for a WLAN/range


Examples
rfs7000-37FABE(config-wlan-wlan1)#ip dhcp trust

wlan wlan1
ssid wlan1
bridging-mode local
ip dhcp trust
enforce-dhcp


4.1.46.2.18 kerberos
wlan-mode commands
Configures Kerberos authentication parameters on a WLAN
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
kerberos [password|realm|server]

kerberos password [0 <LINE>|2 <LINE>|<LINE>]

kerberos realm <REALM>

kerberos server [primary|secondary|timeout]

kerberos server [primary|secondary] host <IP/HOSTNAME> {port [<1-65535>]}

keberos server timeout <1-60>
Parameters
• kerberos password [0 <LINE>|2 <LINE>|<LINE>]

kerberos Configures a WLAN’s Kerberos authentication parameters
The parameters are: password, realm, and server.
password Configures a Kerberos Key Distribution Center (KDC) server password. The password
should not exceed 127 characters. The password options are:
• 0 <LINE> – Configures a clear text password
• 2 <LINE> – Configures an encrypted password
• <LINE> – Specify the password.

• kerberos realm <REALM>

realm <REALM> Configures a Kerberos KDC server realm. The REALM should not exceed 127 characters.


• kerberos server [primary|secondary] host <IP/HOSTNAME> {port [<1-65535>]}

server Configures the primary and secondary KDC server parameters
[primary|secondary] • primary – Configures the primary KDC server parameters
• secondary – Configures the secondary KDC server parameters
host <IP/HOSTNAME> Sets the primary or secondary KDC server address
• <IP/HOSTNAME> – Specify the IP address or name of the KDC server.
port <1-65535> Optional. Configures the UDP port used to connect to the KDC server
• <1-65535> – Specify the port from 1 - 65535. The default is 88.
• keberos server timeout <1-60>

timeout <1-60> Modifies the Kerberos KDC server‘s timeout parameters
• <1-60> – Specifies the time the wireless controller waits for a response from the
Kerberos KDC server before retrying. Specify a value from 1 - 60 seconds.
Examples
rfs7000-37FABE(config-wlan-wlan1)#kerberos server timeout 12

rfs7000-37FABE(config-wlan-wlan1)#kerberos server primary host 172.16.10.9 port
88

wlan wlan1
ssid wlan1
bridging-mode local
kerberos server timeout 12
kerberos server primary host 172.16.10.9
ip dhcp trust
enforce-dhcp


4.1.46.2.19 motorola-extensions
wlan-mode commands
Enables support for Motorola Solutions specific extensions to 802.11
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
motorola-extensions [move-command|smart-scan|symbol-load-information|
wmm-load-information]
Parameters
• otorola-extensions [move-command|smart-scan|symbol-load-information|
wmm-load-information]

motorola-extensions Enables support for Motorola Solutions specific extensions to 802.11
move-command Enables support for Motorola move (fast roaming) feature
smart-scan Enables support for smart scanning feature
symbol-load-information Enables support for the Symbol Technologies load information element (Element ID 173)
wmm-load-information Enables support for the Motorola Solutions WMM load information element


Examples
rfs7000-37FABE(config-wlan-wlan1)#motorola-extensions wmm-load-information

wlan wlan1
ssid wlan1
bridging-mode local
motorola-extensions wmm-load-information
ip dhcp trust
enforce-dhcp


4.1.46.2.20 no
wlan-mode commands
Negates WLAN mode commands and reverts values to their default
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no <parameter>
Parameters
None
Usage Guidelines
Examples
rfs7000-37FABE(config-wlan-wlan1)#no ?
802.11w Disable support for Protected Management Frames
(IEEE 802.11w)
accounting Configure how accounting records are created
for this wlan
acl Actions taken based on ACL configuration [
packet drop being one of them]
answer-broadcast-probes Do not Include this wlan when responding to
probe requests that do not specify an SSID
authentication-type Reset the authentication to use on this wlan to
default (none/Pre-shared keys)
broadcast-dhcp Configure broadcast DHCP packet handling
broadcast-ssid Do not advertise the SSID of the WLAN in
beacons
captive-portal-enforcement Configure how captive-portal is enforced on the
wlan
client-access Disallow client access on this wlan (no data
operations)
client-client-communication Disallow switching of frames from one wireless
client to another on this wlan
client-load-balancing Disable load-balancing of clients on this wlan
data-rates Reset data rate configuration to default
description Reset the description of the wlan
encryption-type Reset the encryption to use on this wlan to
default (none)
enforce-dhcp Drop packets from Wireless Clients with static
IP address
kerberos Configure kerberos authentication parameters
motorola-extensions Disable support for Motorola-Specific


extensions to 802.11
proxy-arp-mode Configure handling of ARP requests with
proxy-arp is enabled
radius Configure RADIUS related parameters
shutdown Enable the use of this wlan
ssid Configure ssid
vlan Map the default vlan (vlan-id 1) to the wlan
vlan-pool-member Delete a mapped vlan from this wlan
wep128 Reset WEP128 parameters
wep64 Reset WEP64 parameters
wireless-client Configure wireless-client specific parameters
wpa-wpa2 Modify tkip-ccmp (wpa/wpa2) related parameters


The wlan1 settings before the execution of the no command:

wlan wlan1
ssid wlan1
bridging-mode local
ip dhcp trust
enforce-dhcp

rfs7000-37FABE(config-wlan-wlan1)#no accounting syslog

rfs7000-37FABE(config-wlan-wlan1)#no description

rfs7000-37FABE(config-wlan-wlan1)#no authentication-type

rfs7000-37FABE(config-wlan-wlan1)#no encryption-type

rfs7000-37FABE(config-wlan-wlan1)#no enforce-dhcp

rfs7000-37FABE(config-wlan-wlan1)#no kerberos server primary host

rfs7000-37FABE(config-wlan-wlan1)#no kerberos server timeout

rfs7000-37FABE(config-wlan-wlan1)#no data-rates 2.4GHz
The wlan1 settings after the execution of the no command:


wlan wlan1
ssid wlan1
bridging-mode local
ip dhcp trust


4.1.46.2.21 proxy-arp-mode
wlan-mode commands
Enables proxy ARP mode for handling ARP requests
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
proxy-arp-mode [dynamic|strict]
Parameters
• proxy-arp-mode [dynamic|strict]

proxy-arp-mode Enables proxy ARP mode for handling ARP requests. The options available are dynamic
and strict.
dynamic Forwards ARP requests to the wireless side (for which a response could not be proxied)
strict Does not forward ARP requests to the wireless side
Examples
rfs7000-37FABE(config-wlan-wlan1)#proxy-arp-mode strict
wlan wlan1
ssid wlan1
bridging-mode local
ip dhcp trust
proxy-arp-mode strict


4.1.46.2.22 radius
wlan-mode commands
Configures RADIUS related parameters
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
radius [dynamic-authorization|nas-identifier|nas-port-id|vlan-assignment]

radius [dynamic-authorization|nas-identifier <NAS-ID>|
nas-port-id <NAS-PORT-ID>|vlan-assignment]
Parameters
• radius [dynamic-authorization|nas-identifier <NAS-ID>|
nas-port-id <NAS-PORT-ID>|vlan-assignment]

dynamic-authorization Enables support for disconnect and change of authorization messages (RFC5176)
nas-identifier <NAS-ID> Configures the WLAN NAS identifier sent to the RADIUS server. The NAS identifier
should not exceed 256 characters.
nas-port-id Configures the WLAN NAS port ID sent to the RADIUS server. The NAS port identifier
<NAS-PORT-ID> should not exceed 256 characters.
vlan-assignment Configures the VLAN assignment of a WLAN
Examples
rfs7000-37FABE(config-wlan-wlan1)#radius vlan-assignment

wlan wlan1
ssid wlan1
bridging-mode local
radius vlan-assignment


4.1.46.2.23 shutdown
wlan-mode commands
Shuts down a WLAN
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
shutdown
Parameters
None
Examples
rfs7000-37FABE(config-wlan-1)#shutdown


4.1.46.2.24 ssid
wlan-mode commands
Configures a WLAN’s SSID
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
ssid <SSID>
Parameters
• ssid <SSID>

<SSID> Specify the WLAN’s SSID. The WLAN SSID is case sensitive and alphanumeric. It’s
length should not exceed 32 characters.
Examples
rfs7000-37FABE(config-wlan-wlan1)#ssid test1

wlan wlan1
ssid test1
bridging-mode local


4.1.46.2.25 use
wlan-mode commands
This command associates an existing captive portal with a WLAN.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
use [aaa-policy|association-acl-policy|captive-portal|ip-access-list|
mac-access-list|wlan-qos-policy]

use [aaa-policy <AAA-POLICY-NAME>|association-acl-policy <ASSOCIATION-POLICY-
NAME>|captive-portal <CAPTIVE-PORTAL-NAME>|wlan-qos-policy <WLAN-QOS-POLICY-
NAME>]

use ip-access-list [in|out] <IP-ACCESS-LIST-NAME>
use mac-access-list [in|out] <MAC-ACCESS-LIST-NAME>
Parameters
• use [aaa-policy <AAA-POLICY-NAME>|association-acl-policy <ASSOCIATION-POLICY-
NAME>|captive-portal <CAPTIVE-PORTAL-NAME>|wlan-qos-policy <WLAN-QOS-POLICY-NAME>]

aaa-policy Uses a specified AAA policy with a WLAN
<AAA-POLICY-NAME> • <AAA-POLICY-NAME> – Specify the name of the AAA policy.
association-acl Uses a specified association ACL policy with a WLAN
<ASSOCIATION-POLICY- • <ASSOCIATION-POLICY-NAME> – Specify the name of the association ACL policy.
NAME>
captive-portal Enables a WLAN’s captive portal authentication
<CAPTIVE-PORTAL-NAME> • <CAPTIVE-PORTAL-NAME> – Specify the name of the captive portal.
wlan-qos-policy Uses a specified WLAN QoS policy with a WLAN
<WLAN-QOS-POLICY- • <wlan-qos-policy-name> – Specify the name of the WLAN QoS policy.
NAME>

• use ip-access-list [in|out] <IP-ACCESS-LIST-NAME>]

ip-access-list [in|out] <IP- Specifies the IP access list for incoming and outgoing packets
ACCESS-LIST-NAME> • in – Incoming packets
• out – Outgoing packets
• <IP-ACCESS-LIST-NAME> – Specify the name of the IP access list.


• use mac-access-list [in|out] <MAC-ACCESS-LIST-NAME>

mac-access-list [in|out] Specifies the MAC access list for incoming and outgoing packets.
<MAC-ACCESS-LIST- • in – Incoming packets
NAME>
• out – Outgoing packets
• <MAC-ACCESS-LIST-NAME> – Specify the name of the MAC access list.
Examples
rfs7000-37FABE(config-wlan-wlan1)#use ip-access-list in symbol

wlan wlan1
ssid test1
bridging-mode local
use ip-access-list in symbol


4.1.46.2.26 vlan
wlan-mode commands
Sets the VLAN where traffic from a WLAN is mapped
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
vlan <1-4094>
Parameters
• vlan <1-4094>

<1-4094> Sets a WLAN’s VLAN ID. This command starts a new VLAN assignment for a WLAN index.
All prior VLAN settings are erased.
Examples
rfs7000-37FABE(config-wlan-wlan1)#vlan 4

wlan wlan1
ssid test1
vlan 4
bridging-mode local


4.1.46.2.27 vlan-pool-member
wlan-mode commands
Adds a member VLAN to a WLAN’s VLAN pool

NOTE: Configuration of a VLAN pool overrides the 'vlan' configuration.

• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
vlan-pool-member <WORD> {limit [<0-8192>]}
Parameters
• vlan-pool-member <WORD> {limit [<0-8192>]}

vlan-pool-member Adds a member VLAN to a WLAN’s VLAN pool
<WORD> Defines the VLAN configuration. It is either a single index, or a list of VLAN IDs (For
example, 1,3,7)
limit <0-8192> Optional. Is ignored if the number of clients are limited and well within the limits of the
DHCP pool on the VLAN
• <0-8192> – Specifies the number of users allowed


Examples
rfs7000-37FABE(config-wlan-wlan1)#vlan-pool-member 1-10 limit 1

wlan wlan1
ssid test1
vlan-pool-member 1 limit 1
bridging-mode local


4.1.46.2.28 wep128
wlan-mode commands
Configures WEP128 parameters
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
wep128 [key|keys-from-passkey|transmit-key]

wep128 key <1-4> [ascii|hex] [0 <WORD>|2 <WORD>|<WORD>]

wep128 keys-from-passkey <WORD>

wep128 transmit-key <1-4>
Parameters
• wep128 key <1-4> [ascii|hex] [0 <WORD>|2 <WORD>|<WORD>]

wep128 Configures WEP128 parameters. The parameters are: key, key-from-passkey, and
transmit-key.
key <1-4>] Configures pre-shared hex keys
• <1-4> – Configures a maximum of four key indexes. Select the key index from
1 - 4.
ascii Sets keys as ASCII characters (5 characters for WEP64, 13 for WEP128)
[0 <WORD>| • 0 <WORD> – Configures a clear text key
2 <WORD>|<WORD>]
• 2 <WORD> – Configures an encrypted key
• <WORD> – Configures keys as 13 ASCII characters converted to hex, or 26
hexadecimal characters
hex Sets keys as hexadecimal characters (10 characters for WEP64, 26 for WEP128).
2 <WORD>|<WORD>]
• <WORD> – Configures keys as 13 ASCII characters converted to hex, or 26
hexadecimal characters


• wep128 keys-from-passkey <WORD>]

keys-from-passkey Specifies a passphrase from which keys are derived
<WORD> • <WORD> – Specify a passphrase from 4 - 32 characters.

• wep128 transmit-key <1-4>]

transmit-key <1-4> Configures the key index used for transmission from an AP to a wireless client
• <1-4> – Specify a key index from 1 - 4.
Examples
rfs7000-37FABE(config-wlan-wlan1)#wep128 transmit-key 1


4.1.46.2.29 wep64
wlan-mode commands
Configures WEP64 parameters
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
wep64 [key|keys-from-passkey|transmit-key]

wep64 key <1-4> [ascii|hex] [0 <WORD>|2 <WORD>|<WORD>]

wep64 keys-from-passkey <WORD>

wep64 transmit-key <1-4>]
Parameters
• wep64 key <1-4> [ascii|hex] [0 <WORD>|2 <WORD>|<WORD>]

wep64 Configures WEP64 parameters
The parameters are: key, key-from-passkey, and transmit-key.
key <1-4>] Configures pre-shared hex keys
• <1-4> – Configures a maximum of four key indexes. Select a key index from 1 - 4.
ascii Sets keys as ASCII characters (5 characters for WEP64, 13 for WEP128)
2 <WORD>|<WORD>]
• <WORD> – Configures key (10 hex or 5 ASCII characters for WEP64, 26 hex or 13 ASCII
characters for WEP128).
hex Sets keys as hexadecimal characters (10 characters for WEP64, 26 for WEP128).
2 <WORD>|<WORD>]
• <WORD> – Configures the key (10 hex or 5 ASCII characters for WEP64, 26 hex or 13
ASCII characters for WEP128)

• wep64 keys-from-passkey <WORD>]

keys-from-passkey Specifies a passphrase from which keys are derived
<WORD> • <WORD> – Specify a passphrase from 4 - 32 characters.


• wep64 transmit-key <1-4>]

transmit-key <1-4> Configures the key index used for transmission from an AP to a wireless client
• <1-4> – Specify a key index from 1 - 4.
Examples
rfs7000-37FABE(config-wlan-wlan1)#wep64 key 1 ascii symbo

rfs7000-37FABE(config-wlan-wlan1)#wep64 transmit-key 1


4.1.46.2.30 wireless-client
wlan-mode commands
Configures the transmit power indicated to clients
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
wireless-client [cred-cache-ageout|hold-time |inactivity-timeout|
max-firewall-sessions|reauthentication|tx-power|vlan-cache-out]

wireless-client [cred-cache-ageout <60-86400>|hold-time <1-300>|
inactivity-timeout <60-86400>|max-firewall-sessions <10-10000>|
reauthentication <30-86400>|tx-power <0-20>|vlan-cache-out <60-86400>]
Parameters
• wireless-client [cred-cache-ageout <60-86400>|hold-time <1-300>|
inactivity-timeout <60-86400>|max-firewall-sessions <10-10000>|
reauthentication <30-86400>|tx-power <0-20>|vlan-cache-out <60-86400>]

wireless-client Configures the transmit power indicated to wireless clients for transmission
cred-cache-ageout Configures the timeout period for which client credentials (For example, encryption keys)
<60-86400> are cached across associations
hold-time <1-300> Configures the time period for which wireless client state information is cached post
roaming
inactivity-timeout Configures an inactivity timeout period in seconds. If a frame is not received from a
<60-86400> wireless client for this period of time, the client is disassociated.
max-firewall-sessions Configures the maximum firewall sessions allowed per client on a WLAN
<10-10000> • <10-10000> – Specify the maximum number of firewall sessions allowed from
10 - 10000.
reauthentication Configures periodic reauthentication of associated clients
<30-86400> • <30-86400> – Specify the client reauthentication interval from 30 - 86400 seconds.


tx-power <0-20> Configures the transmit power indicated to clients
• <0-20> – Specify a value from 0 - 20 dBm.
vlan-cache-ageout Configures the timeout period for which client VLAN information is cached across
<60-86400> associations.
Examples
rfs7000-37FABE(config-wlan-wlan1)#wireless-client cred-cache-ageout 65

rfs7000-37FABE(config-wlan-wlan1)#wireless-client hold-time 10

rfs7000-37FABE(config-wlan-wlan1)#wireless-client max-firewall-sessions 100
rfs7000-37FABE(config-wlan-wlan1)#wireless-client reauthentication 35
rfs7000-37FABE(config-wlan-wlan1)#wireless-client tx-power 12

wlan wlan1
ssid wlan1
wireless-client hold-time 10
wireless-client cred-cache-ageout 65
wireless-client max-firewall-sessions 100
wireless-client reauthentication 35
wep64 key 1 hex 0 73796d626f
wireless-client tx-power 12


4.1.46.2.31 wpa-wpa2
wlan-mode commands
Modifies TKIP-CCMP (WPA/WPA2) related parameters
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
wpa-wpa2 [exclude-wpa2-tkip|handshake|key-rotation|opp-pmk-caching|
pmk-caching|preauthentication|psk|tkip-countermeasures|use-sha256-akm]

wpa-wpa2 [exclude-wpa2-tkip|opp-pmk-caching|pmk-caching|preauthentication|
use-sha256-akm]

wpa-wpa2 handshake [attempts|init-wait|priority|timeout]

wpa-wpa2 handshake [attempts <1-5>|init-wait <5-1000000>|priority [high|normal]|
timeout <10-5000>]

wpa-wpa2 key-rotation [broadcast|unicast] <30-86400>]

wpa-wpa2 psk [0 <LINE>|2 <LINE>|<LINE>]

wpa-wpa2 tkip-countermeasures holdtime <0-65535>
Parameters
• wpa-wpa2 [exclude-wpa2-tkip|opp-pmk-caching|pmk-caching|preauthentication|
use-sha256-akm]

wpa-wpa2 Modifies TKIP-CCMP (WPA/WPA2) related parameters
exclude-wpa2-tkip Excludes the Wi-Fi Protected Access II (WPA2) version of TKIP. It supports the WPA version
of TKIP only.
opp-pmk-caching Uses opportunistic key caching (same Pairwise Master Key (PMK) across APs for fast
roaming with EAP.802.1x).
pmk-caching Uses cached pair-wise master keys (fast roaming with eap/802.1x)
preauthentication Uses pre-authentication mode (WPA2 fast roaming)
use-sha256-akm Uses sha256 authentication key management suite


• wpa-wpa2 handshake [attempts <1-5>|init-wait <5-1000000>|
priority [high|normal]|timeout <10-5000>]

handshake Configures WPA/WPA2 handshake parameters
attempts <1-5> Configures the total number of times a message is transmitted towards a non-responsive
client
init-wait <5-1000000> Configures a minimum wait-time period before the first handshake message is transmitted
from the AP
• <5-1000000> – Specify a value from 5 - 1000000 microseconds.
priority [high|normal] Configures the relative priority of handshake messages compared to other data traffic
• high – Treats handshake messages as high priority packets on a radio
• normal – Treats handshake messages as normal priority packets on a radio
timeout <10-5000> Configures the timeout period for a handshake message to retire. Once this timeout period
is over, the handshake message is retired.
• <10-5000> – Specify a value from 10 - 5000 milliseconds.

• wpa-wpa2 key-rotation [broadcast|unicast] <30-86400>

key-rotation Configures parameters related to periodic rotation of encryption keys. The parameters are
periodic rotation of keys for broadcast, multicast, and unicast traffic.
broadcast <30-86400> Configures the periodic rotation of keys used for broadcast and multicast traffic. This
parameter specifies the interval at which keys are rotated
unicast <30-86400> Configures a periodic interval for the rotation of keys, used for unicast traffic

• wpa-wpa2 psk [0 <LINE>|2 <LINE>|<LINE>]

psk Configures a pre-shared key. The key options are: 0, 2, and LINE
0 <LINE> Configures a clear text key
2 <LINE> Configures an encrypted key
<LINE> Enter the pre-shared key either as a passphrase not exceeding 8 - 63 characters, or as a 64
character (256bit) hexadecimal value

• wpa-wpa2 tkip-countermeasures holdtime <0-65535>]

wpa-wpa2 Modifies TKIP-CCMP (WPA/WPA2) parameters


tkip-countermeasures Configures a hold time period for implementation of TKIP counter measures
holdtime <0-65535> Configures the amount of time a WLAN is disabled when TKIP counter measures are
invoked
Examples
rfs7000-37FABE(config-wlan-wlan1)#wpa-wpa2 tkip-countermeasures hold-time 2

wlan wlan1
ssid wlan1
wireless-client hold-time 10
wireless-client cred-cache-ageout 65
wireless-client max-firewall-sessions 100
wireless-client reauthentication 35
wpa-wpa2 tkip-countermeasures hold-time 2
wep64 key 1 hex 0 73796d626f
wireless-client tx-power 12


4.1.47 wlan-qos-policy
Configures a WLAN QoS policy
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
wlan-qos-policy <WLAN-QOS-POLICY-NAME>
Parameters
• wlan-qos-policy <WLAN-QOS-POLICY-NAME>

<WLAN-QOS-POLICY- Specify the WLAN QoS policy name. If the policy does not exist, it is created.
NAME>
Examples

rfs7000-37FABE(config)#wlan-qos-policy test
rfs7000-37FABE(config-wlan-qos-test)#

NOTE: For more information on WLAN QoS policy commands, see Chapter 23, WLAN-
QOS-POLICY.

CHAPTER 5 COMMON COMMANDS

This chapter describes the CLI commands used in the USER EXEC, PRIV EXEC, and GLOBAL CONFIG modes.
The PRIV EXEC command set contains commands available within the USER EXEC mode. Some commands can be entered
in either mode. Commands entered in either the USER EXEC or PRIV EXEC mode are referred to as EXEC mode commands.
If a user or privilege is not specified, the referenced command can be entered in either mode.


5.1 Common Commands
Table 5.1 summarizes common commands
Table 5.1 Common Commands in Controller

no Negates a command or reverts values to their default settings page 5-11
configurations.
write Writes the system’s running configuration to memory or terminal page 5-42

COMMON COMMANDS 5-3

5.1.1 clrscr
Common Commands
Clears the screen and refreshes the prompt, irrespective of the mode you are in
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
clrscr
Parameters
None
Examples
The terminal window or screen before the clrscr command is executed:
rfs7000-37FABE#ap-upgrade ?
DEVICE-NAME Name/MAC address of AP
all Upgrade all access points
AP621 Upgrade an AP621 device
AP71XX Upgrade an AP71XX device
cancel-upgrade Cancel upgrading the AP
load-image Load the AP images to controller for ap-upgrades
rf-domain Upgrade all access points belonging to an RF Domain

rfs7000-37FABE#clrscr

The terminal window or screen after the clrscr command is executed:
rfs7000-37FABE#


5.1.2 commit
Common Commands
Commits all changes made in the active session. Use the commit command to save and invoke settings entered during the
current transaction.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
commit {write}{memory}
Parameters
• commit {write}{memory}

write Optional. If a commit succeeds, the configuration is written to memory
memory Optional. Writes to memory
Examples
rfs7000-37FABE#commit write memory
[OK]
rfs7000-37FABE#

COMMON COMMANDS 5-5

5.1.3 end
Common Commands in Controller
Ends and exits the current mode and moves to the PRIV EXEC mode. The prompt changes to rfs7000-37FABE#.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
end
Parameters
None
Examples
rfs7000-37FABE(config)#end
rfs7000-37FABE#


5.1.4 exit
Common Commands
The exit command works differently in its three supported modes. In the Global Config mode, it ends the current mode and
moves to the previous mode, which is the Priv Exec mode. The prompt changes from (config)# to #. When used in the
Priv Exec and User Exec modes, the exit command ends the current session and connection to the terminal device.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
exit
Parameters
None
Examples
rfs7000-37FABE(config)#exit
rfs7000-37FABE#

COMMON COMMANDS 5-7

5.1.5 help
Common Commands
Describes the interactive help system
Use this command to access the advanced help feature. Use “?” anytime at the command prompt to access the help topic
Two kinds of help are provided:
• Full help is available when ready to enter a command argument
• Partial help is provided when an abbreviated argument is entered and you want to know what arguments match the
input (for example 'show ve?').
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
help {search|show}
help {show [configuration-tree]}

help {search [<WORD>] {detailed|only-show|skip-no|skip-show}}

NOTE: The show configuration-tree option is not available in the Global Config mode.

Parameters
• help {show [configuration-tree]}

show configuration-tree Optional. Displays the running system information
• configuration-tree – Displays relationship amongst configuration objects


• help {search [<WORD>] {detailed|only-show|skip-no|skip-show}}

search <WORD> Optional. Searches for CLI commands related to a specific target term
• <WORD> – Specify a target term (for example, a feature, or configuration parameter).
After specifying the term, select one of the following options: detailed, only-show,
skip-no, or skip-show. The system displays information based on the option selected.
detailed Optional. Searches and displays help strings in addition to mode and commands
only-show Optional. Displays only “show” commands. Does not display configuration commands
skip-no Optional. Displays only configuration commands. Does not display “no” commands
skip-show Optional. Displays only configuration commands. Does not display “show” commands
Examples
rfs7000-37FABE>help search crypto detailed
Found 29 references for “crypto”
Found 113 references for “crypto”

Mode : User Exec
Command : show crypto key rsa (|public-key-detail) (|(on DEVICE-NAME))
Show running system information
Encryption related commands
Key management operations
Show RSA public Keys
Show the public key in PEM format
On AP/Controller
AP / Controller name
: show crypto pki trustpoints (WORD|all|)(|(on DEVICE-NAME))
Public Key Infrastructure related commands
Display the configured trustpoints
Display a particular trustpoint's details
Display details for all trustpoints
On AP/Controller

: show crypto isakmp sa (|(on DEVICE-NAME))
Encryption Module
Show ISAKMP related statistics
Show all ISAKMP Security Associations
On AP/Controller

: show crypto ipsec sa (|(on DEVICE-NAME))
Encryption Module
Show IPSec related statistics
IPSec security association
On AP/Controller

: crypto key generate rsa WORD <1024-2048> (|(on DEVICE-NAME))
Key management operations
Generate a keypair
Generate a RSA keypair
Keypair name
....................................................................................
................................................................rfs7000-37FABE>

rfs7000-37FABE>help show configuration-tree

COMMON COMMANDS 5-9

## ACCESS-POINT / SWITCH ## ---+
|
+--> [[ RF-DOMAIN ]]
|
+--> [[ PROFILE ]]
|
+--> Device specific parameters (license, serial number,
hostname)
|
+--> Configuration Overrides of rf-domain and profile
## RF-DOMAIN ## ---+
|
+--> RF parameters, WIPS server parameters
|
+--> [[ SMART-RF-POLICY ]]
|
+--> [[ WIPS POLICY ]]

## PROFILE ## ---+
|
+--> Physical interface (interface GE,ME,UP etc)
| |
| +--> [[ RATE-LIMIT-TRUST-POLICY ]]
|
+--> Vlan interface (interface VLAN1/VLAN36 etc)
|
+--> Radio interface (interface RADIO1, RADIO2 etc)
| |
| +--> Radio specific Configuration
| |
| +--> [[ RADIO-QOS-POLICY ]]
| |
| +--> [[ ASSOC-ACL-POLICY ]]
| |
| +--> [[ WLAN ]]
|
+--> [[ MANAGEMENT-POLICY ]]
|
+--> [[ DHCP-SERVER-POLICY ]]
|
+--> [[ FIREWALL-POLICY ]]
|
+--> [[ NAT-POLICY ]]
|
+--> [[ VPN-POLICY ]]
|
+--> [[ ADVANCED-WIPS-POLICY ]]
|
+--> [[ CAPTIVE-PORTAL ]]
|
+--> [[ ROLE-POLICY ]]
|
+--> [[ RADIUS-SERVER-POLICY ]]
|
+--> [[ ADOPTION-POLICY ]]

## MESHPOINT ## ---+
|
+--> [[ MESHPOINT-QOS-POLICY ]]
....................................................................................
................................................................rfs7000-37FABE>

rfs7000-37FABE>help search clrscr only-show
found no commands containing "clrscr"
rfs7000-37FABE>

rfs7000-37FABE>help search service skip-show


Found 32 references for "service"

Mode : User Exec
Command : service show cli
: service show rim config (|include-factory)
: service show wireless credential-cache
: service show wireless neighbors
: service show general stats(|(on DEVICE-OR-DOMAIN-NAME))
: service show process(|(on DEVICE-OR-DOMAIN-NAME))
: service show mem(|(on DEVICE-OR-DOMAIN-NAME))
: service show top(|(on DEVICE-OR-DOMAIN-NAME))
: service show crash-info (|(on DEVICE-OR-DOMAIN-NAME))
: service cli-tables-skin
(none|minimal|thin|thick|stars|hashes|percent|ansi|utf-8) (grid|)
: service cli-tables-expand (|left|right)
: service wireless clear unauthorized aps (|(on DEVICE-OR-DOMAIN-NAME))
: service wireless qos delete-tspec AA-BB-CC-DD-EE-FF tid <0-7>
: service wireless wips clear-event-history
: service wireless wips clear-mu-blacklist (all|(mac AA-BB-CC-DD-EE-FF))
: service radio <1-3> dfs simulate-radar (primary|extension)
: service smart-rf run-calibration
: service smart-rf stop-calibration
: service cluster manual-revert
: service advanced-wips clear-event-history
: service advanced-wips clear-event-history (dos-eap-failure-spoof|id-theft-
out-of-sequence|id-theft-eapol-success-spoof-detected|wlan-jack-attack-
detected|essid-jack-attack-detected|monkey-jack-attack-detected|null-probe-response-
detected|fata-jack-detected|fake-dhcp-server-detected|crackable-wep-iv-used|windows-
zero-config-memory-leak|multicast-all-systems-on-subnet|multicast-all-routers-on-
subnet|multicast-ospf-all-routers-detection|multicast-ospf-designated-routers-
detection|multicast-rip2-routers-detection|multicast-igmp-routers-
detection|multicast-vrrp-agent|multicast-hsrp-agent|multicast-dhcp-server-relay-
agent|multicast-igmp-detection|netbios-detection|stp-detection|ipx-
detection|invalid-management-frame|invalid-channel-advertized|dos-deauthentication-
detection|dos-disassociation-detection|dos-rts-flood|rogue-ap-detection|accidental-
association|probe-response-flood|dos-cts-flood|dos-eapol-logoff-storm|unauthorized-
bridge)
: service start-shell
: service pktcap on(bridge|drop|deny|router|wireless|vpn|radio (all|<1-3>)
(|promiscuous)|rim|interface `WORD|ge <1-4>|me1|pc <1-4>|vlan <1-4094>')(|{direction
(any|inbound|outbound)|acl-name WORD|verbose|hex|count <1-1000000>|snap <1-
2048>|write (FILE|URL|tzsp WORD)|tcpdump})(|filter LINE)

Mode : Profile Mode
Command : service watchdog

Mode : Radio Mode
Command : service antenna-type (default|dual-
band|omni|yagi|embedded|panel|patch|sector|out-omni|in-patch|AP650-int)
: service disable-erp
: service disable-ht-protection
: service recalibration-interval <0-65535>
....................................................................................
rfs7000-37FABE>

rfs7000-37FABE>help search mint only-show
Found 8 references for "mint"

Mode : User Exec
Command : show mint neighbors (|details)(|(on DEVICE-NAME))
: show mint links (|details)(|(on DEVICE-NAME))
: show mint id(|(on DEVICE-NAME))
: show mint stats(|(on DEVICE-NAME))
: show mint route(|(on DEVICE-NAME))
: show mint lsp
: show mint lsp-db (|details)(|(on DEVICE-NAME))
: show mint mlcp(|(on DEVICE-NAME))
rfs7000-37FABE>

COMMON COMMANDS 5 - 11

5.1.6 no
Common Commands
Negates a command or sets its default. Though the no command is common to the User Exec, Priv Exec, and Global Config
modes, it negates a different set of commands in each mode.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
no <PARAMETER>
Parameters
None
Usage Guidelines
Examples
Global Config mode: No command options
rfs7000-37FABE(config)#no ?
aaa-policy Delete a aaa policy
advanced-wips-policy Delete an advanced-wips policy
AP300 Delete an AP300
AP621 Delete an AP621 access point
AP71XX Delete an AP71XX access point
association-acl-policy Delete an association-acl policy
auto-provisioning-policy Delete an auto-provisioning policy
captive-portal Delete a captive portal
critical-resource-policy Remove device onboard critical resource policy
customize Restore the custom cli commands to default
device Delete multiple devices
device-categorization Delete device categorization object
dns-whitelist Delete a whitelist object
event-system-policy Delete a event system policy
igmp-snoop-policy Remove device onboard igmp snoop policy
management-policy Delete a management policy
nac-list Delete an network access control list
password-encryption Disable password encryption in configuration
profile Delete a profile and all its associated


configuration
radio-qos-policy Delete a radio QoS configuration policy
radius-group Local radius server group configuration
radius-server-policy Remove device onboard radius policy
rf-domain Delete one or more RF-domains and all their
associated configurations
smart-rf-policy Delete a smart-rf-policy
wips-policy Delete a wips policy
wlan Delete a wlan object
wlan-qos-policy Delete a wireless lan QoS configuration policy
Priv Exec mode: No command options
rfs7000-37FABE#no ?
adoption Reset adoption state of the device (& all devices adopted to
it)
captive-portal Captive portal commands
page Toggle paging
upgrade Remove a patch
wireless Wireless Configuration/Statistics commands
rfs7000-37FABE#

user Exec mode: No command options
rfs7000-37FABE>no ?
adoption Reset adoption state of the device (& all devices adopted to
it)
page Toggle paging
wireless Wireless Configuration/Statistics commands
rfs7000-37FABE>
Related Commands

no User Exec Commands mode
no Priv Exec Commands mode
no Global Config Commands mode


5.1.7 revert
Common Commands
Reverts changes made to their last saved configuration
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
revert
Parameters
None
Examples
rfs7000-37FABE>revert
rfs7000-37FABE>


5.1.8 service
Common Commands
Service commands are used to view and manage wireless controller configurations in all modes. The service commands
and their corresponding parameters vary from mode to mode. The User Exec Mode and Priv Exec Mode commands provide
same functionalities with a few minor changes. The Global Config service command sets the size of history files. It also
enables viewing of CLI tree of the current mode.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax (User Exec Mode)
service [advanced-wips|ap300|clear|cli-tables-expand|cli-tables-skin|cluster
force-send-config|locator|noc|pktcap|radio|radius|set|show|smart-rf|wireless]

service advanced-wips [clear-event-history|terminate-device <MAC>]
service advanced-wips clear-event-history {accidental-association|
crackable-wep-iv-used|dos-cts-flood|dos-deauthentication-detection|
dos-disassociation-detection|dos-eap-failure-spoof|dos-eapol-logoff-storm|
dos-rts-flood|essid-jack-attack-detected|fake-dhcp-server-detected|
fata-jack-detected|id-theft-eapol-success-spoof-detected|
id-theft-out-of-sequence|invalid-channel-advertized|invalid-management-frame|
ipx-detection|monkey-jack-attack-detected|multicast-all-routers-on-subnet|
multicast-all-systems-on-subnet|multicast-dhcp-server-relay-agent|
multicast-hsrp-agent|multicast-igmp-detection|multicast-igrp-routers-detection|
multicast-ospf-all-routers-detection|multicast-ospf-designated-routers-detection|
multicast-rip2-routers-detection|multicast-vrrp-agent|netbios-detection|
null-probe-response-detected|probe-response-flood|rogue-ap-detection|
stp-detection|unauthorized-bridge|windows-zero-config-memory-leak|
wlan-jack-attack-detected}

service ap300 [dns-name|dot1x|locator|reload]
service ap300 dot1x username <USERNAME> password <PASSWORD>
on [all|ap-mac <MAC>]
service ap300 dns-name <DNS> on [all|ap-mac <MAC>]
service ap300 [locator|reload] <MAC>
service clear [ap-upgrade|command-history|noc|reboot-history|unsanctioned|
upgrade-history|wireless]
service clear ap-ugrade history {on <DOMAIN-NAME>}
service clear [command-history|reboot-history|upgrade-history]{on <DEVICE-NAME>}
service clear noc statistics
service clear unsanctioned aps {on <DEVICE-OR-DOMAIN-NAME>}]
service clear wireless [ap|client|radio|wlan]
service clear wireless [ap|client] statistics {<MAC> {(on <DEVICE-OR-DOMAIN-NAME>)}
service clear wireless radio statistics {<MAC/HOSTNAME> <1-3> {(on <DEVICE-OR-DOMAIN-
NAME>)}
service clear wireless wlan statistics {<WLAN> {(on <DEVICE-OR-DOMAIN-NAME)}

service cli-tables-expand {left|right}


service cli-tables-skin [ansi|hashes|minimal|none|percent|stars|thick|thin|
utf-8] {grid}

service cluster force [active|configured-state|standby]

service force-send-config {on <DEVICE-OR-DOMAIN-NAME>}

service locator {on <DEVICE-NAME>}

service noc parallel-updates <1-1024>
service pktcap on [bridge|deny|drop|ext-vlan|interface|radio|rim|router|
vpn|wireless]
service pktcap on [bridge|deny|drop|ext-vlan|rim|router|vpn|wireless]
{(acl-name <ACL>,count <1-1000000>,direction [any|inbound|outbound],
filter <LINE>,hex,rate <1-100>,snap <1-2048>,tcpdump|verbose,
write [file|url|tzsp [<IP/TZSP HOSTNAME>]])}
service pktcap on interface [<INTERFACE>|ge <1-4>|me1|port-channel <1-2>|
vlan <1-4094>] {(acl-name <ACL>,count <1-1000000>,
direction [any|inbound|outbound],filter <LINE>,hex,rate <1-100>,
snap <1-2048>,tcpdump|verbose,write [file|url|tzsp [<IP/TZSP HOSTNAME>]])}
service pktcap on radio [<1-3>|all] {(acl-name <ACL>,count <1-1000000>,
direction [any|inbound|outbound],filter <LINE>,hex,rate <1-100>,
snap <1-2048>,tcpdump|verbose,write [file|url|tzsp [<IP/TZSP HOSTNAME>]])}

service radio <1-3> dfs simulator-radar [extension|primary]

service radius test [<IP>|<HOSTNAME>] [<WORD>|<PORT>]
service radius test [<IP>|<HOSTNAME>] <WORD> <USERNAME> <PASSWORD> {wlan <WLAN>
ssid <SSID> {(on <DEVICE-NAME>)}}
service radius test [<IP>|<HOSTNAME>] <PORT> <1024-65535> <WORD> <USERNAME>
<PASSWORD> {wlan <WLAN> ssid <SSID> {(on <DEVICE-NAME>)}

service set validation-mode [full|partial] {on <DEVICE-NAME>}

service show [advanced-wips|captive-portal|cli|command-history|
configuration-revision|crash-info|dhcp-lease|diag|info|mac-vendor|mem|
mint|noc|pm|process|reboot-history|rf-domain-manager|snmp|startup-log|sysinfo|
top|upgrade-history|watch-dog|wireless|xpath-history]

service show advanced-wips stats [ap-table|client-table|connected-sensors-status|
termination-entries]
service show captive-portal [servers|user-cache] {on <DEVICE-NAME>}
service show [cli|configuration-revision|mac-vendor <OUI/MAC>|noc diag|
snmp session|xpath-history|
service show [command-history|crash-info|info|mem|process|reboot-history|
startup-log|sysinfo|top|upgrade-history|watchdog] {on <DEVICE-NAME>}

service show dhcp-lease {<INTERFACE>|on|vlan <1-4094>} {(on <DEVICE-NAME>)}

service show diag [led-status|stats] {on <DEVICE-NAME>}

service show mint adopted-devices {on <DEVICE_NAME>}

service show pm {history {(on <DEVICE-NAME>)}}

service show rf-domain-manager diag {<MAC/HOSTNAME> {(on <DEVICE-OR-DOMAIN-
NAME>)}

service show wireless [aaa-stats|ap300|client|config-internal|credential-cache|
dns-cache|neighbors|stats-client|vlan-usage|meshpoint]]
service show wireless [aaa-stats|credential-cache|dns-cache] {on <DEVICE-NAME>}
service show wireless [ap300 <MAC>|neighbors|vlan-usage]
service show wireless client proc [info|stats] {<MAC> {{on <DEVICE-OR-DOMAIN-
NAME>)}}
service show wireless config-internal {include-factory}]
service show wireless stats-client diag {<MAC/HOSTNAME> {(on <DEVICE-OR-
DOMAIN-NAME>)}}


service show wireless meshpoint neighbor proc [info|stats] {<MAC>|on <DEVICE-OR-
DOMAIN-NAME>}

service smart-rf [clear-config|clear-history|interactive-calibration|
interactive-calibration-result|run-calibration|save-config|stop-calibration]
service smart-rf [clear-config|clear-history|interactive-calibration|
run-calibration|save-config|stop-calibration]{on <DOMAIN-NAME>}
service smart-rf interactive-calibration-result [discard|replace-current-config|
write-to-configuration]{on <DOMAIN-NAME>}

service wireless [client|dump-core-snapshot|qos|wips]
service wireless client beacon-request <MAC> mode [active|passive|table]
ssid [<SSID>|any] channel-report [<CHANNEL-LIST>|none]
{on <DEVICE-NAME>}
service wireless qos delete-tspec <MAC> tid <0-7>
service wireless wips [clear-client-blacklist|clear-event-history]
service wireless wips clear-client-blacklist [all|mac <MAC>
service wireless wips clear-event-history {on <DEVICE-OR-DOMAIN-NAME>}
Parameters (User Exec Mode)
• service advanced-wips clear-event-history {accidental-association|
crackable-wep-iv-used|dos-cts-flood|dos-deauthentication-detection|
dos-disassociation-detection|dos-eap-failure-spoof|dos-eapol-logoff-storm|
dos-rts-flood|essid-jack-attack-detected|fake-dhcp-server-detected|
fata-jack-detected|id-theft-eapol-success-spoof-detected|
id-theft-out-of-sequence|invalid-channel-advertized|invalid-management-frame|
ipx-detection|monkey-jack-attack-detected|multicast-all-routers-on-subnet|
multicast-all-systems-on-subnet|multicast-dhcp-server-relay-agent|
multicast-hsrp-agent|multicast-igmp-detection|multicast-igrp-routers-detection|
multicast-ospf-all-routers-detection|multicast-ospf-designated-routers-detection|
multicast-rip2-routers-detection|multicast-vrrp-agent|netbios-detection|
null-probe-response-detected|probe-response-flood|rogue-ap-detection|
stp-detection|unathorized-bridge|windows-zero-config-memory-leak|
wlan-jack-attack-detected}

advanced-wips clear-event- The advanced Wireless Intrusion Prevention System (WIPS) service command clears
history event history and terminates a device.
• clear-event-history – Clears event history based on the parameters passed
accidental-association Optional. Clears accidental wireless client association event history
crackable-wep-iv-used Optional. Clears crackable Wired Equivalent Privacy (WEP) IV used event history
dos-cts-flood Optional. Clears DoS Clear-To-Send (CTS) flood event history
dos-deauthentication- Optional. Clears DoS de-authentication detection event history
detection
dos-disassociation-detection Optional. Clears DoS disassociation detection event history
dos-eap-failure-spoof Optional. Clears DoS Extensible Authentication Protocol (EAP) failure spoof detection
event history
dos-eapol-logoff-storm Optional. Clears DoS Extensible Authentication Protocol over LAN (EAPoL) logoff storm
detection event history
dos-rts-flood Optional. Clears DoS request-to-send (RTS) flood detection event history
essid-jack-attack-detected Optional. Clears Extended Service Set ID (ESSID) jack attacks detection event history
fake-dhcp-server-detected Optional. Clears fake DHCP server detection event history
fata-jack-detected Optional. Clears fata-jack attacks detection event history


id-theft-eapol-success- Optional. Clears IDs theft - EAPOL success spoof detection event history
spoof-detected
id-theft-out-of-sequence Optional. Clears IDs theft-out-of-sequence detection event history
invalid-channel-advertized Optional. Clears invalid channel advertizement detection event history
invalid-management-frame Optional. Clears invalid management frames detection event history
ipx-detection Optional. Clears automatic IPX interface detection event history
monkey-jack-attack- Optional. Detects monkey-jack attacks detection event history
detected
multicast-all-routers-on- Optional. Clears all multicast routers on the subnet detection event history
subnet
multicast-all-systems-on- Optional. Clears all multicast systems on the subnet detection event history
subnet
multicast-dhcp-server-relay- Optional. Clears multicast DHCP server relay agents detection event history
agent
multicast-hsrp-agent Optional. Clears multicast Hot Standby Router Policy (HSRP) agents detection event
history
multicast-igmp-detection Optional. Clears multicast Internet Group Management Protocol (IGMP) detection event
history
multicast-igrp-routers- Optional. Clears multicast Interior Gateway Router Protocol (IGRP) routers detection
detection event history
multicast-ospf-all-routers- Optional. Clears multicast Open Shortest Path First (OSPF) all routers detection event
detection history
multicast-ospf-designated- Optional. Clears multicast OSPF designated routers detection event history
routers-detection
multicast-rip2-routers- Optional. Clears multicast RIP2 routers detection event history
detection
multicast-vrrp-agent Optional. Clears multicast Virtual Router Redundancy Protocol (VRRP) agents detection
event history
netbios-detection Optional. Clears NetBIOS detection event history
null-probe-response- Optional. Clears null probe response detection event history
detected
probe-response-flood Optional. Clears probe response flood detection event history
rogue-ap-detection Optional. Clears rogue AP detection event history
stp-detection Optional. Clears Spanning Tree Protocol (STP) detection event history
unauthorized-bridge Optional. Clears unauthorized bridge detection event history


windows-zero-config- Optional. Clears Windows zero configuration memory leak detection event history
memory-leak
wlan-jack-attack-detected Optional. Clears WLAN jack attack detection event history

• service advanced-wips terminate-device <MAC>]

advanced-wips terminate- The advanced WIPS service command clears event history details, and terminates a
device <MAC> device.
• terminate-device – Terminates a specified device
• <MAC> – Specify the MAC address of the AP or wireless client.

• service ap300 [dot1x username <USERNAME> password <PASSWORD> on [all|ap-mac <MAC>]

ap300 Sets global AP300 configuration parameters
dot1x Sets 802.1x authentication parameters
username <USERNAME> Authenticates user before providing access
• <USERNAME> – Specify the username.
password <PASSWORD> Authenticates password before providing access
• <PASSWORD> – Specify the password.
on [all| Sets global AP300 parameters on a specified AP300 or all AP300s
ap-mac <MAC>] • all – Sets global parameters on all AP300s
• AP300 <MAC> – Sets global parameters on a specified AP300

• service ap300 dns-name <DNS> on [all|ap-mac <MAC>]

dns-name <DNS> Authenticates DNS server name
• <DNS> – Specify the DNS sever name.
on [all|ap-mac <MAC>] Adopts a specified AP300 or al AP300s
• all – Adopts all AP300s
• AP300 <MAC> – Adopts a specified AP300

• service ap300 [locator|reload] <MAC>

locator Enables AP300 LEDs
reload Resets an AP300
<MAC> Provides the MAC address of the AP300


• service clear ap-upgrade history {on <DOMAIN-NAME>}]

clear ap-upgrade history Clears firmware upgrade history
on <DOMAIN-NAME> Optional. Clears firmware upgrade details in a specified RF Domain
• <DOMAIN-NAME> – Specify the RF Domain name.

• service clear [command-history|reboot-history|upgrade-history] {on <DEVICE-NAME>}

clear [command-history| Clears command history, reboot history, or device upgrade history
reboot-history|
upgrade-history]
on <DEVICE-NAME> Optional. Clears history on a specified device

• service clear noc statistics]

clear noc statistics Clears Network Operations Center (NOC) applicable statistics counters

• service clear unsanctioned aps {on <DEVICE-OR-DOMAIN-NAME>}]

clear unsanctioned aps Clears the unsanctioned APs list
on Optional. Clears the list on a specified device or RF Domain
NAME> RF Domain.

• service clear wireless [ap|client] {<MAC> {on <DEVICE-OR-DOMAIN-NAME>}|
on <DEVICE-OR-DOMAIN-NAME>}

clear wireless [ap|client] Clears applicable statistics counters
• AP – Clears AP statistics counters
• client – Clears wireless client statistics counters
<MAC> Optional. Specify the MAC address of the AP.
{on <DEVICE-OR-DOMAIN- • on <DEVICE-OR-DOMAIN-NAME> – Optional. Specify the name of the AP, wireless

• service clear wireless radio statistics {<MAC/HOSTNAME> <1-3> {(on <DEVICE-OR-
DOMAIN-NAME>)}

clear wireless radio statistics Clears applicable wireless radio statistics counters
<MAC/HOSTNAME> Optional. Specify the MAC address or hostname of the radio, or append the interface
<1-3> number to form the radio ID in the AA-BB-CC-DD-EE-FF:RX or HOSTNAME:RX format.
• <1-3> – Specify the radio interface index, if not specified as part of the radio ID.
on <DEVICE-OR-DOMAIN- Optional. Specify the name of the AP, wireless controller, or RF Domain.
NAME>

• service clear wireless wlan statistics {<WLAN> {(on <DEVICE-OR-DOMAIN-NAME>)}

clear wireless wlan statistics Clears WLAN statistics counters


<WLAN> Clears statistics counters on a specified WLAN
on <DEVICE-OR-DOMAIN- Optional. Specify the name of the AP, wireless controller, or RF Domain.
NAME>

• service cli-tables-expand {left|right}

cli-tables-expand Displays the CLI table in a drop-down format
left Optional. Displays the output in a left-justified format
right Optional. Displays the output in a right-justified format
• service cli-tables-skin [ansi|hashes|minimal|none|percent|stars|thick|thin|utf-8]
{grid}

cli-tables-skin Selects a formatting layout or skin for CLI tabular outputs
[ansi|hashes|minimal| • ansi – Uses ANSI characters for borders
none|percent|
• hashes – Uses hashes (#) for borders
stars|thick|
thin|uf-8] • minimal – Uses one horizontal line between title and data rows
• none – Displays space separated items with no decoration
• percent – Uses the percent sign (%) for borders
• stars – Uses asterisks (*) for borders
• thick – Uses thick lines for borders
• thin – Uses thin lines for borders
• utf-8 – Uses UTF-8 characters for borders
grid Optional. Uses a complete grid instead of title lines

• service cluster force [active|configured-state|standby]

cluster Enables cluster protocol management
force Forces action commands on a cluster
active Changes the cluster run status to active
configured-state Restores a cluster to the configured state
standby Changes the cluster run status to standby
• service force-send-config {on <DEVICE-OR-DOMAIN-NAME>}

force-send-config Resends configuration details
on <DEVICE-OR-DOMAIN- Optional. Resends configuration details to a device
NAME> • <DEVICE-OR-DOMAIN-NAME> – Optional. Specify the name of the AP, wireless
controller, or RF Domain.
• service locator {on <DEVICE-NAME>}

locator Enables LEDs
on <DEVICE-NAME> Optional. Enables LEDs on a device
• <DEVICE-NAME> – Specify name of the AP or wireless controller.


• service noc parallel-updates <1-1024>

noc Configures NOC wireless controller serviceability commands
parallel-updates Sets a limit to the number of parallel threads
<1-1024> • <1-1024> – Specify a value from 1 - 1024.

• service pktcap on [bridge|deny|drop|ext-vlan|rim|router|vpn|wireless]
{(acl-name <ACL>|count <1-1000000>|direction [any|inbound|outbound]|
filter|hex|rate <1-100>|snap <1-2048>|tcpdump|verbose|
write [file|url|tzsp <IP/TZSP HOSTNAME>])}

pktcap on Captures data packets crossing at a specified location
• on – Defines the packet capture location
bridge Captures packets transiting through the Ethernet bridge
deny Captures packets denied by an Access Control List (ACL)
drop Captures packets at the drop locations
ext-vlan Captures packets forwarded to or from an extended VLAN
rim Captures packets at the Radio Interface Module (RIM)
router Captures packets transiting through an IP router
vpn Captures packets forwarded to or from a VPN link
wireless Captures packets forwarded to or from a wireless device
acl-name <ACL> Optional. Specify the ACL that matches the acl-name for the 'deny' location
count <1-1000000> Optional. Limits the captured packet count. Specify a value from 1 -1000000.
direction Optional. Changes the packet direction with respect to a device. The direction can be
[any|inbound|outbound] set as any, inbound, or outbound.


filter Optional. Filters packets based on the option selected (must be used as a last option)
[<LINE>|arp|capwap|cdp|dot1 The filter options are:
1|dropreason|dst|ether| • <LINE> – Defines user defined packet capture filter
host|icmp|igmp|ip|ipv6|l2|l3|l4
• arp – Matches ARP packets
|lldp|mint|net|not|port|priority|
radio|src|tcp|udp|vlan|wlan] • capwap – Matches CAPWAP packets
• cdp – Matches CDP packets
• dot11 – Matches 802.11 packets
• dropreason – Matches packet drop reason
• dst – Matches IP destination
• ether – Matches Ethernet packets
• host – Matches host destination
• icmp – Matches ICMP packets
• igmp – Matches IGMP packets
• ip – Matches IPV4 packets
• ipv6 – Matches IPV6 packets
• l2 – Matches L2 header
• lldp – Matches LLDP packets
• mint – Matches MiNT packets
• net – Matches IP in subnet
• not – Filters out any packet that matches the filter criteria (For example, if not TCP
is used, all tcp packets are filtered out)
• port – Matches TCP or UDP port
• priority – Matches packet priority
• radio – Matches radio
• src – Matches IP source
• stp – Matches STP packets
• tcp – Matches TCP packets
• udp – Match UDP packets
• vlan – Matches VLAN
• wlan – Matches WLAN
hex Optional. Provides binary output of the captured packets
rate <1-100> Optional. Specifies the packet capture rate
snap <1-2048> Optional. Captures the data length
• <1-2048> – Specify a value from 1 - 2048 characters.
tcpdump Optional. Decodes tcpdump. The tcpdump analyzes network behavior, performance,
and infrastructure. It also analyzes applications that generate or receive traffic.


verbose Optional. Displays full packet body
write Captures packets to a specified file. Provide the file name and location in the following
format:
FILE – flash:/path/file
cf:/path/file
usb1:/path/file
usb2:/path/file
vram:startup-config
URL – tftp://<hostname|IP>[:port]/path/file
tzsp – Tazman Sniffer Protocol (TZSP) host. Specify the TZSP host’s IP address or
hostname.
• service pktcap on radio [<1-3>|all] {(acl-name <ACL>|count <1-1000000>|
direction [any|inbound|outbound]|filter <LINE>|hex|promiscuous|rate <1-100>|
snap <1-2048>|tcpdump|verbose|write [file|url|tzsp <IP/TZSP HOSTNAME>])}

pktcap on radio Captures data packets on a specified radio or on all radios (802.11)
[<1-3>|all] • <1-3> – Specify the radio index from 1 - 3.
• all – Captures data packets on all radios (802.11)
acl-name <ACL> Optional. Specify the ACL name.
count <1-1000000> Optional. Sets a specified number of packets to capture
• <1-1000000> – Specify a value from 1 -1000000.
filter <LINE> Optional. Filters packets based on the option selected (must be used as a last option)
• <LINE> – Define a packet capture filter or select any one of the available options.
The options are: arp, capwap, cdp, dot11, dropreason, dst, ether, host, icmp, igmp,
ip, ipv6, 12, 13, 14, lldp, mint, net, not, port, priority, radio, src, stp, tcp, udp, vlan, and
wlan.
promiscuous Optional. Enables limited promiscuous mode capture on the current channel (disables
normal operation during the capture)
tcpdump Optional. Decodes the TCP dump


verbose Optional. Provides verbose output
format:
cf:/path/file
usb1:/path/file
usb2:/path/file
nvram:startup-config
tzsp – The TZSP host. Specify the TZSP host’s IP address or hostname.

• service pktcap on interface [<INTERFACE>|ge <1-4>|me|port-channel <1-2>|
vlan <1-4094] {(acl-name <ACL>|count <1-1000000>|direction [any|inbound|outbound]|
filter <LINE>|hex|rate <1-100>|snap <1-2048>|tcpdump|verbose|
write [file|url|tzsp <IP/TZSP HOSTNAME>])}

pktcap on Captures data packets at a specified interface
• on – Specify the capture location.
interface [<INTERFACE>| Captures packets at a specified interface. The options are:
ge <1-4>|me1| • <INTERFACE> – Specify the interface name.
port-channel <1-2|
• ge <1-4> – Selects a GigabitEthernet interface index from 1 - 4
vlan <1-4094>]
• me1 – Selects the FastEthernet interface
• port-channel <1-2> – Selects a port-channel interface index from 1- 2
• vlan <1-4094> – Selects a VLAN ID from 1 - 4094
acl-name <ACL> Optional. Specify the ACL that matches the ACL name for the 'deny' location
count <1-1000000> Optional. Sets a specified number of packets to capture
filter <LINE> Optional. Filters packets based on the option selected (must be used as a last option)
• <LINE> – Define a packet capture filter or select any one of the available options.
tcpdump Optional. Decodes the TCP dump


verbose Optional. Provides verbose output
format:
cf:/path/file
usb1:/path/file
usb2:/path/file
nvram:startup-config
tzsp – The TZSP host. Specify the TZSP host’s IP address or hostname.

• service radio <1-3> dfs simulate-radar [extension|primary]

radio <1-3> Configures radio’s parameters
• <1-3> – Specify the radio index from 1 - 3.
dfs Enables Dynamic Frequency Selection (DFS)
simulate-radar Simulates the presence of a radar on a channel. Select the channel type from the
[extension|primary] following options:
• extension – Simulates a radar on the radio’s current extension channel
• primary – Simulates a radar on the radio’s current primary channel

• service radius test [<IP>|<HOSTNAME>] <WORD> <USERNAME> <PASSWORD> {wlan <WLAN>
ssid <SSID> {(on <DEVICE-NAME>)}}

radius test Tests a RADIUS server account
• test – Tests the RADIUS server account with user parameters
[<IP>|<HOSTNAME>] Sets the IP address or hostname of the RADIUS server
• <IP> – Specify the RADIUS server’s IP address.
• <HOSTNAME> – Specify the RADIUS server’s hostname.
<WORD> Specify the shared secret to logon to the RADIUS server.
<USERNAME> Specify the name of the user for authentication.
<PASSWORD> Specify the password.
wlan <WLAN> Tests the local RADIUS WLAN. Specify the local RADIUS WLAN name.
ssid <SSID> • ssid <SSID> – Specify the local RADIUS server’s SSID.
on <DEVICE-NAME> Optional. Performs the tests on a specified device


• service radius test [<IP>|<HOSTNAME>] <PORT> <1024-65535> <WORD> <USERNAME>
<PASSWORD> {wlan <WLAN> ssid <SSID> {(on <DEVICE-NAME>)}}

radius test Tests a RADIUS server account
• test – Tests the RADIUS server account with user parameters
[<IP>|<HOSTNAME>] Sets the IP address or hostname of the RADIUS server
• <IP> – Specify the RADIUS server’s IP address.
• <HOSTNAME> – Specify the RADIUS server’s hostname.
<PORT> <1024-65535> Specify the RADIUS server port from 1024 - 65535. The default port is 1812.
<WORD> Specify the shared secret to logon to the RADIUS server.
<USERNAME> Specify the name of the user for authentication.
<PASSWORD> Specify the password.
wlan <WLAN> Tests the RADIUS server on the local WLAN. Specify the local WLAN name.
ssid <SSID> • ssid <SSID> – Specify the RADIUS server’s SSID.
on <DEVICE-NAME> Optional. Performs the tests on a specified device

• service set validation-mode [full|partial] {on <DEVICE-NAME>}

set Sets the validation mode for running configuration validation
validation-mode [full|partial] Sets the validation mode
• full – Performs a full configuration validation
• partial – Performs a partial configuration validation
on <DEVICE-NAME> Optional. Performs configuration validation on a specified device

• service show advanced-wips stats [ap-table|client-table|
connected-sensors-status|termination-entries]

show Displays running system statistics based on the parameters passed
advanced-wips stats Displays advanced WIPS statistics
ap-table Displays AP table statistics
client-table Displays client table statistics
connected-sensors-status Displays connected sensors statistics
termination-entries Displays termination entries statistics

• service show captive-portal [servers|user-cache] {on <DEVICE-NAME>}

captive-portal Displays captive portal information
servers Displays server information for active captive portals


user-cache Displays cached user details for a captive portal
on <DEVICE-NAME> Optional. Displays server information or cached user details on a specified device

• service show [cli|configuration-revision|mac-vendor <OUI/MAC>|noc diag|
snmp session|xpath-history]

cli Displays CLI tree of the current mode
configuration-revision Displays current configuration revision number
mac-vendor Displays vendor name for a specified MAC address or Organizationally Unique Identifier
<OUI/MAC> (OUI) part of the MAC address
• <OUI/MAC> – Specify the MAC address or its OUI. The first six digits of the MAC
address is the OUI. Use the AABBCC or AA-BB-CC format to provide the OUI.
noc diag Displays NOC diagnostic details
snmp session Displays SNMP session details
xpath-history Displays XPath history

• service show [command-history|crash-info|info|mem|process|reboot-histroy|
startup-log|sysinfo|top|upgrade-history|watchdog] {on <DEVICE-NAME>}

command-history Displays command history (lists all commands executed)
crash-info Displays information about core, panic, and AP dump files
info Displays snapshot of available support information
mem Displays a system’s current memory usage (displays the total memory and available
memory)
process Displays active system process information (displays all processes currently running on
the system)
reboot-history Displays the device’s reboot history
startup-log Displays the device’s startup log
sysinfo Displays a system’s memory usage
top Displays system resource information
upgrade-history Displays the device’s upgrade history (displays details, such as date, time, and status
of the upgrade, old version, new version etc.)


watchdog Displays the device’s watchdog status
on <DEVICE-NAME> The following parameters are common to all of the above:
• on <DEVICE-NAME> – Optional. Displays information for a specified device. If no
device is specified, the system displays information for the logged device

• service show dhcp-lease {<INTERFACE>|on|vlan <1-4094>} {(on <DEVICE-NAME>)}

dhcp-lease Displays DHCP lease information received from the server
<INTERFACE> Displays DHCP lease information for a specified router interface
• <INTERFACE> – Specify the router interface name.
on Displays DHCP lease information for a specified device
vlan <1-4094> Displays DHCP lease information for a VLAN
• <1-4094> – Specify a VLAN index from 1 - 4094.
on <DEVICE-NAME> Optional. Displays DHCP lease information for a specified device. If no device is
specified, the system displays information for the logged device.

• service show diag [led-staus|stats] {(on <DEVICE-NAME>)}]

diag Displays diagnostic statistics, such as LED status, fan speed, and sensor temperature
led-status Displays LED state variables and the current state
stats Displays fan speed and sensor temperature statistics
on <DEVICE-NAME> Optional. Displays diagnostic statistics for a specified device. If no device is specified,
the system displays information for the logged device.

• service show mint adopted-devices {(on <DEVICE-NAME>)}]

mint Displays MiNT protocol details
adopted-devices Displays adopted devices status in dpd2
on <DEVICE-NAME> Optional. Displays MiNT protocol details for a specified device. If no device is specified,
the system displays information for the logged device.

• service show pm {history {(on <DEVICE-NAME>)}}]

pm Displays the Process Monitor (PM) controlled process details


history Optional. Displays process change history (the time at which the change was
implemented, and the events that triggered the change)
on <DEVICE-NAME> Optional. Displays process change history for a specified device. If no device is
specified, the system displays information for the logged device.

• service show rf-domain-manager diag {(<MAC/HOSTNAME> {(on <DEVICE-OR-DOMAIN-
NAME>)}}]

rf-domain-manager Displays RF Domain manager information
diag Displays RF Domain manager related diagnostics statistics
<MAC/HOSTNAME> Optional. Specify the MAC address or hostname of the RF Domain manager.
on <DEVICE-OR-DOMAIN- Optional. Displays diagnostics statistics on a specified device or domain
NAME> • <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless controller, or RF
Domain.

• service show wireless [aaa-stats|credential-cache|dns-cache] {on <DEVICE-NAME>}]

wireless Displays WLAN statistics (WLAN AAA policy, configuration parameters, VLAN usage etc.)
aaa-stats Displays AAA policy statistics
credential-cache Displays clients cached credentials statistics (VLAN, keys etc.)
dns-cache Displays cache of resolved names of servers related to wireless networking
on <DEVICE-NAME> Optional. Displays WLAN statistics for a specified device. If no device is specified, the
system displays information for the logged device.

• service show wireless [ap300 <MAC>|neighbors|vlan-usage] {on <DEVICE-NAME>}]

wireless Displays WLAN statistics (WLAN AAA policy, configuration parameters, VLAN usage
etc.)
ap300 <MAC> Displays WLAN AP300 statistics
neighbors Displays neighboring device statistics for roaming and flow migration
vlan-usage Displays VLAN statistics across WLANs
on <DEVICE-NAME> Optional. Displays WLAN statistics for a specified device


• service show wireless client proc [info|stats] {<MAC> {(on <DEVICE-OR-DOMAIN-
NAME)}}]

etc.)
client Displays WLAN client statistics
proc Displays dataplane proc entries
These proc entries provide statistics on each wireless client on the WLAN.
info Displays information of a specified wireless client
stats Displays statistical data of a specified wireless client
<MAC> Optional. Specify the MAC address of the wireless client.
on <DEVICE-OR-DOMAIN- Optional. Displays information on a specified device or domain.
RF Domain.
• service show wireless config-internal {include-factory}]

etc.)
config-internal Displays internal configuration parameters
include-factory Optional. Displays factory default settings

• service show wireless stats-client diag {<MAC/HOSTNAME> {(on <DEVICE-OR-DOMAIN-
NAME)}}]

etc.)
stats-client Displays managed AP statistics
<MAC/HOSTNAME> Optional. Specify the MAC address or hostname of the AP.
on <DEVICE-OR-DOMAIN- Optional. Displays statistics on a specified AP, or all APs on a specified domain.
RF Domain.

• service show wireless meshpoint neighbor proc [info|stats] {<MAC>|on <DEVICE-OR-
DOMAIN-NAME>}

etc.)
meshpoint Displays mesh point information


neighbor Displays proc entries about neighbor devices
proc Displays proc entries
info Displays information about neigbor devices
stats Displays staticstics about neighbor devices
<MAC> Optional. Specify the MAC address of the neighbor device.
on <DEVICE-OR-DOMAIN- Optional. Displays statistics or neighbor information on a specified AP, or all APs on a
NAME> specified domain.
RF Domain.

• service smart-rf [clear-config|clear-history|interactive-calibration|
run-calibration|save-config|stop-calibration] {on <DOMAIN-NAME>}]

smart-rf Enables Smart RF management
clear-config Clears WLAN Smart RF configuration on all devices
clear-history Clears WLAN Smart RF history on all devices
interactive-calibration Enables interactive Smart RF calibration
run-calibration Starts a new Smart RF calibration process
save-config Saves Smart RF configuration on all device, and also saves the history on the domain
manager
stop-calibration Stops Smart RF configuration, currently in progress
on <DOMAIN-NAME> Optional. Enables Smart RF management on a specified RF Domain

• service smart-rf interactive-calibration-result [discard|replace-current-
config|write-to-configuration] {on <DOMAIN-NAME>}]

smart-rf Enables Smart RF management
interactive-calibration- Displays interactive Smart RF calibration results
result
discard Discards interactive Smart RF calibration results
replace-current-config Replaces current radio configuration
write-to-configuration Writes and saves radio settings to configuration
on <DOMAIN-NAME> Optional. Displays interactive Smart RF calibration results on a specified RF Domain


• service wireless client beacon-request <MAC> mode [active|passive|table] ssid
[<SSID>|any] channel-report [<CHANNEL-LIST>|none] {on <DEVICE-NAME>}]

wireless client beacon- Sends beacon measurement requests to a wireless client
requests
<MAC> Specify the MAC address of the wireless client.
mode [active|passive|table] Specifies the beacon measurements mode
• Active – Requests beacon measurements in the active mode
• Passive – Requests beacon measurements in the passive mode
• Table – Requests beacon measurements in the table mode
ssid [<SSID>|any] Specifies if the measurements have to be made for a specified SSID or for any SSID
• <SSID> – Requests beacon measurement for a specified SSID
• any – Requests beacon measurement for any SSID
channel-report [<CHANNEL- Configures channel report in the request. The request can include a list of channels or
LIST>| can apply to all channels
none] • <CHANNEL-LIST> – Request includes a list of channels. The client has to send
beacon measurements only for those channels included in the request
• none – Request applies to all channels
on <DEVICE-NAME> Optional. Sends requests on a specified device

• service wireless qos delete-tspec <MAC> tid <0-7>

wireless qos delete-tspec Sends a delete TSPEC request to a wireless client
<MAC> Specify the MAC address of the wireless client.
tid <0-7> Deletes the Traffic Identifier (TID)
• <0-7> – Select the TID from 0 - 7.
• service wireless wips clear-client-blacklist [all|mac <MAC>]

wireless wips Enables management of WIPS parameters
clear-client-blacklist Removes a specified client or all clients from the blacklist
[all|mac <MAC>] • all – Removes all clients from the blacklist
• mac <MAC> – Removes a specified client form the blacklist

• service wireless wips clear-event-history {on <DEVICE-OR-DOMAIN-NAME}]

wireless wips Enables WIPS management
clear-event-history Clears event history
on <DEVICE-OR-DOMAIN- Optional. Clears event history on a device or RF Domain
RF Domain.


Syntax (Privilege Exec Mode)

NOTE: The “service” command of the Priv Exec Mode is the same as the service
command in the User Exec Mode. There a few modifications that have been documented
in this section. For the syntax and parameters of the other commands refer to the
(User Exec Mode) syntax and (User Exec Mode) parameters sections of this chapter.

service [advanced-wips|clear|cli-tables-expand|cli-tables-skin|cluster|copy|
locator|mint|noc|pktcap|pm|radio|set|show|signal|smart-rf|start-shell||wireless]
service copy tech-support [FILE|URL]
service clear [ap-upgrade|command-history|crash-info|noc|reboot-history|
unsanctioned|upgrade-history|wireless]
service mint [clear [lsp-db|mlcp
]|debug-log [flash-and-syslog|flash-only]|
expire [lsp|spf]|flood [csnp|lsp]|silence]
service signal [abort <PROCESS>|kill <PROCESS>]
service pm stop{on <DEVICE-NAME>}
service show [advanced-wips|captive-portal|cli|command-history|crash-info|
dhcp-lease|diag|info|last-passwd|mac-vendor|mem|noc|pm|process|reboot-history|
rf-domain-manager|snmp|startup-log|sysinfo||top|upgrade-history|watchdog|
wireless|xpath-history]
service start-shell
Parameters (Privilege Exec Mode)
• service copy tech-support <FILE> <URL>

copy tech-support Copies files for technical support
• tech-support – Copies extensive system information useful for troubleshooting
<FILE> Specify the file name in the following format:
cf:/path/file
usb1:/path/file
usb2:/path/file
<URL> Specify the file location in the following format:

• service clear crash-info {on <DEVICE-NAME>}

clear crash-info Clears all crash files
on <DEVICE-NAME> Optional. Clears crash files on a specified device. These crash files are core, panic, and AP
dump

• service mint [clear [lsp-dp|mlcp]|debug-log [flash-and-syslog|flash-only]|expire
[lsp|spf]|flood [csnp|lsp]|silence]

mint Enables MiNT protocol management (clears LSP database, enables debug logging,
enables running silence etc.)
clear [lsp-dp|mlcp] Clears LSP database and MiNT Link Control Protocol (MLCP) links
• lsp-dp – Clears MiNT Label Switched Path (LSP) database
• mlcp – Clears MLCP links


debug-log Enables debug message logging
[flash-and-syslog| • flash-and-syslog – Logs debug messages to the flash and syslog files
flash-only]
• flash-only – Logs debug messages to the flash file only
expire [lsp|spf] Forces expiration of LSP and recalculation of Shortest Path First (SPF)
• lsp – Forces expiration of LSP
• spf – Forces recalculation of SPF
flood [csnp|lsp] Floods control packets
• csnp – Floods our Complete Sequence Number Packets (CSNP)
• lsp – Floods our LSP
silence Run silent

• service pm stop {on <DEVICE-NAME>}

pm Stops the Process Monitor (PM)
stops Stops the PM from monitoring all daemons
on <DEVICE-NAME> Optional. Stops the PM on a specified device

• service show last-passwd

last-passwd Displays the last password used to enter shell
• service signal [abort <PROCESS>|kill <PROCESS>]

signal Sends a signal to a process
• tech-support – Copies extensive system information useful for troubleshooting
abort Sends an abort signal to a process, and forces it to dump to core
• <PROCESS> – Specify the process name.
kill Sends a kill signal to a process, and forces it to terminate without a core
• <PROCESS> – Specify the process name.

• service start-shell

start-shell Provides shell access


Syntax (Global Config Mode)
service [set|show cli]
service set [command-history <10-300>|upgrade-history <10-100>|
reboot-history <10-100>] {on <DEVICE-NAME>}
Parameters (Global Config Mode)
• service set [command-history <10-300>|upgrade-history <10-300>|reboot-history <10-
300>] {on <DEVICE-NAME>}

set Sets the size of history files
command-history Sets the size of the command history file
<10-300> • <10-300> – Specify a value from 10 - 300. The default is 200.
upgrade-history Sets the size of the upgrade history file
reboot-history Sets the size of the reboot history file
on <DEVICE-NAME> Optional. Sets the size of history files on a specified device

• service show cli

show cli Displays running system configuration details
• cli – Displays the CLI tree of the current mode
Examples
rfs7000-37FABE>service cli-tables-skin stars
rfs7000-37FABE>

rfs7000-37FABE>service pktcap on interface vlan 2
Capturing up to 50 packets. Use Ctrl-C to abort.

rfs7000-37FABE>service show cli
User Exec mode: +-do
+-help [help]
+-show
+-configuration-tree [help show configuration-tree]
+-search
+-WORD [help search WORD (|detailed|only-show|skip-show)]
+-detailed [help search WORD (|detailed|only-show|skip-show)]
+-only-show [help search WORD (|detailed|only-show|skip-show)]
+-skip-show [help search WORD (|detailed|only-show|skip-show)]
+-show
+-commands [show commands]
+-running-config [show (running-config|session-config) (|include-factory)]
+-include-factory [show (running-config|session-config) (|include-factory)]
+-interface [show running-config interface (|`WORD|ge <1-4>|me1|pc <1-4>|vlan <1-
4094>') (|include-factory)]
+-WORD [show running-config interface (|`WORD|ge <1-4>|me1|pc <1-4>|vlan <1-
+-include-factory [show running-config interface (|`WORD|ge <1-4>|me1|pc <1-
4>|vlan <1-4094>') (|include-factory)]
+-ge
+-<1-4> [show running-config interface (|`WORD|ge <1-4>|me1|pc <1-4>|vlan <1-
+-include-factory [show running-config interface (|`WORD|ge <1-4>|me1|pc <1-
4>|vlan <1-4094>') (|include-
factory)].................................................................rfs7000-
37FABE


rfs7000-37FABE>service show general stats on rfs7000-37FABE
Current Fan Speed: 6540 Minimum Fan Speed: TBD Hysteresis: TBD

Sensor 1 Temperature: 31C

rfs7000-37FABE>

rfs7000-37FABE>service wireless wips clear-mu-blacklist mac 11-22-33-44-55-66
rfs7000-37FABE>

rfs7000-37FABE#service signal kill testp
Sending a kill signal to testp
rfs7000-37FABE#
rfs7000-37FABE#service signal abort testprocess
Sending an abort signal to testprocess
rfs7000-37FABE#

rfs7000-37FABE#service mint clear lsp-db
rfs7000-37FABE#

rfs7000-37FABE#service mint silence
rfs7000-37FABE#

rfs7000-37FABE#service pm stop on rfs7000-37FABE
rfs7000-37FABE#
rfs7000-37FABE(config)#service show cli
Global Config mode:
+-help [help]
+-search
+-WORD [help search WORD (|detailed|only-show|skip-show)]
+-detailed [help search WORD (|detailed|only-show|skip-show)]
+-only-show [help search WORD (|detailed|only-show|skip-show)]
+-skip-show [help search WORD (|detailed|only-show|skip-show)]
+-show
+-commands [show commands]
+-eval
+-LINE [show eval LINE]
+-debugging [show debugging (|(on DEVICE-OR-DOMAIN-NAME))]
+-cfgd [show debugging cfgd]
+-on
+-DEVICE-OR-DOMAIN-NAME [show debugging (|(on DEVICE-OR-DOMAIN-NAME))]
+-wireless [show debugging wireless (|(on DEVICE-OR-DOMAIN-NAME))]
+-on
+-DEVICE-OR-DOMAIN-NAME [show debugging wireless (|(on DEVICE-OR-DOMAIN-NAME))]
+-voice [show debugging voice (|(on DEVICE-OR-DOMAIN-NAME))]
+-on
+-DEVICE-OR-DOMAIN-NAME [show debugging voice (|(on DEVICE-OR-DOMAIN-NAME))]
+-captive-portal [show debugging captive-portal (|(on DEVICE-OR-DOMAIN-NAME))]
+-on
+-DEVICE-OR-DOMAIN-NAME [show debugging captive-portal (|(on DEVICE-OR-DOMAIN-
NAME))]
+-dhcpsvr [show debugging dhcpsvr (|(on DEVICE-NAME))]
+-on..............................................................

rfs7000-37FABE#service traceroute -h
traceroute: invalid option -- h
BusyBox v1.14.1 () multi-call binary

Usage: traceroute [-FIldnrv] [-f 1st_ttl] [-m max_ttl] [-p port#] [-q nqueries]
[-s src_addr] [-t tos] [-w wait] [-g gateway] [-i iface]
[-z pausemsecs] HOST [data size]


Trace the route to HOST

Options:
-F Set the don't fragment bit
-I Use ICMP ECHO instead of UDP datagrams
-l Display the ttl value of the returned packet
-d Set SO_DEBUG options to socket
-n Print hop addresses numerically rather than symbolically
-r Bypass the normal routing tables and send directly to a host
-v Verbose
-m max_ttl Max time-to-live (max number of hops)
-p port# Base UDP port number used in probes
(default is 33434)
-q nqueries Number of probes per 'ttl' (default 3)
-s src_addr IP address to use as the source address
-t tos Type-of-service in probe packets (default 0)
-w wait Time in seconds to wait for a response
(default 3 sec)
-g Loose source route gateway (8 max)

rfs7000-37FABE#

rfs7000-37FABE>ser show ap configured
--------------------------------------------------------------------------
IDX NAME MAC PROFILE RF-DOMAIN ADOPTED-BY
-------------------------------------------------------------------------- 1
ap7131-889EC4 00-15-70-88-9E-C4 default-AP7131 default un-adopted
2 AP650-445566 11-22-33-44-55-66 default-AP650 default un-adopted
3 AP650-000000 00-A0-F8-00-00-00 default-AP650 default 00-15-70-37-FA-BE
--------------------------------------------------------------------------
rfs7000-37FABE>
rfs7000-37FABE>service show command-history on rfs7000-37FABE
Configured size of command history is 200

Date & Time User Location Command
=====================================================================
Jul 28 16:39:34 2010 admin 172.16.10.10 17 service locator on rfs7000-37FABE
Jul 28 16:39:13 2010 admin 172.16.10.10 17 exit
Jul 28 16:17:51 2010 admin 172.16.10.10 17 exit
Jul 28 16:15:58 2010 admin 172.16.10.10 17 exit
Jul 28 16:15:53 2010 admin 172.16.10.10 17 advanced-wips-policy test
Jul 28 16:08:13 2010 admin 172.16.10.10 17 exit
Jul 28 15:24:25 2010 admin 172.16.10.10 16 firewall-policy test
Jul 28 13:51:59 2010 admin 172.16.10.10 15 exit
Jul 28 13:51:47 2010 admin 172.16.10.10 15 exit
Jul 28 13:51:44 2010 admin 172.16.10.10 15 exit
Jul 28 13:51:43 2010 admin 172.16.10.10 15 exit
Jul 28 13:21:17 2010 admin 172.16.10.10 15 aaa-policy test
Jul 28 13:20:35 2010 admin 172.16.10.10 15 exit
Jul 28 13:09:14 2010 admin 172.16.10.10 15 exit
Jul 28 13:08:44 2010 admin 172.16.10.10 15 aaa-policy test
Jul 27 13:46:46 2010 admin 172.16.10.10 6 ip nat pool pool1 prefix-length 1
Jul 27 13:44:46 2010 admin 172.16.10.10 6 profile RFS7000 default-RFS7000
Jul 27 12:39:29 2010 admin 172.16.10.12 5 reload force
Jul 27 12:28:41 2010 admin 172.16.10.12 20 reload force
Jul 27 12:28:39 2010 admin 172.16.10.12 20 write memory
..................................................................
rfs7000-37FABE>

rfs7000-37FABE>service show diag stats on rfs7000-37FABE

fan 1 current speed: 6660 min_speed: 2000 hysteresis: 250

Sensor 1 Temperature 32.0 C



rfs7000-37FABE>service show info on rrfs7000-37FABE
7.7M out of 8.0M available for logs.
9.4M out of 10.0M available for history.
19.2M out of 20.0M available for crashinfo.

List of Files:

cfgd.log 5.7K Jul 28 17:17
fmgr.log 221 Jul 27 12:40
messages.log 1.0K Jul 27 12:41
startup.log 52.3K Jul 27 12:40
command.history 903 Jul 28 16:39
reboot.history 1.6K Jul 27 12:40
ugrade.history 698 Jul 27 12:39
Please export these files or delete them for more space.

rfs7000-37FABE>
rfs7000-37FABEE>service show upgrade-history on rfs7000-37FABE
Configured size of upgrade history is 50
Date & Time Old Version New Version Status
=====================================================================
Jul 27 12:37:30 2010 5.2.2.0-098D 5.2.2.0-097B Successful
Jul 27 12:26:34 2010 5.2.2.0-097B 5.2.2.0-098D Successful
Jul 22 16:33:04 2010 5.2.2.0-096B 5.2.2.0-097B Successful
Jul 22 16:32:15 2010 5.2.2.0-096B 5.2.2.0-096B Unable to get update file. ftpget:
cannot connect to remote host (172.16.10.1): Connection refused
Jul 19 17:51:29 2010 5.2.2.0-090D 5.2.2.0-096B Successful
Jul 12 12:41:12 2010 5.2.2.0-088D 5.2.2.0-090D Successful
Jul 06 12:38:49 2010 5.2.2.0-086D 5.2.2.0-088D Successful
Jun 29 13:06:50 2010 5.2.2.0-084D 5.2.2.0-086D Successful
..........................................................
rfs7000-37FABE
rfs7000-37FABE>service show watchdog
watchdog is enabled
countdown: 255 seconds of 260 remain until reset
rfs7000-37FABE>

rfs7000-37FABE>service show xpath-history
------------------------------------------------------------------------------------
DATE&TIME USER XPATH DURATION(MS)
------------------------------------------------------------------------------------
Wed Jul 28 17:29:49 2010 [system] /wing-stats/device/00-A0-F8-00-00-00/_internal/
adjust_stats_interval 40
Wed Jul 28 17:29:49 2010 [system] /wing-stats/device/00-15-70-37-FA-BE/_internal/
Wed Jul 28 17:29:30 2010 [system] /wing-stats/device/00-15-70-37-FA-BE/watchdog-
status 6

rfs7000-37FABE#service show last-passwd
Last password used: password with MAC 00:15:70:37:fa:be
rfs7000-37FABE#

rfs7000-37FABE>service show wireless ap diag on rfs7000-37FABE


--------------------------------------------------------------------------------
AP-MAC FIELD VALUE
--------------------------------------------------------------------------------
00-15-70-37-FA-BE is_manager True
00-15-70-37-FA-BE last_stats_upload 107802.617188
00-15-70-37-FA-BE manager_mint_id 70.37.FA.BE
00-15-70-37-FA-BE max_pull_time 2.80668640137
00-15-70-37-FA-BE num_adoptions 0
00-15-70-37-FA-BE num_config_failed 0
00-15-70-37-FA-BE num_config_received 0
00-15-70-37-FA-BE num_stats_pulled 17951
00-15-70-37-FA-BE num_stats_pushed 0
00-15-70-37-FA-BE upload_state master
------------------------------------------------------------------------------------
AP-MAC FIELD VALUE
--------------------------------------------------------------------------
00-A0-F8-00-00-00 is_manager False
00-A0-F8-00-00-00 last_stats_upload 449767.65625
00-A0-F8-00-00-00 manager_mint_id 70.37.FA.BE
00-A0-F8-00-00-00 max_pull_time 0
00-A0-F8-00-00-00 num_adoptions 2
00-A0-F8-00-00-00 num_config_applied 2
00-A0-F8-00-00-00 num_config_failed 0
00-A0-F8-00-00-00 num_config_received 2
00-A0-F8-00-00-00 num_stats_pulled 74796
00-A0-F8-00-00-00 num_stats_pushed 3
00-A0-F8-00-00-00 upload_state connected
--------------------------------------------------------------------------
Total number of APs displayed: 2
rfs7000-37FABE>

rfs7000-37FABE>service show wireless config-internal
! Startup-Config-Playback Completed: Yes
no debug wireless
no country-code
!
no rate-limit wlan to-air
no rate-limit wlan from-air
no rate-limit client to-air
no rate-limit client from-air
!
wlan wlan1
ssid wlan1
vlan 1
qos-policy default
no accounting radius
no accounting syslog
rfs7000-37FABE>

System Information:

Free RAM: 68.0% (169 of 249) Min: 10.0%
File Descriptors: free: 24198 used: 960 max: 25500
CPU load averages: 1 min: 0.0% 5 min: 0.0% 15 min: 0.0%

Kernel Buffers:
Size: 32 64 128 256 512 1k 2k 4k 8k 16k 32k 64k 128k
Usage: 2761 2965 927 201 549 107 141 25 68 0 1 2 0
Limit: 32768 8192 4096 4096 8192 8192 16384 16384 1024 512 256 64 64
rfs7000-37FABE#

rfs7000-37FABE>service clear wireless radio statistics on rfs7000-37FABE
clear radio stats on *: o.k.

rfs7000-37FABE#service show dhcp-lease vlan 1 on rfs7000-37FABE
No dhcp lease information available
rfs7000-37FABE#


5.1.9 show
Common Commands
Displays specified system component settings. There are a number of ways to invoke the show command:
• When invoked without any arguments, it displays information about the current context. If the current context contains
instances, the show command (usually) displays a list of these instances.
• When invoked with the display parameter, it displays information about that component.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show <parameter>
Parameters
None


Examples
rfs7000-37FABE#show ?
adoption Display information related to adoption to wireless
controller
advanced-wips Advanced WIPS
ap-upgrade AP Upgrade
boot Display boot configuration.
clock Display system clock
commands Show command lists
context Information about current context
critical-resources Critical Resources
debug Show Debugging status
debugging Debugging functions
device-categorization Device Categorization
event-history Display event history
event-system-policy Display event system policy
file Display filesystem information
firewall Wireless Firewall
interface Interface Configuration/Statistics commands
ip-access-list-stats IP Access list stats
licenses Show installed licenses and usage
logging Show logging information
mac-access-list-stats MAC Access list stats
mac-address-table Display MAC address table
mint MiNT protocol
noc Noc-level information
ntp Network time protocol
password-encryption Pasword encryption
power Show power over ethernet command
reload Scheduled reload information
remote-debug Show details of remote debug sessions
rf-domain-manager Show RF Domain Manager selection details
role Role based firewall
running-config Current operating configuration
session-changes Configuration changes made in this session
session-config This session configuration
sessions Display CLI sessions
spanning-tree Display spanning tree information
startup-config Startup configuration
terminal Display terminal configuration parameters
timezone The timezone
upgrade-status Display last image upgrade status
version Display software & hardware version
wwan Display wireless WAN Status

rfs7000-37FABE#

NOTE: For more information on the show command, see Chapter 6, SHOW
COMMANDS.


5.1.10 write
Common Commands
Writes the system running configuration to memory or terminal
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
write [memory|terminal]
Parameters
• write [memory|terminal]

memory Writes to the non-volatile (NV) memory
terminal Writes to terminal
Examples
rfs7000-37FABE>write memory
[OK]
rfs7000-37FABE>

rfs7000-37FABE>write terminal
!
!
! version 2.1
!
!
smart-rf-policy default
!
smart-rf-policy test
enable
calibration wait-time 4
!
!
wlan-qos-policy test
voice-prioritization
svp-prioritization
wmm background cw-max 8
wmm video txop-limit 9
..........................................................................rfs7000-
37FABE>

CHAPTER 6 SHOW COMMANDS

Show commands display information about a configuration setting or display statistical information. Use this command to
see the current running configuration as well as the start-up configuration. The show command also displays the
configuration of the current context.
This chapter describes the ‘show’ CLI commands used in the USER EXEC, PRIV EXEC, and GLOBAL CONFIG modes.
Commands entered in either USER EXEC mode or PRIV EXEC mode are referred to as EXEC mode commands. If a user or
privilege is not specified, the referenced command can be entered in either mode.
This chapter also describes the ‘show’ commands in the ‘GLOBAL CONFIG’ mode. The commands can be entered in all
three modes, except commands like file, IP access list stats, MAC access list stats, and upgrade stats, which cannot be
entered in the User Executable Mode.


6.1 show commands
Table 6.1 summarizes show commands

show Displays settings for the specified system component page 6-4
adoption Displays information related to wireless controller adoption page 6-8
advanced-wips Displays advanced WIPS settings page 6-10
ap-upgrade Displays access point software image upgrade information page 6-12
boot Displays a device boot configuration page 6-14
captive-portal Displays WLAN hotspot functions page 6-15
cdp Displays a Cisco Discovery Protocol (CDP) neighbor table page 6-18
clock Displays the software system clock page 6-20
cluster Displays cluster commands page 6-21
commands Displays command list page 6-23
context Displays information about the current context page 6-25
critical-resources Displays critical resource information page 6-26
crypto Displays encryption mode information page 6-27
debug Displays debugging configuration information page 6-30
debugging Displays debugging configuration information page 6-33
device- Displays device categorization details page 6-33
categorization
event-history Displays event history page 6-37
event-system- Displays event system policy configuration information page 6-38
policy
file Displays file system information page 6-39
firewall Displays wireless firewall information page 6-40
interface Displays wireless controller interface status page 6-44
ip Displays Internet Protocol (IP) related information page 6-47
ip-access-list-stats Displays IP access list statistics page 6-52
licenses Displays installed licenses and usage information page 6-53
lldp Displays Link Layer Discovery Protocol (LLDP) information page 6-54
logging Displays logging information page 6-55

SHOW COMMANDS 6-3

mac-access-list- Displays MAC access list statistics page 6-56
stats
mac-address-table Displays MAC address table entries page 6-57
mint Displays MiNT protocol configuration commands page 6-58
noc Displays Noc-level information page 6-61
ntp Displays Network Time Protocol (NTP) information page 6-64
password- Displays password encryption status page 6-65
encryption
power Displays Power over Ethernet (PoE) information page 6-66
remote-debug Displays remote debug session data page 6-67
rf-domain- Displays RF Domain manager selection details page 6-68
manager
role Displays role-based firewall information page 6-69
running-config Displays contents of configuration files page 6-70
session-changes Displays configuration changes made in this session page 6-74
session-config Displays a list of currently active open sessions on the device page 6-75
sessions Displays CLI sessions page 6-76
smart-rf Displays Smart RF management commands page 6-77
spanning-tree Displays spanning tree information page 6-80
startup-config Displays complete startup configuration script on the console page 6-83
terminal Displays terminal configuration parameters page 6-84
timezone Displays timezone page 6-85
upgrade-status Displays image upgrade status page 6-86
version Displays a device’s software and hardware version page 6-88
wireless Displays wireless configuration parameters page 6-89
wwan Displays wireless WAN status page 6-106


6.1.1 show
show commands
The show command displays the following information:
• A device’s current configuration
• A device’s start up configuration
• A device’s current context configuration, such as profiles and policies
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show <parameter>
Parameters
None
Examples
The following examples list the show commands in the different modes:
GLOBAL CONFIG Mode
rfs7000-37FABE(config)#show ?
controller

SHOW COMMANDS 6-5

mint MiNT protocol


rfs7000-37FABE(config)#show clock
2011-04-30 09:28:29 GMT

PRIVILEGE EXEC Mode
rfs7000-37FABE#show ?
controller
mint MiNT protocol



rfs7000-37FABE#
rfs7000-37FABE#show terminal
rfs7000-37FABE#show terminal
Terminal Type: xterm

USER EXEC Mode
rfs7000-37FABE>show ?
controller
mint MiNT protocol

SHOW COMMANDS 6-7

rfs7000-37FABE>

rfs7000-37FABE>show wireless ap configured
--------------------------------------------------------------------------
IDX NAME MAC PROFILE RF-DOMAIN ADOPTED-BY
--------------------------------------------------------------------------
1 AP7131-889EC4 00-15-70-88-9E-C4 default-AP7131 default un-adopted
2 AP650-445566 11-22-33-44-55-66 default-AP650 default un-adopted
--------------------------------------------------------------------------
rfs7000-37FABE>


6.1.2 adoption
show commands
The adoption command is common to all three modes. It displays information related to APs adopted by a wireless
controller.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show adoption [config-errors|history|info|offline|pending|status]
show adoption [config-errors <DEVICE-NAME>|history {on <DEVICE-NAME>}|
info {on <DEVICE-NAME>}|offline|pending {on <DEVICE-NAME>}|
status {on <DEVICE-NAME>}]
Parameters
• show adoption [config-errors <DEVICE-NAME>|history {on <DEVICE-NAME>}|info {on
<DEVICE-NAME>}|offline|pending {on <DEVICE-NAME>}|status {on-<DEVICE-NAME>}]

adoption Displays an AP adoption history and status. It also displays adopted device configuration
errors.
config-errors Displays configuration errors of an AP or all APs adopted by a wireless controller
<DEVICE-NAME> • <DEVICE-NAME> – Specify the name of the AP or wireless controller.
history Displays adoption history status
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays adoption history status on a specified device
info Displays adopted device details
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays adoption details on a specified device
offline Displays device’s non-adopted status and its adopted access points
pending Displays details for access points pending adoption, but have to actually connect to
{on <DEVICE-NAME>} wireless controller
• on <DEVICE-NAME> – Optional. Displays information on a specified device
status Displays a device’s adoption status
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Specify the name of the AP or wireless controller.

SHOW COMMANDS 6-9

Examples
rfs7000-37FABE(config-device-00-15-70-37-FA-BE)#show adoption offline
--------------------------------------------------------------------------
MAC HOST-NAME TYPE RF-DOMAIN
--------------------------------------------------------------------------
00-15-70-88-9E-C4 AP7131-889EC4 AP7131 default
11-22-33-44-55-66 AP650-445566 AP650 default
--------------------------------------------------------------------------

rfs7000-37FABE(config-adoption-policy-test)#show adoption info
Number of APs adopted : 1
Number of AAPs adopted : 0
Available AP licenses : 49
Available AAP licenses : 50
Device in cluster : No
Cluster state : active

--------------------------------------------------------------------------
MAC HOST-NAME TYPE VERSION ADOPTED-BY LAST-ADOPTION
--------------------------------------------------------------------------
00-A0-F8-00-00-00 AP650-000000 AP650 5.2.2.0-048B 00-15-70-37-FA-BE 2010-08-17
23:48:48
--------------------------------------------------------------------------
rfs7000-37FABE(config-adoption-policy-test)#

rfs7000-37FABE(config)#show adoption history
--------------------------------------------------------------------------
MAC TYPE EVENT REASON TIME-STAMP
--------------------------------------------------------------------------
00-23-68-13-9B-34 AP7131 adopted N.A. 2011-01-01 05:28:14
--------------------------------------------------------------------------


6.1.3 advanced-wips
show commands
Displays advanced Wireless Intrusion Prevention Policy (WIPS) settings
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show advanced-wips [configuration|stats]

show advanced-wips configuration [events {thresholds}|terminate-list]
show advanced-wips stats [ap-table|client-table|connected-sensors|
event-history|server-listening-port]
show advanced-wips stats [detected-aps|detected-clients-for AP <MAC>]
{[neighboring|sanstioned|unsanctioned]}
Parameters
• show advanced-wips configuration [events {thresholds}|terminate-list]

configuration Displays advanced WIPS settings
events thresholds Displays events summary
Advanced WIPS policies are assigned to wireless controllers and support various events
depending on the configuration. These events are individually triggered against
authorized, unauthorized, and neighboring devices.
• thresholds – Optional. Displays threshold values for each event configured in the
advanced WIPS policy
terminate-list Displays the terminate list

• show advanced-wips stats [ap-table|client-table|connected-sensors|event-
history|server-listening-port]

stats Displays advanced WIPS statistics
ap-table Displays AP table statistics
client-table Displays station table statistics
connected-sensors Displays connected sensors statistics

SHOW COMMANDS 6 - 11

event-history Displays advanced WIPS event history
server-listening-port Displays advanced WIPS server listening port statistics

• show advanced-wips stats [detected-aps|detected-clients-for AP <MAC>]
{[neighboring|sanstioned|unsanctioned]}

stats Displays advanced WIPS statistics
detected-aps Displays AP details based on the parameters passed
{neighboring|sanctioned|un • neighboring – Optional. Displays neighboring AP statistics
sanctioned}
• sanctioned – Optional. Displays sanctioned AP statistics
• unsanctioned – Optional. Displays unsanctioned AP statistics
detected-clients-for-ap Displays clients statistics for APs
<MAC> • <MAC> – Displays clients for a specified AP. Enter the MAC address (BSS-ID) of the AP.
{neighboring|sanctioned| • neighboring – Optional. Displays neighboring client information
unsanctioned} • sanctioned – Optional. Displays sanctioned client information
• unsanctioned – Optional. Displays unsanctioned client information
Examples
rfs7000-37FABE(config)#show advanced-wips configuration events
+------+----+---------------------------------------------+----------+----
|POLICY|SLNO|NAME|AUTHORIZED|UNAUTHORIZED|NEIGHBORING|
+------+----+---------------------------------------------+----------+----
Trigger-S: Trigger against Sanctioned devices enabled(Y)/disabled(N)
Trigger-U: Trigger against Unsanctioned devices enabled(Y)/disabled(N)
Trigger-N: Trigger against Neighboring devices enabled(Y)/disabled(N)
| - | - | - |
+------+----+---------------------------------------------+----------+----

rfs7000-37FABE(config)#show advanced-wips configuration events thresholds
+--------+-----+--------------------------+--------------------------+----
| POLICY | # | EVENT | THRESHOLD | VALUE |
+--------+-----+--------------------------+--------------------------+----
| test | 1 | dos-eapol-logoff-storm | eapol-start-frames-ap | 9 |
| test | 2 | dos-eapol-logoff-storm | eapol-start-frames-mu | 99 |
| test | 3 | dos-cts-flood | cts-frames-ratio | 8 |
| test | 4 | dos-cts-flood | mu-rx-cts-frames | 20 |
+--------+-----+--------------------------+--------------------------+----

rfs7000-37FABE(config)#show advanced-wips stats detected-stations-for-ap 11-22-33-44-
55-66 authorized
Number of stations associated to the AP 11-22-33-44-55-66: 0

rfs7000-37FABE(config)#show advanced-wips stats client-table
Number of clients: 2

rfs7000-37FABE(config)#show advanced-wips configuration events thresholds
--------------------------------------------------------------------------
POLICY # EVENT THRESHOLD VALUE
--------------------------------------------------------------------------
test 1 probe-response-flood probe-rsp-frames-count 50
test 2 dos-cts-flood cts-frames-ratio 70
test 3 dos-cts-flood mu-rx-cts-frames 20
test 4 dos-eapol-logoff-storm eapol-start-frames-ap 10
------------------------------------------------------------------------


6.1.4 ap-upgrade
show commands
Displays AP firmware image upgrade information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show ap-upgrade [history {on <RF-DOMAIN-NAME>}|load-image-status|status
{on [<RF-DOMAIN-NAME>|<RF-DOMAIN-MANAGER>]}|versions {on <RF-DOMAIN-MANAGER>}]
Parameters
• show ap-upgrade [history {on <RF-DOMAIN-NAME>}|load-image-status|status
{on [<RF-DOMAIN-NAME>|<RF-DOMAIN-MANAGER>]|versions {<RF-DOMAIN-MANAGER>}]

ap-upgrade Displays AP firmware upgrade details
history Displays AP firmware upgrade history (AP address, upgrade result, time of upgrade,
{on <RF-DOMAIN-NAME>} number of retries, upgrade by etc.)
• on <RF-DOMAIN-NAME> – Optional. Displays device firmware upgrade history in a
RF Domain
• <RF-DOMAIN-NAME> – Specify the RF Domain name.
load-image-status Displays firmware image download status on a device
status Displays AP firmware upgrade status
on {<RF-DOMAIN-NAME>| • on – Optional. Displays firmware upgrade status on a RF Domain or RF Domain
<RF-DOMAIN-MANAGER>} manager
• <RF-DOMAIN-NAME> – Optional. Specify the RF Domain name.
• <RF-DOMAIN MANAGER> – Optional. Specify the RF Domain manager name.
versions Displays upgrade image versions
{on <RF-DOMAIN- • on <RF-DOMAIN-MANAGER> – Optional. Displays upgrade image versions on
MANAGER>} devices adopted by a RF Domain manager


Examples
rfs7000-37FABE(config)#show ap-upgrade history
------------------------------------------------------------------------------------
AP RESULT TIME RETRIES UPGRADED-BY LAST-UPDATE-ERROR
------------------------------------------------------------------------------------
00-04-96-44-54-C0 done 2011-03-31 02:06:39 0 00-04-96-
42-14-79 -
00-04-96-44-54-C0 done 2011-04-14 00:46:52 0 00-04-96-
42-14-79 -
00-04-96-44-54-C0 done 2011-04-25 00:12:00 0 00-04-96-
42-14-79 -
00-04-96-44-54-C0 done 2011-04-28 07:17:38 0 00-04-96-
42-14-79 -
00-04-96-44-54-C0 done 2011-05-04 12:15:31 0 00-04-96-
42-14-79 -
Total number of entries displayed: 5


6.1.5 boot
show commands
Displays a device’s boot configuration. Use the on command to view a remote device’s boot configuration.

NOTE: This command is not present in the USER EXEC Mode.

• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show boot {on <DEVICE-NAME>}
Parameters
• show boot {on <DEVICE-NAME>}

boot Displays primary and secondary image boot configuration details (build date, install
date, version, and the image used to boot the current session)
on <DEVICE-NAME> Optional. Displays boot configuration information on a specified device
Examples
rfs7000-37FABE(config)#show boot on rfs7000-37FABE
--------------------------------------------------------------------------
IMAGE BUILD DATE INSTALL DATE VERSION
--------------------------------------------------------------------------
Primary 2011-05-10 09:58:17 2010-02-07 10:33:55 5.2.0.0-026D
Secondary 2011-06-10 21:29:31 2011-06-15 14:21:17 5.2.0.0-033D
--------------------------------------------------------------------------
Current Boot : Secondary
Next Boot : Secondary
Software Fallback : Enabled



6.1.6 captive-portal
show commands
Displays WLAN hotspot information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show captive-portal client {filter|on}

show captive-portal client {filter [captive-portal|ip|state|vlan|wlan]}
show captive-portal client {filter captive-portal [<CAPTIVE-PORTAL>|
not <CAPTIVE-PORTAL>]}]
show captive-portal client {filter ip [<IP>|not <IP>]}
show captive-portal client {filter state [not[pending|success]
|pending|success]}
show captive-portal client {filter vlan [<VLAN>|not <VLAN>]}
show captive-portal client {filter wlan [<WLAN>|not <WLAN>]}
show captive-portal client {on <DEVICE-OR-DOMAIN-NAME> {filter {captive-portal|
ip|state|vlan|wlan}}
Parameters
• show captive-portal client {filter captive-portal [<CAPTIVE-PORTAL>|
not <CAPTIVE-PORTAL>]}

captive-portal client Displays captive portal client information
filter Optional. Defines additional filters
captive-portal Optional. Displays a specified captive portal client information
[<CAPTIVE-PORTAL>| • <CAPTIVE-PORTAL> – Specify the captive portal name.
not <CAPTIVE-PORTAL>]
• not <CAPTIVE-PORTAL> – Inverts the match selection
• show captive-portal client {filter ip [<IP>|not <IP>]}

ip [<IP>|not <IP>] Displays captive portal client information based on the IP address passed
• <IP> – Specify the IP address.
• not <IP> – Inverts the match selection


• show captive-portal client {filter state [not [pending|success]|
pending|success]}

state not [pending|success]] Optional. Filters clients based on their authentication state
• not – Inverts match selection
• pending – Displays clients successfully authenticated (Opposite of pending authen-
tication)
• success – Displays clients redirected for authentication (Opposite of successful au-
thentication)
state [pending|success]] Optional. Filters clients based on their authentication state
• pending – Displays clients redirected for authentication
• success – Displays clients successfully authenticated

• show captive-portal client {filter vlan [<VALN-ID>|not <VLAN-ID>]}

vlan [<VLAN>| Optional. Displays clients on a specified VLAN
not <VLAN>] • <VLAN> – Specify the VLAN ID.
• not <VLAN> – Inverts match selection
• show captive-portal client {filter wlan [<WALN-ID>|not <WLAN-ID>]}

wlan [<WLAN>| Optional. Displays clients on a specified WLAN
not <WLAN>] • <WLAN> – Specify the WLAN ID.
• not <WLAN> – Inverts match selection
• show captive-portal client {on <DEVICE-OR-DMAIN-NAME> filter [captive-
portal|ip|state|vlan|wlan]}

on <DEVICE-OR-DOMAIN- Optional. Displays captive portal clients on a specified device or RF Domain
RF Domain.
• captive-portal – Optional. Displays client information for a specified captive portal
• ip – Optional. Displays captive portal client information based on the IP address
passed
• state – Optional. Displays client information based on the their authentication state
• vlan – Displays clients on a specified VLAN
• wlan – Optional. Displays clients on a specified WLAN


Examples
rfs7000-37FABE(config)#show captive-portal client on RFS7000-421479
------------------------------------------------------------------------------------
CLIENT IP CAPTIVE-PORTAL WLAN VLAN STATE SESSION TIME
------------------------------------------------------------------------------------
------------------------------------------------------------------------------------
Total number of captive portal clients displayed: 0


6.1.7 cdp
show commands
Displays the Cisco Discovery Protocol (CDP) neighbor table
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show cdp [neighbors|report] {detail {on <DEVICE-OR-DOMAIN-NAME>}|
on <DEVICE-OR-DOMAIN-NAME>}
Parameters
• show cdp [neighbors|report] {detail {on <DEVICE-OR-DOMAIN-NAME>}|on <DEVICE-OR-
DOMAIN-NAME>}

cdp [neighbors|report] Displays CDP neighbors table or aggregated CDP neighbors table
detail Optional. Displays CDP neighbors table or aggregated CDP neighbors table details
{on <DEVICE-OR- • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays table details on a specified
DOMAIN-NAME>} device or RF Domain
RF Domain.
on <DEVICE-OR- Optional. Displays table details on a specified device or domain (This option does not
DOMAIN-NAME> display detailed information)
RF Domain.


Examples
The following example displays CDP neighbors table in detail.

rfs7000-37FABE(config)#show cdp neighbors detail on rfs7000-37FABE
-------------------------
Device ID: RFS4000-229D58
Entry address(es):
IP Address: 172.16.10.6
IP Address: 169.254.157.88
Platform: RFS-4010-00010-WR, Capabilites: Router Switch
Interface: ge1, Port ID (outgoing port): ge1
Hold Time: 173 sec

advertisement version: 2
Native VLAN: 1
Duplex: full
Version :
5.2.2.0-048B
-------------------------
Device ID: rfs6000-380649
Entry address(es):
IP Address: 2.2.2.2
IP Address: 172.16.10.4
Platform: RFS6000, Capabilites: Router Switch
Interface: ge1, Port ID (outgoing port): ge1
Hold Time: 173 sec

advertisement version: 2
--More--

The following example shows a non-detailed CDP neighbors table.

rfs7000-37FABE(config)#show cdp neighbors on rfs7000-37FABE
--------------------------------------------------------------------------
Device ID Neighbor IP Platform Local Intrfce Port ID Duplex
--------------------------------------------------------------------------
rfs4000-229D58 172.16.10.6 RFS-4010-00010-WR ge1 ge1 full
rfs6000-380649 2.2.2.2 RFS6000 ge1 ge1 full
--------------------------------------------------------------------------

rfs7000-37FABE(config)#show cdp neighbors on rfs7000-37FABE
--------------------------------------------------------------------------------
Device ID Neighbor IP Platform Local Intrfce Port ID Duplex
--------------------------------------------------------------------------------
ap650-4454C0 169.254.84.192 AP650-ROW ge8 ge1 full
--------------------------------------------------------------------------------


6.1.8 clock
show commands
Displays a system’s clock
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show clock {on <DEVICE-NAME>}
Parameters
• show clock {on <DEVICE-NAME>}

clock Displays a system’s clock
on <DEVICE-NAME> Optional. Displays system clock on a specified device
• <DEVICE-NAME> – Specify the name of the AP, wireless controller, or RF Domain.
Examples
rfs7000-37FABE(config)#show clock
2011-06-21 14:14:49 IST


6.1.9 cluster
show commands
Displays cluster information (cluster configuration parameters, members, status etc.)
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show cluster [configuration|members {detail}|status]
Parameters
• show cluster [configuration|members {detail}|status]

cluster Displays cluster information
configuration Displays cluster configuration parameters
members {detail} Displays cluster members configured on the logged device
• detail – Optional. Displays detailed information of known cluster members
status Displays cluster status


Examples
rfs7000-37FABE(config)#show cluster configuration
Cluster Configuration Information
Mode : Active
Number of peer(s) : 0
Auto revert : Disabled
Auto revert interval (Mins) : 5
Controller AP license : 0
Controller AAP license : 0
Controller max AP adoption capacity : 1024

Cluster Runtime Information
Cluster protocol version : 1
Cluster run state : active
Cluster AP license : 0
Cluster AAP license : 0
Controller AP count : 0
Controller AAP count : 0
Cluster AP count : 0
Cluster AAP count : 0
Cluster max AP adoption capacity : 1024
Number of connected peer(s) : 0

rfs7000-37FABE(config)#show cluster members detail
+-------------+-------------------+--------+--------+---------+----------| ID |
MAC | MODE |AP COUNT|AAP COUNT|AP LICENSE|AAP LICENSE| VERSION |
+-------------+-------------------+--------+--------+---------+----------|
70.37.fa.be | 00-15-70-37-FA-BE | Active | 0 | 0 | 0 | 0 | Unknown |
+-------------+-------------------+--------+--------+---------+----------+


6.1.10 commands
show commands
Displays commands available for the current mode
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show commands
Parameters
None
Examples
rfs7000-37FABE(config)#show commands
help
help search WORD (|detailed|only-show|skip-show)
show commands
show debugging (|(on DEVICE-OR-DOMAIN-NAME))
show debugging cfgd
show debugging wireless (|(on DEVICE-OR-DOMAIN-NAME))
show debugging voice (|(on DEVICE-OR-DOMAIN-NAME))
show debugging captive-portal (|(on DEVICE-OR-DOMAIN-NAME))
show debugging dhcpsvr (|(on DEVICE-NAME))
show debugging mstp (|(on DEVICE-OR-DOMAIN-NAME))
show debugging advanced-wips
show debugging vpn (|(on DEVICE-NAME))
show debugging radius (|(on DEVICE-NAME))
show (running-config|session-config) (|include-factory)
show running-config interface (|`WORD|ge <1-4>|me1|pc <1-4>|vlan <1-4094>')
(|include-factory)
show running-config wlan WLAN (|include-factory)
show (running-config) device (self|DEVICE-NAME) (|include-factory)
show session-changes
show startup-config (|include-factory)
show adoption info (|(on DEVICE-NAME))
show adoption offline
show licenses
show password-encryption status
show debug xpath get WORD (|WORD)
show debug xpath count WORD
show debug xpath list WORD
show rf-domain-manager
show timezone
show event-history
show ntp status
show ntp associations (|detail)
show device-categorization summary
show wireless ap (|(on DEVICE-OR-DOMAIN-NAME))


show wireless ap configured
show wireless ap detail (|WORD)
show wireless unsanctioned aps (|(on DEVICE-OR-DOMAIN-NAME))
show wireless unsanctioned aps detailed (|(on DEVICE-OR-DOMAIN-NAME))
show wireless unsanctioned aps statistics (|(on DEVICE-OR-DOMAIN-NAME))
show wireless client (|(on DEVICE-OR-DOMAIN-NAME)) (|(filter {|(state (|not) (data-
ready|roaming))|(wlan (|not) WLAN)|(ip (|not) A.B.C.D)}))
show wireless client detail AA-BB-CC-DD-EE-FF (|(on DEVICE-OR-DOMAIN-NAME))
show wireless client statistics (|traffic) (|(on DEVICE-OR-DOMAIN-NAME))
show wireless client statistics rf (|(on DEVICE-OR-DOMAIN-NAME))
...............................................


6.1.11 context
show commands
Displays the current context details
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show context {include-factory|session-config {include-factory}}
Parameters
• show context {include-factory|session-config {include-factory}}

include-factory Optional. Includes factory defaults
session-config Optional. Displays running system information in the current context
include-factory • include-factory – Optional. Includes factory defaults
Examples
rfs7000-37FABE>show context include-factory
!
!
!
version 2.1
!
!
ip dos smurf log-and-drop log-level warnings
ip dos twinge log-and-drop log-level warnings
ip dos invalid-protocol log-and-drop log-level warnings
ip dos router-advt log-and-drop log-level warnings
ip dos router-solicit log-and-drop log-level warnings
ip dos option-route log-and-drop log-level warnings
ip dos ascend log-and-drop log-level warnings
ip dos chargen log-and-drop log-level warnings
ip dos fraggle log-and-drop log-level warnings
ip dos snork log-and-drop log-level warnings
ip dos ftp-bounce log-and-drop log-level warnings
ip dos tcp-intercept log-and-drop log-level warnings
ip dos broadcast-multicast-icmp log-and-drop log-level warnings
ip dos land log-and-drop log-level warnings
ip dos tcp-xmas-scan log-and-drop log-level warnings
--More--
rfs7000-37FABE>


6.1.12 critical-resources
show commands
Displays critical resource information. Critical resources are resources vital to the wireless controller managed network.
Some critical resources are security spanning routers, switches, firewalls, VPNs, VLANs, WiFi access points etc.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show critical-resources {on <DEVICE-NAME>}
Parameters
• show critical-resources {on <DEVICE-NAME>}

critical-resources Displays critical resource information
on <DEVICE-NAME> Optional. Displays critical resource information on a specified device
Examples
RFS4000-22CDAA(config)#sh critical-resources on RFS4000-22CDAA
--------------------------------------------------------------------------
CRITICAL RESOURCE IP VLAN PING-MODE STATE
--------------------------------------------------------------------------
172.168.1.103 1 arp-icmp up


6.1.13 crypto
show commands
Displays encryption mode information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show crypto [ipsec|isakmp|key|pki]

show crypto [ipsec|isakmp] sa {on <DEVICE-NAME>}
show crypto key rsa {on <DEVICE-NAME>|public-key-detail {on <DEVICE-
NAME>}
show crypto pki trustpoints {<TRUSTPOINT> {on <DEVICE-NAME>}|
all {on <DEVICE-NAME>}|on <DEVICE-NAME>}
Parameters
• show crypto [ipsec|isakmp] sa {on <DEVICE-NAME>}

crypto [ipsec|isakmp] sa Displays encryption information
• ipsec – Displays Internet Protocol Security (IPSec) statistics. The IPSec encryption
authenticates and encrypts each IP packet in a communication session.
• isakmp – Displays Internet Security Association and Key Management Protocol
(ISAKMP) statistics. The ISAKMP protocol provides a means of authentication and key
exchange.
The following is common to the IPSec and ISAKMP parameters:
• sa – Displays all IPSec or ISAKMP Security Associations (SA)
on <DEVICE-NAME> Optional. Displays IPSec or ISAKMP SAs on a specified device

• show crypto key rsa {on <DEVICE-NAME>|public-key-detail {on <DEVICE-NAME>}}

crypto key Displays key management operations


rsa {on <DEVICE-NAME>} Displays RSA public keys
• on <DEVICE-NAME> – Optional. Displays RSA public keys on a specified device
public-key-detail Displays public key in the Privacy Enhanced Mail (PEM) format
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays public key on a specified device

• show crypto pki trustpoints {<TRUSTPOINT> {on <DEVICE-NAME>}|all {on <DEVICE-
NAME>}|on <DEVICE-NAME>}

crypto pki Displays Public Key Infrastructure (PKI) commands
trustpoints Displays WLAN trustpoints
<TRUSTPOINT> Optional. Displays a specified trustpoint. Specify the trustpoint name.
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays trustpoint details on a specified device
all {on <DEVICE-NAME>} Optional. Displays all trustpoints
• on <DEVICE-NAME> – Optional. Displays all trustpoints configured on a specified
device
on <DEVICE-NAME> Optional. Displays trustpoints configured on a specified device
Examples
rfs7000-37FABE(config)#show crypto key rsa public-key-detail on rfs7000-37FABE

RSA key name: default-trustpoint-srvr-priv-key Key-length: 1024
-----BEGIN PUBLIC KEY-----
MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQDGHBR2bxLeRZ4G6hm7jHJRSaeE
A216r4s4qptiSld+rKeMiHPtFbyELedk3dITkzF1EU7Ov0vKzant0pyAmdJ8ci//
wSQMmZjX3RwF9OFBRp2C09LFj?1VX2fsoD6xXhJHBLieJ9qzF+ZQ2CYG7+r29P/o
3rfr/GLaTN3C6RIWvQIDAQAB
-----END PUBLIC KEY-----

RSA key name: default_rsa_key Key-length: 1024
-----BEGIN PUBLIC KEY-----
MIGdMA0GCSqGSIb3DQEBAQUAA4GLADCBhwKBgQCwXXWGE9j/i3EiSjnY9x1Ktsbt
rzgqB1KhlShWIgnWqlxjzvO6S?GmBPG5XqBS3rKqIzrgh6fXF2cNJZweWgc1QktL
AoZN/MeCiGVGiJZmtmyKlHPMgyyLGqm6krvWFfOdqlA85+WdQyvDsevTVVp/OiEB
al4SsIvMG+U/UQaI1wIBIw==
-----END PUBLIC KEY-----


rfs7000-37FABE(config)#show crypto key rsa on rfs7000-37FABE
+------------+-------------------------------------------+----------------
| # | KEY NAME | KEY LENGTH |
+------------+-------------------------------------------+----------------
| 1 | default-trustpoint-srvr-priv-key | 1024 |
| 2 | default_rsa_key | 1024 |
+------------+-------------------------------------------+---------------------+
rfs7000-37FABEconfig)#show crypto pki trustpoints all on rfs7000-37FABE

Trustpoint Name: default-trustpoint (self signed)


--------------------------------------------------------------------------
CRL present: no
Server Certificate details:
Key used: default-trustpoint-srvr-priv-key
Serial Number: 0671
Subject Name:
C=US, ST=CA, L=San Jose, O=Enterprise Mobility, OU=EWLAN, CN=Motorola
Issuer Name:
Valid From : Tue Sep 22 16:19:51 2009 UTC
Valid Until: Wed Sep 22 16:19:51 2010 UTC

rfs7000-37FABE(config)#show crypto pki trustpoints all

Trustpoint Name: default-trustpoint (self signed)
--------------------------------------------------------------------------
CRL present: no
Server Certificate details:
Key used: default-trustpoint-srvr-priv-key
Serial Number: 0671
Subject Name:
Issuer Name:
Valid From : Tue Sep 22 16:19:51 2009 UTC
Valid Until: Wed Sep 22 16:19:51 2010 UTC



6.1.14 debug
show commands
Displays debugging status of the DPD2 module, profile functions, and XPath operations
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show debug [dpd2|profile|xpath]

show debug dpd2 {on <DEVICE-NAME>}
show debug profile <WORD> {arg <WORD>}

show debug xpath [count|get|list]

show debug xpath [count|list] <WORD>

show debug xpath get <WORD> {option|param <WORD> option} [do-profiling|
no-pretty|show-tail-only|use-generator|use-streaming]
Parameters
• show debug dpd2 {on <DEVICE-NAME>}

debug dpd2 Displays DPD2 module debugging status
on <DEVICE-NAME> Optional. Displays the debugging status on a specified device
• show debug profile <WORD> {arg <WORD>}

debug profile <WORD> Displays profile function debugging status
{arg <WORD>} • <WORD> – Specify the name of the profile function.
• arg <WORD> – Optional. Specify arguments for the function in a single word,
separated by a coma (for example. cli,[3,4]).

• show debug xpath [count|list] <WORD>

debug xpath Displays XPath-based operation debugging status


count <WORD> Prints the number of items under an XPath node
• <WORD> – Specify the XPath node. (for example, /wing-stats/device/self/interface)
list <WORD> Lists the names (keys) under an XPath node

• show debug xpath get <WORD> {option|param <WORD> option} [do-profiling|
no-pretty|show-tail-only|use-generator|use-streaming]

debug xpath Displays XPath-based operation debugging status
get <WORD> Prints the XPath node value based on the options passed
option Optional. Prints the XPath node value based on the options passed
Select one of the following options:
• do-profiling – Performs profiling
• no-pretty – Disables pretty for speed
• show-tail-only – Displays only the tail of the result
• use-generator – Performs streaming using generator interface
• use-streaming – Uses streaming interface
param <WORD> option Optional. Prints the XPath node value based on the options passed
• <WORD> – Specify the parameter in the dictionary format (for example,
rf_domain_name:a_name,dummy_name:dummy_value)
• option – After entering the parameter, select one of the following options:
• do-profiling – Performs profiling
• no-pretty – Disables pretty for speed
• show-tail-only – Displays only the tail of the result
• use-generator – Performs streaming using generator interface
• use-streaming – Uses streaming interface


Examples
rfs7000-37FABE(config)#show debug xpath count /wing-stats
Success: 4

rfs7000-37FABE(config)#show debug xpath get word option do-profiling no-pretty
Wed Jun 22 09:28:34 2011 /var/profile

26 function calls in 0.001 CPU seconds

Ordered by: standard name
ncalls tottime percall cumtime percall filename:lineno(function)
1 0.000 0.000 0.001 0.001 <string>:1(<module>)
1 0.000 0.000 0.001 0.001 cluster_db_api.py:36(cluster_db_get_api)
1 0.000 0.000 0.001 0.001 debugcli.py:163(debug_xpath_get_stats_body)
2 0.000 0.000 0.000 0.000 log.py:133(dlog)
1 0.000 0.000 0.000 0.000 re.py:144(sub)
1 0.000 0.000 0.000 0.000 re.py:227(_compile)
1 0.000 0.000 0.000 0.000 utils.py:174(dlog_stats)
1 0.000 0.000 0.000 0.000 utils.py:186(dlog_snmp)
1 0.000 0.000 0.000 0.000 xpath_parser.py:104(__init__)
1 0.000 0.000 0.000 0.000 xpath_parser.py:124(splitsegments)
1 0.000 0.000 0.000 0.000 xpath_parser.py:194(stripFilters)
1 0.000 0.000 0.000 0.000 xpath_parser.py:6(__init__)
1 0.000 0.000 0.000 0.000 {built-in method sub}
1 0.000 0.000 0.000 0.000 {isinstance}
2 0.000 0.000 0.000 0.000 {len}
2 0.000 0.000 0.000 0.000 {method 'append' of 'list' objects}
1 0.000 0.000 0.000 0.000 {method 'disable' of '_lsprof.Profiler'
objects}
1 0.000 0.000 0.000 0.000 {method 'find' of 'str' objects}
3 0.000 0.000 0.000 0.000 {method 'get' of 'dict' objects}
2 0.000 0.000 0.000 0.000 {method 'startswith' of 'str' objects}

done profiling

rfs7000-37FABEconfig)#show debug xpath list /wing-stats
Success: ['device', 'rf_domain', 'noc']


6.1.15 debugging
show commands
Displays debugging information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show debugging {advanced-wips|captive-portal|cfgd|dhcpsvr|mint|mstp|
nsm|on|radius|snmp|voice|vpn|wireless}
show debugging {[advanced-wips|cfgd]}
show debugging {[captive-portal|mint|mstp|nsm|voice|wireless]}
show debugging {on <DEVICE-OR-DOMAIN-NAME>}
show debugging {dhcpsvr|radius|snmp|vpn} {on <DEVICE-NAME>}
Parameters
• show debugging {advanced-wips|cfgd}

debugging Displays debugging processes in progress based on the parameters passed
{advanced-wips|cfgd} • advanced-wips – Optional. Displays the advanced WIPS module’s debugging
configuration
• cfgd – Optional. Displays the cfgd process debugging configuration


• show debugging {captive-portal|mint|mstp|nsm|voice|wireless} {on <DEVICE-OR-DOMAIN-
NAME>}

{captive-portal| • captive-portal – Optional. Displays the hotspot (HSD) module’s debugging
mint|mstp|nsm|voice| configuration
wireless}
• mint – Optional. Displays the MiNT module’s debugging configuration
• mstp – Optional. Displays the Multiple Spanning Tree (MST) module’s debugging
configuration
• nsm – Optional. Displays Network Service Module (NSM) debugging configuration
• voice – Optional. Displays the voice module’s debugging configuration
• wireless – Optional. Displays the wireless module’s debugging configuration
on <DEVICE-OR-DOMAIN- The following are common to all of the above options:
NAME> • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays debugging processes on a
device or RF Domain.
• <DEVICE-OR-DOMAIN-NAME> – The name of the AP, wireless controller, or
RF Domain.

• show debugging {dhcpsvr|radius|snmp|vpn} {on <DEVICE-NAME>}

{dhcpsvr|radius|snmp| • dhcpsvr – Optional. Displays the DHCP server configuration module’s debugging
vpn} information
• radius – Optional. Displays the RADIUS server configuration module’s debugging
information
• snmp – Optional. Displays the Simple Network Management Protocol (SNMP)
module’s debugging information
• vpn – Optional. Displays the VPN module’s debugging information
• snmp – Optional. Displays the SNMP module’s debugging information
on <DEVICE-NAME> The following are common to all of the above options:
• on <DEVICE-NAME> – Optional. Displays debugging processes on a specified device

• show debugging {on <DEVICE-OR-DOMAIN-NAME>}

debugging {on <DEVICE-OR- Displays all debugging processes in progress on a specified device or RF Domain.
DMAIN-NAME>} • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays debugging processes in
progress, on a device or RF Domain
or RF Domain.


Examples
rfs7000-37FABE(config)#show debugging cfgd
cfgd:
config debugging is on
cluster debugging is on


6.1.16 device-categorization
show commands
Displays device categorization summary
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show device-categorization summary
Parameters
• show device-categorization summary

device-categorization Displays device categorization summary
summary
Examples
rfs7000-37FABE(config)#show device-categorization summary
--------------------------------------------------------------------------
POLICY # A/N AP/CLIENT MAC SSID
--------------------------------------------------------------------------
DEVICE-CATEGORIZATION 1 sanctioned client 00-40-96-B0-BA-2D -
DEVICE-CATEGORIZATION 2 neighboring client 00-40-96-B0-BA-2A -
DEVICE-CATEGORIZATION 3 sanctioned ap 00-23-68-31-12-65 ASDF
--------------------------------------------------------------------------


6.1.17 event-history
show commands
Displays event history report
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show event-history {on <DEVICE-OR-DOMAIN-NAME>}
Parameters
• show event-history {on <DEVICE-OR-DOMAIN-NAME>}

event-history Displays event history report
on <DEVICE-OR-DOMAIN- Optional. Displays event history report on a device or RF Domain
NAME> • <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless controller,
or RF Domain.
Examples
rfs7000-37FABE(config)#show event-history
EVENT HISTORY REPORT
Generated on '2011-06-22 12:50:10 IST' by 'admin'

2011-06-22 10:28:22 00-15-70-37-FA-BE SYSTEM LOGIN Successfully
logged in User: 'admin' with privilege 'superuser' from 'ssh'
2011-06-22 10:25:01 00-15-70-37-FA-BE SYSTEM LOGOUT Logged
out User: 'admin' with privilege 'superuser' from '172.16.10.10'
2011-06-22 09:39:35 00-15-70-37-FA-BE NSM IFUP Interface
ge3 is up
ge3 is up
2011-06-22 09:37:16 00-15-70-37-FA-BE NSM IFDOWN Interface
ge3 is down
2011-06-22 07:24:21 00-15-70-37-FA-BE SYSTEM LOGIN Successfully
logged in User: 'admin' with privilege 'superuser' from 'ssh'
ge3 is up
ge3 is up
2011-06-22 07:01:35 00-15-70-37-FA-BE NSM IFDOWN Interface
ge3 is down
ge3 is up
--More--


6.1.18 event-system-policy
show commands
Displays detailed event system policy configuration
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show event-system-policy [config|detail] <EVENT-SYSTEM-POLICY>
Parameters
• show event-system-policy [config|detail] <EVENT-SYSTEM-POLICY>

event-system-policy Displays event system policy configuration
config Displays configuration for a specified policy
detail Displays detailed configuration for a specified policy
<EVENT-SYSTEM-POLICY> Specify the event system policy name.
Examples
rfs7000-37FABE(config)#show event-system-policy config testpolicy
--------------------------------------------------------------------------
MODULE EVENT SYSLOG SNMP FORWARD EMAIL
--------------------------------------------------------------------------
aaa radius-discon-msg on on on default
--------------------------------------------------------------------------
rfs7000-37FABE


6.1.19 file
show commands
Displays file system information

NOTE: This command is not available in the USER EXEC Mode.

• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show file [information <FILE>|systems]
Parameters
• show file [information <FILE>|systems]

information <FILE> Displays file information
• <FILE> – Specify the file name.
systems Lists all file systems present in the system
Examples
rfs7000-37FABE(config)#show file systems
File Systems:

Size(b) Free(b) Type Prefix
- - opaque system:
10485760 9916416 flash nvram:
20971520 20131840 flash flash:
- - network (null)
- - network rdp:
- - network sftp:
- - network http:
- - network ftp:
- - network tftp:
20971520 20131840 - hotspot:

rfs7000-37FABE(config)#show file information flash
flash::
type is directory


6.1.20 firewall
show commands
Displays wireless firewall information, such as DHCP snoop table entries, denial of service statistics, active session
summaries etc.
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show firewall [dhcp|dos|flows]
show firewall [dhcp snoop-table|dos stats] {on <DEVICE-NAME>}]

show firewall flows {[filter|management|on|stats|wireless-client <MAC>]}

show firewall flows {filter [dir|dst port <1-65535>|ether|flow-type|icmp|
igmp|ip|max-idle|min-bytes|min-idle|min-pkts|not|port|src|tcp|udp]}

show firewall flows {management {on <DEVICE-NAME>}|stats {on <DEVICE-
NAME>}|wireless-client <MAC>|on <DEVICE-NAME>}

Parameters
• show firewall [dhcp snoop-table|dos stats]

dhcp snoop-table Displays Dynamic Host Configuration Protocol (DHCP) snoop table entries
• snoop-table – Displays DHCP snoop table entries
DHCP snooping acts as a firewall between non-trusted hosts and the DHCP server. Snoop
table entries contain MAC address, IP address, lease time, binding type, and interface
information of non-trusted interfaces.
dos stats Displays Denial of Service (DoS) statistics
on <DEVICE-NAME> The following are common to the DHCP snoop table and DoS stats parameters:
• on <DEVICE-NAME> – Optional. Displays snoop table entries, or DoS stats on a
specified device


• show firewall flows {management {on <DEVICE-NAME>}|stats {on <DEVICE-
NAME>}|wireless-client <MAC>|on <DEVICE-NAME>}

firewall flows Notifies a session has been established
management Optional. Displays management traffic firewall flows
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays firewall flows on a specified device
stats Optional. Displays active session summary
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays active session summary on a specified
device
wireless-client <MAC> Optional. Displays wireless clients firewall flows
on <DEVICE-NAME> Optional. Displays all firewall flows on a specified device

• show firewall flows filter [(dir|dst|ether|flow-type|icmp|igmp|ip|
max-idle|min-bytes|min-idle|min-pkts|not|port|src|tcp|udp)] {(dir|dst|ether|
flow-type|ip|max-idle|min-bytes|min-idle|min-pkts|port|src)}

firewall filter Defines additional firewall flow filter parameters
dir [wired-wired|wired- Matches the packet flow direction
wireless|wireless- • wired-wired – Wired to wired flows
wired|wireless-wireless]
• wired-wireless – Wired to wireless flows
• wireless-wired – Wireless to wired flows
• wireless-wireless – Wireless to wireless flows
dst <PORT> <1-65535> Matches the destination port with the specified port
• <PORT> – Specifies the destination port
• <1-65535> – Specify the destination port number from 1 - 65535.
ether Displays Ethernet filter options
[dst <MAC>|host <MAC>| • dst <MAC> – Matches the destination MAC address
src|vlan]
• host <MAC> – Matches flows containing the specified MAC address
• src <MAC> – Matches only the source MAC address
• vlan <1-4094> – Matches the VLAN number of the traffic with the specified value.
Specify a value from 1- 4094.
flow-type Matches the traffic flow type
[bridged|natted|routed| • bridged – Bridged flows
wired|wireless]
• natted – Natted flows
• routed – Routed flows
• wired – Flows belonging to wired hosts
• wireless – Flows containing a mobile unit


icmp {code|type} Matches flows with the specified Internet Control Message Protocol (ICMP) code and
type
• code – Matches flows with the specified ICMP code
• type – Matches flows with the specified ICMP type
igmp Matches Internet Group Management Protocol (IGMP) flows
ip [dst <IPv4>|host Filters firewall flows based on the IPv4 parameters passed
<IPv4>|proto <0-254>| • dst <IPv4> – Matches destination IP address
src <IPv4>]
• host <IPv4> – Matches flows containing IPv4 address
• proto <0-254> – Matches the IPv4 protocol
• src <IPv4> – Matches source IP address
max-idle Filters firewall flows idle for at least the specified duration. Specify a max-idle value
from 1 - 4294967295 bytes.
min-bytes Filters firewall flows seen at least the specified number of bytes. Specify a min-bytes
value from 1 - 4294967295 bytes.
min-idle Filters firewall flows idle for at least the specified duration. Specify a min-idle value
from 1 - 4294967295 bytes.
min-pkts Filters firewall flows with at least the given number of packets. Specify a min-bytes
value from 1 - 4294967295 bytes.
not Negates the filter expression selected
port <1-65535> Matches either the source or destination port. Specify a port from 1 - 65535.
src <1-65535> Matches the source port with the specified port. Specify a port from 1 - 65535.
tcp Matches TCP flows
udp Matches UDP flows


Examples
rfs7000-37FABE(config)#show firewall dhcp snoop-table on rfs7000-37FABE
Snoop Binding <157.235.208.252, 00-15-70-37-FA-BE, Vlan 4>
Type Controller-SVI, Touched 32 seconds ago
--------------------------------------------------------------------------
Snoop Binding <172.16.10.2, 00-15-70-37-FA-BE, Vlan 1>
Type Controller-SVI, Touched 1 seconds ago
--------------------------------------------------------------------------

rfs7000-37FABE(config)#show firewall flows management on rfs7000-37FABE
========== Flow# 1 Summary ==========
Forward:
Vlan 1, TCP 172.16.10.10 port 3995 > 172.16.10.1 port 22
00-02-B3-28-D1-55 > 00-15-70-37-FA-BE, ingress port ge1
Egress port: <local>, Egress interface: vlan1, Next hop: <local> (00-15-70-37-FA-BE)
573 packets, 49202 bytes, last packet 0 seconds ago
Reverse:
Vlan 1, TCP 172.16.10.1 port 22 > 172.16.10.10 port 3995
00-15-70-37-FA-BE > 00-02-B3-28-D1-55, ingress port local
Egress port: ge1, Egress interface: vlan1, Next hop: 172.16.10.10 (00-02-B3-28-D1-55)
552 packets, 63541 bytes, last packet 0 seconds ago
TCP state: Established
Flow times out in 1 hour 30 minutes


rfs7000-37FABE(config)#show firewall flows stats on rfs7000-37FABE
Active Flows 2
TCP flows 1
UDP flows 0
DHCP flows 1
ICMP flows 0
IPsec flows 0
L3/Unknown flows 0


6.1.21 interface
show commands
Displays wireless controller interface status
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show interfaces {<INTERFACE>|brief|counters|ge <1-4>|me1|on|
port-channel {<1-2>|switchport|vlan <1-4094>} {on <DEVICE-NAME>}
Parameters
• show interfaces {<INTERFACE>|brief|counters|ge <1-4>|me1|on|
port-cahnnel <1-2>|switchport|vlan <1-4094>} {on <DEVICE-NAME>}

interfaces Displays wireless controller interface status based on the parameters passed
<INTERFACE> Displays status of the interface specified by the <INTERFACE> parameter. Specify the
{on <DEVICE-NAME>} interface name.
• on <DEVICE-NAME> – Optional. Displays interface status on a specified device
brief Displays a brief summary of the interface status and configuration
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays a brief summary on a specified device
counters Displays interface Tx or Rx counters
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays interface Tx or Rx counters on a specified
device
ge <1-4> Displays Gigabit Ethernet interface status and configuration
• <1-4> – Select the Gigabit Ethernet interface index from 1 - 4.
me1 Displays Fast Ethernet interface status and configuration
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays Fast Ethernet interface status on a specified
device


on <DEVICE-NAME> Displays interface status on a specified device
port-channel <1-2> Displays port channel interface status and configuration
• <1-2> – Specify the port channel index from 1 - 2.
switch port Displays layer 2 interface status
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays interface status on a specified device
vlan <1-4094> Displays VLAN interface status and configuration
{on <DEVICE-NAME>} • <1-4094> – Specify the Switch Virtual Interface (SVI) VLAN ID from 1 - 4094.
• on <DEVICE-NAME> – Optional. Displays interface status on a specified device
Examples
rfs7000-37FABE(config)#show interface switchport on rfs7000-37FABEE
--------------------------------------------------------------------------
INTERFACE STATUS MODE VLAN(S)
--------------------------------------------------------------------------
ge1 UP access 1
ge2 DOWN access 1
ge3 UP access 1
ge4 DOWN access 1
--------------------------------------------------------------------------
A '*' next to the VLAN ID indicates the native vlan for that trunk port
rfs7000-37FABE(config)#show interface vlan 1
Interface vlan1 is UP
Hardware-type: vlan, Mode: Layer 3, Address: 00-15-70-37-FA-BE
IP-Address: 172.16.10.1/24
input packets 587971, bytes 58545041, dropped 0, multicast packets 0
input errors 0, length 0, overrun 0, CRC 0, frame 0, fifo 0, missed 0
output packets 56223, bytes 4995566, dropped 0
output errors 0, aborted 0, carrier 0, fifo 0, heartbeat 0, window 0
collisions 0

rfs7000-37FABE(config)#show interface ge 2 on rfs7000-37FABE
Interface ge2 is DOWN
Hardware-type: ethernet, Mode: Layer 2, Address: 00-15-70-37-FA-C0
Speed: Admin Auto, Operational n/a, Maximum 1G
Duplex: Admin Auto, Operational n/a
Active-medium: n/a
Switchport settings: access, access-vlan: 1
Input packets 0, bytes 0, dropped 0
Received 0 unicasts, 0 broadcasts, 0 multicasts
Input errors 0, runts 0, giants 0
CRC 0, frame 0, fragment 0, jabber 0
Output packets 501587, bytes 60935912, dropped 0
Sent 3 unicasts, 4613 broadcasts, 496971 multicasts
Output errors 0, collisions 0, late collisions 0
Excessive collisions 0



rfs7000-37FABE(config)#show interface counters
--------------------------------------------------------------------------
# MAC RX-PKTS RX-BYTES RX-DROP TX-PKTS TX-
BYTES TX-DROP
--------------------------------------------------------------------------
me1 00-...-F7 0 0 0 0 0 0
vlan1 00-...-BE 588384 58580154 0 56435 5013682 0
ge1 00-...-BF 1906950 175560930 0 1402226 589235764 0
ge2 00-...-C0 0 0 0 501615 60939303 0
ge3 00-...-C1 1354163 581149840 0 1877890 175646105 0
ge4 00-...-C2 0 0 0 501615 60939303 0
--------------------------------------------------------------------------


6.1.22 ip
show commands
Displays IP related information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show ip [arp|ddns|dhcp|dhcp-vendor-options|domain-name|igmp|interface|
name-server|nat|route|routing]
show ip arp {<VLAN-NAME> {on <DEVICE-NAME>}|on <DEVICE-NAME>}
show ip ddns bindings {on <DEVICE-NAME>}

show ip dhcp [binding|networks|status]
show ip dhcp [networks|status] {on <DEVICE-NAME>}]
show ip dhcp binding {manual <DEVICE-NAME>|on <DEVICE-NAME>}

show ip [dhcp-vendor-options|domain-name|name-server|routing] {on <DEVICE-
NAME>}
show ip igmp snooping [mrouter|vlan]
show ip igmp snooping mrouter vlan <1-4095> {on <DEVICE-NAME>}
show ip igmp snooping vlan <1-4095> {<IP> {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

show ip interface {<INTERFACE> {on <DEVICE-NAME>}|brief {on <DEVICE-NAME>}|
on <DEVICE-NAME>}
show ip nat translations verbose {on <DEVICE-NAME>}
show ip route {<INTERFACE>|ge <1-4>|me1|port-channel <1-2>|vlan <1-4094>}
{on <DEVICE-NAME>}
show ip route {on <DEVICE-NAME>}
Parameters
• show ip arp {<VLAN-NAME> {on <DEVICE-NAME>}|on <DEVICE-NAME>}

ip arp Displays Address Resolution Protocol (ARP) configuration details
<VLAN-NAME> Optional. Displays ARP configuration on a specified VLAN. Specify the VLAN name.
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays VLAN ARP configuration on a specified
device
on <DEVICE-NAME> Optional. Displays VLAN ARP configuration details on a specified device


• show ip ddns bindings {on <DEVICE-NAME>}

ip ddns Displays Dynamic Domain Name Server (DDNS) configuration details
bindings Displays DDNS address bindings
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays address bindings on a specified device

• show ip dhcp [networks|status] {on <DEVICE-NAME>}

ip dhcp Displays the DHCP server configuration details
networks Displays the DHCP server network details
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays server network details on a specified device
status {on <DEVICE- Displays the DHCP server status
NAME>} • on <DEVICE-NAME> – Optional. Displays server status on a specified device

• show ip dhcp binding {manual {on <DEVICE-NAME>}|on <DEVICE-NAME>}

ip dhcp Displays the DHCP server configuration details
bindings Displays DHCP address bindings
manual {on <DEVICE- Displays static DHCP address bindings
NAME>} • on <DEVICE-NAME> – Optional. Displays address bindings on a specified device
on <DEVICE-NAME> Displays DHCP address bindings on a specified device

• show ip [dhcp-vendor-options|domain-name|name-server|routing] {on <DEVICE-NAME>}

ip dhcp-vendor-options Displays DHCP 43 parameters received from the DHCP server
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays DHCP 43 parameters received from a
specified device
ip domain-name Displays DNS default domain
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays the default domain on a specified device
ip name-server Display the DNS name server details
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays server details on a specified device
• <DEVICE-NAME> – Specify the name of the AP or the wireless controller.
ip routing Displays the routing status
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays routing details on a specified device


• show ip igmp snooping mrouter vlan <1-4095> {on <DEVICE-NAME>}

ip igmp Displays IGMP configuration details
snooping Displays IGMP snooping configuration details
mrouter vlan <1-4095> Displays VALN IGMP snooping mrouter configuration
{on <DEVICE-NAME>} • <1-4095> – Specify the VLAN ID from 1 - 4095.
• on <DEVICE-NAME> – Optional. Displays details on a specified device

• show ip igmp snooping vlan <1-4095> {<IP> {on <DEVICE-NAME>}|on <DEVICE-NAME>}

ip igmp Displays IGMP configuration details
snooping Displays IGMP snooping configuration details
vlan <1-4095> Displays VLAN IGMP snooping configuration
• <1-4095> – Specify the VLAN ID from 1 - 4095.
<IP> {on <DEVICE-NAME>} Optional. Specify the multicast group IP address.
• on <DEVICE-NAME> – Optional. Displays configuration details on a specified device

• show ip interface {<INTERFACE> {on <DEVICE-NAME>}|brief {on <DEVICE-NAME>}}

ip interface Displays administrative and operational status of all layer 3 interfaces or a specified
layer 3 interface
<INTERFACE> Displays a specified interface status. Specify the interface name.
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays interface status on a specified device
brief Displays a brief summary of interface status and configuration
• on <DEVICE-NAME> – Optional. Displays a brief summary on a specified device

• show ip nat translations verbose {on <DEVICE-NAME>}

ip nat translations Displays Network Address Translation (NAT) translations
verbose Displays detailed NAT translations
• on <DEVICE-NAME> – Optional.Displays NAT translations on a specified device

• show ip route {<INTERFACE>|ge <1-4>|me1|port-channel <1-2>|vlan <1-4095>} {on
<DEVICE-NAME>}

ip route Displays route table details
<INTERFACE> Displays route table details for a specified interface
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays route table details on a specified device


ge <1-4> Displays GigabitEthernet interface route table details
{on <DEVICE-NAME>} • <1-4> – Specify the GigabitEthernet interface index from 1 - 4.
• on <DEVICE-NAME> – Optional. Displays route table details on a specified de-
vice
me1 {on <DEVICE-NAME>} Displays FastEthernet interface route table details
• on <DEVICE-NAME> – Optional. Displays route table details on a specified device
port-channel <1-2> Displays port channel interface route table details
{on <DEVICE-NAME>} • on <DEVICE_NAME> – Optional. Displays route table details on a specified device
vlan <1-4095> Displays VLAN interface route table details
{on <DEVICE-NAME>} • on <DEVICE_NAME> – Optional. Displays route table details on a specified device
Examples
rfs7000-37FABE(config)#show ip arp test on rfs7000-37FABEE
+--------------------+-------------------------+---------------+----------
| IP | MAC | INTERFACE | TYPE |
+--------------------+-------------------------+---------------+----------
| 172.16.10.11 | 00-50-DA-95-11-13 | vlan1 | dynamic |
| 172.16.10.10 | 00-02-B3-28-D1-55 | vlan1 | dynamic |
+--------------------+-------------------------+---------------+----------

rfs7000-37FABE(config)#show ip interface brief on rfs7000-37FABE
+-----------------+----------------------------+--------------+-----------
| INTERFACE | IP-ADDRESS/MASK | STATUS | PROTOCOL |
+-----------------+----------------------------+--------------+-----------
| me1 | unassigned | DOWN | down |
| vlan44 | unassigned | UP | up |
| vlan1 | 172.16.10.2/24 | UP | up |
| vlan4 | 157.235.208.252/24 | UP | up |
+-----------------+----------------------------+--------------+-----------

rfs7000-37FABE(config)#show ip nat translations verbose on rfs7000-37FABE

PROTO ACTUAL SOURCE ACTUAL DESTINATION NATTED SOURCE NATTED DESTINATION
--------------------------------------------------------------------------


rfs7000-37FABE(config)#show ip route test on rfs7000-37FABE
+-------------------------+--------------------+------------+-------------
| DESTINATION | GATEWAY | FLAGS | INTERFACE |
+-------------------------+--------------------+------------+-------------
| 157.235.208.0/24 | direct | C | vlan4 |
| 172.16.10.0/24 | direct | C | vlan1 |
| default | 172.16.10.9 | CG | vlan1 |
+-------------------------+--------------------+------------+-------------
Flags: C - Connected G - Gateway

rfs7000-37FABE(config)#show ip route pc 2
+-------------------------+--------------------+------------+-------------
+-------------------------+--------------------+------------+-------------
| 157.235.208.0/24 | direct | C | vlan4 |


| 172.16.10.0/24 | direct | C | vlan1 |
| default | 172.16.10.9 | CG | vlan1 |
+-------------------------+--------------------+------------+-------------
rfs7000-37FABEconfig)#

rfs7000-37FABE(config)#show ip route vlan 1 on rfs7000-37FABE
+------------------------+---------------------+-------------+------------
+------------------------+---------------------+-------------+------------
| 172.16.10.0/24 | direct | C | vlan1 |
| default | 172.16.10.9 | CG | vlan1 |
+------------------------+---------------------+-------------+------------

rfs7000-37FABE(config)#show ip route ge 1 on rfs7000-37FABE-------------------------
-------------------------------------------------
DESTINATION GATEWAY FLAGS INTERFACE
--------------------------------------------------------------------------
172.16.12.0/24 direct C vlan3
172.16.11.0/24 direct C vlan2
172.16.10.0/24 direct C vlan1
--------------------------------------------------------------------------

rfs7000-37FABE(config)#show ip routing on rfs7000-37FABE
IP routing is enabled.

rfs7000-37FABE(config)#show ip dhcp status on rfs7000-37FABE
State of DHCP server: running
Interfaces: vlan2, vlan3


6.1.23 ip-access-list-stats
show commands
Displays IP access list statistics

NOTE: This command is not available in the USER EXEC Mode

• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show ip-access-list-stats {<IP-ACCESS-LIST> {on <DEVICE-NAME>}|on <DEVICE-
NAME>}
Parameters
• show ip-access-list-stats {<IP-ACCESS-LIST> {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

ip-access-list-stats Displays IP access list statistics
<IP-ACCESS-LIST> Displays statistics for a specified IP access list
{on <DEVICE-NAME>} • <IP-ACCESS-LIST> – Optional. Specify the IP access list name.
• on <DEVICE-NAME> – Optional. Displays statistics on a specified device
on <DEVICE-NAME> Optional. Displays all IP access list statistics on a specified device
Examples
rfs7000-37FABE(config)#show ip-access-list-stats
IP Access-list: # Restrict Management ACL #
permit tcp any any eq ftp rule-precedence 1 Hitcount: 0
permit tcp any any eq www rule-precedence 2 Hitcount: 41
permit tcp any any eq ssh rule-precedence 3 Hitcount: 448
permit tcp any any eq https rule-precedence 4 Hitcount: 0
permit udp any any eq snmp rule-precedence 5 Hitcount: 0
permit tcp any any eq telnet rule-precedence 6 Hitcount: 4


6.1.24 licenses
show commands
Displays installed licenses and usage information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show licenses
Parameters
None
Examples
rfs7000-37FABE(config)#show licenses
Serial Number : 6268529900014

Device Licenses:
AP-LICENSE
String :
8088bb045018988b85bcd575d0ab7dbc802885bcc680a96194dfbeedc28d4117058eb53bd8b
Value : 50
Used : 0
AAP-LICENSE
String :
8088bb045018988bf98ff7127cda1d354bc689885fcc6b625b695384946d4117058eb53bd8b
Value : 50
Used : 0


6.1.25 lldp
show commands
Displays Link Layer Discovery Protocol (LLDP) information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show lldp neighbors {on <DEVICE-NAME>}
Parameters
• show lldp neighbors {on <DEVICE-NAME>}

lldp Displays LLDP neighbor table
on <DEVICE-NAME> Optional. Displays LLDP neighbor table on a specified device
Examples
rfs7000-37FABE(config)#show lldp neighbors

rfs7000-37FABE(config)#show lldp neighbors on rfs7000-37FABE


6.1.26 logging
show commands
Displays network activity log
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show logging {on <DEVICE-NAME>}
Parameters
• show logging {on <DEVICE-NAME>}

logging Displays logging information on a specified device
{on <DEVICE-NAME>} • <DEVICE-NAME> – Optional. Specify the name of the AP or wireless controller.

Examples
rfs7000-37FABE(config)#show logging on rfs7000-37FABE
Logging module: enabled
Aggregation time: disabled
Console logging: level warnings
Monitor logging: disabled
Buffered logging: level warnings
Syslog logging: level warnings
Facility: local7

Log Buffer (2294 bytes):

Jul 08 16:44:26 2011: %CERTMGR-4-CERT_EXPIRY: server certificate for trustpoint
mint_security_trustpoint has expired
Jul 08 16:44:26 2011: %CERTMGR-4-CERT_EXPIRY: ca certificate for trustpoint
Jul 08 15:44:26 2011: %CERTMGR-4-CERT_EXPIRY: ca certificate for trustpoint
Jul 08 14:44:26 2011: %CERTMGR-4-CERT_EXPIRY: ca certificate for trustpoint mint--
More--


6.1.27 mac-access-list-stats
show commands
Displays MAC access list statistics

NOTE: This command is not present in USER EXEC Mode

• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show mac-access-list-stats {<MAC-ACCESS-LIST> {on <DEVICE-NAME>}|
on <DEVICE-NAME>}
Parameters
• show mac-access-list-stats {<MAC-ACCESS-LIST> {on <DEVICE-NAME>}|on <DEVICE-NAME>}

mac-access-list-stats Displays MAC access list statistics
<MAC-ACCESS-LIST> Displays statistics for a specified MAC access list
{on <DEVICE-NAME>} • <MAC-ACCESS-LIST> – Optional. Specify the MAC access list name.
• on <DEVICE-NAME> – Optional. Displays statistics on a specified device
on <DEVICE-NAME> Optional. Displays MAC access list statistics on a specified device
Examples
rfs7000-37FABE(config)#show mac-access-list-stats on rfs7000-37FABEE


6.1.28 mac-address-table
show commands
Displays MAC address table entries
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show mac-address-table {on <DEVICE-NAME>}
Parameters
• show mac-address-table {on <DEVICE-NAME>}

mac-address-table Displays MAC address table entries
on <DEVICE-NAME> Optional. Displays MAC address table entries on a specified device
Examples
rfs7000-37FABE(config)#show mac-address-table on rfs7000-37FABE
+------------+----------+-----------+-------------------------+-----------
| BRIDGE | VLAN | PORT | MAC | STATE |
+------------+----------+-----------+-------------------------+-----------
| 1 | 1 | ge1 | 00-50-DA-EE-B5-5C | forward |
| 1 | 1 | ge1 | 00-A0-F8-00-00-00 | forward |
| 1 | 1 | ge1 | 00-02-B3-28-D1-55 | forward |
| 1 | 1 | ge1 | 00-A0-F8-68-D5-5D | forward |
| 1 | 1 | ge1 | 00-50-DA-95-11-13 | forward |
| 1 | 1 | ge1 | 00-15-70-38-06-53 | forward |
| 1 | 1 | ge1 | 00-15-70-41-9F-7F | forward |
| 1 | 1 | ge1 | 00-15-70-88-9E-C4 | forward |
+------------+----------+-----------+-------------------------+-----------


6.1.29 mint
show commands
Displays MiNT protocol configuration commands
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show mint [config|dis|id|info|known-adopters|links|lsp|lsp-db|mlcp|
neighbors|route|stats|tunneled-vlans]

show mint [config|id|info|known-adopters|route|stats|tunneled-vlans]
{on <DEVICE-NAME>}

show mint [dis|links|neighbors] {details {on <DEVICE-NAME>}|
on <DEVICE-NAME>}

show mint lsp-db {details <AA.BB.CC.DD> {on <DEVICE-NAME>}|on <DEVICE-NAME>

show mint mlcp {history {on <DEVICE-NAME>}|on <DEVICE-NAME>}
Parameters
• show mint [config|id|info|known-adopters|route|stats|tunneled-vlans]
{on <DEVICE-NAME>}

mint Displays MiNT protocol information based on the parameters passed
config Displays MiNT related configuration details
id Displays local MiNT ID
known-adopters Displays known, possible, or reachable adopters
route Displays MiNT route table details
stats Displays MiNT related statistics
tunneled-vlans Displays MiNT tunneled VLAN details
on <DEVICE-NAME> The following are common to all of the above:
• on <DEVICE-NAME> – Optional. Displays MiNT protocol details on a specified
device


• show mint [dis|links|neighbors] {details {on <DEVICE-NAME>}|on <DEVICE-NAME>}

dis Displays MiNT network Designated Intermediate Systems (DISes)
links Displays MiNT networking link details
neighbors Displays adjacent MiNT peer details
details The following are common to the dis, links, and neighbors parameters:
{on <DEVICE-NAME>}I • details – Optional. Displays detailed MiNT information
on <DEVICE-NAME> • on <DEVICE-NAME> – Optional. Displays MiNT information on a specified de-
vice

• show mint lsp-db {details <AA.BB.CC.DD> {on <DEVICE-NAME>}|on <DEVICE-NAME>}

lsp-db Displays MiNT LSP database entries
details <AA.BB.CC.DD> Optional. Displays detailed MiNT LSP database entries
{on <DEVICE-NAME>} • <AA.BB.CC.DD> – Specify the MiNT address in the <AA.BB.CC.DD> format.
• on <DEVICE-NAME> – Optional. Displays MiNT LSP database entries on a spec-
ified device

• show mint mlcp {history {on <DEVICE-NAME>}|on <DEVICE-NAME>}

mlcp Displays MiNT Link Creation Protocol (MLCP) status
history {on <DEVICE-NAME>} Optional. Displays MLCP client history
• on <DEVICE-NAME> – Optional. Displays MLCP client history on a specified device


Examples
rfs7000-37FABE(config)#show mint stats
0 L1 neighbors
L1 LSP DB size 1 LSPs (0 KB)
1 L1 routes
Last SPFs took 0s
SPF (re)calculated 1 times.
levels 1
base priority 180
dis priority 180
rfs7000-37FABE(config)#show mint lsp
id 70.37.fa.be, level 1, seqnum 18640, 0 adjacencies, 0 extended-vlans,
expires in 1145 seconds, republish in 722 seconds, changed True,
ext-vlan FDB pri 0, 180 bytes

rfs7000-37FABE(config)#show mint lsp-db
Level 1 LSPs
70.37.fa.be: seqnum 18640, 0 adjacencies, 0 extended-vlans, expires in 1138 seconds
1 LSPs in level 1 database

rfs7000-37FABE(config)#show mint route on rfs7000-37FABE
Destination : Next-Hop(s)
70.37.FA.BE : 70.37.FA.BE via self

rfs7000-37FABE(config)#show mint known-adopters on rfs7000-37FABE
70.37.FA.BE


6.1.30 noc
show commands
Displays Network Operations Center (NOC) level information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show noc [client-list|device|domain]

show noc device {filter {offline|online|rf-domain {<DOMAIN-NAME>|
not <DOMAIN-NAME>]}

show noc domain [managers|statistics {details}]

Parameters
• show noc client-list

noc client-list Displays a list of clients at the NOC level

• show noc device {filter {offline|online|rf-domain {<DOMAIN-NAME>|not <DOMAIN-
NAME>}}

noc device filter Displays devices in a network
• filter – Optional. Displays network devices
Use additional filters to view specific details
offline Displays offline devices
online Displays online devices
rf-domain Displays devices on a specified RF Domain
{<DOMAIN-NAME>| • <DOMAIN-NAME> – Optional. Specify the name of the RF Domain.
not <DOMAIN-NAME>} • not <DOMAIN-NAME> – Inverts the selection

• show noc domain [managers|statistics {details}]

noc domain Displays RF Domain information
Use this command to view all domain managers and get RF Domain statistics


managers Lists RF Domains and managers
statistics {details} Displays RF Domains statistics
• details – Optional. Provides detailed RF Domain statistics
Examples
rfs7000-37FABE(config)#show noc device
+-----------------+----------------+--------+----------------+------------
| MAC| HOST-NAME | TYPE| CLUSTER| RF-DOMAIN |ADOPTED-BY| ONLINE |
+-----------------+----------------+--------+----------------+------------
|99-88-77-66-55-44| ap7131-665544| ap7131| | default| | offline |
|00-15-70-88-9E-C4| ap7131-889EC4| ap7131| | default| | offline |
|11-22-33-44-55-66| ap650-445566| ap650| | default| | offline |
|00-15-70-37-FA-BE| rfs7000-37FABE| RFS7000| | default| | online |
+-----------------+----------------+--------+----------------+------------
Total number of clients displayed: 4

rfs7000-37FABE(config)#show noc domain statistics details
==========================================================================
RF-Domain RFDOMAIN_UseCase1
Note: TX = AP->Client, RX = Client->AP
--------------------------------------------------------------------------
Data bytes : ( TX + RX = Total ), 0 + 0 = 0 bytes
Data throughput : ( TX + RX = Total ), 0 Kbps + 0 Kbps = 0 Kbps
Data packets : ( TX + RX = Total ), 0 + 0 = 0 pkts
Data pkts/sec : ( TX + RX = Total ), 0 + 0 = 0 pps
BCMC Packets : ( TX + RX = Total ), 0 + 0 = 0 pkts
Management Packets : ( TX + RX = Total ), 0 + 0 = 0 pkts
Packets Discarded : 0 - Tx Dropped, 0 - Rx Errors
Indicators : T = 0 @ Max user rate of 0 Kbps
Distribution : 0 Clients, 0 radios
Client count Detais : 0/0/0 (b/bg/bgn); 0/0 (a/an)
Stats Update Info : 6 seconds - update interval, mode is auto
Threat Level : 0
Cause of concern :
Remedy :
Last update : 2010-01-31 10:30:22 by 00-15-70-37-FA-BE
--------------------------------------------------------------------------

Total number of RF-domain displayed: 1
rfs7000-37FABE(config-rf-domain-RFDOMAIN_UseCase1)#

rfs7000-37FABE(config)#show noc device filter online
--------------------------------------------------------------------------
MAC HOST-NAME TYPE CLUSTER RF-DOMAIN ADOPTED-BY ONLINE
-------------------------------------------------------------------------- 00-15-70-
37-FA-BE rfs7000-37FABE RFS7000 RFDOMAI..echPubs online
--------------------------------------------------------------------------Total
number of clients displayed: 1

rfs7000-37FABE(config)#show noc domain statistics details
==========================================================================RF-Domain
RFDOMAIN_TechPubs
Note: TX = AP->Client, RX = Client->AP
--------------------------------------------------------------------------
Data bytes : ( TX + RX = Total ), 0 + 0 = 0 bytes
Data throughput : ( TX + RX = Total ), 0 Kbps + 0 Kbps = 0 Kbps
Data packets : ( TX + RX = Total ), 0 + 0 = 0 pkts
Data pkts/sec : ( TX + RX = Total ), 0 + 0 = 0 pps
BCMC Packets : ( TX + RX = Total ), 0 + 0 = 0 pkts
Management Packets : ( TX + RX = Total ), 0 + 0 = 0 pkts
Packets Discarded : 0 - Tx Dropped, 0 - Rx Errors
Indicators : T = 0 @ Max user rate of 0 Kbps
Distribution : 0 Clients, 0 radios
Client count Detais : 0/0/0 (b/bg/bgn); 0/0 (a/an)


Stats Update Info : 6 seconds - update interval, mode is auto
Threat Level : 1
Cause of concern : no sensors enabled in RF-domain RFDOMAIN_TechPubs
Remedy : enable AP detection
Last update : 2011-01-09 08:44:15 by 00-15-70-37-FA-BE
--------------------------------------------------------------------------

Total number of RF-domain displayed: 1


6.1.31 ntp
show commands
Displays Network Time Protocol (NTP) information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show ntp [associations|status]
show ntp [associations {detail|on}|status {on <DEVICE-NAME>}
Parameters
• show ntp [associations {detail|on}|status {on <DEVICE-NAME>}]

ntp associations {detail|on} Displays existing NTP associations
• detail – Optional. Displays detailed NTP associations
• on <DEVICE-NAME> – Optional. Displays NTP associations on a specified device
ntp status Displays NTP association status
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays NTP association status on a specified device
Examples
rfs7000-37FABE>show ntp associations
address ref clock st when poll reach delay offset disp
* master (synced), # master (unsynced), + selected, - candidate, ~ configured
rfs7000-37FABE>

rfs7000-37FABE>show ntp status
Clock is synchronized, stratum 0, actual frequency is 0.0000 Hz, precision is 2**0
reference time is 00000000.00000000 (Feb 07 06:28:16 UTC 2036)
clock offset is 0.000 msec, root delay is 0.000 msec
root dispersion is 0.000 msec
rfs7000-37FABE>

rfs7000-37FABE>show ntp status
Clock is synchronized, stratum 0, actual frequency is 0.0000 Hz, precision is 2^0
reference time is 00000000.00000000 (Feb 07 06:28:16 UTC 2036)
clock offset is 0.000 msec, root delay is 0.000 msec
root dispersion is 0.000 msec,
rfs7000-37FABE>


6.1.32 password-encryption
show commands
Displays password encryption status (enabled/disabled)
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show password-encryption status
Parameters
• show password-encryption status

password-encryption status Displays password encryption status (enabled/disabled)
Examples
rfs7000-37FABE(config)#show password-encryption status
Password encryption is disabled


6.1.33 power
show commands
Displays Power Over Ethernet (PoE) information
• RFS4000
• RFS6000
Syntax
show power [configuration|status] {on <DEVICE-NAME>}
Parameters
• show power [configuration|status] {on <DEVICE-NAME>}

power Displays PoE information (PoE configuration and status)
configuration Displays detailed PoE configuration
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays configuration on a specified device
status Displays PoE status
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays status on a specified device
Examples
rfs7000-37FABE(config)#show power status on rfs6000-37FAAA
System Voltage: 53.4 volts
Guard Band: 32 watts
Power Budget: 190 watts Power Consumption: 0 watts
poe device 1 temperature 35C
poe device 2 temperature 38C
--------------------------------------------------------------------------------
PORT VOLTS mA WATTS CLASS STATUS
--------------------------------------------------------------------------------
ge1 0.0 0 0.0 0 Off
ge2 0.0 0 0.0 0 Off
ge3 0.0 0 0.0 0 Off
ge4 0.0 0 0.0 0 Off
ge5 0.0 0 0.0 0 Off
ge6 0.0 0 0.0 0 Off
ge7 0.0 0 0.0 0 Off
ge8 0.0 0 0.0 0 Off
--------------------------------------------------------------------------------
RFS6000-37FAAA(config)#show power configuration
--------------------------------------------------------------------------------
PORT PRIORITY POWER LIMIT ENABLED
--------------------------------------------------------------------------------
ge1 low 30.0W yes
ge2 low 30.0W yes
ge3 low 30.0W yes
ge4 low 30.0W yes
ge5 low 30.0W yes
ge6 low 30.0W yes
ge7 low 30.0W yes
ge8 low 30.0W yes
--------------------------------------------------------------------------------


6.1.34 remote-debug
show commands
Displays remote debug session information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show remote-debugging
Parameters
None
Examples
rfs7000-37FABE(config)#show remote-debug
live-pktcap
Not running
wireless
Not running
copy-crashinfo
Not running
offline-pktcap
Not running
copy-techsupport
Not running
more
Not running


6.1.35 rf-domain-manager
show commands
Displays RF Domain manager selection details
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show rf-domain-manager
Parameters
None
Examples
rfs7000-37FABE(config)#show rf-domain-manager
RF Domain default
RF Domain Manager:
ID: 70.37.fa.be
Priority: 9
Has IP connectivity
Has non-mesh links
Last change 12265 seconds ago
This device:
Priority: 9
Has IP connectivity
Has non-mesh links


6.1.36 role
show commands
Displays role based firewall information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show role wireless-clients {on <DEVICE-NAME>}
Parameters
• show role wireless-clients {on <DEVICE-NAME>}

role wireless-clients Displays clients associated with roles
• on <DEVICE-NAME> – Optional. Displays clients associated with roles on a specified
device
Examples
rfs7000-37FABE(config)#show role wireless-clients on rfs7000-37FABEE
No ROLE statistics found.


6.1.37 running-config
show commands
Displays configuration files (where all configured MAC and IP access lists are applied to an interface)
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show running-config {aaa-policy|association-acl-policy|auto-provisioning-
policy|captive-portal-policy|device|dhcp-server-policy|firewall-policy|
include-factory|interface|management-policy|profile|radio-qos-policy|
rf-domain|smart-rf-policy|wlan|wlan-qos-policy}

show running-config {aaa-policy|association-acl-policy|auto-provisioning-
policy|captive-portal-policy|dhcp-server-policy|firewall-policy|
management-policy|radio-qos-policy|smart-rf-policy|wlan-qos-policy}
<POLICY-NAME> {include-factory}}
show running-config {device [<MAC>|self] {include-factory}}

show running-config {include-factory}

show running-config {interface {<INTERFACE>|ge <1-4>|include-factory|
me1|port-channel <1-2>|vlan <1-4095>} {include-factory}}

show running-config {profile [ap621|ap650|ap6511|ap6521|ap6532|ap71xx|
rfs4000|rfs6000|rfs7000] <PROFILE-NAME> {include-factory}}

show running-config {rf-domain <DOMAIN-NAME> {include-factory}}

show running-config {wlan <WLAN-NAME> {include-factory}}

Parameters
• show running-config {aaa-policy|association-acl-policy|
auto-provisioning-policy|captive-portal-policy|dhcp-server-policy|
firewall-policy|management-policy|radio-qos-policy|smart-rf-policy|wlan-qos-policy}
<PLOICY-NAME> {include-factory}

running-config Optional. Displays current configuration details
aaa-policy Optional. Displays AAA policy configuration details
association-acl-policy Optional. Displays association ACL policy configuration details
auto-provisioning-policy Optional. Displays auto provisioning policy configuration details
captive-portal-policy Optional. Displays captive portal policy configuration details


dhcp-server-policy Optional. Displays the DHCP server policy configuration details
firewall-policy Optional. Displays firewall policy configuration details
management-policy Optional. Displays management policy configuration details
radio-qos-policy Optional. Displays radio QoS policy configuration details
smart-rf-policy Optional. Displays Smart RF policy configuration details
wlan-qos-policy Optional. Displays WLAN QoS policy configuration details
<POLICY-NAME> The following is common to all policies listed above:
• <POLICY-NAME> – Specify the name of the policy.
include-factory This parameter is common to all policies listed above.
• Optional. Includes factory defaults
• show running-config {device [<MAC>|self] {include-factory}}

running-config Displays current configuration details
device {<MAC>|self} Optional. Displays device configuration details
• <MAC> – Optional. Displays configuration of a specified device. Specify the MAC
address of the device.
• self – Optional. Displays the logged device’s configuration
include-factory The following is common to the <MAC> and self parameters:
• Optional. Displays factory default values

• show running-config {include-factory}}

include-factory Optional. Includes factory default values

• show running-config {interface {<INTERFACE>|ge <1-4>|include-factory|me1|port-
channel <1-2>|vlan <1-4095>} {include-factory}}

interface Optional. Displays interface configuration
<INTERFACE> Displays a specified interface configuration. Specify the interface name.
ge <1-4> Displays GigabitEthernet interface configuration details
• <1-4> – Specify a GigabitEthernet interface index from 1 - 4.
me1 Displays FastEthernet interface configuration details
port-channel <1-2> Displays port channel interface configuration details
• <1-2> – Specify a port channel interface index from 1 - 2.


vlan <1-4095> Displays VLAN interface configuration details
• <1-4095> – Specify the VLAN interface number from 1 - 4095.
include-factory This parameter is common to all of the interface options.
• Optional. Includes factory defaults

• show running-config {profile [ap621|ap650|ap6511|ap6521|ap6532|
ap71xx|rfs4000|rfs6000|rfs7000] <PROFILE-NAME> {include-factory}}

running-config Displays current configuration
profile Optional. Displays current configuration for a specified profile
ap621 Displays AP621 profile configuration
<PROFILE-NAME> • <PROFILE-NAME> – Displays configuration for a specified AP621 profile. Specify the
AP621 profile name.
AP650 profile name.
ap6511 Displays AP6511 profile
AP6511 profile name.
ap71xx <PROFILE-NAME> Displays AP71XX profile configuration
• <PROFILE-NAME> – Displays configuration for a specified AP71XX profile. Specify the
AP71XX profile name.
rfs4000 Displays RFS4000 profile configuration
<PROFILE-NAME> • <PROFILE-NAME> – Displays configuration for a specified RFS4000 profile. Specify
the RFS4000 profile name.
include-factory Optional.This parameter is common to all profiles. It includes factory defaults


• show running-config {rf-domain <DOMAIN-NAME> {include-factory}}

rf-domain Optional. Displays current configuration for a RF Domain
<DOMAIN-NAME> Specify the name of the RF Domain.

• show running-config {wlan <WLAN-NAME> {include-factory}}

wlan Optional. Displays current configuration for a WLAN
<DOMAIN-NAME> Displays current configuration for a specified WLAN. Specify the name of the WLAN.
Examples
rfs7000-37FABE(config)#show running-config device self
!
firewall ratelimit-trust policy default
!
telnet
http server
ssh
!
!
mint-security-policy the_policy
rejoin-timeout 35
!
device-discover-policy default
!
RFS7000 00-15-70-37-FA-BE
hostname rfs7000-37FABE
no country-code
bridge vlan 3
bridge vlan 5
ip dhcp trust
ip igmp snooping querier version 2
ip igmp snooping querier max-response-time 3
ip igmp snooping querier timer expiry 89
wep-shared-key-auth
radius nas-identifier test
--More--
rfs7000-37FABE(config)
rfs7000-37FABE(config)#show running-config device 11-22-33-44-55-66 include-factory
!
radio-qos-policy default
wmm best-effort aifsn 3
wmm video txop-limit 94
wmm video aifsn 1
wmm video cw-min 3
wmm video cw-max 4
wmm voice txop-limit 47
wmm voice aifsn 1
wmm voice cw-min 2
--More--


6.1.38 session-changes
show commands
Displays configuration changes made in the current session
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show session-changes
Parameters
None
Examples
rfs7000-37FABE(config)#show session-changes

No changes in this session


6.1.39 session-config
show commands
Lists active open sessions on a device
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show session-config {include-factory}
Parameters
• show session-config {include-factory}

session-config Displays current session configuration
Examples
rfs7000-37FABE(config)#show session-config
!
!
!
version 2.1
!
!
ip access-list BROADCAST-MULTICAST-CONTROL
permit tcp any any rule-precedence 10 rule-description "permit all TCP traffic"
permit udp any eq 67 any eq dhcpc rule-precedence 11 rule-description "permit DHCP
replies"
deny udp any range 137 138 any range 137 138 rule-precedence 20 rule-description "deny
windows netbios"
deny ip any 224.0.0.0/4 rule-precedence 21 rule-description "deny IP multicast"
deny ip any host 255.255.255.255 rule-precedence 22 rule-description "deny IP local
broadcast"
permit ip any any rule-precedence 100 rule-description "permit all IP traffic"
!
mac access-list PERMIT-ARP-AND-IPv4
permit any any type ip rule-precedence 10 rule-description "permit all IPv4 traffic"
permit any any type arp rule-precedence 20 rule-description "permit all ARP traffic"
--More--


6.1.40 sessions
show commands
Displays CLI sessions initiated on a device
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show sessions {on <DEVICE-NAME>}
Parameters
• show sessions {on <DEVICE-NAME>}

sessions Displays CLI sessions initiated on a device
on <DEVICE-NAME> Optional. Displays CLI sessions on a specified device
Examples
rfs7000-37FABE(config)#show sessions on rfs7000-37FABE
INDEX COOKIE NAME START TIME FROM
1 4 snmp 2011-06-23 07:59:25 127.0.0.1
2 14 admin 2011-06-24 08:12:44 Console
3 15 admin 2011-06-24 08:42:26 172.16.10.10



6.1.41 smart-rf
show commands
Displays Smart RF management commands
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show smart-rf [calibration-status|channel-distribution|history|history-timeline|
interactive-calibration-config|radio]

show smart-rf [calibration-status|channel-distribution|history|history-timeline|
interactive-calibration-config] {on <DOMAIN-NAME>}]

show smart-rf radio {<MAC>|activity|all-11an|all-11bgn|energy|neighbors|on <DOMAIN-
NAME>]
show smart-rf radio {<MAC>|all-11an|all-11bgn|energy <MAC>} {on <DOMAIN-NAME>}
show smart-rf radio {activity|neigbors}{<MAC>|all-11an|all-11bgn|on <DOMAIN-NAME>}
show smart-rf radio {activity|neigbors}{<MAC>|all-11an|all-11bgn} {on <DOMAIN-
NAME>}
Parameters
• show [calibration-status|channel-distribution|history|history-timeline|
interactive-calibration-config] {on <DOMAIN-NAME>}

calibration-status Displays Smart RF calibration status
{on <DOMAIN-NAME>} • on <DOMAIN-NAME> – Optional. Displays Smart RF calibration status on a specified
RF Domain
channel-distribution Displays Smart RF channel distribution
{on <DOMAIN-NAME>} • on <DOMAIN-NAME> – Optional. Displays Smart RF channel distribution on a
specified RF Domain
history Displays Smart RF calibration history
{on <DOMAIN-NAME>} • on <DOMAIN NAME> – Optional. Displays Smart RF calibration history on a
specified RF Domain
• <DOMAIN NAME> – Specify the RF Domain name.


history-timeline Displays extended Smart RF calibration history on an hourly or daily timeline
{on <DOMAIN-NAME>} • on <DOMAIN-NAME> – Optional. Displays extended timeline on a specified
RF Domain
• <DOMAIN NAME> – Specify the RF Domain name.
interactive-calibration-config Displays simulated calibration configuration
{on <DOMAIN-NAME>} • on <DOMAIN-NAME> – Optional. Displays configuration on a specified RF Domain
• on <DOMAIN-NAME> – Specify the RF Domain name.

• show smart-rf radio {<MAC>|all-11an|all-11bgn|energy <MAC>}{on <DOMAIN-NAME>}

radio Displays radio related commands
<MAC> Optional. Displays details of a specified radio. Specify the MAC address of the radio in
a <AA-BB-CC-DD-EE-FF> format.
all-11an Optional. Displays all 11a radios currently in the configuration
all-11bgn Optional. Displays all 11bg radios currently in the configuration
energy {<MAC>} Optional. Displays radio energy
Specify the MAC address of the radio
• <MAC> – Optional. Specify the radio’s MAC address in the
<AA-BB-CC-DD-EE-FF> format.
on <DOMAIN-NAME> The following is common to above parameters:
• on <DOMAIN-NAME> – Optional. Displays radio details on a specified RF Domain
• show smart-rf radio {activity|neighbors} {<MAC>|all-11an|all-11bgn} {on <DOMAIN-
NAME>}

radio Displays radio related commands
activity Optional. Displays changes related to radio power, number of radio channels, or
coverage holes. Use additional filters to view specific details.
<MAC> Optional. Displays radio activity for a specified radio
• <MAC> – Specify the MAC address of the radio.
all-11an Optional. Displays radio activity of all 11a radios in the configuration
all-11bgn Optional.Displays radio activity of all 11bg radios in the configuration
on <DOMAIN-NAME> Optional. Displays radio activity of all radios within a specified RF Domain


Examples
rfs7000-37FABE(config)#show smart-rf calibration-status
No calibration currently in progress

rfs7000-37FABE(config)#show smart-rf history


6.1.42 spanning-tree
show commands
Displays spanning tree information
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show spanning-tree mst {configuration|detail|instance|on}
show spanning-tree mst {configuration {(on <DEVICE-NAME>)}}
show spanning-tree mst {detail interface {<INTERFACE>|ge<1-4>|me1|
port-channel<1-2>|vlan <1-4094>} {(on <DEVICE-NAME>)}}
show spanning-tree mst {instance <1-15> {interface <INTERFACE>} {(on <DEVICE-NAME>)}}
Parameters
• show spanning-tree mst {configuration {(on <DEVICE-NAME>)}}

spanning-tree Displays spanning tree information
mst Displays Multiple Spanning Tree (MST) configuration
configuration Optional. Displays MST configuration
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays MST configuration on a specified device

• show spanning-tree mst {detail interface {<Interfaced <1-4>|me1|
port-channel <1-2>|vlan <1-4094>} {(on <DEVICE-NAME>)}}

mst Displays MST configuration
detail Optional. Displays detailed MST configuration based on the parameters passed


interface [<INTERFACE>| Displays detailed MST configuration for a specified interface
age <1-4>|me1| • <INTERFACE> – Displays detailed MST configuration for a specified interface. Specify
port-channel <1-2>| the interface name.
van <1-4094>]
• age <1-4> – Displays GigabitEthernet interface MST configuration
• <1-4> – Select the GigabitEthernet interface index from 1 - 4.
• me1 – Displays FastEthernet interface MST configuration
• port-channel – Displays port channel interface MST configuration
• <1-2> – Select the port channel interface index from 1 - 2.
• vlan – Displays VLAN interface MST configuration
• <1-4094> – Select the SVI VLAN ID from 1 - 4094.
on <DEVICE-NAME> Optional. Displays detailed MST configuration on a specified device

• show spanning-tree mst {instance <1-15> {interface <INTERFACE>} {(on <DEVICE-
NAME>)}}

mst Displays MST configuration. Use additional filters to view specific details.
instance <1-15> Optional. Displays information for a particular MST instance
• <1-15> – Specify the instance ID from 1 - 15.
interface [<INTERFACE>| Optional. Displays MST configuration for a specific interface instance. The options are:
ge <1-4>|me1| • <INTERFACE> – Displays MST configuration for a specified interface. Specify the
port-channel <1-2>| interface name.
vlan <1-4094>]
• ge – Displays GigabitEthernet interface MST configuration
• <1-4> – Select the GigabitEthernet interface index from 1 - 4.
• me1 – Displays FastEthernet interface MST configuration
• port-channel – Displays port channel interface MST configuration
• <1-2> – Select the port channel interface index from 1 - 2.
• vlan – Displays VLAN interface MST configuration
• <1-4094> – Select the SVI VLAN ID from 1 - 4094.
on <DEVICE-NAME> Optional. Displays MST configuration on a specified device


Examples
rfs7000-37FABE(config)#show spanning-tree mst configuration on rfs7000-37FABE
%%
% MSTP Configuration Information for bridge 1 :
%%------------------------------------------------------
% Format Id : 0
% Name : My Name
% Revision Level : 0
% Digest : 0xac36177f50283cd4b83821d8ab26de62
%%------------------------------------------------------


rfs7000-37FABE(config)#show spanning-tree mst detail interface test on rfs7000-37FABE
% Bridge up - Spanning Tree Disabled
% CIST Root Path Cost 0 - CIST Root Port 0 - CIST Bridge Priority 32768
% Forward Delay 15 - Hello Time 2 - Max Age 20 - Max hops 20
% 1: CIST Root Id 800000157037fabf
% 1: CIST Reg Root Id 800000157037fabf
% 1: CIST Bridge Id 800000157037fabf
% portfast bpdu-filter disabled
% portfast bpdu-guard disabled
% portfast portfast errdisable timeout disabled
% portfast errdisable timeout interval 300 sec
% cisco interoperability not configured - Current cisco interoperability off


rfs7000-37FABE(config)#show spanning-tree mst detail
% Bridge up - Spanning Tree Disabled
% CIST Root Path Cost 0 - CIST Root Port 0 - CIST Bridge Priority 32768
% Forward Delay 15 - Hello Time 2 - Max Age 20 - Max hops 20
% 1: CIST Root Id 800000157037fabf
% 1: CIST Reg Root Id 800000157037fabf
% 1: CIST Bridge Id 800000157037fabf
% 1: portfast bpdu-guard disabled
% portfast portfast errdisable timeout disabled
% portfast errdisable timeout interval 300 sec
% cisco interoperability not configured - Current cisco interoperability off

% ge4: Port 2004 - Id 87d4 - Role Disabled - State Forwarding
% ge4: Designated External Path Cost 0 - Internal Path Cost 0
% ge4: Configured Path Cost 11520 - Add type Implicit - ref count 1
% ge4: Designated Port Id 0 - CST Priority 128
% ge4: ge4: CIST Root 0000000000000000
% ge4: ge4: Regional Root 0000000000000000
% ge4: ge4: Designated Bridge 0000000000000000
% ge4: Message Age 0 - Max Age 0
% ge4: CIST Hello Time 0 - Forward Delay 0
% ge4: CIST Forward Timer 0 - Msg Age Timer 0 - Hello Timer 0
% ge4: Version Multiple Spanning Tree Protocol - Received None - Send MSTP
% ge4: Portfast configured - Current portfast on
% ge4: portfast bpdu-guard enabled - Current portfast bpdu-guard off
% ge4: portfast bpdu-filter enabled - Current portfast bpdu-filter off
% ge4: no root guard configured - Current root guard off
% ge4: Configured Link Type point-to-point - Current point-to-point

% ge3: Port 2003 - Id 87d3 - Role Disabled - State Forwarding
% ge3: Designated External Path Cost 0 - Internal Path Cost 0
% ge3: Configured Path Cost 11520 - Add type Implicit - ref count 1
% ge3: Designated Port Id 0 - CST Priority 128
--More--


rfs7000-37FABE(config)#show spanning-tree mst instance 1 interface test on rfs7000-
37FABE


6.1.43 startup-config
show commands
Displays complete startup configuration script
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show startup-config {include-factory}
Parameters
• show startup-config {include-factory}

startup-config Displays startup configuration script
Examples
rrfs7000-37FABE(config)#show startup-config include-factory
!
!
!
version 2.1
!
!
ip access-list BROADCAST-MULTICAST-CONTROL
permit tcp any any rule-precedence 10 rule-description "permit all TCP traffic"
permit udp any eq 67 any eq dhcpc rule-precedence 11 rule-description "permit DHCP
replies"
deny udp any range 137 138 any range 137 138 rule-precedence 20 rule-description "deny
windows netbios"
deny ip any 224.0.0.0/4 rule-precedence 21 rule-description "deny IP multicast"
deny ip any host 255.255.255.255 rule-precedence 22 rule-description "deny IP local
broadcast"
permit ip any any rule-precedence 100 rule-description "permit all IP traffic"
!
mac access-list PERMIT-ARP-AND-IPv4
permit any any type ip rule-precedence 10 rule-description "permit all IPv4 traffic"
permit any any type arp rule-precedence 20 rule-description "permit all ARP traffic"
--More--


6.1.44 terminal
show commands
Displays terminal configuration parameters
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show terminal
Parameters
None
Examples
rfs7000-37FABE(config)#show terminal
Terminal Type: xterm


6.1.45 timezone
show commands
Displays a device’s timezone
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show timezone
Parameters
• show timezone

timezone Displays timezone where the AP or wireless controller is deployed

Examples
rfs7000-37FABE(config)#show timezone
Timezone is America/Los_Angeles


6.1.46 upgrade-status
show commands
Displays the last image upgrade status

NOTE: This command is not available in the USER EXEC Mode

• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show upgrade-status {detail {on <DEVICE-NAME>}|on <DEVICE-NAME>}
Parameters
• show upgrade-status {detail {on <DEVICE-NAME>}|on <DEVICE-NAME>}

detail Displays last image upgrade log
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays last image upgrade log on a specified device
on <DEVICE-NAME> Optional. Displays last image upgrade status on a specified device


Examples
rfs7000-37FABE(config)#show upgrade-status detail on rfs7000-37FABEE
Last Image Upgrade Status : Successful
Last Image Upgrade Time : 2011-06-15 08:51:17 UTC

--------------------------------------------------------
Running from partition /dev/mtdblock6, partition to update is /dev/mtdblock7
var2 is 6 percent full
/tmp is 6 percent full
Free Memory 155900 kB
FWU invoked via Linux shell
Validating image file header
Making file system
Extracting files (this can take some time).
Version of firmware update file is 5.2.2.0-033D
Successful

rfs7000-37FABE(config)#show upgrade-status on rfs7000-37FABE
Last Image Upgrade Status : Successful
Last Image Upgrade Time : 04:12:2010 08:44:00 UTC


6.1.47 version
show commands
Displays a device’s software and hardware version
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show version {on <DEVICE-NAME>}
Parameters
• show version {on <DEVICE-NAME>}

version Displays software and hardware versions on all devices or a specified device
{on <DEVICE-NAME>} • on <DEVICE-NAME> – Optional. Displays software and hardware versions on a
specified device
Examples
rfs7000-37FABE(config)#show version on rfs7000-37FABE
RFS7000 version 5.2.2.0-048B
Copyright (c) 2004-2011 Motorola Solutions, Inc. All rights reserved.
Booted from secondary

rfs7000-37FABE uptime is 3 days, 19 hours 14 minutes
CPU is RMI XLR V0.4
255464 kB of on-board RAM
Base ethernet MAC address is 00-15-70-37-FA-BE
System serial number is 6268529900014
Model number is RFS-7010-1000-WR
FPGA version is 3.41


6.1.48 wireless
show commands
Displays wireless configuration parameters
• AP300
• AP621
• AP650
• AP6511
• AP6521
• AP6532
• AP71XX
• RFS4000
• RFS6000
• RFS7000
Syntax
show wireless [ap|client|domain|mesh|meshpoint|radio|regulatory|sensor-server|
unsanctioned|wips|wlan]

show wireless ap {configured|detail|load-balancing|on <DEVICE-NAME>}
show wireless ap {detail {<MAC/HOST-NAME> {on <DEVICE-OR-DOMAIN-NAME>}|on <DEVICE-
OR-DOMAIN-NAME>}
show wireless ap {load-balancing {client-capability|events|neighbors} {(on <DEVICE-
NAME>)}

show wireless client {associaton-history|detail|filter|on <DEVICE-OR-DOMAIN-
NAME>|statistics|tspec}
show wireless client {association-history <MAC> {on <DEVICE-OR-DOMAIN-NAME>}}
show wireless client {detail <MAC> {on <DEVICE-OR-DOMAIN-NAME>}|on <DEVICE-OR-
DOMAIN-NAME>
show wireless client {filter {ip|on <DEVICE-OR-DOMAIN-NAME>|state|wlan}}
show wireless client {filter ip [<IP>|not <IP>] {on <DEVICE-OR-DOMAIN-NAME>]}
show wireless client {filter state [data-ready|not [data-ready|roaming]|roaming] {on
<DEVICE-OR-DOMAIN-NAME>]}
show wireless client {filter wlan [<WLAN>|not <WLAN>] {on <DEVICE-OR-DOMAIN-NAME>]}
show wireless client {statistics {detail <MAC>|rf|window-data <MAC>} {(on <DEVICE-OR-
DOMAIN-NAME>)}}
show wireless client {tspec <MAC> {on <DEVICE-OR-DOMAIN-NAME>}|on <DEVICE-OR-DOMAIN-
NAME>}

show wireless domain statistics {detail {on <DEVICE-OR-DOMAIN-NAME>}|on <DEVICE-OR-
DOMAIN-NAME>}}]

show wireless mesh [detail|links {on <DEVICE-OR-DOMAIN-NAME>}]
show wireless mesh detail {<DEVICE-NAME>|filter|on <DEVICE-OR-DOMAIN-NAME>}
show wireless mesh detail {<DEVICE-NAME> <1-3> {(filter <RADIO-MAC>)} {(on <DEVICE-
OR-DOMAIN-NAME>)}

show wireless meshpoint [config|detail|multicast|neighbor|path|proxy|root|security|
statistics|usage-mappings|on]
show wireless meshpoint config {filter [device <DEVICE-NAME>|rf-domain <RF-DOMAIN>}
show wireless meshpoint detail {<MESHPOINT>}
show wireless meshpoint multicast [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}
show wireless meshpoint neighbor [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}
show wireless meshpoint path [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}
show wireless meshpoint proxy [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}
show wireless meshpoint root [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}
show wireless meshpoint security [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}


show wireless meshpoint statistics [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}
show wireless meshpoint statistics on <DEVICE-OR-DOMAIN-NAME>
show wireless meshpoint usage-mappings

show wireless radio {detail|on <DEVICE-OR-DOMAIN-NAME>|statistics|tspec}
show wireless radio {detail {<DEVICE-NAME> <1-3> (filter {on <DEVICE-OR-DOMAIN-
NAME>|<RADIO-MAC>})}
show wireless radio {statistics {detail|on|rf|windows-data}}
show wireless radio {statistics {on <DEVICE-OR-DOMAIN-NAME>|rf {on <DEVICE-
OR-DOMAIN-NAME>}}
show wireless radio {statistics {detail|window-data} {<DEVICE-NAME> <1-3>} {(filter
<RADIO-MAC>)} {(on <DEVICE-OR-DOMAIN-NAME>)}

show wireless regulatory [channel-info <WORD>|country-code <WORD>|
device-type]
show wireless regulatory device-type [ap650|ap6511|ap7131|rfs4000] <WORD>

show wireless sensor-server {on <DEVICE-OR-DOMAIN-NAME>}
show wireless unsanctioned aps {detail|statistics} {(on <DEVICE-OR-DOMAIN-NAME>)}

show wireless wips [client-blacklist|event-history]{on <DEVICE-OR-DOMAIN-NAME>}

show wireless wlan {config|detail <WLAN>|on <DEVICE-OR-DOMAIN-NAME>|
policy-mappings|statistics|usage-mappings}
show wireless wlan {detail <WLAN>|on <DEVICE-OR-DOMAIN-NAME>|policy-mappings|
usage-mappings}
show wireless {config filter {device <DEVICE-NAME>|rf-domain <DOMAIN-NAME>}}
show wireless wlan statitics {<WLAN>|detail|traffic} {on <DEVICE-OR-DOMAIN-NAME>}

Parameters
• show wireless ap {configured}

wireless Displays wireless configuration parameters
ap Displays information on wireless controller managed access points
configured Optional. Displays all configured AP information

• show wireless ap {detail {<MAC/HOST-NAME> {on <DEVICE-OR-DOMAIN-NAME>}|on <DEVICE-
OR-DOMAIN-NAME>}}

detail Optional. Displays detailed information for all APs or a specified AP
{<MAC/HOST-NAME> • <MAC/HOST-NAME> – Optional. Displays information for a specified AP
{on <DEVICE-OR-DOMAIN- • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays information on a specified
NAME>} device or RF Domain
• <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless control-
ler, or RF Domain.
on <DEVICE-OR-DOMAIN- Optional. Displays information on a specified device or RF Domain
NAME>} • <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless controller, or
RF Domain.

• show wireless ap {load-balancing {client-capability|events|neighbors} {(on <DEVICE-
NAME>)}}



load-balancing Optional. Displays load balancing status. Use additional filters to view specific details.
{client-capability| • client capability – Optional. Displays client band capability
events|neighbors}
• events – Optional. Displays client events
• neighbors – Optional. Displays neighboring clients
on <DEVICE-NAME> The following are common to the client capability, events, and neighbors parameters:
• on – Optional. Displays load balancing status on a specified device
• show wireless client {association-history <MAC> {on <DEVICE-OR-DOMAIN-NAME>}}

client Displays client information based on the parameters passed
association-history <MAC> Optional. Displays association history for a specified client
on <DEVICE-OR-DOMAIN- Optional. Displays association history on a specified device or RF Domain
RF Domain.
• show wireless client {detail <MAC> {on <DEVICE-OR-DOMAIN-NAME>}|on <DEVICE-OR-
DOMAIN-NAME>}

detail <MAC> Optional. Displays detailed information for a specified client
{on <DEVICE-OR-DOMAIN- • <MAC> – Specify the MAC address of the client.
NAME>} • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays detailed information on a
specified device or RF Domain
• <DEVICE-OR-DOMAIN-NAME> – Specify the name of the AP, wireless control-
ler, or RF Domain.
on <DEVICE-OR-DOMAIN- Optional. Displays client information on a specified device or RF Domain
RF Domain.

• show wireless client {filter ip {<IP>|not <IP>} {on <DEVICE-OR-DOMAIN-NAME>}



filter IP {<IP>|not <IP>} Optional. Uses IP address to filter clients
• <IP> – Optional. Selects clients based on the IP address passed
• not <IP> – Optional. Inverts the match selection
on <DEVICE-OR-DOMAIN- The following is common to the IP and not IP parameters:
NAME> • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays association history on a
or RF Domain.

• show wireless client {filter state {data-ready|not {data-ready|roaming}|roaming}

filter state {data-ready| Optional. Filters clients based on their state
not {data-ready|roaming}| • data-ready – Optional. Selects wireless clients in the data-ready state
roaming}
• not {data-ready|roaming} – Optional. Inverts match selection. Selects wireless
clients neither ready nor roaming
• Roaming – Optional. Selects roaming clients
on <DEVICE-OR-DOMAIN- The following is common to the ready, not, and roaming parameters:
NAME> • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays client details on a specified
device or RF Domain
• show wireless client {filter wlan {<WLAN>|not {WLAN} {on <DEVICE-OR-DOMAIN-NAME>}

filter wlan {<WLAN>| Optional. Filters clients on a specified WLAN
not <WLAN>} • <WLAN> – Specify the WLAN name.
• not <WLAN> – Inverts the match selection
on <DEVICE-OR-DOMAIN- The following are common to the WLAN and not parameters:
NAME> • on <DEVICE-OR-DOMAIN-NAME> – Optional. Filters clients on a specified device or
RF Domain

• show wireless client {statistics {detail <MAC>|rf|window-data <mac>} {on <DEVICE-
OR-DOMAIN-NAME>}



statistics Optional. Displays detailed client statistics. Use additional filters to view specific
{detail <MAC>| details.
rf|window-data <MAC>} • detail <MAC> – Optional. Displays detailed statistics for a specified client
• rf – Displays detailed client statistics on a specified device or RF Domain
• window-data <MAC> – Displays historical data, for a specified client
• <MAC> – Specify the MAC address of the client
on <DEVICE-OR-DOMAIN- The following are common to the detail <MAC>, RF, and window-data <MAC>
NAME> parameters:
• on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays client statistics on a specified
device or RF Domain

• show wireless client {tspec {<MAC> {on <DEVICE-OR-DOMAIN-NAME>}|on <DEVICE-OR-
DOMAIN-NAME>}}

tspec <MAC> Optional. Displays detailed TSPEC information for all clients or a specified client
{on <DEVICE-OR-DOMAIN- • <MAC> – Optional. Displays detailed TSPEC information for a specified client
NAME>} • <MAC> – Specify the MAC address of the client.
• on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays detailed TSPEC infor-
mation on a specified device or RF Domain
on <DEVICE-OR-DOMAIN- Optional. Displays detailed TSPEC information for all wireless clients on a specified
NAME> device or RF Domain
RF Domain.

• show wireless mesh links {on <DEVICE-OR-DOMAIN-NAME>}

mesh Displays information on radio mesh
links Optional. Displays active links of a radio mesh
{on <DEVICE-OR-DOMAIN- • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays active links of a radio mesh
NAME>} on a specified device or RF Domain

• show wireless mesh detail {<DEVICE-NAME> <1-3> {(filter <RADIO-MAC>)} {(on <DEVICE-
OR-DOMAIN-NAME>)}}

mesh Displays radio mesh information
detail Optional. Displays detailed radio mesh information
<DEVICE-NAME> <1-3> Optional. Specify the MAC address or hostname, or append the interface number to
form the mesh ID in the AA-BB-CC-DD-EE-FF:RX or HOSTNAME:RX format.
• <1-3> – Optional. Specify the mesh interface index.


filter <RADIO-MAC> Optional. Provides additional filters
• <RADIO-MAC> – Optional. Filters based on the radio MAC address
on <DEVICE-OR-DOMAIN- Optional. After specifying the radio MAC address, further refine the search by
NAME> specifying a device or RF Domain.
RF Domain.

• show wireless meshpoint {filter [device <DEVICE-NAME>|rf-domain <RF-DOMAIN>}

meshpoint Displays mesh point status and other related information
filter Optional. Displays mesh point information based on either the device or RF Domain the
mesh point is in.
device <DEVICE-NAME> Optional. Displays mesh point information on the device identified by
<DEVICE-NAME>.
rf-domain <RF-DOMAN> Optional. Displays mesh point information for the rf-domain specified by the
<RF-DOMAIN> value.

• show wireless meshpoint config {filter [device <DEVICE-NAME>|rf-domain <RF-DOMAIN>}

meshpoint Displays mesh point status and other related information.
config Displays the mesh point configuration details.
filter Optional. Displays mesh point configuration details based on either the device or RF
Domain the mesh point is in.
device <DEVICE-NAME> Optional. Displays mesh point configuration details on the device identified by
<DEVICE-NAME>
rf-domain <RF-DOMAN> Optional. Displays mesh point configuration details for the rf-domain specified by the
<RF-DOMAIN> value.
• show wireless meshpoint detail {<MESHPOINT>}

detail Displays detailed mesh point information
<MESHPOINT> Displays detailed information for the mesh point <MESHPOINT>

• show wireless meshpoint multicast [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}

multicast Displays mesh point multicast information


<MESHPOINT> Displays detailed information for the mesh point <MESHPOINT>
detail Displays detailed mesh point multicast information
on <DEVICE-OR-DOMAIN- Optional. Displays multicast information for a selected mesh point on a device or
NAME> domain specified by <DEVICE-OR-DOMAIN>.

• show wireless meshpoint neighbor [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}

neighbor Displays mesh point neighbor information
<MESHPOINT> Displays detailed neighbor information for the mesh point <MESHPOINT>
detail Displays detailed neighbor information
on <DEVICE-OR-DOMAIN- Optional. Displays neighbor information for a selected mesh point on a device or
NAME> domain specified by <DEVICE-OR-DOMAIN>.

• show wireless meshpoint path [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}

path Displays mesh point path information
<MESHPOINT> Displays detailed path information for the mesh point <MESHPOINT>
detail Displays detailed path information
on <DEVICE-OR-DOMAIN- Optional. Displays path information for a selected mesh point on a device or domain
NAME> specified by <DEVICE-OR-DOMAIN>.

• show wireless meshpoint proxy [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}

proxy Displays mesh point proxy information
<MESHPOINT> Displays detailed proxy information for the mesh point <MESHPOINT>
detail Displays detailed proxy information
on <DEVICE-OR-DOMAIN- Optional. Displays proxy information for a selected mesh point on a device or domain

• show wireless meshpoint root [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}

root Displays mesh point root information


<MESHPOINT> Displays detailed root information for the mesh point <MESHPOINT>
detail Displays detailed root information
on <DEVICE-OR-DOMAIN- Optional. Displays root information for a selected mesh point on a device or domain

• show wireless meshpoint security [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-NAME>}

security Displays mesh point security information
<MESHPOINT> Displays detailed security information for the mesh point <MESHPOINT>
detail Displays detailed security information
on <DEVICE-OR-DOMAIN- Optional. Displays security information for a selected mesh point on a device or domain

• show wireless meshpoint statistics [<MESHPOINT>|detail] {on <DEVICE-OR-DOMAIN-
NAME>}

statistics Displays mesh point statistics
<MESHPOINT> Displays detailed statistics for the mesh point <MESHPOINT>
detail Displays detailed statistics
on <DEVICE-OR-DOMAIN- Optional. Displays statistics for a selected mesh point on a device or domain specified
NAME> by <DEVICE-OR-DOMAIN>.

• show wireless meshpoint statistics on <DEVICE-OR-DOMAIN-NAME>

statistics Displays mesh point statistics
on <DEVICE-OR-DOMAIN- Displays statistics for a selected mesh point on a device or domain specified by
NAME> <DEVICE-OR-DOMAIN>
• show wireless meshpoint usage-mappings

usage-mappings Displays mesh point usage mappings


• show wireless radio {detail {<DEVICE-NAME> <1-3> {(filter <RADIO-MAC>)} {(on
<DEVICE-OR-DOMAIN-NAME>)}}

radio Displays radio operation status and other related information
detail Optional. Displays detailed radio operation status
<DEVICE-NAME> <1-3> Optional. Specify the MAC address or hostname, or append the interface number to
form the radio ID in the AA-BB-CC-DD-EE-FF:RX or HOSTNAME:RX format.
• <1-3> – Optional. Specify the radio interface index.
RF Domain.

• show wireless radio {statistics {on <DEVICE-OR-DOMAIN-NAME>|rf {on <DEVICE-OR-
DOMAIN-NAME>}}

statistics Optional. Displays radio traffic and RF statistics
{on <DEVICE-OR-DOMIAN- • on <DEVICE-OR-DOMIAN-NAME> – Optional. Displays traffic and RF related
NAME>| statistics on a specified device or RF Domain
rf {on <DEVICE-OR-DOMAIN- • <DEVICE-OR-DOMIAN-NAME> – Specify the name of the AP, wireless controller,
NAME>}} or RF Domain.
• rf – Optional. Displays RF statistics on a specified device or RF Domain
• <DEVICE-OR-DOMIAN-NAME> – Specify the name of the AP, wireless controller,
or RF Domain.
• show wireless radio {statistics {detail|window-data} {<DEVICE-NAME> <1-3> {(filter
<RADIO-MAC>)} {(on <DEVICE-OR-DOMAIN-NAME>)}}

statistics Optional. Displays radio traffic and RF statistics. Use additional filters to view specific
{detail|window-data} details. The options are: are:
• detail – Displays detailed traffic and RF statistics of all radios
• window-data – Displays historical data over a time window
<DEVICE-NAME> <1-3> The following are common to the detail and window-data parameters:
• <DEVICE-NAME> – Optional. Specify the MAC address or hostname, or append the
interface number to form the radio ID in the AA-BB-CC-DD-EE-FF:RX or
HOSTNAME:RX format.
• <1-3> – Optional. Specify the radio interface index.


RF Domain.

• show wireless regulatory [channel-info <WORD>|county-code <WORD>]

regulatory Displays wireless regulatory information
channel-info <WORD> Displays channel information
• <WORD> – Specify the channel number.
country-code <WORD> Displays country code to country name information
• <WORD> – Specify the two letter ISO-3166 country code.

• show wireless regulatory device-type [ap650|ap6511|ap71xx|rfs4000] <WORD>

regulatory Displays wireless regulatory information
device-type Displays regulatory information based on the device type
[ap650|ap6511|ap71xx| • ap650 – Displays AP650 information
rfs4000] <WORD>
• ap6511 – Displays AP6511 information
• ap71xx – Displays AP71XX information
• rfs4000 – Displays RFS4000 information
The following is common to all of the above:
• <WORD> – Specify the two letter ISO-3166 country code.

• show wireless sensor-server {on <DEVICE-OR-DOMAIN-NAME>}

sensor- server Displays AirDefense sensor server configuration details
{on <DEVICE-OR-DOMAIN- • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays AirDefense sensor server
NAME>} configuration on a specified device or RF Domain

• show wireless unsanctioned aps {detailed|statistics} {(on <DEVICE-OR-DOMAIN-NAME>)}

unsanctioned aps Displays unauthorized APs. Use additional filters to view specific details.
detailed Optional. Displays detailed unauthorized APs information


statistics Optional. Displays channel statistics
on <DEVICE-OR-DOMAIN- The following is common to the detailed and statistics parameters:
NAME> • on <DEVICE-OR-DOMAIN-NAME> – Optional. Specify the name of the AP, wireless
• show wireless wips [client-blacklist|event-history] {on <DEVICE-OR-DOMAIN-NAME>}

wips [client-blacklist|event- Displays the WIPS details
history] • client-blacklist – Displays blacklisted clients
• event-history – Displays event history
on <DEVICE-OR-DOMAIN- The following are common to the client-blacklist and event-history parameters:
NAME> • on <DEVICE-OR-DOMAIN-NAME> – Optional. Specify the name of the AP, wireless

• show wlan {detail <WLAN>|on <DEVICE-OR-DOMAIN-NAME>|policy-mappings|usage-mappings}

wlan Displays WLAN related information based on the parameters passed
detail <WLAN> Optional. Displays WLAN configuration
• <WLAN> – Specify the WLAN name.
on <DEVICE-OR-DOMAIN- Optional. Displays WLAN configuration on a specified device or RF Domain
RF Domain.
policy-mappings Optional. Displays WLAN policy mappings
usage-mappings Optional. Lists all devices and profiles using the WLAN

• show wlan {config filter {device <DEVICE-NAME>|rf-domain <DOMAIN-NAME>}

config filter Optional. Filters WLAN information based on the device name or RF Domain
device <DEVICE-NAME> Optional. Filters WLAN information based on the device name
• <DEVICE-NAME> – Specify the device name.
rf-domain Optional. Filters WLAN information based on the RF Domain
<DOMAIN-NAME> • <DOMAIN-NAME> – Specify the RF Domain name.

• show wlan {statistics {<WLAN>|detail} {(on <DEVICE-OR-DOMAIN-NAME>)}



statistics {<WLAN>|detail} Optional. Displays WLAN statistics. Use additional filters to view specific details
• <WLAN> – Optional. Displays WLAN statistics. Specify the WLAN name.
• detail – Optional. Displays detailed WLAN statistics
on <DEVICE-OR-DOMAIN- The following is common to the <WLAN> and detail parameters:
NAME> • on <DEVICE-OR-DOMAIN-NAME> – Optional. Displays WLAN statistics on a
Examples
rfs7000-37FABE(config)#show wireless sensor server status on ap7131-889EC4

rfs7000-37FABE(config)#show wireless unauthorized aps detailed
Number of APs seen: 1
rfs7000-37FABE(config)#show wireless wips mu-blacklist
No mobile units blacklisted

rfs7000-37FABE(config)#show wireless wlan config
+-----------+---------+-----------+-------------+-----------------+-------
| NAME | ENABLE | SSID | ENCRYPTION | AUTHENTICATION | VLAN |
+-----------+---------+-----------+-------------+-----------------+-------
| test | Y | test | none | none | 1 |
| motorola | Y | motorola | none | none | 1 |
| wlan1 | Y | wlan1 | none | none | 1 |

rfs7000-37FABE(config)#show wireless wlan statistics
+---------------------+----------+----------+--------+--------+--------+--
| WLAN | TX BYTES | RX BYTES |TX PKTS |RX PKTS |TX KBPS |RX KBPS |DROPPED
| ERRORS |
+---------------------+----------+----------+--------+--------+--------+-
| motorola | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| wlan1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
+---------------------+----------+----------+--------+--------+--------+--
Total number of wlan displayed: 2

rfs7000-37FABE(config)#show wireless regulatory channel-info 1
Center frequency for channel 1 is 2412MHz

rfs7000-37FABE(config)#show wireless regulatory country-code
ISO CODE NAME
------------------------------------------------------------
al Algeria
ai Anguilla
ar Argentina
au Australia
at Austria
bs Bahamas
bh Bahrain
bb Barbados
by Belarus
be Belgium
bm Bermuda
bo Bolivia
bw Botswana
ba Bosnia-Herzegovina
br Brazil
bg Bulgaria
ca Canada
ky Cayman Islands
......................................................



rfs7000-37FABE(config)#show wireless regulatory device-type ap650 in
--------------------------------------------------------------------------
# Channel Set Power(mW) Power (dBm) Placement DFS CAC(mins)
--------------------------------------------------------------------------
1 1-13 4000 36 Indoor/Outdoor NA NA
2 36-64 200 23 Indoor Not Required 0
3 149-165 1000 30 Outdoor Not Required 0
4 149-165 200 23 Indoor Not Required 0
--------------------------------------------------------------------------
RFS4000-880DA7(config)#show wireless ap detail RFS4000-880DA7 on RFS4000-880DA7

AP: 00-23-68-88-0D-A7
AP Name : RFS4000-880DA7
Location : default
RF-Domain : default
Type : RFS4000
Model : RFS-4011-11110-US
Num of radios : 2
Num of clients : 0
Last Smart-RF time : not done
Stats update mode : auto
Stats interval : 6
Radio Modes :
radio-1 : wlan
radio-2 : wlan
Country-code : not-set
Site-Survivable : True
Last error :
Fault Detected : False

RFS4000-880DA7(config)#

RFS4000-880DA7(config)#show wireless ap load-balancing on default/RFS4000-880DA7

AP: 00-23-68-88-0D-A7
Client requests on 5ghz : allowed
Client requests on 2.4ghz : allowed

Average AP load in neighborhood : 0 %
Load on this AP : 0 %
Total 2.4ghz band load in neighborhood : 0 %
Total 5ghz band load in neighborhood : 0 %
Configured band ratio 2.4ghz to 5ghz : 1:1
Current band ratio 2.4ghz to 5ghz : 0:0
Average 2.4ghz channel load in neighborhood : 0 %
Average 5ghz channel load in neighborhood : 0 %
Load on this AP's 2.4ghz channel : 0 %
Load on this AP's 5ghz channel : 0 %


RFS4000-880DA7(config)#show wireless ap on default
--------------------------------------------------------------------------
MODE : radio modes - W = WLAN, S=Sensor, ' ' (Space) = radio not present
--------------------------------------------------------------------------
AP-NAME AP-LOCATION RF-DOMAIN AP-MAC #RADIOS MODE #CLIENT
LAST-CAL-TIME
--------------------------------------------------------------------------
RFS4000-880DA7 default default 00-23-68-88-0D-A7 2 W-W 0
not done
--------------------------------------------------------------------------
rfs7000-37FABE(config)#show wireless meshpoint config
--------------------------------------------------------------------------------


NAME ENABLE MESHID
--------------------------------------------------------------------------------
test Y TesingMeshPoint
--------------------------------------------------------------------------------
rfs7000-37FABE(config)#show wireless meshpoint detail
SUMMARY
NAME | test [MESHID:TesingMeshP
