MPI Communication
- 1. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 1/18 MPI COMMUNICATIONMPI COMMUNICATION SIEMENS SIEMENS
- 2. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 2/18 SIEMENS Objectives - Know Communication Methods. - Configure GD Communication Files.
- 3. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 3/18 CP5511 Transmission rate 9.6 kbit/s to 12 Mbit/s Interfaces 9-pin Sub D socket for connection to PROFIBUS Module format : PCMCIA slot Type II CP5611 Transmission rate 9.6 kbit/s to 12 Mbit/s Interface 9-pin Sub-D socket for connection to PROFIBUS Module format : PCI card Space requirements : 1 x PCI slot CP Used For MPI Comm. With PC & Laptop SIEMENS
- 4. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 4/18 Communication Services Data Volume Interfaces S7-Communication Functions Up to 22 Byte (S7-300) Up to 54 Byte (S7-400) Global Data S7 Basis Communication S7 Extended Communication Up to 76Byte Up to 16 Byte (S7-300) up to 64 Byte (S7-400) MPI MPI MPI CPs for PROFIBUS and Ethernet MPI Communication Method SIEMENS
- 5. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 5/18 - Data communication: 187.5 kbit/s to 12 Mbit/s - Up to 32 bus nodes and up to 32 active connections per CPU - Communication services: . PG/OP communication functions . Global data communication for small data volumes, without a programming overhead . S7 Basic communication for small data volumes up to 76 bytes MPI Communication Add.= 1 Add.= 0 Add.= 3 Add.= 2 Add.= 4 Add.= 5 SIEMENS
- 6. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 6/18 Inserting Another Station - S7 300 SIEMENS
- 7. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 7/18 Edit Hardware For The other Station - S7 300 Two station SIEMENS
- 8. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 8/18 Edit Hardware For The other Station - S7 300 The address of the CPU for the other station must have a different address SIEMENS
- 9. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 9/18 Configure The Network Click on this icon to edit the network configuration SIEMENS
- 10. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 10/18 Connectiong CPU To The MPI Network SIEMENS
- 11. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 11/18 Compiling & Checking The Connection SIEMENS
- 12. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 12/18 PC address: 0 CPU-MPI address: 2 PC address: 1 CPU-MPI address: 3 Connect CPU & PCs Using MPI Cables SIEMENS
- 13. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 13/18 Start Global Data File SIEMENS

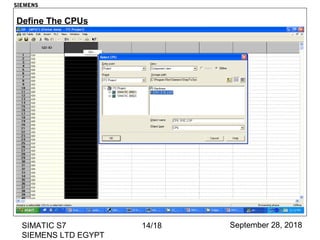

- 14. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 14/18 Define The CPUs SIEMENS
- 15. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 15/18 Assigne Sender & Receiver SIEMENS
- 16. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 16/18 Compile & Check SIEMENS
- 17. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 17/18 Download GD File To CPU SIEMENS
- 18. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 18/18 SFC SFC 65 NAME Short Description X_SEND Send block for sending data to the X_RCV (Client) block SFC 66 X_RCV Receive block for receiving the data of the X_SEND block X_GET Read data from the partner PLCSFC 67 X_PUT Write data to the partner PLCSFC 68 X_ABORT Abort existing connectionSFC 69 I_GET Read data from the partner CPUSFC 72 I_PUT Write data to the partner CPUSFC 73 I_ABORT Abort connection to the partner CPUSFC 74 S7 Basic Communication SIEMENS
- 19. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 19/18 SFC65 (X_SEND) REQ RET_VAL BUSYCONT DEST_ID SD REQ_ID CALL SFC 65 REQ:= M4.0 //Trigger CONT:= FALSE //Disc. connection DEST_ID:= W#16#4 //MPI_addr. REQ_ID:= DW#16#1 //Identifier SD:= P#M20.0 BYTE 10 //Variable RET_VAL:= MW40 //Error code BUSY:= M 4.1 //SFC active SFC66 (X_RSV) EN_DT RET_VAL REQ_ID NDA RD CALL SFC 66 EN_DT:= TRUE //Trigger data trans. RET_VAL:= MW 50 //Error code REQ_ID:= MD52 //Job ID NDA:= M40.0 //Data exist RD:= P#M20.0 BYTE 10 //Variable S7 Basic Communication Using SFC 65 - 66 SIEMENS
- 20. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 20/18 - Data exchange using MPI, Profibus or Industrial Ethernet - Configuring the connections via connection table -The connections are configured during warm restart and exist permanently (even in STOP mode) - User data size up to 64 Kbytes - Communications services also for controlling (Stop, Start) the partner - SFBs: - Data can also be read and written by an S7-300 (GET/PUT) - Different tasks can be handled via one connection S7 Extended Communication SIEMENS
- 21. September 28, 2018SIMATIC S7 SIEMENS LTD EGYPT 21/18 SFB/SFC SFB 8 NAME Short Description USEND Send block for sending data to the URCV (Client) block SFB 9 URCV Receive block for receiving data of the USEND block BSEND Send block for sending large data blocks to the BRCV block (up to 64 KByte) SFB 12 BRCV Receive block for receiving large data blocks (up to 64 Kbyte) SFB 13 GET Read data from partner PLCSFB 14 Comm. Type two-sided two-sided two-sided two-sided one-sided PUT Write data to partner PLCSFB 15 one-sided PRINT Send data to remote printerSFB 16 one-sided START Perform complete restart at the partnerSFB 19 one-sided STOP Put partner in the Stop stateSFB 20 one-sided RESUME Perform restart at the partnerSFB 21 one-sided STATUS Status scan of the partner (RUN, STOP, start-up, hold) SFB 22 one-sided USTATUS Receive the partner‘s status messagesSFB 23 one-sided CONTROL Scan the internal status of an S7 connection + SFBSFC 62 --- S7 Extended Communication SIEMENS
