MySQL(PLSQL) Syllabus and SQL vs SQL * plus Session - 01.pptx
- 1. SEC 4(A) : MYSQL Programme B.Sc Subject Computer Science Semester VI Session No. 1 Topic MySQL(PLSQL) Syllabus and SQL vs SQL * plus Created by Dr. H. Pruthviraj

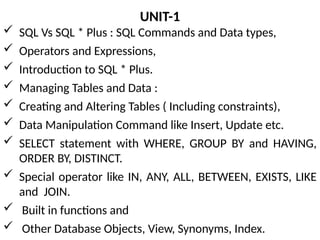

- 2. UNIT-1 SQL Vs SQL * Plus : SQL Commands and Data types, Operators and Expressions, Introduction to SQL * Plus. Managing Tables and Data : Creating and Altering Tables ( Including constraints), Data Manipulation Command like Insert, Update etc. SELECT statement with WHERE, GROUP BY and HAVING, ORDER BY, DISTINCT. Special operator like IN, ANY, ALL, BETWEEN, EXISTS, LIKE and JOIN. Built in functions and Other Database Objects, View, Synonyms, Index.
- 3. UNIT-2 Transaction Control Statements Commit, Rollback, Savepoint. Introduction to PL/SQL and SQL v/s PL/SQL. PL/SQL Block Structure. Language construct of PL/SQL. (Variables, Basic Data types and Composite Data types, Conditions and lopping etc.) TYPE and ROWTYPE. Using Cursor ( Implicit, Explicit)
- 4. Blue Print for SEC Skill Enhancement Course Paper Setting • Scheme of evaluation as follows: UNIT 2 Marks Questions 5 Marks Questions 10 Marks Questions I 2 1 2 II 3 2 1 SEC Question paper contains 3 sections: Section A: 5 Questions of 2 marks, Answer all questions 05 x 02 = 10 Marks Section B: 3 Questions of 5 marks, Answer any 2 questions 02 x 05 = 10 Marks Section C: 3 Questions of 10 marks, Answer any 2 questions 02 x 10 = 20 Marks Total = 40 Marks Writing Practical Internal Exam 10 Marks. Total = 50 Marks

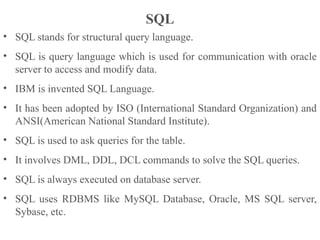

- 5. SQL • SQL stands for structural query language. • SQL is query language which is used for communication with oracle server to access and modify data. • IBM is invented SQL Language. • It has been adopted by ISO (International Standard Organization) and ANSI(American National Standard Institute). • SQL is used to ask queries for the table. • It involves DML, DDL, DCL commands to solve the SQL queries. • SQL is always executed on database server. • SQL uses RDBMS like MySQL Database, Oracle, MS SQL server, Sybase, etc.
- 6. SQL * Plus SQL*Plus is an interactive program that allows you to type in and execute SQL statements. It also enables you to type in PL/SQL code and send it to the server to be executed. SQL* Plus is one of the most common front end used to develop and create stored PL/SQL functions and procedures. SQL* Plus is a command line tool. It does not involve DDL, DML, DCL like SQL.
- 7. If you are in windows environment and your database server is somewhere on the network, so the following things happen: SQL* plus transfers your sql query over the network on the database server. SQL* Plus waits for the reply from the database server. The database server execute the query and transmit result to the SQL * plus. Then SQL * Plus display the query result on computer screen. If you are not running in a networked windows environment, the same thing happens. The only difference might be that the database server and SQL * Plus is running on same physical machine.
- 8. DIFFERENCE BETWEEN SQL & SQL * PLUS SQL SQL * plus SQL is a language. SQL*Plus is a tool. SQL is a query language used for the communication with Oracle server to access and modify the data. SQL* Plus is a command line tool with which you can send SQL queries to the server. Also, it can help you format the query result. SQL is invented by IBM. SQL * Plus is a tool to use SQL language for a database from Oracle corporation. SQL can be simply used to ask queries, i.e. it involves DML, DDL and DCL. SQL * Plus is command line tool which doesn’t involve DML, DDL and DCL. In SQL, there is no continuation character.. In SQL*Plus there is a continuation character. Keywords cannot be abbreviated in SQL. Keywords can be abbreviated in SQL*Plus. SQL uses functions to manipulate the data. SQL* plus uses commands to manipulate the data.

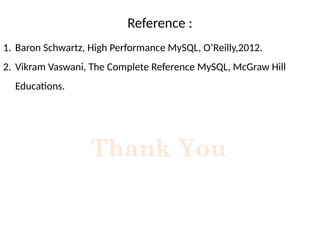

- 9. Reference : 1. Baron Schwartz, High Performance MySQL, O’Reilly,2012. 2. Vikram Vaswani, The Complete Reference MySQL, McGraw Hill Educations. Thank You
