Java Micro-Benchmarking

Java Micro-Benchmarking
Constantine Nosovsky
1

Agenda
Benchmark definition, types, common problems
Tools needed to measure performance
Code warm-up, what happens before the steady-state
Using JMH
Side effects that can affect performance
JVM optimizations (Good or Evil?)
A word about concurrency
Full example, “human factor” included
A fleeting glimpse on the JMH details
2 of 50

Benchmark definition, types, common
problems
3 of 50

What is a “Benchmark”?
Benchmark is a program for performance measurement
Requirements:
Dimensions: throughput and latency
Avoid significant overhead
Test what is to be tested
Perform a set of executions and provide stable reproducible
results
Should be easy to run
4 of 50

Benchmark types
By scale
• Micro-benchmark (component level)
• Macro-benchmark (system level)
By nature
• Synthetic benchmark (emulate component load)
• Application benchmark (run real-world application)
5 of 50

We’ll talk about
Synthetic micro-benchmark
• Mimic component workload separately from the application
• Measure performance of a small isolated piece of code
The main concern
• The smaller the Component we test – the stronger the impact of
• Benchmark infrastructure overhead
• JVM internal processes
• OS and Hardware internals
• … and the phases of the Moon
• Don’t we really test one of those?
6 of 50

When micro-benchmark is needed
Most of the time it is not needed at all
Does algorithm A work faster than B?
(Consider equal analytical estimation)
Does this tiny modification make any difference?
(from Java, JVM, native code or hardware point of view)
7 of 50

Tools needed to measure performance
8 of 50

You had one job…
9 of 50
final int COUNT = 100;
long start = System.currentTimeMillis();
for (int i = 0; i < COUNT; i++) {
// doStuff();
}
long duration = System.currentTimeMillis() - start;
long avg = duration / COUNT;
System.out.println("Average execution time is " + avg + " ms");

Pitfall #0
Using profiler to measure performance of small methods
(adds significant overhead, measures execution “as is”)
“You had one job” approach is enough in real life
(not for micro-benchmarks, we got it already)
Annotations and reflective benchmark invocations
(you must be great at java.lang.reflect measurement)
10 of 50

Micro-benchmark frameworks
JMH – Takes into account a lot of internal VM processes
and executes benchmarks with minimal infrastructure (Oracle)
Caliper – Allows to measure repetitive code, works for Android,
allows to post results online (Google)
Japex – Allows to reduce infrastructure code, generates nice
HTML reports with JFreeChart plots
JUnitPerf – Measure functionality of the existing JUnit tests
11 of 50

Java time interval measurement
System.currentTimeMillis()
• Value in milliseconds, but granularity depends on the OS
• Represents a “wall-clock” time (since the start of Epoch)
System.nanoTime()
• Value in nanoseconds, since some time offset
• The accuracy is not worse than System.currentTimeMillis()
ThreadMXBean.getCurrentThreadCpuTime()
• The actual CPU time spent for the thread (nanoseconds)
• Might be unsupported by your VM
• Might be expensive
• Relevant for a single thread only
12 of 50

Code warm-up, what happens before
the steady-state
13 of 50

Code warm-up, class loading
A single warm-up iteration is NOT enough for Class Loading
(not all the branches of classes may load on the first iteration)
Sometimes classes are unloaded (it would be a shame if
something messed your results up with a huge peak)
Get help between iterations from
• ClassLoadingMXBean.getTotalLoadedClassCount()
• ClassLoadingMXBean.getUnloadedClassCount()
• -verbose:class
14 of 50

Code warm-up, compilation
Classes are loaded, verified and then being compiled
Oracle HotSpot and Azul Zing run application in interpreter
The hot method is being compiled after
~10k (server), ~1.5k (client) invocations
Long methods with loops are likely to be compiled earlier
Check CompilationMXBean.getTotalCompilationTime
Enable compilation logging with
• -XX:+UnlockDiagnosticVMOptions
• -XX:+PrintCompilation
• -XX:+LogCompilation -XX:LogFile=<filename>
15 of 50

Code warm-up, OSR
Normal compilation and OSR will result in a similar code
…unless compiler is not able to optimize a given frame
(e.g. inner loop is compiled before the outer one)
In the real world normal compilation is more likely to happen, so
it’s better to avoid OSR in your benchmark
• Do a set of small warm-up iterations instead of a single big one
• Do not perform warm-up loops in the steady-state testing method
16 of 50

Code warm-up, OSR example
Now forget about array range check elimination
17 of 50
Before:
public static void main(String… args) {
loop1: if(P1) goto done1
i=0;
loop2: if(P2) goto done2
A[i++];
goto loop2; // OSR goes here
done2:
goto loop1;
done1:
}
After:
void OSR_main() {
A= // from interpreter
i= // from interpreter
loop2: if(P2) {
if(P1) goto done1
i=0;
} else { A[i++]; }
goto loop2
done1:
}

Reaching the steady-state, summary
Always do warm-up to reach steady-state
• Use the same data and the same code
• Discard warm-up results
• Avoid OSR
• Don’t run benchmark in the “mixed modes” (interpreter/compiler)
• Check class loading and compilation
18 of 50

Using JMH
Provides Maven archetype for a quick project setup
Annotate your methods with @GenerateMicroBenchmark
mvn install will build ready to use runnable jar with your
benchmarks and needed infrastructure
java -jar target/mb.jar <benchmark regex> [options]
Will perform warm-up following by a set of iterations
Print the results
19 of 50

Side effects that can affect
performance
20 of 50

Synchronization puzzle
void testSynchInner() {
synchronized (this) {
i++;
}
}
synchronized void testSynchOuter() {
i++;
}
21 of 50
8,244,087 usec
13,383,707 usec

Synchronization puzzle, side effect
Biased Locking: an optimization in the VM that leaves an object
as logically locked by a given thread even after the thread has
released the lock (cheap reacquisition)
Does not work on VM start up
(4 sec in HotSpot)
Use -XX:BiasedLockingStartupDelay=0
22 of 50

JVM optimizations (Good or Evil?)
WARNING: some of the following optimizations
will not work (at least for the given examples)
in Java 6 (jdk1.6.0_26), consider using Java 7 (jdk1.7.0_21)
23 of 50

Dead code elimination
VM optimization eliminates dead branches of code
Even if the code is meant to be executed,
but the result is never used and does not have any side effect
Always consume all the results of your benchmarked code
Or you’ll get the “over 9000” performance level
Do not accumulate results or store them in class fields that are
never used either
Use them in the unobvious logical expression instead
24 of 50

Dead code elimination, example
Measurement: average nanoseconds / operation, less is better
25 of 50
private double n = 10;
public void stub() { }
public void dead() {
@SuppressWarnings("unused")
double r = n * Math.log(n) / 2;
}
public void alive() {
double r = n * Math.log(n) / 2;
if(r == n && r == 0)
throw new IllegalStateException();
}
1.017
48.514
1.008

Constant folding
If the compiler sees that the result of calculation will always be
the same, it will be stored in the constant value and reused
26 of 50
private double x = Math.PI;
public void stub() { }
public double wrong() {
return Math.log(Math.PI);
}
public double measureRight() {
return Math.log(x);
}
1.014
1.695
43.435

Loop unrolling
Is there anything bad?
27 of 50
private double[] A = new double[2048];
public double plain() {
double sum = 0;
for (int i = 0; i < A.length; i++)
sum += A[i];
return sum;
}
public double manualUnroll() {
double sum = 0;
for (int i = 0; i < A.length; i += 4)
sum += A[i] + A[i + 1] + A[i + 2] + A[i + 3];
return sum;
}
2773.883
816.791

Loop unrolling and hoisting
Something bad happens when
the loops of benchmark infrastructure code are unrolled
And the calculations that we try to measure
are hoisted from the loop
For example, Caliper style benchmark looks like
private int reps(int reps) {
int s = 0;
for (int i = 0; i < reps; i++)
s += (x + y);
return s;
}
28 of 50

Loop unrolling and hoisting, example
29 of 50
@GenerateMicroBenchmark
public int measureRight() {
return (x + y);
}
@OperationsPerInvocation(1)
public int measureWrong_1() {
return reps(1);
}
...
@OperationsPerInvocation(N)
public int measureWrong_N() {
return reps(N);
}

Loop unrolling and hoisting, example
Method Result
Right 2.104
Wrong_1 2.055
Wrong_10 0.267
Wrong_100 0.033
Wrong_1000 0.057
Wrong_10000 0.045
Wrong_100000 0.043
30 of 50

A word about concurrency
Processes and threads fight for resources
(single threaded benchmark is a utopia)
31 of 50

Concurrency problems of benchmarks
Benchmark states should be correctly
• Initialized
• Published
• Shared between certain group of threads
Multi threaded benchmark iteration should be synchronized
and all threads should start their work at the same time
No need to implement this infrastructure yourself,
just write a correct benchmark using your favorite framework
32 of 50

Full example, “human factor” included
33 of 50

List iteration
Which list implementation is faster for the foreach loop?
ArrayList and LinkedList sequential iteration is linear, O(n)
• ArrayList Iterator.next(): return array[cursor++];
• LinkedList Iterator.next(): return current = current.next;
Let’s check for the list of 1 million Integer’s
34 of 50

List iteration, foreach vs iterator
35 of 50
public List<Integer> arrayListForeach() {
for(Integer i : arrayList) {
}
return arrayList;
}
public Iterator<Integer> arrayListIterator() {
Iterator<Integer> iterator = arrayList.iterator();
while(iterator.hasNext()) {
iterator.next();
}
return iterator;
}
23.659
Measurement: average milliseconds / operation, less is better
22.445

List iteration, foreach < iterator, why?
Foreach variant assigns element to a local variable
for(Integer i : arrayList)
Iterator variant does not
iterator.next();
We need to change Iterator variant to
Integer i = iterator.next();
So now it’s correct to compare the results, at least according to
the bytecode 
36 of 50

List iteration, benchmark
37 of 50
@GenerateMicroBenchmark(BenchmarkType.All)
public List<Integer> arrayListForeach() {
}
return arrayList;
}
public Iterator<Integer> arrayListIterator() {
}
return iterator;
}

List iteration, benchmark, result
List impl Iteration Java 6 Java 7
ArrayList
foreach 24.792 5.118
iterator 24.769 0.140
LinkedList
foreach 15.236 9.485
iterator 15.255 9.306
38 of 50
Java 6 ArrayList uses AbstractList.Itr,
LinkedList has its own, so there is less abstractions
(in Java 7 ArrayList has its own optimized iterator)

List iteration, benchmark, result
List impl Iteration Java 6 Java 7
ArrayList
foreach 24.792 5.118
iterator 24.769 0.140
LinkedList
foreach 15.236 9.485
iterator 15.255 9.306
39 of 50
WTF?!

List iteration, benchmark, loop-hoisting
40 of 50
ListBenchmark.arrayListIterator()
iterator.next();
}
return iterator;
ArrayList.Itr<E>.next()
if (modCount != expectedModCount) throw new CME();
int i = cursor;
if (i >= size) throw new NoSuchElementException();
Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length) throw new CME();
cursor = i + 1;
return (E) elementData[lastRet = i];

List iteration, benchmark, BlackHole
41 of 50
public void arrayListForeach(BlackHole bh) {
bh.consume(i);
}
}
public void arrayListIterator(BlackHole bh) {
bh.consume(i);
}
}

List iteration, benchmark, correct result
List impl Iteration Java 6 Java 7 Java 7 BlackHole
ArrayList
foreach 24.792 5.118 8.550
iterator 24.769 0.140 8.608
LinkedList
foreach 15.236 9.485 11.739
iterator 15.255 9.306 11.763
42 of 50

A fleeting glimpse on the JMH details
We already know that JMH
• Uses maven
• Uses annotation-driven approach to detect benchmarks
• Provides BlackHole to consume results (and CPU cycles)
43 of 50

JMH: Building infrastructure
Finds annotated micro-benchmarks using reflection
Generates infrastructure plain java source code
around the calls to the micro-benchmarks
Compile, pack, run, profit
No reflection during benchmark execution
44 of 50

JMH: Various metrics
Single execution time
Operations per time unit
Average time per operation
Percentile estimation of time per operation
45 of 50

JMH: Concurrency infrastructure
@State of benchmark data is shared across the benchmark,
thread, or a group of threads
Allows to perform Fixtures (setUp and tearDown) in scope of
the whole run, iteration or single execution
@Threads a simple way to run concurrent test if you defined
correct @State
@Group threads to assign them for a particular role in the
benchmark
46 of 50

JMH: VM forking
Allows to compare results obtained from various instances of VM
• First test will work on the clean JVM and others will not
• VM processes are not determined and may vary from run to run
(compilation order, multi-threading, randomization)
47 of 50

JMH: @CompilerControl
Instructions whether to compile method or not
Instructions whether to inline methods
Inserting breakpoints into generated code
Printing methods assembly
48 of 50

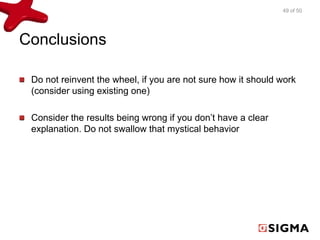

Conclusions
Do not reinvent the wheel, if you are not sure how it should work
(consider using existing one)
Consider the results being wrong if you don’t have a clear
explanation. Do not swallow that mystical behavior
49 of 50

Thanks for you attention
Questions?
50 of 50

Java Micro-Benchmarking

More Related Content

What's hot (20)

Similar to Java Micro-Benchmarking (20)

Recently uploaded (20)

Java Micro-Benchmarking
