Parallel Algorithms: Sort & Merge, Image Processing, Fault Tolerance

Algorithms
1. Introduction
An algorithm is defined as a sequence of computational steps required to
accomplish a specific task. The algorithm works for a given input and will
terminate in a well-defined state. The basic conditions of an algorithm are: input,
output, definiteness, effectiveness and finiteness. The purpose of the developing an
algorithm is to solve a general, well specified problem.
A concern while designing an algorithm also pertains to the kind of computer
on which the algorithm would be executed. The two forms of architectures of
computers are: sequential computer and parallel computer. Therefore, depending
upon the architecture of the computers, we have sequential as well as parallel
algorithms.
The algorithms which are executed on the sequential computers simply
perform according to sequence of steps for solving a given problem. Such
algorithms are known as sequential algorithms.
However, a problem can be solved after dividing it into sub-problems and those
in turn are executed in parallel. Later on, the results of the solutions of these sub
problems can be combined together and the final solution can be achieved. In such
situations, the number of processors required would be more than one and they
would be communicating with each other for producing the final output. This
environment operates on the parallel computer and the special kind of algorithms
called parallel algorithms are designed for these computers. The parallel algorithms
depend on the kind of parallel computer they are designed for. Hence, for a given
problem, there would be a need to design the different kinds of parallel algorithms
depending upon the kind of parallel architecture.
A parallel computer is a set of processors that are able to work cooperatively to
solve a computational problem. This definition is broad enough to include parallel
supercomputers that have hundreds or thousands of processors, networks of
workstations, multi-processor workstations, and embedded systems. The parallel
computers can be represented with the help of various kinds of models such as
random access machine (RAM), parallel random access machine (PRAM),
Interconnection Networks etc. While designing a parallel algorithm, the

computational power of various models can be analyzed and compared, parallelism
can be involved for a given problem on a specific model after understanding the
characteristics of a model. The analysis of parallel algorithm on different models
assist in determining the best model for a problem after receiving the results in
terms of the time and space complexity.
2. Analysis of Parallel Algorithms
A generic algorithm is mainly analyzed on the basis of the following
parameters: the time complexity (execution time) and the space complexity
(amount of space required). Usually we give much more importance to time
complexity in comparison with space complexity. The subsequent section
highlights the criteria of analyzing the complexity of parallel algorithms. The
fundamental parameters required for the analysis of parallel algorithms are as
follow:
• Time Complexity
• The Total Number of Processors Required
• The Cost Involved.
2.1 Time Complexity
As it happens, most people who implement algorithms want to know how much
of a particular resource (such as time or storage) is required for a given algorithm.
The parallel architectures have been designed for improving the computation
power of the various algorithms. Thus, the major concern of evaluating an
algorithm is the determination of the amount of time required to execute. Usually,
the time complexity is calculated on the basis of the total number of steps executed
to accomplish the desired output.
The resource consumption in parallel algorithms is both processor cycles on
each processor and also the communication overhead between the processors.
Thus, first in the computation step, the local processor performs an arithmetic
and logic operation. Thereafter, the various processors communicate with each
other for exchanging messages and/or data. Hence, the time complexity can be
calculated on the basis of computational cost and communication cost involved.
The time complexity of an algorithm varies depending upon the instance of the

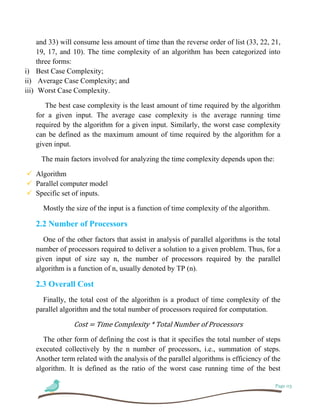

input for a given problem. For example, the already sorted list (10, 17, 19, 21, 22,

and 33) will consume less amount of time than the reverse order of list (33, 22, 21,
19, 17, and 10). The time complexity of an algorithm has been categorized into
three forms:
i) Best Case Complexity;
ii) Average Case Complexity; and
iii) Worst Case Complexity.
The best case complexity is the least amount of time required by the algorithm
for a given input. The average case complexity is the average running time
required by the algorithm for a given input. Similarly, the worst case complexity
can be defined as the maximum amount of time required by the algorithm for a
given input.
The main factors involved for analyzing the time complexity depends upon the:
 Algorithm
 Parallel computer model
 Specific set of inputs.
Mostly the size of the input is a function of time complexity of the algorithm.
2.2 Number of Processors
One of the other factors that assist in analysis of parallel algorithms is the total
number of processors required to deliver a solution to a given problem. Thus, for a
given input of size say n, the number of processors required by the parallel
algorithm is a function of n, usually denoted by TP (n).
2.3 Overall Cost
Finally, the total cost of the algorithm is a product of time complexity of the
parallel algorithm and the total number of processors required for computation.
Cost = Time Complexity * Total Number of Processors
The other form of defining the cost is that it specifies the total number of steps
executed collectively by the n number of processors, i.e., summation of steps.
Another term related with the analysis of the parallel algorithms is efficiency of the
algorithm. It is defined as the ratio of the worst case running time of the best

sequential algorithm and the cost of the parallel algorithm. The efficiency would be
mostly less than or equal to 1. In a situation, if efficiency is greater than 1 then it
means that the sequential algorithm is faster than the parallel algorithm.
𝐸𝑓𝑓𝑖𝑐𝑖𝑒𝑛𝑐𝑦 =
𝑊𝑜𝑟𝑠𝑡 𝑐𝑎𝑠𝑒 𝑟𝑢𝑛𝑛𝑖𝑛𝑔 𝑡𝑖𝑚𝑒 𝑜𝑓 𝑆𝑒𝑞𝑢𝑒𝑛𝑡𝑖𝑎𝑙 𝐴𝑙𝑔𝑜𝑟𝑖𝑡ℎ𝑚
𝐶𝑜𝑠𝑡 𝑜𝑓 𝑃𝑎𝑟𝑎𝑙𝑙𝑒𝑙 𝐴𝑙𝑔𝑜𝑟𝑖𝑡ℎ𝑚
3. Merge Sort Algorithm
First, divide the given sequence of n numbers into two parts, each consisting of
n/2 numbers. Thereafter, recursively split the sequence into two parts until each
number acts as an independent sequence. Consequently, the independent numbers
are first sorted and recursively merged until a sorted sequence of n numbers is not
achieved.
In order to perform the above-mentioned task, there will be two kinds of circuits
which would be used in the following manner: the first one for sorting and another
one for merging the sorted list of numbers.
Odd-Even Merging Circuit
Let us firstly illustrate the concept of merging two sorted sequences using an
odd-even merging circuit. The working of a merging circuit is as follows:
1) Let there be two sorted sequences A=(a1, a2, a3, a4……… am) and B=(b1, b2, b3,
b4……… bm) which are required to be merged.
2) With the help of a merging circuit (m/2,m/2), merge the odd indexed numbers of
the two sub sequences i.e. (a1, a3, a5…… am-1) and (b1, b3, b5……… bm-1) and thus
resulting in sorted sequence (c1, c2, c3……… cm).
3) Thereafter, with the help of a merging circuit (m/2,m/2), merge the even
indexed numbers of the two sub sequences i.e. (a2, a4, a6……… am) and (b2, b4, b6………
bm) and thus resulting in sorted sequence (d1, d2, d3……… dm).
4) The final output sequence O=(o1, o2, o3……… o2m ) is achieved in the following
manner:

o1 = a1 and o2m = bm .In general the formula is as given below: o2i = min(ai+1,bi ) and
o2I+1 = max(ai+1,bi ) for i=1,2,3,4……….m-1.
Now, let us take an example for merging the two sorted sequences of length 4,
i.e., A=(a1, a2, a3, a4) and B=(b1, b2, b3, b4). Suppose the numbers of the sequence are
A=(4,6,9,10) and B=(2,7,8,12). The circuit of merging the two given sequences is
illustrated in Figure 7.
Sorting Circuit along with Odd-Even Merging Circuit
As we already know, the merge sort algorithm requires two circuits, i.e. one for
merging and another for sorting the sequences. Therefore, the sorting circuit has
been derived from the above-discussed merging circuit. The basic steps followed
by the circuit are highlighted below:
i) The given input sequence of length n is divided into two sub-sequences of length
n/2 each.
ii) The two sub sequences are recursively sorted.
iii) The two sorted sub sequences are merged (n/2,n/2) using a merging circuit in order
to finally get the sorted sequence of length n.

Now, let us take an example for sorting the n numbers say 4,2,10,12,8,7,6,9. The
circuit of sorting + merging given sequence is illustrated in Figure 8.
Analysis of Merge Sort
i) The width of the sorting + merging circuit is equal to the maximum number of
devices required in a stage is O(n/2). As in the above figure the maximum number
of devices for a given stage is 4 which is 8/2 or n/2.
ii) The circuit contains two sorting circuits for sorting sequences of length n/2 and
thereafter one merging circuit for merging of the two sorted sub sequences (see

stage 4th
in the above figure). Let the functions Ts and Tm denote the time
complexity of sorting and merging in terms of its depth.
The Ts can be calculated as follows:
Ts(n) =Ts(n/2) + Tm(n/2)
Ts(n) =Ts(n/2) + log(n/2) ,
Therefore, Ts (n) is equal to O(log2
n).
4. Image Processing
Image is the 2 dimensional distributions of the small image points called
pixels. It can be considered as a function of two real variables, for example, f(x,y)
with f as the amplitude (e.g. brightness) of the image at position (x,y). Image
Processing is the process of enhancing the image and extraction of meaningful
information from an image.
Image Processing with parallel computing is an alternative way to solve image
processing problems that require large times of processing or handling large
amounts of information in "acceptable time" (according to each criterion).
The main idea of parallel image processing is to divide the problem into simple
tasks and solve them concurrently, in such a way the total time can be divided
between the total tasks (in the best case). Parallel image processing cannot be
applied to all problems, in other words we can say that not all the problems can be
coded in a parallel form. A parallel program must have some features for a correct
and efficient operation; otherwise, it is possible that runtime or operation does not
have the expected performance. These features include the following:
 Granularity: It’s defined as the number of basic units and it is classified as:
 Coarse-grained: Few tasks of more intense computing.
 Fine-grained: A large number of small parts and less intense computing.
 Synchronization: This prevents the overlap of two or more processes.
 Latency: This is the time transition of information from request to receipt.

 Scalability: It’s defined as the ability of an algorithm to maintain its efficiency by
increasing the number of processors and the size of the problem in the same
proportion.
5. Proposed Algorithms for Parallel Image Processing Tasks
We will go through the following sequential image processing algorithms and
develop its parallel versions.
Load Distribution between Processors:
Suppose we are taking the following image (1) as an example. The main step of
these algorithms is to determine the number of tiles to be generated. The number of
tiles corresponds to the amount of threads. If only a thread exists, the computation
is just sequential computation. Otherwise if there are two or more threads then the
image is divided into distinct areas, as shown in Figure 2, 3, 4. Each thread is
responsible for processing the pixels included in its tile and to execute different
tasks but considering maintaining synchronization between all the processor
otherwise there will be the situation of deadlock between processors.
Parallel Segmentation by Region Growing Technique and
Calculation of different Features of Segmented Regions:
Region growing is one of the very famous techniques of segmentation. Main
drawback of the region growing is that it is time consuming. This algorithm is
designed to reduce timing of this algorithm. These are the steps involved in it.
1. Take Input image on client processor.
2. Select the Seed pixels (It is based on some user criterion like pixels in a certain
gray level range, pixels evenly spaced on a grid, etc.) for different regions on
client processor.
3. Count number of seed points and activate same number of kernels.
4. Send copy of image and respective seed pixels on each kernel processor.
5. Regions are then grown from these seed pixels to adjacent depending on pixel
intensity, gray level texture, or color, etc. on each kernel processor for this

image information is also important because region grown is based on the
membership criteria.
6. Calculate different features of different ROI (region of interest) on individual
kernel.
7. Send segmented regions and information of ROIs to the client processor and
deactivation of worker kernels.
8. Reconstruct the image on client processor and Display of all the information.
6. Fault Tolerance
To achieve the needed reliability and availability, we need fault-tolerant
computers. They have the ability to tolerate faults by detecting failures, and
isolate defect modules so that the rest of the system can operate correctly.

Reliability techniques have also become of increasing interest to general-
purpose computer systems.
Parallel computing can also be applied to the design of fault-tolerance
computer systems, particularly via lockstep systems performing the same
operation in parallel. This provides redundancy in case one component should
fail, and also allows automatic error detection and error correction if the results
differ. These methods can be used to help prevent single event upsets caused by
transient errors. Although additional measures may be required in embedded or
specialized systems, this method can provide a cost effective approach to
achieve n-modular redundancy in commercial off-the-shelf systems.
7. Process of System Recovery from Fault Tolerance
Faults in different parts of parallel system have different importance. Let’s
think about a fault processor, line or switch. The most important is fault on
processor. In this case the processes allocated on this processor have to be
moved to other processor, recovered and initialized one more time. Usually we
can think about that processor memory content is lost after fault appearing, or
lack of access. It is necessary to remove and to redirect all communications
lines going through this process.
Every process of parallel system from the moment when the fault appears till
the end of the recovery is getting a new attribute (fig.1). When processor
element PE failed, then:
• Every process allocated on the processor element PE is called locked
process, main and copy too,
• Every process except locked process, communicating with locked
process is called fault influenced process,
• Every process except locked process, not communicating with locked
process is called free process.

The process of system recovery is known. But there is a question how and
who controls recovery of kernel of processor. Control can be either centralized
or decentralized. In case of decentralized control it is necessary to build on the
fact that all kernels dispose the same data, according to which they determine
final processors. Every kernel determines final processors for those locked
processes which have on its processor allocated copies of processes. If the copy
of process is located on more than one processor then the corresponding
processor transmit message about system recovery to other processors where
the other copies are located. Content of the message is about final processor for
the exact copy of process and time mark of begin of recovery. The kernel of the
system after receiving all messages about system recovery compares this time
mark with its own time of recovery. Lately the kernel doesn’t realize any code
reallocation of the relevant processes. In case of equality of time marks can be
decisive by another criterion, like for example identification number of a
processor. There is a question how many copies of processes are enough for
sufficient resistance against faults. In case of active and passive processes it
depends on requested security. One passive copy of the process is sufficient if
we assume, that fault doesn’t appear on two processors occupied by the same
process at the same time or in time of recovery of the system.

Parallel Algorithms: Sort & Merge, Image Processing, Fault Tolerance

More Related Content

What's hot (19)

Viewers also liked (20)

Similar to Parallel Algorithms: Sort & Merge, Image Processing, Fault Tolerance (20)

More from University of Technology - Iraq (19)

Recently uploaded (20)

Parallel Algorithms: Sort & Merge, Image Processing, Fault Tolerance
