Patterns for JVM languages - Geecon 2014

The following presentation is provided under DHMB license
(Do Not Hurt My Brain).
Lecturer is not responsible for the financial and moral
damages resulting from taking too seriously the content of
the presentation.
Including permanent damage to neurons, reduction of
neurotransmitter activity at the molecular level and group
dismissal.

Patterns for JVM
languages
Jarosław Pałka

about me
work://chief_architect@lumesse
owner://symentis.pl
twitter://j_palka
blog://geekyprimitives.wordpress.com
scm:bitbucket://kcrimson
scm:github://kcrimson

Because having pet projects is like solving crosswords
everyday
Or going to a gym
Helps your brain to stay in shape

source code
↓
target language source code
↓
machine code || interpreter

source code
↓
execution results

source code
↓lexer
token stream
↓parser
IR

Intermediate Representation
visitor
listener
tree

fragment
DIGIT
:
[0-9]
;
fragment
LETTER
:
[a-zA-Z]
;
String
:
''' .*? '''
| '"' .*? '"'
;
Number
:
DIGIT+
;
Name
:
(
'_'
| LETTER
)
(
'_'
| LETTER
| DIGIT
)*
;
COMMENT
:
'--' .*? 'n' -> skip
;
NL
:
'r'? 'n' -> skip
;
WS
:
[ tf]+ -> skip
;

[@0,[0..1)='x',<49>]
[@1,[2..3)='=',<36>]
[@2,[4..5)='1',<48>]
[@3,[6..7)='+',<33>]
[@4,[8..15)='"Hello"',<47>]
[@5,[15..16)=';',<37>]
[@6,[17..17)='',<-1=EOF>]

varlist returns [Varlist result]
:
var
{$result = createVarlist($var.result);}
(
',' var
{$result = createVarlist($result,$var.result);}
)*
;
//
var returns [Var result]
:
Name
{ $result = createVariableName($Name.text); }
| prefixexp '[' exp ']'
| prefixexp '.' Name
;

translator
interpreter
compiler

Interpreter pattern
Non terminal nodes
Terminal nodes

package pl.symentis.lua.grammar;
import pl.symentis.lua.runtime.Context;
public interface Statement {
void execute(Context context);
}

package pl.symentis.lua.grammar;
Import pl.symentis.lua.runtime.Context;
public interface Expression<T> {
T evaluate(Context ctx);
}

package pl.symentis.lua.runtime;
public interface Context {
VariableRef resolveVariable(String name);
Scope enterScope();
Scope exitScope();
}

package pl.symentis.lua.runtime;
public interface Scope {
Scope getOuterScope();
VariableRef resolveVariable(String name);
void bindVariable(String name, Object value);
}

Into the forest of syntax tree

public class Literal implements ExpressionNode {
public final LuaType value;
public Literal(LuaType value) {
super();
this.value = value;
}
@Override
public void accept(ExpressionVisitor visitor) {
visitor.visit(this);
}
}

public class VariableName extends Var {
public final String name;
public VariableName(String name) {
this.name = name;
}
@Override
public void accept(ExpressionVisitor visitor) {
}
}

public class Assignment implements StatementNode {
public final Varlist varlist;
public final Explist explist;
public Assignment(Varlist varlist, Explist explist) {
super();
this.varlist = varlist;
this.explist = explist;
}
@Override
public void accept(StatementVisitor visitor) {
}
}

public void visit(Assignment assignment) {
InterpreterExpressionVisitor varlist = createExpressionVisitor();
assignment.varlist.accept(varlist);
InterpreterExpressionVisitor explist = createExpressionVisitor();
assignment.explist.accept(explist);
Iterator<ExpressionNode> iterator = ((List<ExpressionNode>) explist.result()).iterator();
List<VariableRef> vars = (List<VariableRef>) varlist.result();
for (VariableRef variableRef : vars) {
if (iterator.hasNext()) {
ExpressionNode node = iterator.next();
InterpreterExpressionVisitor exp = createExpressionVisitor();
node.accept(exp);
variableRef.set(exp.result());
} else {
variableRef.set(LuaNil.Nil);
}
}
}

public void visit(Literal literal) {
result = literal.value;
}
public void visit(VariableName variableName) {
result = context.resolveVariable(variableName.name);
}
public void visit(Varlist varlist) {
List<VariableRef> refs = new ArrayList<>();
for (Var var : varlist.vars) {
var.accept(this);
refs.add((VariableRef) result());
}
result = refs;
}

compiler → byte code
org.ow2.asm:asm:jar
me.qmx.jitescript:jitescript:jar

JiteClass jiteClass = new JiteClass(classname, new String[] { p(Script.class) });
jiteClass.defineDefaultConstructor();
CodeBlock codeBlock = newCodeBlock();
// bind context into current runtime
codeBlock.aload(1);
codeBlock.invokestatic(p(RuntimeContext.class), "enterContext", sig(void.class, Context.class));
// parse file and start to walk through AST visitor
StatementNode chunk = parseScript(readFileToString(script));
// generate byte code
chunk.accept(new CompilerStatementVisitor(codeBlock, new HashSymbolTable()));
codeBlock.voidreturn();
jiteClass.defineMethod("execute", JiteClass.ACC_PUBLIC, sig(void.class, new Class[]
{ Context.class }),
codeBlock);
return jiteClass.toBytes(JDKVersion.V1_8);
}

public void visit(Assignment assignment) {
Explist explist = assignment.explist;
Varlist varlist = assignment.varlist;
Iterator<Var> vars = varlist.vars.iterator();
for (ExpressionNode exp : explist.expressions) {
exp.accept(new CompilerExpressionVisitor(codeBlock, symbolTable));
CompilerExpressionVisitor visitor = new CompilerExpressionVisitor(
codeBlock, symbolTable);
vars.next().accept(visitor);
String varName = (String) visitor.result();
codeBlock.astore(symbolTable.index(varName));
}
}

public void visit(Literal literal) {
Object object = literal.value.asObject();
codeBlock.ldc(object);
// box object into Lua type
if (object instanceof Integer) {
codeBlock.invokestatic(p(Integer.class), "valueOf", sig(Integer.class, int.class));
} else if (object instanceof Double) {
codeBlock.invokestatic(p(Double.class), "valueOf", sig(Double.class,
double.class));
}
codeBlock.invokestatic(p(LuaTypes.class), "valueOf", sig(LuaType.class, Object.class));
}
public void visit(VariableName variableName) {
result = variableName.name;
}

When writing bytecode compiler it helps to think about Java code
But at the end you need to think like stack machine :)

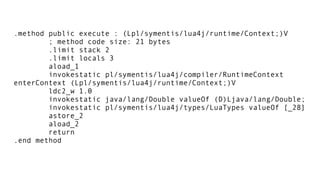

.method public execute : (Lpl/symentis/lua4j/runtime/Context;)V
; method code size: 21 bytes
.limit stack 2
.limit locals 3
aload_1
invokestatic pl/symentis/lua4j/compiler/RuntimeContext
enterContext (Lpl/symentis/lua4j/runtime/Context;)V
ldc2_w 1.0
invokestatic java/lang/Double valueOf (D)Ljava/lang/Double;
invokestatic pl/symentis/lua4j/types/LuaTypes valueOf [_28]
astore_2
aload_2
return
.end method

Symbol table
maps variable local to its symbolic name

print("Welcome","to","Geecon",2014)

Var var = functionCall.var;
CompilerExpressionVisitor visitor = new CompilerExpressionVisitor(codeBlock,
symbolTable);
var.accept(visitor);
String functionName = (String) visitor.result();
Args args = functionCall.args;
visitor = new CompilerExpressionVisitor(codeBlock, symbolTable);
args.accept(visitor);
Integer argNumber = (Integer) visitor.result();
Class<?>[] paramTypeArr = new Class[argNumber];
fill(paramTypeArr, LuaType.class);
codeBlock.invokedynamic(functionName, sig(void.class, paramTypeArr),
Lua4JDynamicBootstrap.HANDLE,
new Object[] {});

static final Handle HANDLE = new Handle(
CodeBlock.H_INVOKESTATIC,
p(Lua4JDynamicBootstrap.class),
"bootstrap",
sig(CallSite.class, MethodHandles.Lookup.class, String.class,
MethodType.class));

public static CallSite bootstrap(
MethodHandles.Lookup lookup,
String name,
MethodType type) throws Throwable {
Context context = currentContext();
MethodHandle target=lookup.findStatic(BasicFunctions.class,name,
methodType(
LuaType.class,
Context.class,
LuaType[].class));
target = MethodHandles.insertArguments(handler, 0, context)
.asCollector(LuaType[].class, type.parameterCount());
return new ConstantCallSite(target.asType(type));
}

https://github.com/headius/invokebinder
A Java DSL for binding method handles forward,
rather than backward
https://github.com/projectodd/rephract
Another Java DSL for invokedynamic

What's next?
graal + truffle
dynamic compiler + AST interpreter

Thanks,
stay cool,
dynamically linked
and...

Let the eternal stream of bytecode
flow through your body
