JavaFX 2.0 With Alternative LanguagesStephen ChinChief Agile Methodologist, GXSsteveonjava@gmail.comtweet: @steveonjavaDean IversonVTTIdeanriverson@gmail.comtweet: @deanriverson
Meet the PresentersStephen ChinDean IversonFamily ManFamily ManMotorcyclistGeek
Disclaimer: This is Code-HeavyTHE FOLLOWING IS INTENDED TO STIMULATE CREATIVE USE OF JVM LANGUAGES. AFTER WATCHING THIS PRESENTATION YOU MAY FEEL COMPELLED TO START LEARNING A NEW JVM LANGUAGE. THE PRESENTERS ARE NOT LIABLE FOR ANY INNOVATION, BREAKTHROUGHS, OR NP-COMPLETE SOLUTIONS THAT MAY RESULT.
JavaFX With Java
Programming LanguagesJavaFX 2.0 APIs are now in JavaPure Java APIs for all of JavaFXBindingand Sequences exposed as Java APIsFXML Markup for toolingEmbrace all JVM languagesGroovy, Scala, Clojure, JRubyFantom, Mira, Gosu, Jython, etc.JavaFX Script is no longer supported by OracleExisting JavaFX Script based applications will continue to runVisageis the open-source successor to the JavaFX Script language
JavaFX in JavaJavaFX API uses an enhanced JavaBeans patternSimilar in feel to other UI toolkits (Swing, Apache Pivot, etc.)Uses builder pattern to minimize boilerplate
Example Applicationpublic class HelloStage extends Application { @Override public void start(Stage stage) { stage.setTitle("Hello Stage");stage.setWidth(600); stage.setHeight(450);Group root = new Group(); Scene scene = new Scene(root);scene.setFill(Color.LIGHTGREEN);stage.setScene(scene);stage.show(); } public static void main(String[] args) { launch(HelloStage.class, args); }}
Example Application Using Builderspublic class HelloStage extends Application { @Override public void start(Stage stage) {stage.setTitle("Hello Stage");stage.setScene(SceneBuilder.create().fill(Color.LIGHTGREEN).width(600).height(450) .build());stage.show();} public static void main(String[] args) { launch(HelloStage.class, args); }}
BindingUnquestionably the biggest JavaFX Script innovationSupported via a PropertyBindingclassLazy invocation for high performanceStatic construction syntax for simple casese.g.: bind(<property>), bindBiDirectional(<property>)
Observable Pseudo-PropertiesSupports watching for changes to propertiesImplemented via anonymous inner classesWill take advantage of closures in the future

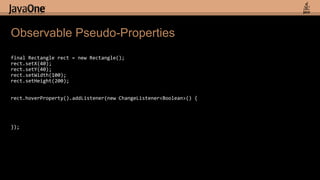

Observable Pseudo-Propertiesfinal Rectangle rect = new Rectangle();rect.setX(40);rect.setY(40);rect.setWidth(100);rect.setHeight(200);rect.hoverProperty().addListener(new ChangeListener<Boolean>() {});
Observable Pseudo-Propertiesfinal Rectangle rect = new Rectangle();rect.setX(40);rect.setY(40);rect.setWidth(100);rect.setHeight(200);rect.hoverProperty().addListener(new ChangeListener<Boolean>() {});The property we want to watch
Observable Pseudo-Propertiesfinal Rectangle rect = new Rectangle();rect.setX(40);rect.setY(40);rect.setWidth(100);rect.setHeight(200);rect.hoverProperty().addListener(new ChangeListener<Boolean>() {});Only one listener used with generics to specify the data type
Observable Pseudo-Propertiesfinal Rectangle rect = new Rectangle();rect.setX(40);rect.setY(40);rect.setWidth(100);rect.setHeight(200);rect.hoverProperty().addListener(new ChangeListener<Boolean>() { public void changed(ObservableValue<? extends Boolean> property, Boolean oldValue, Boolean value) { }});Refers to the Rectangle.hoverProperty()
Observable Pseudo-Propertiesfinal Rectangle rect = new Rectangle();rect.setX(40);rect.setY(40);rect.setWidth(100);rect.setHeight(200);rect.hoverProperty().addListener(new ChangeListener<Boolean>() { public void changed(ObservableValue<? extends Boolean> property, Boolean oldValue, Boolean value) { rect.setFill(rect.isHover() ? Color.GREEN : Color.RED); }});
Sequences in JavaReplaced with an Observable ListPublic API is based on JavaFX sequencesInternal code can use lighter collections APIJavaFX 2.0 also has an Observable Map
JavaFX With Groovy
Features of GroovyModern languageClosuresAST TransformsStrongly typed dynamic languageTight integration with JavaVery easy to port from Java to GroovyDeclarative syntax with GroovyFX BuildersFamiliar to Groovy and JavaFX Script developers
Java vs. GroovyFX DSLpublic class HelloStage extends Application { public void start(Stage stage) {stage.setTitle("Hello Stage");stage.setWidth(600);stage.setHeight(450); Scene scene = new Scene();scene.setFill(Color.LIGHTGREEN); Rectangle rect = new Rectangle();rect.setX(25);rect.setY(40);rect.setWidth(100);rect.setHeight(50);rect.setFill(Color.RED); scene.setRoot(new Group(rect));stage.setScene(scene);stage.show(); } public static void main(String[] args) { launch(HelloStage.class, args); }}GroovyFX.start { stage -> def sg = new SceneGraphBuilder(stage) sg.stage(title: “Hello Stage”, width: 600, height: 450) { scene(fill: groovyblue) { rectangle(x: 25, y: 40, width: 100, height: 50, fill: red) } }}198 Lines180 Characters21 Lines430 Characters
def sg = new SceneGraphBuilder()def hc = { hover -> hover ? 4 : 0 }sg.stage(title: 'Vanishing Circles', show: true) {scene(fill: black, width: 800, height: 600) { 50.times {circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } }}20
21def sg = new SceneGraphBuilder()def hc = { hover -> hover ? 4 : 0 }sg.stage(title: 'Vanishing Circles', show: true) {scene(fill: black, width: 800, height: 600) { 50.times {circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } }}Builder for GroovyFX scene graphs
22def sg = new SceneGraphBuilder()def hc = { hover -> hover ? 4 : 0 }sg.stage(title: 'Vanishing Circles', show: true) {scene(fill: black, width: 800, height: 600) { 50.times {circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } }}Declarative Stage definition
23def sg = new SceneGraphBuilder()def hc = { hover -> hover ? 4 : 0 }sg.stage(title: 'Vanishing Circles', show: true) {scene(fill: black, width: 800, height: 600) { 50.times {circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } }}Inline property definitions
24def sg = new SceneGraphBuilder()def hc = { hover -> hover ? 4 : 0 }sg.stage(title: 'Vanishing Circles', show: true) {scene(fill: black, width: 800, height: 600) { 50.times {circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } }}Bind to properties
25def sg = new SceneGraphBuilder()def hc = { hover -> hover ? 4 : 0 }sg.stage(title: 'Vanishing Circles', show: true) {scene(fill: black, width: 800, height: 600) {50.times {circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) }} }}Sequence Creation Via Loop
Properties in Javapublic class Person { private StringPropertyfirstName; public void setFirstName(Stringval) { firstNameProperty().set(val); } public String getFirstName() { return firstNameProperty().get(); } public StringPropertyfirstNameProperty() { if (firstName == null) firstName = new SimpleStringProperty(this, "firstName"); return firstName; } private StringPropertylastName; public void setLastName(String value) { lastNameProperty().set(value); } public String getLastName() { return lastNameProperty().get(); } public StringPropertylastNameProperty() { if (lastName == null) // etc. } }26

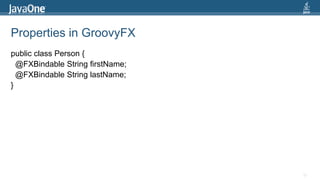

Properties in GroovyFXpublic class Person { @FXBindable String firstName; @FXBindable String lastName;}27
public class Person { @FXBindable String firstName; @FXBindable String lastName= “Smith”;}Properties in GroovyFX28Optional initializers
public class Person { @FXBindable String firstName; @FXBindable String lastName = “Smith”;}def p = new Person()def last = p.lastNamep.firstName = “Agent”Properties in GroovyFX29Get and set values
public class Person { @FXBindable String firstName; @FXBindable String lastName = “Smith”;}def p = new Person()def last = p.lastNamep.firstName = “Agent”textField(text: bind(p.lastNameProperty()))Properties in GroovyFX30Access underlying property for binding
Binding in GroovyFX@FXBindableclass Time { Integer hours Integer minutes Integer seconds Double hourAngle Double minuteAngle Double secondAngle public Time() { // bind the angle properties to the clock timehourAngleProperty().bind((hoursProperty() * 30.0) + (minutesProperty() * 0.5))minuteAngleProperty().bind(minutesProperty() * 6.0)secondAngleProperty().bind(secondsProperty() * 6.0) }}31
Animation in GroovyFXtimeline(cycleCount: Timeline.INDEFINITE, autoReverse: true) { at (1000.ms) { change(rect1, 'x') to 200 tweenease_both change rect2.yProperty() to 200 tween linear }}.play()32

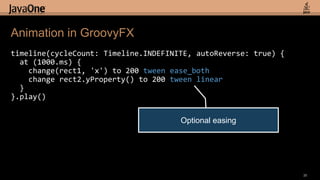

timeline(cycleCount: Timeline.INDEFINITE, autoReverse: true) {at (1000.ms) { change(rect1, 'x') to 200 tweenease_both change rect2.yProperty() to 200 tween linear}}.play()Animation in GroovyFX33Easy animation syntax: at (duration) {keyframes}
timeline(cycleCount: Timeline.INDEFINITE, autoReverse: true) { at (1000.ms) {change(rect1, 'x') to 200 change rect2.yProperty() to 200 }}.play()Animation in GroovyFX34Key frame DSL
timeline(cycleCount: Timeline.INDEFINITE, autoReverse: true) { at (1000.ms) { change(rect1, 'x') to 200 tweenease_bothchange rect2.yProperty() to 200tween linear }}.play()Animation in GroovyFX35Optional easing

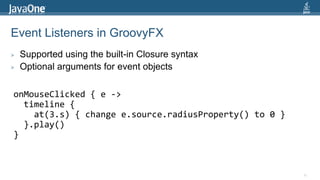

Event Listeners in GroovyFX36Supported using the built-in Closure syntaxOptional arguments for event objectsonMouseClicked { e -> timeline { at(3.s) { change e.source.radiusProperty() to 0 } }.play()}
Event Listeners in GroovyFXSupported using the built-in Closure syntaxOptional arguments for event objects37onMouseClicked {MouseEvente -> timeline { at(3.s) { change e.source.radiusProperty() to 0 } }.play()}Compact syntax{body}
Event Listeners in GroovyFXSupported using the built-in Closure syntaxOptional arguments for event objects38Optional event parameter{event -> body}onMouseClicked { MouseEvente -> timeline { at(3.s) { change e.source.radiusProperty() to 0 } }.play()}

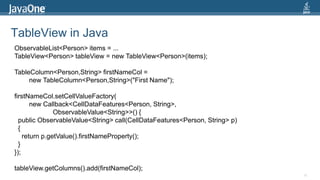

TableView in Java39ObservableList<Person> items = ...TableView<Person> tableView = new TableView<Person>(items);TableColumn<Person,String> firstNameCol = new TableColumn<Person,String>("First Name");firstNameCol.setCellValueFactory( new Callback<CellDataFeatures<Person, String>, ObservableValue<String>>() { public ObservableValue<String> call(CellDataFeatures<Person, String> p) { return p.getValue().firstNameProperty(); }});tableView.getColumns().add(firstNameCol);

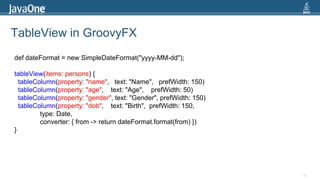

TableView in GroovyFX40def dateFormat = new SimpleDateFormat("yyyy-MM-dd");tableView(items: persons) {tableColumn(property: "name", text: "Name", prefWidth: 150)tableColumn(property: "age", text: "Age", prefWidth: 50)tableColumn(property: "gender", text: "Gender", prefWidth: 150)tableColumn(property: "dob", text: "Birth", prefWidth: 150, type: Date, converter: { from -> return dateFormat.format(from) })}
Layout in Java41TextFieldurlField = new TextField(“http://www.google.com”);HBox.setHgrow(urlField, Priority.ALWAYS);HBoxhbox = new HBox();hbox.getChildren().add(urlField);WebViewwebView = new WebView();VBox.setVgrow(webView, Priority.ALWAYS);VBoxvbox = new VBox();vbox.getChildren().addAll(hbox, webView);
Layout in GroovyFX42sg.stage(title: "GroovyFXWebView Demo", show: true) {scene(fill: groovyblue, width: 1024, height: 800) {vbox{hbox(padding: 10, spacing: 5) {textField(“http://www.yahoo.com”, hgrow: "always")button("Go”) }webView(vgrow: "always") } }}
Layout in GroovyFX43
Layout in GroovyFX44gridPane(hgap: 5, vgap: 10, padding: 25) {columnConstraints(minWidth: 50, halignment: "right")columnConstraints(prefWidth: 250)label("Send Us Your Feedback", font: "24pt sanserif", row: 0, columnSpan: GridPane.REMAINING, halignment: "center", margin: [0, 0, 10])label("Name: ", row: 1, column: 0)textField(promptText: "Your name", row: 1, column: 1, hgrow: 'always')label("Email:", row: 2, column: 0)textField(promptText: "Your email", row: 2, column: 1, hgrow: 'always')label("Message:", row: 3, column: 0, valignment: "baseline")textArea(row: 3, column: 1, hgrow: "always", vgrow: "always")button("Send Message", row: 4, column: 1, halignment: "right")}
Layout in GroovyFX45

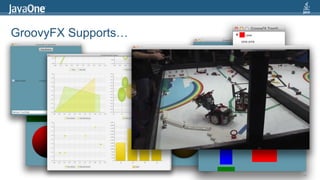

GroovyFX Supports…46
GroovyFX Supports…47
48JavaFX With ClojureArtwork by Augusto Sellhornhttp://sellmic.com/

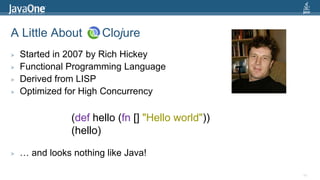

A Little About ClojureStarted in 2007 by Rich HickeyFunctional Programming LanguageDerived from LISPOptimized for High Concurrency… and looks nothing like Java!49(def hello (fn [] "Hello world"))(hello)
Clojure Syntax in One SlideSymbolsnumbers – 2.178ratios – 355/113strings – “clojure”, “rocks”characters – \a \b \c \dsymbols – a b c dkeywords – :alpha :betaboolean – true, falsenull - nilCollections(commas optional)Lists(1, 2, 3, 4, 5)Vectors[1, 2, 3, 4, 5]Maps{:a 1, :b 2, :c 3, :d 4}Sets#{:a :b :c :d :e}50(plus macros that are syntactic sugar wrapping the above)
Clojure GUI Example(defnjavafxapp [] (let [stage (Stage. "JavaFX Stage") scene (Scene.)] (.setFill scene Color/LIGHTGREEN) (.setWidth stage 600) (.setHeight stage 450) (.setScene stage scene) (.setVisible stage true)))(javafxapp)51
Refined Clojure GUI Example(defnjavafxapp [] (doto (Stage. "JavaFX Stage") (.setWidth600) (.setHeight450) (.setScene (doto (Scene.) (.setFillColor/LIGHTGREEN) (.setContent (list (doto (Rectangle.) (.setX25) (.setY40) (.setWidth100) (.setHeight50) (.setFillColor/RED)))))) (.setVisibletrue)))(javafxapp)52
Refined Clojure GUI Example(defnjavafxapp [] (doto (Stage. "JavaFX Stage") (.setWidth 600) (.setHeight 450) (.setScene (doto (Scene.) (.setFillColor/LIGHTGREEN) (.setContent (list (doto (Rectangle.) (.setX 25) (.setY 40) (.setWidth 100) (.setHeight 50) (.setFillColor/RED)))))) (.setVisible true)))(javafxapp)53Doto allows nested data structures

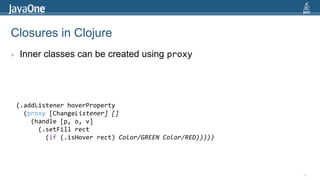

Closures in Clojure54Inner classes can be created using proxy(.addListenerhoverProperty (proxy [ChangeListener] [] (handle [p, o, v] (.setFillrect (if (.isHoverrect) Color/GREEN Color/RED)))))
Closures in ClojureInner classes can be created using proxy55Proxy form:(proxy [class] [args] fs+) f => (name [params*] body)(.addListenerhoverProperty (proxy[ChangeListener][] (handle [p, o, v] (.setFillrect (if (.isHoverrect) Color/GREEN Color/RED)))))
56JavaFX With Scala

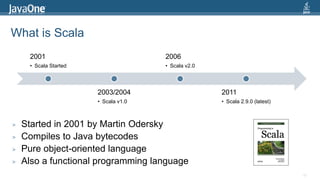

What is ScalaStarted in 2001 by Martin OderskyCompiles to Java bytecodesPure object-oriented languageAlso a functional programming language57
Why Scala?Shares many language features with JavaFX Script that make GUI programming easier:Static Type Checking – Catch your errors at compile timeClosures – Wrap behavior and pass it by referenceDeclarative – Express the UI by describing what it should look likeScala also supports Type Safe DSLs!Implicit Conversions – type safe class extensionOperator Overloading – with standard precedence rulesDelayedInit / @specialized – advanced language features58
Java vs. Scala DSLpublic class HelloStage extends Application { public void start(Stage stage) { stage.setTitle("Hello Stage");stage.setWidth(600);stage.setHeight(450); Scene scene = new Scene();scene.setFill(Color.LIGHTGREEN); Rectangle rect = new Rectangle();rect.setX(25);rect.setY(40);rect.setWidth(100);rect.setHeight(50);rect.setFill(Color.RED); scene.setRoot(new Group(rect));stage.setScene(scene);stage.show(); } public static void main(String[] args) { launch(HelloStage.class, args); }}object HelloJavaFX extends JFXApp { stage = new Stage { title = "Hello Stage" width = 600 height = 450 scene = new Scene { fill = LIGHTGREEN content = Seq(new Rectangle { x = 25 y = 40 width = 100 height = 50 fill = RED }) } }}5921 Lines430 Characters17 Lines177 Characters
object DisappearingCirclesextends JFXApp { stage = new Stage { title = "Disappearing Circles" width = 800 height = 600 scene = new Scene { fill = BLACK content = for (i <- 0 until 50) yield new Circle {centerX = random * 800centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } }}60
61object DisappearingCirclesextends JFXApp{ stage = new Stage { title = "Disappearing Circles" width = 800 height = 600 scene = new Scene { fill = BLACK content = for (i <- 0 until 50) yield new Circle {centerX = random * 800centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } }}Base class for JavaFX applications

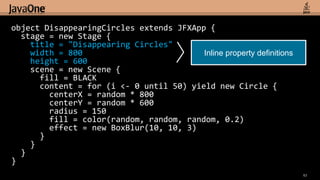

62object DisappearingCirclesextends JFXApp { stage = new Stage { title = "Disappearing Circles" width = 800 height = 600 scene = new Scene { fill = BLACK content = for (i <- 0 until 50) yield new Circle {centerX = random * 800centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } }}Declarative Stage definition
63object DisappearingCirclesextends JFXApp { stage = new Stage { title = "Disappearing Circles" width = 800 height = 600 scene = new Scene { fill = BLACK content = for (i <- 0 until 50) yield new Circle {centerX = random * 800centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } }}Inline property definitions
64object DisappearingCirclesextends JFXApp { stage = new Stage { title = "Disappearing Circles" width = 800 height = 600 scene = new Scene { fill = BLACK content = for (i <- 0 until 50) yield new Circle {centerX = random * 800centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } }}Sequence Creation Via Loop
Binding in ScalaInfix Addition/Subtraction/Multiplication/Division:height <== rect1.height + rect2.heightAggregate Operators:width <== max(rect1.width, rect2.width, rect3.width)Conditional Expressions:strokeWidth <== when (hover) then 4 otherwise 0Compound Expressions:text <== when (rect.hover || circle.hover && !disabled) then textField.text + " is enabled" otherwise "disabled"65

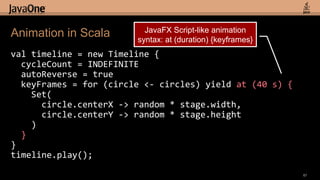

Animation in Scalavaltimeline = new Timeline {cycleCount = INDEFINITEautoReverse = truekeyFrames = for (circle <- circles) yield at (40 s) {Set(circle.centerX -> random * stage.width,circle.centerY -> random * stage.height)}}timeline.play();66
valtimeline = new Timeline {cycleCount = INDEFINITEautoReverse = truekeyFrames = for (circle <- circles) yield at (40 s) {Set(circle.centerX -> random * stage.width,circle.centerY -> random * stage.height)}}timeline.play();Animation in Scala67JavaFX Script-like animation syntax: at (duration) {keyframes}
valtimeline = new Timeline {cycleCount = INDEFINITEautoReverse = truekeyFrames = for (circle <- circles) yield at (40 s) {Set(circle.centerX -> random * stage.width,circle.centerY -> random * stage.height)}}timeline.play();Animation in Scala68Operator overloading for animation syntax
valtimeline = new Timeline {cycleCount = INDEFINITEautoReverse = truekeyFrames = for (circle <- circles) yield at (40 s) {Set(circle.centerX-> random * stage.widthtween EASE_BOTH,circle.centerY-> random * stage.heighttween EASE_IN)}}timeline.play();Animation in Scala69Optional tween syntax

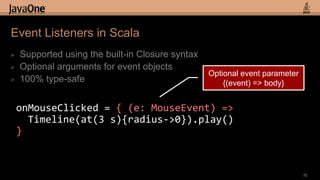

Event Listeners in Scala70Supported using the built-in Closure syntaxOptional arguments for event objects100% type-safeonMouseClicked= { Timeline(at(3 s){radius->0}).play()}
Event Listeners in ScalaSupported using the built-in Closure syntaxOptional arguments for event objects100% type-safe71onMouseClicked= {Timeline(at(3 s){radius->0}).play()}Compact syntax{body}
Event Listeners in ScalaSupported using the built-in Closure syntaxOptional arguments for event objects100% type-safe72Optional event parameter{(event) => body}onMouseClicked= { (e: MouseEvent) =>Timeline(at(3 s){radius->0}).play()}
Other JVM Languages to TryJRubyFaithful to Ruby language with the power of the JVMGosuUp and coming language created at GuideWireEasy to enhance libraries and create DSLsMirahInvented by Charles NutterLocal Type Inference, Static and Dynamic TypingFantomCreated by Brian and Andy FrankPortable to Java and .NETLocal Type Inference, Static and Dynamic Typing73

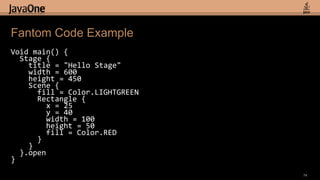

Fantom Code ExampleVoid main() { Stage { title= "Hello Stage" width= 600 height= 450 Scene { fill= Color.LIGHTGREEN Rectangle { x= 25 y= 40 width= 100 height= 50 fill= Color.RED } } }.open}74

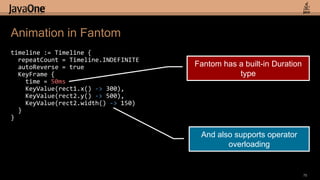

timeline := Timeline { repeatCount = Timeline.INDEFINITE autoReverse = trueKeyFrame { time = 50msKeyValue(rect1.x()-> 300), KeyValue(rect2.y() -> 500), KeyValue(rect2.width() -> 150)}}Animation in Fantom75Fantom has a built-in Duration typeAnd also supports operator overloading
About Project Visage76“Visage is a domain specific language (DSL) designed for the express purpose of writing user interfaces.”Visage project goals:Compile to JavaFX Java APIsEvolve the Language (Annotations, Maps, etc.)Support Other ToolkitsCome join the team!For more info: http://visage-lang.org/
How about JavaFX on… VisageStage { title: "Hello Stage" width: 600 height: 450 scene: Scene { fill: Color.LIGHTGREEN content: Rectangle { x: 25 y: 40 width: 100 height: 50 fill: Color.RED } }}77
How about JavaFX on… VisageStage { title: "Hello Stage" width: 600 height: 450scene: Scene { fill: Color.LIGHTGREENcontent: Rectangle { x: 25 y: 40 width: 100 height: 50 fill: Color.RED } }}78
How about JavaFX on… VisageStage { title: "Hello Stage" width: 600 height: 450 Scene { fill: Color.LIGHTGREEN Rectangle { x: 25 y: 40 width: 100 height: 50 fill: Color.RED } }}79

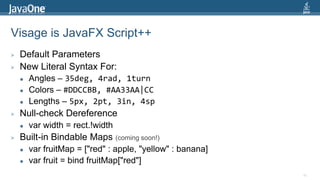

Visage is JavaFX Script++Default ParametersNew Literal Syntax For:Angles – 35deg, 4rad, 1turnColors –#DDCCBB, #AA33AA|CCLengths – 5px, 2pt, 3in, 4spNull-check Dereferencevar width = rect.!widthBuilt-in Bindable Maps (coming soon!)varfruitMap = ["red" : apple, "yellow" : banana]var fruit = bind fruitMap["red"]80
Visage and JavaFX 2.0 are made for each other…Enhanced BindingRetains lazy evaluation properties with additional expressive powerIntegrated CollectionsSequences and Maps automatically convert between JavaFX Observable Lists/MapsBuilt-in Animation SyntaxTies into JavaFX animation subsystemProvides consistent, clean APIs81
ConclusionYou can write JavaFX applications in pure JavaJavaFX is also usable in alternate languagesYou can get improved support using DSL librariesGroovyFXScalaFXOr a dedicated UI JVM LanguageVisage

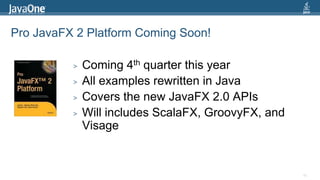

Pro JavaFX 2 Platform Coming Soon!Coming 4th quarter this yearAll examples rewritten in JavaCovers the new JavaFX 2.0 APIsWill includes ScalaFX, GroovyFX, and Visage83
84Stephen Chinsteveonjava@gmail.comtweet: @steveonjavaDean Iversondean@pleasingsoftware.comtweet: @deanriverson
