This document discusses Pinot, Uber's real-time analytics platform. It provides an overview of Pinot's architecture and data ingestion process, describes a case study on modeling trip data in Pinot, and benchmarks Pinot's performance on ingesting large volumes of data and answering queries in real-time.
Pinot: Near Realtime Analytics @ Uber
- 1. Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent. Pinot: Near Real-Time Analytics @ Uber
- 2. U B E R | Data Xiang Fu Sr Software Engineer II @ Uber Streaming Analytics Team Quick Introduction
- 3. U B E R | Data Uber Scale Messages Bytes Apache Kafka Trillion per day ~PB per day Streaming Analytics Platform Billions processed per day 100s of TB processed per day Pinot 100s of Billions 10s of TB
- 4. U B E R | Data Agenda ● Pinot @ Uber ● Architecture ● Case Study ● Pinot Perf
- 5. Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent. Pinot @ Uber
- 6. U B E R | Data Experimentation platform (Internal Dashboard) A / B Tests See progress of tests in real-time
- 7. U B E R | Data UberEats (Realtime User Facing Product) UberEats Restaurant Manager “What is my revenue for past 90 days?”
- 8. U B E R | Data Many More… • UberPool Analytics • Mobile Analytics ...
- 9. Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent. Architecture
- 10. U B E R | Data Pinot Workflow Athena-X Hive/Spark SQL/oozie ● Projection, Filtering ● Window Aggregation ● Join
- 11. U B E R | Data Pinot Realtime: Self Service ● Projection, Filtering ● Window Aggregation ● Join
- 12. Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent. Case Study
- 13. U B E R | Data Pinot Data Model Column Name Column Type Filtering Compression Indexing RiderId SingleValue/ Dimension Yes Dictionary Sorted DriverId SingleValue/ Dimension Yes Dictionary Inverted TripId SingleValue/ Dimension No No Dictionary No PickUpPoints MultiValue/ Dimension No No Dictionary No TripFare SingleValue/ Metric No No Dictionary No Step 1 List Column Spec Step 2 Analyze Query Pattern Step 3 Decide Compression & Indexing Strategy
- 14. U B E R | Data Pinot Data Ingestion Realtime Ingestion: Consumer Type Scalability Consistency High Level Consumer Hard to scale beyond one node Sacrificing consistency during failures Low Level Consumer Scalable beyond one node Strong consistency guarantees even during failure Segment Persistence: 500k msg or 6 hours Offline Ingestion: Using Oozie to schedule daily incremental backfill from Hive to Pinot
- 15. Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent. Pinot Perf
- 16. U B E R | Data Pinot Realtime Ingestion Hardware 4 base SKU boxes(24 cores, 128G RAM) Consumer Type HLC LLC Peak Traffic(msg/sec/box) 20k 200k Peak Traffic(bytes/sec/box) 4M 40M Storage Kafka Pinot Total Data Volume(GB) 500 60
- 17. U B E R | Data Pinot/Druid Data Size Raw Data: 500M Rows, 30 columns Raw Json: 391.9G Three Storage Tiers in Pinot/Druid - Segments in Deep Storage (NFS or HDFS) - Local Disk Cache - Memory
- 18. U B E R | Data Pinot/Druid Query Performance Max Duration: select max(duration) from trips Count All Grouped by City: select count(*) from trips group by city_id top 10000 Count All in One Month: select count(*) from trips where Month = '201601' Count All in SF: select count(*) from trips where city_id=1 group by Month Unique Drivers in SF: select distinctCountHLL(driver_uuid) from trips where city_id=1 Unique Drivers By Date: select distinctCountHLL(driver_uuid) from trips group by Date
- 19. U B E R | Data Pinot/Druid Concurrent Query Query: select count(*) from trips group by city_id
- 20. U B E R | Data Guaranteed SLA for Site Facing Products Aggregation on Rider trips: select count(*) from trips where riderId = x and date > 20170225

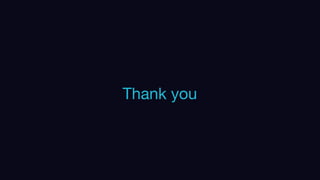

- 21. Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent. Thank you
