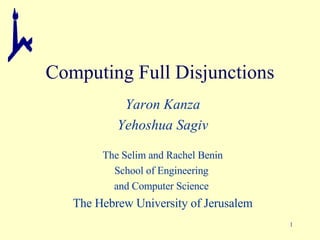

Computing Full Disjunctions Yaron Kanza Yehoshua Sagiv The Selim and Rachel Benin School of Engineering and Computer Science The Hebrew University of Jerusalem

Overview of the Talk OR-semantics and weak semantics for querying incomplete data Complexity of query evaluation Full disjunctions as a special case of weak semantics Generalizing full disjunctions – the join constraints are not restricted to be equality constraints Lower bounds for some related problems

Querying Incomplete Data Requires a Special Semantics Usually, answers to a query are complete assignments of database objects (or values) to the query variables Consequently, partial information is lost For example, dangling tuples are lost when joining several relations The purpose of outerjoins and full disjunctions is to solve this problem, i.e., answers could be partial assignments (to some of the variables)

Querying Incomplete Semistructured Data In semistructured data, incompleteness of data is prevalent OR-semantics and weak semantics were introduced so that queries over semistructured data would return maximal answers rather than complete answers [Kanza, Nutt & Sagiv 1999]

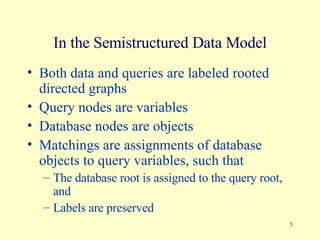

In the Semistructured Data Model Both data and queries are labeled rooted directed graphs Query nodes are variables Database nodes are objects Matchings are assignments of database objects to query variables, such that The database root is assigned to the query root, and Labels are preserved

1 2 4 5 6 title language 7 3 year 8 director 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 English 1/12/1935 Woody Allen title year acted in acted in A Semistructured Database About Movies

v 1 v 2 w 1 v 3 title actor movie director acted in w 2 w 3 w 4 date of birth name language A Query Under complete semantics, the query returns actor-movie pairs, such that the actor played in the movie and was also the director of the movie

1 2 4 5 6 title language 7 3 year 8 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 English 1/12/1935 Woody Allen title year acted in acted in v 1 v 2 w 1 v 3 title actor movie director acted in w 2 w 3 w 4 date of birth name language A complete matching of the query variables to database objects director 1 2 5 6 4 10 11

Constraints on Complete Matchings Query Root Database Root The root constraint is satisfied if the query root is mapped to the database root A query edge is an edge constraint : A query edge with a label l is satisfied if it is mapped to a database edge with the same label l r 1 x y 9 11 l l

language 1 2 4 5 title 7 3 year 8 director 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 1/12/1935 Woody Allen title year acted in acted in Suppose that Node 6 is missing 6 English language 6 English

1 2 4 5 title 7 3 year 8 director 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 1/12/1935 Woody Allen title year acted in acted in v 1 v 2 w 1 v 3 title actor movie director acted in w 2 w 3 w 4 date of birth name language An incomplete matching This matching is maximal 1 2 5 4 10 11 w 2 null

The Reachability Constraint on Partial Matchings A query node v that is mapped to a database object o satisfies the reachability constraint if there is a path from the query root to v , such that all edge constraints along this path are satisfied Database 1 x z w y l 1 r v l 3 l 2 l 5 l 4 l 6 v Query x z r l 2 l 4 l 6 7 9 1 l 2 l 4 l 6 w y l 1 r v l 3 l 5 v 1 55 5 8 l 1 1 l 3 l 5 55

Weak Satisfaction of Edge Constraints An edge constraint is weakly satisfied if it is either Satisfied (as defined earlier), or One (or more) of its nodes is mapped to a null value x y 9 11 l l x y 9 11 l m x y 9 11 l m null null x y l null null

Weak Matchings A partial matching is a weak matching if The root constraint is satisfied The reachability constraint is satisfied by every query node that is mapped to a database node Every edge constraint is weakly satisfied

1 2 4 5 title 7 3 year 8 director 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 1/12/1935 Woody Allen title year acted in acted in v 1 v 2 w 1 v 3 title actor movie director acted in w 2 w 3 w 4 date of birth name language A weak matching w 2 1 2 5 4 10 11 null

1 2 4 5 title 7 3 year 8 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 1/12/1935 Woody Allen title year acted in acted in A Movie Database Consider the case where the director edge is missing director director

1 2 4 5 title 7 3 year 8 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 1/12/1935 Woody Allen title year acted in acted in v 1 v 2 w 1 v 3 title actor movie director acted in w 2 w 3 w 4 date of birth name language An incomplete matching that is not a weak matching w 2 1 2 5 4 10 11 null There is an edge that is not weakly satisfied

OR Matchings A partial matching is an OR matching if The root constraint is satisfied The reachability constraint is satisfied by every query node that is mapped to a database node Differently from a weak matching, in an OR Matching, an edge constraint does not have to be weakly satisfied

Maximal Matchings Matchings can be represented as tuples (where numbers are object id’s) A matching t 1 subsumes a matching t 2 if t 1 can be obtained from t 2 by replacing some nulls in t 2 with non-null values A matching is maximal if no other matching subsumes it A query result consists only of maximal matchings t 1 =(1, 5, 2, null) t 2 =(1, null, 2, null)

1 2 4 5 6 title language 7 3 year 8 director 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 English 1/12/1935 Woody Allen title year acted in acted in The Movie Database Before the Removals

1 2 4 5 6 title language 7 3 year 8 director 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 English 1/12/1935 Woody Allen title year acted in acted in v 1 v 2 w 1 v 3 title actor movie director acted in w 2 w 3 w 4 date of birth name language A complete matching It is also a maximal weak matching It is also a maximal OR-matching In the result, the actor must be both an actor in the movie and the director of the movie 1 2 5 6 4 10 11

1 2 4 5 6 title language 7 3 year 8 director 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 English 1/12/1935 Woody Allen title year acted in acted in v 1 v 2 w 1 v 3 title actor movie director acted in w 2 w 3 w 4 date of birth name language A second maximal weak matching In the result, if the actor and the movie are assigned non-null values, then the actor must be both an actor in the movie and the director of the movie 1 8 3 null null null null

1 2 4 5 6 title language 7 3 year 8 director 9 name 10 movie date of birth 11 1983 movie actor Zelig Antz 1998 English 1/12/1935 Woody Allen title year acted in acted in v 1 v 2 w 1 v 3 title actor movie director acted in w 2 w 3 w 4 date of birth name language A maximal OR-matching In the result, the actor either played in the movie, directed the movie, or is not related at all to the movie 1 8 3 4 10 11 null It is not a weak matching

Complexity of Evaluating Maximal Weak Matchings and Maximal OR Matchings

Data Complexity Under data complexity, the time complexity is a function of the size of the database

Two Alternatives for Query Evaluation A naïve algorithm computes all matchings and then removes subsumed matchings A better algorithm avoids computing all matchings – ideally it only computes maximal matchings Under data complexity, both algorithms are polynomial time

Input-Output Complexity Under input-output complexity, the time complexity is a function of the size of the query , the size of the database, and the size of the result

A Naïve Algorithm vs. A Better Algorithm Under I-O complexity, a naïve algorithm is exponential Is there a better algorithm with a polynomial time I-O complexity? The answer is positive for DAG queries [Kanza, Nutt & Sagiv 1999]

Cyclic Queries Theorem: For a query Q and a database D, the set of all maximal weak matchings can be computed in O ( q 3 dm 2 ) time, where q is the size of the query, d is the size of the database and m is the size of the result (computing all maximal OR matchings has the same complexity)

Full Disjunctions What is the full disjunction of a set of relations? How are full disjunctions related to queries with incomplete answers ?

Movies Actors Acted-in Actors-that-Directed The Full Disjunction of the Given Relations English 1998 Armageddon 3 English 1940 Fantasia 4 English 1998 Antz 2 English 1983 Zelig 1 language year title m-id 19/3/1955 Bruce Willis 2 28/10/1967 Julia Roberts 3 1/12/1935 Woody Allen 1 date-of-birth name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id 1 1 m-id a-id Harry 19/3/1955 Bruce Willis 2 English 1998 Armageddon 3     English 1940 Fantasia 4  Z Zelig role 28/10/1967 1/12/1935 1/12/1935 Date-of-birth Julia Roberts Woody Allen Woody Allen name 3 1 1 a-id     English 1998 Antz 2 English 1983 Zelig 1 language year title m-id

The Full Disjunction of the Given Relations The full disjunction does not include subsumed tuples Movies Harry 19/3/1955 Bruce Willis 2 English 1998 Armageddon 3     English 1940 Fantasia 4  Z Zelig role 28/10/1967 1/12/1935 1/12/1935 Date-of-birth Julia Roberts Woody Allen Woody Allen name 3 1 1 a-id     English 1998 Antz 2 English 1983 Zelig 1 language year title m-id  role  Date-of-birth  name  a-id English 1983 Zelig 1 language year title m-id English 1998 Armageddon 3 English 1940 Fantasia 4 English 1998 Antz 2 English 1983 Zelig 1 language year title m-id This tuple will not be in the full disjunction

Movies Actors Acted-in Actors-that-Directed The Full Disjunction of the Given Relations The full disjunction does not include tuples that are based on Cartesian Product rather than join English 1998 Armageddon 3 English 1940 Fantasia 4 English 1998 Antz 2 English 1983 Zelig 1 language year title m-id 19/3/1955 Bruce Willis 2 28/10/1967 Julia Roberts 3 1/12/1935 Woody Allen 1 date-of-birth name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id 1 1 m-id a-id Harry 19/3/1955 Bruce Willis 2 English 1998 Armageddon 3     English 1940 Fantasia 4  Z Zelig role 28/10/1967 1/12/1935 1/12/1935 Date-of-birth Julia Roberts Woody Allen Woody Allen name 3 1 1 a-id     English 1998 Antz 2 English 1983 Zelig 1 language year title m-id  role 28/10/1967 Date-of-birth Julia Roberts name 3 a-id English 1940 Fantasia 4 language year title m-id

In the Full Disjunction of a Given Set of Relations: Every tuple of the input is a part of at least one tuple of the output Tuples are joined as in a natural join, padded with null values The result includes only “ maximal connected portions”

Motivation for Full Disjunctions Full disjunctions have been proposed by Galiando-Legaria as an alternative for outerjoins [SIGMOD’94] Rajaraman and Ullman suggested to use full disjunctions for information integration [PODS’96]

Computing Full Disjunctions for γ -acyclic Relation Schemas Rajaraman and Ullman have shown how to evaluate the full disjunction by a sequence of natural outerjoins when the relation schemas are γ -acyclic Hence, the full disjunction can be computed in polynomial time, under input-output complexity, when the relation schemas are γ -acyclic

Weak Semantics Generalizes Full Disjunctions Relations can be converted into a semistructured database The full disjunction can be expressed as the union of several queries that are evaluated under weak semantics

Example Movies Actors Acted-in A node is created for each tuple Edges are added between connected tuples, in both directions A root is added, and edges are added from the root to every node Creating The Database We use colors instead of labels Armageddon 3 Fantasia 4 Antz 2 Zelig 1 title m-id Bruce Willis 2 Julia Roberts 3 Woody Allen 1 name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id r

Movies Actors Acted-in Creating The Queries Example A node is created for each relation schema Edges are added between connected schemas, in both directions r The number of queries is equal to the number of schemas In each query, the root is connected to a different schema Armageddon 3 Fantasia 4 Antz 2 Zelig 1 title m-id Bruce Willis 2 Julia Roberts 3 Woody Allen 1 name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id Movies Actors Acted-in r

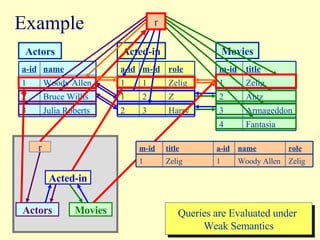

Queries are Evaluated under Weak Semantics Movies Actors Acted-in Example r Movies Actors Acted-in r Armageddon 3 Fantasia 4 Antz 2 Zelig 1 title m-id Bruce Willis 2 Julia Roberts 3 Woody Allen 1 name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id Zelig role Woody Allen name 1 a-id Zelig 1 title m-id role name a-id title m-id

Movies Actors Acted-in Example r Movies Actors Acted-in r Queries are Evaluated under Weak Semantics Armageddon 3 Fantasia 4 Antz 2 Zelig 1 title m-id Bruce Willis 2 Julia Roberts 3 Woody Allen 1 name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id Zelig role Woody Allen name 1 a-id Zelig 1 title m-id Z Zelig role Woody Allen Woody Allen name 1 1 a-id Antz 2 Zelig 1 title m-id

Movies Actors Acted-in Example r Movies Actors Acted-in r Queries are Evaluated under Weak Semantics Armageddon 3 Fantasia 4 Antz 2 Zelig 1 title m-id Bruce Willis 2 Julia Roberts 3 Woody Allen 1 name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id Zelig role Woody Allen name 1 a-id Zelig 1 title m-id Z Zelig role Woody Allen Woody Allen name 1 1 a-id Antz 2 Zelig 1 title m-id Harry Bruce Willis 2 Armageddon 3 Z Zelig role Woody Allen Woody Allen name 1 1 a-id Antz 2 Zelig 1 title m-id

Movies Actors Acted-in Example r Movies Actors Acted-in r Queries are Evaluated under Weak Semantics Armageddon 3 Fantasia 4 Antz 2 Zelig 1 title m-id Bruce Willis 2 Julia Roberts 3 Woody Allen 1 name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id Harry Bruce Willis 2 Armageddon 3 Z Zelig role Woody Allen Woody Allen name 1 1 a-id Antz 2 Zelig 1 title m-id Harry Bruce Willis 2 Armageddon 3  Z Zelig role Julia Roberts Woody Allen Woody Allen name 3 1 1 a-id   Antz 2 Zelig 1 title m-id null null

Movies Actors Acted-in Example r Movies Actors Acted-in r Queries are Evaluated under Weak Semantics Armageddon 3 Fantasia 4 Antz 2 Zelig 1 title m-id Bruce Willis 2 Julia Roberts 3 Woody Allen 1 name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id Harry Bruce Willis 2 Armageddon 3 Z Zelig role Woody Allen Woody Allen name 1 1 a-id Antz 2 Zelig 1 title m-id Harry Bruce Willis 2 Armageddon 3  Z Zelig role Julia Roberts Woody Allen Woody Allen name 3 1 1 a-id   Antz 2 Zelig 1 title m-id

Movies Actors Acted-in Example r Movies Actors Acted-in r Armageddon 3 Fantasia 4 Antz 2 Zelig 1 title m-id Bruce Willis 2 Julia Roberts 3 Woody Allen 1 name a-id Z 2 1 Harry 3 2 Zelig 1 1 role m-id a-id Harry Bruce Willis 2 Armageddon 3 Z Zelig role Woody Allen Woody Allen name 1 1 a-id Antz 2 Zelig 1 title m-id Harry Bruce Willis 2 Armageddon 3  Z Zelig role Julia Roberts Woody Allen Woody Allen name 3 1 1 a-id   Antz 2 Zelig 1 title m-id null null Harry Bruce Willis 2 Armageddon 3  Julia Roberts 3    Z Zelig role  Woody Allen Woody Allen name  1 1 a-id Fantasia 4 Antz 2 Zelig 1 title m-id

The Algorithm Computes Full Disjunctions in Polynomial Time Under Input-Output Complexity Theorem: The full disjunction of relations r 1 , …, r n can be computed in O ( n 5 s 2 f 2 ) time, where n is the number of relations, s is the total size of all the relations and f is the size of the result

Generalizing Full Disjunctions In a full disjunction, tuples are joined according to equality constraints as in a natural join (or equi-join) We can generalize full disjunctions to support constraints that are not merely equality among attributes

Example Movies ( m-id , title, year, language, location) Actors ( a-id , name, date-of-birth) Acted-in (a-id, m-id, role) Actors-that-Directed (a-id, m-id) Historical-Events ( name , date, description) Historical-Sites (Country, State, City, Site) The date of the historical event is a date in the year when the movie was released The filming location is near the historical site

The General Idea A set of constraints specifies how tuples should be joined The queries and the database are constructed according to the given constraints A pair of nodes is connected by an edge when it satisfies the corresponding constraint Queries are evaluated w.r.t. the database under weak semantics

Another Way of Generalizing Full Disjunctions: Use OR-Semantics Generate the queries and the database as before, but the queries are evaluated under OR-semantics (rather than weak semantics) This relaxes the requirement that every pair of tuples should be join consistent Instead, a tuple of the full disjunction is only required to be generated by database tuples that form a connected subgraph, but need not be pairwise join consistent

Employees (e-id, ename, city, dept-no) Departments (dept-no, dname, building) Located-in (building, city, street) Example The Full Disjunction Employee: (007, James Bond, London, 6) Department: (6, MI-6, 10) Located-in: (10, Liverpool, King) 10  building Liverpool  city 10 10 building 6 6 dept -no King MI-6      MI-6 6 London James Bond 007 street dname dept -no city ename e-id

Employees (e-id, ename, city, dept-no) Departments (dept-no, dname, building) Located-in (building, city, street) Example The Full Disjunction under OR-Semantics Employee: (007, James Bond, London, 6) Department: (6, MI-6, 10) Located-in: (10, Liverpool, King) 10 building Liverpool city 10 building 6 dept -no King MI-6 6 London James Bond 007 street dname dept -no city ename e-id

The Projection Problem : Computing the projection of the full disjunction on a given set of attributes The Restriction Problem : Computing only those tuples of the full disjunction that are non-null on a given set of attributes Two Related Problems The projection problem and the restriction problem cannot be computed in polynomial time (under input-output complexity) unless P=NP

Conclusion Cyclic queries can be computed in polynomial time (in the size of the query, the database and the result) under either OR-semantics or weak semantics A reduction of full-disjunction evaluation to query evaluation under weak semantics is described Using the reduction, full disjunctions can be computed in polynomial time (in the size of the relation schemas, the relations and the result)

Conclusion (continued) Full disjunctions can be generalized in two ways By using OR-semantics instead of weak semantics By joining tuples according to general constraints Generalized full disjunctions can be useful in the context of data integration from heterogeneous sources The projection problem and the restriction problem have polynomial-time algorithms (under input-output complexity) when the relations have γ-acyclic schemas, but not in the general case
