Presentation cisco it elastic infrastructures
- 1. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 1 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 1 Cisco IT Elastic Infrastructures (CITEIS) Damian Ryan Regional Manager, Data Center Solutions, Asia © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 2 Overview WW Headcount 66,500 employees 35% Engineering 27% Sales 38% all others WW Portfolio: 18. 9 million sf (60% owned, 40% leased) 283 metros in 90 countries 444 buildings Over $5B in Assets 52 data centers & server rooms 1500+ labs (500+ in San Jose) 20,000 Channel Partners 110+ ASPs 210+ Business & Support Development Partners Over 180,000 people around the world in the extended Cisco family 128+ Acquisitions
- 2. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 2 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 3 Global Data Center Program Target State T(~FY13) Netherlands – Metro-based DC Pair (Tier-III) Single-Instance Order Management (OM/AR) - AsiaPAC TBD – Single DC (Tier-III) + land Continental hub for SaaS, Unified Communications and software development 1A 1 x Type-A (Tier-III) 2Asc 2 x Type- A at Synchronous Capable Distance 1A 2Asc 2Asc 1A Mountain View (CA) – Early Adopter DC E E Early Adopter DC (~Uptime Tier-II)(~Uptime Tier-III) B B Type-B (Tier-II)1 x Type-A (Tier-III) B 2 x Type- A at Synchronous Capable Distance B 40ms rtt B B B B B B BB Distributed standalone DCs (Tier-II) Latency-sensitive software development at lower availability Richardson (TX) – Metro-based DC Pair (Tier-III) Global hub for business applications Continental hub for SaaS and communications Global Disaster Recovery Strategy Short to Mid-Term: Leverage Current Assets Long-Term: Part of Decision Process (Make/Buy) 1x Type-A (Tier-III) 2 x Type- A at Synchronous Capable Distance BC/ DR Plan Type-B (Tier-II)1x Type-A (Tier-III) 2 x Type- A at Synchronous Capable Distance BC/ DR Plan 1A © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 4 “Build an Internal Private IaaS Cloud to provide a rapid and cost-effective self-service solution capable of meeting the dynamic infrastructure needs of our clients while increasing overall service resiliency and availability.” CITEIS
- 3. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 3 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 5 Business Metric Objective Assumptions Business Value and Metrics Reduced Service Provisioning Reduced Provisioning times by 10x Leverage UCS plus federated management tools form Cisco, BMC and Vmware Improve Data Center Availability Zero Downtime Operations UCS, VM mobility Nexus architecture with Overlay Transport Virtualization (OTV) Data Center Efficiency Optimize VM per KW UCS, extended memory management Optimize Data Center TCO Policy Based Automation of Virtual Data Center UCS federated management © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 6 Strategy OPTIMIZATION - Virtualization - UCS - Storage Tiering STANDARDIZATION - Platform - Design - Tools - Processes TRANSFORMATION - Cloud - New funding model - New service models Business Processes Orchestration BOX SERVICE
- 4. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 4 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 7 SaaS Infrastructure as a Service Compute, storage, networking, etc Ex.: Amazon EC3, Savvis, Terramark Platform as a Service Middleware, directories, etc Ex.: Google Apps, ~WebEx Connect Software as a Service Applications, collaboration, etc Ex.: WebEx Meeting, Salesforce.com Data Center as a Service Data center facilities, power, cooling Ex.: Facilities, Network Ops, AT&T, Sprint PaaS IaaS DCaaS Cloud Delivery Models Enabling the Cloud CITEIS © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 8 IaaS – “Private Cloud” concept(High Level Reference Diagram) Compute Pod Compute Pod Compute Pod SAN/NAS Nexus 7k Nexus 7k Multi-Tennant Fabric Customer “Purple” VPDC Switch From customer Purple’s perspective Cloud OS Customer Purple’s Virtualized DC Multi-Tenant SP Cloud SP„s VPN WAN or Internet Customer Purple‟s VPN
- 5. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 5 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 9 From Data Center to “Cloud” CPU Storage Virtualization Extended IP Network Cloud OS Traditional Applications Application Services SaaS CPU Storage Virtualization System Mgmt Apps Network Unified Compute System © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 10 CITEIS Integrates many products and features to provide a complete service… HW • UCS • UCS Manager • Nexus 1000v • Nexus 5000 • Nexus 7000 • ACE • GSS • MDS SW • iCloud • Service Catalog • EMAN • Server Virtualization SW • Windows Server • Linux Distribution Process • Provisioning • Management • Deactivation • Usage records Overflow to a Public Cloud forming a Hybrid Cloud CITEIS ExtensionCITEIS
- 6. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 6 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 11 From cabling to your Data Center organization – UCS simplifies From ad hoc and inconsistent… …to structured, but siloed, complicated and costly… …to simple, optimized and automated What does your Data Center organization look like? © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 12 CITEIS – Cloud Essentials Integrated Virtualized Infrastructure Integrated Service Management Cisco IT Elastic Infrastructure Services (CITEIS) Compute Pool Storage Pool Network On-Demand/Self-Service Lifecycle Management Operations
- 7. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 7 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 13 Configuration Management CMDB Public Cloud (SP) Service Catalog . . . CITEIS – High-level Architecture RCDN9 DRT AMS Global DC’s Compute Storage Network Compute Storage Network Compute Storage Network CITEIS Virtual Infrastructure VMVM Metering and Billing Operations Service Provider Mgt Portal Client Internal SP © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 14 SMF Integration with CITEIS (Detailed View) CITEI Mgt Bus Apps Eng Apps WAN Optimization, Acceleration and Application Virtualization Request Approve Provision Operate Deactivate IT Service Management Framework CMDBService Catalog Policy Store Identity Store Divisions Finance WPR HR CITEI Mgt CITEI Mgt CITEI Mgt Global Data Centers

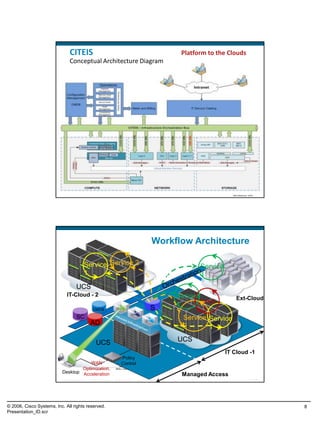

- 8. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 8 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 15 CITEIS Platform to the Clouds Conceptual Architecture Diagram © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 16 Desktop UCS WAN Optimization, Acceleration Managed Access IT Cloud -1 UCS AD SC Policy Control Service 4 Service 1 Service 2 Servic e 3 UCS Service 2Service 1 Service 4 Ext-Cloud S IT-Cloud - 2 Offload capacity CMDB Workflow Architecture
- 9. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 9 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 17 Key Benefits of Unified Computing System Reduce DC power consumption by 33% 18 VMs per kW drives greater DC efficiency Extends the lifecycle of current data center 5 years Wire once, connect to any 40% Savings on Cable Infrastructure $21M Compute Cost Avoidance $92M Storage Cost Avoidance Service provisioning reduced to 1 hour from 200 Zero Down-Time Operations © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 18 Cisco IT Case Study: 1 MW 10,000 sq ft Greenfield Data Center Cisco IT Results are initial and will change
- 10. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 10 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 19 Traditional Design of a 1MW 10,000 sq ft DC Floor space is at a premium March 2009 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 20 Converged Fabric Design Much smaller footprint Overview 1MW UPS to floor 12 kW/rack Rack Chimneys TO3R 21 Pods To3R Nexus 5000 Console Nexus 2000 Core Nexus 7000 Catalyst 6500 MDS March 2009
- 11. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 11 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 21 From cabling to your Data Center organization – UCS simplifies From ad hoc and inconsistent… …to structured, but siloed, complicated and costly… …to simple, optimized and automated What does your Data Center organization look like? © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 22 Case Study – 1 MW Data Center New design – impact on power by using Unified Fabric Traditional Design Unified Fabric Comparison Pod Racks Rack count 135 72 63 fewer Pod Cabling Fibre (48) 4,320 1,008 5,472 fewer Cu (24) 2,160 Power kW Facility 1,000 Storage 247 25% 21% DC Network 186 19% 8% Other Network 79 8% 8% Available for Servers 488 49% 63% 129% ~30% more power for servers 47% fewer racks Savings Of ~5,500 cables
- 12. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 12 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 23 Notes: Assumes pre-UCS average V2P ratio of 10 to 1 and post UCS average ratio of 20 to 1 due to the memory expansion technology. Unified Fabric efficiency gains result from power optimization. UCS efficiency gains result from additional power benefits of UCS. Cisco IT‟s Case Study– Summary Traditional Unified Fabric UCS DC efficiency 100% 130-150% 130% 170-200% 10,000 sq ft, 1 MW Cabling $2.7 million $1.6 million $1.6 million Physical Server Count 720 930 -1,080 1,200-1,400 VM Count 7,200 9,300-10,800 12,000-28,000 VM per KW 7.2 9.3 – 10.8 12 - 28 Density Efficiencies – 47% fewer racks 40% Savings from cabling 12,000 to 28,000 VMs – In the same Data Center! Almost 4x VMs per KW © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 24 Cisco IT Case Study Summary Capacity to grow “The Business” Elasticity to align DC Capacity with Business Demands “Pay as you Grow” drives lower operating expenses Lower and granular Service Costs Energy efficient deliver of Services Building the Cloud of tomorrow today
- 13. © 2006, Cisco Systems, Inc. All rights reserved. Presentation_ID.scr 13 © 2009 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialBDM DC Presentation 25
