presentation on reducing Cost in Cloud Computing

Presentation on
The Cost of a Cloud in Data
Center Network

Presented To:

Sir Uzair
Ishtiaq

Department of Information Technology

Presented By:

Farrukh Shahzad Muhammad Muhammad
Ali
Taha Rehman Faheem-ul-Hassan
Roll# 09-13 Roll# 09-32
Roll# 09-11 Roll# 09-20

Department of Information Technology

Farrukh Shahzad
Introduction
Roll# 09-13
To
The Cost of Cloud In Data
Centers

In recent years Large investments have been made in massive data
centers supporting cloud services by companies such as eBay,
Facebook.

The investigation of the research paper starts with the question.

“Where does the cost go in today’s cloud service data centers?”

Here consider that a data centers housing on the order of
50,000 servers that would be built based on currently well-
understood techniques, using good quality, highly available
equipment.

Table

Amortized Cost Components Sub Components

~45% Servers CPU, Memory, Storage System

~25% Infrastructure Power Distribution

~15% Power draw Electrical Utility Costs

~15% Network Links, Transfer, equipment

Cloud Service Data Centers are
 It is natural to ask why existing solutions for
the enterprise data center do not work for
cloud service data centers.

 First and foremost, the leading cost in the
enterprise is operational staff. In the data
center, such costs are so small (under5%
Different

due to automation) . In a well-run
Enterprise , a typical ratio of IT staff
members to servers is 1:100.

Cloud Service Data Centers are

 In a well run datacenter, a typical ratio of
staff members to servers is 1:1000.
Different

Muhammad Server Cost Problem and
Ali
Roll# 09-11 Solution

Cost Breakdown
 Server Cost
The greatest data center costs go to servers. For
example, assuming 50,000 servers , a relatively
aggressive price of $3000 per server

With prices this high , achieving high utilization ,
i.e. useful work accomplished per dollar invested,
is an important goal . Unfortunately, utilization
in the data center can turn out to be remarkably
low near about 10%.

Structural Reasons For increasing Server Cost

Uneven Application Fit
A server integrates CPU, memory, Uncertainty in Demand Forecasts
Network and (often) storage
Cloud service demands can spike
components. It is often the case
quickly, especially for new
that The application fit in the
services,
server does not fully utilize one or
more of these components.

Structural Reasons For increasing Server Cost

• Purchases, whether for upgrades or new builds,
tend to be large, with components bought in
Long Provisioning bulk. Infrastructure is typically meant to last very
Time Scales long time periods

• If successful, a service creator might reason,
demand could ramp up beyond the capacity of
Risk Management the resources Allocated to the service ( and
demand, as noted, can be hard to forecast).

Taha Rehman
Infrastructure & Power cost
Roll# 09-32 Problems and Solutions

As Table indicates, the aggregate cost is substantial.
As depicted in Figure, Drawing power from the
utility leads to capital investments in large Scale
generators, transformers, and Uninterruptible Power
Supply (UPS) systems.

Solution
Driving the price of the infrastructure to these high
levels is the requirement for delivering consistent
power. resilienceled to scale-out data center designs
based on very large numbers of commodity , low cost
servers, with resilience in the system even though the
components have relatively high failure rates.

Power Cost Problem

To track where the power goes, postulate application of
state-of-the art practice based on currently well understood
techniques and implementation based on good quality but
widely available equipment. The Green Grid provides a
metric to describe data center Power Usage Efficiency
(PUE) as
PUE= (Total Facility Power)/(IT Equipment Power).

Solution

Decreasing the power draw of each server is clearly has
the largest impact on the power cost of a data center,
and it would additionally benefit infrastructure cost by
decreasing the need for infrastructure equipment. Those
improvements are most likely to come from hardware
innovation, including use of high efficiency power
supplies and voltage regulation modules

Networking Cost Problems
The capital cost of networking gear for data
centers is a significant fraction of the cost of
networking, and is concentrated primarily in
switches , routers, and load balancers. The
remaining networking costs are concentrated in
wide area networking:
(1) peering, where traffic is handed off to the
Internet Service Providers that deliver packets
to end users,
(2) the inter data center links carrying traffic
between geographically distributed data centers

Solution
Wide area networking costs are sensitive to
site selection, and to industry dynamics.
Accordingly, clever design of peering and
transit strategies, combined with optimal
placement of micro and mega data centers,
all have a role to play in reducing network
costs.

Muhammad
Faheem-ul-Hassan
Agility to till Conclusion
Roll# 09-20

Networking in Current Data Centers

Networking in Current Data Centers:

Multiple applications run inside a single data
center, typically with each application hosted on
its own set of(potentially virtual) server machines.
A single data center network supports two types
of traffic:
(a) traffic flowing between external end systems
and internal servers
(b) traffic flowing between internal servers.

Networking in Current Data Centers

This spreading is typically performed by a
specialized hardware load balancer. Using
conventional load-balancer terminology, the IP
address to which requests are sent is called a
virtual IP address(VIP) and the IP addresses of
the servers over which the requests are spread
are known as direct IP addresses(DIPs).

Design Objectives

In order to achieve agility within a data center, we argue
the network should have the following properties:

Services should use location independent
addresses that decouple the server’s location in
the DC from its address. This enables any server
to become part of any server pool while
simplifying configuration management.

Uniform Bandwidth and Latency:
Uniform bandwidth, combined with uniform
latency between any two servers would allow
services to achieve same performance
regardless of the location of their servers.

Security and Performance Isolation:
If any server can become part of any
service, then it is important that services are
sufficiently isolated from each other that one
service cannot impact the performance and
availability of another.

INCENTING DESIRABLE BEHAVIOR

Designing mechanisms to implement
economic incentives that encourage efficient
behavior is a rich area for study and impact.
Trough Filling:
Periods of peak usage of net work and power
are relatively expensive to a data center both
resources are typically charged based on
percentiles of usage, meaning that the cost is
determined by the height of the peaks

“Binpacking” opportunities to manage services

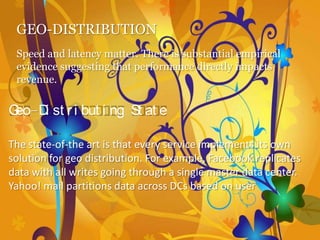

GEO-DISTRIBUTION
Speed and latency matter. There is substantial empirical
evidence suggesting that performance directly impacts
revenue.

Geo-D st r i but i ng St at e
i

The state-of-the art is that every service implements its own
solution for geo distribution. For example, Facebook replicates
data with all writes going through a single master data center.
Yahoo! mail partitions data across DCs based on user

CONCLUSIONS
Data center costs are concentrated in servers,
infrastructure, power requirements, and networking, in that
order .Though costs are steep, utilization can be
remarkably low.
First, we need to increase internal data center network
agility, to fight resource fragmentation and to get more
work out of fewer servers reducing costs across the
board.
Second, we need to pursue the design of algorithms and
market mechanisms for resource consumption shaping
that improve data center efficiency.
Finally, geo diversifying data centers can improve end to
end performance and increase reliability. To reap
economic benefits from geo diversity, we need to design
and manage data center and network resources as a joint
optimization, and we need new systems to manage the
