Probabilistic Programming in Quantitative Finance by Thomas Wiecki, Lead Data Scientist at Quantopian

Probabilistic Programming in Quantitative FinanceProbabilistic Programming in Quantitative Finance
Thomas WieckiThomas Wiecki
@twiecki@twiecki
bayesian_risk_perf_v3 slides http://twiecki.github.io/bayesian_risk_perf_v3.slides.html?print-pdf#/
1 of 86 03/17/2015 08:47 PM

2 of 86 03/17/2015 08:47 PM

About meAbout me
Lead Data Scientist at : Building a
crowd sourced hedge fund.
PhD from Brown University -- research on computational neuroscience and machine
learning using Bayesian modeling.
Quantopian Inc (https://www.quantopian.com)
3 of 86 03/17/2015 08:47 PM

4 of 86 03/17/2015 08:47 PM

The problem we're gonna solveThe problem we're gonna solve
Two real-money strategies:
In [76]: plot_strats()
5 of 86 03/17/2015 08:47 PM

6 of 86 03/17/2015 08:47 PM

Types of risk
Systematic and Unsystematic Risk
Volatility
Tailrisk
Beta
D
raw
dow
n
7 of 86 03/17/2015 08:47 PM

8 of 86 03/17/2015 08:47 PM

Sharpe RatioSharpe Ratio
Sharpe =
mean returns
volatility
In [24]: print "Sharpe ratio strategy etrade =", data_0.mean() / data_0.std() * np.sqrt(252)
print "Sharpe ratio strategy IB =", data_1.mean() / data_1.std() * np.sqrt(252)
Sharpe ratio strategy etrade = 0.627893606355
Sharpe ratio strategy IB = 1.43720181575
9 of 86 03/17/2015 08:47 PM

10 of 86 03/17/2015 08:47 PM

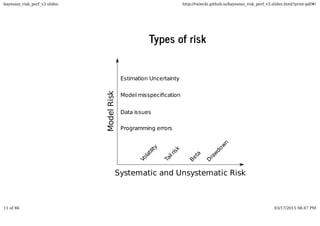

Types of risk
Systematic and Unsystematic Risk
Model misspeciﬁcation
Estimation Uncertainty
Programming errors
Data issuesModelRisk
Volatility
Tailrisk
Beta
D
raw
dow
n
11 of 86 03/17/2015 08:47 PM

12 of 86 03/17/2015 08:47 PM

13 of 86 03/17/2015 08:47 PM

14 of 86 03/17/2015 08:47 PM

Short primer on random variablesShort primer on random variables
Represents our beliefs about an unknown state.
Probability distribution assigns a probability to each possible state.
Not a single number (e.g. most likely state).
"When I bet on horses, I never lose. Why? I bet on all the horses." Tom Haverford
15 of 86 03/17/2015 08:47 PM

16 of 86 03/17/2015 08:47 PM

You already know what a variable is...You already know what a variable is...
In [8]: coin = 0 # 0 for tails
coin = 1 # 1 for heads
17 of 86 03/17/2015 08:47 PM

18 of 86 03/17/2015 08:47 PM

A random variable assigns all possible values a certainA random variable assigns all possible values a certain
probabilityprobability
In [ ]: coin = {0: 50%,
1: 50%}
Alternatively:Alternatively:
coin ~ Bernoulli(p=0.5)
coin is a random variable
Bernoulli is a probability distribution
~ reads as "is distributed as"
19 of 86 03/17/2015 08:47 PM

20 of 86 03/17/2015 08:47 PM

This was discrete (binary), what about the continuousThis was discrete (binary), what about the continuous
case?case?
returns ~ Normal( , )μ σ2
21 of 86 03/17/2015 08:47 PM

In [77]: from scipy import stats
sns.distplot(data_0, kde=False, fit=stats.norm)
plt.xlabel('returns')
22 of 86 03/17/2015 08:47 PM

How to estimateHow to estimate andand ??
Naive: point estimate
Set mu = mean(data) and sigma = std(data)
Maximum Likelihood Estimate
Correct answer as
μ σ
n → ∞
Bayesian analysisBayesian analysis
Most of the time ...
Uncertainty about and
Turn and into random variables
How to estimate?
n ≠ ∞
μ σ
μ σ
23 of 86 03/17/2015 08:47 PM

24 of 86 03/17/2015 08:47 PM

Bayes Formula!Bayes Formula!
BayesPrior
Data
Posterior
Use prior knowledge and data to update our beliefs.
25 of 86 03/17/2015 08:47 PM

26 of 86 03/17/2015 08:47 PM

In [78]: interactive(gen_plot, n=(0, 600), bayes=True)
Out[78]:
27 of 86 03/17/2015 08:47 PM

28 of 86 03/17/2015 08:47 PM

Probabilistic ProgrammingProbabilistic Programming
Model unknown causes (e.g. ) of a phenomenon as random variables.
Write a programmatic story of how unknown causes result in observable data.
Use Bayes formula to invert generative model to infer unknown causes.
μ
29 of 86 03/17/2015 08:47 PM

30 of 86 03/17/2015 08:47 PM

Approximating the posterior with MCMC samplingApproximating the posterior with MCMC sampling
In [81]: plot_want_get()
31 of 86 03/17/2015 08:47 PM

32 of 86 03/17/2015 08:47 PM

PyMC3PyMC3
Probabilistic Programming framework written in Python.
Allows for construction of probabilistic models using intuitive syntax.
Features advanced MCMC samplers.
Fast: Just-in-time compiled by Theano.
Extensible: easily incorporates custom MCMC algorithms and unusual probability
distributions.
Authors: John Salvatier, Chris Fonnesbeck, Thomas Wiecki
Upcoming beta release!
33 of 86 03/17/2015 08:47 PM

34 of 86 03/17/2015 08:47 PM

35 of 86 03/17/2015 08:47 PM

36 of 86 03/17/2015 08:47 PM

Model returns distribution: Specifying ourModel returns distribution: Specifying our
priorspriors
37 of 86 03/17/2015 08:47 PM

38 of 86 03/17/2015 08:47 PM

In [82]: x = np.linspace(-.3, .3, 500)
plt.plot(x, T.exp(pm.Normal.dist(mu=0, sd=.1).logp(x)).eval())
plt.title(u'Prior: mu ~ Normal(0, $.1^2$)'); plt.xlabel('mu'); plt.ylabel('Probabili
ty Density'); plt.xlim((-.3, .3));
39 of 86 03/17/2015 08:47 PM

40 of 86 03/17/2015 08:47 PM

In [83]: x = np.linspace(-.1, .5, 500)
plt.plot(x, T.exp(pm.HalfNormal.dist(sd=.1).logp(x)).eval())
plt.title(u'Prior: sigma ~ HalfNormal($.1^2$)'); plt.xlabel('sigma'); plt.ylabel('Pr
obability Density');
41 of 86 03/17/2015 08:47 PM

42 of 86 03/17/2015 08:47 PM

Bayesian Sharpe ratioBayesian Sharpe ratio
μ ∼ Normal(0, ).12
← Prior
σ ∼ HalfNormal( ).12
← Prior
returns ∼ Normal(μ, )σ2
← Observed!
Sharpe =
μ
σ
43 of 86 03/17/2015 08:47 PM

44 of 86 03/17/2015 08:47 PM

Graphical model of returnsGraphical model of returns
Bayes
PosteriorsPriors
Data
µ ~
σ ~
45 of 86 03/17/2015 08:47 PM

46 of 86 03/17/2015 08:47 PM

This is what the data looks likeThis is what the data looks like
In [9]: print data_0.head()
2013-12-31 21:00:00 0.002143
2014-01-02 21:00:00 -0.028532
2014-01-03 21:00:00 -0.001577
2014-01-06 21:00:00 -0.000531
2014-01-07 21:00:00 0.011310
Name: 0, dtype: float64
47 of 86 03/17/2015 08:47 PM

48 of 86 03/17/2015 08:47 PM

In [14]: import pymc as pm
with pm.Model() as model:
# Priors on Random Variables
mean_return = pm.Normal('mean return', mu=0, sd=.1)
volatility = pm.HalfNormal('volatility', sd=.1)
# Model returns as Normal
obs = pm.Normal('returns',
mu=mean_return,
sd=volatility,
observed=data_0)
sharpe = pm.Deterministic('sharpe ratio',
mean_return / volatility * np.sqrt(252))
49 of 86 03/17/2015 08:47 PM

50 of 86 03/17/2015 08:47 PM

In [15]: with model:
# Instantiate MCMC sampler
step = pm.NUTS()
# Draw 500 samples from the posterior
trace = pm.sample(500, step)
[-----------------100%-----------------] 500 of 500 complete in 0.4 sec
51 of 86 03/17/2015 08:47 PM

52 of 86 03/17/2015 08:47 PM

Analyzing the posteriorAnalyzing the posterior
In [84]: sns.distplot(results_normal[0][0]['mean returns'], hist=False, label='etrade')
sns.distplot(results_normal[1][0]['mean returns'], hist=False, label='IB')
plt.title('Posterior of the mean'); plt.xlabel('mean returns')
Out[84]: <matplotlib.text.Text at 0x7fde80cb5850>
53 of 86 03/17/2015 08:47 PM

54 of 86 03/17/2015 08:47 PM

In [85]: sns.distplot(results_normal[0][0]['volatility'], hist=False, label='etrade')
sns.distplot(results_normal[1][0]['volatility'], hist=False, label='IB')
plt.title('Posterior of the volatility')
plt.xlabel('volatility')
Out[85]: <matplotlib.text.Text at 0x7fde80e58310>
55 of 86 03/17/2015 08:47 PM

56 of 86 03/17/2015 08:47 PM

In [86]: sns.distplot(results_normal[0][0]['sharpe'], hist=False, label='etrade')
sns.distplot(results_normal[1][0]['sharpe'], hist=False, label='IB')
plt.title('Bayesian Sharpe ratio'); plt.xlabel('Sharpe ratio');
57 of 86 03/17/2015 08:47 PM

58 of 86 03/17/2015 08:47 PM

In [28]: print 'P(Sharpe ratio IB > 0) = %.2f%%' %
(np.mean(results_normal[1][0]['sharpe'] > 0) * 100)
P(Sharpe ratio IB > 0) = 96.48%
In [29]: print 'P(Sharpe ratio IB > Sharpe ratio etrade) = %.2f%%' %
(np.mean(results_normal[1][0]['sharpe'] > results_normal[0][0]['sharpe']) * 100)
P(Sharpe ratio IB > Sharpe ratio etrade) = 80.06%
59 of 86 03/17/2015 08:47 PM

60 of 86 03/17/2015 08:47 PM

Value at Risk with uncertaintyValue at Risk with uncertainty
61 of 86 03/17/2015 08:47 PM

In [88]: ppc_etrade = post_pred(var_cov_var_normal, results_normal[0][0], 1e6, .05, samples=8
00)
ppc_ib = post_pred(var_cov_var_normal, results_normal[1][0], 1e6, .05, samples=800)
62 of 86 03/17/2015 08:47 PM

Interim summaryInterim summary
Bayesian stats allows us to reformulate common risk metrics, use priors and
quantify uncertainty.
IB strategy seems better in almost every regard. Is it though?
63 of 86 03/17/2015 08:47 PM

64 of 86 03/17/2015 08:47 PM

So far, only added confidenceSo far, only added confidence
In [89]: sns.distplot(results_normal[0][0]['sharpe'], hist=False, label='etrade')
sns.distplot(results_normal[1][0]['sharpe'], hist=False, label='IB')
plt.title('Bayesian Sharpe ratio'); plt.xlabel('Sharpe ratio');
plt.axvline(data_0.mean() / data_0.std() * np.sqrt(252), color='b');
plt.axvline(data_1.mean() / data_1.std() * np.sqrt(252), color='g');
65 of 86 03/17/2015 08:47 PM

66 of 86 03/17/2015 08:47 PM

Is this a good model?Is this a good model?
In [93]: sns.distplot(data_1, label='data IB', kde=False, norm_hist=True, color='.5')
for p in ppc_dist_normal:
plt.plot(x, p, c='r', alpha=.1)
plt.plot(x, p, c='r', alpha=.5, label='Normal model')
plt.xlabel('Daily returns')
plt.legend();
67 of 86 03/17/2015 08:47 PM

68 of 86 03/17/2015 08:47 PM

Can it be improved? Yes!Can it be improved? Yes!
Identical model as before, but instead, use a heavy-tailed T distribution:
returns ∼ T(ν, μ, )σ2
69 of 86 03/17/2015 08:47 PM

In [94]: sns.distplot(data_1, label='data IB', kde=False, norm_hist=True, color='.5')
for p in ppc_dist_t:
plt.plot(x, p, c='y', alpha=.1)
70 of 86 03/17/2015 08:47 PM

Lets compare posteriors of the normal and TLets compare posteriors of the normal and T
modelmodel
71 of 86 03/17/2015 08:47 PM

72 of 86 03/17/2015 08:47 PM

Mean returnsMean returns
In [96]: sns.distplot(results_normal[1][0]['mean returns'], hist=False, color='r', label='nor
mal model')
sns.distplot(results_t[1][0]['mean returns'], hist=False, color='y', label='T model'
)
plt.xlabel('Posterior of the mean returns'); plt.ylabel('Probability Density');
73 of 86 03/17/2015 08:47 PM

74 of 86 03/17/2015 08:47 PM

Bayesian T-Sharpe ratioBayesian T-Sharpe ratio
In [97]: sns.distplot(results_normal[1][0]['sharpe'], hist=False, color='r', label='normal mo
del')
sns.distplot(results_t[1][0]['sharpe'], hist=False, color='y', label='T model')
plt.xlabel('Bayesian Sharpe ratio'); plt.ylabel('Probability Density');
75 of 86 03/17/2015 08:47 PM

76 of 86 03/17/2015 08:47 PM

But why? T distribution is more robust!But why? T distribution is more robust!
In [98]: sim_data = list(np.random.randn(75)*.01)
sim_data.append(-.2)
sns.distplot(sim_data, label='data', kde=False, norm_hist=True, color='.5'); sns.dis
tplot(sim_data, label='Normal', fit=stats.norm, kde=False, hist=False, fit_kws={'col
or': 'r', 'label': 'Normal'}); sns.distplot(sim_data, fit=stats.t, kde=False, hist=F
alse, fit_kws={'color': 'y', 'label': 'T'})
plt.xlabel('Daily returns'); plt.legend();
77 of 86 03/17/2015 08:47 PM

78 of 86 03/17/2015 08:47 PM

Estimating tail risk using VaREstimating tail risk using VaR
In [99]: ppc_normal = post_pred(var_cov_var_normal, trace_normal, 1e6, .05, samples=800)
ppc_t = post_pred(var_cov_var_t, trace_t, 1e6, .05, samples=800)
sns.distplot(ppc_normal, label='Normal', norm_hist=True, hist=False, color='r')
sns.distplot(ppc_t, label='T', norm_hist=True, hist=False, color='y')
plt.legend(loc=0); plt.xlabel('5% daily Value at Risk (VaR) with $1MM capital (in
$)'); plt.ylabel('Probability density'); plt.xticks(rotation=15);
79 of 86 03/17/2015 08:47 PM

80 of 86 03/17/2015 08:47 PM

Comparing the Bayesian T-Sharpe ratiosComparing the Bayesian T-Sharpe ratios
In [101]: sns.distplot(results_t[0][0]['sharpe'], hist=False, label='etrade')
sns.distplot(results_t[1][0]['sharpe'], hist=False, label='IB')
plt.xlabel('Bayesian Sharpe ratio'); plt.ylabel('Probability Density');
81 of 86 03/17/2015 08:47 PM

In [42]: print 'P(Sharpe ratio IB > Sharpe ratio etrade) = %.2f%%' %
(np.mean(results_t[1][0]['sharpe'] > results_t[0][0]['sharpe']) * 100)
82 of 86 03/17/2015 08:47 PM

ConclusionsConclusions
Bayesian statistics allows us to quantify uncertainty -- measure orthogonal sources
of risk.
Rich statistical framework to compare different models against each other.
Blackbox inference algorithms allow estimation of complex models.
PyMC3 puts advanced samplers at your fingertips.
83 of 86 03/17/2015 08:47 PM

84 of 86 03/17/2015 08:47 PM

Further readingFurther reading
-- Develop trading algorithms like this in
your browser.
-- IPython
Notebook book on Bayesian stats using PyMC2.
-- Great book by Kruschke.
Twitter:
Quantopian (https://www.quantopian.com)
My blog for Bayesian linear regression (financial alpha and beta)
(https://twiecki.github.io)
Probilistic Programming for Hackers (http://camdavidsonpilon.github.io
/Probabilistic-Programming-and-Bayesian-Methods-for-Hackers/)
Doing Bayesian Data Analysis (http://www.indiana.edu/~kruschke
/DoingBayesianDataAnalysis/)
PyMC3 repository (https://github.com/pymc-devs/pymc3)
@twiecki (https://twitter.com/twiecki)
85 of 86 03/17/2015 08:47 PM

86 of 86 03/17/2015 08:47 PM

Probabilistic Programming in Quantitative Finance by Thomas Wiecki, Lead Data Scientist at Quantopian

More Related Content

Viewers also liked (19)

Similar to Probabilistic Programming in Quantitative Finance by Thomas Wiecki, Lead Data Scientist at Quantopian (10)

More from Quantopian (20)

Recently uploaded (20)

Probabilistic Programming in Quantitative Finance by Thomas Wiecki, Lead Data Scientist at Quantopian
