Pro PostgreSQL Robert Treat omniti.com brighterlamp.org
Who Am I? (Why Listen To Me) O-0 PostgreSQL User Since 6.5.x DBA of High Traffic / Large PostgreSQL Instances Long Time Contributor to PostgreSQL Project Contribute / Maintain Several Open Source Projects Co-Author Beginning PHP & PostgreSQL 8 (Apress)
Outline O-1 What you need to know about the project Getting started Upgrading Configuring your server Hardware Availability Scalability Query tuning Tablespaces Partitioning Stuff you should know about
K-0 Know Your Way Around The Project
Know Your Way Around The Project K-1 www.postgresql.org downloads documentation bug reports security alerts wiki support companies rss –> news – events - versions
Know Your Way Around The Project K-2 www.pgfoundry.org projects.postgresql.org Modules Programs Resources URI Type CIText SkyTools Npgsql Pl/Proxy pg_bulkload plpgsql-debugger sample databases
Know Your Way Around The Project K-3 www.planetpostgresql.org Project News Community News Helpful Tips / Examples
Know Your Way Around The Project K-4 archives.postgresql.org mailing list archives back to 1997 full text search via postgtresql 8.3 keyword search suggestions lists for users, developers, regional, user groups
Know Your Way Around The Project K-5 #postgresql irc.freenode.net real time help rtfm_please - ??help
Know Your Way Around The Project K-6 project management core team committers -hackers roadmap web team
S-0 Get Off To A Good Start
S-1 Get Off To A Good Start Use package management Consistent Standardized Simple
Different across systems Upgrades are an issue Trust your packager? S-2 Get Off To A Good Start Use package management
Different across systems Upgrades are an issue Trust your packager? S-2 Get Off To A Good Start Use package management Don't Be Afraid To Roll Your Own
S-4 Get Off To A Good Start $PGDATA/pg_log /var/log/pgsql when in doubt... (postgresql.conf) separate disk Configure Logging Logging is often overlooked, but is the first step toward troubleshooting!
S-5 Get Off To A Good Start most systems have different defaults firewalls/ selinux (FATAL) rtfm (pg_hba.conf, grant, revoke) Configure Authentication
S-6 Get Off To A Good Start TRUST md5 IDENT Authentication Methods
S-7 Get Off To A Good Start trust these more than your own code package dependent use different schemas (when able) pgcrypto pgstatstuple, pg_buffercache, pg_freespacemap /contrib
S-8 Get Off To A Good Start package dependent some are non-core (plruby, plr, plphp) varying functionality varying levels of trust don't be afraid, test! procedural languages
U-0 Let's Talk About Upgrades
U-1 Let's Talk About Upgrades Versioning First Digit ( 7 .4.16 -> 8 .2.0) Second Digit (8.2.4 -> 8.3.0) Third Digit (8.3.0 -> 8.3.1)
U-2 Let's Talk About Upgrades Versioning First Digit (7.4.16 -> 8.2.0) Second Digit (8. 2 .4 -> 8. 3 .0) Third Digit (8.3.0 -> 8.3.1)
U-3 Let's Talk About Upgrades Versioning First Digit (7.4.16 -> 8.2.0) Second Digit (8.2.4 -> 8.3.0) Third Digit (8.3. 0 -> 8.3. 1 )
U-4 Let's Talk About Upgrades Achtung!! Make Backups! Read the Release Notes!
U-5 Let's Talk About Upgrades pg_dump/pg_restore simple -Fc is your friend dump with new version of pg_dump pitfalls (time, hdd)
U-6 Let's Talk About Upgrades the slony method not simple create slave on new version switchover (switch back?) pitfalls (initial synch, compatibility)
U-7 Let's Talk About Upgrades pg_migrator in place upgrades rewrites system catalog info no way to go back (fs snapshots) still new, under-flux 8.1 -> 8.2 only (for now)
U-8 Let's Talk About Upgrades upgrading older db <= 7.3 is no longer supported (upgrade now!) pg_dump 8.2 has issues with <= 7.2 you can upgrade to 7.3 first use adddepends on 7.3 install slony requires 7.3 (or 7.4) (or 8.3) or newer pg_migrator (lol)
C-0 Figure Your Configure
C-1 Figure Your Configure the basics : performance effective_cache_size shared_buffers default_statistics_target work_mem checkpoint_segments
C-2 Figure Your Configure the basics : logging stderr/pg_log vs. syslog/eventlog log_min_error_statement (error!) log_min_duration_statement log_line_prefix (%d, %p, %t)
C-3 Figure Your Configure other stuff worth looking at maintenance_work_mem max_prepared_transactions update_process_title max_fsm_pages synchronous_commit
M-0 Routine Maintenance
M-1 Routine Maintenance a word about vacuum reclaim usable space update table stats avoid xid wraparound
M-2 Routine Maintenance autovacuum : just do it! autovacuum track_activities track_counts autovacuum_max_freeze_age pg_autovacuum ?
M-3 Routine Maintenance other stuff worth looking at reindexing logfiles backups failover
P-0 Hardware For Software People
P-1 Hardware For Software People you can be cheap on the licensing, don't be cheap on the hardware Cram the (ecc) RAM Redundant Disks (Software|Hardware) RAID Prefer SCSI, Accept SATA RAID Z (JBOD)
P-2 Hardware For Software People cpu and you Multiple CPU's work wonders, up to 8 processors (16 OK) Opteron, Xeon, Core 2 Duo http://tweakers.net/
P-3 Hardware For Software People disk do's Put WAL on it's own disk (RAID 1) Put DATA directory on it's own disk (RAID 10) More Spindles is Good More Controllers Even Gooder (tablespaces!) Battery Backed Controllers, Write cache enabled
P-4 Hardware For Software People disk dont's NFS == Not Fully Safe! RAID 5 Beware disks / controllers that Lie
A-0 Availability (Not Scalability)
A-1 Availability what do we mean by availability? not backups (exactly) not replication (necessarily) not clustering (even less so)
A-2 Availability what do we mean by availability? if (kablooy) then (ok) not backups (exactly) not replication (necessarily) not clustering (even less so)
A-3 Availability pg_dump traditionally used for backups send dump to another server constantly run restore process large time, i/o constraints
A-4 Availability filesystem snapshots zfs, lvm built on top of pitr backup commands traditionally used for backups copy snapshot to another server cumbersome time, i/o constraints
A-5 Availability pitr create second, standby server ship wal logs to new server less time/io than pg_dump 8.1 -> cold standby 8.2 -> warm standby 8.4 -> hot standby ?
A-6 Availability slony asynchronous, master-slave replication controlled switchover, failover low i/o, time constraints other benefits (upgrades, scaling)
A-7 Availability bucardo asynchronous, multi-master replication also does master-slave low i/o, time constraints other benefits (upgrades, scaling)
A-8 Availability shared disk one copy of PGDATA on shared storage standby takes over akin to db crash shared disk is point of failure (raid) STONITH
A-9 Availability filesystem replication drbd filesystem mirrored between servers synchronized, ordered writes single disk system?
A-10 Availability pgpool dual-master, statement based little caveats (random(),now(),sequences) bigger caveats (security, password, pg_hba) pgpool becomes failure point
A-11 Availability postgres-r multi-master, synchronous just open sourced this month! small community not proven
H-0 Scalability
H-1 Scalability what is scaling? “ How well a solution to some problem will work when the relative size of the problem increases” - Theo Schlossnagle
H-2 Scalability bigger, better, faster, more! postgresql scales up pretty well more disks (tablespaces) more cpu's, more ram connection pooling 1000+ connections, TB+ data
H-3 Scalability pgpool dual-master, statement based little caveats (random(),now(),sequences) bigger caveats (security, password, pg_hba) pgpool becomes failure point
H-4 Scalability pg_bouncer simple connection pooler 10/1 -> 40/1 caveats (prepared statements, temp tables) skype, myyearbook.com
H-5 Scalability slony asynchronous, master-slave replication multiple, cascading slaves scales read operations other benefits (upgrades, scaling) solid user base
H-6 Scalability bucardo asynchronous, multi-master replication also does master-slave low i/o, time constraints other benefits (upgrades, scaling)
H-7 Scalability pgpool-II single db over multiple machines scales read operations replication, load balance, parallel query green technology
H-8 Scalability pgcluster synchronous multi-master replication significant complexity scales read operations other uses (failover abilities) green technology
H-9 Scalability postgres-r multi-master, synchronous just open source this month! small community other uses (failover abilities) not proven
H-10 Scalability pitr read-only slaves based on pitr, warm standby operation core team officially supporting development 8.4 -> synchronous wal shipping 8.? -> read only slaves
J-0 Query Your Queries
J-1 Query Your Queries finding slow queries: log_min_duration_statement -1, 0 , n superuser only alter user LOG: duration: 5005.273 ms statement: select pg_sleep(5);
J-2 Query Your Queries finding slow queries: pgfouine / pqa log analyzers command line, generate reports i/o load http://pgfouine.projects.postgresql.org/reports.html http://pqa.projects.postgresql.org/example.html
J-3 Query Your Queries finding slow queries: pg_stat_all_tables pagila=# \d pg_stat_all_tables View &quot;pg_catalog.pg_stat_all_tables&quot; Column | Type | ------------------+-------------+ relid | oid | schemaname | name | relname | name | seq_scan | bigint | seq_tup_read | bigint | idx_scan | bigint | idx_tup_fetch | bigint | n_tup_ins | bigint | n_tup_upd | bigint | n_tup_del | bigint | n_tup_hot_upd | bigint | n_live_tup | bigint | n_dead_tup | bigint | last_vacuum | timestamptz | last_autovacuum | timestamptz | last_analyze | timestamptz | last_autoanalyze | timestamptz |
J-4 Query Your Queries finding slow queries: pg_stat_all_tables pagila=# \d pg_stat_all_tables View &quot;pg_catalog.pg_stat_all_tables&quot; Column | Type | ------------------+-------------+ relid | oid | schemaname | name | relname | name | seq_scan | bigint | seq_tup_read | bigint | idx_scan | bigint | idx_tup_fetch | bigint | n_tup_ins | bigint | n_tup_upd | bigint | n_tup_del | bigint | n_tup_hot_upd | bigint | n_live_tup | bigint | n_dead_tup | bigint | last_vacuum | timestamptz | last_autovacuum | timestamptz | last_analyze | timestamptz | last_autoanalyze | timestamptz |
J-5 Query Your Queries finding slow queries: pg_stat_all_tables pagila=# \d pg_stat_all_tables View &quot;pg_catalog.pg_stat_all_tables&quot; Column | Type | ------------------+-------------+ relid | oid | schemaname | name | relname | name | seq_scan | bigint | seq_tup_read | bigint | idx_scan | bigint | idx_tup_fetch | bigint | n_tup_ins | bigint | n_tup_upd | bigint | n_tup_del | bigint | n_tup_hot_upd | bigint | n_live_tup | bigint | n_dead_tup | bigint | last_vacuum | timestamptz | last_autovacuum | timestamptz | last_analyze | timestamptz | last_autoanalyze | timestamptz |
J-6 Query Your Queries finding slow queries: pg_stat_all_tables pagila=# \d pg_stat_all_tables View &quot;pg_catalog.pg_stat_all_tables&quot; Column | Type | ------------------+-------------+ relid | oid | schemaname | name | relname | name | seq_scan | bigint | seq_tup_read | bigint | idx_scan | bigint | idx_tup_fetch | bigint | n_tup_ins | bigint | n_tup_upd | bigint | n_tup_del | bigint | n_tup_hot_upd | bigint | n_live_tup | bigint | n_dead_tup | bigint | last_vacuum | timestamptz | last_autovacuum | timestamptz | last_analyze | timestamptz | last_autoanalyze | timestamptz |
J-7 Query Your Queries finding slow queries: pg_stat_all_tables pagila=# \d pg_stat_all_tables View &quot;pg_catalog.pg_stat_all_tables&quot; Column | Type | ------------------+-------------+ relid | oid | schemaname | name | relname | name | seq_scan | bigint | seq_tup_read | bigint | idx_scan | bigint | idx_tup_fetch | bigint | n_tup_ins | bigint | n_tup_upd | bigint | n_tup_del | bigint | n_tup_hot_upd | bigint | n_live_tup | bigint | n_dead_tup | bigint | last_vacuum | timestamptz | last_autovacuum | timestamptz | last_analyze | timestamptz | last_autoanalyze | timestamptz |
J-8 Query Your Queries finding slow queries: pg_stat_all_tables pagila=# \d pg_stat_all_tables View &quot;pg_catalog.pg_stat_all_tables&quot; Column | Type | ------------------+-------------+ relid | oid | schemaname | name | relname | name | seq_scan | bigint | seq_tup_read | bigint | idx_scan | bigint | idx_tup_fetch | bigint | n_tup_ins | bigint | n_tup_upd | bigint | n_tup_del | bigint | n_tup_hot_upd | bigint | n_live_tup | bigint | n_dead_tup | bigint | last_vacuum | timestamptz | last_autovacuum | timestamptz | last_analyze | timestamptz | last_autoanalyze | timestamptz |
J-9 Query Your Queries finding slow queries: pg_stat_all_indexes pagila=# \d pg_stat_all_indexes View &quot;pg_catalog.pg_stat_all_indexes&quot; Column | Type | ---------------+--------+ relid | oid | indexrelid | oid | schemaname | name | relname | name | indexrelname | name | idx_scan | bigint | idx_tup_read | bigint | idx_tup_fetch | bigint |
J-10 Query Your Queries finding slow queries: pg_stat_all_indexes pagila=# \d pg_stat_all_indexes View &quot;pg_catalog.pg_stat_all_indexes&quot; Column | Type | ---------------+--------+ relid | oid | indexrelid | oid | schemaname | name | relname | name | indexrelname | name | idx_scan | bigint | idx_tup_read | bigint | idx_tup_fetch | bigint |
J-11 Query Your Queries finding slow queries: pg_statio_all_tables pagila=# \d pg_statio_all_tables View &quot;pg_catalog.pg_statio_all_tables&quot; Column | Type | -----------------+--------+ relid | oid | schemaname | name | relname | name | heap_blks_read | bigint | heap_blks_hit | bigint | idx_blks_read | bigint | idx_blks_hit | bigint | toast_blks_read | bigint | toast_blks_hit | bigint | tidx_blks_read | bigint | tidx_blks_hit | bigint |
J-12 Query Your Queries finding slow queries: pg_statio_all_tables pagila=# \d pg_statio_all_tables View &quot;pg_catalog.pg_statio_all_tables&quot; Column | Type | -----------------+--------+ relid | oid | schemaname | name | relname | name | heap_blks_read | bigint | heap_blks_hit | bigint | idx_blks_read | bigint | idx_blks_hit | bigint | toast_blks_read | bigint | toast_blks_hit | bigint | tidx_blks_read | bigint | tidx_blks_hit | bigint |
J-13 Query Your Queries fixing slow queries: explain analyze universal tool good for specific queries “ explain” for large queries could be it's own talk
J-14 Query Your Queries fixing slow queries: explain analyze universal tool good for specific queries “ explain” for large queries could be it's own talk http://wiki.postgresql.org/Using_EXPLAIN
J-15 Query Your Queries fixing slow queries: indexing (basic) use explain to find large sequential reads use pg_stat_* tables to find numerous reads btree – (gist/gin) enable_indexscan, enable_bitmapscan dual column vs. single column
J-16 Query Your Queries fixing slow queries: indexing (partial) create index address_ba_part_idx on address (district) where district = 'Buenos Aires'; restrain index to rows that matter can give significant speed improvements where clause of index should match where clause of query
J-17 Query Your Queries fixing slow queries: indexing (partial) create index customer_active_part_idx on customer (customer_id) where activebool is true; restrain index to rows that matter can give significant speed improvements where clause of index should match where clause of query

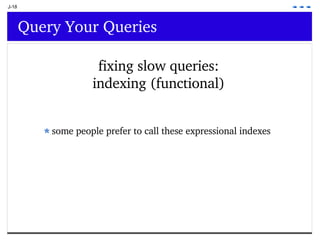

J-18 Query Your Queries fixing slow queries: indexing (functional) some people prefer to call these expressional indexes
J-19 Query Your Queries fixing slow queries: indexing (expressional) create unique index one_true_email_xidx on customer (lower(email)); push expensive functions into your index system sees just WHERE indexedcolumn = 'constant' expression of index should match expression of queries narrow scope, but nice gains
J-20 Query Your Queries fixing slow queries: indexing (expressional) create index fullname_xidx on customer ((first_name||' '||last_name)); push expensive functions into your index system sees just WHERE indexedcolumn = 'constant' expression of index should match expression of queries narrow scope, but nice gains
J-21 Query Your Queries fixing slow queries: full text search uses lexmes and word stemming to find common words replacement for LIKE '%x%', ~* 'x'; supports multiple languages, custom dictionaries special indexing options
J-22 Indexing Options full text indexing gist vs. gin “ old school” slower for queries faster insert / update mature new in 8.2 faster for queries slower insert / update stable
N-0 PostgreSQL Tablespaces
N-1 PostgreSQL Tablespaces tablespaces? define logical locations for object placement point to locations on disk (uses symlinks) size determined by disk size (not pre-ordained) dedicate per db, split db across multiple tblspc
N-2 PostgreSQL Tablespaces tablespaces! split database over separate disks use stat, statio tables to gauge disk access create dedicated storage for workloads disk for read / write disk for read only large, slow disk for archiving disk for indexes
Q-0 PostgreSQL Partitioning
Q-1 PostgreSQL Partitioning partitioning? as table size grows, it becomes unmanageable use inheritance, rules, constraints to split data queries ignore non-relevant partitions could be it's own talk
Q-2 PostgreSQL Partitioning partitioning! as table size grows, it becomes unmanageable use inheritance, rules, constraints to split data queries ignore non-relevant partitions could be it's own talk http://www.pgcon.org/2007/schedule/events/41.en.html
Q-3 PostgreSQL Partitioning partitioning : key points determine list vs. range use triggers rather than rules partition creation vs. data population automate maintenance
I-0 Other Stuff I Should Mention
I-1 Other Stuff I Should Mention pgcrypto cryptography type functions /contrib (export issues) md5, sha1, blowfish, many more
I-2 Other Stuff I Should Mention dblink pg -> pg connections /contrib (still under development?) can have performance issues on large queries make it live in it's own schema
I-3 Other Stuff I Should Mention *-link heterogenous connections for postgresql db specific and db independent options any pl/u language can implement this similar performance issues to dblink dblink-tds, dbi-link, oralink, odbclink http://www.pgfoundry.org/ (db link)
I-4 Other Stuff I Should Mention autonomous logging tool persistent logging for postgresql functions built on top of dblink make it live in it's own schema https://labs.omniti.com/trac/pgsoltools
I-5 Other Stuff I Should Mention snapshot pitr clones full read/write copy of pitr slave static snapshot need solaris (zfs zone mojo) could re-implement on other systems https://labs.omniti.com/trac/pgsoltools
I-6 Other Stuff I Should Mention check_postgres nagios based monitoring script common items for warnings and alerts can be adapted to other uses http://bucardo.org/check_postgres
I-7 Other Stuff I Should Mention reconnoiter monitoring / graphing tool postgres based still pretty green https://labs.omniti.com/trac/reconnoiter
I-8 Other Stuff I Should Mention phpPgAdmin web based gui for postgresql remote administration of multiple servers implements much of postgresql functionality support back to 7.2? http://phppgadmin.sourceforge.net/
I-9 Other Stuff I Should Mention ;-) my book?
I-10 Other Stuff I Should Mention ;-) we're hiring Ops Ninjas Perl Kung-Fu Artists PHP Ninjas Database Samurai http://omniti.com/is/hiring
L-0 El Fin
