Analyzing and Sharing HDF5 Data with Python
0 likes1,014 views
The document provides an introduction to PyTables, a Python library for managing large datasets using HDF5. It highlights the features and benefits of Python for scientific computing, outlines the capabilities of PyTables, and describes the importance of efficient data handling through features like buffered I/O, caching, and indexing. Additionally, it presents various scientific libraries compatible with Python, contributing to its use in engineering and scientific fields.
![An Introduction to the Python Language
P Y TABLES
CSTABLES
Summary
Facts about Python
Scientific Packages
An example
Programming as a Necessary Evil
Evaluate En (x) =
∞ e−xt
1
t n dt
for each value of n
from scipy import *
from scipy.integrate import quad, Inf
def integrand(t,n,x):
return exp(-x*t) / t**n
def expint(n,x):
return quad(integrand, 1, Inf, args=(n, x))[0]
v_expint = vectorize(expint)
print v_expint(3,arange(1.0,4.0,0.5))
The output
[ 0.10969197, 0.05673949, 0.03013338, 0.01629537,
0.00893065, 0.00494538,]
Francesc Altet
P Y TABLES & Family](https://image.slidesharecdn.com/pytables-cstables-altet-140218134015-phpapp02/85/Analyzing-and-Sharing-HDF5-Data-with-Python-25-320.jpg)
![An Introduction to the Python Language
P Y TABLES
CSTABLES
Summary
Overview
Usage Examples
P Y TABLES Pro

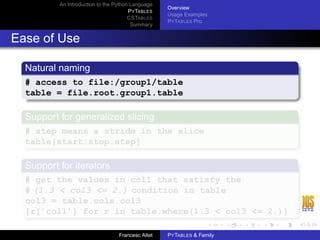

Ease of Use
Natural naming
# access to file:/group1/table
table = file.root.group1.table
Support for generalized slicing
# step means a stride in the slice
table[start:stop:step]
Support for iterators
# get the values in col1 that satisfy the
# (1.3 < col3 <= 2.) condition in table
col3 = table.cols.col3
[r[’col1’] for r in table.where(1.3 < col3 <= 2.)]
Francesc Altet
P Y TABLES & Family](https://image.slidesharecdn.com/pytables-cstables-altet-140218134015-phpapp02/85/Analyzing-and-Sharing-HDF5-Data-with-Python-44-320.jpg)
![An Introduction to the Python Language
P Y TABLES
CSTABLES
Summary
Overview
Usage Examples
P Y TABLES Pro
Ease of Use
Natural naming
# access to file:/group1/table
table = file.root.group1.table
Support for generalized slicing
# step means a stride in the slice
table[start:stop:step]
Support for iterators
# get the values in col1 that satisfy the
# (1.3 < col3 <= 2.) condition in table
col3 = table.cols.col3
[r[’col1’] for r in table.where(1.3 < col3 <= 2.)]
Francesc Altet
P Y TABLES & Family](https://image.slidesharecdn.com/pytables-cstables-altet-140218134015-phpapp02/85/Analyzing-and-Sharing-HDF5-Data-with-Python-45-320.jpg)
![An Introduction to the Python Language
P Y TABLES
CSTABLES
Summary
Overview
Usage Examples
P Y TABLES Pro
Ease of Use
Natural naming
# access to file:/group1/table
table = file.root.group1.table
Support for generalized slicing
# step means a stride in the slice
table[start:stop:step]
Support for iterators
# get the values in col1 that satisfy the
# (1.3 < col3 <= 2.) condition in table
col3 = table.cols.col3
[r[’col1’] for r in table.where(1.3 < col3 <= 2.)]
Francesc Altet
P Y TABLES & Family](https://image.slidesharecdn.com/pytables-cstables-altet-140218134015-phpapp02/85/Analyzing-and-Sharing-HDF5-Data-with-Python-46-320.jpg)
![An Introduction to the Python Language
P Y TABLES
CSTABLES
Summary
Overview
Design goals
Examples of Use
Two Different APIs
P Y TABLES API (prefix with csclient -ip=server_IP)
import tables
fileh = tables.openFile("file.h5")
print fileh.root.table.cols.col1[:]
fileh.close()
CSTABLES API (no need to be prefixed)
from cstables.client import client
c=client.Session()
app=c.connect("your_FQDN_server")
fileh=app.openFile("file.h5")
print fileh.root.table.cols.col1[:]
fileh.close()
Francesc Altet
P Y TABLES & Family](https://image.slidesharecdn.com/pytables-cstables-altet-140218134015-phpapp02/85/Analyzing-and-Sharing-HDF5-Data-with-Python-69-320.jpg)
![An Introduction to the Python Language
P Y TABLES
CSTABLES
Summary
Overview
Design goals
Examples of Use
Two Different APIs
P Y TABLES API (prefix with csclient -ip=server_IP)
import tables
fileh = tables.openFile("file.h5")
print fileh.root.table.cols.col1[:]
fileh.close()
CSTABLES API (no need to be prefixed)
from cstables.client import client
c=client.Session()
app=c.connect("your_FQDN_server")
fileh=app.openFile("file.h5")
print fileh.root.table.cols.col1[:]
fileh.close()
Francesc Altet
P Y TABLES & Family](https://image.slidesharecdn.com/pytables-cstables-altet-140218134015-phpapp02/85/Analyzing-and-Sharing-HDF5-Data-with-Python-70-320.jpg)
