Data Structure
11 What is data structure?
A data structure is a way of organizing data that considers not only the items
stored, but also their relationship to each other. Advance knowledge about the
relationship between data items allows designing of efficient algorithms for the
manipulation of data.

11 List out the areas in which data structures are applied extensively?
 Compiler Design,
 Operating System,
 Database Management System,
 Statistical analysis package,
 Numerical Analysis,
 Graphics,
 Artificial Intelligence,
 Simulation

11 What are the major data structures used in the following areas : RDBMS,
Network data model & Hierarchical data model.
 RDBMS – Array (i.e. Array of structures)
 Network data model – Graph
 Hierarchical data model – Trees

1 1 If you are using C language to implement the heterogeneous linked list, what
pointer type will you use?
The heterogeneous linked list contains different data types in its nodes and we
need a link, pointer to connect them. It is not possible to use ordinary pointers for this.
So we go for void pointer. Void pointer is capable of storing pointer to any type as it
is a generic pointer type.

11 Minimum number of queues needed to implement the priority queue?
Two. One queue is used for actual storing of data and another for storing
priorities.

11 What is the data structures used to perform recursion?
Stack. Because of its LIFO (Last In First Out) property it remembers its
‘caller’ so knows whom to return when the function has to return. Recursion makes
use of system stack for storing the return addresses of the function calls.
Every recursive function has its equivalent iterative (non-recursive) function.
Even when such equivalent iterative procedures are written, explicit stack is to be
used.

Freshersworld.com Resource Center
1


11 What are the notations used in Evaluation of Arithmetic Expressions using
prefix and postfix forms?
Polish and Reverse Polish notations.

11 Convert the expression ((A + B) * C – (D – E) ^ (F + G)) to equivalent Prefix
and Postfix notations.
Prefix Notation:
^ - * +ABC - DE + FG
Postfix Notation:
AB + C * DE - - FG + ^

11 Sorting is not possible by using which of the following methods?
(a) Insertion
(b) Selection
(c) Exchange
(d) Deletion

(d) Deletion.
Using insertion we can perform insertion sort, using selection we can perform
selection sort, using exchange we can perform the bubble sort (and other similar
sorting methods). But no sorting method can be done just using deletion.

111 A binary tree with 20 nodes has null branches?
21
Let us take a tree with 5 nodes (n=5)

Null Branches

It will have only 6 (ie,5+1) null branches. In general,
A binary tree with n nodes has exactly n+1 null nodes.

111 What are the methods available in storing sequential files ?
 Straight merging,
 Natural merging,
 Polyphase sort,
 Distribution of Initial runs.

2


111 How many different trees are possible with 10 nodes ?
1014
For example, consider a tree with 3 nodes(n=3), it will have the maximum
combination of 5 different (ie, 23 - 3 = 5) trees.

i ii iii iv v

In general:
If there are n nodes, there exist 2n-n different trees.

111 List out few of the Application of tree data-structure?
 The manipulation of Arithmetic expression,
 Symbol Table construction,
 Syntax analysis.

111 List out few of the applications that make use of Multilinked
Structures?
 Sparse matrix,
 Index generation.

111 In tree construction which is the suitable efficient data structure?
(a) Array (b) Linked list (c) Stack (d) Queue (e) none

(b) Linked list

111 What is the type of the algorithm used in solving the 8 Queens
problem?
Backtracking

111 In an AVL tree, at what condition the balancing is to be done?
If the ‘pivotal value’ (or the ‘Height factor’) is greater than 1 or less than –1.

111 What is the bucket size, when the overlapping and collision occur at
same time?

3


One. If there is only one entry possible in the bucket, when the collision
occurs, there is no way to accommodate the colliding value. This results in the
overlapping of values.

111 Traverse the given tree using Inorder, Preorder and Postorder
traversals.

Given tree:
A

B C

D E F G

H I J

 Inorder : D H B E A F C I G J
 Preorder: A B D H E C F G I J
 Postorder: H D E B F I J G C A

1 11 There are 8, 15, 13, 14 nodes were there in 4 different trees. Which of
them could have formed a full binary tree?
15.
In general:
There are 2n-1 nodes in a full binary tree.
By the method of elimination:
Full binary trees contain odd number of nodes. So there cannot be full
binary trees with 8 or 14 nodes, so rejected. With 13 nodes you can form a complete
binary tree but not a full binary tree. So the correct answer is 15.
Note:
Full and Complete binary trees are different. All full binary trees are complete
binary trees but not vice versa.
1
111 In the given binary tree, using array you can store the node 4 at which
location?
2 3

4
4

5


At location 6

1 2 3 - - 4 - - 5

Root LC1 RC1 LC2 RC2 LC3 RC3 LC4 RC4

where LCn means Left Child of node n and RCn means Right Child of node n

111 Sort the given values using Quick Sort?

65 70 75 80 85 60 55 50 45

Sorting takes place from the pivot value, which is the first value of the given
elements, this is marked bold. The values at the left pointer and right pointer are
indicated using L and R respectively.

65 70L 75 80 85 60 55 50 45R

Since pivot is not yet changed the same process is continued after interchanging the
values at L and R positions

65 45 75 L 80 85 60 55 50 R 70

65 45 50 80 L 85 60 55 R 75 70

65 45 50 55 85 L 60 R 80 75 70

65 45 50 55 60 R 85 L 80 75 70

When the L and R pointers cross each other the pivot value is interchanged with the
value at right pointer. If the pivot is changed it means that the pivot has occupied its
original position in the sorted order (shown in bold italics) and hence two different
arrays are formed, one from start of the original array to the pivot position-1 and the
other from pivot position+1 to end.

60 L 45 50 55 R 65 85 L 80 75 70 R

5


55 L 45 50 R 60 65 70 R 80 L 75 85

50 L 45 R 55 60 65 70 80 L 75 R 85

In the next pass we get the sorted form of the array.

45 50 55 60 65 70 75 80 85

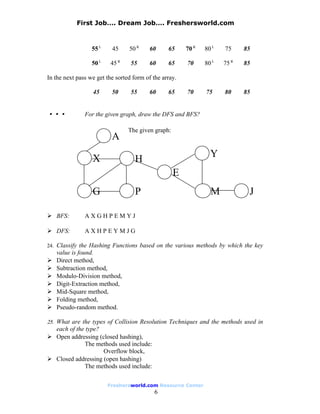

111 For the given graph, draw the DFS and BFS?

The given graph:
A

X H Y
E
G P M J

 BFS: AXGHPEMYJ

 DFS: AXHPEYMJG

24. Classify the Hashing Functions based on the various methods by which the key
value is found.
 Direct method,
 Subtraction method,
 Modulo-Division method,
 Digit-Extraction method,
 Mid-Square method,
 Folding method,
 Pseudo-random method.

25. What are the types of Collision Resolution Techniques and the methods used in
each of the type?
 Open addressing (closed hashing),
The methods used include:
Overflow block,
 Closed addressing (open hashing)
The methods used include:

6


Linked list,
Binary tree…

26. In RDBMS, what is the efficient data structure used in the internal storage
representation?
B+ tree. Because in B+ tree, all the data is stored only in leaf nodes, that
makes searching easier. This corresponds to the records that shall be stored in leaf
nodes.

27. Draw the B-tree of order 3 created by inserting the following data arriving in
sequence – 92 24 6 7 11 8 22 4 5 16 19 20 78

11 -

5 7 19 24

4 - 6 - 8 - 16 - 20 22 7
78 92

28. Of the following tree structure, which is, efficient considering space
and time complexities?
(a) Incomplete Binary Tree
(b) Complete Binary Tree
(c) Full Binary Tree

(b) Complete Binary Tree.
By the method of elimination:
Full binary tree loses its nature when operations of insertions and
deletions are done. For incomplete binary trees, extra storage is required and
overhead of NULL node checking takes place. So complete binary tree is the better
one since the property of complete binary tree is maintained even after operations like
additions and deletions are done on it.

29. What is a spanning Tree?
A spanning tree is a tree associated with a network. All the nodes of the graph
appear on the tree once. A minimum spanning tree is a spanning tree organized so
that the total edge weight between nodes is minimized.

30. Does the minimum spanning tree of a graph give the shortest distance between
any 2 specified nodes?

7


No.
Minimal spanning tree assures that the total weight of the tree is kept at its
minimum. But it doesn’t mean that the distance between any two nodes involved in
the minimum-spanning tree is minimum.

31. Convert the given graph with weighted edges to minimal spanning tree.

600
1 3 200
612
410 310
2985 5

400
2 4
1421

the equivalent minimal spanning tree is:

1 3

200
410 612 310
2 4 5

32. Which is the simplest file structure?
(a) Sequential
(b) Indexed
(c) Random
(a) Sequential

33. Whether Linked List is linear or Non-linear data structure?
According to Access strategies Linked list is a linear one.
According to Storage Linked List is a Non-linear one.
-
34. Draw a binary Tree for the expression :
A * B - (C + D) * (P / Q)

* *

A B + /

8
C D P Q

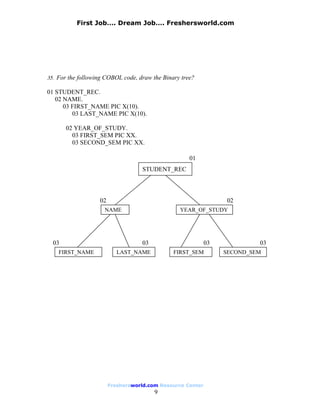

35. For the following COBOL code, draw the Binary tree?

01 STUDENT_REC.
02 NAME.
03 FIRST_NAME PIC X(10).
03 LAST_NAME PIC X(10).

02 YEAR_OF_STUDY.
03 FIRST_SEM PIC XX.
03 SECOND_SEM PIC XX.

01
STUDENT_REC

02 02
NAME YEAR_OF_STUDY

03 03 03 03
FIRST_NAME LAST_NAME FIRST_SEM SECOND_SEM

9
