Rasterisation of a circle by the bresenham algorithm

Bresenham algorithm for a circle

Applet Select one point on circle.

Bresenham's algorithm for circle rastering:
view plaincopy to clipboardprint

1. // circle center xi,yi and point on circle xf,yf
2. public void circle(int xi, int yi, int xf, int yf){
3. // calculate radius of circle
4. int radius=(int)(Math.sqrt((xf-xi)*(xf-xi)+(yf-yi)*(yf-yi)));
5.
6. int d1 = 3 - (2 * radius);
7. int x = 0,i1=x1,i2=x2;
8.
9. int y = radius;
10. boolean rov=true;
11.
12. // for one eights, while x is not >= y
13. while (rov){
14. if (x>=y){rov=false;}
15. if (d1 < 0) { d1 = d1 + (4 * x) + 6; }
16. else{ d1 = d1 + 4 * (x - y) + 10; // (1)
17. y = y - 1;
18. }
19.
20. // draw following circle points
21. setpix((x1+x),(y1+y));
22. setpix((x1+x),(y1-y));
23. setpix((x1-x),(y1+y));
24. setpix((x1-x),(y1-y));
25.
26. setpix((x1+y),(y1+x));
27. setpix((x1+y),(y1-x));
28. setpix((x1-y),(y1+x));
29. setpix((x1-y),(y1-x));
30. x++;
31. }
32. }

Circle Mid point algorithm

Rasterisation of a circle by the Bresenham algorithm

[2] [3]
The algorithm is related to work by Pitteway and Van Aken.

The algorithm

This article may be confusing or unclear to readers. Please help us clarify the article;
suggestions may be found on the talk page. (February 2009)

The algorithm starts with the circle equation . For simplicity, assume the center of
the circle is at . We consider first only the first octant and draw a curve which starts at
point and proceeds counterclockwise, reaching the angle of 45.

The "fast" direction here (the basis vector with the greater increase in value) is the direction. The
algorithm always takes a step in the positive direction (upwards), and occasionally takes a step in
the "slow" direction (the negative direction).

From the circle equation we obtain the transformed equation , where is
computed only a single time during initialization.

Let the points on the circle be a sequence of coordinates of the vector to the point (in the usual basis).
Points are numbered according to the order in which they are drawn, with assigned to the
first point .

For each point, the following holds:

This can be rearranged as follows:

And likewise for the next point:

In general, it is true that:

So we refashion our next-point-equation into a recursive one by
substituting :

Because of the continuity of a circle and because the maxima along both
axes is the same, we know we will not be skipping x points as we advance
in the sequence. Usually we will stay on the same x coordinate, and
sometimes advance by one.

The resulting co-ordinate is then translated by adding the midpoint
coordinates. These frequent integer additions do not limit
the performance much, as we can spare those square (root) computations
in the inner loop in turn. Again, the zero in the transformed circle equation is
replaced by the error term.

The initialization of the error term is derived from an offset of ½ pixel at the
start. Until the intersection with the perpendicular line, this leads to an
accumulated value of in the error term, so that this value is used for
initialization.

The frequent computations of squares in the circle
equation, trigonometric expressions and square roots can again be avoided
by dissolving everything into single steps and using recursive computation
of the quadratic terms from the preceding iterations.

Below is an implementation of the Bresenham Algorithm for a full circle in
C. Here another variable for recursive computation of the quadratic terms is
used, which corresponds with the term above. It just has to be
increased by 2 from one step to the next:
void rasterCircle(int x0, int y0, int radius)
{
int f = 1 - radius;
int ddF_x = 1;
int ddF_y = -2 * radius;
int x = 0;
int y = radius;

setPixel(x0, y0 + radius);
setPixel(x0, y0 - radius);
setPixel(x0 + radius, y0);
setPixel(x0 - radius, y0);

while(x < y)
{
// ddF_x == 2 * x + 1;
// ddF_y == -2 * y;
// f == x*x + y*y - radius*radius + 2*x - y + 1;
if(f >= 0)
{
y--;
ddF_y += 2;
f += ddF_y;
}
x++;
ddF_x += 2;
f += ddF_x;
setPixel(x0 + x, y0 + y);
setPixel(x0 - x, y0 + y);
setPixel(x0 + x, y0 - y);
setPixel(x0 - x, y0 - y);
setPixel(x0 + y, y0 + x);
setPixel(x0 - y, y0 + x);
setPixel(x0 + y, y0 - x);
setPixel(x0 - y, y0 - x);
}
}
It is interesting to note that there is correlation between this algorithm and
the sum of first odd numbers, which this one basically does. That

is,

In summary, when we compare the sum of N odd numbers to
this algorithm we have:
ddF_y = -2 * radius is connected to last member
of sum of N odd numbers.
This member has index equal
to value of radius (integral).
Since odd number is 2*n + 1
there is 1 handled elsewhere
or it should be -2*radius - 1
ddF_x = 0 should be 1. Because
difference between two consecutive odd numbers is 2.
If so f += ddF_y + 1 is f+=
ddF_y. Saving one operation.
f = - radius + 1 Initial error equal to half
of "bigger" step.

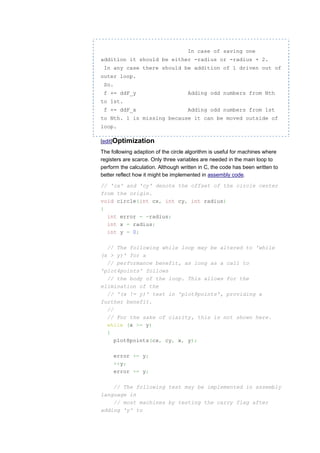

In case of saving one
addition it should be either -radius or -radius + 2.
In any case there should be addition of 1 driven out of
outer loop.
So.
f += ddF_y Adding odd numbers from Nth
to 1st.
f += ddF_x Adding odd numbers from 1st
to Nth. 1 is missing because it can be moved outside of
loop.

[edit]Optimization
The following adaption of the circle algorithm is useful for machines where
registers are scarce. Only three variables are needed in the main loop to
perform the calculation. Although written in C, the code has been written to
better reflect how it might be implemented in assembly code.

// 'cx' and 'cy' denote the offset of the circle center
from the origin.
void circle(int cx, int cy, int radius)
{
int error = -radius;
int x = radius;
int y = 0;

// The following while loop may be altered to 'while
(x > y)' for a
// performance benefit, as long as a call to
'plot4points' follows
// the body of the loop. This allows for the
elimination of the
// '(x != y)' test in 'plot8points', providing a
further benefit.
//
// For the sake of clarity, this is not shown here.
while (x >= y)
{
plot8points(cx, cy, x, y);

error += y;
++y;
error += y;

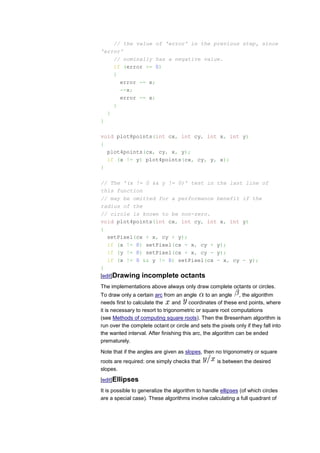

// The following test may be implemented in assembly
language in
// most machines by testing the carry flag after
adding 'y' to

// the value of 'error' in the previous step, since
'error'
// nominally has a negative value.
if (error >= 0)
{
error -= x;
--x;
error -= x;
}
}
}

void plot8points(int cx, int cy, int x, int y)
{
plot4points(cx, cy, x, y);
if (x != y) plot4points(cx, cy, y, x);
}

// The '(x != 0 && y != 0)' test in the last line of
this function
// may be omitted for a performance benefit if the
radius of the
// circle is known to be non-zero.
void plot4points(int cx, int cy, int x, int y)
{
setPixel(cx + x, cy + y);
if (x != 0) setPixel(cx - x, cy + y);
if (y != 0) setPixel(cx + x, cy - y);
if (x != 0 && y != 0) setPixel(cx - x, cy - y);
}
[edit]Drawing incomplete octants
The implementations above always only draw complete octants or circles.
To draw only a certain arc from an angle to an angle , the algorithm
needs first to calculate the and coordinates of these end points, where
it is necessary to resort to trigonometric or square root computations
(see Methods of computing square roots). Then the Bresenham algorithm is
run over the complete octant or circle and sets the pixels only if they fall into
the wanted interval. After finishing this arc, the algorithm can be ended
prematurely.

Note that if the angles are given as slopes, then no trigonometry or square
roots are required: one simply checks that is between the desired
slopes.

[edit]Ellipses
It is possible to generalize the algorithm to handle ellipses (of which circles

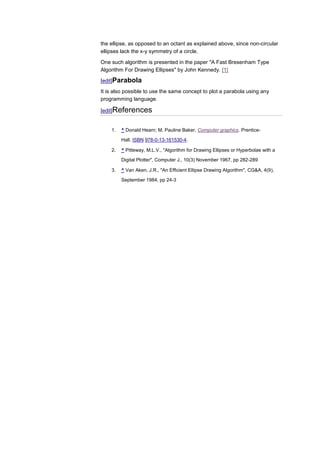

are a special case). These algorithms involve calculating a full quadrant of

the ellipse, as opposed to an octant as explained above, since non-circular
ellipses lack the x-y symmetry of a circle.

One such algorithm is presented in the paper "A Fast Bresenham Type
Algorithm For Drawing Ellipses" by John Kennedy. [1]

[edit]Parabola
It is also possible to use the same concept to plot a parabola using any
programming language.

[edit]References

1. ^ Donald Hearn; M. Pauline Baker. Computer graphics. Prentice-

Hall. ISBN 978-0-13-161530-4.

2. ^ Pitteway, M.L.V., "Algorithm for Drawing Ellipses or Hyperbolae with a

Digital Plotter", Computer J., 10(3) November 1967, pp 282-289

3. ^ Van Aken, J.R., "An Efficient Ellipse Drawing Algorithm", CG&A, 4(9),

September 1984, pp 24-3
