Responsys email design-coding_recommendations

Email Design & Coding
Recommendations
General guidelines for designing
HTML emails and coding HTML,
mobile and text emails

In the ever-shifting landscape of digital marketing, the needs
of consumers and the demands of the email channel evolve
frequently–and so must design and coding best practices.
This guide contains our most up-to-date recommendations
to help ensure your success in the design and coding of
emails for all screens. Follow these steps to increase the
chances that your emails will achieve high deliverability
rates, render properly and drive results.
Contents
Preheader text
Header & navigation bar
Email body
Recovery module
Footer
Social network sharing links
Social network community links
A note on preview pane optimization
Mobile-influenced design best practices
1
1
1
2
2
3
3
3
4
Getting started with mobile design
Knowing your subscribers’ opening behavior
Knowing your subscribers’ devices
Choosing your mobile email design strategy
Mobile-optimized email
Ways to optimize for mobile
Responsive email
Examples of how responsive email design can be utilized
Mobile-optimized landing pages
5

6

6

8
Significant considerations for coding HTML email
Establishing an effective process for email coding
Before coding
Reviewing assets after approval
Creating slices in Photoshop and exporting graphics
Coding
10
10

Standard email elements and basic HTML email design recommendations 1
Mobile design recommendations 5
Coding recommendations
A note on whether to include plain-text email 9
10
Responsys / Email Design & Coding Recommendations

Responsys / Email Design & Coding Recommendations
Render testing
A deeper look at coding particulars and top mistakes to avoid
Unsupported HTML features
Scripts, flash and embedded video
Cascading style sheets (CSS)
Unnecessary tags and code
Basic layout: Working with tables
Important considerations
Using outer tables to encapsulate content
Spacing: Padding, margin and spacer.gifs
Working with images
General notes on image formatting
Background images
Graphics: ALT attributes
Issues in Gmail and Hotmail
Graphics within <TD> Tags
Image maps & embedded links within images
Working with text & links
General tips
Using web-safe fonts
Using <BR> to achieve text breaks
Using hex values for color
Special characters
Links
Responsive email
External style sheet
Code structure
Testing

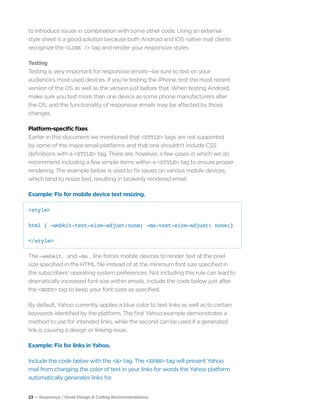

Platform-specific fixes
Coding for Outlook 2007, 2010 and 2013
Major issues to be aware of
Background images
Animated GIFs
Vertical expansion of <TD> tags
Limited support for CSS
Poor and sometimes unpredictable rendering behavior
Outlook.com’s larger default line-height
Testing: The final step before launching
Code validation
Render testing

12

13

17

19

21

23
24

27

Breaking the rules 28
About Responsys 29

1 — Responsys / Email Design & Coding Recommendations
Standard email elements and basic HTML
email design recommendations
This section describes the anatomy of the basic
marketing email and provides general design
optimization tips. Best practices for email design
leave room for diverse approaches, but the following
guidelines serve as an effective starting point.
Preheader text
We recommend including preheader text at the top of
every email. The preheader is composed of one line of
HTML text at the top of the email, above the header/logo
(in some situations, it may require two lines of copy, but
shorter is typically better). Keep in mind that this is the
first text that will appear in a subscriber’s preview pane.
Effective preheaders typically do the following:
— Summarize the email’s primary call-to-action and/or
build on the subject line.
— Include a link to the primary landing page.
— Include a “view with images” link so subscribers can
view a web-hosted version of the email.
Header & navigation bar
Place your logo on the left side of your header. It’s
important for branding and for recognition of your
emails.
Use HTML text for your navigation bar links. Consider
periodically changing the links included in your
navigation bar to feature topical items corresponding
with the target of a particular campaign (for example, the
best links to include with a sale message may differ from
the best links to include with an account management
message). It may make sense for your brand to place a
promotional link in the navigation bar, such as a graphical
element “breaking” the header. This serves as an extra
place to capture clicks from subscribers who may not
scroll to read the full email.
Email body
The “email body” conveys your primary and secondary
message(s). Most subscribers will spend only a few
“Innovations in the digital landscape
have created exciting email design
opportunities. While well-vetted best
practices inform our work, we should
always seek new approaches to test.”
– Wacarra Yeomans, Director of Creative
Services, Responsys
Preheader
Footer
Header
Navigation
Table of Contents
Primary Message
Secondary Message
Tertiary Message
Siderail
Recovery Module

seconds on your email, and the below moves can help you get the most from
their brief moments of attention:
— Establish clear content groupings and a messaging hierarchy by leveraging
color, size and other elements.
— Make your copy easy to skim by keeping it brief (four lines is a good rule-of-
thumb maximum), and consider using bullets to convey services or product
features quickly.
— Encourage scrolling with unique layout patterns and playful peeks.
— Use button treatment for primary calls-to-action (CTAs).
— Ensure text links use a web-safe font, stand out and look clickable.
— Leave space for expanding fonts; some email readers and platforms display
fonts larger than others.
— Focus on readability when selecting text and background colors and when
determining text size. Keep your body copy 13 point or larger and legal text
11 point or larger (like the text in the footer) so that you don’t lose readers
who might struggle to read small print.
— Use HTML text wherever possible.
— Design for a usable experience whether a subscriber has images on or off,
since most inboxes don’t load images by default.
Recovery module
Recovery modules are optional content blocks that appear toward the bottom
of emails. They generally contain several links to product categories, clearance
items, articles and other resources or points of interest for subscribers. Recovery
modules sometimes capture clicks from subscribers who haven’t found anything
of interest in the body of the email or who are looking for specific information.
Footer
The footer is the HTML text that appears at the bottom of the email (also
referred to as “legal text”).
— Include disclaimers for promotions included in the email, if applicable.
— Include an unsubscribe link. Use a subhead, bold text or different colored
text to make this link easy to find, preventing spam complaints. If you have
included an unsubscribe link in your preheader or header, we recommend
also including one in the footer because subscribers have been trained to
seek it there.
— Include other administrative links such as those to update preferences,
change email address and subscribe (for those who receive the email as a
forward). These links should appear before the unsubscribe link to prevent
those who would like to change their email address from unsubscribing and

then re-subscribing.
— Consider placing an “add to address book” link in the footer.
— Include your mailing address (street address or P.O. box).
— Include copyright information.
Social network sharing links
Share links allow subscribers to share your email—or portions of it—with their
friends and family members on social networks such as Facebook, Twitter,
Pinterest and Google+.
— Include links allowing subscribers to share your entire email as a permanent
fixture in your header.
— Include links to share specific elements of your email when appropriate (for
example, you might include “Pin It” functionality on a particularly engaging
photo to encourage sharing via Pinterest).
Social network community links
We recommend including links toward the bottom of your email inviting
subscribers to connect with your brand via social sites on which you have
a presence.
Consider grouping community links with mobile app, SMS subscription, blog
and RSS subscription links. These links work well together because they all
present ways for you and your customers to stay in touch.
A note on preview pane optimization
Most subscribers use preview panes to read their emails, limiting the visible area
of the email. Although preview pane sizes vary, thinking of the visible area as
a square with 320-pixel sides is a safe approach. The messaging in this space
deserves a high level of consideration; often subscribers decide whether to
engage more deeply with an email depending on whether the preview pane
interests them.
— Be mindful of the height of your preheader and header navigation bar
since these elements limit the amount of the email body that is visible in the
preview pane.
— Include your headline and primary call-to-action in the preview pane.

— Tease engaging content to encourage scrolling.
Mobile-influenced design best practices
Whether or not your company has made a conscious choice to target a mobile
audience, we now live in a multi-screen world: consumers read email on all kinds
of devices, so email needs to offer a positive experience on smartphones, tablets
and desktop screens. Because of this reality, the following best practices have
emerged for all email design.
— Avoid using long subject lines, which will push email content even farther
down an already-small mobile screen.
— Ensure that your most valuable content is within the top left 320-pixel area
of your email. Not only is this helpful for preview pane optimization as
described above, but some mobile devices don’t scale an email to fit the
width of the screen. Because of this, some viewers will only see the top left
corner of the email at 100% of its normal size.
— Make emails easy to scroll, encouraging rapid scanning while still conveying
key information. Check that text is legible, even when scaled down on a
smaller screen.
— Keep emails brief, allowing the landing page to tell a
more detailed story.
— Ensure that CTAs are easy to click by using large
buttons and links, adding padding between sections,
and designing entire sections to be clickable. When
pressed to a touch screen, the human finger requires
more space to click accurately than a mouse does.
Make sure that your CTAs are padded at least 10–15
pixels to avoid frustrating tap errors.
— Keep email file sizes small for quick load times at
any connection speed.

Mobile design recommendations
With mobile email readers composing a significant (and increasing) percentage
of many brands’ subscribers, it’s essential that design teams have the expertise
to deliver seamless mobile experiences. Reports continue to demonstrate that
mobile subscribers become less engaged when forced through an experience
that isn’t designed optimally for their device. Making choices about email design
for mobile requires you to develop an understanding of your subscriber behavior
and of the resources available for your brand to invest in mobile design.
Getting started with mobile design
Knowing your subscribers’ opening behavior
Get a breakdown of your subscribers’ behavior, including the percentage of your
subscriber base reading on mobile devices, and which type of mobile devices
and operating systems they’re using (you can get this information from Return
Path or Litmus). You may be surprised to find more opens coming from tablets
than phones, or from iOS than Android. Getting a solid grasp of your subscribers’
habits will allow you to invest in mobile optimization in a way that reaches the
largest possible audience.
Knowing your subscribers’ devices
While Android devices make up a larger share of the market, it currently looks
as though iPhone and other Apple iOS devices contribute to a larger share of
mobile opens. That said, it’s important to keep in mind that open metrics may
be skewed by the fact that many devices block images by default, while iOS
does not.
Google’s Android operating system is used on a variety of devices from
companies including Samsung, HTC, LG and Motorola. Because Android is open
source, manufacturers often customize it, which sometimes modifies the email
app in ways that lead to inconsistent rendering across devices. Windows Phone
and BlackBerry also present their own unique challenges.
It’s likely that the level of support for email across apps and operating systems
will continue to change; this is an area that calls for ongoing testing and
readjusting.
Choosing your mobile email design strategy
There are two primary approaches to designing in a way that prioritizes your
mobile audiences: mobile-optimized email and responsive email. Once you
understand your subscribers’ behavior and assess the time, energy and financial
resources your brand can commit to mobile design, you can select the most
appropriate approach, described below.

Mobile-optimized email
Mobile-optimized email is HTML email designed specifically for small mobile
devices that render designs at 320–480 pixels. This type of email still renders on
desktop screens, but it’s designed to fit small screens best. When most of your
subscribers open email from their smartphones and small tablets, it’s time to put
those customers first by delivering a mobile-targeted experience.
The drawback of mobile-optimized email is that it limits the experience you can
provide to your desktop readers: email designed to render on a small screen
looks small when opened from a desktop and doesn’t utilize all of the available
desktop screen real estate. Further, the narrowness of the design limits design
layout options.
Even so, mobile-optimized email delivers a positive experience for most
subscribers on mobile and desktop screens. It’s a solid strategy for mobilizing
your email program without significantly increasing the time or money invested
in the program.
Ways to optimize for mobile
— Keep mobile-optimized emails simple.
Use clear messaging and imagery that help convey the primary message.
Strip away non-essential elements. Mobile subscribers are often on-the-go or
engaged with other activities (watching television, chatting with friends, etc.).
Straightforward, uncluttered messaging is the most effective way to get these
subscribers to act.
— Lighten your email file sizes.
This will increase the chance that they will render effectively on mobile
devices. Some mobile email clients will require an additional button-press to
download the rest of the email when file weight is too big. The optimal email
weight for mobile is 20K or less, and while that weight may not be realistic
for some marketers, the more you can slim down the file weight the better.
Mobile Internet speeds, while sometimes quite fast, are inconsistent and often
dependent on a subscriber’s location. It’s also worth noting that subscribers
pay per megabyte when downloading content, so sending lighter files shows
respect for your customers.
Responsive email
An email coded responsively and designed upon a flexible framework will
automatically adapt its layout to better fit the customer’s current screen size,
no click required.

Responsive email is composed of one HTML file that uses CSS media queries to
listen for a device’s screen width. Copy and imagery can be wrapped, hidden,
resized or optimized when the layout reaches a specified width. In order for this
to happen, the mobile email app must recognize the responsive media queries,
which the native email apps on iOS, Android and some newer BlackBerry
devices currently do.
The majority of Windows Phones do not support responsive media queries,
although future updates may include support. When a responsive email is
opened on a device that does not recognize the media queries, the email simply
opens as any other basic HTML email would on a mobile screen.
Responsive email is a bit more difficult to design and code than mobile-
optimized email, requiring a higher initial investment. However, it results in a
better user experience than other approaches and has been shown to facilitate
higher click-through conversion when aligned with the right audience.
Examples of how responsive email design can be utilized
— Wrap elements.
Wrapping elements lets your email design reflow to fit
within a mobile screen. When designing elements to
wrap, think in terms of the grid structure for both the
mobile and desktop versions: for example, the Apple
iPhone has a screen width of 320 pixels, so if the desktop
version of an email is designed to be 640 pixels wide
and divisible into two columns, elements can wrap
without the need to scale.
— Hide elements.
Sometimes, images take too long to load on mobile
devices or make your email too long for mobile
customers. Responsive design allows you to hide images
and other elements, streamlining the experience for the
mobile reader. The responsive email can hide an entire
text block or text within a block.
— Adjust elements.
Many elements can change across versions to deliver an optimal mobile
experience. Elements that can change include font size, color, family, weight,

decoration, style, variant, line-height, margin, padding and many more.
— Optimize images.
In addition to hiding them, images can be manipulated to look great on any
device. If an email’s hero image is too wide for a small screen, it’s easy to
swap the image out for one that is specifically cropped to fit a mobile screen.
The email’s images can also be resized, hidden or cropped by hiding slices.
Further, if an image looks blurry, you can “sharpen” it by saving the image at
double the size and shrinking it to fit the layout.
Below is an at-a-glance picture of what can be done within responsive design:
Mobile-optimized landing pages
Without a web experience designed for their needs, customers might disengage
before converting. After you’ve invested time and thought delivering email that
renders effectively on mobile devices, complete the experience with a mobile-
optimized landing.
— Make it easy for users to find what they originally clicked on in the email.
— Utilize alternatives to Flash, such as HTML5, CSS3 and JavaScript.
— Be clever with the use of space by embracing accordions, carousels,
modals, drop downs, tabs, etc.
— Make the checkout process as quick and easy as possible. Minimize the
number of form fields and investigate simple solutions.
— Optimize pages for speed and reduce files size—fast load times are critical to
keeping customers from disengaging.
— Optimize your landing page widths to be more mobile-friendly.
— Keep landing page copy brief. Save the more expansive details for another
page deeper on your site.
— Remember that for touch screen users, there is no hover-state for links;
if they touch, they click.
Change style
Font size
Font color
Font family
Font weight
Font decoration
Font style
Font variant
Line height
Margin/padding
Change position
Move text
Move image
Move container
Change visibility
Hide text
Hide image slice
Hide bg image
Hide container
Change content
Swap url
Swap text element
Swap bg image
Change size
“Chop” image
Scale image
Scale container
Scale html element

A note on whether to include plain-text email
In most cases, we recommend that email marketers no longer include plain or
rich text versions of email creative along with their HTML versions.
In the past, Internet Service Providers’ (ISPs) formatting requirements demanded
a text creative version. However, the growing sophistication of smartphones and
the evolution of ISP infrastructure have eliminated this need.
While HTML content may not render properly for recipients who have images
blocked (and also might not render well on some older devices), including
a link to a web version of the creative in the email preheader is sufficient to
address this concern. Mailing a plain text version along with HTML creative has a
negligible effect on deliverability—only a very small percentage of users would
view a text version.
Our exception to this recommendation applies to marketers targeting IT
professionals, to whom we recommend sending both HTML and plain text
versions. This particular audience has a higher propensity to request, read and
engage with text-only emails.

Coding recommendations
The last thing any hardworking email marketing team wants is for a technical
oversight to negatively impact the subscriber experience. This section details
today’s email coding best practices to help ensure that your HTML emails render
properly for the widest array of email clients.
Despite the simplicity of the final product delivered to the inbox in email
marketing—a single HTML file with no interactive components—coding for email
is a challenging discipline that requires highly specialized skills and industry
knowledge, which often differ from the coding skills and knowledge required for
web development.
The primary challenge in coding email-friendly HTML involves the number of
platforms developers must contend with. In regular web development, one must
code for different web browsers and operating system platforms. Browsers
and platforms must still be considered when coding for the email channel, but
the more crucial consideration is how different webmail clients (such as Yahoo,
Gmail, Hotmail and AOL) and desktop email clients (such as Outlook 2007 and
2010) interpret and render coded HTML.
Significant considerations for coding HTML email
— Suppression of images in the inbox environment is commonplace.
— Support for standard CSS positioning is inconsistent amongst email platforms.
— Using table-based code is essential for achieving consistent and accurate
email rendering.
— Some web-based email platforms (notably Gmail) strip out <STYLE> tags
and/or anything in the <HEAD> section of an HTML file.
— There is inconsistent support for standard interactive features of web
development including:
• JavaScript
• Flash
• Embedded video
• Forms
— There are more platforms to be concerned with than in regular web
development, and many of them are frequently updated without notice.
Working with a multitude of platforms means more opportunities for
mistakes. What looks fine in one platform may look terrible in another.
Establishing an effective process for email coding
Following a consistent end-to-end process from design hand-off to coding to
testing will help your team ensure the best results and establish a framework for
repeatable success.
“Attention to detail is
critical when coding.
All the best practices
in the world aren’t
going to save you
if you approach
coding haphazardly,
only following
the technical
requirements without
respecting any sort of
nuance or situational
awareness.”
– Tim Muir, Email and
Web Development
Manager, Responsys

Before coding
We recommend standardizing your design team on Photoshop, the tool of
choice for web and email designers. Photoshop is the industry standard for
working with graphics files, making it easy to share assets with both internal and
external resources.
Establish a standard system for reviewing multiple-version emails. If design
modules will change between versions, you’ll make a choice about whether to
have the modules embedded side by side in the PSD or to use layer comps to
switch from one version to the next with a click. It’s essential that all teams are
aware of how versioning is being portrayed.
When going through creative reviews, it’s best for email coders to get involved
before final approval of the design, particularly when the team creates
responsive email. When working on a responsive email, it’s helpful to draw the
table structure for the desktop version and check that it can be used to create
the responsive version of the email. Keep in mind that if there is something in
the responsive version, it MUST have some sort of code representation in the
desktop version that can be manipulated to display the responsive version. If
the desktop version can’t support the responsive version, collaborate with the
design team around responsive email limitations and see what can be done to
come up with a design that supports both desktop and responsive elements.
Reviewing assets after approval
As you prepare to slice and export images from the Photoshop file, review the
design to identify which areas will be clickable, and determine which items
will be HTML text (system fonts such as Arial, Verdana, etc.) and which will be
graphical.
Creating slices in Photoshop and exporting graphics
Make sure to use a consistent naming convention for image files (i.e., “title_main.
gif” for the main title text). Although this can be cumbersome, it is helpful
when making templates that will be reused. When naming images, try not to
use words that may trigger browser-installed ad block programs. Some such
keywords in particular include: ad, promotion, banner.
Coding
Focus on clean, organized code to avoid render errors and make it easier to
share files with other teammates. Because DIV- and CSS-based layouts are not
supported by many email clients, you will need to use tables in your HTML. The
bulk of the rest of this document will provide tips and considerations for coding
your emails.

Render testing
While there are great tools for previewing your emails across multiple platforms
at once, nothing beats manually reviewing your campaigns on the major email
platforms, on browsers and on your target audience’s favorite devices.
A deeper look at coding particulars and top mistakes to avoid
The following pages offer a deeper look at coding support and specifics across
the major email environments.
Unsupported HTML features
Several common HTML features used on the web are not supported in email
environments.
Scripts, Flash and Embedded Video
Some email clients still disable interactive JavaScript and other scripting
elements within HTML email, often categorizing emails containing scripts as
spam. Because of this, JavaScript (and any other scripting language) should be
used cautiously and tested with segmented lists.
Cascading style sheets (CSS)
Externally linked CSS files—and anything else in the <HEAD> section of an HTML
document—are commonly stripped out by email client platforms. In addition,
CSS class definitions in <STYLE> tags are not well supported by all email clients,
most notably Gmail. For non-responsive emails, styling code should be included
inline within HTML elements instead of in external files or <STYLE> tags. For
responsive emails, external CSS files are recommended as webmail email clients
don’t recognize or render the code in the externally linked CSS.
If you are interested in experimenting with styling properties and attributes,
Campaign Monitor has a list of styles and their support across different browsers
and environments. It is updated with relative frequency and can be found here:
http://www.campaignmonitor.com/css/.
Unnecessary tags and code
To keep the file size to a minimum and for more readable and maintainable
code, always try to eliminate as many tags and attributes as possible. Here are
some items that aren’t necessary:
META And other tags commonly included in the <HEAD>
section will not be recognized in webmail clients
BORDER=“0” Not required in <TABLE> tags
VALIGN Only required when overwriting the default

<TBODY> and <TH> Never required
NOWRAP Not required (and causes display problems in some
email clients)
At the time of writing, Gmail and Yahoo both truncate emails over a certain
character count, 102k characters and 100k characters respectively. They do
provide a link that allows a user to view the full email, but the initial email may
look broken in the inbox environment. This makes it all the more important to
make sure your code is not bloated with unnecessary tags.
Basic layout: working with tables
Because we cannot use the most recent HTML and CSS standards for laying out
the design of an email, we invariably rely on tables in combination with inline
styling to position and style elements.
Important considerations
— Utilize nested tables to create the desired combination of rows and columns
for the layout of the email.
— Specify widths accurately in <TABLE> and <TD> tags when positioning
elements. Multiple columns should also add up correctly to the overall table
width.
— Set CELLPADDING and CELLSPACING to “0” and specify a WIDTH value.
Do not use any BORDER attribute other than “0”; Entourage and Gmail
have spotty support for border values on tables.
— Always ensure the WIDTH of the table is equal to the sum of the <TD> tags
contained within the table; Outlook 2007, Internet Explorer 6 and Safari are all
unforgiving of discrepancies between <TABLE> and <TD> WIDTH sums.
— Use COLSPAN and ROWSPAN with care. While they are great assets in table
layouts, if your rows and columns are not accurately represented within the
COLSPAN and ROWSPAN your email layout will break. The Outlook platform
is the most sensitive to inaccurate COL- and ROWSPANS.
— Ensure that COLSPAN and ROWSPAN values match exactly with the sum total of
columns being merged.
• For example, if there are only three TDs in a row, but a COLSPAN value
of 4 is specified, Outlook 2007 will insert additional space into the table
for the “fourth” column, which will throw off your table layout (the same
holds true for ROWSPAN if you specify a value greater than the number of
actual rows).
Using outer tables to encapsulate content
To make sure the design aligns correctly and to catch any unclosed table
elements, an outer table should be used to enclose the entire HTML design.

(NOTE: One caveat around this is that Outlook 2007+ automatically inserts page
breaks into HTML elements that are over 1800 pixels in length. The appearance
of this error is hard to track because it shows itself in several forms; for example,
as a half-loaded image, a large space between email sections or sometimes just
an extra 10 pixels in your preheader. When in doubt, turn your email into smaller
chunks for testing, or remove sections to make the email shorter.)
Example: Container table
The outer table in this example ensures the design is left aligned, and that
everything within has a white background. It also encloses the rest of the design
so that any broken/unclosed table elements won’t spill over into the email
browser window.
<BODY>
<TABLE CELLPADDING=“0” CELLSPACING=“0” WIDTH=“600”
BGCOLOR=“#FFFFFF”>
<TR><TD ALIGN=“LEFT”>


</TD></TR>
</TABLE>
</BODY>
Spacing: Padding, margin and spacer.gifs
Spacing is complicated to get right across email platforms due to inconsistent
implementation of the padding and margin properties. In early 2013,
Outlook.com (formerly Hotmail) began stripping margins from email code.
As a result, to achieve the desired spacing in email, you should use the padding
property to achieve horizontal spacing. Because padding top and bottom
are poorly supported, we recommend using <BR /> tags for vertical spacing
between text if possible. If that’s not possible because spacing can’t be achieved
through line breaks, we recommend using empty tables for vertical spacing.
<DIV> tags are extremely helpful when creating space around text, as the <P>
tag has inconsistent support across email environments. <DIV>s should be used

within a <TD> tag. A few things to take note of:
— Don’t use any margin property as it is not supported in Outlook.com. Plan the
structure of the code with this in mind.
— Use padding on the <DIV> tag, not the <TD>.
— Be careful to close <DIV> tags correctly, as incorrect closing will cause
dramatic rendering issues in Gmail.
One thing that complicates matters further is that the Outlook platform doesn’t
support padding but does support margins. The recommended way to achieve
your spacing in the Outlook platform is to specifically use MSO (Microsoft
Office) styles to apply padding in Outlook. These styles are embedded in HTML
comment tags and are not recognized by any environment other than Microsoft
Office. If you go this route, make sure that the tool you use to send email does
not remove your comments. Microsoft Office doesn’t apply multiple classes
to an element, so you cannot stack multiple classes (class=“className1
className2”) on elements as you would in regular web development. The
example below shows the use of classes to achieve spacing in Microsoft Outlook.
Example: Using MSO-specific styles to achieve horizontal spacing around text:
<body>

<div style=“font-family:Arial, verdana, sans-serif;font-
size:13px;line-height:18px;color:#333333; padding-left:15px;
padding-right:15px;” class=“mm1”>Padding left and padding right
example.</div>

size:13px;line-height:18px;color:#333333; padding-left:15px; “
class=”ml15”>Padding left example.</div>
size:13px;line-height:18px;color:#333333; padding-right:15px;”
class=“mr15”>Padding right example.</div>
</body>
You can also achieve spacing using extra <TD>s to provide horizontal spacing,
but the method presented above is better because it keeps character counts
lower and keeps code more readable.
Example of vertical spacing between text
<div style= “font-family:Arial, verdana, sans-serif;font-
size:13px;line-height:18px;color:#333333; padding-left:15px;”
class=“ml15”>Padding left example.</div>
<table cellspacing=“0” cellpadding=“0”><tr><td height=“10”></
td></tr></table>
size:13px;line-height:18px;color:#333333; padding-right:15px;”
class=“mr15”>Padding right example.</div>
Outlook 2013 has introduced a new bug for email coders to consider. When
creating a <TD> that is less than 19 pixels, the <TD> will expand to be 19 pixels tall.
To avoid this, you can put a spacer gif in your <TD>. Also be sure to set both the
height and line height on the <TD>.
Example: Creating a <TD> shorter than 19 pixels.
<tr><td height=“1” bgcolor=“#dc6a2b” style=“line-
height:1px;”><img src=“images/sp.gif” height=“1” width=“1”
style=“display:block;” /></td></tr>
Example: Creating space around text and an image. Note how the width of
the <TD> containing the image is equal to the padding and the image width
combined.
<td align=“left”>
<div style=“line-height:18px; padding-left:10px;”>

It’s tricky to keep up with constantly changing airfares...
</div>
</td>
<td width=“310”><div style=“padding-left:10px;”><img src= ”image/img.
gif”“width=“300” height=“176” style=“display:block;” /></div></td>
Due to the Outlook’s poor support of padding and Outlook.com’s removal of
margins, we don’t recommend using either the margin or padding properties on
a <TD>.
Working with images
Background images, alt attributes and images in Gmail and Hotmail are areas of
concern.
General notes on image formatting
— GIF format is best for simple line art and purely graphical elements.
— JPEG format is best for rich, multi-layered and photographic elements.
Images exported in JPEG format should normally be optimized at 60%
quality, though in some rare cases you may need to increase the quality to
as much as 75% to reduce aliasing artifacts.
— PNG format is best for high-quality transparency and transparency on a
non-white background. Be careful, though, as it also has the highest footprint
of the image family.
Background images
Because not all email platforms support the BACKGROUND property—most notably
Outlook—care should be taken when using background images. Be sure to include
a matching BGCOLOR value whenever using a background image so that any text
overlaid on the section will still display for users without background images and/
or with images disabled. It is actually possible to mimic background images in
Outlook by layering text elements over image elements using vector elements.
The website http://emailbg.net/ has a tool that generates code to insert into your
email. It may take a little adjusting to get the text positioned just so, but is a very
helpful resource.

Graphics: ALT attributes
Always use the ALT attribute on any <IMG> tags that include text. The ALT
attribute should match the contents of the image, but not be overly long. In the
case of long sentences or paragraphs, ellipses can be used to indicate that there
is more text (and encourage users to enable images).
Example: ALT text for graphical paragraphs.
In this example, the coder added an ellipsis at a
logical breaking point. The ALT text should read:
“Inspired by the glamour and sophistication of
New York apartment style…”
Issues in Gmail and Hotmail
Images need to be displayed as block level items to ensure proper rendering in
Gmail and Hotmail for users viewing with Firefox, Chrome and Safari. Simply add
style=“display:block;” to each image.
<img src=“images /image.gif” width=“150” height=“30”
style=“display:block;”>
For images inline with text (for example, arrow images next to text links) you
should include style=“display: inline;” instead of display:block;.
<a href=“http://example.com”>Here is a link with an inline
arrow at the end <img src=“arrow.gif” width=“10” height=“12”
style=“display:inline; border:0;”></a>
Graphics within <TD> tags
There are two things to be aware of when an <IMG> tag is contained within a
<TD> tag:
(1) If the image is shorter than 19 pixels, you need to specify the height and
line-height <TD> tag as well as in the image tag.
<tr><td width=“30”height=“5” style=”line-height:5px;”><img
src=“banner.jpg” width=“30” height=“5” /></td></tr>
(2) If an <IMG> tag is the last or only element within a <TD> tag, the closing </
TD> tag should immediately follow the <IMG> tag with no spaces or breaks. This
is because some browsers will interpret any space (space character, tab, enter,
etc.) as a desired space, which results in a gap after the image.
<tr><td width=“250”><img src=“images/hero.jpg” width=“250”

height=“125” /></td></tr>
Image maps & embedded links within images
Image maps are not supported by all email platforms. For links embedded within
a larger image, the image should be sliced in Photoshop so that the linkable area
is a separate image file that can be coded with an anchor link in the HTML file.
(1) Determine image before slicing. The text “wshome.com” should be a link,
but the rest of the paragraph should not.
(2) The image is sliced into multiple files that will be coded in a table. The image
outlined in yellow will be coded with an anchor link enclosing the image.
Before going this route, it may be good to discuss with your employer or client
the benefits of linking the entire image, which results in a larger clickable area.
Working with text & links
General tips
— Define font size in pixels, not points. Pixel is the Web standard because it is
relative to screen resolution. Points are absolute length, and different browsers
and platforms may display these values differently. When scaled up or down,
pixels may look worse than EMs (another relative unit that depends on
user browser settings). As images are also displayed in pixels, it makes more
sense to keep the font size relative to the size of the images being used in the
email design, and pixels are the preferred font unit for HTML email.
— Use the line-height style attribute to match line spacing to the design file.
— Use one or two different font types maximum, and provide a sufficient list
of alternate fonts in your inline style declaration specification for a given
piece of copy. The fonts should be listed in terms of: desired, acceptable or
generic type (e.g. Arial, Verdana, Sans-serif).
— Don’tusevariantsoftheCSSshorthand“font”notation(i.e.“font: 12px arial;”).
The font-family, size, color and line height should all be specified separately,
similar to the example below. Gmail in particular has issues properly parsing
shorthand font notation.
<div style=“font-family:Arial, Verdana, sans-serif;font-
size:12px; line-height:17px;color:#000000;”> … </div>
Using web-safe fonts
For serif fonts use Georgia, Times or Times New Roman. For sans-serif fonts use
Arial, Verdana or Tahoma.

Using <BR> to achieve text breaks
Be cautious when using the <BR> tag to force manual breaks in blocks of text.
Some email clients, such as Outlook 2007 and the iPhone, render leading and
font sizes larger than normal and may wrap text before the manual line breaks as
in the example below. It is best to let text wrap based on the container it’s placed
in whenever possible.
Code:
Here is some text that has manual <BR /> line breaks added to it. This may not
look <BR /> as nice on an iPhone.
Using hex values for color
Don’t define colors using shortcut words (i.e., COLOR=“RED”); always
use the hexadecimal value as specified in the final creative file (i.e.,
COLOR=“#bb0000”).
Example: HTML text usage.
In the example below, a combination of standard font and style attributes are
used for the best results across multiple email browsers.
<td align=“left”>
<div style=“font-family: Arial,Verdana; font-size: 11px; color:
#333333; line-height: 15px;”>
Here is some example text that is being given the proper
Style treatment.
</div> </td>
Web-based email client
Here is some text that has manual
line breaks added to it. This may not
look as nice on an iPhone.
iPhone
Here is some text that
has manual
line breaks
added to it. This may
not
look as nice on an
iPhone.

Special characters
Special text characters should always use the proper HTML escape codes to
ensure recipients on all platforms are able to view the text properly. For example,
the character é should be coded using the HTML escape code é. For
apostrophes, use the single quote escape code ’. Other escape codes
can be found by searching online for “HTML Escape Codes.”
Links
With hyperlinks, keep in mind that many web-based email providers and
client email programs have their own parsing engines and have widely varying
methods for displaying text hyperlinks. Such parsing engines will typically apply
their own styling to text hyperlinks, which often clash with the creative design of
the EDM. A combination of anchor tags with style attributes provides the best
results across a wide variety of email services (see example below).
Other considerations with hyperlinks
— Do not include commencing and ending spaces.
— Do not include commas, periods and other punctuation within hyperlinks.
— Always include http:// at the beginning of web addresses.
— Do not use dotted decimal addresses (e.g., 94.31.231.18) in like URLs because
many email clients may categorize the email as spam.
Example: Hyperlink formatting.
Inline style attributes are used for the best results across multiple email browsers.
For best results <a href=“http://www.example.com” style=“font-
family:Verdana; font-size: 11px; color: #333333; text-decoration:
underline”>click here</a>.
Responsive email
When coding responsive emails, simpler is better. Changing the order of
modules is hard, and it makes the email prone to breaking. An example of
changing the order is going from having the structure hero module, secondary
module A, secondary module B in the non-responsive design to having the
structure secondary module A (as a banner), the hero, secondary module B. It’s
best to keep elements showing up in the responsive version in the same order
as they appear in the non-responsive version, left to right and top to bottom.
This may seem limiting, but there are different ways to structure code based on
the responsive outcome, so it’s best to examine both designs in detail before
beginning code.

Code structure
When you’re coding an email, keep in mind that the HTML for both the non-
responsive and responsive version is in one file. When you make the non-
responsive email, it needs to have the necessary elements and code structure
for the responsive version. When starting out, it’s often a good idea to draw out
your table structure on the email and write out how it will transform from the
non-responsive to the responsive version of the email.
Make your classes as reusable as possible. That is, avoid creating classes
for specific elements, where class=“image1” .image1{ width:200px
!important; height:150px !important;}. Instead, create one class per
style that you want to apply. This makes the classes easily reusable on another
element. It can be helpful to break the CSS into sections—a height section, a
width section, a fonts section, a margin section, etc.—and to alphabetize your
classes within that section.
When your code is well-organized, classes will be easily found, ensuring that you
don’t have duplicate classes in your code.
@media screen and (max-width: 600px){
/* generals */
*[class].block{ display:block !important; }
*[class].hide{ display:none !important; }
/* height */
*[class].h5{ height:5px !important; }
*[class].10{ height:10px !important; }
}
External style sheet
We recommend using external style sheets to contain your CSS. Some webmail
clients, such as AOL and Outlook.com, have begun to render responsive styles.
Advancement of email platforms is to be applauded, but it turns out that
Internet Explorer 9 can’t apply the display:block; style to a <TD>, which
results in a broken rendering when the responsive styles trigger there. There are
some fixes regarding this involving the use of the float property, but that tends

to introduce issues in combination with some other code. Using an external
style sheet is a good solution because both Android and iOS native mail clients
recognize the <LINK /> tag and render your responsive styles.
Testing
Testing is very important for responsive emails—be sure to test on your
audience’s most used devices. If you’re testing the iPhone, test the most recent
version of the OS as well as the version just before that. When testing Android,
make sure you test more than one device as some phone manufacturers alter
the OS, and the functionality of responsive emails may be affected by those
changes.
Platform-specific fixes
Earlier in this document we mentioned that <STYLE> tags are not supported
by some of the major email platforms and that one shouldn’t include CSS
definitions with a <STYLE> tag. There are, however, a few cases in which we do
recommend including a few simple items within a <STYLE> tag to ensure proper
rendering. The example below is used to fix issues on various mobile devices,
which tend to resize text, resulting in brokenly rendered email.
Example: Fix for mobile device text resizing.
<style>
html { -webkit-text-size-adjust:none; -ms-text-size-adjust: none;}
</style>
The –webkit… and -ms… line forces mobile devices to render text at the pixel
size specified in the HTML file instead of at the minimum font size specified in
the subscribers’ operating system preferences. Not including this rule can lead to
dramatically increased font size within emails. Include the code below just after
the <BODY> tag to keep your font sizes as specified.
By default, Yahoo currently applies a blue color to text links as well as to certain
keywords identified by the platform. The first Yahoo example demonstrates a
method to use for intended links, while the second can be used if a generated
link is causing a design or linking issue.
Example: Fix for links in Yahoo.
Include the code below with the <A> tag. The <SPAN> tag will prevent Yahoo
mail from changing the color of text in your links for words the Yahoo platform
automatically generates links for.

For best results <a href=“http://www.example.com” style=“font-family:
Verdana;
font-size: 11px; color: #333333; text-decoration: underline”><span
style=“color:
#333333;”>click here</span></a>.
Example: Fix for links generated by Yahoo.
If a word is being targeted by the Yahoo platform, the following fix can be
applied after testing to maintain the intention of the text. Include the <A>
tag, but leave out the HREF. We recommend applying this method only when
necessary.
Buy our <a style=“font-family: Verdana; font-size: 11px;
color: #333333; text-decoration: none;”><span style=“color:
#333333;”>lawn chairs</span></a> by clicking <a href=“http://
www.example.com” style=“font-family: Verdana; font-size: 11px;
color: #333333; text-decoration: none;”><span style=“color:
#333333;”>here</span></a>.
Coding for Outlook 2007, 2010 and 2013
Microsoft Outlook 2007, 2010 and 2013 warrant special attention due to their
poor support for standard HTML and CSS features, coupled with Outlook’s wide
adoption rate. More than 40% of business email users use Outlook 2007+, and
the number will only increase in coming years. Outlook 2013 has recently been
released and has been confirmed to have the same flaws as its predecessor.
Major issues to be aware of:
— It offers no support for background images.
— It offers no support for animated GIFs.
— It offers limited support for CSS.
— It provides unpredictable rendering behavior.
Background images
Background images are not easily supported on the platform, creating a conflict
between using HTML text—which usually leads to higher click-through and
conversion—and achieving optimal design that will look the same across email
platforms.
We recommend striving for a balance. In most cases, it’s important to use HTML
text when possible, but it’s just as important to ensure the final coded files will

still look attractive when they reach the inbox in Outlook 2007+.
Example: Background image with BGCOLOR.
Try to limit the sections of HTML files that rely on background images. When
you do use background images, always include a BGCOLOR value that closely
matches the image so that the design will not have a glaring white block where
the background image should be.
<td height=“23” bgcolor=“#cde9ff” background=“images/111009_nbg.jpg”>
As stated above, it is possible to mimic background images in the Outlook
platform by using vector elements to layer text over images, and the website
http://emailbg.net/ has a tool that generates code to insert into your email.
Please note, you cannot nest a table that uses this background image method
within another table already using that same method.
Animated GIFs
Animated GIFs do not rotate in Outlook 2007+. In these platforms, only the first
frame of the animation displays, in essence making the GIF a non-animated file.
If you are using an animated GIF in your message, be sure that the first frame
can stand on its own. For example, don’t start an animated GIF with a fade-in
from a solid color.
Vertical expansion of <TD> tags
Outlook 2007 and 2010 expand <TD> tags that are under 19 pixels in height to
be 19 pixels tall. In the past, the way to avoid this behavior was to add a height to
the <TD>. Outlook 2013 has complicated matters, and that fix no longer works.
There are two fixes available that work, although one doesn’t work on 1-pixel tall
<TD>s.
This example works on <TD>s from 2 to 19 pixels in height and doesn’t use as
much code as the second fix. Unfortunately, it doesn’t work on <TD>s that are 1
pixel in height in Outlook 2010.
<table cellspacing=“0” cellpadding=“0”><tr><td height=“17”
style=“font-size:17px; line-height:17px;”> </td></tr></table>
This works on all <TD>s under 19 pixels.
style=“height:12px; line-height:12px;”><img src=“images/spcr.gif”
width=“1” height=“1” style=“display:block;” border=“0”></td></tr></table>

Limited support for CSS
Caution should be used when using CSS properties in Outlook 2007. Positioning
properties such as padding and margin can be particularly problematic. A few
do’s and don’ts to keep in mind:
— The margin-top property rarely works correctly, so avoid using it in your code.
— Padding-top will always be applied to any <TD> tags within a single row, even
when specified in only one of the <TD> tags. Avoid using padding on <TD>
cells. Instead, using spacer tables if you need to achieve spacing.
Example: Applying top spacing in Outlook.
<tr>
<td width=“200”>
style=“font-size:10px; line-height:10px;”> </td></tr></
table>
This text has 10 pixels of space before it starts</td>
</td>
<td width=“200”>This text doesn’t need top padding</td>
</tr>
Poor and sometimes unpredictable rendering behavior
As described above, be cautious when using the ROWSPAN and COLSPAN
attributes. For example if you specify a larger ROWSPAN value than there are rows
in your table, Outlook 2007 will make your total table taller than it would have
been if you had used the correct ROWSPAN.
Be careful of very long emails (over 1,800 pixels). Due to Outlook’s dependency
on the Word rendering engine and its page-break feature, it will create gaps
in sections of the code around the 1,800-pixel mark. Depending on the coding
context, the issue can sometimes be resolved, and sometimes it can’t be
resolved without completely recoding the HTML file from scratch.
Outlook.com’s larger default line-height
For the past few years, Hotmail.com/Outlook.com have been applying a

line-height of over 100% to emails. This results in increased spacing around
text in emails. To avoid it, we recommend using the following style, which targets
the Outlook.com email code and resets the line-height to 100%.
<style type=“text/css”>
.ExternalClass *{line-height:100%; }
</style>
Testing: The final step before launching
While not the most time-intensive step, testing is arguably the most important.
We’ve discussed above how the major email platforms all have different HTML
rendering engines, creating more complex coding challenges for email than for
regular web development. In addition, the major web-based email platforms are
constantly rolling out modifications to their systems unannounced, and these
changes often have an impact on how messages will be rendered. Because of
this, even if you are using a template that does not change, it’s important to test
your messages on an ongoing basis.
Code validation
Make sure all your HTML code has been validated and ensure that no nesting
errors are present. Improper tag closing will cause rendering errors in many
email clients. Most HTML editors such as Dreamweaver include built-in HTML
validation capabilities. We recommend validating against the XHTML 1.0
Transitional standards.
Render testing
While there are great tools for previewing your emails across multiple platforms,
nothing beats manually reviewing your campaigns on the major email platforms.
Responsys recommends sending test messages to the major web-based email
clients (Yahoo, Gmail, Outlook.com and AOL) as well as reviewing how the
message renders in Outlook. Make sure to check in Firefox, Chrome and Internet
Explorer 8+. If you have the ability to check both PC and Mac platforms across
a variety of browsers, that’s even better. If your audience uses mobile devices to
open your emails, try and find out what devices are the most common and test
your emails on those devices as well.

Breaking the rules
The best practices described above are some of the safest and most reliable
techniques for designing and coding your email messages, but you may find
success when ignoring a few of them. In fact, constant experimentation is
good—and often necessary—to tackling new problems and making sure any
email you send can render in the inbox. When using a questionable or new
practice, test it first to determine how your list responds. If the data, sales or
responses you receive outweigh the potential functionality issues, proceed with
caution and enjoy your success.

About Responsys
Responsys is a leading marketing cloud software and services company.
Our mission is to enable the smartest marketing in the digital world. The
most respected brands across the globe use the Responsys Interact
Marketing Cloud to manage their digital relationships and deliver the
right marketing to their customers across email, mobile, social, display
and the web. Our customers gain competitive advantage through the
automation, individualization, and coordination of cross-channel marketing
interactions at massive scale. Founded in 1998, Responsys is headquartered
in San Bruno, California and has offices throughout the world. For more
information about Responsys, visit responsys.com.

Responsys email design-coding_recommendations

More Related Content

What's hot (19)

Similar to Responsys email design-coding_recommendations (20)

Recently uploaded (20)

Responsys email design-coding_recommendations
