Reverse engineering – debugging fundamentals

Reverse Engineering
– Debugging Fundamentals
The debugger concept and purpose is to test and
troubleshoot another written program. Whether the debugger
is a simple script, tool or a more complex computer program
the idea is to utilize it in order see and verify the functionality
of the “target” program / application in such a form that one
can see and understand via the debugger what is happening
while the “target” program / application runs and especially
when it stops.
The “target” program’s / application’s code
that is examined (by the debugger) might al-ternatively
be running on an Instruction Set
Simulator (ISS). The ISS is a certain form of tech-nique
that gives the ability to halt when specific
conditions are encountered but which will typically
be somewhat slower than executing the code di-rectly
on the appropriate (or the same) processor.
When the “target” program / application reach-es
a running condition or when the program can-not
normally continue due to a programming bug
(what is commonly known as a “crash”) the debug-ger
typically shows the location in the original code
whether it is a source-level debugger (which gives
the line or expression within the source code that
resulted from the debugger’s actions.) or symbolic
debugger (which displays procedure and variable
names that are stored in the debugger).
The Various Debuggers
There are many debuggers available for the pur-pose
in question, among the more common names
are; WinDbg, Valgrind, LLDB Debugger, GNU De-bugger
(GDB), Immunity Debugger, OllyDbg and
many more. As the list is quite long and this ar-ticle’s
purpose is to focus on the fundamentals of
the debugger concept we’ll put an emphasis on
three debugger types this time: The immunity De-bugger,
WinDbg and OllyDbg.
The first is the Immunity Debugger. This debug-ger
has both interfaces types; the GUI and a com-mand
line. The command line can be seen at all
times on the bottom of the GUI. The Immunity De-bugger
can write exploits, analyze malware, and
reverse engineer binary files. The base platform
of this tool is a solid user interface with graphing
function and a fine analysis tool built especially for
heap creation. This debugger has a well-support-ed
Python API on top of its other features.
The second debugger we’ll review is the WinDbg
– this is a multipurpose tool for Microsoft’s Win-dows
operation system. The WinDbg can be used
to debug user mode applications, drivers, and the
operating system itself in kernel mode.
The third and last debugger tool we’ll review is the
OllyDbg. This is an x86 debugger who can trace reg-isters,
recognizes procedures, API calls, switches,
tables, constants and strings, as well as locate rou-tines
from object files and libraries. The main focus
for this debugger is the binary code analysis which
is useful when the source code is unavailable.
Launching the environment
Pre-Requisites
• Microsoft windows XP/Vista/7 machine.
• Immunity Debugger – http://debugger.immuni-tyinc.
com/
50 02/2013

EXTRA
• Vulnerable FTP Server – http://frogteam.go-zure.
com/FTP-Server.zip
• FTP Fuzzer – http://frogteam.gozure.com/
Infigo.zip
In this section we’ll show the basic actions re-quired
to work with the debugger. Prior to starting
this section please note that you’ll need to estab-lish
the environment based on the pre-requisites
listed above. Once you’ve completed the relevant
actions you should have a windows machine with
all the files from the links above, and you have in-stalled
the Immunity Debugger which we will be
used during this section.
Once the machine is up and running, you may
launch the Immunity Debugger.
Immunity Debugger is a debugger with function-ality
designed specifically for the security industry.
Once the Immunity Debugger is up and running
as can be seen in the image below we can start
our FTP Server and then attach the Immunity De-bugger
to the FTP Server process (Figure 1).
In order to attach the Immunity Debugger to the
FTP Server process we’ll need to perform the fol-lowing
actions:
• On Windows machine, extract the ‘FTP-Server.
zip’ compressed file you’ve downloaded.
• Double-click on ‘FTPServer.exe’ to start the
FTP Server.
• Return to the Immunity Debugger and click on
File -> Attach (or Ctrl+F1)
• On the Process list, select the “FTPServer”
(TCP: 21) and click on the Attach button.
When you attach the debugger to a running pro-cess
it will pause. In the Immunity Debugger up-per
bar, you can resume the process by click the
“Play” button or create a new thread by choos-ing
the “Restart” button and then the “Play” button
(Figure 2 and Figure 3).
In order to connect and authenticate the FTP
Server simply flow up on the standard procedure
and type the relevant username and password
(e.g. user credentials).
One should assume that these variables need to
be passed from the client to the server and there-fore,
the program needs to store them somehow

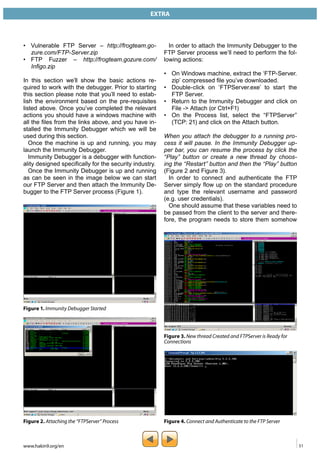

Figure 1. Immunity Debugger Started
Figure 2. Attaching the “FTPServer” Process
Figure 3. New thread Created and FTPServer is Ready for
Connections
Figure 4. Connect and Authenticate to the FTP Server
www.hakin9.org/en 51

in memory. For our analysis we need to ask our-selves
the following questions:
• What kind of information it should contain (user
info, program info, etc...)?
• Which type of data they are able to accept (In-teger,
String, etc...)?
• How many characters should there be (there is
a chance for Buffer-Overflow)?
• Are there any characters that the variables
should ignore (Bad-Characters)?
In order to find these answers, we need to find
a vulnerable FTP function or command- this can
be done automatically or manually. For an easy
start (which will save time) it is sometimes recom-mended
to use automated tools. Once a “buffer-overflow”
vulnerability exists, we have to find the
amount of “junk data” that, when sent to the appli-cation,
will overwrite the register.
Stack-based buffer overflows techniques
Users may exploit stack-based buffer overflows to
manipulate the program to their advantage in one
of the following ways:
• By overwriting a local variable which is near
the memory‘s buffer on the stack to change
the behavior of the program which may benefit
the attacker.
• By overwriting the return address in a stack frame.
Once the function returns, execution will resume
at the return address as it was specified by the at-tacker.
Usually a user’s input fills the buffer.
• By overwriting a function pointer, or exception
handler, which is subsequently executed.
With a method called trampolining, if the address
the user-supplied is listed as data unknown and
the location will still be stored in a register, then
the return address can be overwritten with the ad-dress
of an opcode (operation code, a part of a
language instruction that specifies the operation
which will be performed) – this will cause the exe-cution
to jump to the user supplied data.
If the location is stored in a register R, then a
jump to the location containing the opcode for a
jump R, call R or similar instruction, will cause ex-ecution
of user supplied data. The locations of suit-able
opcodes, or bytes in memory, can be found in
DLLs or the executable itself. Please note that the
address of the opcode typically cannot contain any
null characters and the locations of these opcodes
can vary between applications and versions of the
operating system.
Security Fuzzer
Another important term is the fuzzer. Security Fuzzer
is a tool used by security professionals and profes-sional
hackers to test a parameter of an application.
Typical fuzzers test an application for buffer over-flows,
format string vulnerabilities, and error handling.
Both fuzzer and debugger work together to de-tect
security problems on a system, and it’s soft-ware.
The fuzzer provides invalid, unexpected, or
random data to the inputs of the target program
and then monitors for exceptions such as failing
built-in code assertions or for finding potential
memory leaks. Fuzzing is commonly used to test
and exploit development tools.
More advanced fuzzers incorporate function-alities
to test for directory traversal attacks, com-
Figure 5.*OñHP'514USFTT'V[[FSW
Figure 6. FTPStress Fuzzer Detected the Vulnerable
Commands
52 02/2013

EXTRA
mand execution vulnerabilities, SQL Injection and
Cross Site Scripting vulnerabilities.
Infigo FTPStress Fuzzer is a specific fuzzer for
finding vulnerabilities in FTP server products. Al-though
it is a simple tool, it has proved its efficiency
by the number of vulnerabilities discovered in dif-ferent
FTP server software tested with this tool.
The parameters which are used for the fuzzing
process are configurable. User can precisely de-fine
which FTP commands will be fuzzed along
with the size and type of the fuzzing data.
On the windows machine from before we’ll acti-vate
the “Infigo FTPStress Fuzzer” and try to crash
the FTP server:
• Extract the ‘Infigo.zip’ compressed file you’ve
downloaded.
• Double-click on the ‘ftpfuzz.exe’ file.
You can try to crash the FTP Server from any oth-er
external machine and to perform this step us-ing
instance of ftpfuzz.exe running on deferent
computer (Figure 5).
Once The Fuzzer is up we’ll need to find the
commands that are supported by the FTP server:
• Enter the IP Address of the computer Host on
which the FTP server is running (e.g. 127.0.0.1).
• Next, click on Discover button.
FTP Fuzzer detected the FTP commands sup-ported
by FTP server. See example in Figure 6.
Next we need to examine the behavior of these
commands while sending “junk data”, Therefore
we will configure the amount of “junk data” we
want to send to the FTP server:
• Click on Config button
• On the configuration window, go to Fuzzing da-ta
tab and click Deselect All
• Check the “A” letter and then click on OK.

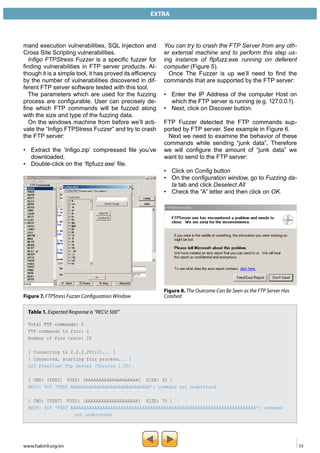

Figure 7. FTPStress Fuzzer Configuration Window
Figure 8. The Outcome Can Be Seen as the FTP Server Has
Crashed
Table 1.YQFDUFE3FTQPOTFJTi3$7u
Total FTP commands: 2
FTP commands to fuzz: 2
Number of Fuzz tests: 26
[ Connecting to 2.2.2.201:21... ]
[ Connected, starting fuzz process... ]
220 FreeFloat Ftp Server (Version 1.00).
[ CMD: [FEAT] FUZZ: [AAAAAAAAAAAAAAAAAAAA] SIZE: 30 ]
RECV: 500 ‘FEAT AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA’: command not understood
RECV: 500 ‘FEAT AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA’: command
not understood

Assuming your Infigo Fuzzer looks like the im-age
below, the fuzzing process can start. Click on
Start button (Figure 7).
The outcome can be seen as the FTP Server has
crashed (Figure 8).
The Analysis Phase
In this section we’ll review on the procedure of an-alyzing
the log data. The normal flow of the fuzzer
is to connect to the target FTP Server, get the 220
Hello Message and then, send the “A”s junk data
in different amounts (1 “A” = 1 Byte) each time fol-lowed
by the “FEAT” command, while the expected
response is RECV: 500 (Table 1).
In order to understand what actually happened in
the memory process, we can look at the diagram
on the next page (Table 2).
Next we can observe that after 330 bytes of junk
data sent the FTP fuzzer was not able to receive
520 bytes of junk data and disconnected.
This indicates that if we send junk data of a size
between 330 and 520 bytes, the FTP server will
crash (Table 3).
Now, that we know the amount of junk bytes to
send to overwrite EIP register we’ll try to find the
exact amount of data that will overwrite EIP register.
The Following Table Describes What Actually
Happened in the Process Memory (Table 4).
After examining the FTP Fuzzer log we can return
to Immunity Debugger and see what happened to
the process during the fuzzing test (Figure 9).
In the Immunity Debugger main window we can
see that our x41 (“A”s) floods the memory stack
until the EIP register and modified the address so
it’s x41x41x41x41 (“AAAA”) as can be seen in the
“Registers window” – this helped us find the “JMP”
but leads to an access violation as we can see in
the Immunity Debugger status bar.
Table 2. #ZUFTPGKVOLEBUB
Table 3. The crash of ftp server
RECV: 500 ‘FEAT AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
[ Connecting to 2.2.2.201:21... ]
RECV: 500 ‘FEAT AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
[ Connecting to 2.2.2.201:21... ]
54 02/2013

EXTRA
To summarize our actions, we’ve found a stack-based
buffer overflow in the FTP Server. In order
to better understand the procedure we need to
modify the exact register (4 bytes EIP in that case)
with JMP value so we are able to hit an accessible
register.
In the upcoming articles we’ll learn how to write
our first exploit test script that will help us to control
the data we send to the target.
ERAN GOLDSTEIN
Eran Goldstein is the founder of
Frogteam|Security, a cyber securi-ty
vendor company in USA and Israel.
He is also the creator and developer of
“Total Cyber Security – TCS” product
line. Eran Goldstein is a senior cyber
security expert and a software devel-oper
with over 10 years of experience. He specializes at
penetration testing, reverse engineering, code reviews
and application vulnerability assessments. Eran has a
vast experience in leading and tutoring courses in appli-cation
security, software analysis and secure develop-ment
as EC-Council Instructor (C|EI). For more informa-tion
about Eran and his company you may go to: http://
www.frogteam-security.com.
Table 4.#ZUFTPGKVOLEBUB
Figure 9. Examine the Buffer Overflow Immunity Debugger

Reverse engineering – debugging fundamentals

More Related Content

What's hot (20)

Similar to Reverse engineering – debugging fundamentals (20)

Recently uploaded (20)

Reverse engineering – debugging fundamentals
