Rogue access points pose a security threat to enterprise networks by providing unauthorized wireless access to the wired network. Traditional defenses like firewalls and encryption are ineffective against rogue APs. A wireless intrusion prevention system uses sensors and wireless/wired connectivity testing to automatically detect, classify, locate, and block rogue APs on the network. Accurately testing an AP's connectivity to the enterprise network is key to reliable rogue AP protection.
FAQ - Rogue AP - What is Rogue Access Point?
- 1. All You Wanted to Know About WiFi Rogue Access Points Gopinath K. N. Hemant Chaskar AirTight Networks www.AirTightNetworks.com A quick reference to Rogue AP security threat, Rogue AP detection and mitigation
- 2. © 2009, AirTight Networks Inc. All Rights Reserved. What is Rogue AP Unmanaged (unauthorized) AP attached to enterprise wired network
- 3. © 2009, AirTight Networks Inc. All Rights Reserved. How does Rogue AP pop up on enterprise network Malicious intent or simply unwitting, impatient employee Commoditization of WiFi APs raises the risk of someone putting up personal AP on the enterprise network It has been estimated that almost 20% of corporations have Rogue APs in their networks at some time Pocket APWall Jack AP PCMCIA and USB APs Wireless Router
- 4. © 2009, AirTight Networks Inc. All Rights Reserved. Why is Rogue AP such a bad thing Rogue AP on network = (logically) LAN jack of your network hanging out of the premises RF signal spillage of Rogue AP provides access to wired enterprise network from outside of the premises
- 5. © 2009, AirTight Networks Inc. All Rights Reserved. Attacks on wired network infrastructure • ARP poisoning, DHCP attacks, STP attacks, DoS attacks etc. Mapping the network for targeted attacks Scanning hosts on network for targeted attacks MIM (Man-In-Middle) and data sniffing on wired network See this blog article for details on attacks through Rogue AP http://blog.airtightnetworks.com/wifi-rogue-ap-5-ways- to-%e2%80%9cuse%e2%80%9d-it/ So, how can you protect enterprise network from Rogue APs? What are some specific attacks which can be launched through Rogue AP
- 6. © 2009, AirTight Networks Inc. All Rights Reserved. Can the firewall protect from Rogue AP No! Firewall works at traffic transfer point between LAN & Internet Firewall does not detect Rogue AP Firewall does not see traffic through Rogue AP Internet Firewall Office Premises and LAN Rogue AP Attacker
- 7. © 2009, AirTight Networks Inc. All Rights Reserved. Can WPA2 protect from Rogue APs No! You can enforce security controls such as WPA2 only on APs which you manage, i.e., your Authorized APs Rogue AP is not your managed AP In fact, most Rogue APs found in the field installed by naïve users either have • OPEN wireless link (out of box default) or • WEP wireless link (deterministically crackable)
- 8. © 2009, AirTight Networks Inc. All Rights Reserved. Is 802.1X port control sufficient to protect from Rogue AP As a matter of fact, most networks do not have 802.1x port control today If even if 802.1x is deployed, it cannot protect from all Rogue AP configurations, some examples below: Rogue APs over bridging laptops MAC spoofer Legitimate user Rogue AP 802.1X
- 9. © 2009, AirTight Networks Inc. All Rights Reserved. Can antivirus, wired IDS protect from Rogue AP No! Rogue AP threats operates at a layer below antivirus and wired IDS protection
- 10. © 2009, AirTight Networks Inc. All Rights Reserved. Is NAC sufficient to protect from Rogue AP As a matter of fact, most networks do not have NAC deployed today If even if NAC is deployed, it cannot protect from all Rogue AP configurations, some examples below: Rogue APs over bridging laptops MAC spoofer Legitimate user Rogue AP NAC
- 11. © 2009, AirTight Networks Inc. All Rights Reserved. So what protects network from Rogue APs Sensor based wireless intrusion prevention system (WIPS) which • Watches for Rogue APs 24x7 • Performs wired/wireless correlation for AP network connectivity testing to detect Rogue AP • Provides for automatic blocking of Rogue AP • Locates Rogue AP for easy searching and removal from the network
- 12. © 2009, AirTight Networks Inc. All Rights Reserved. WIPS in action - Rogue AP protection See demonstration video at http://www.airtightnetworks.com/fileadmin/content_images/ demos/RogueAP-Demo/RogueAP-Demo.html
- 13. © 2009, AirTight Networks Inc. All Rights Reserved. What are different types of Rogue APs Various permutations and combinations of • Bridging APs (on subnets coinciding with or different from wired interface address) • Router (NAT) APs (with and without MAC cloning) • APs with encrypted wireless links • APs with open wireless links • Soft APs (natively configured on wireless client or which use external devices such as USB sticks) • APs on different VLANs in the LAN including no-WiFi subnets
- 14. © 2009, AirTight Networks Inc. All Rights Reserved. Can wire side only scanning protect from all Rogue AP No! Several Rogue AP types are undetectable by wire side only scanning, examples: • Bridging APs on a subnet inconsistent with their wired IP address (default configuration) • Soft APs • Router (NAT) APs with cloned wire side MAC address See http://blog.airtightnetworks.com/rogue-ap-detection- pci-compliance/ for more details
- 15. © 2009, AirTight Networks Inc. All Rights Reserved. What does AP auto-classification mean in the context of Rogue AP All APs visible in air Managed APs (Static Part) Unmanaged APs (Dynamic Part) Not connected to my network Connected to my network Authorized AP External AP Rogue AP Automatically classifying APs visible in airspace into three categories: Authorized, External and Rogue
- 16. © 2009, AirTight Networks Inc. All Rights Reserved. What is key technology enabler for accurate auto- classification Robust testing of AP’s connectivity to monitored enterprise network is the key technology enabler If AP is not detected as connected, when it is indeed connected to the monitored enterprise network, it results in security hole (false negative) If AP is detected as connected, when it is indeed not connected to the monitored enterprise network, it results in false alarm (false positive)
- 17. © 2009, AirTight Networks Inc. All Rights Reserved. What are prevalent AP connectivity testing methods MAC Correlation (CAM table lookup) •Collect all MAC addresses seen on wired network (CAM table lookup) •Detect all MAC addresses seen on wireless network •Presume network connectivity of APs based on match between wired and wireless MAC addresses Signature Packet Injection • Inject signatures packets in the wired and wireless network • Detect which APs forward signature packets between wired and wireless interfaces • Confirm network connectivity of APs based on signature packet forwarding

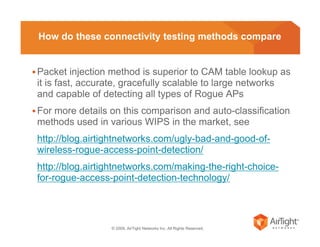

- 18. © 2009, AirTight Networks Inc. All Rights Reserved. How do these connectivity testing methods compare Packet injection method is superior to CAM table lookup as it is fast, accurate, gracefully scalable to large networks and capable of detecting all types of Rogue APs For more details on this comparison and auto-classification methods used in various WIPS in the market, see http://blog.airtightnetworks.com/ugly-bad-and-good-of- wireless-rogue-access-point-detection/ http://blog.airtightnetworks.com/making-the-right-choice- for-rogue-access-point-detection-technology/
- 19. © 2009, AirTight Networks Inc. All Rights Reserved. How does WIPS block Rogue AP Over the air quarantine • WIPS sensor blocks client’s connection to Rogue AP by transmitting spoofed disconnection frames • Deauthentication is popularly used disconnection frame Switch port disable • WIPS attempts to locate switch port into which Rogue AP is connected • If found, disables the switch port using SNMP Rogue AP WIPS Sensor
- 20. © 2009, AirTight Networks Inc. All Rights Reserved. How do the two Rogue AP blocking methods compare Over the air quarantine • Works independent of correlation between wired and wireless addresses of Rogue AP • Non-intrusive with network infrastructure • No interoperability problems with different switch vendors • Deauthentication based over the air quarantine will not work with .11w Rogue APs Switch port disable • Only works for those Rogue APs which have correlation between wired and wireless addresses • Highly intrusive. WIPS needs need to know “set” password on switches. Error in tracing leaf switch may turn off entire switch branch • Suffers from switch vendor interoperability problems
- 21. © 2009, AirTight Networks Inc. All Rights Reserved. Conclusion Rogue AP is unmanaged AP plugged into wired enterprise network by unwilling or malicious employees or visitors Rogue AP can expose wired enterprise network to outsiders over its RF signal spillage Rogue AP threat is not mitigated by firewalls, WPA2, 802.1x, NAC, anti-virus or wire side scanners Sensor based wireless intrusion prevention system (WIPS) detects, blocks and locates Rogue APs Testing of AP’s connectivity to monitored enterprise network is key technology enabler for reliable protection from Rogue APs
