- 1. DEPARTMENT OF ECM PERFORMANCE EVALUATION OF WIRELESS SENSOR NETWORKS BASED ON ZIGBEE TECHNOLOGY IN SMART HOME By G.Raghu Kiran 13205208 M.Tech (WCSN)
- 2. CONTENTS Introduction Home Appliances Control In Smart Homes Operation Mode In Smart Home The Concept Of Smart Home Zigbee ZigBee Protocol Stack Advantages of Zigbee
- 3. INTRODUCTION The integration of devices and an intelligent networking in a home can make it smart by allowing us to manage energy in a way that is appropriate. To better control of energy consumption in the Smart Home, the Home Area Network (HAN) is used to collect sensor information. Zigbee is a high technology for the Smart Home network communication.
- 4. HOME APPLIANCES CONTROL IN SMART HOMES It is necessary to investigate the electric power sources that support the normal operation and management in a house. It is necessary to know what kind of configuration and control are indispensable to build a smart home. Architectural and functional requirements on behalf of utilities in the design of smart homes should be taken into serious consideration.
- 5. OPERATION MODE IN A SMART HOME The smart control mainly consists of three types of scenarios: When the residents stay at home. When there is nobody at home. When the meter receives the notification of demand-response from utilities.
- 7. ZigBee and IEEE 802.15.4 are standards-based protocols that provide the network infrastructure required for wireless sensor network applications. For sensor network applications, key design requirements support communication between large numbers of devices in multi-application environment.
- 8. APPLICATIONS Energy Management and Efficiency Home Automation Building Automation Industrial Automation

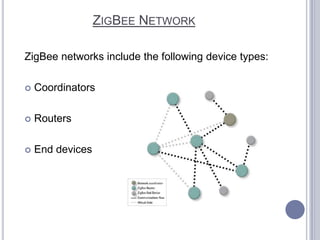

- 10. ZIGBEE NETWORK ZigBee networks include the following device types: Coordinators Routers End devices
- 11. ADVANTAGES Low cost Secure Reliable and self healing Flexible and extendable Low power consumption Easy and inexpensive to deploy Global with use of unlicensed radio bands
- 12. A SMART HOME SOLUTION WITH ZIGBEE
- 13. Design and Implementation The structure of Wireless Sensor Networks in the smart home requires three different devices: Coordinator, Router and End Device. All home environments can then be monitored and the required data can be delivered to the coordinator. Then appropriate control commands are sent through coordinator to home appliances.
- 14. In this environment, the coordinator is integrated with the home gateway that handles the control data in the mesh network. The household devices are attached to the router or the reduced function node module. In order to address the problem of interconnection between appliances and the Zigbee wireless module, we adopted the SAANet Protocol.
- 15. EXPERIMENTAL SETUP The experimental system is divided into three main parts: • A user interface communicates with the user via the computer and displays the results. • A coordinator collects sensor readings to the user. • An end device consists of two parts: sensor interface and ZigBee interface. The sensor used in this test is a temperature sensor.
- 16. Operation Mode in a Smart Home In terms of energy management, the operation mode is intended for two categories: Home Appliances oHVAC system integrated with thermostats and Infrared/motion sensors. oDaily appliances with thermostat. oLighting system connected with temperature sensors. oDigital entertainment appliances with Infrared or motion sensor. Renewable energy sources. oPV system/wind turbine. oPHV/PHEV(plug-in hybrid vehicle)
- 17. Technology Requirements of utilities in a Smart Home Home Area Network in secure communication with utilities
- 18. Networking patterns and technology for home energy control
- 19. The network infrastructure is the basic skeleton for smart home construction. The smart home is functionally categorized into two main networks: • Broadband communication network • Control network The broadband communication network is mostly attached to home entertainment devices. The control network mainly supervises the regular operation for all kinds of home devices such as the switching-on/off for lamps, start/stop of air-conditioner.
