AIRLINE DATABASE MANAGEMENT SYSTEM
GPT. CHN DEPT. CS&E Page 1
INTRODUCTION
Airlines will provide you with an overall understanding of the airline industry and a
wealth of Information you will need to apply your new skills and knowledge. You will learn
about the scope and structure of the aviation industry including the impact of deregulation. We
will take you on a tour of Airports and their services, and learn how airplanes fly. You will
discover how airlines adapt to the ever-changing socio-economic, Environmental, industrial and
technical changes that impact the Airline industry as a whole. Being a highly competitive
business, Airlines must priorities the importance of providing employees with the best training
programmers to ensure they acquire the proper Skills and knowledge of the business.
An airline is a company that provides air transport services for travelling passengers and
freight. Airlines lease or own their aircraft with which to supply these services and may form
partnerships or alliances with other airlines for mutual benefit.
TWA Douglas DC-3 in 1940. The DC-3, often regarded as one of the most influential
aircraft in the history of commercial aviation, revolutionized the aviation industry. Tony Jannus
conducted the United States' first scheduled commercial airline flight on 1 January 1914 for the
St. Petersburg-Tampa Airboat Line.
Why Space Flight Can't Become Popular the Way Airplanes Did. March 12, 2013 By.
The Wright Brothers first flew in 1903. By 1914, people were experimenting with commercial
airlines, and by the 1930s, there were many regularly-scheduled airline services in the US and
around the world.

ADVANTAGES
 The biggest advantage of flying is that it is often the fastest way to get from one place
to another, especially when long distances are involved. It helps us save a lot of time, so
we can do more things. Secondly, I think the comfort of air travel makes people satisfy.
When we travelling by air, can sit comfortably in an on chair, Reading magazines, listen
to music, Read books, and play games or watching a free film on television
 The process of making arrangements to fly can be quite convenient. A plane ticket can be
purchased by telephone or on the internet. We don’t have to cope with crowed at airport
as other stations for buying tickets
 The flight attendants are always friendly, we can “Call” them when we need. Moreover,
some meals have test well on the plane.
DISADVANTAGES
 Apart from these advantages, however, travelling by air has its disadvantages, too. First
of all, flying is often the most expensive from of transportation, especially if reservations
are not made well in advance, if amounts to hundreds of dollars or even millions.
 Some people might not be able to afford to fly on the budget airline. Then air travels have
the reputation of being dangerous and even hardened travelers are intimidated by them.
There are plane crashes in which the crew and passengers have died.

REQUIREMENTS
 Each aircrafts is identified by a unique number of its ID, Aircraft number that identify the
plane and this includes the information about the number of seats available in it’s and
manufacturing and manufactured date of aircrafts.
 Each Route is identified by its own unique ID, and a unique route code. Route must have
airport from where the flight will be take off, and the flight destination.
 They have airfare for individual’s route. Each airfare is identified by Airfare ID and the
airfare for different route is identified by route id with flight date, departure date, arrival
date and net fare.
 Airline provides discounts for many special persons and so many.....
 Each countries is identify through its unique country ID and name.
 States of in the country are also identifying with the help of state name.
 Airline must have maintained the contact details of each passenger’s. Identifying the
individual passengers contact details through unique contact details id.
 Identifying the individual passengers through passengers ID. And they must have every
passengers Name, Address, Age, Nationality, Contacts.
 Airline Company has several branches in many different states of the country. Each
branch has been identified through branch ID.
 Airlines have many employees to provide well services to his customers. Each employee
has a unique employee id with name, address, associated branch, designation, etc...
 Each transactions of the passenger are finding through its unique transaction ID. Along
with booking date, departure date, relevant information.

ENTITY STRUCTURES WITH RELEVANT ATTRIBUTES
Aircrafts
Field Data Type Description Constraints
AcID INT
Field will store unique row
number.
Primary Key
AcNumber Varchar(32)
Aircraft number that identifies
the plane.
NOT ULL
Capacity INT No. of seats available. NOT NULL
MfdBy Varchar(128) Manufacturing company. NOT NULL
MfdOn DATETIME Manufactured date of aircraft. NOT NULL
Route
RtID INT Stores unique row id. Primary Key
Airport Varchar(32)
From where the flight will
take off.
NOT NULL
Destination Varchar (32) Flight destinations. NOT NULL
RouteCode Varchar(16)
A unique Route code
generated using Source &
Destination of flight.
NOT NULL
UNIQUE
Airfare
AfID INT Stores unique row id. Primary Key
Route INT Route id from Route table. Foreign Key
Fare Currency Stores service charge amount. NOT NULL
FSC Currency Stores fuel surcharge amount. NOT NULL

Flight_Schedule
FlID INT
Unique number to identify the
flight.
Primary Key
FlightDate DATETIME Date of flight. NOT NULL
Departure DATETIME
Stores the departure time of
flight.
Arrival DATETIME
Stores the arrival time of
flight on destination.
AirCraft INT
Aircraft number that will fly,
a number from Aircraft table.
Foreign Key
NetFare INT
To determine total fare of
flight, an ID from Air_Fare
table.
Foreign Key
Discounts
DiID INT Unique row id. Primary Key
Title Varchar(32) Label to know discount. NOT NULL
Amount INT Discount amount in % NOT NULL
Description Varchar(255) Discount remarks & details.
Charges
ChID INT Unique row id. Primary Key
Title Varchar(32) Label for charge. NOT NULL
Amount INT Amount of charge in %. NOT NULL
Description Varchar(255) Describe cause of charge.

Countries
CtID INT Unique row id. Primary Key
Country Nam Varchar(32) Room to store country name NOT NULL
State
StID INT Unique row id. Primary Key
StateName Varchar(32)
State name will take place
here.
Country INT PK from Country table. Foreign Key
Contact_Details
CnID INT Unique row id. Primary Key
Email Varchar(16)
Passenger’s contact email for
transaction about flights.
NOT NULL
Cell Varchar(16)
Passenger’s contact cell no
for transaction about flights.
NOT NULL
Tel Varchar(16)
Passenger’s contact telephone
no. for transaction about
flights.
Street Varchar(64)
Street address of the
passengers.
NOT NULL
State INT PK from State table. Foreign Key

Passengers
PsID INT Unique row id. Primary Key
Name Varchar(32) Passenger’s name NOT NULL
Address Varchar (64) Passenger’s address NOT NULL
Age INT Passenger’s age NOT NULL
Nationalities Varchar (16) Nationality of the passenger. NOT NULL
Contacts INT
ContactID from
Contact_Details table.
Foreign Key
Branches
BrID INT Unique id for each branches Primary Key
Center Varchar(16) Branch Title NOT NULL
Address Varchar(32) Address of the branch NOT NULL
State INT State ID from state table Foreign Key
Employees
EmpID INT
Unique number to identity
employee, unique on entire
system.
Primary Key
Name Varchar(32) Employee name NOT NULL
Address Varchar(32) Employee address NOT NULL
Branch INT
Associated branch id from
Branch Table
Foreign Key
Designation Varchar(32) Working duty position. NOT NULL
Email Varchar(32)
Contact email of the
employee
NOT NULL

Tel Varchar(16) Contact telephone number.
Ext INT
Ext number of employee
cabinet, if applicable.
Transactions
TsID INT Unique row id Primary Key
BookingDate Date/Time Keeps the booking date. NOT NULL
DepartureDate Date/Time Keeps the departure date. NOT NULL
Passenger INT
Transaction creator passengers
row id to associate
booking/cancellation,
payments etc.
Foreign Key
Flight INT
Flight no, a PK of
Flight_Schedule to determine
flying details & costs.
Foreign Key
Type BIT Reservation/Cancellation NOT NULL
Employee INT
Reservation agent, a row id of
employee who helps the
passenger to make transaction.
Foreign Key
Charges INT
If transaction is cancellation,
charges may apply as per
business rules.
Foreign Key
Discount INT
Discount offers may apply
based on scheme criteria.
Foreign Key
Total INT
Calculated value of actual
payable cost by customer to
make a transaction.
NOT NULL

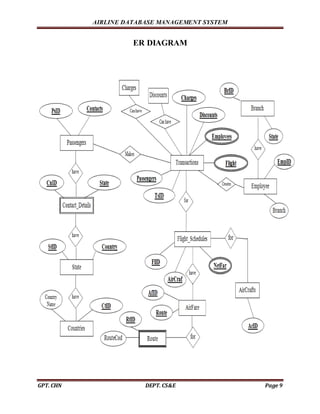

ER DIAGRAM

CREATING THE TABLES
1. Create table AIRCRAFTS_7
(
AcId int not null,
AcNumber varchar(32) not null,
Capacity int not null,
MfdBy varchar(128) not null,
MfdOn date not null,
primary key(AcId)
);
2. Create table ROUTE_7
(
RtID int not null,
Airport varchar(32) not null,
Destination varchar(32) not null,
RouteCode varchar(16) not null,
primary key(RtID),
UNIQUE(RouteCode)
);
3. Create table AIRFARE_7
(
AfID CHAR(6),
Route int,
Fare int not null,
FSC int not null,
primary key(AfID),

foreign key(Route) references ROUTE_7(RtID)
);
4. Create table FLIGHT_SHEDULE_7
(
FlId int,
FlightDate date not null,
Departure CHAR(9),
Arrival CHAR(9),
AirCraft int,
NetFare char(6),
primary key(FlId),
foreign key(AirCraft) references AIRCRAFTS_7(AcId),
foreign key(NetFare) references AIRFARE_7(AfID)
);
5. Create table DISCOUNTS_7
(
DiID int,
Title varchar(32) not null,
Amount int not null,
Description varchar(255),
primary key(DiID)
);
6. Create table CHARGES_7
(
ChId int,
Title varchar(32) not null,
Amount int not null,

Description varchar(255),
primary key(ChId)
);
7. Create table COUNTRIES_7
(
CtID int,
CountryName varchar(32) not null,
primary key(CtID)
);
8. Create table STATE_7
(
STID INT,
StateName varchar(32),
Country int,
primary key(STID),
foreign key(Country)references COUNTRIES_7(CtID)
);
9. Create table Contact_Details_7
(
CnID int,
Email varchar(16) not null,
Cell varchar(16) not null,
Tel varchar(16),
Street varchar(64) not null,
State int not null,
primary key(CnID),
FOREIGN KEY(STATE)REFERENCES STATE_7(STID)

);
10. Create table PASSENGERS_7
(
PsID int,
Name varchar(32) not null,
Address varchar(32) not null,
Age int not null,
Nationalities varchar(16) not null,
Contacts int,
primary key(PsID),
foreign key(Contacts)references Contact_Details_7(CnID)
);
11. Create table BRANCHES_7
(
BrID int not null,
Center varchar(16) not null,
State int not null,
primary key(BrID)
);
12. Create table EMPLOYEES_7
(
EmpID int,
Name varchar(32) not null,
Branch int,
Destintion varchar(32) not null,

Email varchar(32),
Tel varchar(16),
Ext int,
primary key(EmpID),
foreign key(Branch)references BRANCHES_7(BrID)
);
13. Create table TRANSACTIONS_7(
TsID int not null,
BookingDate date not null,
DepartureDate date not null,
Passenger int,
Flight int,
Type int,
Employee int,
Charges int,
Discount int,
primary key(TsID),
foreign key(Passenger)references PASSENGERS_7(PsID),
foreign key(Flight)references FLIGHT_SHEDULE_7(FlID),
foreign key(Employee)references EMPLOYEES_7(EmpID),
foreign key(Charges)references CHARGES_7(ChID),
foreign key(Discount)references DISCOUNTS_7(DiID)
);

DESCRIBING THE TABLES
DESCRIBE AIRCRAFTS_7;
DESCRIBE ROUTE_7;
DESCRIBE AIRFARE_7;
DESCRIBE FLIGHT_SHEDULE_7;
DESCRIBE DISCOUNTS_7;
DESCRIBE CHARGES_7;
DESCRIBE COUNTRIES_7;
DESCRIBE STATE_7;
DESCRIBE CONTACT_DETAILS_7;
DESCRIBE PASSENGERS_7;
DESCRIBE BRANCHES_7;
DESCRIBE EMPLOYEES_7;
DESCRIBE TRANSACTIONS_7;
INSERTING VALUES INTO TABLES
Aircrafts_7
INSERT INTO AIRCRAFTS_7 VALUES(1,'ATR 72-500',75,'KINGFISHER AIRLINES','23-
apr-1998');
INSERT INTO AIRCRAFTS_7 VALUES(2,'ATS 90-200', 175,'BUTTERFLY AIRLINES','10-
jan-1990');
INSERT INTO AIRCRAFTS_7 VALUES(3,'MNR097',200,'SEPER_FAST AIRLINES','08-
may-2000');
INSERT INTO AIRCRAFTS_7 VALUES(4,'ATR 72-500',50,'DUBAI EMIRATES','06-jun-
2004');
INSERT INTO AIRCRAFTS_7 VALUES(5,'ATR 72-500',80,'Deccan AIRLINES','03-dec-
1980');
select * from AIRCRAFTS_7;
Route_7
insert into ROUTE_7 values(110,'KARNATAKA','Pokhara','KTM-PKR');
insert into ROUTE_7 values(119,'USA','CHENNI','TN-CHN');
insert into ROUTE_7 values(114,'UAE','BANGLORE','KA-BAN');
insert into ROUTE_7 values(134,'ENGLAND','CALICUT','KL-CALK');

insert into ROUTE_7 values(165,'NEPAL','BURJKHALEEFA','DUB-BKH');
Airfare_7
insert into AIRFARE_7 values('111',110,8600,12);
select * from AIRFARE_7;
Flight_shedule_7
INSERT INTO FLIGHT_SHEDULE_7 VALUES(6,'23-JAN-2016','23:20','1:20',1,111);
INSERT INTO FLIGHT_SHEDULE_7 VALUES(7,'26-FEB-2016','20:10','1:40',2,222);
INSERT INTO FLIGHT_SHEDULE_7 VALUES(8,'08-MAY-2016','09:20','11:00',3,333);
INSERT INTO FLIGHT_SHEDULE_7 VALUES(9,'16-MAR-2016','04:00','06:15',4,444);
INSERT INTO FLIGHT_SHEDULE_7 VALUES(10,'10-SEP-2016','03:20','08:05',5,555);
SELECT * FROM FLIGHT_SHEDULE_7;
Discount_7
INSERT INTO DISCOUNTS_7 VALUES(1,'Childrens',10,'Discount is provoided to all
childrens under age of 10 years');
INSERT INTO DISCOUNTS_7 VALUES(2,'Freedom fighters',15,'Discount is provoided to
indian freedom fighters');
INSERT INTO DISCOUNTS_7 VALUES(3,'Senior citizens',05,'Discount is provoided to all
Senior citizens above the age of 60');
INSERT INTO DISCOUNTS_7 VALUES(4,'Handicafts',15,'Discount is provoided to all
Handicafts');
INSERT INTO DISCOUNTS_7 VALUES(5,'Govt employees',20,'Discount is provoided to all
Indian Govt. Employees');
select * from DISCOUNTS_7;

Charges_7
INSERT INTO CHARGES_7 VALUES(10,'Urgent cancellation',550,'33% will be charged for
cancellation for booking within 11 hrs from flight time');
INSERT INTO CHARGES_7 VALUES(20,'Route change',300,'10% will be charged for Route
change within 4 hrs from flight time');
INSERT INTO CHARGES_7 VALUES(30,'Class change',600,'15% will be charged for Class
change within 6 hrs from flight time');
INSERT INTO CHARGES_7 VALUES(40,'Extra booking',2000,'05% will be charged for Extra
booking within 11 hrs from flight time');
INSERT INTO CHARGES_7 VALUES(50,'Breaking rules',550,'20% will be charged for
Breaking rules in flight');
select * from CHARGES_7;
Countries_7
insert into COUNTRIES_7 values(91,'INDIA');
insert into COUNTRIES_7 values(01,'USA');
insert into COUNTRIES_7 values(62,'AUSTRALIA');
insert into COUNTRIES_7 values(977,'NEPAL');
insert into COUNTRIES_7 values(971,'UAE');
select * from COUNTRIES_7;
State_7
insert into STATE_7 values('29','KARNATAKA',91);
insert into STATE_7 values('213','CALIFORNIA',01);
insert into STATE_7 values('121','TASMENIA',62);
insert into STATE_7 values('545','KATHMANDU',977);
insert into STATE_7 values('766','ABU-DHABI',971);
Contact_details_7
insert into CONTACT_DETAILS_7 values(1,'hello@gmail.com','9845098450',NULL,'xyz
street',29);
insert into CONTACT_DETAILS_7 values(2,'hai@gmail.com','9845098450',NULL,'ABC
street',213);

insert into CONTACT_DETAILS_7 values(3,'supper@gmail.com','9845098450',NULL,'xyz
street',121);
insert into CONTACT_DETAILS_7 values(4,'comput@gmail.com','9845098450',NULL,'xyz
street',545);
insert into CONTACT_DETAILS_7 values(5,'soft@gmail.com','9845098450',NULL,'xyz
street',766);
select* from CONTACT_DETAILS_7;
Passengers_7
insert into PASSENGERS_7 values(147,'Shankar_kumar','Sinamanaga,#31',25,'Nepalese',1);
insert into PASSENGERS_7 values(258,'KISHORE P','41,KOLLEGALA',35,'Indian',2);
insert into PASSENGERS_7 values(369,'JOHN','998,CALIFORNIA',45,'American',3);
insert into PASSENGERS_7 values(456,'FRANKLIN','675,TASMENIA',55,'AUSTRALIAN',4);
insert into PASSENGERS_7 values(582,'ABDULLA','987,ABU-DHABI',23,'Khaleefas',5);
select* from PASSENGERS_7;
Branches_7
insert into BRANCHES_7 values(01,'KARNATAKA','New road,BANGLORE',29);
insert into BRANCHES_7 values(02,'CALIFORNIA','ARCH ROAD,CALIFORNIA',213);
insert into BRANCHES_7 values(03,'TASMENIA','MAINROAD,TANGENIA',545);
insert into BRANCHES_7 values(04,'KATHMANDU','New road,BARKONDA',26);
insert into BRANCHES_7 values(05,'ABU-DHABI','NEAR BURJ,KHALEEFA',766);
select* from BRANCHES_7;
Employees_7
INSERT INTO EMPLOYEES_7 VALUES(120,'Kishore','#32,Kollegal',01,'Sales Execu-
tive','kishorep@gmail.com','9900236598',null);
INSERT INTO EMPLOYEES_7 VALUES(121,'JAFAR','#32,YAANDUR',02,'Sales Execu-
tive','JAFAR@gmail.com','9900236599',null);
INSERT INTO EMPLOYEES_7
VALUES(122,'SANJAY','#32,Kollegal',03,'SECURITY','SANJAY@gmail.com','9740236598',n
ull);

INSERT INTO EMPLOYEES_7
VALUES(123,'MAHESH','#32,T.NARSIPURA',01,'SUPERVISOR','MAHESH@gmail.com','99
86236598',null);
select* from EMPLOYEES_7;
Transactions_7
insert into TRANSACTIONS_7 values(1,'23-oct-2016','28-oct-2016',147,6,null,120,10,1);
insert into TRANSACTIONS_7 values(2,'24-NOV-2016','29-oct-2016',258,7,null,121,20,2);
OUTPUT
Fig: - Output of Airline database management system

simple airline database project..By Amarulla khan, :- amarullakhan8@gmail.com

More Related Content

What's hot (20)

Similar to simple airline database project..By Amarulla khan, :- amarullakhan8@gmail.com (20)

Recently uploaded (20)

simple airline database project..By Amarulla khan, :- amarullakhan8@gmail.com
