Slides13.pdf

1. Three-Address Code IR

2. Announcements ● Programming Project 3 due Monday at 11:59PM. ● OH today after lecture. ● Ask questions on Piazzza! ● Ask questions via email! ● Checkpoint feedback will be returned soon.

3. Where We Are Lexical Analysis Semantic Analysis Syntax Analysis IR Generation IR Optimization Code Generation Optimization Source Code Machine Code

4. Overview for Today ● The Final Assignment ● Introduction to TAC: ● TAC for simple expressions. ● TAC for functions and function calls. ● TAC for objects. ● TAC for arrays. ● Generating TAC. ● A few low-level details.

5. The Final Assignment ● Goal: Generate TAC IR for Decaf programs. ● We provide a code generator to produce MIPS assembly. ● You can run your programs using spim, the MIPS simulator. ● You must also take care of some low-level details: ● Assign all parameters, local variables, and temporaries positions in a stack frame. ● Assign all global variables positions in the global memory segment. ● Assign all fields in a class an offset from the base of the object. ● You should not need to know MIPS to do this; all details will be covered in lecture. ● If you have any questions on MIPS, please feel to ask!

6. An Important Detail ● When generating IR at this level, you do not need to worry about optimizing it. ● It's okay to generate IR that has lots of unnecessary assignments, redundant computations, etc. ● We'll see how to optimize IR code later this week and at the start of next week. ● It's tricky, but extremely cool!

7. Three-Address Code ● Or “TAC” ● The IR that you will be using for the final programming project. ● High-level assembly where each operation has at most three operands. ● Uses explicit runtime stack for function calls. ● Uses vtables for dynamic dispatch.

8. Sample TAC Code int x; int y; int x2 = x * x; int y2 = y * y; int r2 = x2 + y2;

9. Sample TAC Code int x; int y; int x2 = x * x; int y2 = y * y; int r2 = x2 + y2; x2 = x * x; y2 = y * y; r2 = x2 + y2;

10. Sample TAC Code int a; int b; int c; int d; a = b + c + d; b = a * a + b * b;

11. Sample TAC Code int a; int b; int c; int d; a = b + c + d; b = a * a + b * b; _t0 = b + c; a = _t0 + d; _t1 = a * a; _t2 = b * b; b = _t1 + _t2;

12. Sample TAC Code int a; int b; int c; int d; a = b + c + d; b = a * a + b * b; _t0 = b + c; a = _t0 + d; _t1 = a * a; _t2 = b * b; b = _t1 + _t2;

13. Temporary Variables ● The “three” in “three-address code” refers to the number of operands in any instruction. ● Evaluating an expression with more than three subexpressions requires the introduction of temporary variables. ● This is actually a lot easier than you might think; we'll see how to do it later on.

14. Sample TAC Code int a; int b; a = 5 + 2 * b;

15. Sample TAC Code int a; int b; a = 5 + 2 * b; _t0 = 5; _t1 = 2 * b; a = _t0 + _t1;

16. Sample TAC Code int a; int b; a = 5 + 2 * b; _t0 = 5; _t1 = 2 * b; a = _t0 + _t1; TAC allows for instructions with two operands.

17. Simple TAC Instructions ● Variable assignment allows assignments of the form ● var = constant; ● var1 = var2 ; ● var1 = var2 op var3 ; ● var1 = constant op var2 ; ● var1 = var2 op constant; ● var = constant1 op constant2 ; ● Permitted operators are +, -, *, /, %. ● How would you compile y = -x; ?

18. Simple TAC Instructions ● Variable assignment allows assignments of the form ● var = constant; ● var1 = var2 ; ● var1 = var2 op var3 ; ● var1 = constant op var2 ; ● var1 = var2 op constant; ● var = constant1 op constant2 ; ● Permitted operators are +, -, *, /, %. ● How would you compile y = -x; ? y = 0 – x; y = -1 * x;

19. One More with bools int x; int y; bool b1; bool b2; bool b3; b1 = x + x < y b2 = x + x == y b3 = x + x > y

20. One More with bools int x; int y; bool b1; bool b2; bool b3; b1 = x + x < y b2 = x + x == y b3 = x + x > y _t0 = x + x; _t1 = y; b1 = _t0 < _t1; _t2 = x + x; _t3 = y; b2 = _t2 == _t3; _t4 = x + x; _t5 = y; b3 = _t5 < _t4;

21. TAC with bools ● Boolean variables are represented as integers that have zero or nonzero values. ● In addition to the arithmetic operator, TAC supports <, ==, ||, and &&. ● How might you compile b = (x <= y) ?

22. TAC with bools ● Boolean variables are represented as integers that have zero or nonzero values. ● In addition to the arithmetic operator, TAC supports <, ==, ||, and &&. ● How might you compile b = (x <= y) ? _t0 = x < y; _t1 = x == y; b = _t0 || _t1;

23. Control Flow Statements int x; int y; int z; if (x < y) z = x; else z = y; z = z * z;

24. Control Flow Statements int x; int y; int z; if (x < y) z = x; else z = y; z = z * z; _t0 = x < y; IfZ _t0 Goto _L0; z = x; Goto _L1; _L0: z = y; _L1: z = z * z;

27. Labels ● TAC allows for named labels indicating particular points in the code that can be jumped to. ● There are two control flow instructions: ● Goto label; ● IfZ value Goto label; ● Note that IfZ is always paired with Goto.

28. Control Flow Statements int x; int y; while (x < y) { x = x * 2; } y = x;

29. Control Flow Statements int x; int y; while (x < y) { x = x * 2; } y = x; _L0: _t0 = x < y; IfZ _t0 Goto _L1; x = x * 2; Goto _L0; _L1: y = x;

30. A Complete Decaf Program void main() { int x, y; int m2 = x * x + y * y; while (m2 > 5) { m2 = m2 – x; } }

31. A Complete Decaf Program void main() { int x, y; int m2 = x * x + y * y; while (m2 > 5) { m2 = m2 – x; } } main: BeginFunc 24; _t0 = x * x; _t1 = y * y; m2 = _t0 + _t1; _L0: _t2 = 5 < m2; IfZ _t2 Goto _L1; m2 = m2 – x; Goto _L0; _L1: EndFunc;

35. Compiling Functions ● Decaf functions consist of four pieces: ● A label identifying the start of the function. – (Why?) ● A BeginFunc N; instruction reserving N bytes of space for locals and temporaries. ● The body of the function. ● An EndFunc; instruction marking the end of the function. – When reached, cleans up stack frame and returns.

36. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n)

37. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M

38. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M …

39. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M … Param 1

40. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M … Param 1 Storage for Locals and Temporaries

41. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M … Param 1 Storage for Locals and Temporaries Stack frame for function g(a, …, m)

45. Compiling Function Calls void SimpleFn(int z) { int x, y; x = x * y * z; } void main() { SimpleFunction(137); }

46. Compiling Function Calls void SimpleFn(int z) { int x, y; x = x * y * z; } void main() { SimpleFunction(137); } _SimpleFn: BeginFunc 16; _t0 = x * y; _t1 = _t0 * z; x = _t1; EndFunc;

49. Compiling Function Calls void SimpleFn(int z) { int x, y; x = x * y * z; } void main() { SimpleFunction(137); } _SimpleFn: BeginFunc 16; _t0 = x * y; _t1 = _t0 * z; x = _t1; EndFunc; main: BeginFunc 4; _t0 = 137; PushParam _t0; LCall _SimpleFn; PopParams 4; EndFunc;

54. Stack Management in TAC ● The BeginFunc N; instruction only needs to reserve room for local variables and temporaries. ● The EndFunc; instruction reclaims the room allocated with BeginFunc N; ● A single parameter is pushed onto the stack by the caller using the PushParam var instruction. ● Space for parameters is reclaimed by the caller using the PopParams N; instruction. ● N is measured in bytes, not number of arguments.

56. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M PushParam var;

57. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M … PushParam var; PushParam var;

58. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M … Param 1 PushParam var; PushParam var; PushParam var;

59. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M … Param 1 Storage for Locals and Temporaries PushParam var; PushParam var; PushParam var; BeginFunc N;

60. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M … Param 1 Storage for Locals and Temporaries Stack frame for function g(a, …, m) PushParam var; PushParam var; PushParam var; BeginFunc N;

62. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M … Param 1 Storage for Locals and Temporaries EndFunc;

64. A Logical Decaf Stack Frame Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Stack frame for function f(a, …, n) Param M … Param 1 PopParams N;

66. Storage Allocation ● As described so far, TAC does not specify where variables and temporaries are stored. ● For the final programming project, you will need to tell the code generator where each variable should be stored. ● This normally would be handled during code generation, but Just For Fun we thought you should have some experience handling this. ☺

67. The Frame Pointer Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries

68. The Frame Pointer Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Frame Pointer

69. The Frame Pointer Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Frame Pointer Param M … Param 1

70. The Frame Pointer Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Frame Pointer Param M … Param 1 Storage for Locals and Temporaries

71. The Frame Pointer Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Frame Pointer Param M … Param 1 Storage for Locals and Temporaries

72. The Frame Pointer Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Frame Pointer Param M … Param 1

75. Logical vs Physical Stack Frames Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries

76. Logical vs Physical Stack Frames Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries fp of caller

77. Logical vs Physical Stack Frames Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries Param N Param N – 1 ... Param 1 Storage for Locals and Temporaries fp of caller Frame Pointer

78. (Mostly) Physical Stack Frames Param N ... Param 1 Storage for Locals and Temporaries fp of caller Frame Pointer

79. (Mostly) Physical Stack Frames Param N ... Param 1 Storage for Locals and Temporaries fp of caller Frame Pointer Param N ... Param 1

80. (Mostly) Physical Stack Frames Param N ... Param 1 Storage for Locals and Temporaries fp of caller Frame Pointer Param N ... Param 1 fp of caller

82. (Mostly) Physical Stack Frames Param N ... Param 1 Storage for Locals and Temporaries fp of caller Frame Pointer Param N ... Param 1 fp of caller Storage for Locals and Temporaries

85. (Mostly) Physical Stack Frames Param N ... Param 1 Storage for Locals and Temporaries fp of caller Frame Pointer Param N ... Param 1

86. (Mostly) Physical Stack Frames Param N ... Param 1 Storage for Locals and Temporaries fp of caller Frame Pointer

87. The Stored Return Address ● Internally, the processor has a special register called the program counter (PC) that stores the address of the next instruction to execute. ● Whenever a function returns, it needs to restore the PC so that the calling function resumes execution where it left off. ● The address of where to return is stored in MIPS in a special register called ra (“return address.”) ● To allow MIPS functions to call one another, each function needs to store the previous value of ra somewhere.

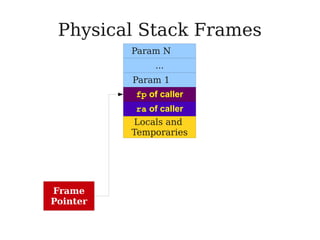

88. Physical Stack Frames Param N ... Param 1 Locals and Temporaries fp of caller Frame Pointer ra of caller

89. Physical Stack Frames Param N ... Param 1 Locals and Temporaries fp of caller Frame Pointer ra of caller Param N ... Param 1

90. Physical Stack Frames Param N ... Param 1 Locals and Temporaries fp of caller Frame Pointer ra of caller Param N ... Param 1 fp of caller

91. Physical Stack Frames Param N ... Param 1 Locals and Temporaries fp of caller Frame Pointer ra of caller Param N ... Param 1 fp of caller ra of caller

92. Physical Stack Frames Param N ... Param 1 Locals and Temporaries fp of caller Frame Pointer ra of caller Param N ... Param 1 fp of caller ra of caller

93. Physical Stack Frames Param N ... Param 1 Locals and Temporaries fp of caller Frame Pointer ra of caller Param N ... Param 1 fp of caller ra of caller Locals and Temporaries

94. So What? ● In your code generator, you must assign each local variable, parameter, and temporary variable its own location. ● These locations occur in a particular stack frame and are called fp-relative. Param N ... Param 1 Local 0 fp of caller ra of caller fp ● Parameters begin at address fp + 4 and grow upward. ● Locals and temporaries begin at address fp – 8 and grow downward ... Local M fp + 0 fp + 4 ... fp + 4N fp - 4 fp - 8 ... fp - 4 - 4M

95. From Your Perspective Location* location = new Location(fpRelative, +4, locName);

96. From Your Perspective Location* location = new Location(fpRelative, +4, locName);

97. From Your Perspective Location* location = new Location(fpRelative, +4, locName); What variable does this refer to?

98. And One More Thing... int globalVariable; int main() { globalVariable = 137; }

99. And One More Thing... int globalVariable; int main() { globalVariable = 137; }

100. And One More Thing... int globalVariable; int main() { globalVariable = 137; } Where is this stored?

101. The Global Pointer ● MIPS also has a register called the global pointer (gp) that points to globally accessible storage. ● Memory pointed at by the global pointer is treated as an array of values that grows upward. ● You must choose an offset into this array for each global variable. Global Variable 0 Global Variable 1 ... Global Variable N gp gp + 0 gp + 4 ... gp + 4N

102. From Your Perspective Location* global = new Location(gpRelative, +8, locName);

103. From Your Perspective Location* global = new Location(gpRelative, +8, locName);

104. Summary of Memory Layout ● Most details abstracted away by IR format. ● Remember: ● Parameters start at fp + 4 and grow upward. ● Locals start at fp – 8 and grow downward. ● Globals start at gp + 0 and grow upward. ● You will need to write code to assign variables to these locations.

105. TAC for Objects, Part I class A { void fn(int x) { int y; y = x; } } int main() { A a; a.fn(137); }

106. TAC for Objects, Part I class A { void fn(int x) { int y; y = x; } } int main() { A a; a.fn(137); } _A.fn: BeginFunc 4; y = x; EndFunc; main: BeginFunc 8; _t0 = 137; PushParam _t0; PushParam a; LCall _A.fn; PopParams 8; EndFunc;

107. TAC for Objects, Part I class A { void fn(int x) { int y; y = x; } } int main() { A a; a.fn(137); } _A.fn: BeginFunc 4; y = x; EndFunc; main: BeginFunc 8; _t0 = 137; PushParam _t0; PushParam a; LCall _A.fn; PopParams 8; EndFunc;

108. A Reminder: Object Layout Method 0 Field 0 Vtable* Vtable* ... Field N Field 0 ... Field N Field 0 ... Field M Method 1 ... Method K Method 0 Method 1 ... Method K Method 0 ... Method L

109. TAC for Objects, Part II class A { int y; int z; void fn(int x) { y = x; x = z; } } int main() { A a; a.fn(137); }

110. TAC for Objects, Part II class A { int y; int z; void fn(int x) { y = x; x = z; } } int main() { A a; a.fn(137); } _A.fn: BeginFunc 4; *(this + 4) = x; x = *(this + 8); EndFunc; main: BeginFunc 8; _t0 = 137; PushParam _t0; PushParam a; LCall _A.fn; PopParams 8; EndFunc;

113. Memory Access in TAC ● Extend our simple assignments with memory accesses: ● var1 = *var2 ● var1 = *(var2 + constant) ● *var1 = var2 ● *(var1 + constant) = var2 ● You will need to translate field accesses into relative memory accesses.

114. TAC for Objects, Part III class Base { void hi() { Print("Base"); } } class Derived extends Base{ void hi() { Print("Derived"); } } int main() { Base b; b = new Derived; b.hi(); }

115. TAC for Objects, Part III class Base { void hi() { Print("Base"); } } class Derived extends Base{ void hi() { Print("Derived"); } } int main() { Base b; b = new Derived; b.hi(); }

116. TAC for Objects, Part III class Base { void hi() { Print("Base"); } } class Derived extends Base{ void hi() { Print("Derived"); } } int main() { Base b; b = new Derived; b.hi(); } _Base.hi: BeginFunc 4; _t0 = "Base"; PushParam _t0; LCall _PrintString; PopParams 4; EndFunc; Vtable Base = _Base.hi, ; _Derived.hi: BeginFunc 4; _t0 = "Derived"; PushParam _t0; LCall _PrintString; PopParams 4; EndFunc; Vtable Derived = _Derived.hi, ;

119. TAC for Objects, Part III class Base { void hi() { Print("Base"); } } class Derived extends Base{ void hi() { Print("Derived"); } } int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc;

120. TAC for Objects, Part III class Base { void hi() { Print("Base"); } } class Derived extends Base{ void hi() { Print("Derived"); } } int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; What's going on here?

121. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc;

122. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; hi Derived Vtable Code for Derived.hi

123. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi

124. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi

125. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b

126. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b

127. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4

128. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4

129. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 Param 1 4

130. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 Param 1 4

131. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 Param 1 4 (raw memory)

132. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 Param 1 4 (raw memory)

133. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 (raw memory)

134. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 (raw memory)

135. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 (raw memory) Allocate Object

139. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 VTable* Allocate Object

140. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 VTable* Allocate Object

141. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 VTable* Allocate Object Set Vtable

147. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 VTable* Allocate Object Set Vtable Load Function

148. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 VTable* Load Function Allocate Object Set Vtable

149. Dissecting TAC int main() { Base b; b = new Derived; b.hi(); } main: BeginFunc 20; _t0 = 4; PushParam _t0; b = LCall _Alloc; PopParams 4; _t1 = Derived; *b = _t1; _t2 = *b; _t3 = *_t2; PushParam b; ACall _t3; PopParams 4; EndFunc; fp of caller ra of caller hi Derived Vtable Code for Derived.hi _t0 _t1 _t2 _t3 b 4 VTable* Param 1 Load Function Allocate Object Set Vtable

154. OOP in TAC ● The address of an object's vtable can be referenced via the name assigned to the vtable (usually the object name). ● e.g. _t0 = Base; ● When creating objects, you must remember to set the object's vtable pointer or any method call will cause a crash at runtime. ● The ACall instruction can be used to call a method given a pointer to the first instruction.

155. Generating TAC

156. TAC Generation ● At this stage in compilation, we have ● an AST, ● annotated with scope information, ● and annotated with type information. ● To generate TAC for the program, we do (yet another) recursive tree traversal! ● Generate TAC for any subexpressions or substatements. ● Using the result, generate TAC for the overall expression.

157. TAC Generation for Expressions ● Define a function cgen(expr) that generates TAC that computes an expression, stores it in a temporary variable, then hands back the name of that temporary. ● Define cgen directly for atomic expressions (constants, this, identifiers, etc.). ● Define cgen recursively for compound expressions (binary operators, function calls, etc.)

158. cgen for Basic Expressions

159. cgen for Basic Expressions cgen(k) = { // k is a constant Choose a new temporary t Emit( t = k ); Return t }

160. cgen for Basic Expressions cgen(k) = { // k is a constant Choose a new temporary t Emit( t = k ); Return t } cgen(id) = { // id is an identifier Choose a new temporary t Emit( t = id ) Return t }

161. cgen for Binary Operators

162. cgen for Binary Operators cgen(e1 + e2 ) = { Choose a new temporary t Let t1 = cgen(e1 ) Let t2 = cgen(e2 ) Emit( t = t1 + t2 ) Return t }

163. An Example cgen(5 + x) = { Choose a new temporary t Let t1 = cgen(5) Let t2 = cgen(x) Emit (t = t1 + t2 ) Return t }

164. An Example cgen(5 + x) = { Choose a new temporary t Let t1 = { Choose a new temporary t Emit( t = 5 ) return t } Let t2 = cgen(x) Emit (t = t1 + t2 ) Return t }

165. An Example cgen(5 + x) = { Choose a new temporary t Let t1 = { Choose a new temporary t Emit( t = 5 ) return t } Let t2 = { Choose a new temporary t Emit( t = x ) return t } Emit (t = t1 + t2 ) Return t }

166. An Example cgen(5 + x) = { Choose a new temporary t Let t1 = { Choose a new temporary t Emit( t = 5 ) return t } Let t2 = { Choose a new temporary t Emit( t = x ) return t } Emit (t = t1 + t2 ) Return t } _t0 = 5 _t1 = x _t2 = _t0 + _t1

167. cgen for Statements ● We can extend the cgen function to operate over statements as well. ● Unlike cgen for expressions, cgen for statements does not return the name of a temporary holding a value. ● (Why?)

168. cgen for Simple Statements

169. cgen for Simple Statements cgen(expr;) = { cgen(expr) }

170. cgen for while loops

171. cgen for while loops cgen(while (expr) stmt) = { Let Lbefore be a new label. Let Lafter be a new label. Emit( Lbefore :) Let t = cgen(expr) Emit( IfZ t Goto Lafter ) cgen(stmt) Emit( Goto Lbefore ) Emit( Lafter : ) }

177. Next Time ● Intro to IR Optimization ● Basic Blocks ● Control-Flow Graphs ● Local Optimizations
