Smart line level transmitter sales presentation

SMARTLINE LEVEL OVERVIEW &
DIFFERENTIATION
Presenter Name
Date

© 2015 by Honeywell International Inc. All rights reserved.
Agenda
1
1. SmartLine Level Transmitter overview & benefits
2. SmartLine Level Transmitter new functions
3. Technology & tools differentiation
4. SmartLine Level Transmitter @ terminals
5. Summary
Smarter at every level

SmartLine Level Overview
Best-in-class technology & intuitive design tools
2
• Suitable for foam, dust, vapor, and other interfacial
applications
• Rapid changing levels
• Suitable for low dielectric media, down to 1.4 K
• ± 3mm (or 0.03%) accuracy
• ± 1mm repeatability
• 1 mm resolution
• at - 60°C to 450°C
• 0.4 m to 50m distance
SmartLine Level Performance
Guided Wave Radar Technology
Application and Validation Tool
• Cloud based tool
• Live, joint collaboration session
• Save and share output file
• Document your engineering effort
SLG 700 Series
Application and Validation Tool

3
SmartLine Level Customer Benefits
1. Best in class performance
2. Highest application flexibility
3. Universal transmitter wiring
4. Modular design
5. Transmitter messaging &
maintenance mode indication
Reliable process
measurement
Single offering to cover
varied applications
Reduce
troubleshooting
Reduce downtime &
inventory
Reduce
commissioning time
Reduce
life cycle cost
Customer Benefits

SmartLine Level Construction
4
TOPWORKS
DISPLAY/COMMUNICATION/TERMINATION
ROOK
POWER ACCUMULATION/SENSOR ELECTRONICS
PROCESS CONNECTOR
PROCESS SEAL/ISOLATION
PROBE
WAVEGUIDE (IN TANK)

Key Specifications
5
• Physical :
- Housing – SmartLine dual
compartment
- Process conn – threaded, flange
- Probes - single rod, co-axial, rope
- Probe MoC – SS 316, Hast-C
• Functional :
- Power supply – 2wire, 24VDC
- Measurement range – 50mts
- Process pressure -1 to 40bar
- Process temperature -40° to 200°C
• Performance :
- Accuracy - +/- 3mm or 0.03% of level
- Start up time - < 1min
- Protocol – HART, FF
- SmartLine modularity
Threaded Connection
• NPT
• BSP / G
Flange Connection Support
• ANSI B16.5 Flanges
• DIN EN 1092 Flanges
Special Flange Connections :
• Fisher 249B/259B
• Fisher 249N
• Masoneilan
Structural Components
• 316L
• Duplex 2205
• PTFE
Primary Seal Options – (O-Ring)
• VITON (-25°C to 200°C)
• KALREZ (-4°C to 200°C)
• EPDM (-54°C to 150°C)
• NITRILE [BUNA-N] (-40°C to 150°C)

New Functions at a Glance
6
1. HTHP SLG726 model -60 – 450 °C and pressure: -1 –
400 bar
2. Improved minimum blocking distance
3. Expanded support for long nozzles and bypass (all probe
types)
4. Hasteloy-C (C276) option for STSP SLG720
5. Best-in-class obstacle immunity
6. Advanced false echo suppression
7. Tank full – tank empty detection
8. Remote electronic compartment with 3 m cable
Expanded markets and applications

Technology and Tools Differentiation
7
• What is it?
- SmartLine’s method to detect the level
• How are we different?
- Competition does not use bi phase wave
- Competitive GWR transmitters detect the level using a peak detection
algorithm
 The maximum peak is the regarded as the desired reading
 Peak detection is as simple as detecting above a threshold value in some cases
- There are issues with using max peak
detection
 Some echo peaks are relatively flat
 Real world conditions are complex & varied
 Even pre-mapping for obstructions is not
reliable due to changing conditions
Example of threshold

8
 Biphase wave
provides larger
amplitude and more
structure – more
information for the
correlation algorithm
 Correlation algorithm
compares the shape
of the measured echo
curve with our
reflection model
 Objective function
analysis finds the
best level indication

9
Traditional Approach
• Model selection
mistakes
• Continuous changes
• F2F review meetings
• On-site changes
Application and Validation
Tool (AVT)
SmartLine Approach
• Live remote collaboration
• Tool selects correct model
• Documentation feature
• Fully pre-configured device
SAVE UP TO
2-8
WKShttps://levelconfig.honeywellsmartline.com/
Reduced engineering time, reduce errors

10
Benefits at Project Level
Customers,
Channel Partners
Fully pre-configured transmitter to reduce commissioning time

Why Should Customer Buy from Honeywell?
11
Attribute Honeywell SmartLine So What?
Bi-Phase Wave
Technology
Bi-Phase wave provides larger
amplitude and more structure –
more information for the
Correlation Algorithm.
There are issues with using max peak
detection
 Some echo peaks are relatively flat
 Real world conditions are complex and
varied. Even pre-mapping for obstructions
is not reliable due to changing conditions.
Bottom line, potential error in level
measurement in dynamic conditions
Advanced
Correlation
Algorithm
Correlation Algorithm compares
the shape of the measured echo
curve with our reflection model
Objective function analysis finds
the best level indication
Cloud Design Tool Online & Collaborative
engineering tool for error free
instrument selection & delivery of
fully pre-configured transmitter
on-site
Errors in instrument selection resulting in
costly on-site delays adversely impacting
commissioning schedule.
Need more skilled resources to do on-site
configuration work
DTM Technology Intuitive guided user experience
to leverage most of advanced
DTM
Old DTM technology is cumbersome &
limits usability for actionable information
Technology & Tools
Intuitive tools & reliable measurement than Emerson

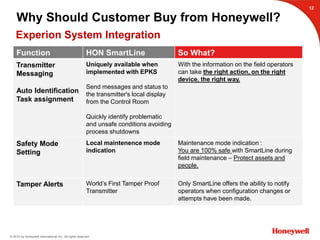

12
Function HON SmartLine So What?
Transmitter
Messaging
Auto Identification
Task assignment
Uniquely available when
implemented with EPKS
Send messages and status to
the transmitter's local display
from the Control Room
Quickly identify problematic
and unsafe conditions avoiding
process shutdowns
With the information on the field operators
can take the right action, on the right
device, the right way.
Safety Mode
Setting
Local maintenence mode
indication
Maintenance mode indication :
You are 100% safe with SmartLine during
field maintenance – Protect assets and
people.
Tamper Alerts World’s First Tamper Proof
Transmitter
Only SmartLine offers the ability to notify
operators when configuration changes or
attempts have been made.
Experion System Integration

13
Modular Design Common Measurement
Platform
Common HMI interface, and
operation across all
measurements
Field swappable modules
Simple and fast field maintenance and
repairs inside all electrical approval
environments
* except flameproof or explosion proof
No need to remove transmitter for repair,
reducing downtime and maintenance
cost
Modular design optimized inventory stock
to support a wide set of transmitters
External 3-button
Configuration:
Honeywell
No special tools required
Complete local configuration
No cover removal
HazLoc compliant
Eliminates handheld requirement for
local set-up
Reduces time needed to perform routine
maintenance.
Usability
SmartLine makes your life on the field easier

14
Universal
transmitter
terminals
Impossible to field wire
incorrectly
Eliminate wiring error 100%. Avoid project
start up , minimize offsite labor.
Advanced Display Full graphical Display
Multiple Local Views
Local Charts
Local Diagnostics
Local field trouble shooting and diagnostics
for simple and fast maintenance/repair
Respond faster to Configuration changes
right in the field
Gain insight in to the process through
trending
Usability
SmartLine makes your life on the field easier

15
SmartLine Applications in Terminals
SmartLine Level Applications
Non Custody Transfer
• Crude storage tanks
• Additives tanks
• Process tanks
• Water tanks
• Underground tanks
• Slop tanks
Smart Line Pressure & Temp.
• Density measurement
(PT at tank bottom)
• Product pipeline
(PT & TT compensation)
• Spot temperature
Automated Overfill Protection
System
Solution Components
• Overfill Sensor w/ SIL2 Output: SmartLine GWR
• Safety Logic Solver SIL2: HC900 system
• Safety Shutdown Valve SIL2: 3rd Party
Value
• Fully pre-configured, integrated solution from single
vendor to reduce incidents & meet regulatory safety
requirements in reduced cost and schedule

SmartLine Level Value Proposition
16
Cloud based tool (AVT)
allows online
collaboration to
expedite design
engineering
SmartLine's unique
Integration with Experion
improves troubleshooting,
operation & maintenance.
Universal transmitter
wiring reduces re-work &
delays due to wiring
mistakes.
Biphase technology &
co-relation algorithm
increase measurement
reliability
SmartLine level transmitters bring differentiated technology, intuitive
design tools & advance Experion integration capabilities for reliable
measurement, reduced cost & faster commissioning
We do this by

Thank You
